2.Turn the cap (B) anticlockwise to re-
move it.
*: Front of the vehicle

3. Turn the socket (C) anticlockwise to re-
move it, and then pull the bulb out of the
socket.
4. To install the bulb, perform the removal
steps in reverse.Headlamps (high-beam)
E01009401246
1. When replacing the bulb on the right
side of the vehicle, remove the clip (A) holding down the washer tank and move
the washer tank.
*: Front of the vehicle
2. Turn the cap (B) anticlockwise to re-
move it.
*: Front of the vehicle

3. Turn the bulb (C) anticlockwise to re-
move it, and then while holding down
the tab (D), pull out the connector (E).
Replacement of lamp bulbs
11-25OGGE14E5Maintenance11

4.To install the bulb, perform the removal
steps in reverse.Position lamps
E01003702231
When replacing the bulb on the left side of the vehicle, move the relay box.
(Refer to “Headlamps (low beam, halogen
bulb): Step 1” on page 11-25)
Except for vehicles equippedwith high intensity discharge
headlamps
1. Turn the cap (A) anticlockwise to re-
move it.
*: Front of the vehicle
2. Pull out the socket (B), and then pull the
bulb out of the socket.
3. To install the bulb, perform the removal
steps in reverse.
Vehicles equipped with high in-
tensity discharge headlamps
1. Turn the socket (A) anticlockwise to re-
move it, and then pull the bulb out of the
socket.
*: Front of the vehicle
2. To install the bulb, perform the removal
steps in reverse.
Replacement of lamp bulbs
11-26OGGE14E5Maintenance11

Front turn-signal lamps
E01003802199
1. Turn the socket (A) anticlockwise to re-
move it, then remove the bulb from the socket by turning it anticlockwise whilepressing in.
*: Front of the vehicle
2. To install the bulb, perform the removal
steps in reverse.
Front fog lamps/Daytime run-
ning lamps
E01004002811
1. Insert a straight blade (or minus) screw-
driver with a cloth over its tip at the edge
of the cover (A) and pry gently to re-
move the cover.
2. Remove the 3 screws (B) and remove
the lamp unit.
3. Turn the bulb or socket anticlockwise to
remove it.
C- Front fog lamp
D- Daytime running lamp

4. While holding down the tab (E), pull out
the bulb (F).
Replacement of lamp bulbs
11-27OGGE14E5Maintenance11 Daytime running lampFront fog lamp

5.To install the bulb, perform the removal

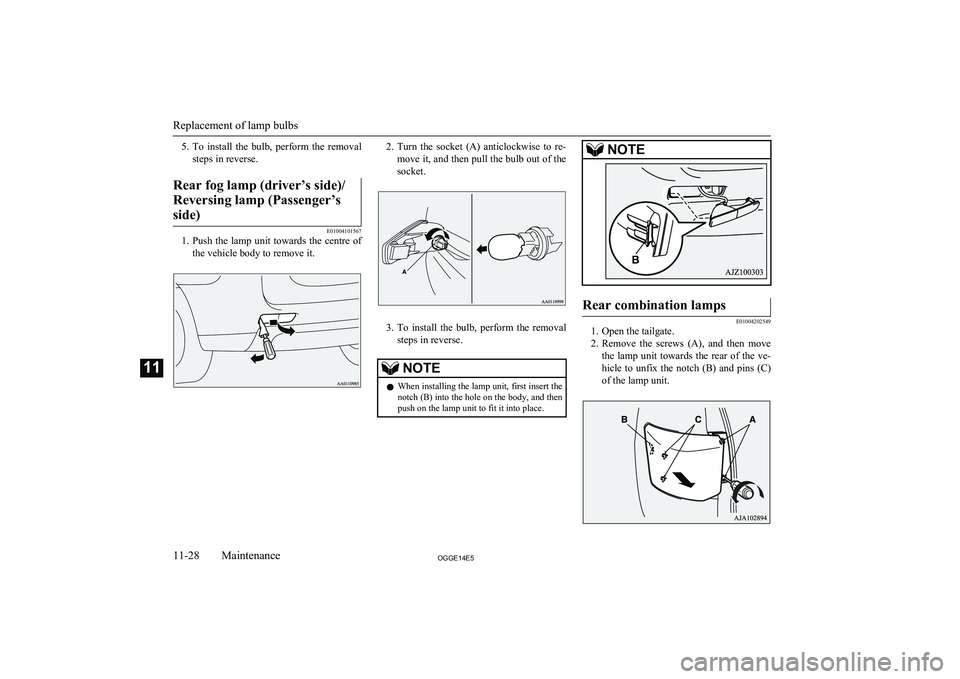

steps in reverse.Rear fog lamp (driver’s side)/
Reversing lamp (Passenger’sside)
E01004101567
1. Push the lamp unit towards the centre of
the vehicle body to remove it.
2. Turn the socket (A) anticlockwise to re-
move it, and then pull the bulb out of the socket.
3. To install the bulb, perform the removal
steps in reverse.
NOTEl When installing the lamp unit, first insert the
notch (B) into the hole on the body, and thenpush on the lamp unit to fit it into place.NOTERear combination lamps
E01004202549
1. Open the tailgate.
2. Remove the screws (A), and then move
the lamp unit towards the rear of the ve-hicle to unfix the notch (B) and pins (C)
of the lamp unit.
Replacement of lamp bulbs
11-28OGGE14E5Maintenance11

3.Turn the socket anticlockwise and re-
move it, and then remove the bulb from the socket by turning it anticlockwise
while pressing in.D-Stop and tail lamp (LED) - Cannot be
replacedE-Rear turn-signal lamp
4. To install the bulb, perform the removal
steps in reverse.
NOTEl When installing the lamp unit, align the
notch (F) and pin (G) on the lamp unit with the clip (H) and hole (I) in the body.Licence plate lamps
E01004600679
1. Remove while pressing the lamp unit
(A) to the left side of the vehicle.
2. Insert a minus screwdriver with the end
covered with a cloth or other object to press the hook (B) aside and remove the lens.
3. Remove the bulb from the socket.
4. To install the bulb, perform the removal
steps in reverse.
Replacement of lamp bulbs
11-29OGGE14E5Maintenance11

NOTElWhen installing the lamp unit, first insert the
end of tab (C) and then align tab (D).Masking the headlamps
E01011601056
When entering a country in which vehiclesare driven on the opposite side of the road to the country in which your vehicles is sup-plied, necessary measures have to be taken to
avoid dazzling oncoming traffic.
High intensity discharge head-lamp type
Do not need any adjustment.
Halogen headlamp type
Mask the headlamps according to the next
procedure. 1. Turn the headlamp off and wait until the
headlamps got cold.
2. According to the illustrations, prepare
the sticker (A) to stick the headlamp sur-
face of right and left.
NOTEl Use a sticker with a light blocking effect
enough.
Using of a sticker without a light blocking
effect will not acquire a blocking effect.
3. Seeing from the headlamp front, position
(C) of the sticker and the central mark
(B) of the headlamp and stick a sticker along the vertical dotted line.
NOTEl Align the vertical dotted line with the line of
the reflector in the headlamp.LHDLeft lensRight lens
Masking the headlamps
11-30OGGE14E5Maintenance11

RHDRight lensLeft lens
Masking the headlamps
11-31OGGE14E5Maintenance11
