2014 MITSUBISHI OUTLANDER PHEV Owner's Manual (in English)

NOTElDepending on the type of the USB memory
device or other device connected, the con-
nected device may not function properly or the available functions may be limited.
l It is recommended to use an iPod with firm-
ware updated to the latest version.
l You can charge your iPod by connecting it
to the USB input terminal when the opera- tion mode is in ON or ACC.
l Do not keep your USB memory device or
iPod in your vehicle.
l It is recommended that you back up files in
case of data damage.
l Do not connect to the USB input terminal
any device (hard disk, card reader, memory reader, etc.) other than the connectable devi-
ces specified in the previous section. The de- vice and/or data may be damaged. If any of these devices was connected by mistake, re-
move it after putting the operation mode in OFF.File specifications
E00762401056
You can play music files of the following
specifications that are saved in a USB memo-ry device or other device supporting mass
storage class. When you connect your iPod, playable file specifications depend on the connected iPod.
ItemConditionFile formatMP3, WMA, AAC,
WAVMaximum number of levels
(including the root)
Level 8
Number of folders700Number of files65,535Sun visors
E00711202277
1- To eliminate front glare2- To eliminate side glare
Vanity mirror
A vanity mirror is fitted to the back of the sun visor.
Operating the lid of the vanity mirror will au-
tomatically turn on the mirror lamp (A).CAUTIONl If the lid of vanity mirror with lamp is kept
open for prolonged periods of time, the aux-
iliary battery will be discharged.
Sun visors
8-69OGGE14E5For pleasant driving8

Card holder
Cards can be slipped into the holder (B) onthe back of the sun visor.
Ashtray*
E00711401100CAUTIONlPut out matches and cigarettes before they
are placed in the ashtray.
l Don’t put papers and other things that burn
into your ashtrays. If you do, cigarettes or
other smoking materials could set them on fire, causing damage.
l Always close the ashtray. If left open, other
cigarette butts in the ashtray may be rekin-
dled.To use the ashtray, open the lid.
Mounting position for movea-
ble ashtray
The moveable ashtray can be fitted at the in- dicated position.
Cigarette lighter*
E00711502528
The cigarette lighter can be used while the
operation mode is in ON or ACC.
1- Push all the way in.
The cigarette lighter will automatically return to its original position with a “click” when ready. Pull it out for use.
After use, insert the cigarette lighter to its
original position in the socket.
NOTEl Do not leave the cigarette lighter removed
from its socket, because the socket might be- come clogged by foreign material and be
short-circuited.
Ashtray*
8-70OGGE14E5For pleasant driving8

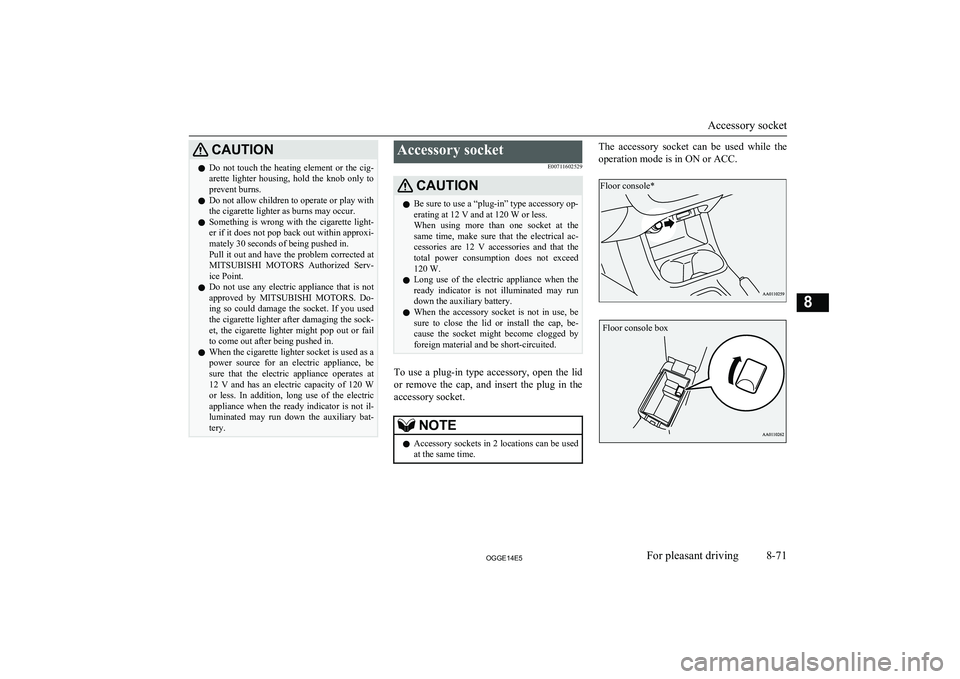

CAUTIONlDo not touch the heating element or the cig-
arette lighter housing, hold the knob only to prevent burns.
l Do not allow children to operate or play with
the cigarette lighter as burns may occur.
l Something is wrong with the cigarette light-
er if it does not pop back out within approxi-
mately 30 seconds of being pushed in.
Pull it out and have the problem corrected at MITSUBISHI MOTORS Authorized Serv-
ice Point.
l Do not use any electric appliance that is not
approved by MITSUBISHI MOTORS . Do-
ing so could damage the socket. If you used
the cigarette lighter after damaging the sock- et, the cigarette lighter might pop out or fail
to come out after being pushed in.
l When the cigarette lighter socket is used as a
power source for an electric appliance, be sure that the electric appliance operates at
12 V and has an electric capacity of 120 W or less. In addition, long use of the electricappliance when the ready indicator is not il-
luminated may run down the auxiliary bat- tery.Accessory socket
E00711602529CAUTIONlBe sure to use a “plug-in” type accessory op-
erating at 12 V and at 120 W or less.
When using more than one socket at the same time, make sure that the electrical ac-
cessories are 12 V accessories and that the total power consumption does not exceed
120 W.
l Long use of the electric appliance when the
ready indicator is not illuminated may run
down the auxiliary battery.
l When the accessory socket is not in use, be
sure to close the lid or install the cap, be-
cause the socket might become clogged by foreign material and be short-circuited.
To use a plug-in type accessory, open the lid
or remove the cap, and insert the plug in the accessory socket.
NOTEl Accessory sockets in 2 locations can be used
at the same time.The accessory socket can be used while the
operation mode is in ON or ACC.
Accessory socket
8-71OGGE14E5For pleasant driving8 Floor console* Floor console box

Interior lampsE00712002328
1- Luggage room lamp
2- Room lamp (rear)
3- Map & room lamps (front)
4- Downlight ® p. 6-45
NOTEl If you leave the lamps on when the ready in-
dicator is not illuminated, you will run down the auxiliary battery.
Before you leave the vehicle, make sure that
the lamps are turned off.Room lamps
E00712102404
Position
of lamp switchOn/off control1-ON
(
)
The lamp illuminates regardless
of whether a door or the tailgate
is open or closed.Position of lamp switchOn/off control2-DOOR
(•)The lamp illuminates when a
door or the tailgate is opened. It
goes off about 15 seconds after
all doors and the tailgate are
closed.
However, the lamp goes off im-
mediately with all doors and the
tailgate closed in the following
cases:l When the operation mode is
put in ON.l When the central door lock
function is used to lock thevehicle.l When the keyless operation
key is used to lock the vehi-cle.l When the keyless operation
function is used to lock thevehicle.3-OFF
(
)
The lamp goes off regardless of
whether a door or the tailgate is
open or closed.
Interior lamps
8-72OGGE14E5For pleasant driving8 Front Rear

NOTElWhen the operation mode is put in OFF
while the doors and tailgate are closed, the
lamp illuminates and after about 15 seconds it goes off.
l The time until the lamp goes off can be ad-
justed. For details, please consult a
MITSUBISHI MOTORS Authorized Serv-
ice Point. On vehicles equipped with
MITSUBISHI Multi-Communication Sys-
tem (MMCS), screen operations can be used
to make the adjustment. Refer to the separate
owner’s manual for details.Map lamps
E00712400168
Push the lens (A) to turn on the lamp. Push it
again to turn it off.
Luggage room lamp
E00712700709
1- ()
The lamp illuminates regardless of whether the tailgate is open or closed.
2- (
)
The lamp illuminates when the tailgate is opened, and goes off when the tailgate is
closed.
3- (
)
The lamp goes off regardless of whether the tailgate is open or closed.
Lamps (room lamps, etc.) auto-
cutout function
E00712902385
If any of the interior lamps are left switched on with the operation mode in OFF, it goesoff automatically after approximately 30 mi-
nutes.
The lamps will illuminate again after they au-
tomatically go off if the power switch is op-
erated, if one of the doors or the tailgate is opened or closed, or if the keyless entry sys-
tem or keyless operation system is operated.NOTEl The interior lamp auto-cut function can be
deactivated. The time until the lamps auto- matically go off can be adjusted. For details
and support, consult your nearest
MITSUBISHI MOTORS Authorized Serv-
ice Point.
On vehicles equipped with MITSUBISHI
Multi-Communication System (MMCS),
screen operations can be used to make the adjustment. Refer to the separate owner’s
manual for details.Storage spaces
E00713103033CAUTIONlNever leave lighters, cans of carbonated
drink, and spectacles in the cabin when park-ing the vehicle in hot sunshine. The cabin will become extremely hot, so lighters and
other flammable items may catch fire and unopened drink cans may rupture. Also,spectacles with plastic lenses or materials
could deform or crack.
Storage spaces
8-73OGGE14E5For pleasant driving8

CAUTIONlKeep the lids of storage spaces closed while
driving the vehicle. A lid or the contents of a
storage space could otherwise cause injuries.
1- Luggage floor box
2- Floor console box
3- Glove box
Glove box
E00726201278
To open, pull the lever (A).
NOTEl When the lamps are illuminated with the
lamp switch in the “”, “”, or “AU-
TO” position, the glove box lamp illumi- nates.Card holder
There is a card holder inside the glove box.
Floor console box
E00723302031
To open the console box, lift the release lever
(A) and raise the lid.
The floor console box can also be used as an
armrest.
Storage spaces
8-74OGGE14E5For pleasant driving8

B- Tissue holder
C- Pen holder
D- Tray
NOTEl The USB input terminal is located in the
floor console box. For details, refer to “USB
input terminal” on page 8-66.Luggage floor box
E00718701795
The box for storing articles is located inside
the luggage compartment.
To use the box, raise the luggage floor board
(A).
To use the luggage floor box in the rear seat
side, insert your hand in the gap (B) and raise the board (A) to the seat side.
WARNINGl Do not place any object around the
“”mark, since it marks the auxiliary
battery under the luggage floor box. If the battery cover is broken, battery fluid may
leak. If it adheres to your skin or gets in
your eyes, serious injury may result.Cup holder
E00714501043CAUTIONlDo not drink beverages while driving. This
is distracting and could cause an accident.
Cup holder
8-75OGGE14E5For pleasant driving8

For the front seat
The cup holder is located in front of the floorconsole.
For the rear seat
E00716901562
In order to use the cup holder, allow the arm-
rest to drop down.
Bottle holder
E00718200360CAUTIONlDo not drink beverages while driving. This
is distracting and could cause an accident.
l Drinks could be spilled by the vibration and
jolts while driving. If the spilt drink is very
hot, you could be burnt.
There are bottle holders located on both sides
of front and rear doors.
NOTEl Do not store cup or drink can in the bottle
holder.
l Tightly close the cap on drink bottles before
storing them.
l Some bottles may be too big or the wrong
shape to fit in the holder.Cargo area cover
E00733601085
To use
1. Draw out the cover retracted by spring
and insert it in the mounting grooves (A).
2. Remove the cover from the mounting
grooves, and the cover will roll back into
the retracted position.
Bottle holder
8-76OGGE14E5For pleasant driving8
