:Operating rangeNOTElEven if it is within the operating range, if the
keyless operation key is in a small item
holder such as the glove box, on top of the instrument panel, door pocket or in the lug-gage area, it may be impossible to start the
engine.
l If a keyless operation key is too close to the
door or door window, it may be possible to
start the engine or change the operation
mode even when the key is outside the vehi- cles.To operate using the keyless
operation function
E00305800922
Locking the doors and tailgate
When you are carrying the keyless operation
key, if you press the driver’s or front passen- ger’s door lock/unlock switch (A), or the tail-
gate LOCK switch (B) within the operating range, the doors and the tailgate are locked.
The turn-signal lamps will blink once.
Also refer to “Locking and unlocking: Doors,
Central door locks, Tailgate” on pages 4-14,
4-16 and 4-18.Driver’s or front passenger’s door
lock/unlock switches
NOTEl For vehicles equipped with the mirror retrac-
tor switch, the outside rear-view mirrors au-
tomatically retract when all the doors and
tailgate are locked using the keyless opera- tion function.
Refer to “Outside rear-view mirrors” on
page 7-06.
l The keyless operation function does not op-
erate under the following conditions:
• The keyless operation key is inside the
vehicle.
• A door or the tailgate is open or ajar.
l The tailgate open switch (C) can be used to
check that the vehicle is locked properly.
Press the tailgate open switch within about 3 seconds of locking the vehicle. If you wait
longer than 3 seconds and press the tailgate open switch, the doors and tailgate will be unlocked.
l The time allowed for checking that the vehi-
cle is locked can be adjusted. For further in- formation, please contact your
MITSUBISHI MOTORS Authorized Serv-
ice Point.
On vehicles equipped with MITSUBISHI
Multi-Communication System (MMCS), screen operations can be used to make theadjustment. Refer to the separate owner’s
manual for details.
Keyless operation system
4-09OGGE14E5Locking and unlocking4 Tailgate switches

Unlocking the doors and tail-gate
When you are carrying the keyless operation
key, if you press the driver’s or front passen- ger’s door lock/unlock switch (A), or the tail-gate open switch (B) within the operating
range, all the doors and the tailgate are un-
locked.
If the front room lamp switch is in the “DOOR” position or the rear room lampswitch is in the middle (•) position at this
time, the room lamp will turn on for 15 sec-
onds. The turn-signal lamps will blink twice. If the driver’s or front passenger’s door lock/
unlock switch is pressed and any of the doors or tailgate is not opened within approximate-
ly 30 seconds, relocking will automatically occur.
Also refer to “Locking and unlocking: Doors, Central door locks, Tailgate” on pages 4-14,
4-16 and 4-18.
Driver’s and front passenger’s door lock/unlock switchesTailgate open switch
NOTEl For vehicles equipped with the mirror retrac-
tor switch, the outside rear-view mirrors au-
tomatically extend when all the doors and tailgate are unlocked using the keyless oper-
ation function.
Refer to “Outside rear-view mirrors” on page 7-06.
l The keyless operation function can be set so
that only the driver’s door unlocks when the
driver’s door lock/unlock switch is pressed.
If the keyless operation function is set to
work as described above, all the doors and the tailgate unlock when the driver’s doorlock/unlock switch is pressed two times in
succession.
Refer to “Setting of door and tailgate unlock function” on page 4-05.
l The keyless operation function does not op-
erate under the following conditions:
• A door or the tailgate is open or ajar.NOTEl In order to make it possible to check that the
doors and tailgate are locked, you cannot un-
lock them by using the tailgate open switch for 3 seconds after locking them.
l The time allowed for checking that the vehi-
cle is locked can be adjusted. For further in- formation, please contact your
MITSUBISHI MOTORS Authorized Serv-
ice Point.
On vehicles equipped with MITSUBISHI
Multi-Communication System (MMCS),
screen operations can be used to make the adjustment. Refer to the separate owner’s
manual for details.
l The time between unlocking and automatic
locking can be adjusted. Consult a
MITSUBISHI MOTORS Authorized Serv-
ice Point.
On vehicles equipped with MITSUBISHI
Multi-Communication System (MMCS),
screen operations can be used to make the adjustment. Refer to the separate owner’s
manual for details.
Operation confirmation when locking and
unlocking
Operation can be confirmed as shown below. However, the room lamp will only illuminate if the front room lamp switch is in the
“DOOR” position or the rear room lamp switch is in the middle (•) position.
Keyless operation system
4-10OGGE14E5Locking and unlocking4

When locking:The turn-signal
lamps will blink
once.When unlocking:The room lamp will
illuminate for ap-
proximately 15 sec-
onds, the turn-signal
lamps will blink
twice.NOTEl Functions can be modified as stated below.
For further information, please contact your
MITSUBISHI MOTORS Authorized Serv-
ice Point.
On vehicles equipped with MITSUBISHI
Multi-Communication System (MMCS), screen operations can be used to make the
adjustment. Refer to the separate owner’s
manual for details.
• Set the confirmation function (blinking of
the turn-signal lamps) to operate only when the vehicle is locked or only when the vehicle is unlocked.
• Disable the operation confirmation func-
tion (blinking of the turn-signal lamps).
• Change the number of blinks for the oper-
ation confirmation function (blinks of theturn-signal lamps).
Keyless operation system
4-11OGGE14E5Locking and unlocking4

Warning activation
E00305901715
In order to prevent vehicle theft or the accidental operation of the keyless operation system, the buzzer and the display on the information screen
in the multi-information display are used to alert the driver.If a warning is activated, always check the vehicle and the keyless operation key. The warning is also displayed if there is a fault in the keyless operation system.
ItemDisplayBuzzerNote (Solution)Detection of failureInner buzzer sounds
onceThere is a fault in the keyless operation system.Fall of battery voltageInner buzzer sounds
onceThe battery starts to run out, the warning is activated. (The warning is not activated if the battery is completely dead.)Key not detectedInner buzzer sounds
onceWhen the engine switch is turned to the ACC or ON from OFF
or when the engine is started, the warning is activated, if any of
the following conditions is occurred.
l Carrying another keyless operation key with a different
code, or the keyless operation key could be outside the op- erating range.
l The battery of the keyless operation key is dead.
l Communication is blocked by electric wave environment.Keyless operation key
reminderInner buzzer sounds
about 1 minute
Outer buzzer sounds
about 3 seconds inter-
mittentlyIf the operation mode is in OFF and the driver’s door is opened
with the keyless operation key in the key slot, a warning is is-
sued and the outer buzzer sounds for about 3 seconds and the in-
ner buzzer sounds for about 1 minute to remind you to remove
the key. If the key removed from key slot, the buzzer is stopped.
Keyless operation system
4-12OGGE14E5Locking and unlocking4

ItemDisplayBuzzerNote (Solution)Keyless operation key
take-out monitoring sys-
temInner buzzer sounds
once
Outer buzzer sounds in-
termittentlyl When the vehicle is parked with the operation mode in any
mode other than OFF, if you close the door after opening
any of the doors and taking the keyless operation key out of
the vehicle, a warning is issued until the key is detected in the vehicle.
l If you take the keyless operation key out of the vehicle
through a window without opening a door, the keyless op-
eration key take-out monitoring system does not operate.
l It is possible to change the setting to make the keyless oper-
ation key take-out monitoring system operate if you take
the keyless operation key out from the vehicle through a
window without opening a door.
For further information, please contact a MITSUBISHI
MOTORS Authorized Service Point.
l Even if you have the keyless operation key within the en-
gine start operating range, if the keyless operation key and
vehicle ID codes cannot be matched, for example due to the ambient environment or electromagnetic conditions, the
warning may be activated.Key lock-in prevention
systemInner buzzer sounds
once
Outer buzzer sounds
about 3 seconds inter-
mittentlyl When the operation mode is in OFF, if you close all the
doors and the tailgate with the keyless operation key left inthe vehicle and you try to lock the doors and tailgate by
pressing the driver’s or front passenger’s door lock/unlock
switch, or the tailgate LOCK switch, a warning is issued and you cannot lock the doors and tailgate.
l Make sure you have the keyless operation key with you be-
fore locking the doors. Even if you leave the keyless opera- tion key inside the vehicle, it is possible that the doors will
lock depending on the surrounding environment and wire-
less signal conditions.
Keyless operation system
4-13OGGE14E5Locking and unlocking4

ItemDisplayBuzzerNote (Solution)Door ajar prevention
systemInner buzzer sounds
once
Outer buzzer sounds
about 3 seconds inter-
mittentlyWhen the operation mode in OFF, if you try to lock the doors
and tailgate by pressing the driver’s or front passenger’s door
lock/unlock switch, or the tailgate LOCK switch with one of the
doors or the tailgate not completely closed, a warning is issued
and you cannot lock the doors and tailgate.Operation mode OFF re-
minder systemInner buzzer sounds
once
Outer buzzer sounds
about 3 seconds inter-
mittentlyWhen the operation mode is in any mode other than OFF, if you
close all the doors and the tailgate then try to lock the doors and
tailgate by pressing the driver’s or front passenger’s door lock/
unlock switch, or the tailgate LOCK switch, a warning is issued and you cannot lock the doors and tailgate.

To operate without using the
keyless operation function
E00306000019
Emergency key
E00307201464
The emergency key is built into the keyless operation key. If the keyless operation func-
tion cannot be used, for example because the keyless operation key battery has worn out or the vehicle battery is flat, you can lock and
unlock the driver’s door and start the engine
with the emergency key.
To use the emergency key (A), unlock the lock knob (B) and remove it from the keyless
operation key (C).
Refer to “Doors” on page 4-14, or “If the
keyless operation key is not operating proper- ly” on page 7-12.NOTEl Only use the emergency key for emergen-
cies. If the keyless operation key batterywears out, replace it as quickly as possible
so that you can use the keyless operation
key.
l After using the emergency key, always re-
turn it into the keyless operation key.Doors
E00300402291CAUTIONlMake sure the doors are closed: driving with
doors not completely closed is dangerous.
l Never leave children in the vehicle unatten-
ded.
Doors
4-14OGGE14E5Locking and unlocking4

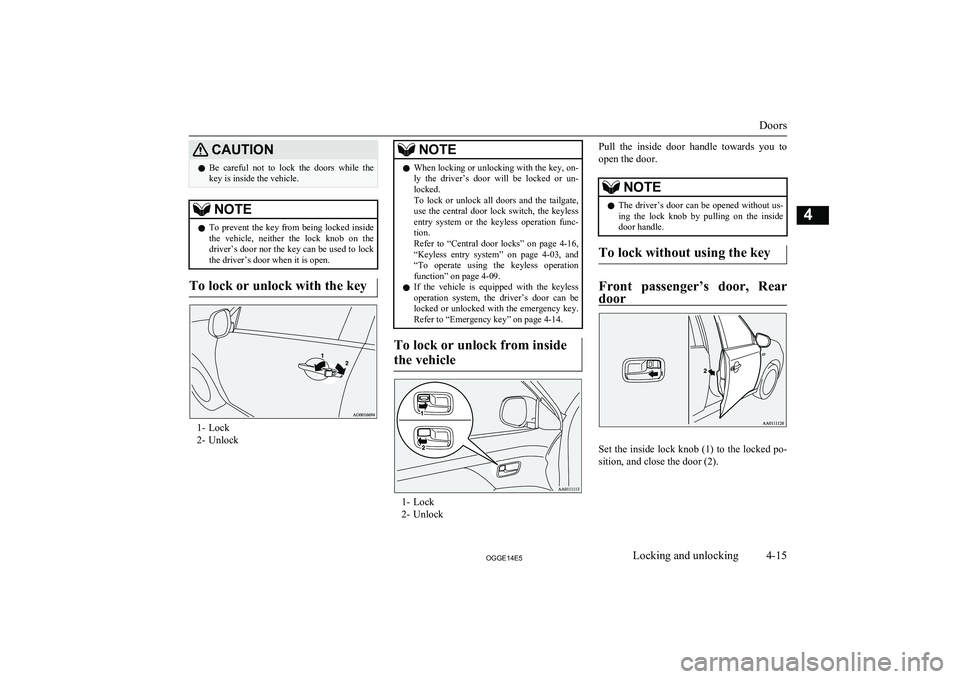

CAUTIONlBe careful not to lock the doors while the
key is inside the vehicle.NOTEl To prevent the key from being locked inside
the vehicle, neither the lock knob on the
driver’s door nor the key can be used to lock the driver’s door when it is open.
To lock or unlock with the key
1- Lock
2- Unlock
NOTEl When locking or unlocking with the key, on-
ly the driver’s door will be locked or un-
locked.
To lock or unlock all doors and the tailgate,
use the central door lock switch, the keyless entry system or the keyless operation func- tion.
Refer to “Central door locks” on page 4-16,
“Keyless entry system” on page 4-03, and
“To operate using the keyless operation function” on page 4-09.
l If the vehicle is equipped with the keyless
operation system, the driver’s door can be
locked or unlocked with the emergency key. Refer to “Emergency key” on page 4-14.
To lock or unlock from inside
the vehicle
1- Lock
2- Unlock
Pull the inside door handle towards you to
open the door.NOTEl The driver’s door can be opened without us-
ing the lock knob by pulling on the inside
door handle.
To lock without using the key
Front passenger’s door, Rear
door
Set the inside lock knob (1) to the locked po-
sition, and close the door (2).
Doors
4-15OGGE14E5Locking and unlocking4

Central door locksE00300801937NOTElRepeated continuous operation between lock
and unlock could activate the central door
locking systems built-in protection circuit
and prevent the system from operating. If
this occurs, wait approximately 1 minute be- fore operating the central door lock switch.
l When the driver’s door is open, the central
door lock switch cannot be used to lock it.To lock and unlock the doors
and tailgate
Using the central door lock
switch
Using the central door lock switch on the
driver’s door locks or unlocks all doors and the tailgate.
1- Lock
2- Unlock
To unlock the doors and tail-
gate
E00311301336
You can select the function to unlock the doors and tailgate using the engine switch.
This function is not activated when the vehi- cle is shipped from the factory. To activate or deactivate this function, please contact aMITSUBISHI MOTORS Authorized Service
Point.
Using the power switch
All doors and the tailgate will unlock when-
ever the operation mode is put in OFF.
Dead Lock System*
E00305100198
The Dead Lock System helps prevent theft.
When the keyless entry system or the keyless operation system has been used to lock all of
the doors and the tailgate, the Dead Lock System makes it impossible to unlock the
doors using the inside lock knobs.
CAUTIONl Do not set the Dead Lock System when
someone is inside the vehicle. With the Dead
Lock System set, it is not possible to unlock
the doors using the inside lock knobs. If you
erroneously set the Dead Lock System, un- lock the doors using the UNLOCK switch
on the remote control switch or using the
keyless operation function.
Central door locks
4-16OGGE14E5Locking and unlocking4 LHD RHD
