Vehicle labeling................................................................................ 12-02
Vehicle dimensions........................................................................... 12-04
Vehicle performance......................................................................... 12-05 Vehicle weight.................................................................................. 12-05
Engine specifications........................................................................ 12-06
Charging system specifications.........................................................12-06
Electric motor specifications.............................................................12-08
Low voltage electrical system........................................................... 12-08Tyres and wheels...............................................................................12-08
Fuel consumption.............................................................................. 12-09
Refill capacities................................................................................. 12-10Specifications
OGGE14E512

Vehicle labelingE01100104385
Vehicle identification number
The vehicle identification number is stamped on the bulkhead as shown in the illustration.
Vehicle information code plate
The vehicle information code plate is riveted as shown in the illustration.
The plate shows the model code, engine
model, transaxle model and body colour
code, etc.
Please use this number when ordering re-
placement parts.
1- Model code
2- Engine model code
3- Transaxle model code
4- Body colour code
5- Interior code
6- Option code
7- Exterior code
Vehicle labeling
12-02OGGE14E5Specifications12 AA0112992

Vehicle identification numberplate (RHD vehicles only)
The vehicle identification number is stamped on the plate riveted to the left front corner of the instrument panel pad. It is visible from
outside of the vehicle through the wind- screen.
Engine number
The engine number is stamped on the enginecylinder block as shown in the illustration.
*: Front of the vehicle
Electric motor number
The electric motor number is stamped as shown in the illustration.
*: Front of the vehicle
Vehicle labeling
12-03OGGE14E5Specifications12 Front Motor Rear Motor Generator

Vehicle dimensionsE011002042141Front track1,540 mm2Overall width1,800 mm3Front overhang955 mm4Wheel base2,670 mm5Rear overhang1,030 mm6Overall length4,655 mm7Ground clearance (unladen)190 mm8Overall height (unladen)1,680 mm9Rear track1,540 mm
Vehicle dimensions
12-04OGGE14E5Specifications12

Minimum turning radiusBody5.73 mWheel5.3 m

Vehicle performanceE01100303553Maximum speed170 km/h

Vehicle weightE01100406728Seating capacity5 personsKerb weightWithout optional parts1,810 kgWith full optional parts1,872 kgMaximum gross vehicle weight2,310 kg
Maximum axle weight
Front1,160 kgRear1,255 kg, 1,365 kg*Maximum towable weightWith brake1,500 kgWithout brake750 kgMaximum trailer-nose weight75 kgMaximum roof load80 kg*
: In case of trailer towing
Vehicle performance
12-05OGGE14E5Specifications12

NOTElTrailer specifications indicate the manufacturer’s recommendation.

Engine specifications
E01100603950Engine model4B11No. of cylinders4 in lineTotal displacement1,998 ccBore86.0 mmStroke86.0 mmCamshaftDouble overheadMixture preparationElectronic injectionMaximum output (EEC net)89 kW/4,500 rpmMaximum torque (EEC net)190 Nm/4,500 rpm

Charging system specifications E01101901060Normal charging systemRated input voltageAC 230V (single phase)Rated input frequency50 Hz/60 Hz*1: When using a genuine charging cable with control box
*2 : When using a home or public charging device (EVSE: Electric Vehicles Supply Equipment)
Engine specifications
12-06OGGE14E5Specifications12

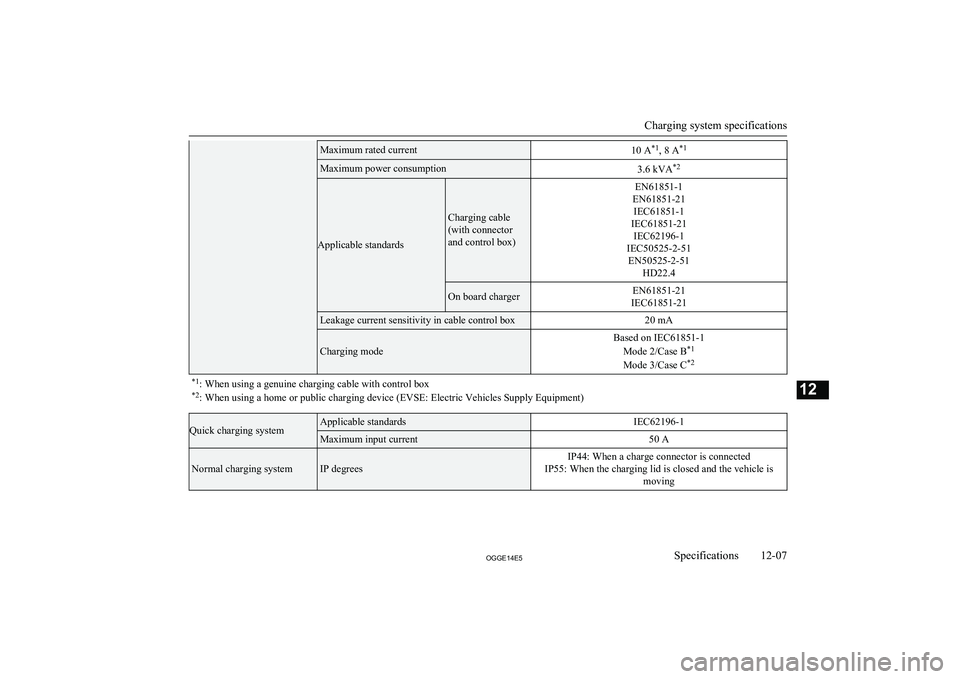

Maximum rated current10 A*1
, 8 A *1Maximum power consumption3.6 kVA *2
Applicable standards
Charging cable
(with connector
and control box)
EN61851-1
EN61851-21 IEC61851-1
IEC61851-21 IEC62196-1
IEC50525-2-51 EN50525-2-51 HD22.4On board chargerEN61851-21
IEC61851-21Leakage current sensitivity in cable control box20 mA
Charging mode
Based on IEC61851-1
Mode 2/Case B *1
Mode 3/Case C *2*1
: When using a genuine charging cable with control box
*2 : When using a home or public charging device (EVSE: Electric Vehicles Supply Equipment)
Quick charging systemApplicable standardsIEC62196-1Maximum input current50 A
Normal charging systemIP degrees
IP44: When a charge connector is connected
IP55: When the charging lid is closed and the vehicle is moving

Charging system specifications
12-07OGGE14E5Specifications12

Electric motor specificationsE01100603963ItemFront MotorRear MotorElectric motor modelS61Y61Maximum output (ECE net)60 kWMaximum torque137 Nm195 NmMaximum 30 minutes power25 kW

Low voltage electrical systemE01100803750Voltage12 VAuxiliary batteryType (JIS)S46B24L(S)Capacity (5HR)36 AhSpark plug typeNGKDIFR5C11

Tyres and wheelsE01100904354Tyre215/70R16 100H225/55R18 98HWheelSize16x6 1/2J, 16x6 1/2JJ18x7JOffset38 mm
Electric motor specifications
