2014 MERCEDES-BENZ GL Owners Manual

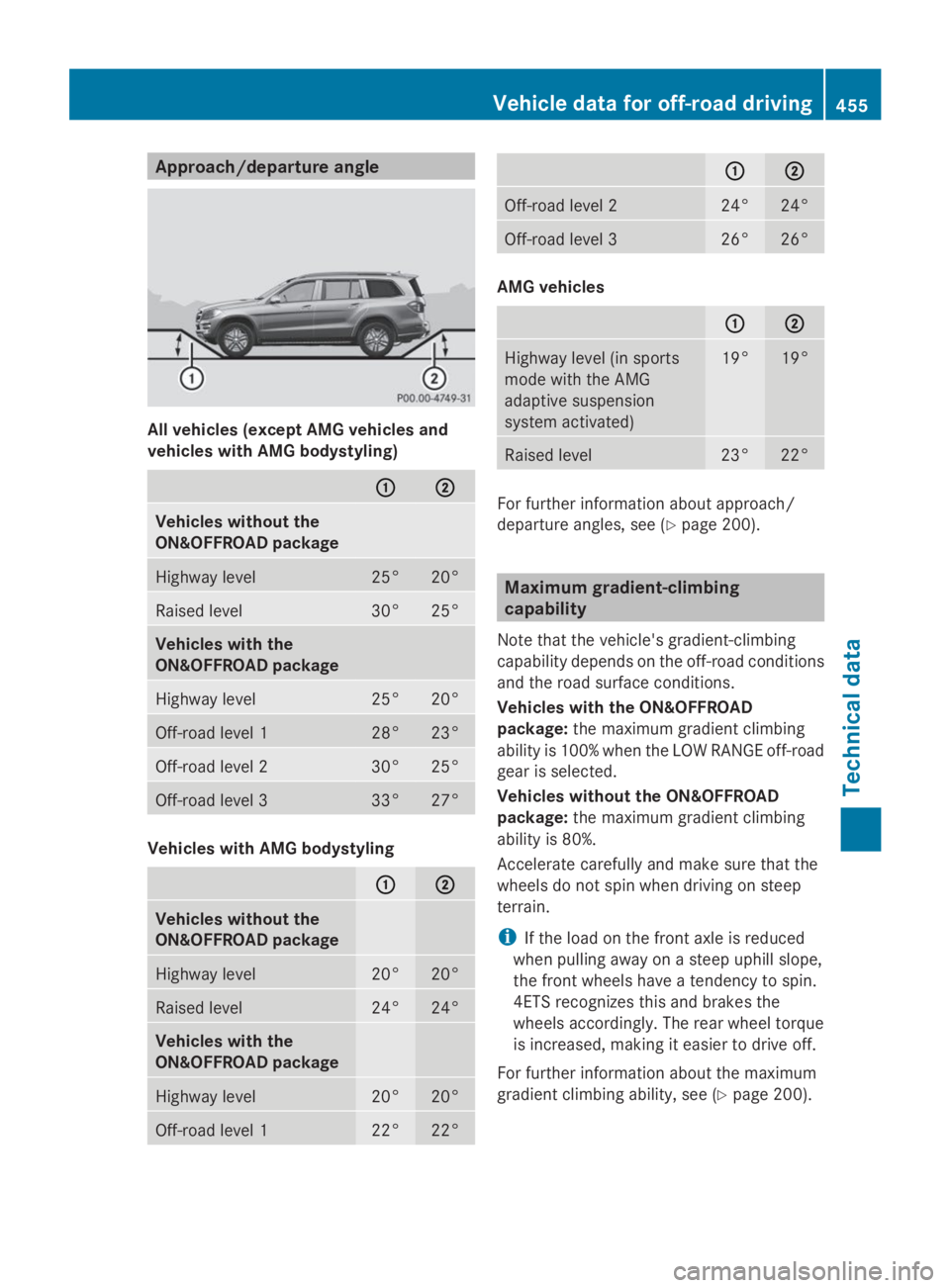

Approach/departure angle
All vehicles (except AMG vehicles and
vehicles with AMG bodystyling)
CCDD
Vehicles without the
ON&OFFROAD package
Highway level25°20°
Raised level30°25°
Vehicles with the
ON&OFFROAD package
Highway level25°20°
Off-road level 128°23°
Off-road level 230°25°
Off-road level 333°27°
Vehicles with AMG bodystyling
CCDD
Vehicles without the
ON&OFFROAD package
Highway level20°20°
Raised level24°24°
Vehicles with the
ON&OFFROAD package
Highway level20°20°
Off-road level 122°22°
CCDD
Off-road level 224°24°
Off-road level 326°26°
AMG vehicles
CCDD
Highway level (in sports
mode with the AMG
adaptive suspension
system activated)
19°19°
Raised level23°22°
For further information about approach/
departure angles, see (Ypage 200).
Maximum gradient-climbing
capability
Note that the vehicle's gradient-climbing
capability depends on the off-road conditions
and the road surface conditions.
Vehicles with the ON&OFFROAD
package:the maximum gradient climbing
ability is 100% when the LOW RANGE off-road
gear is selected.
Vehicles without the ON&OFFROAD
package:the maximum gradient climbing
ability is 80%.
Accelerate carefully and make sure that the
wheels do not spin when driving on steep
terrain.
iIf the load on the front axle is reduced
when pulling away on a steep uphill slope,
the front wheels have a tendency to spin.
4ETS recognizes this and brakes the
wheels accordingly. The rear wheel torque
is increased, making it easier to drive off.
For further information about the maximum
gradient climbing ability, see (Ypage 200).
Vehicle data for off-road driving455
Technical data
Z

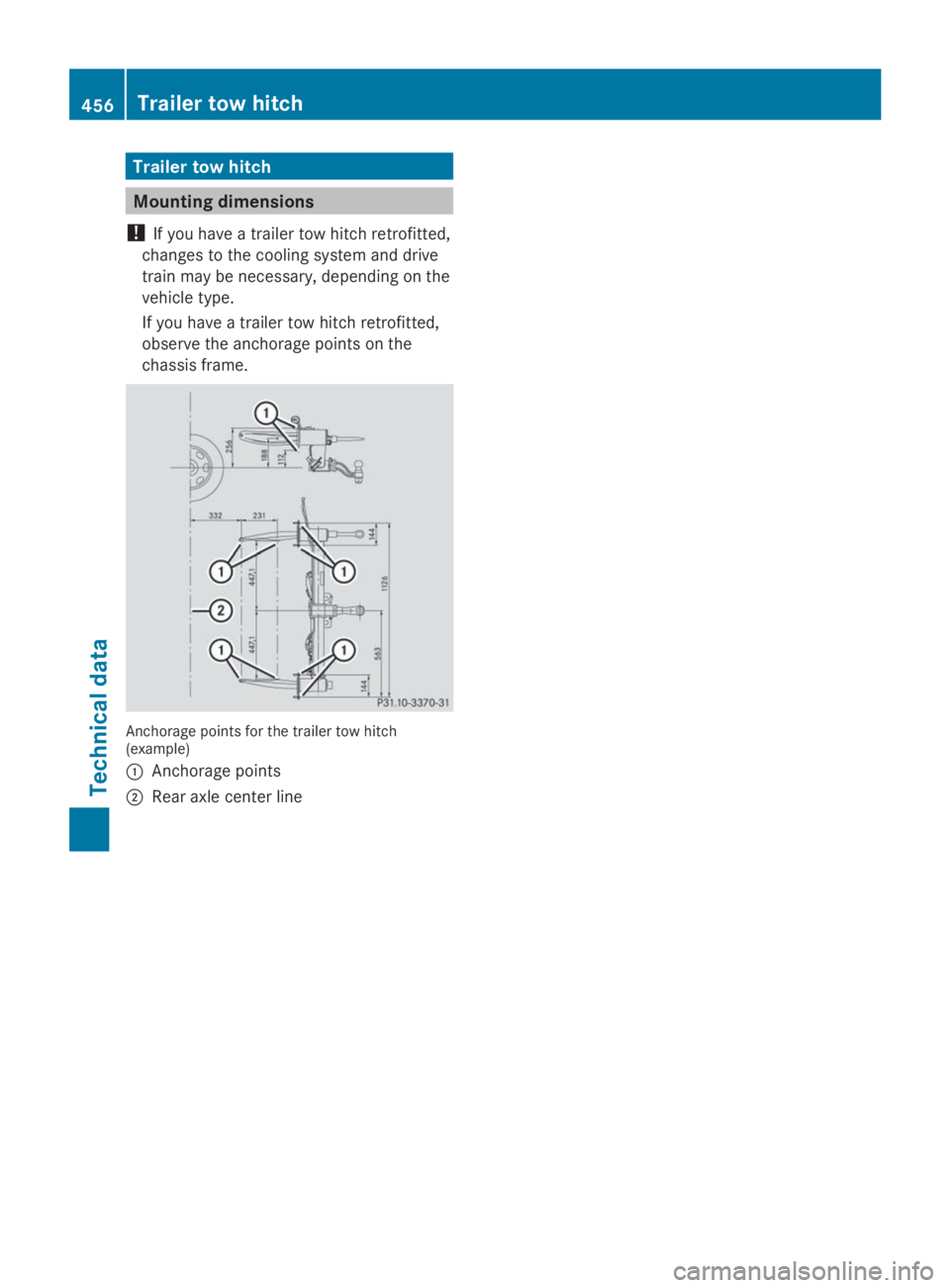

Trailer tow hitch
Mounting dimensions
!If you have a trailer tow hitch retrofitted,
changes to the cooling system and drive
train may be necessary, depending on the
vehicle type.
If you have a trailer tow hitch retrofitted,
observe the anchorage points on the
chassis frame.
Anchorage points for the trailer tow hitch(example)
CAnchorage points
DRear axle center line
456Trailer tow hitch
Technical data

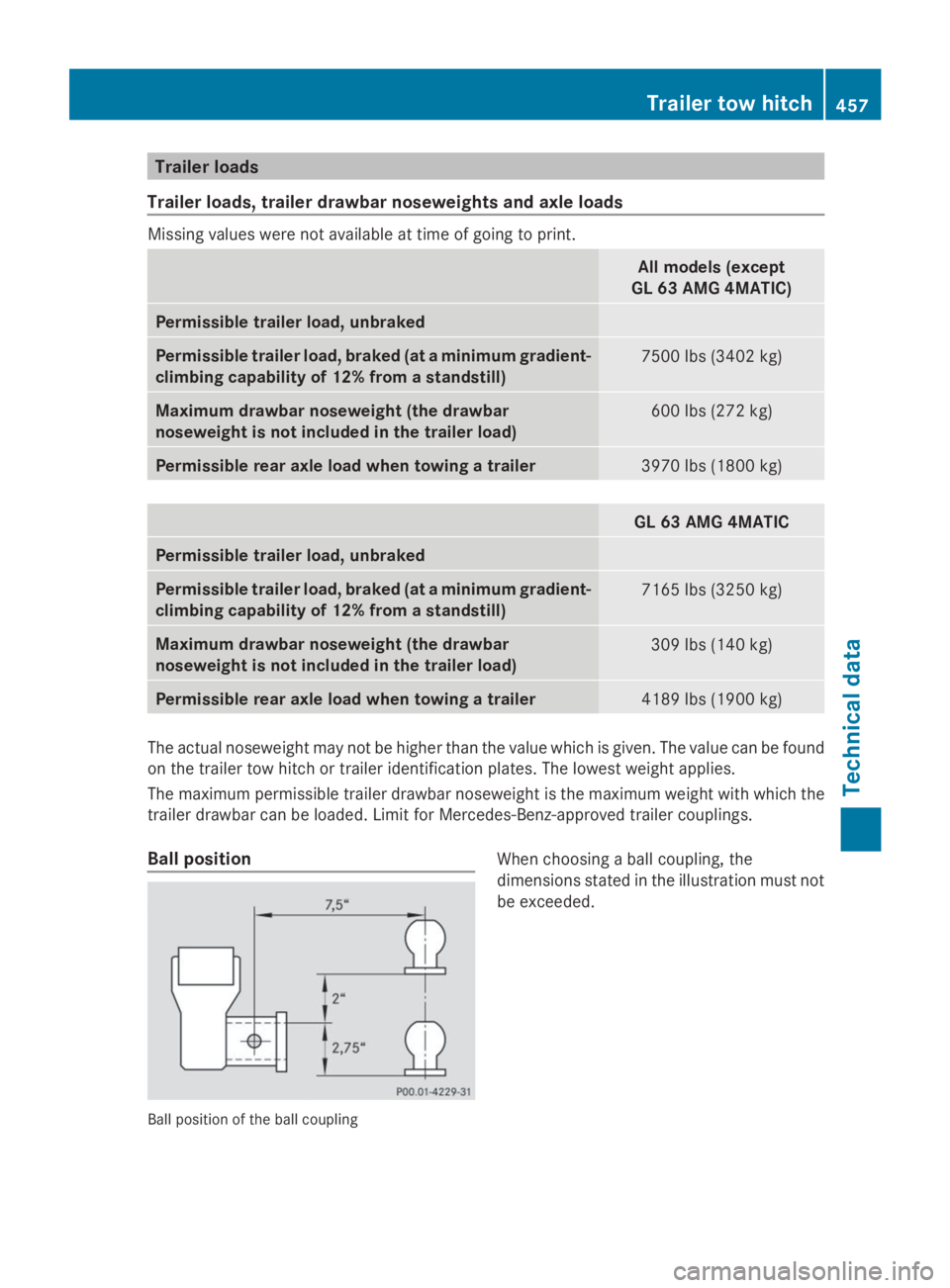

Trailer loads
Trailer loads, trailer drawbar noseweights and axle loads
Missing values were not available at time of going to print.
All models (except
GL 63 AMG 4MATIC)
Permissible trailer load, unbraked
Permissible trailer load, braked (at a minimum gradient-
climbing capability of 12% from a standstill)
7500 lbs (3402 kg)
Maximum drawbar noseweight (the drawbar
noseweight is not included in the trailer load)
600 lbs (272 kg)
Permissible rear axle load when towing a trailer3970 lbs (1800 kg)
GL 63 AMG 4MATIC
Permissible trailer load, unbraked
Permissible trailer load, braked (at a minimum gradient-
climbing capability of 12% from a standstill)
7165 lbs (3250 kg)
Maximum drawbar noseweight (the drawbar
noseweight is not included in the trailer load)
309 lbs (140 kg)
Permissible rear axle load when towing a trailer4189 lbs (1900 kg)
The actual noseweight may not be higher than the value which is given. The value can be found
on the trailer tow hitch or trailer identification plates. The lowest weight applies.
The maximum permissible trailer drawbar noseweight is the maximum weight with which the
trailer drawbar can be loaded. Limit for Mercedes-Benz-approved trailer couplings.
Ball position
Ball position of the ball coupling
When choosing a ball coupling, the
dimensions stated in the illustration must not
be exceeded.
Trailer tow hitch457
Technical data
