longer has to be pressed as far to
accelerate.
RThe sporty steering curve is selected,
e.g. greater force is required when
steering.
iYou cannot select the SPORT program if
LOW RANGE has been selected. The
Drive Program SPORT Not in LOWDrive Program SPORT Not in LOW
RANGERANGEmessage then appears in the
multifunction display.

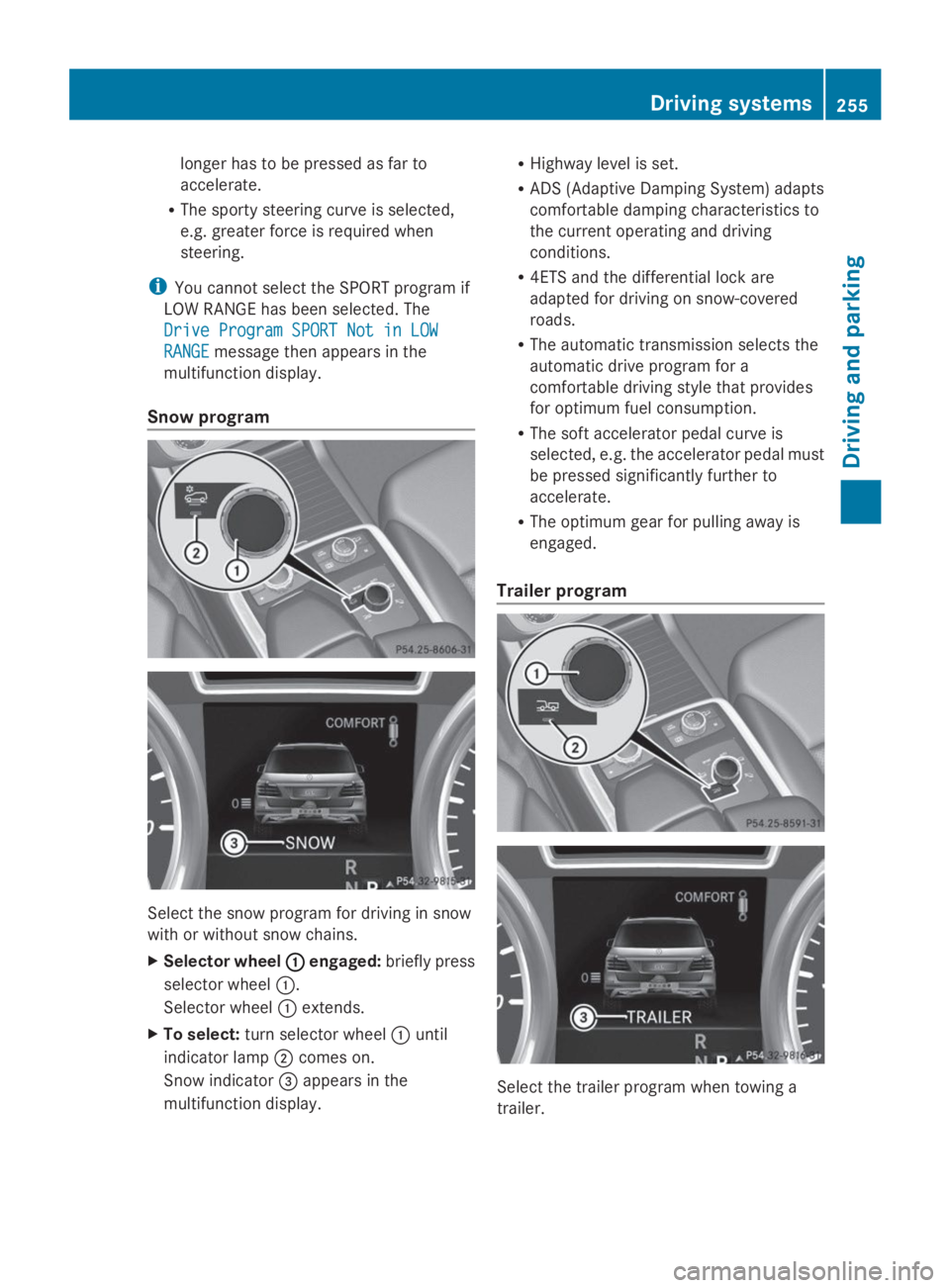

Snow program
Select the snow program for driving in snow
with or without snow chains.
XSelector wheelCCengaged:briefly press
selector wheelC.
Selector wheelCextends.
XTo select:turn selector wheelCuntil
indicator lampDcomes on.
Snow indicator

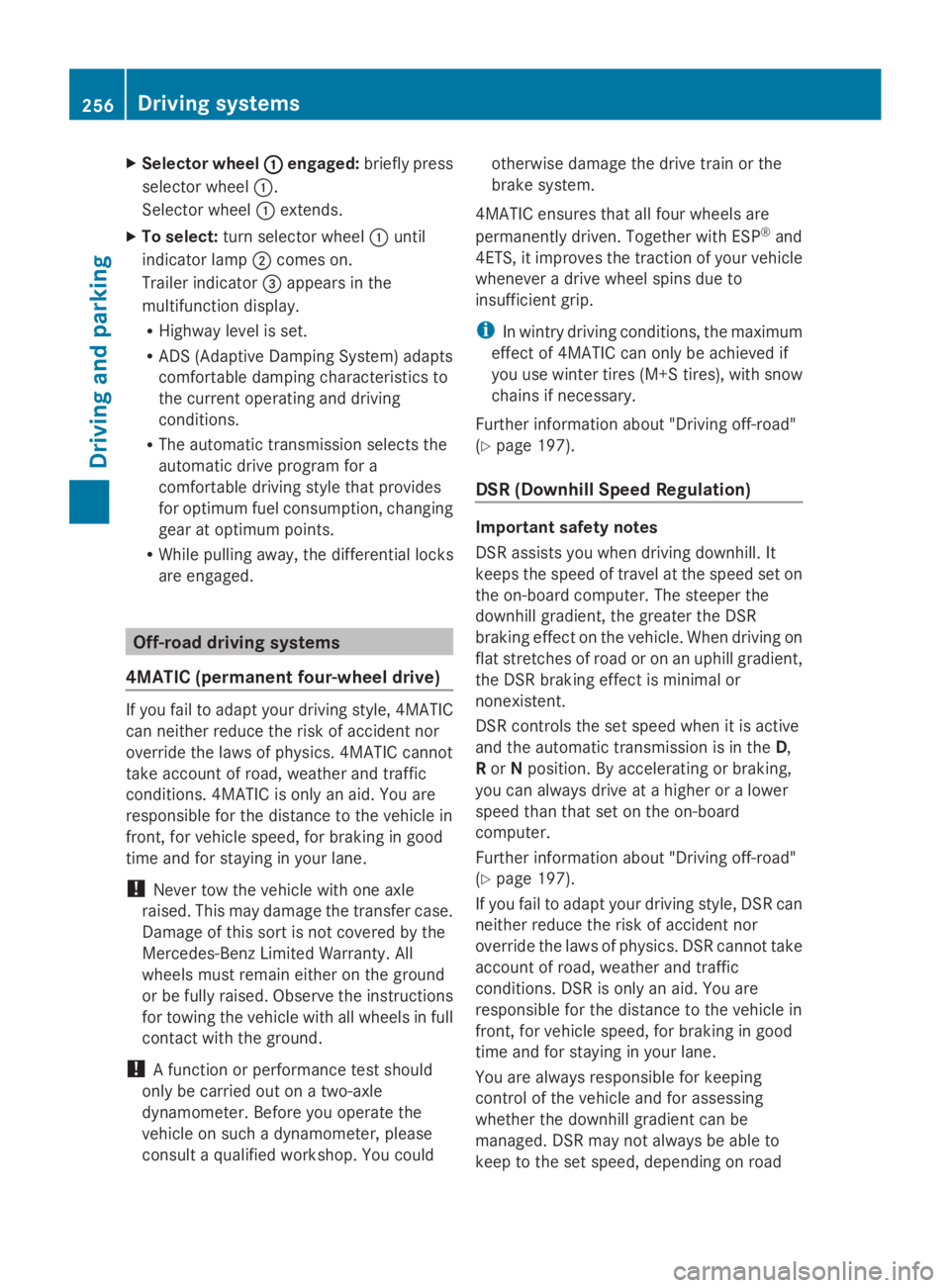

XSelector wheelCCengaged:briefly press
selector wheelC.
Selector wheelCextends.
XTo select:turn selector wheelCuntil
indicator lampDcomes on.
Trailer indicator

surface and tire conditions. Select a set
speed suitable for the prevailing conditions
and when necessary, apply the brakes
manually.
GWARNING
If the speed driven and the set speed deviate
and you activate DSR on a slippery road
surface, the wheels may lose traction. If the
wheels lose traction. the vehicle can no longer
be steered. There is an increased danger of
skidding and accidents.
Never activate DSR on slippery road surfaces.

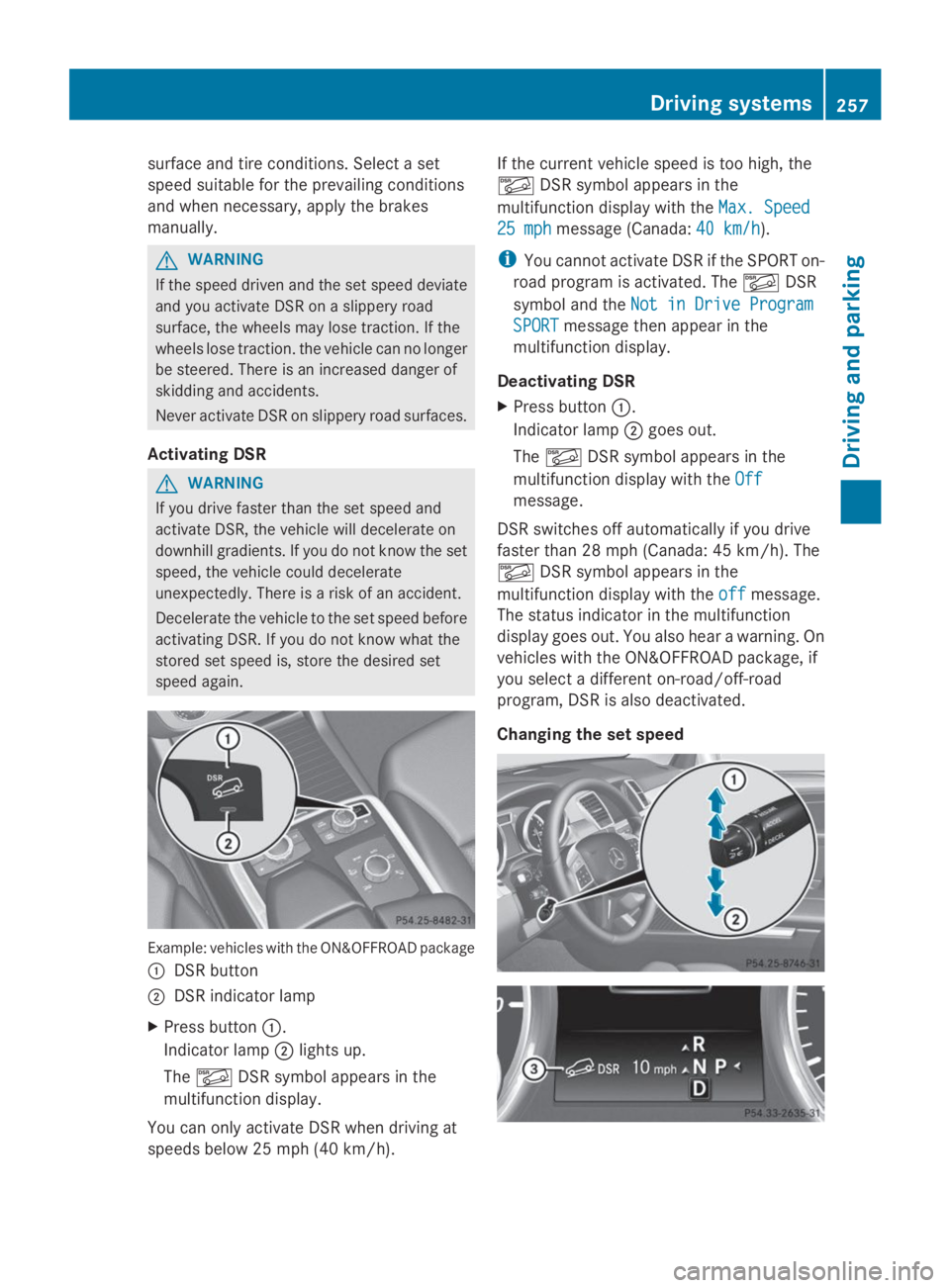

Activating DSR
GWARNING
If you drive faster than the set speed and
activate DSR, the vehicle will decelerate on
downhill gradients. If you do not know the set
speed, the vehicle could decelerate
unexpectedly. There is a risk of an accident.
Decelerate the vehicle to the set speed before
activating DSR. If you do not know what the
stored set speed is, store the desired set
speed again.
Example: vehicles with the ON&OFFROAD package
CDSR button
DDSR indicator lamp
XPress buttonC.
Indicator lampDlights up.
The

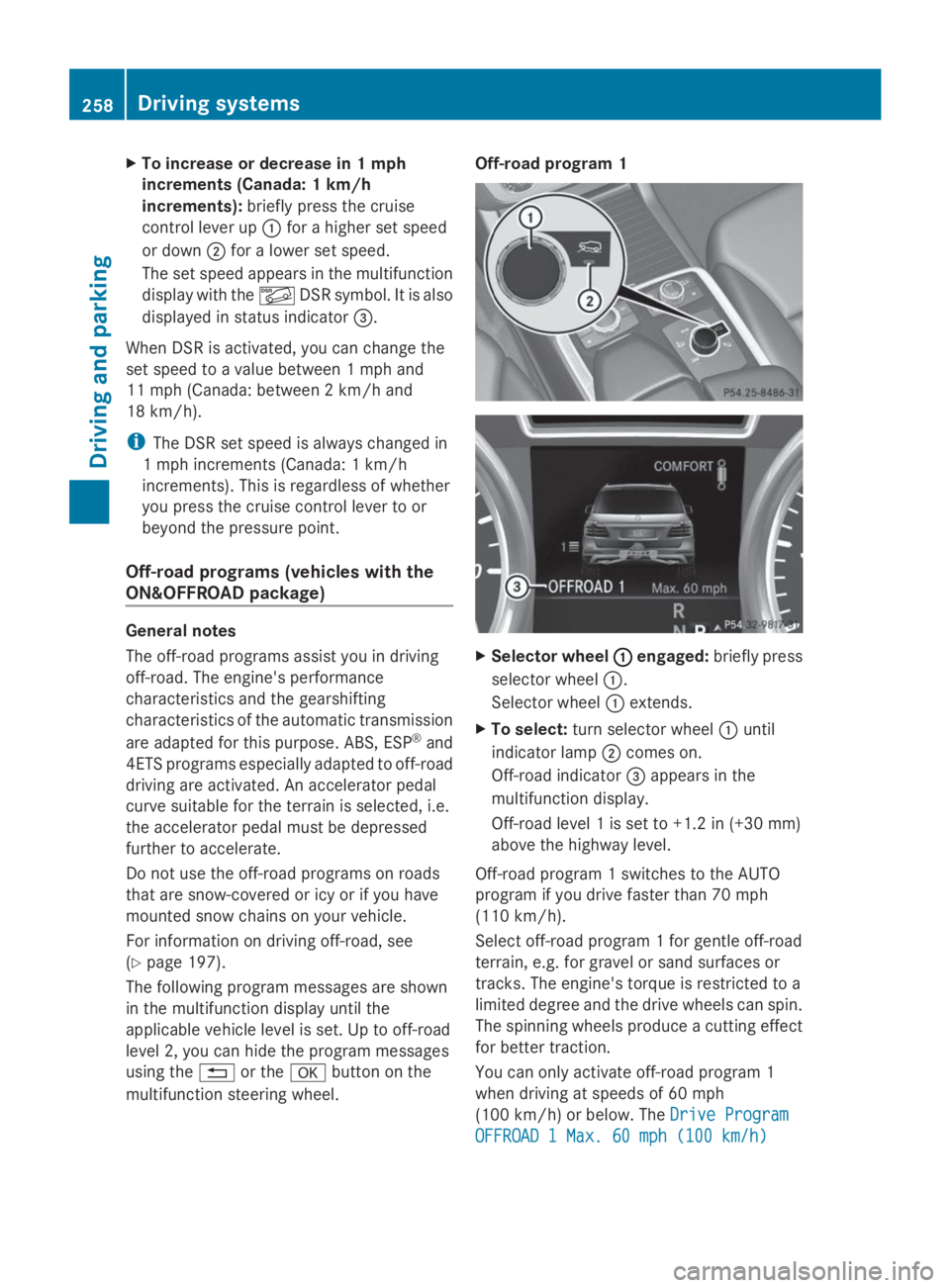

XTo increase or decrease in 1 mph
increments (Canada: 1 km/h
increments):briefly press the cruise
control lever upCfor a higher set speed
or downDfor a lower set speed.
The set speed appears in the multifunction
display with the

message appears in the multifunction
display.
Off-road program 2
XSelector wheelCCengaged:briefly press
selector wheelC.
Selector wheelCextends.
XTo select:turn selector wheelCuntil
indicator lampDcomes on.
Off-road indicator

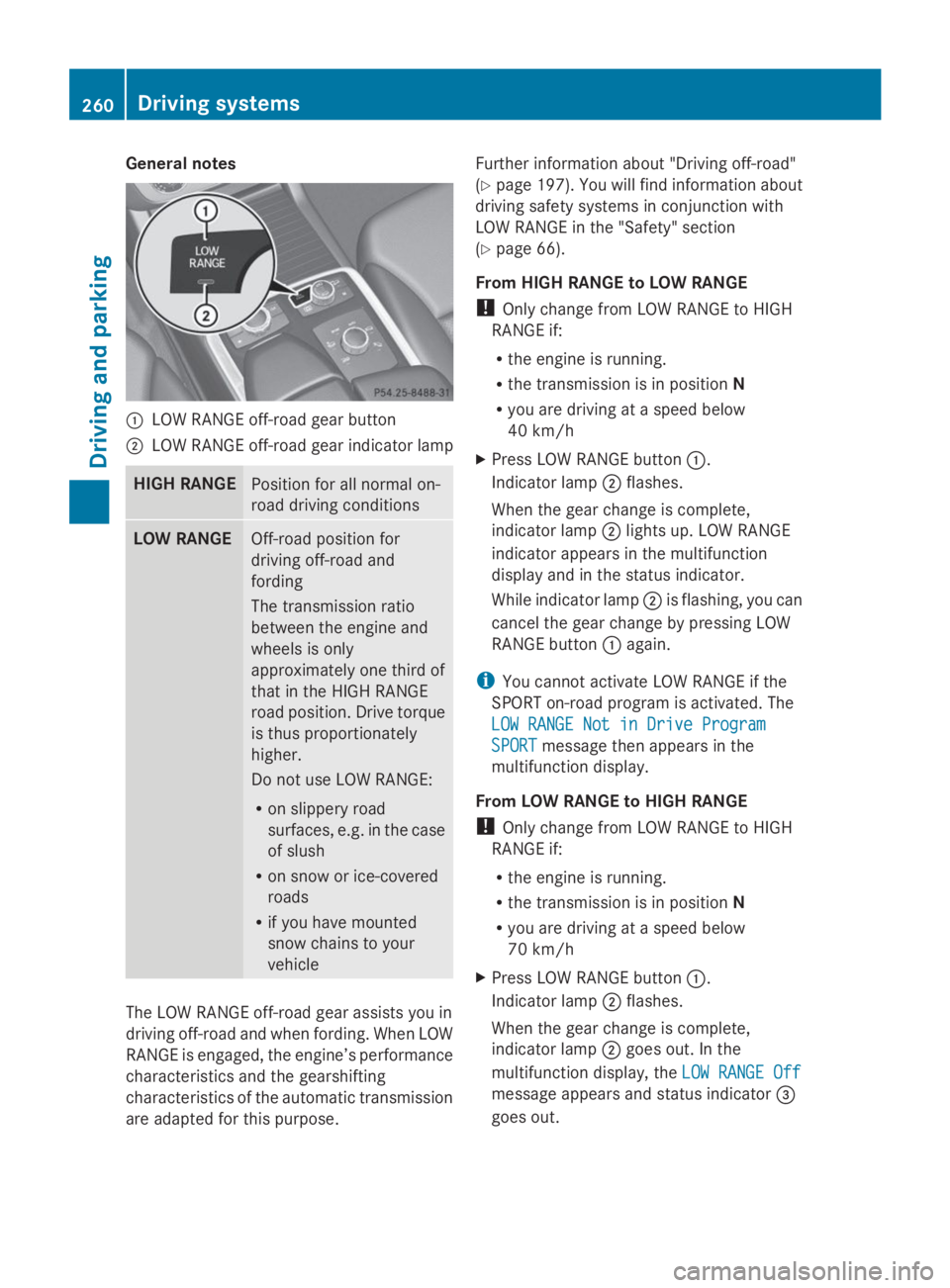

General notes
CLOW RANGE off-road gear button
DLOW RANGE off-road gear indicator lamp
HIGH RANGEPosition for all normal on-
road driving conditions
LOW RANGEOff-road position for
driving off-road and
fording
The transmission ratio
between the engine and
wheels is only
approximately one third of
that in the HIGH RANGE
road position. Drive torque
is thus proportionately
higher.
Do not use LOW RANGE:
Ron slippery road
surfaces, e.g. in the case
of slush
Ron snow or ice-covered
roads
Rif you have mounted
snow chains to your
vehicle
The LOW RANGE off-road gear assists you in
driving off-road and when fording. When LOW
RANGE is engaged, the engine’s performance
characteristics and the gearshifting
characteristics of the automatic transmission
are adapted for this purpose.
Further information about "Driving off-road"
(Ypage 197). You will find information about
driving safety systems in conjunction with
LOW RANGE in the "Safety" section
(Ypage 66).
From HIGH RANGE to LOW RANGE
!Only change from LOW RANGE to HIGH
RANGE if:
Rthe engine is running.
Rthe transmission is in positionN
Ryou are driving at a speed below
40 km/h
XPress LOW RANGE buttonC.
Indicator lampDflashes.
When the gear change is complete,
indicator lampDlights up. LOW RANGE
indicator appears in the multifunction
display and in the status indicator.
While indicator lampDis flashing, you can
cancel the gear change by pressing LOW
RANGE buttonCagain.
iYou cannot activate LOW RANGE if the
SPORT on-road program is activated. The
LOW RANGE Not in Drive ProgramLOW RANGE Not in Drive Program
SPORTSPORTmessage then appears in the
multifunction display.
From LOW RANGE to HIGH RANGE
!Only change from LOW RANGE to HIGH
RANGE if:
Rthe engine is running.
Rthe transmission is in positionN
Ryou are driving at a speed below
70 km/h
XPress LOW RANGE buttonC.
Indicator lampDflashes.
When the gear change is complete,
indicator lampDgoes out. In the
multifunction display, theLOW RANGE OffLOW RANGE Off
message appears and status indicator

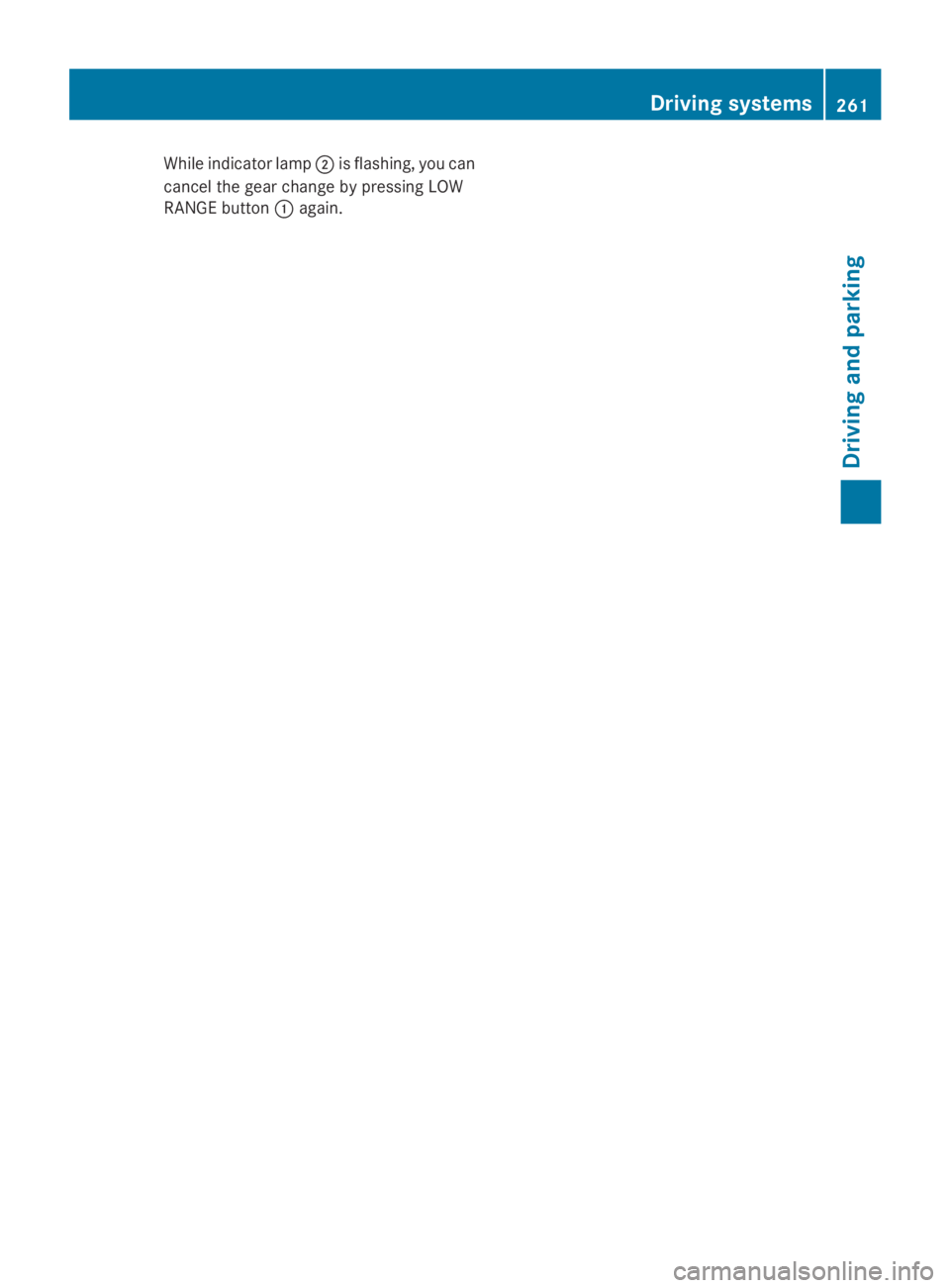

While indicator lampDis flashing, you can
cancel the gear change by pressing LOW
RANGE buttonCagain.
Driving systems261
Driving and parking
Z

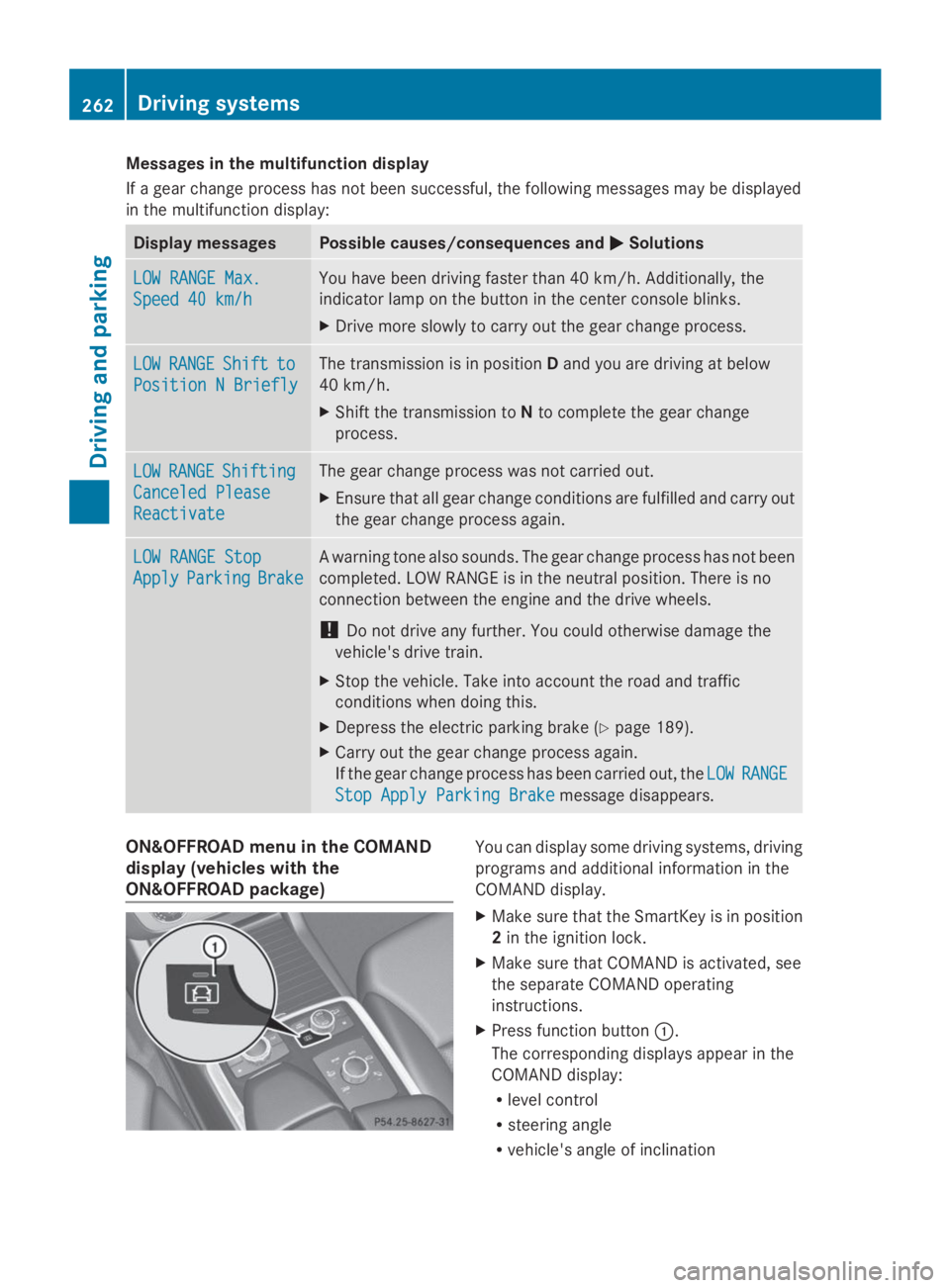

Messages in the multifunction display
If a gear change process has not been successful, the following messages may be displayed
in the multifunction display:
Display messagesPossible causes/consequences andPPSolutions
LOW RANGE Max.LOW RANGE Max.
Speed 40 km/hSpeed 40 km/h
You have been driving faster than 40 km/h. Additionally, the
indicator lamp on the button in the center console blinks.
XDrive more slowly to carry out the gear change process.
LOWLOWRANGERANGEShiftShifttoto
Position N BrieflyPosition N Briefly
The transmission is in positionDand you are driving at below
40 km/h.
XShift the transmission toNto complete the gear change
process.
LOWLOWRANGERANGEShiftingShifting
Canceled PleaseCanceled Please
ReactivateReactivate
The gear change process was not carried out.
XEnsure that all gear change conditions are fulfilled and carry out
the gear change process again.
LOW RANGE StopLOW RANGE Stop
ApplyApplyParkingParkingBrakeBrake
A warning tone also sounds. The gear change process has not been
completed. LOW RANGE is in the neutral position. There is no
connection between the engine and the drive wheels.
!Do not drive any further. You could otherwise damage the
vehicle's drive train.
XStop the vehicle. Take into account the road and traffic
conditions when doing this.
XDepress the electric parking brake (Ypage 189).
XCarry out the gear change process again.
If the gear change process has been carried out, theLOWLOWRANGERANGE
Stop Apply Parking BrakeStop Apply Parking Brakemessage disappears.
ON&OFFROAD menu in the COMAND
display (vehicles with the
ON&OFFROAD package)
You can display some driving systems, driving
programs and additional information in the
COMAND display.
XMake sure that the SmartKey is in position
2in the ignition lock.
XMake sure that COMAND is activated, see
the separate COMAND operating
instructions.
XPress function buttonC.
The corresponding displays appear in the
COMAND display:
Rlevel control
Rsteering angle
Rvehicle's angle of inclination
