2014 MERCEDES-BENZ GL Owners Manual

ProblemPossible causes/consequences andPPSolutions
%

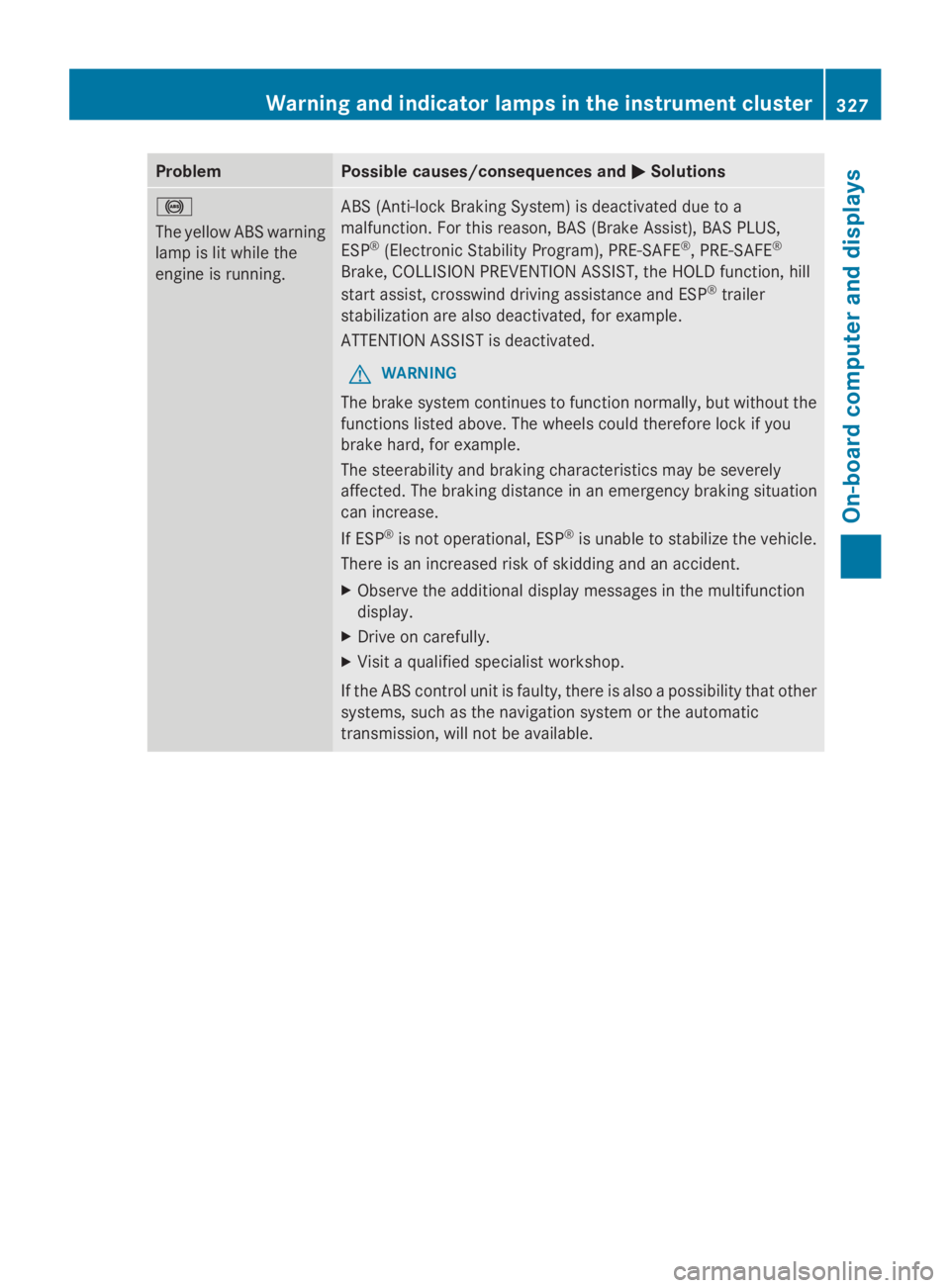

The yellow ABS warning
lamp is lit while the
engine is running.
ABS (Anti-lock Braking System) is deactivated due to a
malfunction. For this reason, BAS (Brake Assist), BAS PLUS,
ESP®(Electronic Stability Program), PRE-SAFE®, PRE-SAFE®
Brake, COLLISION PREVENTION ASSIST, the HOLD function, hill
start assist, crosswind driving assistance and ESP®trailer
stabilization are also deactivated, for example.
ATTENTION ASSIST is deactivated.
GWARNING
The brake system continues to function normally, but without the
functions listed above. The wheels could therefore lock if you
brake hard, for example.
The steerability and braking characteristics may be severely
affected. The braking distance in an emergency braking situation
can increase.
If ESP®is not operational, ESP®is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
XObserve the additional display messages in the multifunction
display.
XDrive on carefully.
XVisit a qualified specialist workshop.
If the ABS control unit is faulty, there is also a possibility that other
systems, such as the navigation system or the automatic
transmission, will not be available.
Warning and indicator lamps in the instrument cluster327
On-board computer and displays
Z

ProblemPossible causes/consequences andPPSolutions
%

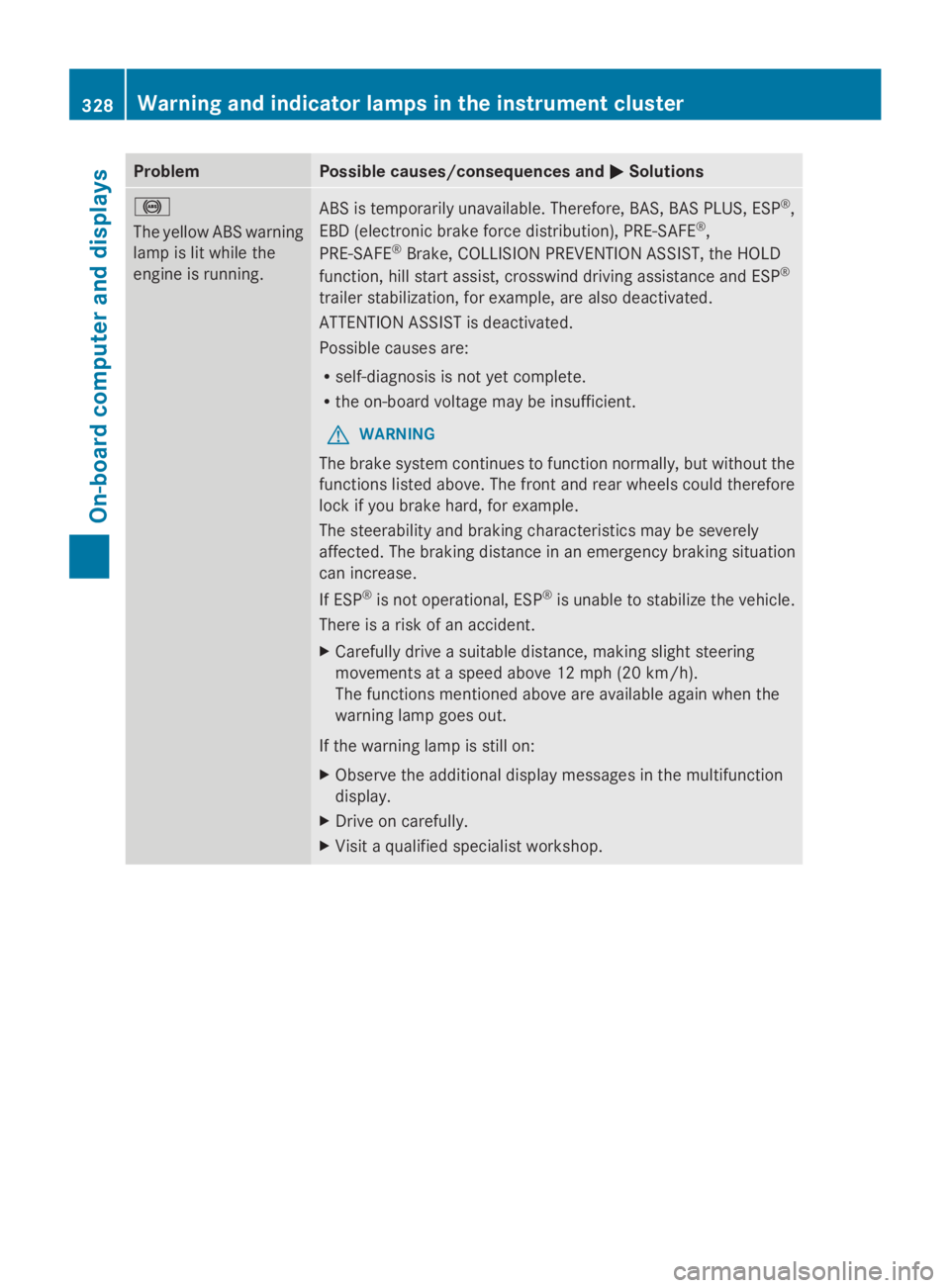

The yellow ABS warning
lamp is lit while the
engine is running.
ABS is temporarily unavailable. Therefore, BAS, BAS PLUS, ESP®,
EBD (electronic brake force distribution), PRE-SAFE®,
PRE-SAFE®Brake, COLLISION PREVENTION ASSIST, the HOLD
function, hill start assist, crosswind driving assistance and ESP®
trailer stabilization, for example, are also deactivated.
ATTENTION ASSIST is deactivated.
Possible causes are:
Rself-diagnosis is not yet complete.
Rthe on-board voltage may be insufficient.
GWARNING
The brake system continues to function normally, but without the
functions listed above. The front and rear wheels could therefore
lock if you brake hard, for example.
The steerability and braking characteristics may be severely
affected. The braking distance in an emergency braking situation
can increase.
If ESP®is not operational, ESP®is unable to stabilize the vehicle.
There is a risk of an accident.
XCarefully drive a suitable distance, making slight steering
movements at a speed above 12 mph (20 km/h).
The functions mentioned above are available again when the
warning lamp goes out.
If the warning lamp is still on:
XObserve the additional display messages in the multifunction
display.
XDrive on carefully.
XVisit a qualified specialist workshop.
328Warning and indicator lamps in the instrument cluster
On-board computer and displays

ProblemPossible causes/consequences andPPSolutions
%

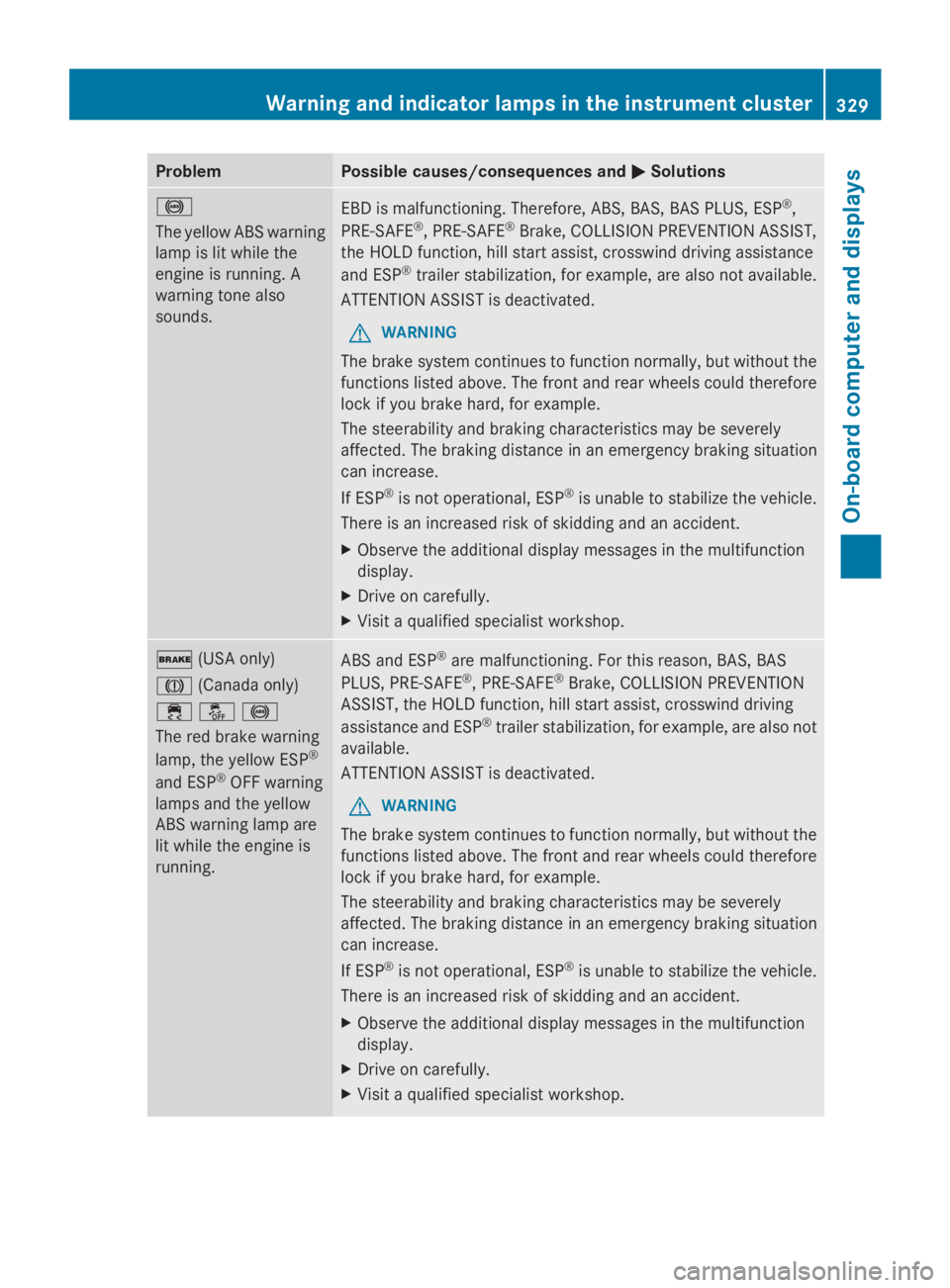

The yellow ABS warning
lamp is lit while the
engine is running. A
warning tone also
sounds.
EBD is malfunctioning. Therefore, ABS, BAS, BAS PLUS, ESP®,
PRE-SAFE®, PRE-SAFE®Brake, COLLISION PREVENTION ASSIST,
the HOLD function, hill start assist, crosswind driving assistance
and ESP®trailer stabilization, for example, are also not available.
ATTENTION ASSIST is deactivated.
GWARNING
The brake system continues to function normally, but without the
functions listed above. The front and rear wheels could therefore
lock if you brake hard, for example.
The steerability and braking characteristics may be severely
affected. The braking distance in an emergency braking situation
can increase.
If ESP®is not operational, ESP®is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
XObserve the additional display messages in the multifunction
display.
XDrive on carefully.
XVisit a qualified specialist workshop.
'(USA only)
M(Canada only)

ProblemPossible causes/consequences andPPSolutions

ProblemPossible causes/consequences andPPSolutions

ProblemPossible causes/consequences andPPSolutions
I(USA only)
$(Canada only)

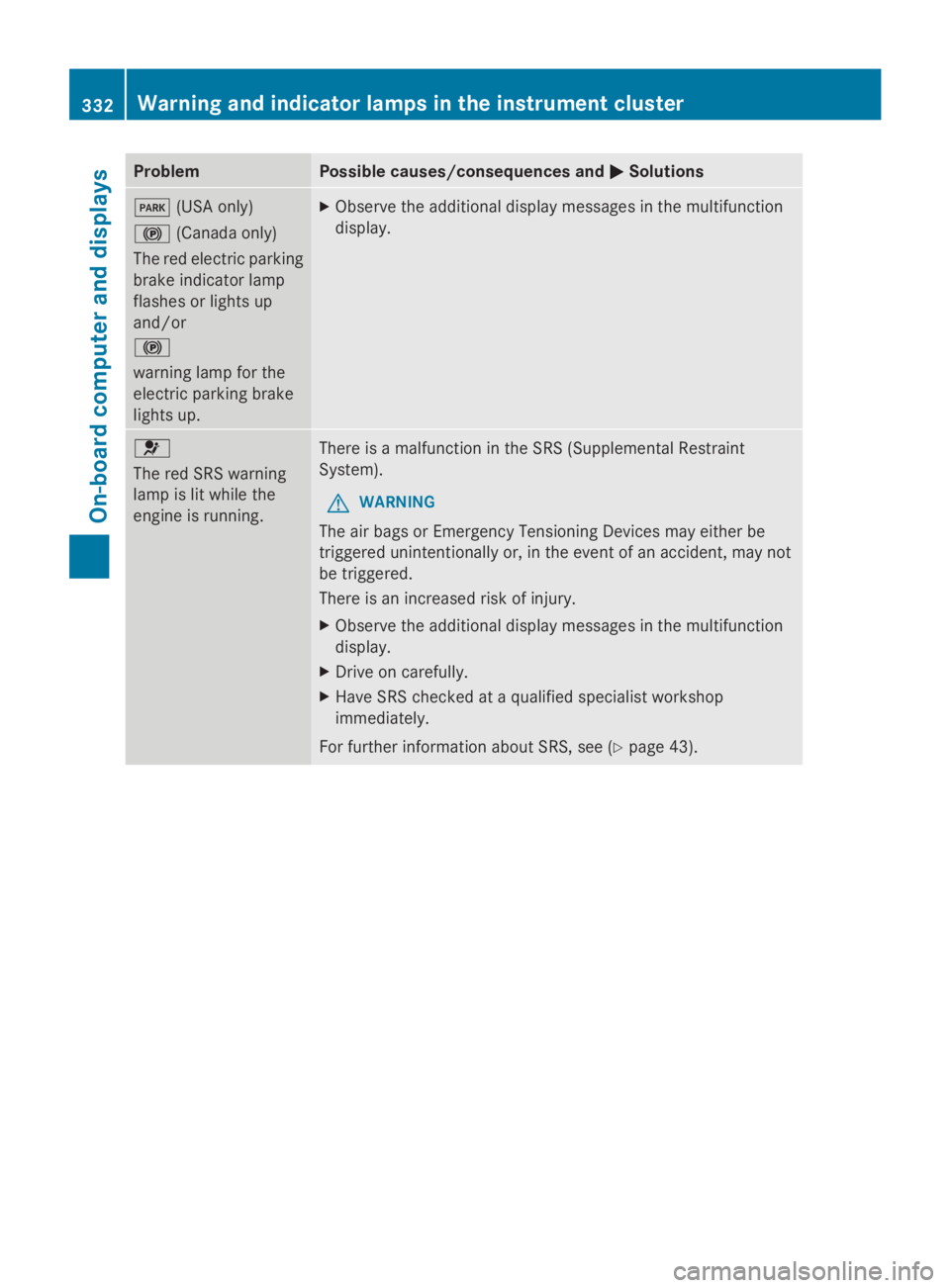

The red electric parking
brake indicator lamp
flashes or lights up
and/or
$
warning lamp for the
electric parking brake
lights up.
XObserve the additional display messages in the multifunction
display.
u
The red SRS warning
lamp is lit while the
engine is running.
There is a malfunction in the SRS (Supplemental Restraint
System).
GWARNING
The air bags or Emergency Tensioning Devices may either be
triggered unintentionally or, in the event of an accident, may not
be triggered.
There is an increased risk of injury.
XObserve the additional display messages in the multifunction
display.
XDrive on carefully.
XHave SRS checked at a qualified specialist workshop
immediately.
For further information about SRS, see (Ypage 43).
332Warning and indicator lamps in the instrument cluster
On-board computer and displays

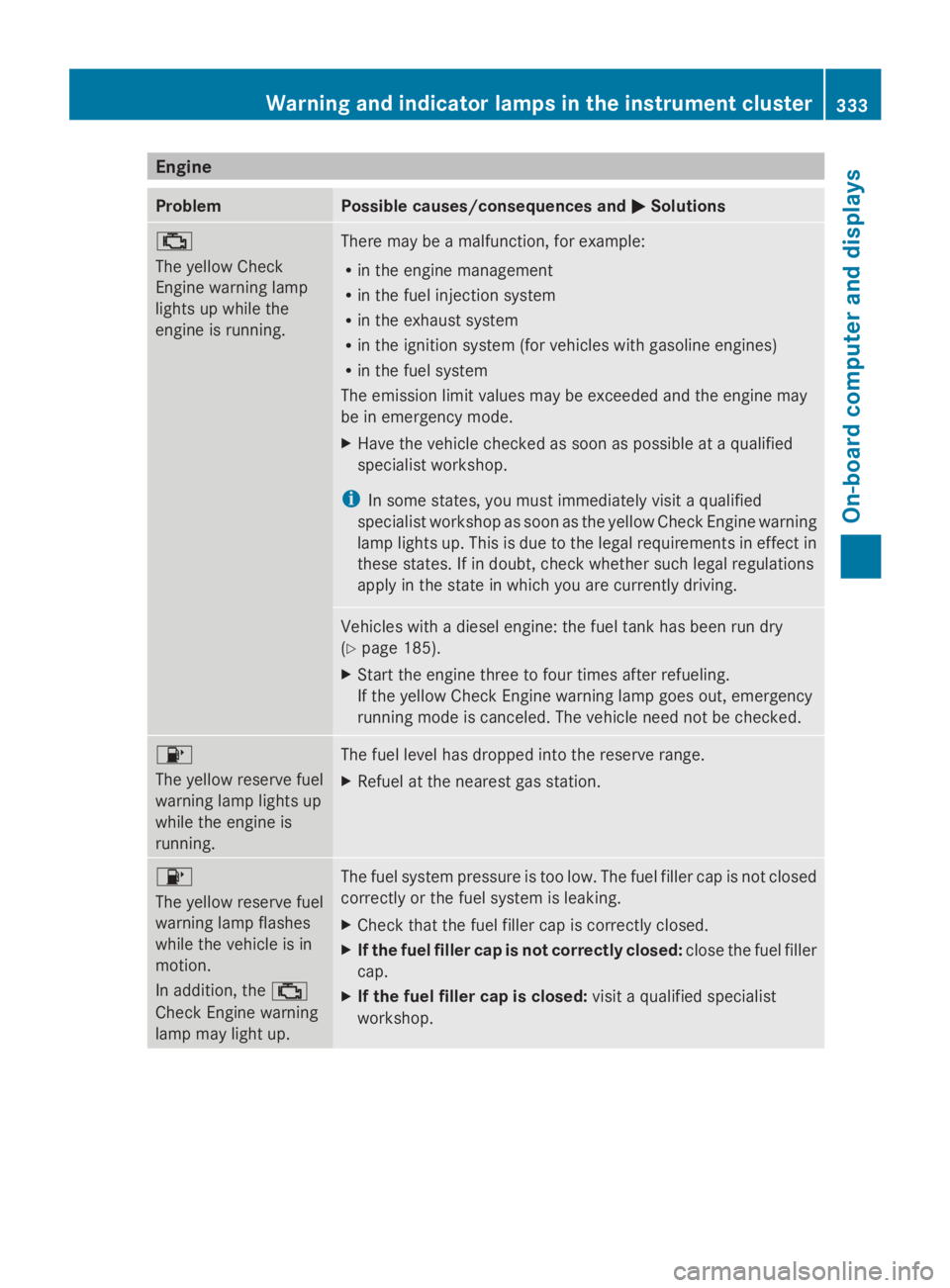

Engine
ProblemPossible causes/consequences andPPSolutions

ProblemPossible causes/consequences andPPSolutions
