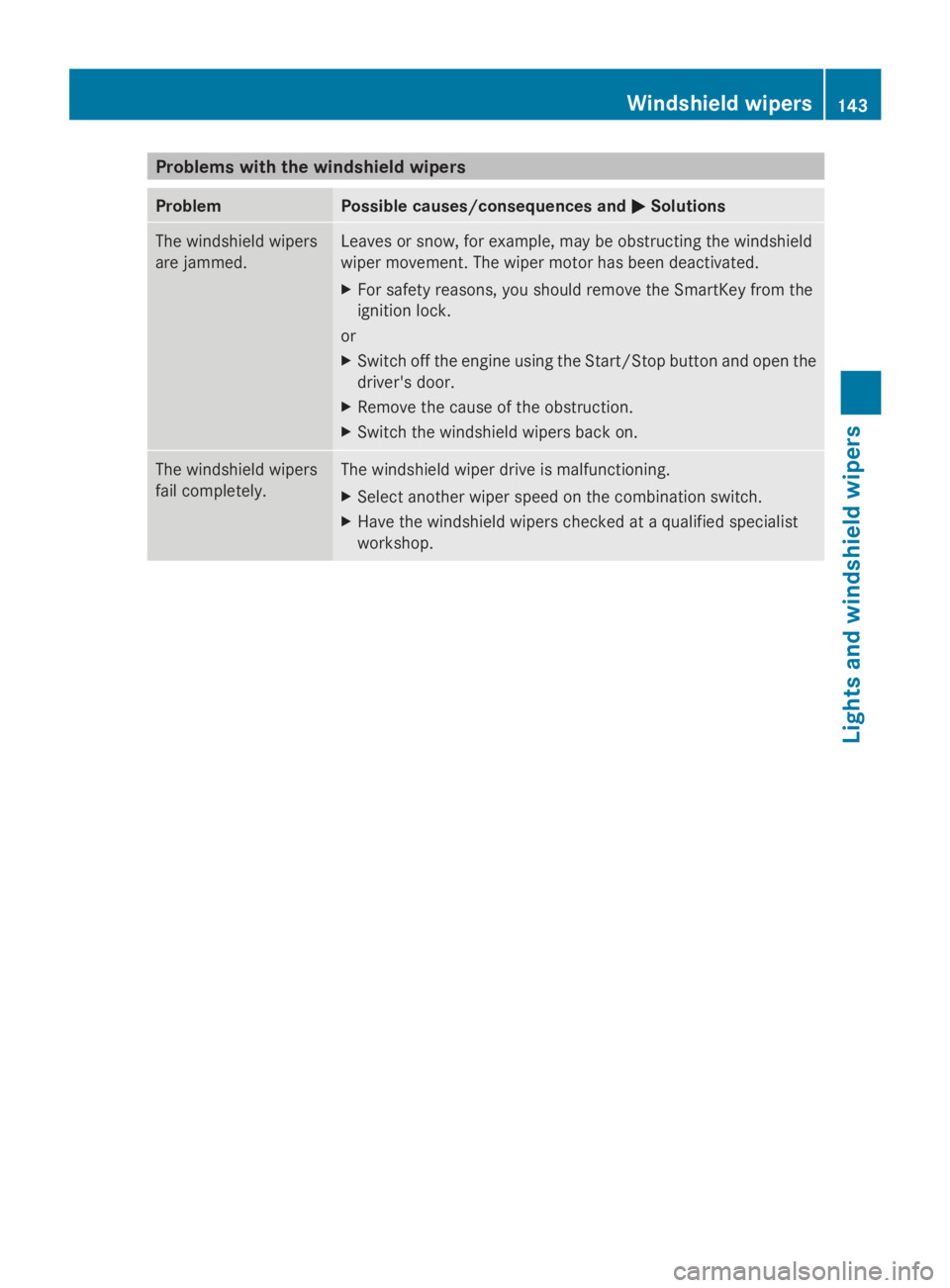

Problems with the windshield wipers
ProblemPossible causes/consequences andPPSolutions
The windshield wipers
are jammed.
Leaves or snow, for example, may be obstructing the windshield
wiper movement. The wiper motor has been deactivated.
XFor safety reasons, you should remove the SmartKey from the
ignition lock.
or
XSwitch off the engine using the Start/Stop button and open the
driver's door.
XRemove the cause of the obstruction.
XSwitch the windshield wipers back on.
The windshield wipers
fail completely.
The windshield wiper drive is malfunctioning.
XSelect another wiper speed on the combination switch.
XHave the windshield wipers checked at a qualified specialist
workshop.
Windshield wipers143
Lights and windshield wipers
Z

144

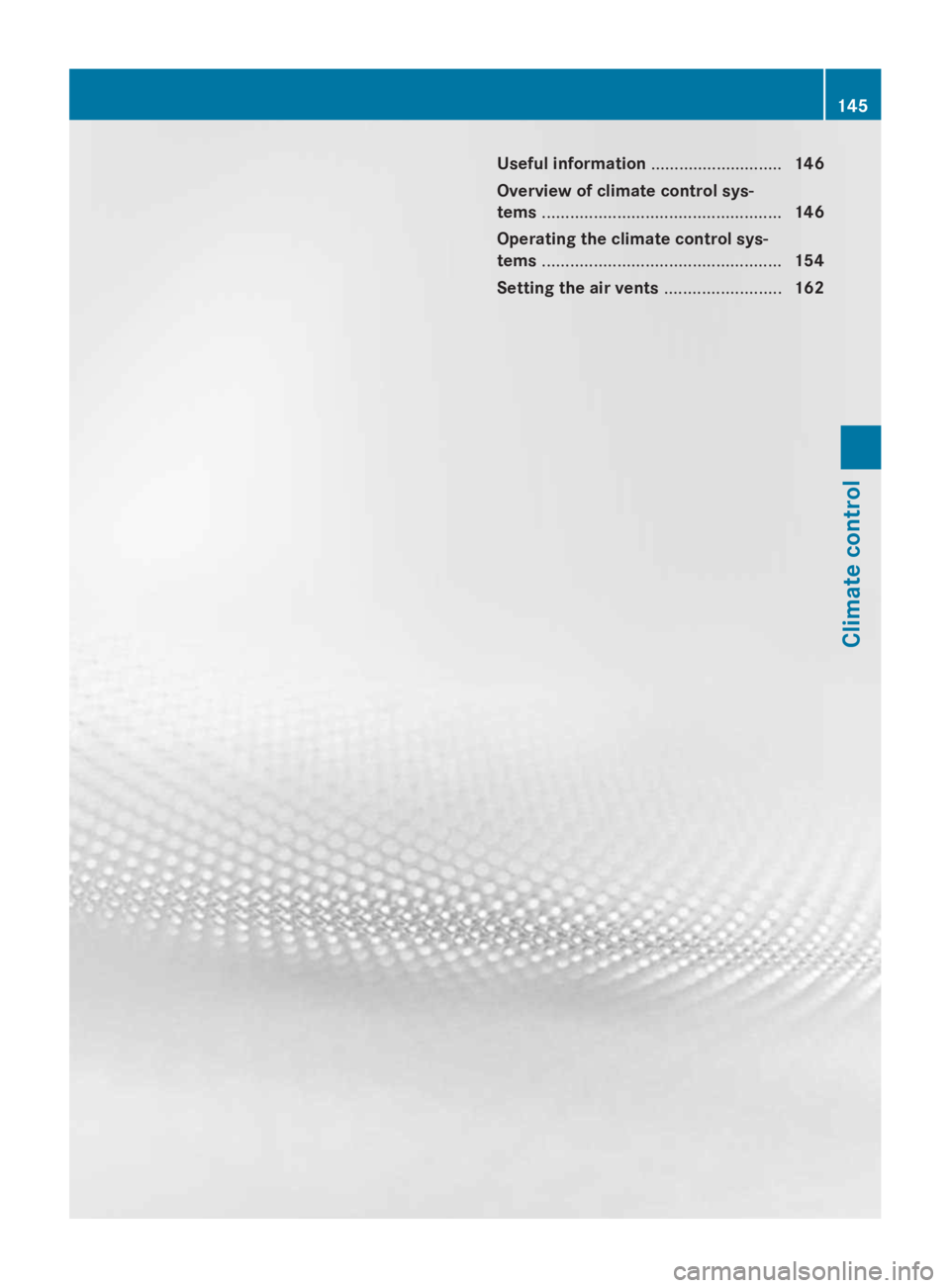

Useful information............................146
Overview of climate control sys-
tems...................................................146
Operating the climate control sys-
tems...................................................154
Setting the air vents.........................162
145
Climate control

Useful information
iThis Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
iRead the information on qualified
specialist workshops: (Ypage 28).
Overview of climate control systems
Important safety notes
Observe the settings recommended on the
following pages. The windows could
otherwise fog up.
To prevent the windows from fogging up:
Rswitch off climate control only briefly
Rswitch on air-recirculation mode only
briefly
Rswitch on the cooling with air
dehumidification function
Rswitch on the defrost windshield function
briefly, if required
Climate control regulates the temperature
and the humidity in the vehicle interior and
filters undesirable substances out of the air.
Climate control can only be operated when
the engine is running. Optimum operation is
only achieved with the side windows and roof
closed.
The residual heat function can only be
activated or deactivated with the ignition
switched off (Ypage 161).
iVentilate the vehicle for a brief period
during warm weather, e.g. using the
convenience opening feature (Ypage 95).
This will speed up the cooling process and
the desired interior temperature will be
reached more quickly.
iThe integrated filter filters out most
particles of dust and soot and completely
filters out pollen. It also reduces gaseous
pollutants and odors. A clogged filter
reduces the amount of air supplied to the
vehicle interior. For this reason, you should
always observe the interval for replacing
the filter, which is specified in the
Maintenance Booklet. As it depends on
environmental conditions, e.g. heavy air
pollution, the interval may be shorter than
stated in the Maintenance Booklet.
iIt is possible that the residual heat
function may be activated automatically an
hour after the SmartKey has been removed
in order to dry the automatic climate
control. The vehicle is then ventilated for
30 minutes.
146Overview of climate control systems
Climate control

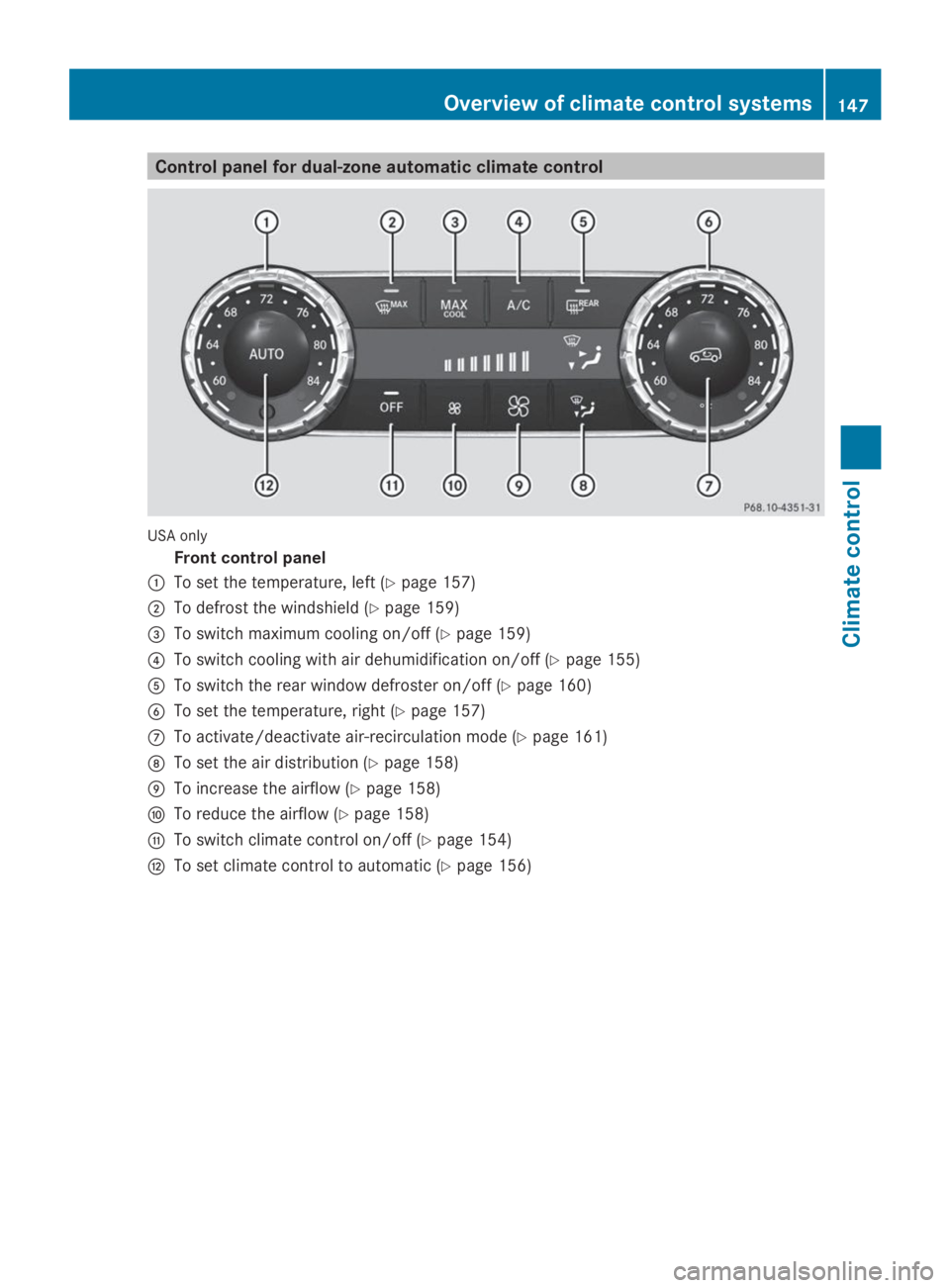

Control panel for dual-zone automatic climate control
USA only
Front control panel
CTo set the temperature, left (Ypage 157)
DTo defrost the windshield (Ypage 159)

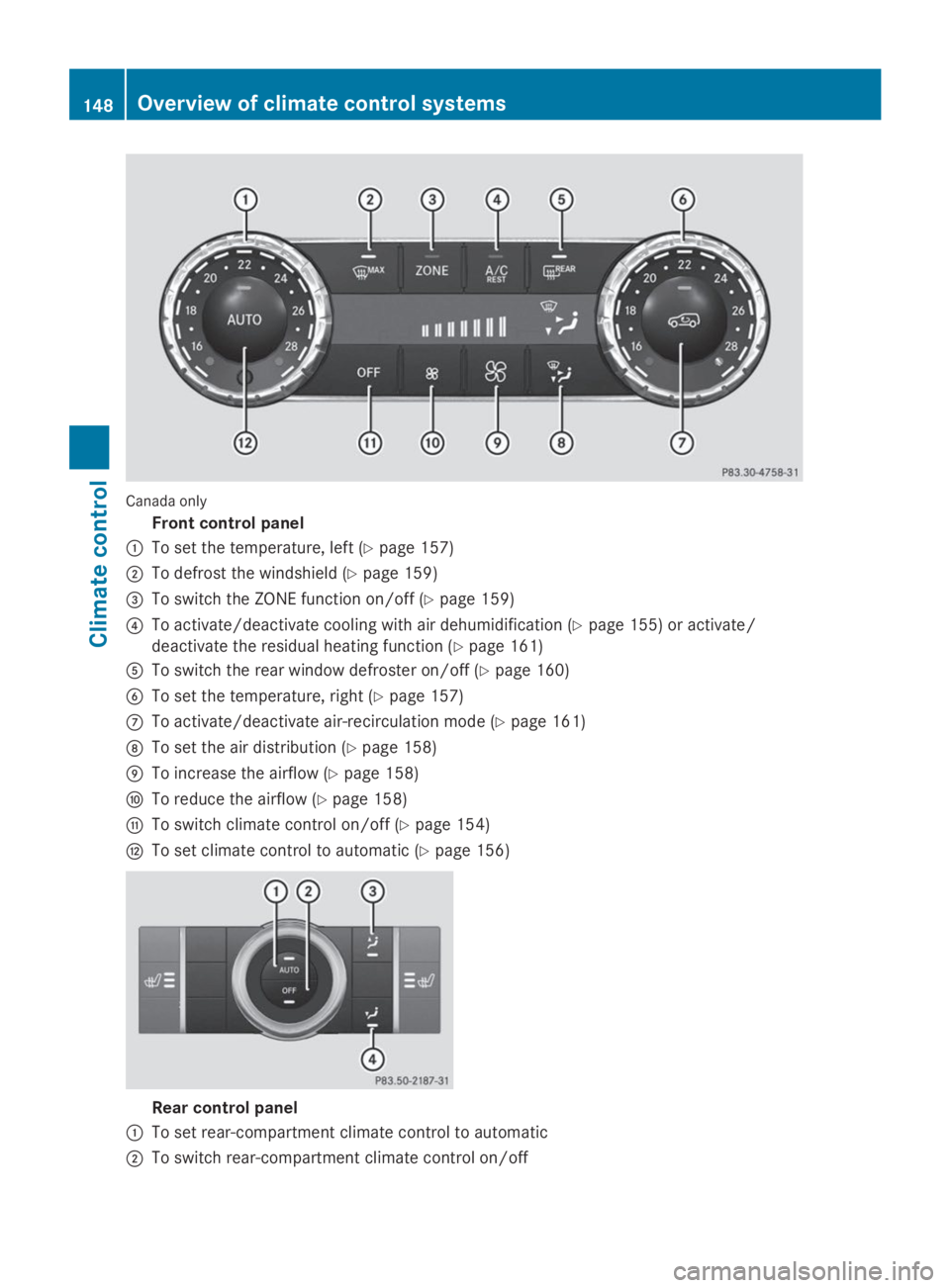

Canada only
Front control panel
CTo set the temperature, left (Ypage 157)
DTo defrost the windshield (Ypage 159)

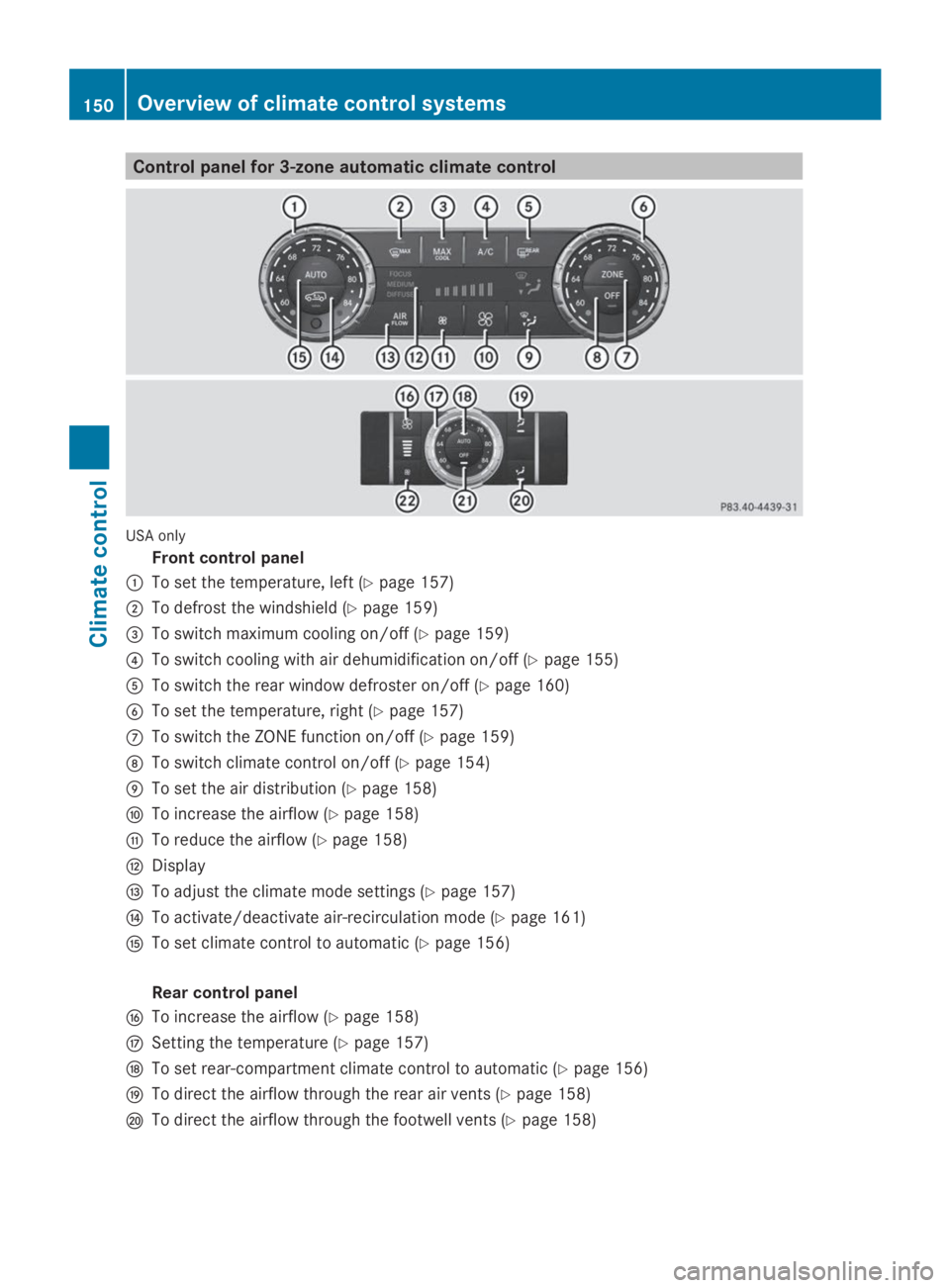

Control panel for 3-zone automatic climate control
USA only
Front control panel
CTo set the temperature, left (Ypage 157)
DTo defrost the windshield (Ypage 159)
