2014 MERCEDES-BENZ GL Owners Manual

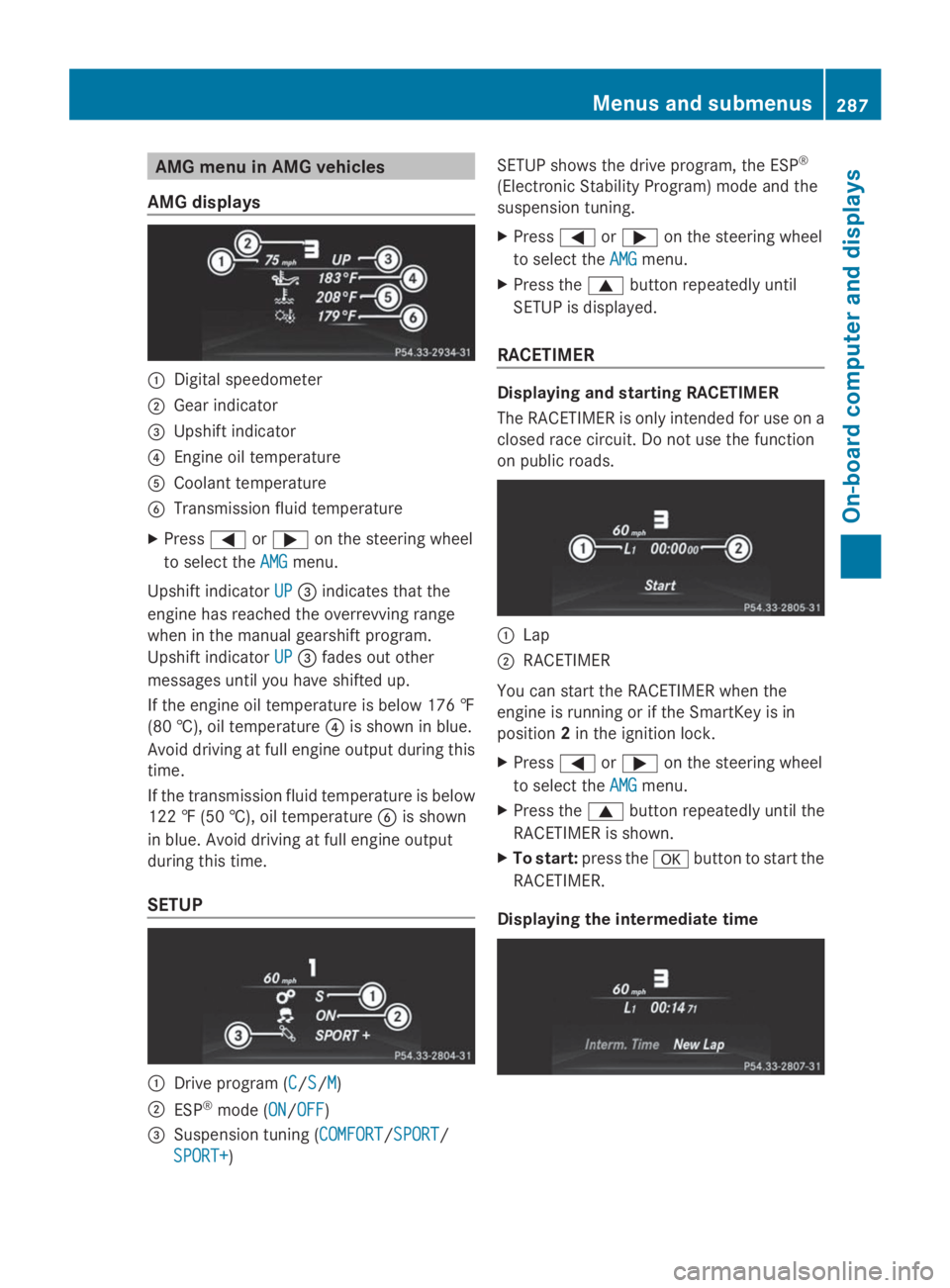

AMG menu in AMG vehicles
AMG displays
CDigital speedometer
DGear indicator

XPress theYorebutton to select
Interm. TimeInterm. Time.
XPressvto confirm.
The intermediate time is displayed for five
seconds.

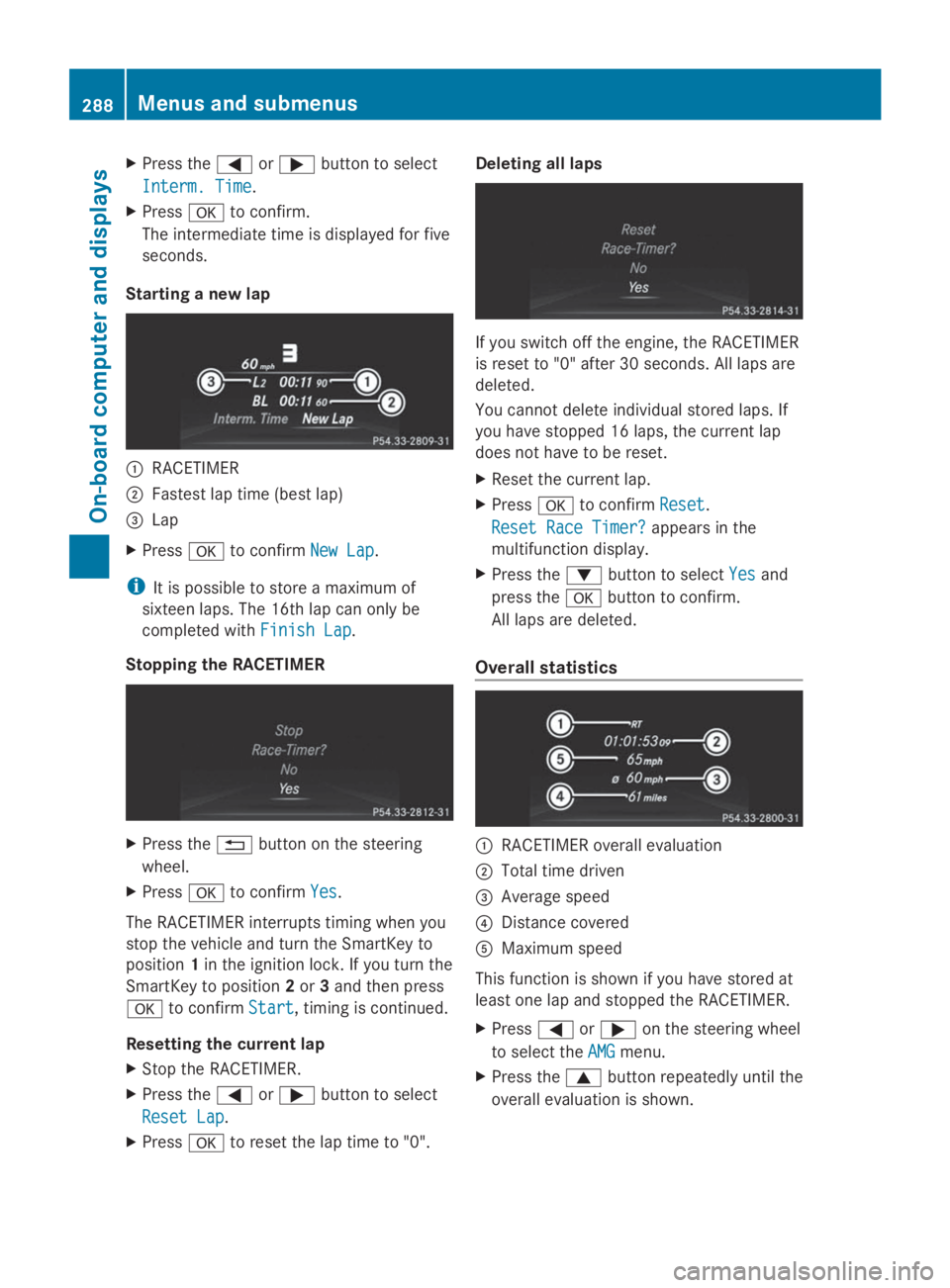

Starting a new lap
CRACETIMER
DFastest lap time (best lap)

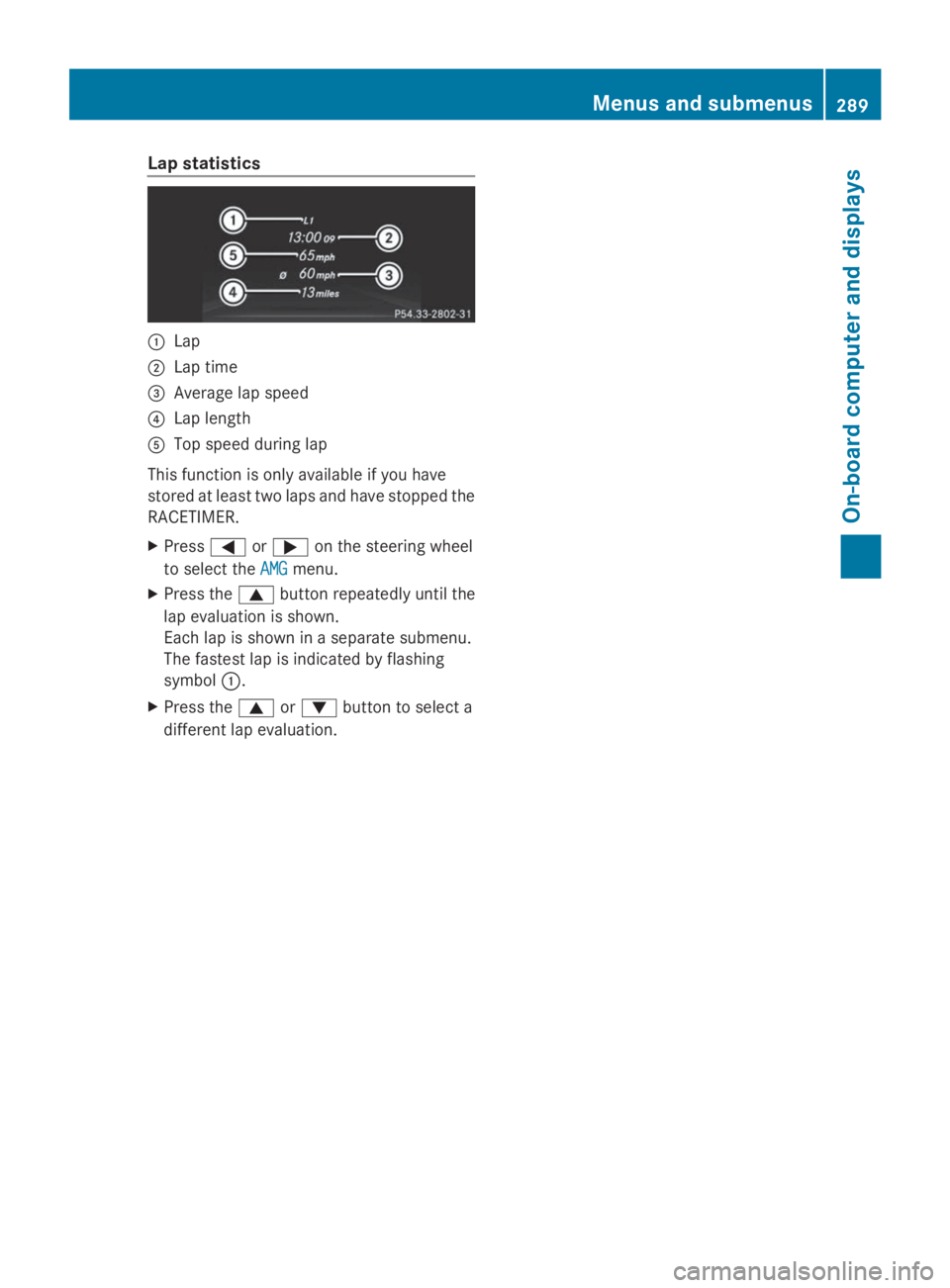

Lap statistics
CLap
DLap time

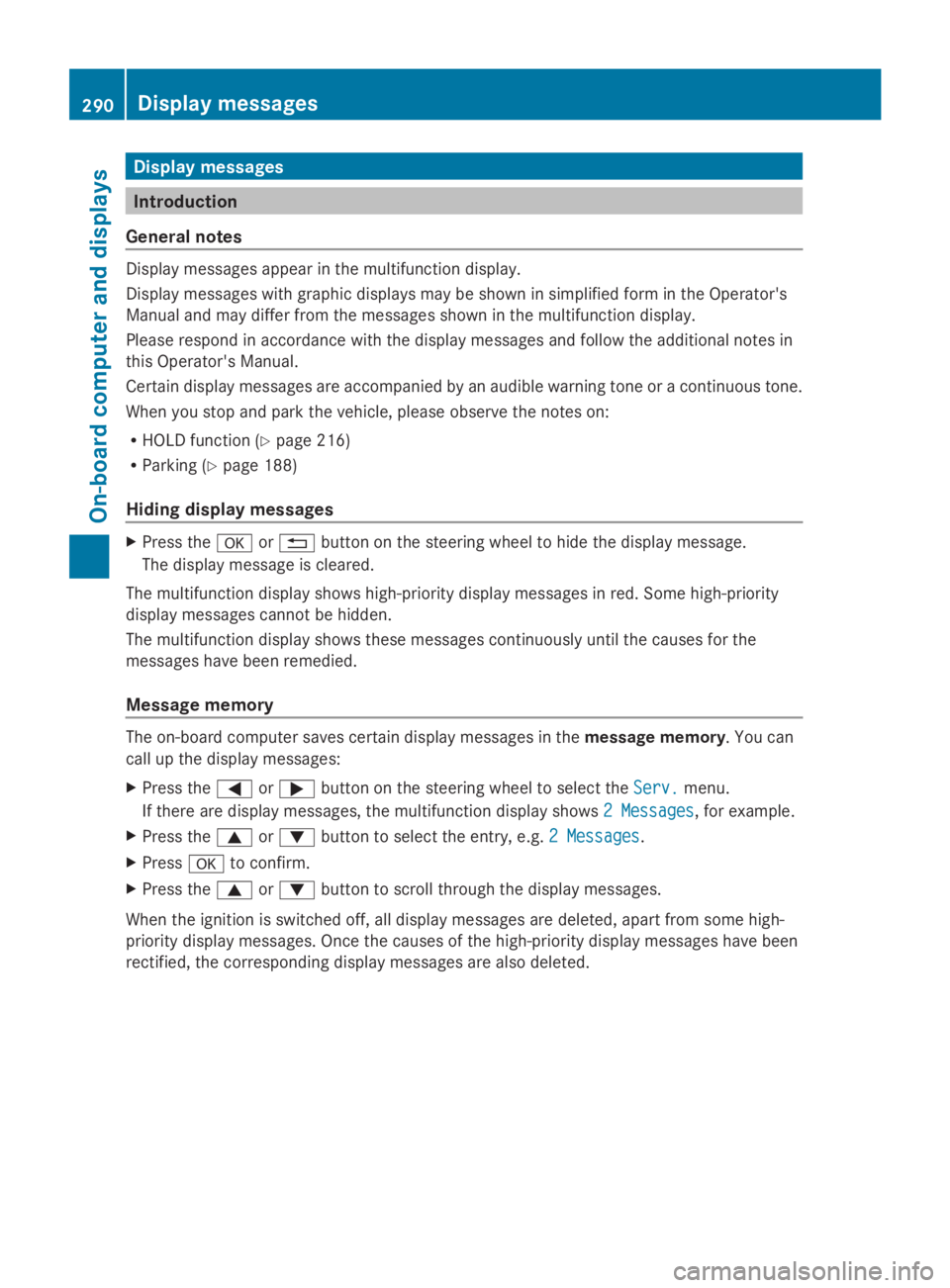

Display messages
Introduction
General notes
Display messages appear in the multifunction display.
Display messages with graphic displays may be shown in simplified form in the Operator's
Manual and may differ from the messages shown in the multifunction display.
Please respond in accordance with the display messages and follow the additional notes in
this Operator's Manual.
Certain display messages are accompanied by an audible warning tone or a continuous tone.
When you stop and park the vehicle, please observe the notes on:
RHOLD function (Ypage 216)
RParking (Ypage 188)
Hiding display messages
XPress thevor8button on the steering wheel to hide the display message.
The display message is cleared.
The multifunction display shows high-priority display messages in red. Some high-priority
display messages cannot be hidden.
The multifunction display shows these messages continuously until the causes for the
messages have been remedied.
Message memory
The on-board computer saves certain display messages in themessage memory. You can
call up the display messages:
XPress theYorebutton on the steering wheel to select theServ.Serv.menu.
If there are display messages, the multifunction display shows2 Messages2 Messages, for example.
XPress thecordbutton to select the entry, e.g.2 Messages2 Messages.
XPressvto confirm.
XPress thecordbutton to scroll through the display messages.
When the ignition is switched off, all display messages are deleted, apart from some high-
priority display messages. Once the causes of the high-priority display messages have been
rectified, the corresponding display messages are also deleted.
290Displaymessages
On-b oard computer and displays

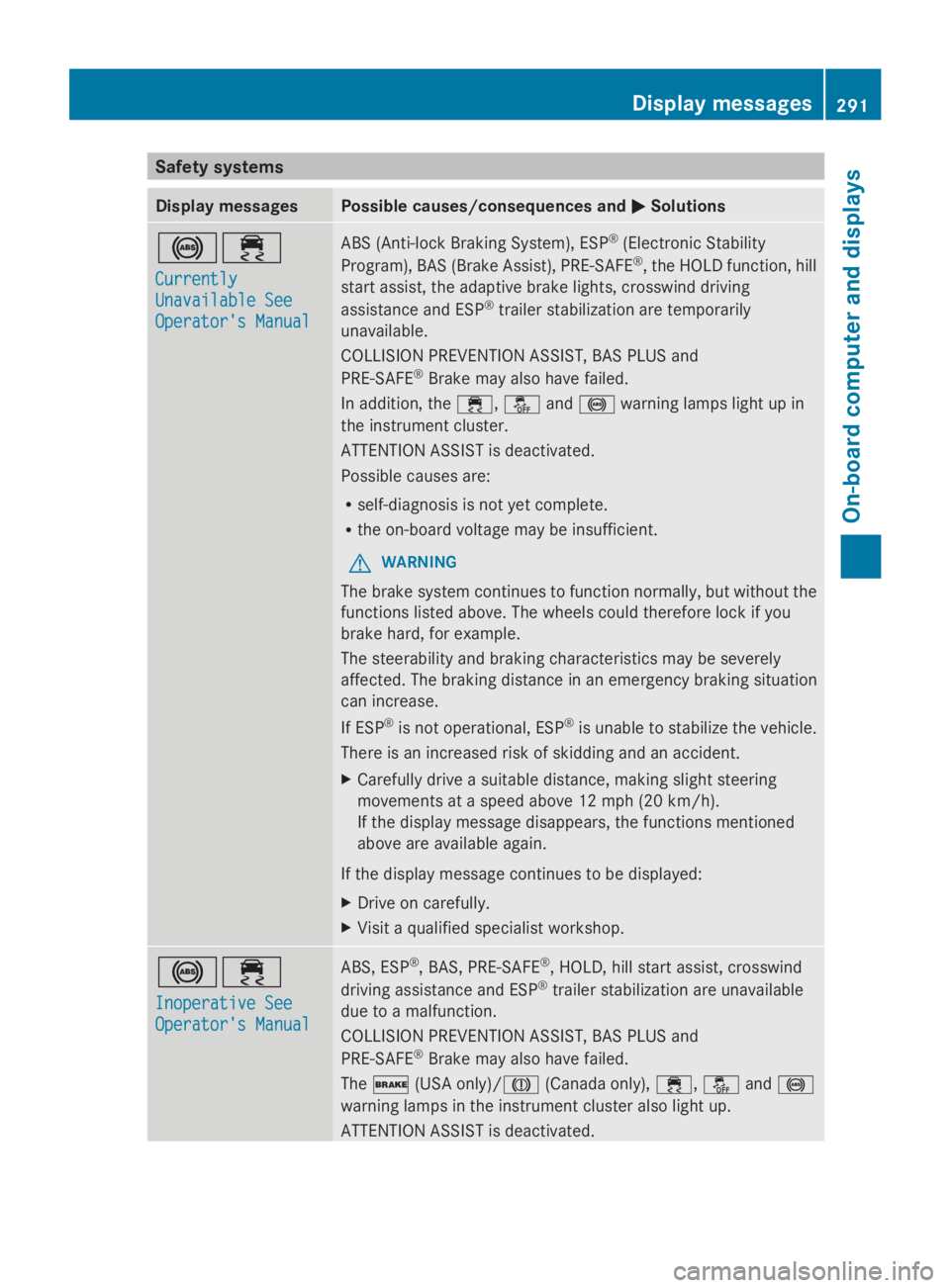

Safety systems
Display messagesPossible causes/consequences andPPSolutions
%

Display messagesPossible causes/consequences andPPSolutions

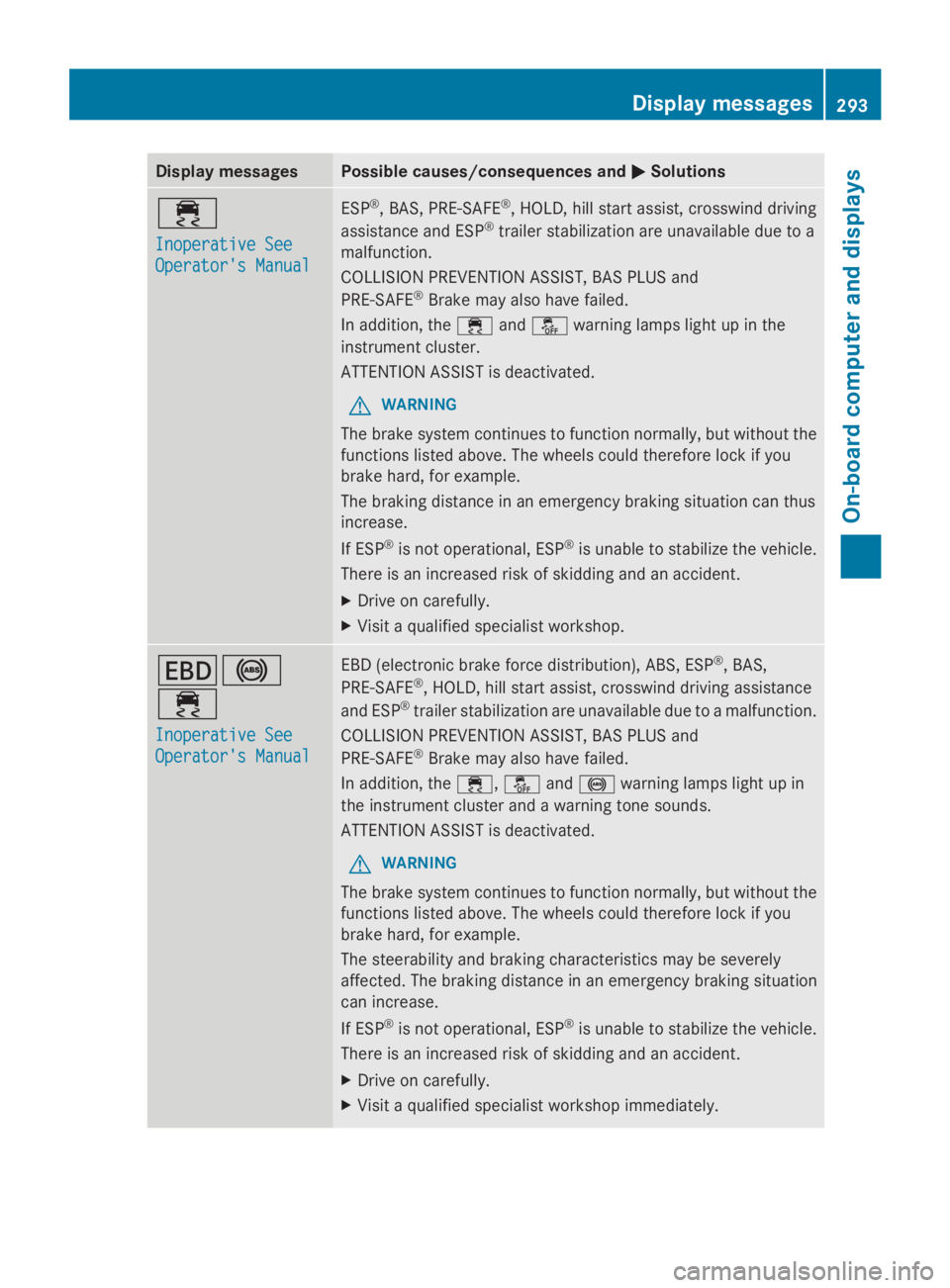

GWARNING
The brake system continues to function normally, but without the
functions listed above. The wheels could therefore lock if you
brake hard, for example.
The steerability and braking characteristics may be severely
affected. The braking distance in an emergency braking situation
can increase.
If ESP®is not operational, ESP®is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
XDrive on carefully.
XVisit a qualified specialist workshop immediately.

Display messagesPossible causes/consequences andPPSolutions

Display messagesPossible causes/consequences andPPSolutions

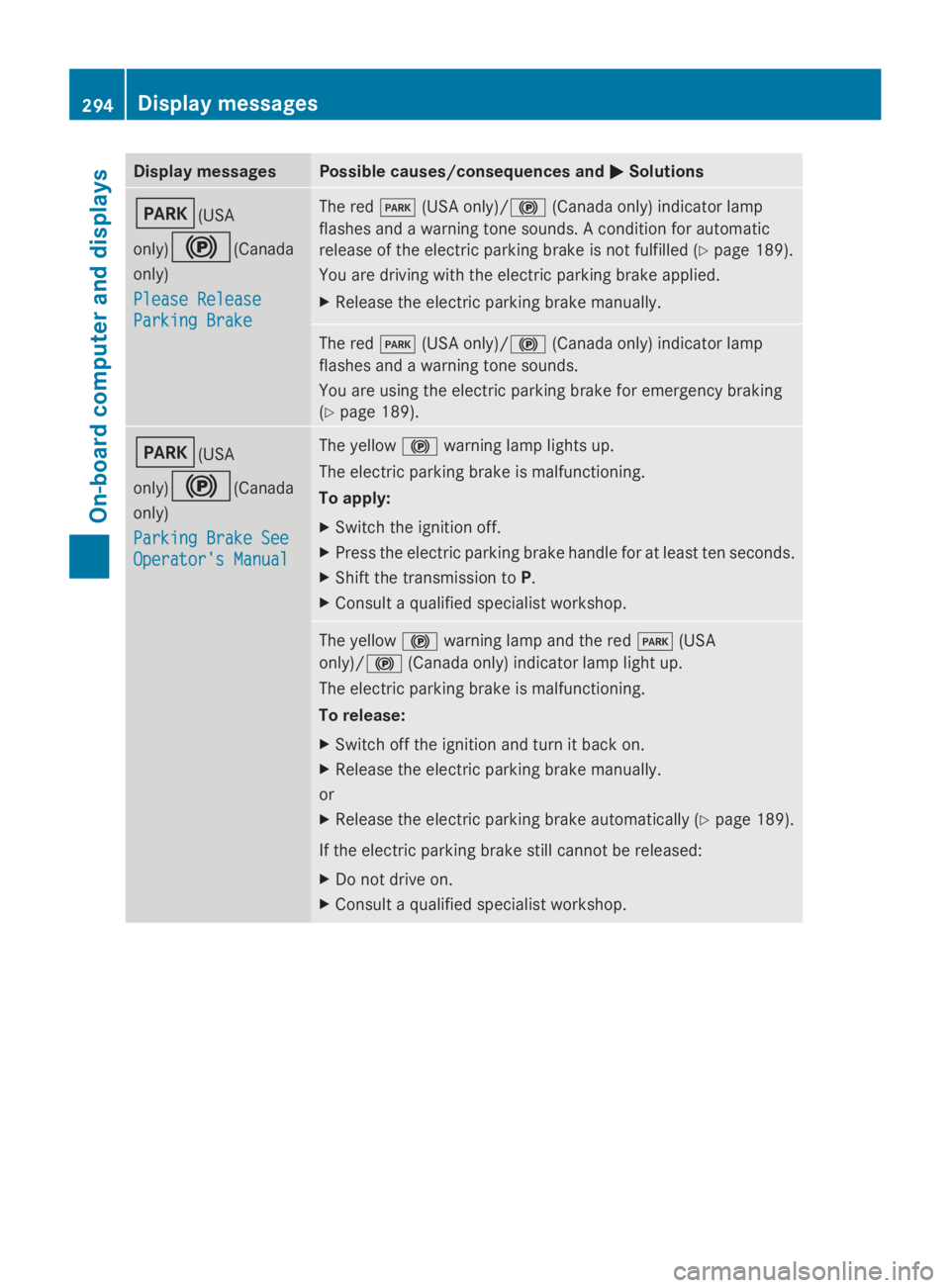

I(USA
only)$(Canada
only)
Please ReleasePlease Release
Parking BrakeParking Brake
The redI(USA only)/$(Canada only) indicator lamp
flashes and a warning tone sounds. A condition for automatic
release of the electric parking brake is not fulfilled (Ypage 189).
You are driving with the electric parking brake applied.
XRelease the electric parking brake manually.
The redI(USA only)/$(Canada only) indicator lamp
flashes and a warning tone sounds.
You are using the electric parking brake for emergency braking
(Ypage 189).
I(USA
only)$(Canada
only)
Parking Brake SeeParking Brake See
Operator's ManualOperator's Manual
The yellow$warning lamp lights up.
The electric parking brake is malfunctioning.
To apply:
XSwitch the ignition off.
XPress the electric parking brake handle for at least ten seconds.
XShift the transmission toP.
XConsult a qualified specialist workshop.
The yellow$warning lamp and the redI(USA
only)/$(Canada only) indicator lamp light up.
The electric parking brake is malfunctioning.
To release:
XSwitch off the ignition and turn it back on.
XRelease the electric parking brake manually.
or
XRelease the electric parking brake automatically (Ypage 189).
If the electric parking brake still cannot be released:
XDo not drive on.
XConsult a qualified specialist workshop.
294Displaymessages
On-b oard computer and displays
