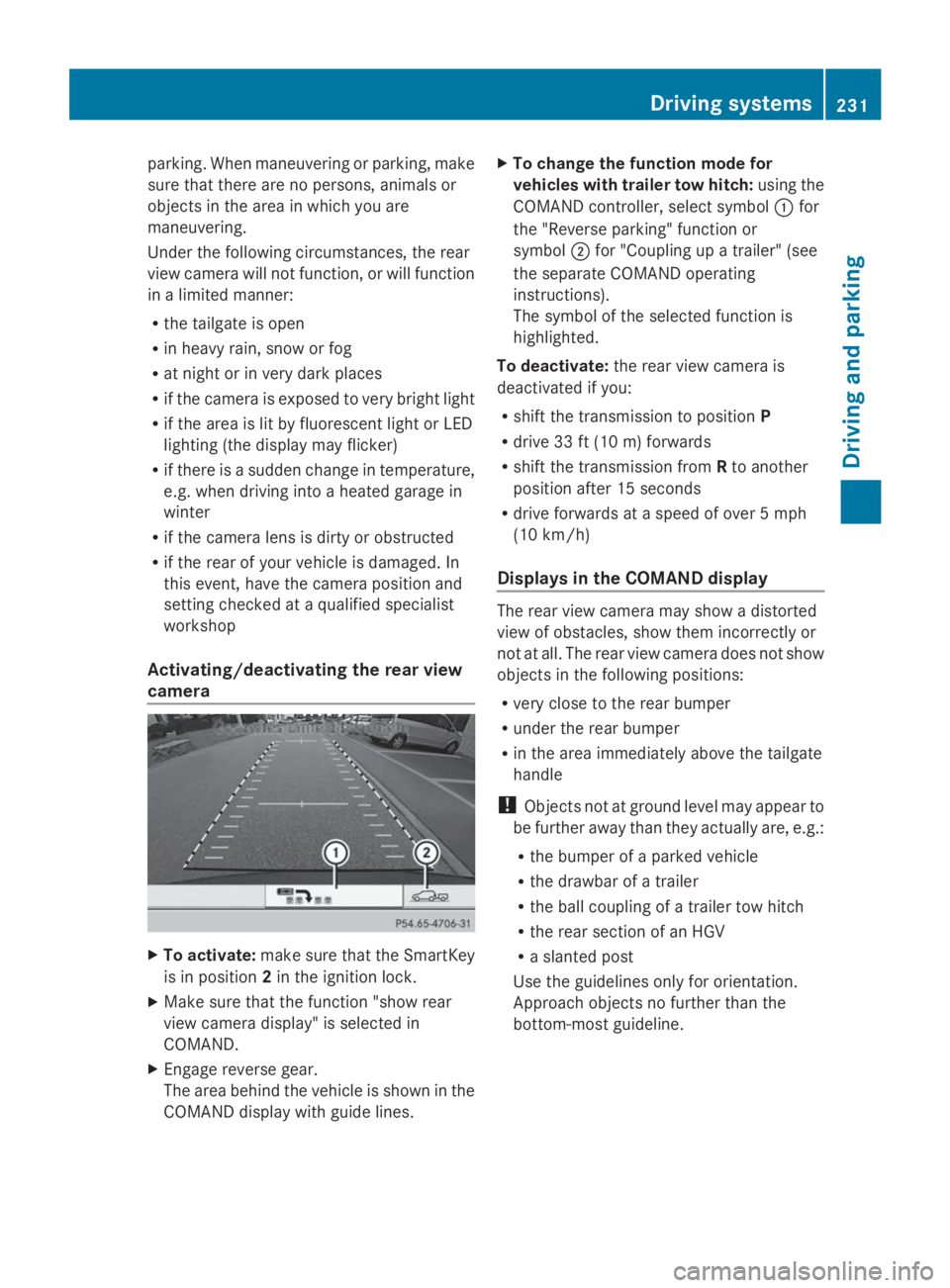

parking. When maneuvering or parking, make
sure that there are no persons, animals or
objects in the area in which you are
maneuvering.
Under the following circumstances, the rear
view camera will not function, or will function
in a limited manner:
Rthe tailgate is open
Rin heavy rain, snow or fog
Rat night or in very dark places
Rif the camera is exposed to very bright light
Rif the area is lit by fluorescent light or LED
lighting (the display may flicker)
Rif there is a sudden change in temperature,
e.g. when driving into a heated garage in
winter
Rif the camera lens is dirty or obstructed
Rif the rear of your vehicle is damaged. In
this event, have the camera position and
setting checked at a qualified specialist
workshop
Activating/deactivating the rear view
camera
XTo activate:make sure that the SmartKey
is in position2in the ignition lock.
XMake sure that the function "show rear
view camera display" is selected in
COMAND.
XEngage reverse gear.
The area behind the vehicle is shown in the
COMAND display with guide lines.
XTo change the function mode for
vehicles with trailer tow hitch:using the
COMAND controller, select symbolCfor
the "Reverse parking" function or
symbolDfor "Coupling up a trailer" (see
the separate COMAND operating
instructions).
The symbol of the selected function is
highlighted.
To deactivate:the rear view camera is
deactivated if you:
Rshift the transmission to positionP
Rdrive 33 ft (10 m) forwards
Rshift the transmission fromRto another
position after 15 seconds
Rdrive forwards at a speed of over 5 mph
(10 km/h)
Displays in the COMAND display
The rear view camera may show a distorted
view of obstacles, show them incorrectly or
not at all. The rear view camera does not show
objects in the following positions:
Rvery close to the rear bumper
Runder the rear bumper
Rin the area immediately above the tailgate
handle
!Objects not at ground level may appear to
be further away than they actually are, e.g.:
Rthe bumper of a parked vehicle
Rthe drawbar of a trailer
Rthe ball coupling of a trailer tow hitch
Rthe rear section of an HGV
Ra slanted post
Use the guidelines only for orientation.
Approach objects no further than the
bottom-most guideline.
Driving systems231
Driving and parking
Z

CWhite guide line without turning the
steering wheel, vehicle width including
the exterior mirrors (static)

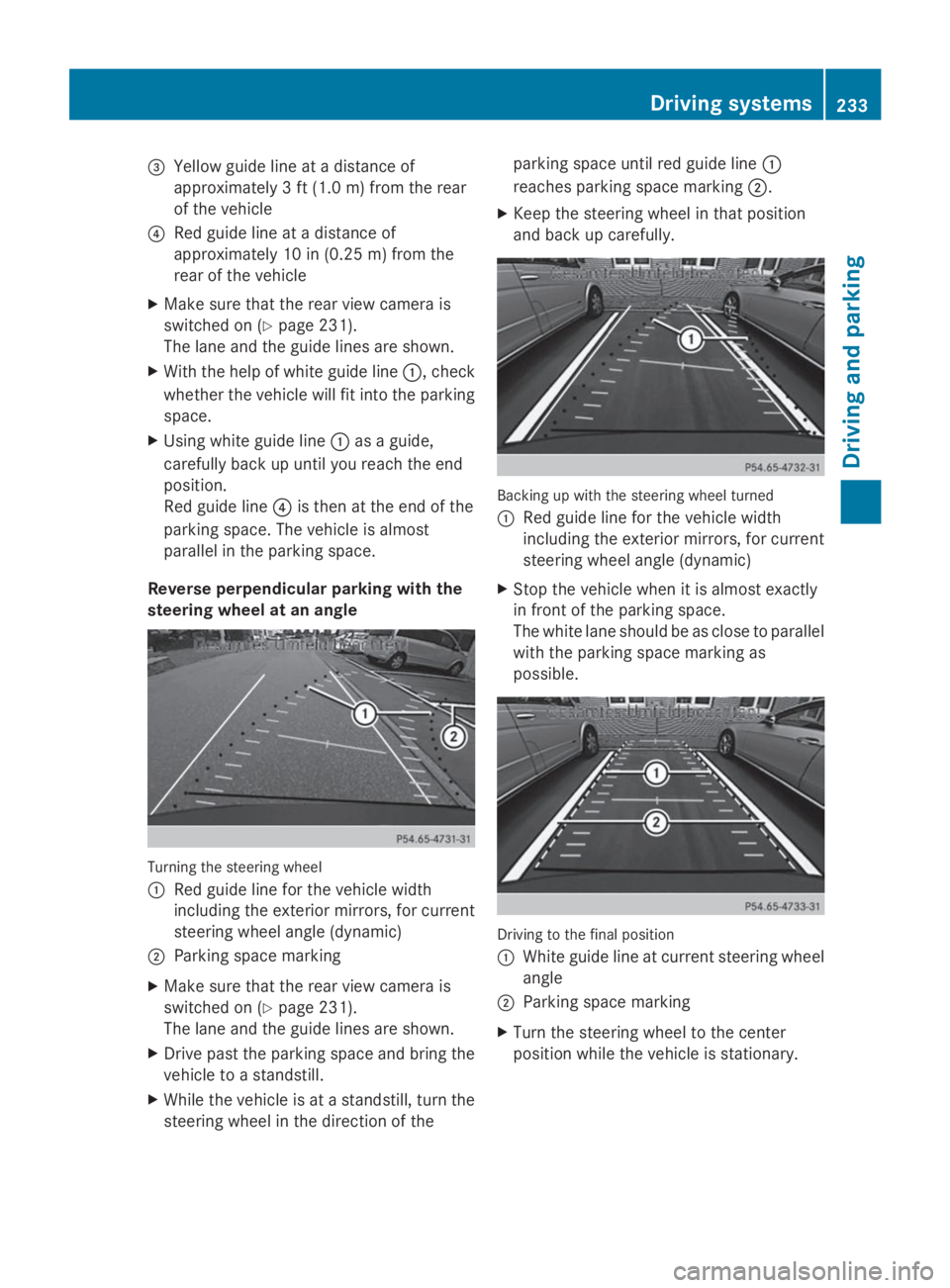

DYellow guide line at a distance of
approximately 13 ft(4.0m)from the rear
of the vehicle

CRed guide line at a distance of
approximately 10 in (0.25 m) from the
rear of the vehicle
DWhite guide line without turning the
steering wheel

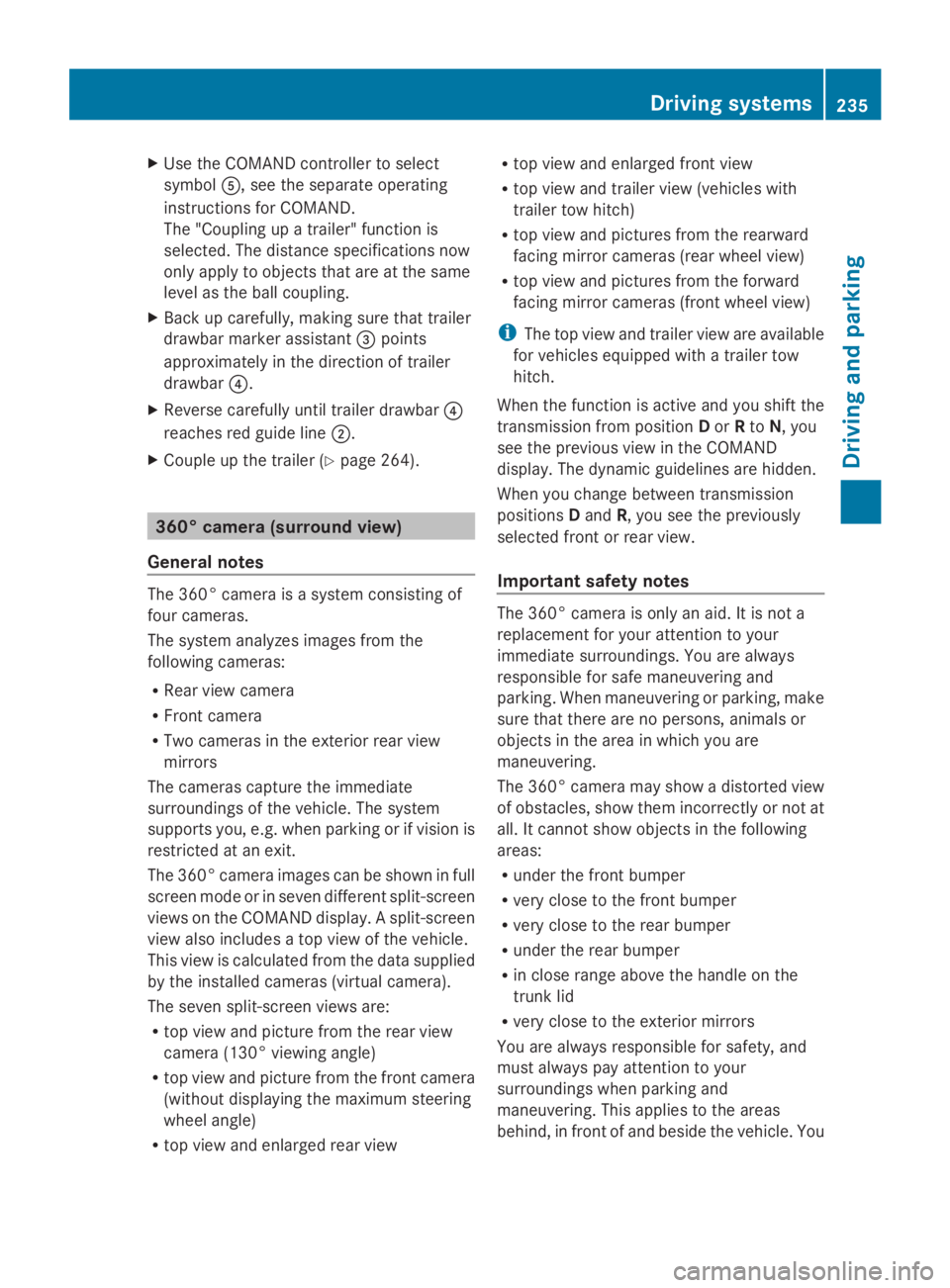

XUse the COMAND controller to select
symbol

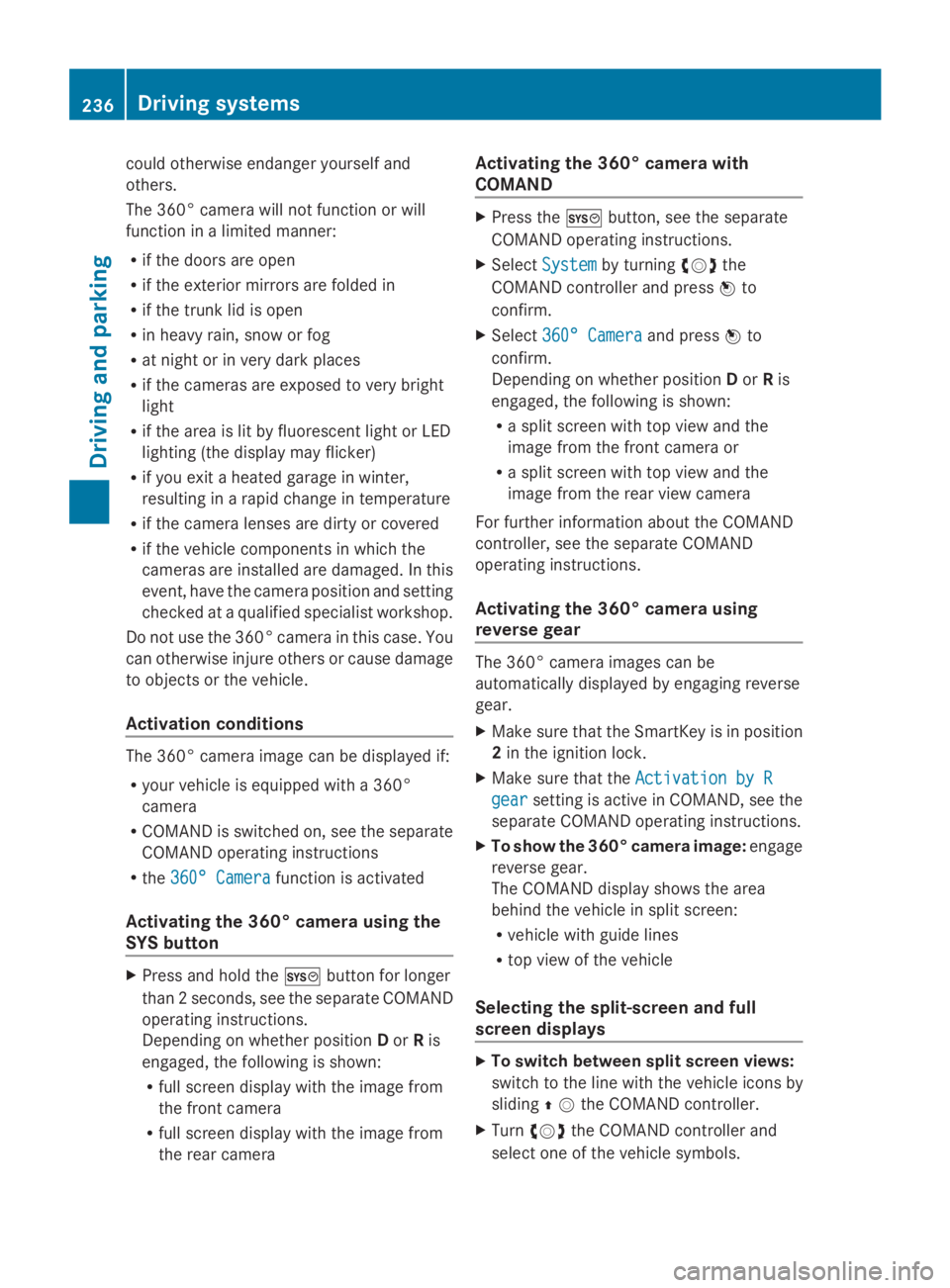

could otherwise endanger yourself and
others.
The 360° camera will not function or will
function in a limited manner:
Rif the doors are open
Rif the exterior mirrors are folded in
Rif the trunk lid is open
Rin heavy rain, snow or fog
Rat night or in very dark places
Rif the cameras are exposed to very bright
light
Rif the area is lit by fluorescent light or LED
lighting (the display may flicker)
Rif you exit a heated garage in winter,
resulting in a rapid change in temperature
Rif the camera lenses are dirty or covered
Rif the vehicle components in which the
cameras are installed are damaged. In this
event, have the camera position and setting
checked at a qualified specialist workshop.
Do not use the 360° camera in this case. You
can otherwise injure others or cause damage
to objects or the vehicle.
Activation conditions
The 360° camera image can be displayed if:
Ryour vehicle is equipped with a 360°
camera
RCOMAND is switched on, see the separate
COMAND operating instructions
Rthe360° Camera360° Camerafunction is activated
Activating the 360° camera using the
SYS button
XPress and hold thefbutton for longer
than 2 seconds, see the separate COMAND
operating instructions.
Depending on whether positionDorRis
engaged, the following is shown:
Rfull screen display with the image from
the front camera
Rfull screen display with the image from
the rear camera
Activating the 360° camera with
COMAND
XPress thefbutton, see the separate
COMAND operating instructions.
XSelectSystemSystemby turningyRzthe
COMAND controller and press

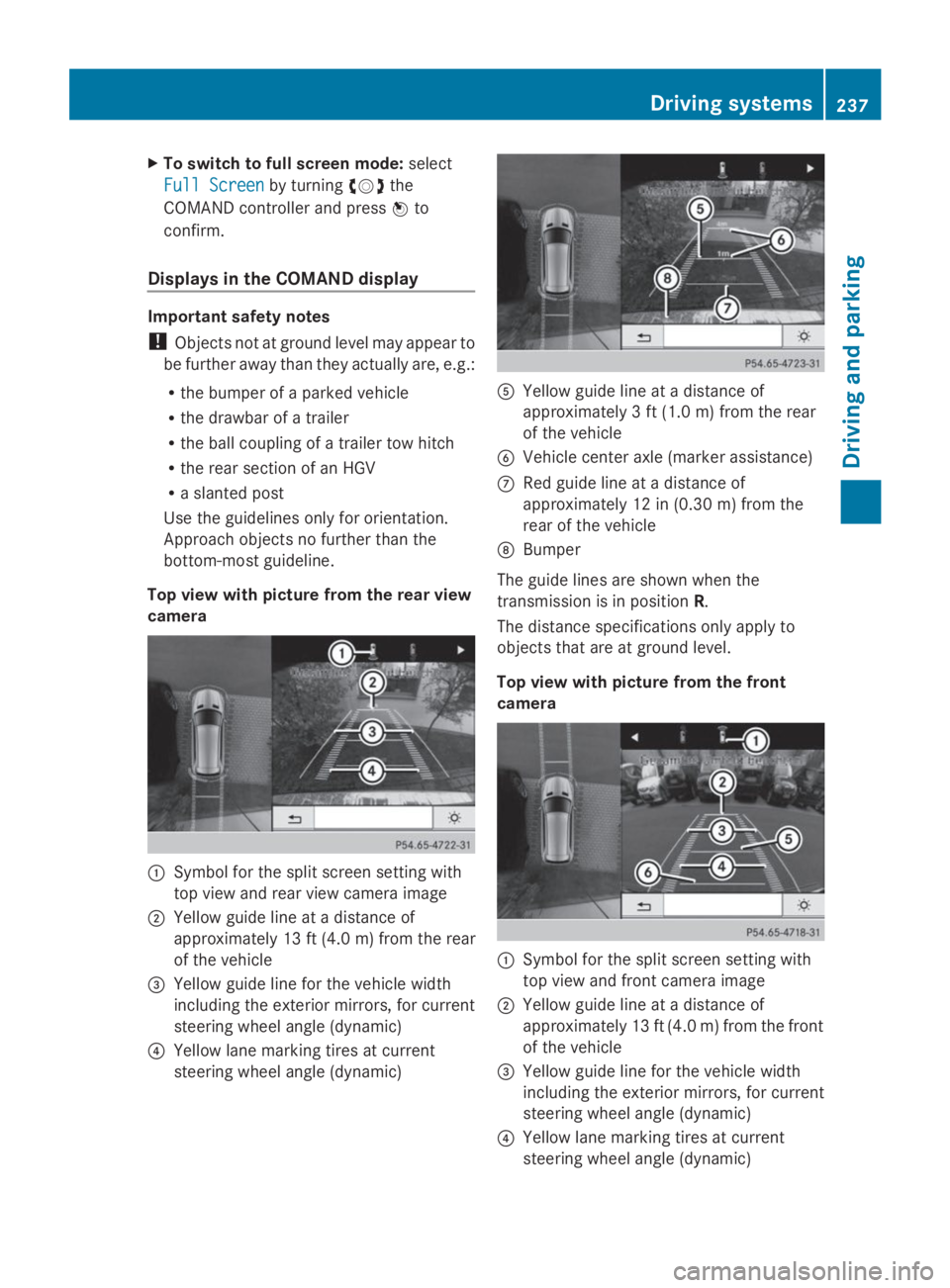

XTo switch to full screen mode:select
Full ScreenFull Screenby turningyRzthe
COMAND controller and press
