2014 MERCEDES-BENZ GL Owners Manual

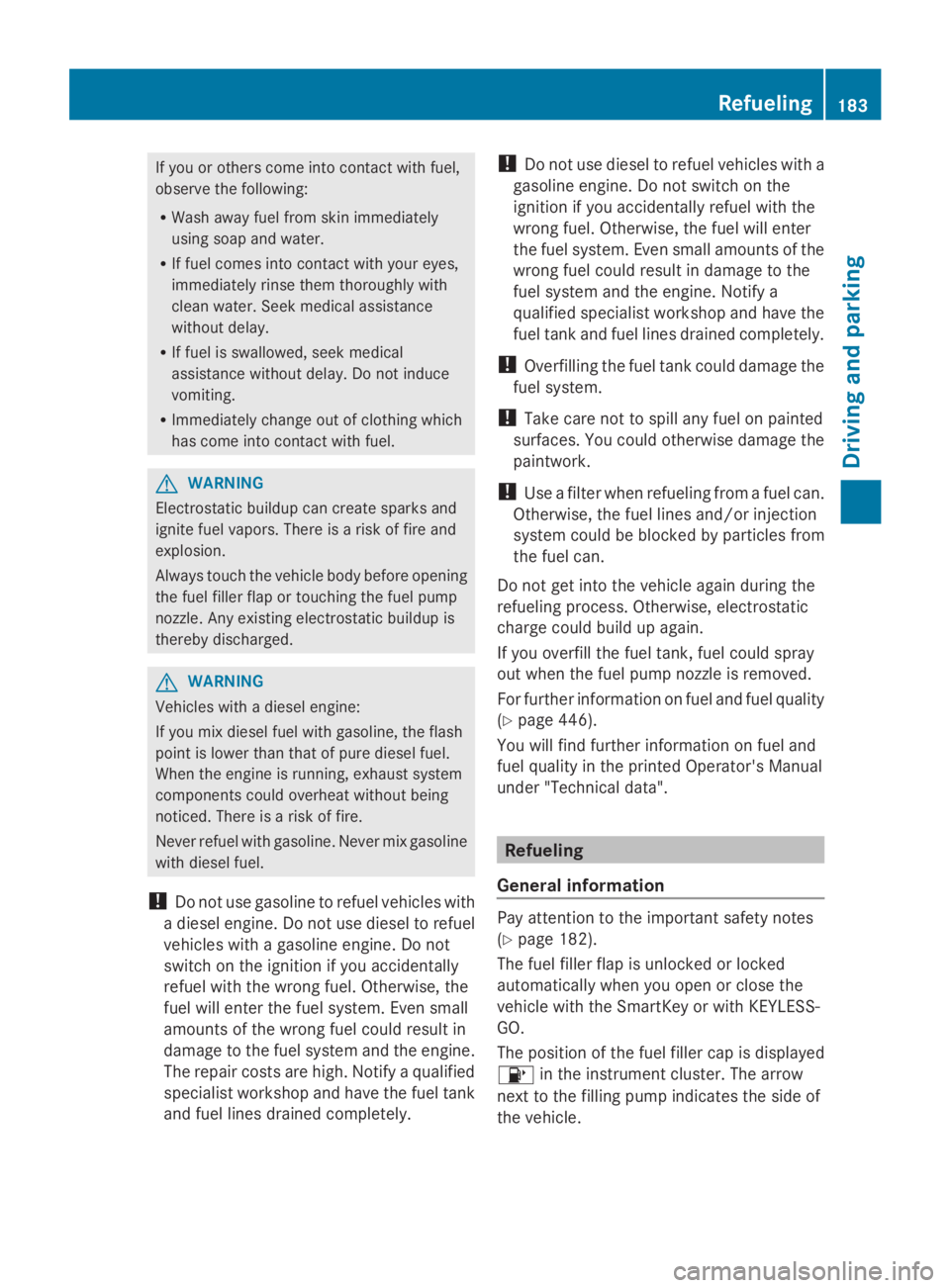

If you or others come into contact with fuel,
observe the following:
RWash away fuel from skin immediately
using soap and water.
RIf fuel comes into contact with your eyes,
immediately rinse them thoroughly with
clean water. Seek medical assistance
without delay.
RIf fuel is swallowed, seek medical
assistance without delay. Do not induce
vomiting.
RImmediately change out of clothing which
has come into contact with fuel.
GWARNING
Electrostatic buildup can create sparks and
ignite fuel vapors. There is a risk of fire and
explosion.
Always touch the vehicle body before opening
the fuel filler flap or touching the fuel pump
nozzle. Any existing electrostatic buildup is
thereby discharged.
GWARNING
Vehicles with a diesel engine:
If you mix diesel fuel with gasoline, the flash
point is lower than that of pure diesel fuel.
When the engine is running, exhaust system
components could overheat without being
noticed. There is a risk of fire.
Never refuel with gasoline. Never mix gasoline
with diesel fuel.
!Do not use gasoline to refuel vehicles with
a diesel engine. Do not use diesel to refuel
vehicles with a gasoline engine. Do not
switch on the ignition if you accidentally
refuel with the wrong fuel. Otherwise, the
fuel will enter the fuel system. Even small
amounts of the wrong fuel could result in
damage to the fuel system and the engine.
The repair costs are high. Notify a qualified
specialist workshop and have the fuel tank
and fuel lines drained completely.
!Do not use diesel to refuel vehicles with a
gasoline engine. Do not switch on the
ignition if you accidentally refuel with the
wrong fuel. Otherwise, the fuel will enter
the fuel system. Even small amounts of the
wrong fuel could result in damage to the
fuel system and the engine. Notify a
qualified specialist workshop and have the
fuel tank and fuel lines drained completely.
!Overfilling the fuel tank could damage the
fuel system.
!Take care not to spill any fuel on painted
surfaces. You could otherwise damage the
paintwork.
!Use a filter when refueling from a fuel can.
Otherwise, the fuel lines and/or injection
system could be blocked by particles from
the fuel can.
Do not get into the vehicle again during the
refueling process. Otherwise, electrostatic
charge could build up again.
If you overfill the fuel tank, fuel could spray
out when the fuel pump nozzle is removed.
For further information on fuel and fuel quality
(Ypage 446).
You will find further information on fuel and
fuel quality in the printed Operator's Manual
under "Technical data".
Refueling
General information
Pay attention to the important safety notes
(Ypage 182).
The fuel filler flap is unlocked or locked
automatically when you open or close the
vehicle with the SmartKey or with KEYLESS-
GO.
The position of the fuel filler cap is displayed

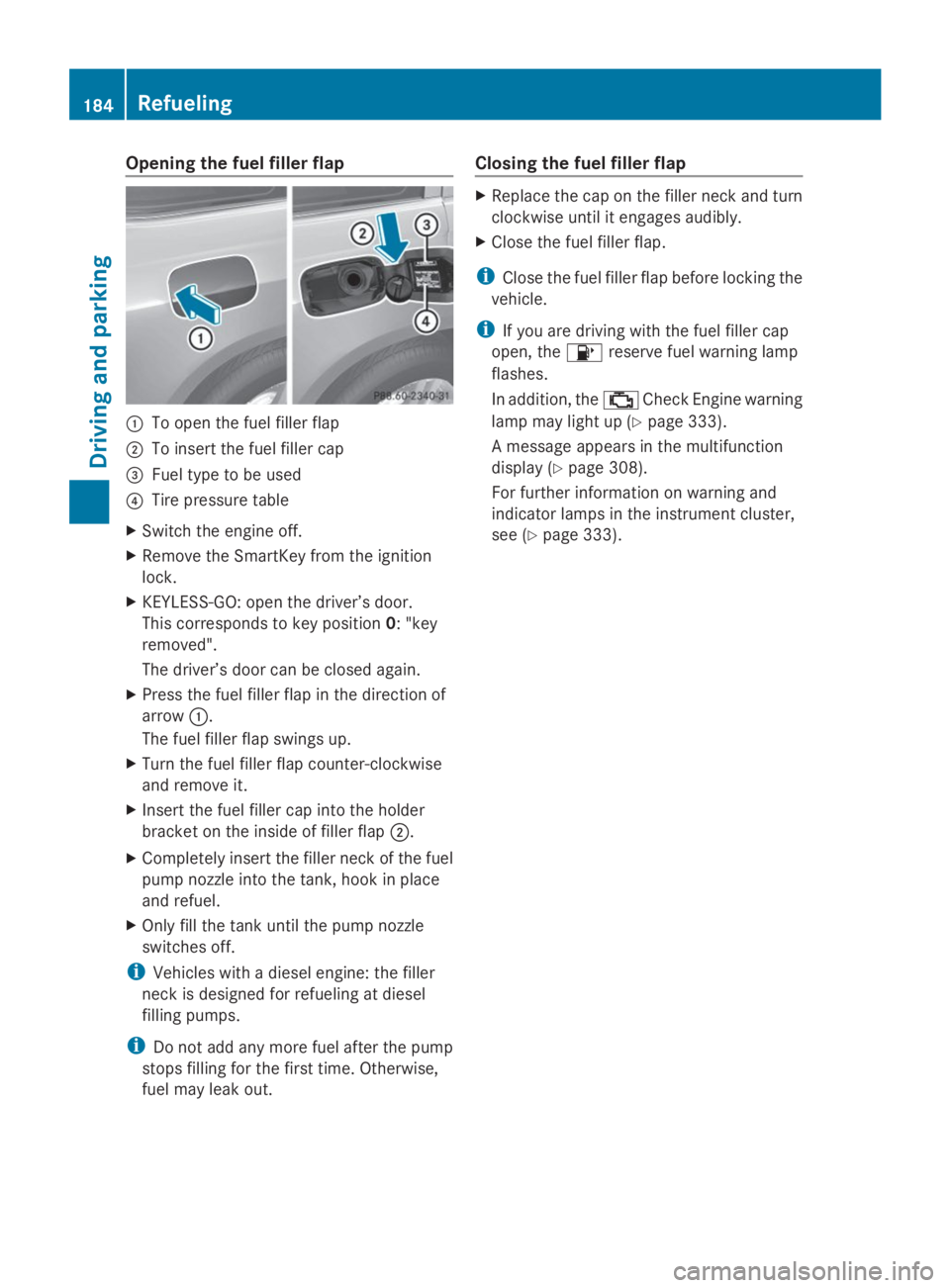

Opening the fuel filler flap
CTo open the fuel filler flap
DTo insert the fuel filler cap

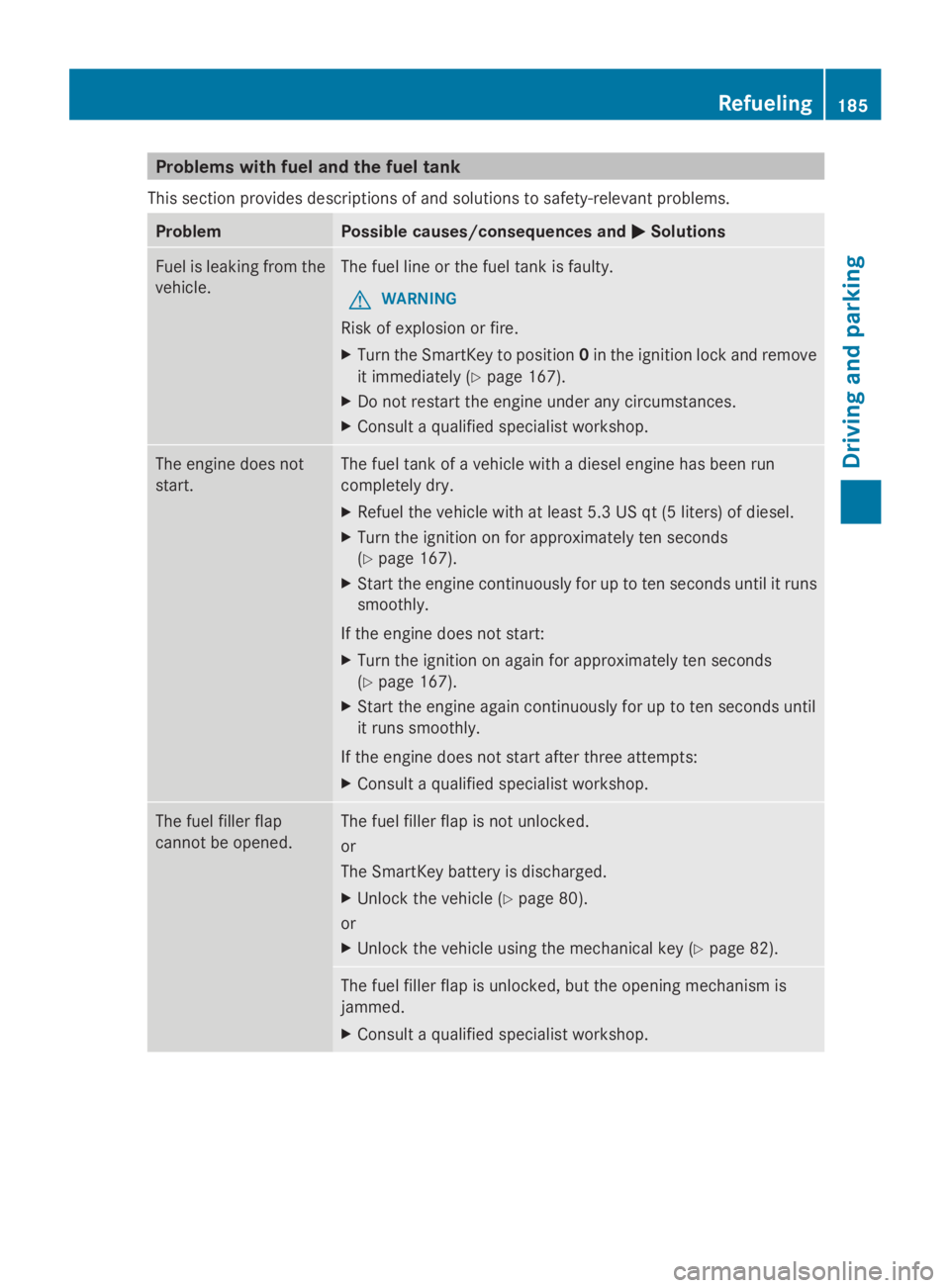

Problems with fuel and the fuel tank
This section provides descriptions of and solutions to safety-relevant problems.
ProblemPossible causes/consequences andPPSolutions
Fuel is leaking from the
vehicle.
The fuel line or the fuel tank is faulty.
GWARNING
Risk of explosion or fire.
XTurn the SmartKey to position0in the ignition lock and remove
it immediately (Ypage 167).
XDo not restart the engine under any circumstances.
XConsult a qualified specialist workshop.
The engine does not
start.
The fuel tank of a vehicle with a diesel engine has been run
completely dry.
XRefuel the vehicle with at least 5.3 US qt (5 liters) of diesel.
XTurn the ignition on for approximately ten seconds
(Ypage 167).
XStart the engine continuously for up to ten seconds until it runs
smoothly.
If the engine does not start:
XTurn the ignition on again for approximately ten seconds
(Ypage 167).
XStart the engine again continuously for up to ten seconds until
it runs smoothly.
If the engine does not start after three attempts:
XConsult a qualified specialist workshop.
The fuel filler flap
cannot be opened.
The fuel filler flap is not unlocked.
or
The SmartKey battery is discharged.
XUnlock the vehicle (Ypage 80).
or
XUnlock the vehicle using the mechanical key (Ypage 82).
The fuel filler flap is unlocked, but the opening mechanism is
jammed.
XConsult a qualified specialist workshop.
Refueling185
Driving and parking
Z

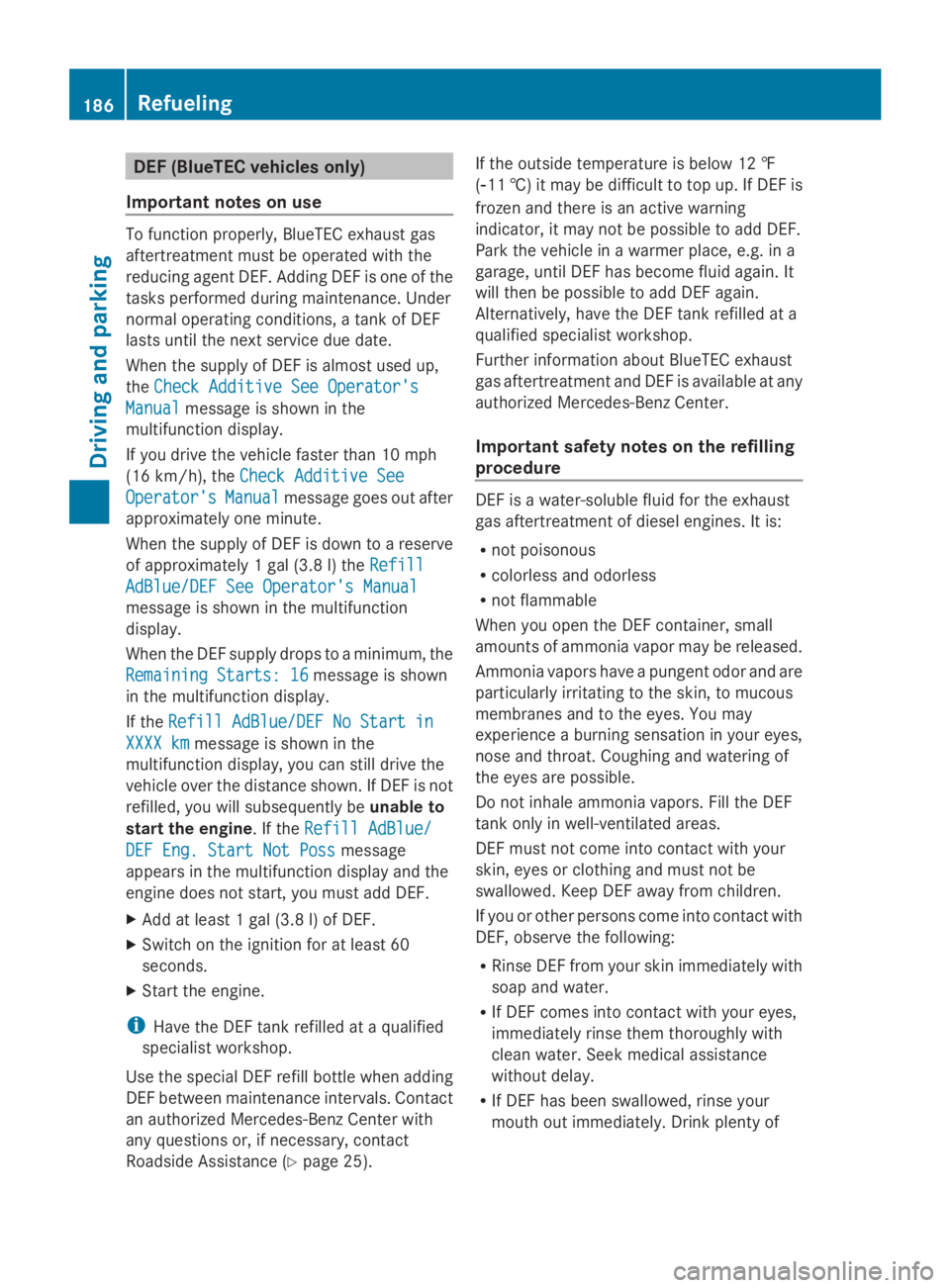

DEF (BlueTEC vehicles only)
Important notes on use
To function properly, BlueTEC exhaust gas
aftertreatment must be operated with the
reducing agent DEF. Adding DEF is one of the
tasks performed during maintenance. Under
normal operating conditions, a tank of DEF
lasts until the next service due date.
When the supply of DEF is almost used up,
theCheck Additive See Operator'sCheck Additive See Operator's
ManualManualmessage is shown in the
multifunction display.
If you drive the vehicle faster than 10 mph
(16 km/h), theCheck Additive SeeCheck Additive See
Operator'sOperator'sManualManualmessage goes out after
approximately one minute.
When the supply of DEF is down to a reserve
of approximately 1 gal (3.8 l) theRefillRefill
AdBlue/DEF See Operator's ManualAdBlue/DEF See Operator's Manual
message is shown in the multifunction
display.
When the DEF supply drops to a minimum, the
Remaining Starts: 16Remaining Starts: 16message is shown
in the multifunction display.
If theRefill AdBlue/DEF No Start inRefill AdBlue/DEF No Start in
XXXX kmXXXX kmmessage is shown in the
multifunction display, you can still drive the
vehicle over the distance shown. If DEF is not
refilled, you will subsequently beunable to
start the engine. If theRefill AdBlue/Refill AdBlue/
DEF Eng. Start Not PossDEF Eng. Start Not Possmessage
appears in the multifunction display and the
engine does not start, you must add DEF.
XAdd at least 1 gal(3.8l) of DEF.
XSwitch on the ignition for at least 60
seconds.
XStart the engine.
iHave the DEF tank refilled at a qualified
specialist workshop.
Use the special DEF refill bottle when adding
DEF between maintenance intervals. Contact
an authorized Mercedes-Benz Center with
any questions or, if necessary, contact
Roadside Assistance (Ypage 25).
If the outside temperature is below 12 ‡
(

water. Seek medical assistance without
delay.
RChange out of clothing contaminated with
DEF immediately.
!Only use DEF in accordance with
ISO 22241. Do not mix any additives with
DEF, and do not dilute DEF with water. This
may destroy the BlueTEC exhaust gas
aftertreatment system.
!The vehicle must be parked on level
ground to fill the DEF tank. The DEF tank
can only be filled as intended with the
vehicle parked on a level surface. This
avoids false level readings. Filling the tank
is not permitted if the vehicle is not parked
on a level surface. There is a danger of
overfilling, which could result in damage to
components of the BlueTEC exhaust gas
aftertreatment.
!Rinse surfaces that have come into
contact with DEF immediately with water or
remove DEF using a damp cloth and cold
water. If the DEF has already crystallized,
use a sponge and cold water to clean it. DEF
residues crystallize after time and
contaminate the affected surfaces.
!DEF is not a fuel additive and must not be
added to the fuel tank. If DEF is added to
the fuel tank, this can lead to engine
damage.
For further information on DEF, see
(Ypage 448).
You will find further information on DEF in the
printed Operator's Manual under "Technical
data".

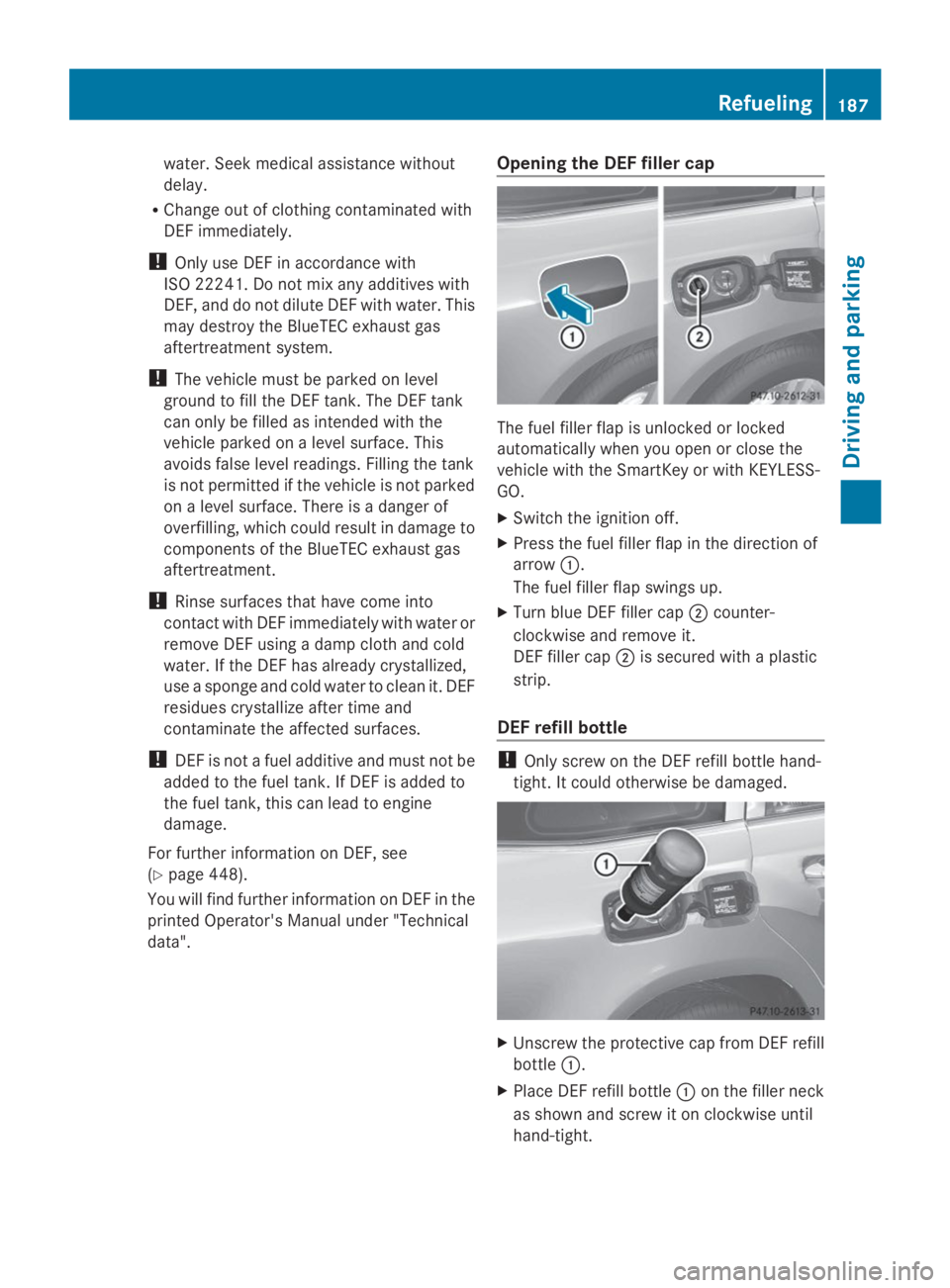

Opening the DEF filler cap
The fuel filler flap is unlocked or locked
automatically when you open or close the
vehicle with the SmartKey or with KEYLESS-
GO.
XSwitch the ignition off.
XPress the fuel filler flap in the direction of
arrowC.
The fuel filler flap swings up.
XTurn blue DEF filler capDcounter-
clockwise and remove it.
DEF filler capDis secured with a plastic
strip.
DEF refill bottle
!Only screw on the DEF refill bottle hand-
tight. It could otherwise be damaged.
XUnscrew the protective cap from DEF refill
bottleC.
XPlace DEF refill bottleCon the filler neck
as shown and screw it on clockwise until
hand-tight.
Refueling187
Driving and parking
Z

XPress DEF refill bottleCtowards the filler
neck.
The DEF tank is filled. This may take up to
one minute.
iWhen DEF refill bottleCis no longer
pressed, filling stops and the bottle may be
taken off again after being only partially
emptied.
XRelease DEF refill bottleC.
XTurn DEF refill bottleCcounter-clockwise
and remove it.
XScrew the protective cap onto DEF refill
bottleCagain.
DEF refill bottles can be obtained at many gas
stations or at an authorized Mercedes-Benz
Center. Refill bottles without a threaded cap
do not provide overfill protection. DEF may
leak if overfilled. Mercedes Benz offers
special refill bottles with a threaded seal.
These are available at any authorized
Mercedes-Benz Center.

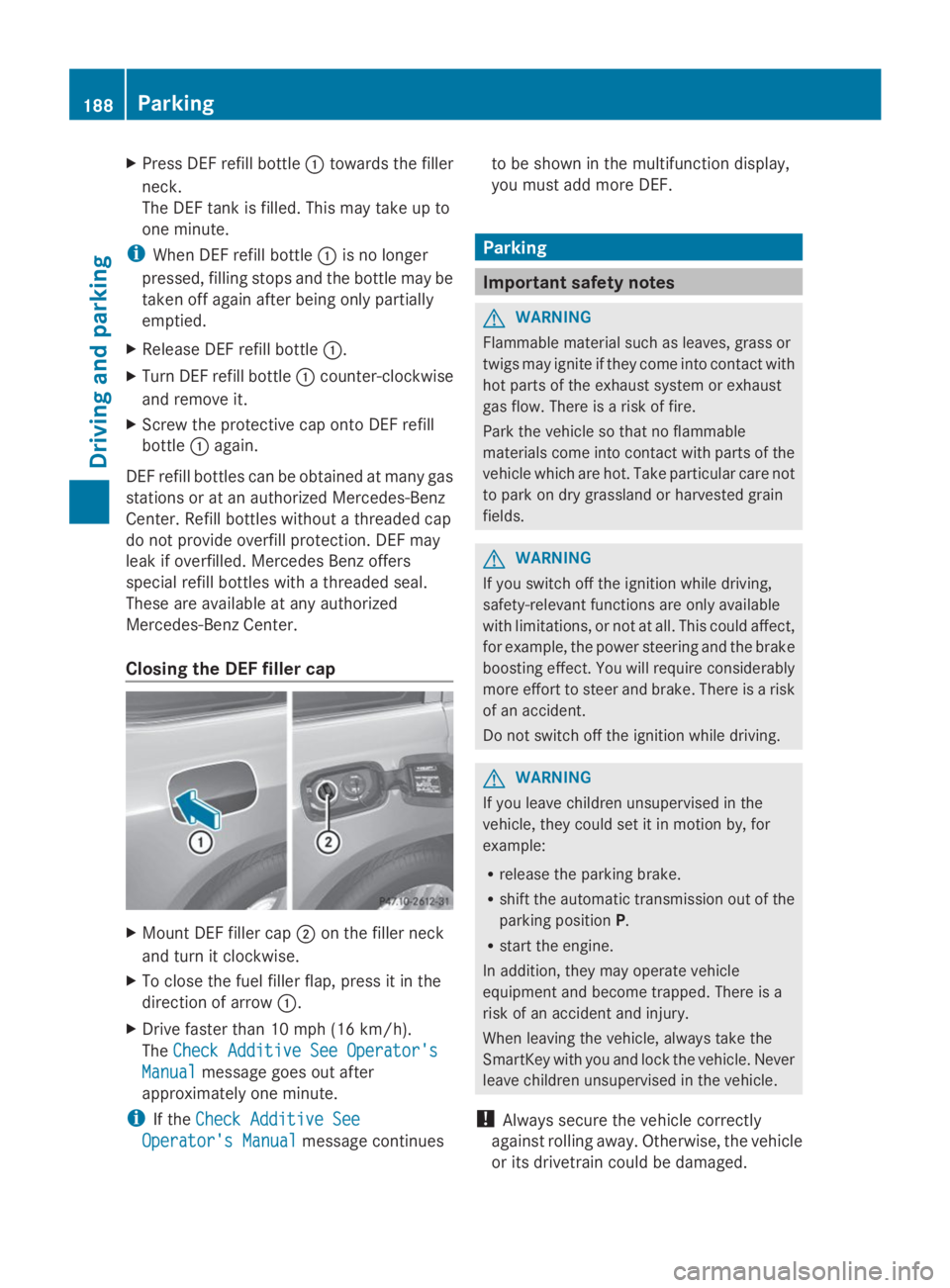

Closing the DEF filler cap
XMount DEF filler capDon the filler neck
and turn it clockwise.
XTo close the fuel filler flap, press it in the
direction of arrowC.
XDrive faster than 10 mph (16 km/h).
TheCheck Additive See Operator'sCheck Additive See Operator's
ManualManualmessage goes out after
approximately one minute.
iIf theCheck Additive SeeCheck Additive See
Operator's ManualOperator's Manualmessage continues
to be shown in the multifunction display,
you must add more DEF.
Parking
Important safety notes
GWARNING
Flammable material such as leaves, grass or
twigs may ignite if they come into contact with
hot parts of the exhaust system or exhaust
gas flow. There is a risk of fire.
Park the vehicle so that no flammable
materials come into contact with parts of the
vehicle which are hot. Take particular care not
to park on dry grassland or harvested grain
fields.
GWARNING
If you switch off the ignition while driving,
safety-relevant functions are only available
with limitations, or not at all. This could affect,
for example, the power steering and the brake
boosting effect. You will require considerably
more effort to steer and brake. There is a risk
of an accident.
Do not switch off the ignition while driving.
GWARNING
If you leave children unsupervised in the
vehicle, they could set it in motion by, for
example:
Rrelease the parking brake.
Rshift the automatic transmission out of the
parking positionP.
Rstart the engine.
In addition, they may operate vehicle
equipment and become trapped. There is a
risk of an accident and injury.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Never
leave children unsupervised in the vehicle.
!Always secure the vehicle correctly
against rolling away. Otherwise, the vehicle
or its drivetrain could be damaged.
188Parking
Driving and parking

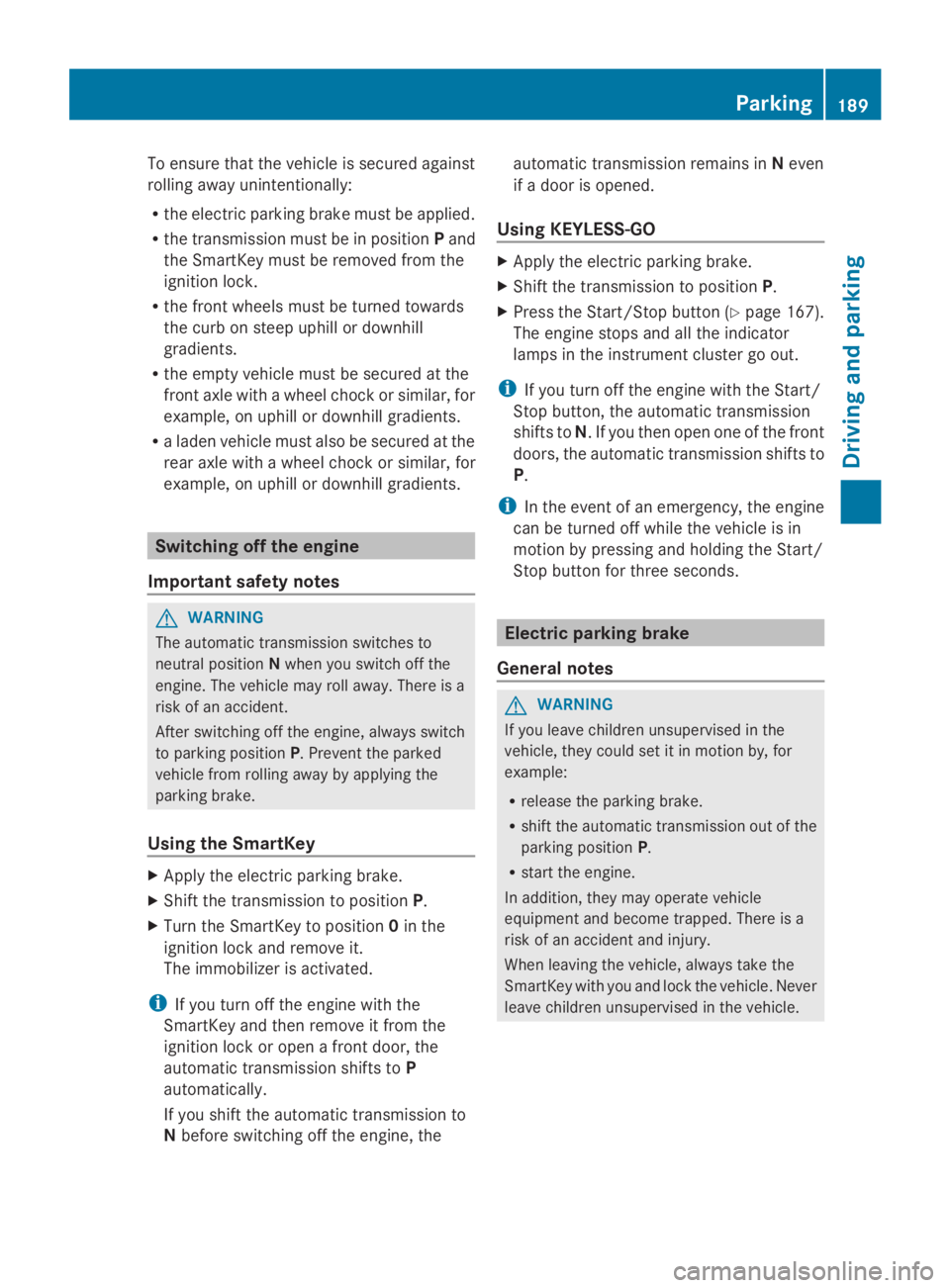

To ensure that the vehicle is secured against
rolling away unintentionally:
Rthe electric parking brake must be applied.
Rthe transmission must be in positionPand
the SmartKey must be removed from the
ignition lock.
Rthe front wheels must be turned towards
the curb on steep uphill or downhill
gradients.
Rthe empty vehicle must be secured at the
front axle with a wheel chock or similar, for
example, on uphill or downhill gradients.
Ra laden vehicle must also be secured at the
rear axle with a wheel chock or similar, for
example, on uphill or downhill gradients.
Switching off the engine
Important safety notes
GWARNING
The automatic transmission switches to
neutral positionNwhen you switch off the
engine. The vehicle may roll away. There is a
risk of an accident.
After switching off the engine, always switch
to parking positionP. Prevent the parked
vehicle from rolling away by applying the
parking brake.
Using the SmartKey
XApply the electric parking brake.
XShift the transmission to positionP.
XTurn the SmartKey to position0in the
ignition lock and remove it.
The immobilizer is activated.
iIf you turn off the engine with the
SmartKey and then remove it from the
ignition lock or open a front door, the
automatic transmission shifts toP
automatically.
If you shift the automatic transmission to
Nbefore switching off the engine, the
automatic transmission remains inNeven
if a door is opened.
Using KEYLESS-GO
XApply the electric parking brake.
XShift the transmission to positionP.
XPress the Start/Stop button (Ypage 167).
The engine stops and all the indicator
lamps in the instrument cluster go out.
iIf you turn off the engine with the Start/
Stop button, the automatic transmission
shifts toN. If you then open one of the front
doors, the automatic transmission shifts to
P.
iIn the event of an emergency, the engine
can be turned off while the vehicle is in
motion by pressing and holding the Start/
Stop button for three seconds.
Electric parking brake
General notes
GWARNING
If you leave children unsupervised in the
vehicle, they could set it in motion by, for
example:
Rrelease the parking brake.
Rshift the automatic transmission out of the
parking positionP.
Rstart the engine.
In addition, they may operate vehicle
equipment and become trapped. There is a
risk of an accident and injury.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Never
leave children unsupervised in the vehicle.
Parking189
Driving and parking
Z

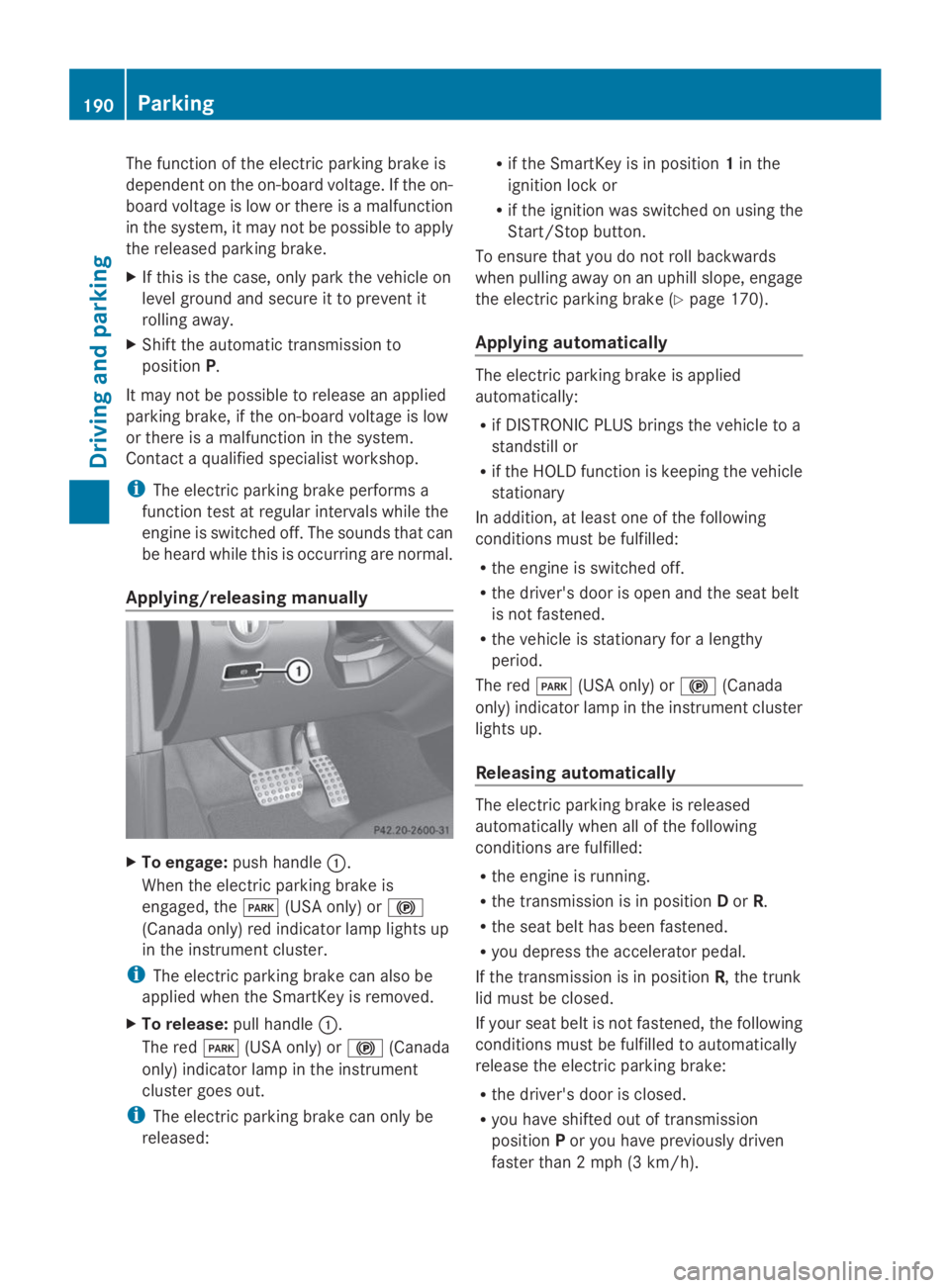

The function of the electric parking brake is
dependent on the on-board voltage. If the on-
board voltage is low or there is a malfunction
in the system, it may not be possible to apply
the released parking brake.
XIf this is the case, only park the vehicle on
level ground and secure it to prevent it
rolling away.
XShift the automatic transmission to
positionP.
It may not be possible to release an applied
parking brake, if the on-board voltage is low
or there is a malfunction in the system.
Contact a qualified specialist workshop.
iThe electric parking brake performs a
function test at regular intervals while the
engine is switched off. The sounds that can
be heard while this is occurring are normal.
Applying/releasing manually
XTo engage:push handleC.
When the electric parking brake is
engaged, theI(USA only) or$
(Canada only) red indicator lamp lights up
in the instrument cluster.
iThe electric parking brake can also be
applied when the SmartKey is removed.
XTo release:pull handleC.
The redI(USA only) or$(Canada
only) indicator lamp in the instrument
cluster goes out.
iThe electric parking brake can only be
released:
Rif the SmartKey is in position1in the
ignition lock or
Rif the ignition was switched on using the
Start/Stop button.
To ensure that you do not roll backwards
when pulling away on an uphill slope, engage
the electric parking brake (Ypage 170).
Applying automatically
The electric parking brake is applied
automatically:
Rif DISTRONIC PLUS brings the vehicle to a
standstill or
Rif the HOLD function is keeping the vehicle
stationary
In addition, at least one of the following
conditions must be fulfilled:
Rthe engine is switched off.
Rthe driver's door is open and the seat belt
is not fastened.
Rthe vehicle is stationary for a lengthy
period.
The redI(USA only) or$(Canada
only) indicator lamp in the instrument cluster
lights up.
Releasing automatically
The electric parking brake is released
automatically when all of the following
conditions are fulfilled:
Rthe engine is running.
Rthe transmission is in positionDorR.
Rthe seat belt has been fastened.
Ryou depress the accelerator pedal.
If the transmission is in positionR, the trunk
lid must be closed.
If your seat belt is not fastened, the following
conditions must be fulfilled to automatically
release the electric parking brake:
Rthe driver's door is closed.
Ryou have shifted out of transmission
positionPor you have previously driven
faster than 2 mph (3 km/h).
190Parking
Driving and parking
