2014 MERCEDES-BENZ GL Owners Manual

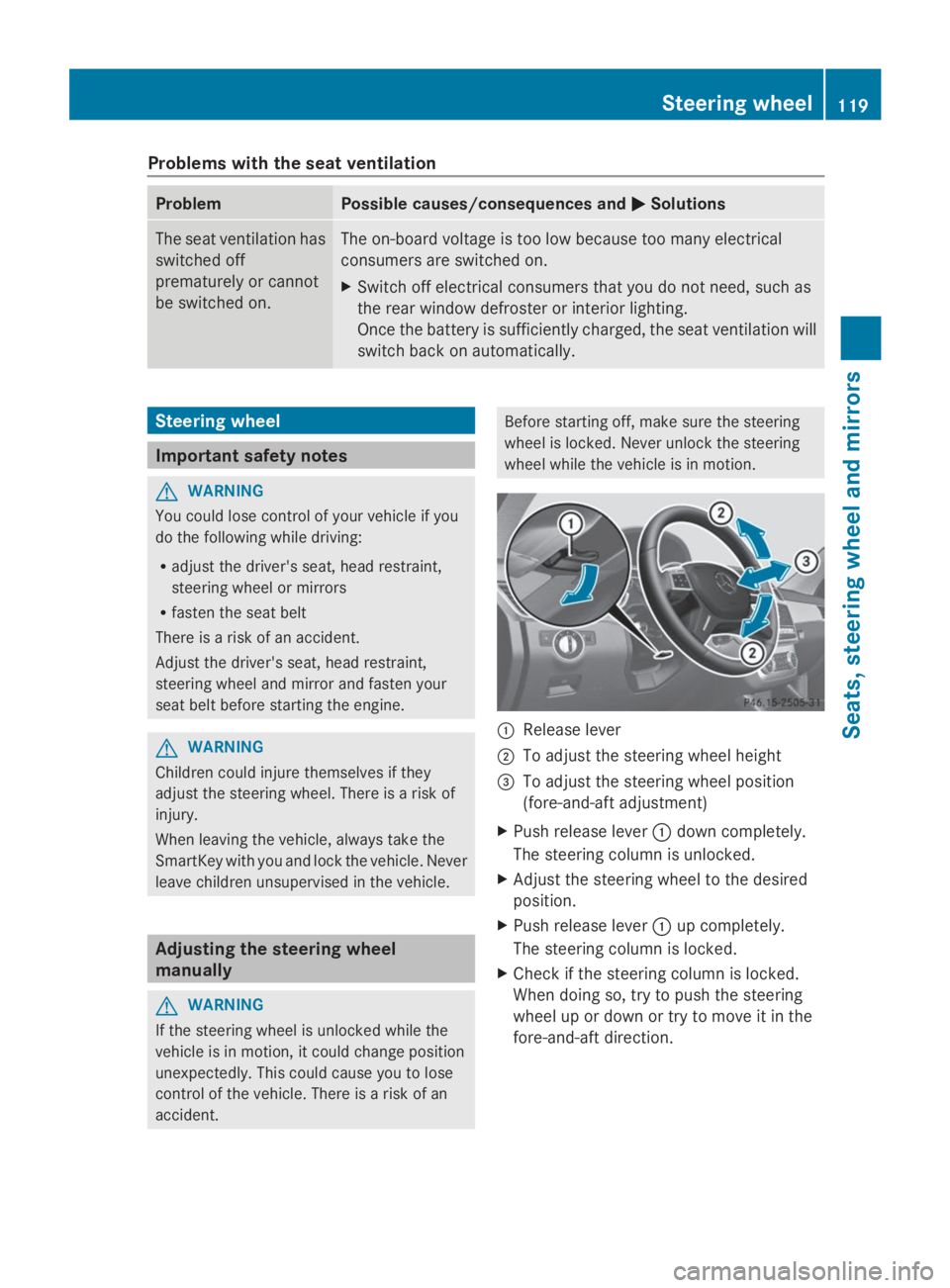

Problems with the seat ventilation
ProblemPossible causes/consequences andPPSolutions
The seat ventilation has
switched off
prematurely or cannot
be switched on.
The on-board voltage is too low because too many electrical
consumers are switched on.
XSwitch off electrical consumers that you do not need, such as
the rear window defroster or interior lighting.
Once the battery is sufficiently charged, the seat ventilation will
switch back on automatically.
Steering wheel
Important safety notes
GWARNING
You could lose control of your vehicle if you
do the following while driving:
Radjust the driver's seat, head restraint,
steering wheel or mirrors
Rfasten the seat belt
There is a risk of an accident.
Adjust the driver's seat, head restraint,
steering wheel and mirror and fasten your
seat belt before starting the engine.
GWARNING
Children could injure themselves if they
adjust the steering wheel. There is a risk of
injury.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Never
leave children unsupervised in the vehicle.
Adjusting the steering wheel
manually
GWARNING
If the steering wheel is unlocked while the
vehicle is in motion, it could change position
unexpectedly. This could cause you to lose
control of the vehicle. There is a risk of an
accident.
Before starting off, make sure the steering
wheel is locked. Never unlock the steering
wheel while the vehicle is in motion.
CRelease lever
DTo adjust the steering wheel height

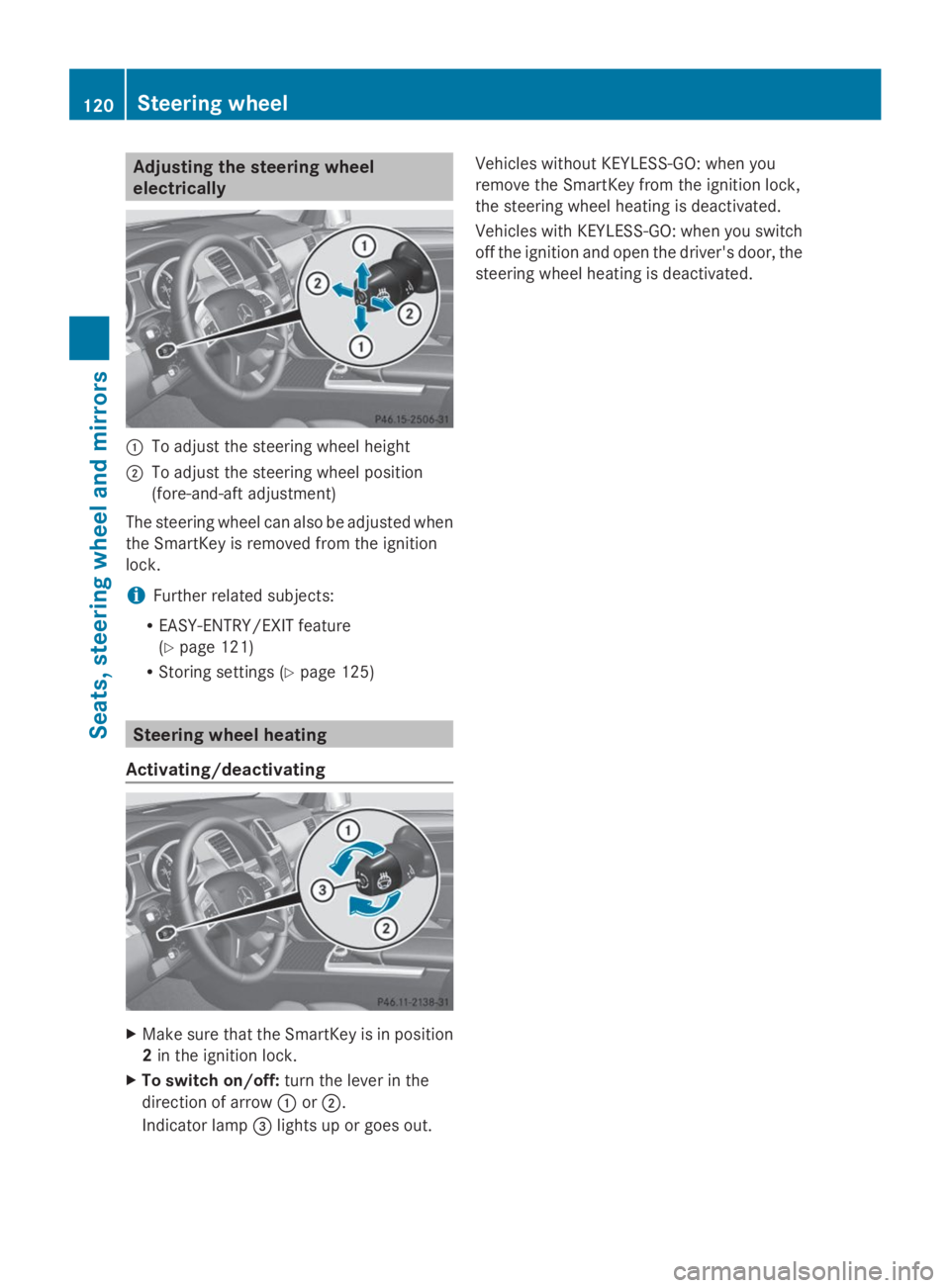

Adjusting the steering wheel
electrically
CTo adjust the steering wheel height
DTo adjust the steering wheel position
(fore-and-aft adjustment)
The steering wheel can also be adjusted when
the SmartKey is removed from the ignition
lock.
iFurther related subjects:
REASY-ENTRY/EXIT feature
(Ypage 121)
RStoring settings (Ypage 125)
Steering wheel heating
Activating/deactivating
XMake sure that the SmartKey is in position
2in the ignition lock.
XTo switch on/off:turn the lever in the
direction of arrowCorD.
Indicator lamp

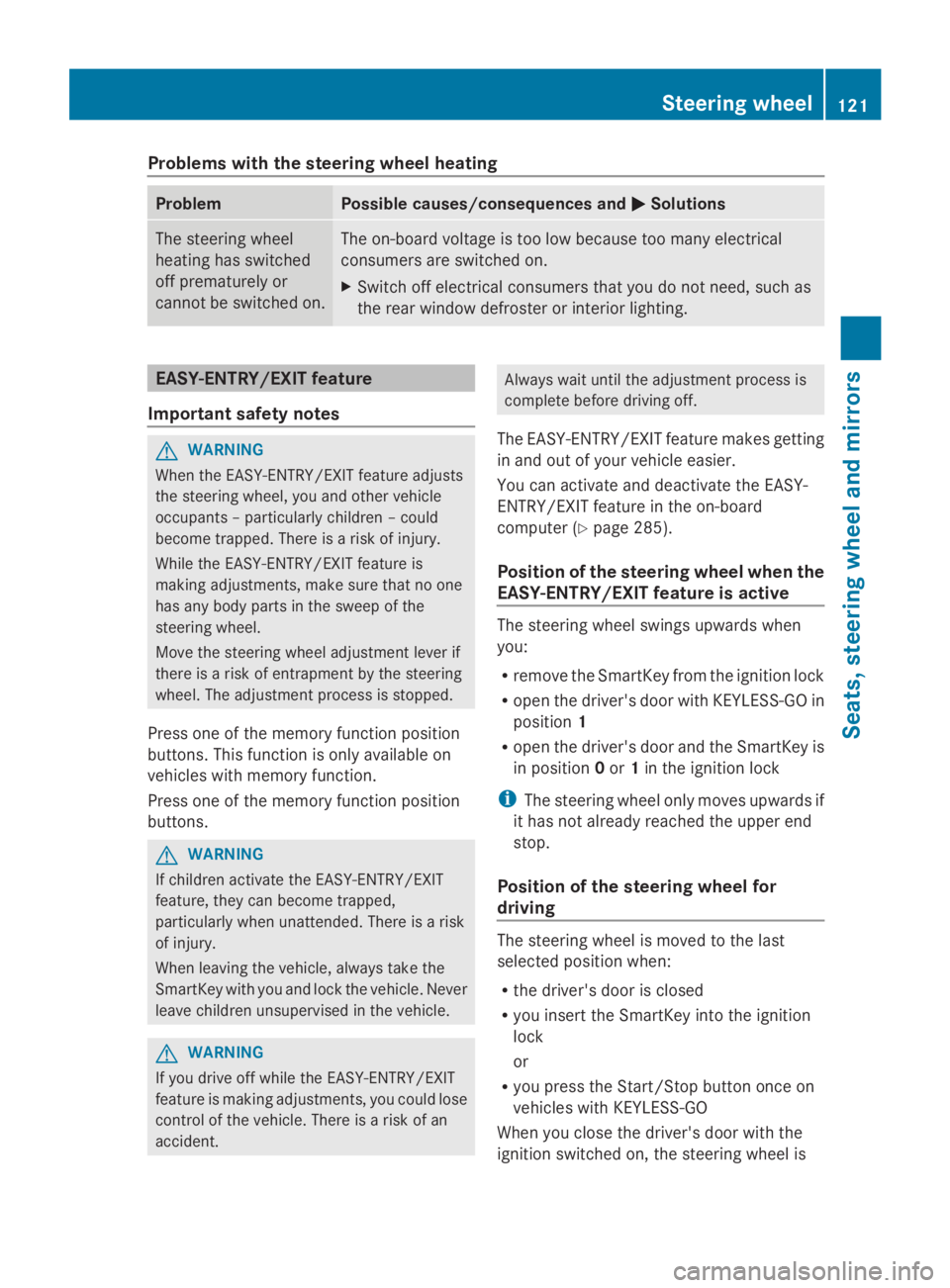

Problems with the steering wheel heating
ProblemPossible causes/consequences andPPSolutions
The steering wheel
heating has switched
off prematurely or
cannot be switched on.
The on-board voltage is too low because too many electrical
consumers are switched on.
XSwitch off electrical consumers that you do not need, such as
the rear window defroster or interior lighting.
EASY-ENTRY/EXIT feature
Important safety notes
GWARNING
When the EASY-ENTRY/EXIT feature adjusts
the steering wheel, you and other vehicle
occupants – particularly children – could
become trapped. There is a risk of injury.
While the EASY-ENTRY/EXIT feature is
making adjustments, make sure that no one
has any body parts in the sweep of the
steering wheel.
Move the steering wheel adjustment lever if
there is a risk of entrapment by the steering
wheel. The adjustment process is stopped.
Press one of the memory function position
buttons. This function is only available on
vehicles with memory function.
Press one of the memory function position
buttons.
GWARNING
If children activate the EASY-ENTRY/EXIT
feature, they can become trapped,
particularly when unattended. There is a risk
of injury.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Never
leave children unsupervised in the vehicle.
GWARNING
If you drive off while the EASY-ENTRY/EXIT
feature is making adjustments, you could lose
control of the vehicle. There is a risk of an
accident.
Always wait until the adjustment process is
complete before driving off.
The EASY-ENTRY/EXIT feature makes getting
in and out of your vehicle easier.
You can activate and deactivate the EASY-
ENTRY/EXIT feature in the on-board
computer (Ypage 285).
Position of the steering wheel when the
EASY-ENTRY/EXIT feature is active
The steering wheel swings upwards when
you:
Rremove the SmartKey from the ignition lock
Ropen the driver's door with KEYLESS-GO in
position1
Ropen the driver's door and the SmartKey is
in position0or1in the ignition lock
iThe steering wheel only moves upwards if
it has not already reached the upper end
stop.
Position of the steering wheel for
driving
The steering wheel is moved to the last
selected position when:
Rthe driver's door is closed
Ryou insert the SmartKey into the ignition
lock
or
Ryou press the Start/Stop button once on
vehicles with KEYLESS-GO
When you close the driver's door with the
ignition switched on, the steering wheel is
Steering wheel121
Seats, steering wheel and mirrors
Z

also automatically moved to the previously
set position.
The last position of the steering wheel is
stored when you switch off the ignition or
when you store the setting with the memory
function (Ypage 125).
Crash-responsive EASY-EXIT feature
If the crash-responsive EASY-EXIT feature is
triggered in an accident, the steering column
will move upwards when the driver's door is
opened. This occurs irrespective of the
position of the SmartKey in the ignition lock.
This makes it easier to exit the vehicle and
rescue the occupants.
The crash-responsive EASY-EXIT feature is
only operational if the EASY-EXIT/ENTRY
feature is activated in the on-board computer
(Ypage 285).

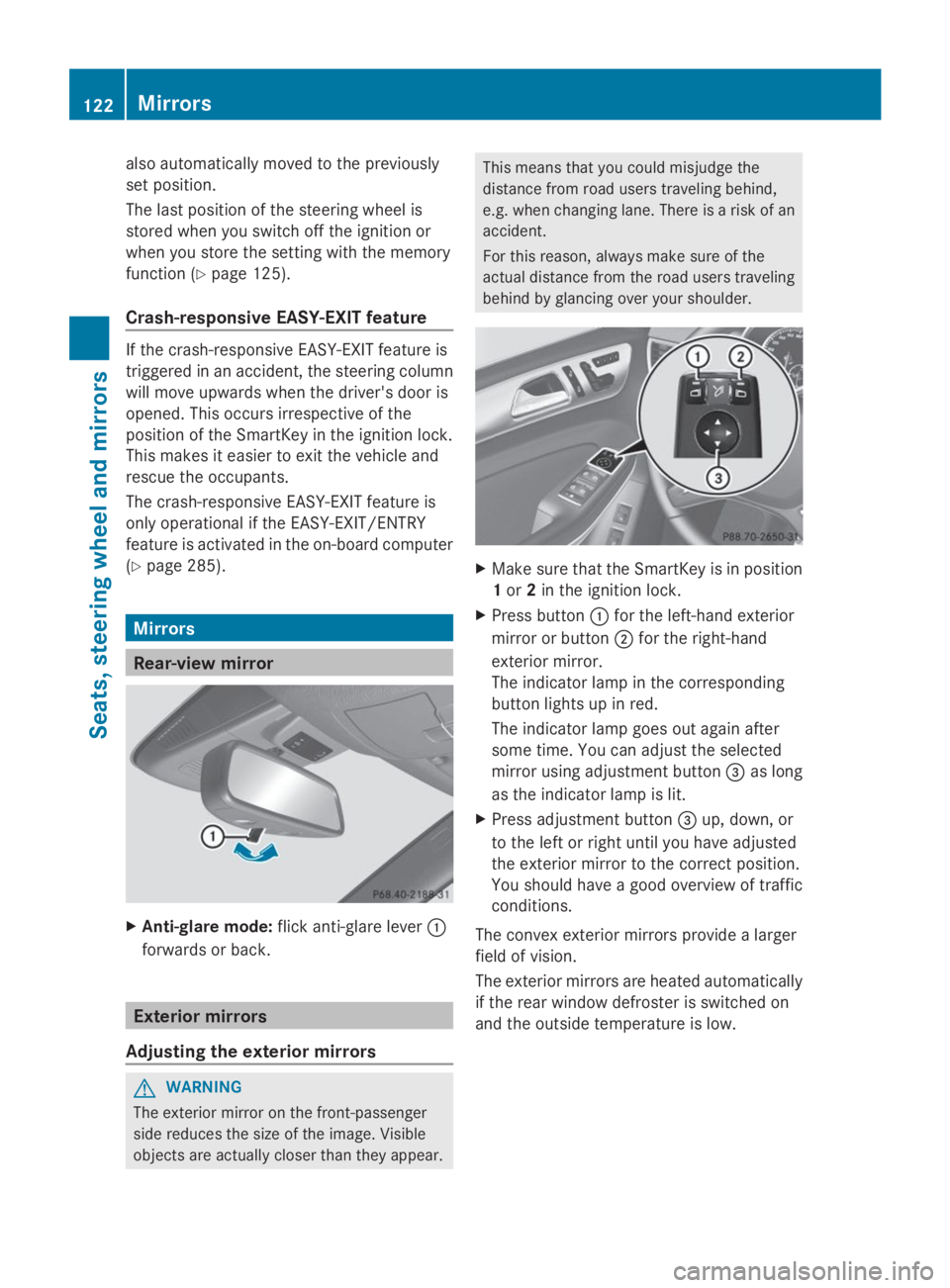

Mirrors
Rear-view mirror
XAnti-glare mode:flick anti-glare leverC
forwards or back.
Exterior mirrors
Adjusting the exterior mirrors
GWARNING
The exterior mirror on the front-passenger
side reduces the size of the image. Visible
objects are actually closer than they appear.
This means that you could misjudge the
distance from road users traveling behind,
e.g. when changing lane. There is a risk of an
accident.
For this reason, always make sure of the
actual distance from the road users traveling
behind by glancing over your shoulder.
XMake sure that the SmartKey is in position
1or2in the ignition lock.
XPress buttonCfor the left-hand exterior
mirror or buttonDfor the right-hand
exterior mirror.
The indicator lamp in the corresponding
button lights up in red.
The indicator lamp goes out again after
some time. You can adjust the selected
mirror using adjustment button

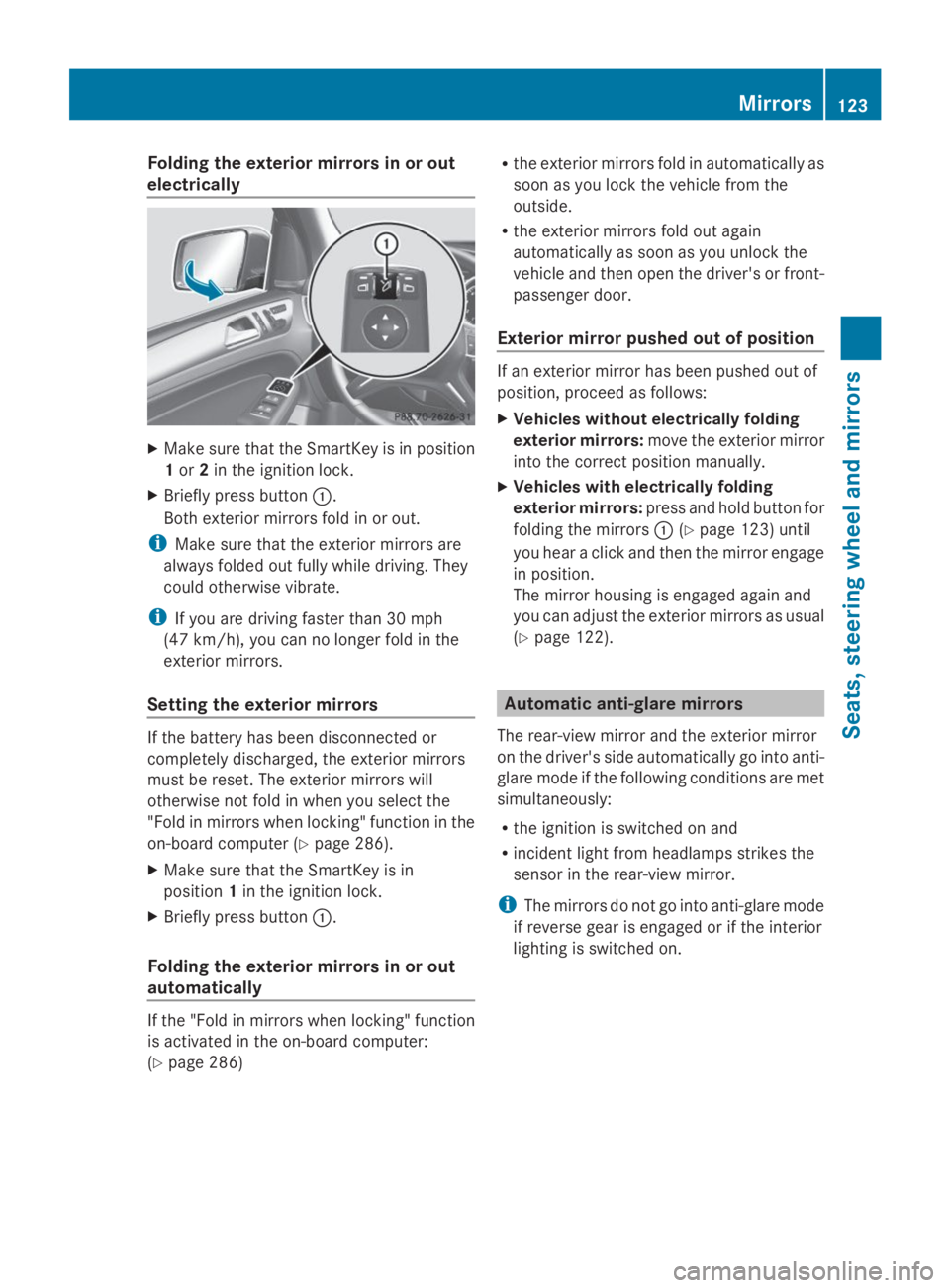

Folding the exterior mirrors in or out
electrically
XMake sure that the SmartKey is in position
1or2in the ignition lock.
XBriefly press buttonC.
Both exterior mirrors fold in or out.
iMake sure that the exterior mirrors are
always folded out fully while driving. They
could otherwise vibrate.
iIf you are driving faster than 30 mph
(47 km/h), you can no longer fold in the
exterior mirrors.
Setting the exterior mirrors
If the battery has been disconnected or
completely discharged, the exterior mirrors
must be reset. The exterior mirrors will
otherwise not fold in when you select the
"Fold in mirrors when locking" function in the
on-board computer (Ypage 286).
XMake sure that the SmartKey is in
position1in the ignition lock.
XBriefly press buttonC.
Folding the exterior mirrors in or out
automatically
If the "Fold in mirrors when locking" function
is activated in the on-board computer:
(Ypage 286)
Rthe exterior mirrors fold in automatically as
soon as you lock the vehicle from the
outside.
Rthe exterior mirrors fold out again
automatically as soon as you unlock the
vehicle and then open the driver's or front-
passenger door.
Exterior mirror pushed out of position
If an exterior mirror has been pushed out of
position, proceed as follows:
XVehicles without electrically folding
exterior mirrors:move the exterior mirror
into the correct position manually.
XVehicles with electrically folding
exterior mirrors:press and hold button for
folding the mirrorsC(Ypage 123) until
you hear a click and then the mirror engage
in position.
The mirror housing is engaged again and
you can adjust the exterior mirrors as usual
(Ypage 122).
Automatic anti-glare mirrors
The rear-view mirror and the exterior mirror
on the driver's side automatically go into anti-
glare mode if the following conditions are met
simultaneously:
Rthe ignition is switched on and
Rincident light from headlamps strikes the
sensor in the rear-view mirror.
iThe mirrors do not go into anti-glare mode
if reverse gear is engaged or if the interior
lighting is switched on.
Mirrors123
Seats, steering wheel and mirrors
Z

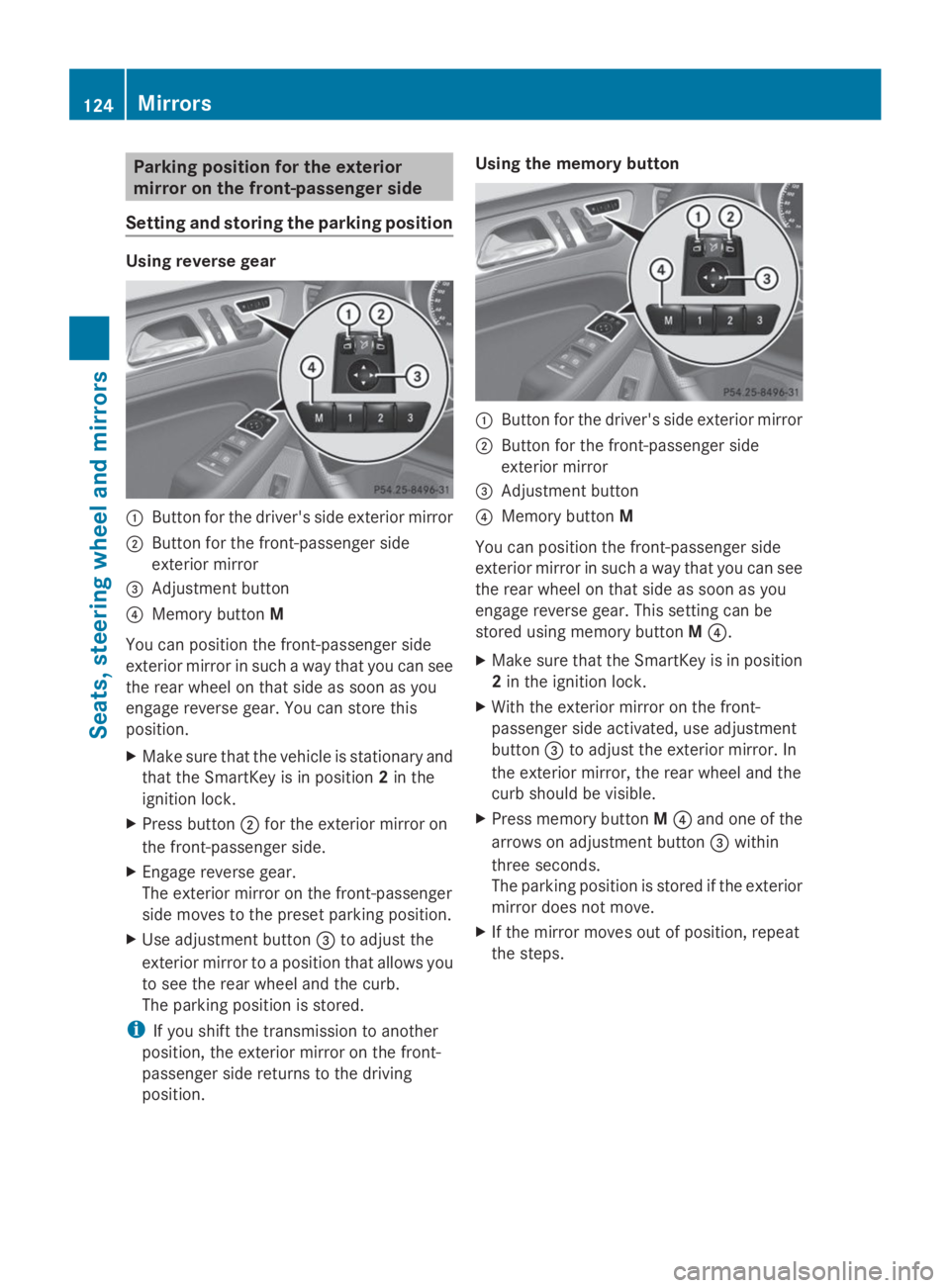

Parking position for the exterior
mirror on the front-passenger side
Setting and storing the parking position
Using reverse gear
CButton for the driver's side exterior mirror
DButton for the front-passenger side
exterior mirror

Calling up a stored parking position
setting
CButton for the driver's side exterior mirror
DButton for the front-passenger side
exterior mirror

XAdjust the seat (Ypage 108).
XOn the driver's side, adjust the steering
wheel (Ypage 120) and the exterior mirrors
(Ypage 122).
XPress theMmemory button and then press
one of the storage position buttons1,2or
3within three seconds.
The settings are stored in the selected
preset position. A tone sounds when the
settings have been completed.
The memory function can still be used if the
SmartKey has been removed.

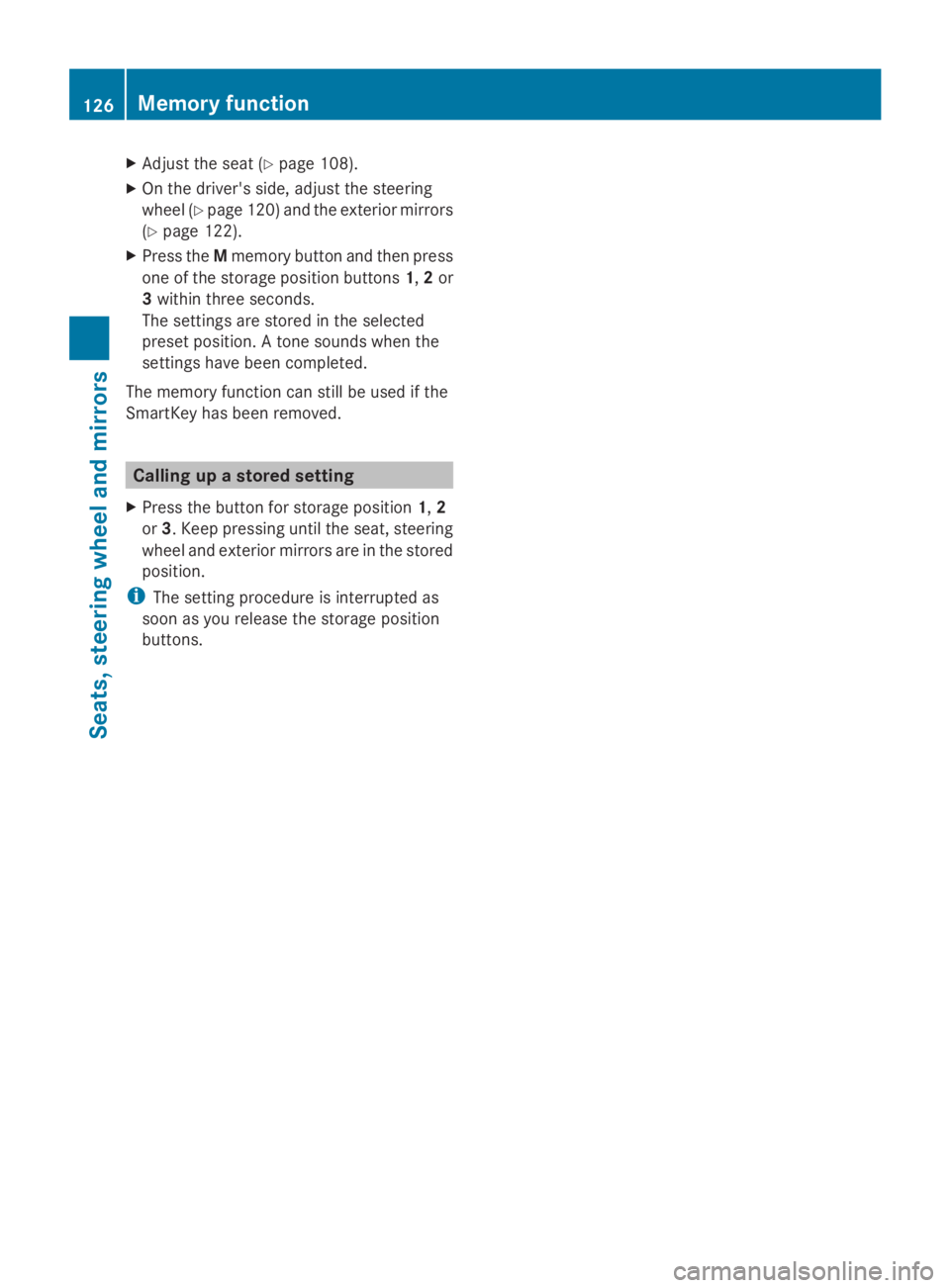

Calling up a stored setting
XPress the button for storage position1,2
or3. Keep pressing until the seat, steering
wheel and exterior mirrors are in the stored
position.
iThe setting procedure is interrupted as
soon as you release the storage position
buttons.
126Memory function
Seats, steering wheel an d mirrors
