2014 MERCEDES-BENZ CLS Owners Manual

RAlwaysstoreobjects so thatthey cannot be
flung around in these or in similar
situations.
RAlways make sure that objectsdonot
protrude from stowage compartments,
parcel nets or stowage nets.
RClose lockable stowage compartments
while driving.
RStow and secure objectsthat are heavy,
hard, pointy, sharp-edged, fragile or too
large in the trunk.
Observe the loading guidelines (Ypage 278).

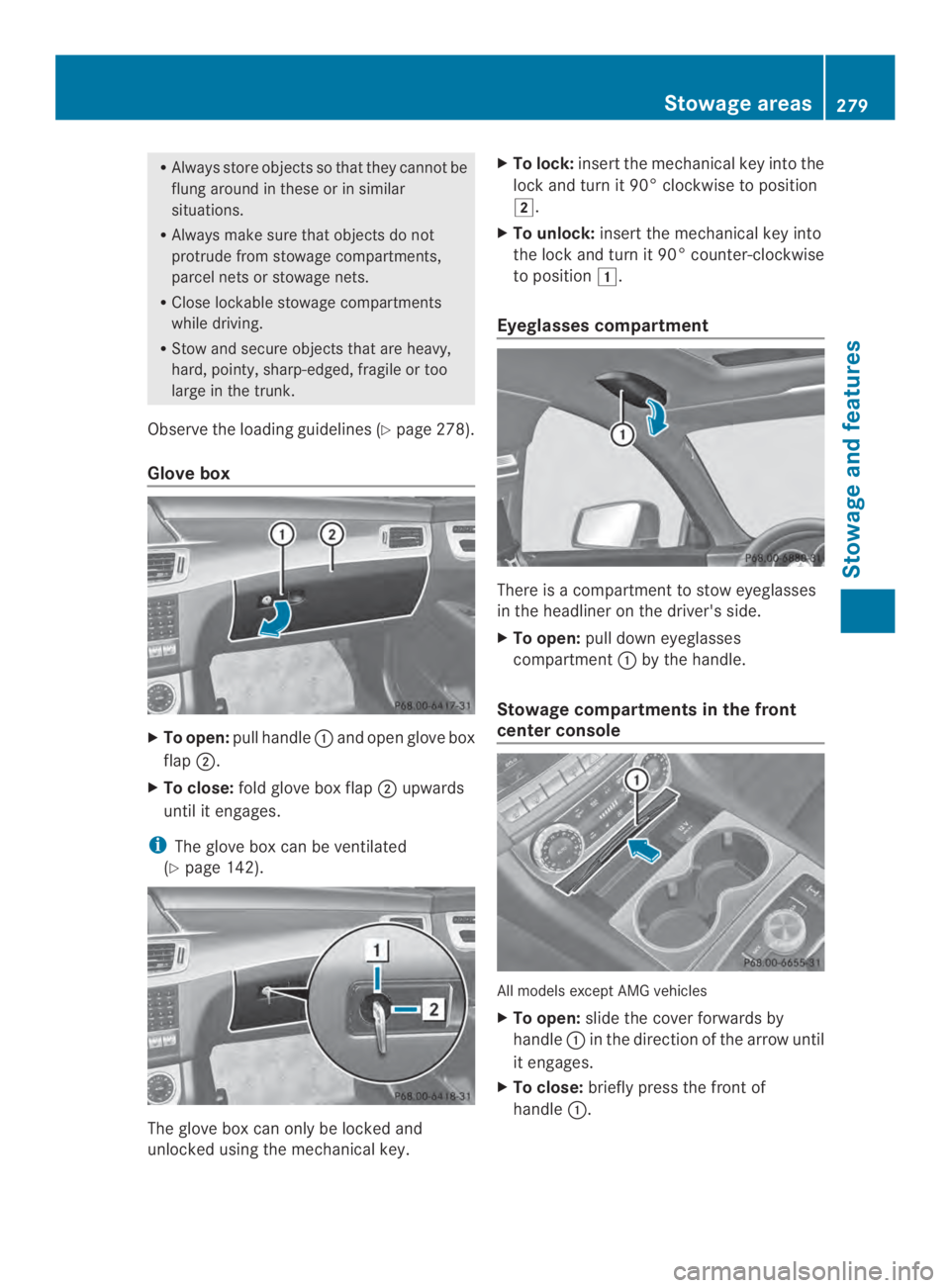

Glove box
XTo open:pull handleand open glove box
flap.
XTo close:fold glove box flapupwards
until it engages.
iThe glove box can be ventilated
(Ypage 142).
The glove box can only be locked and
unlocked using the mechanical key.
XTo lock:insert the mechanical key into the
lock and turn it 90° clockwise to position
.
XTo unlock:insert the mechanical key into
the lock and turn it 90° counter-clockwise
to position
.
Eyeglassescompartment
There isacompartmenttostow eyeglasses
in the headliner on the driver's side.
XTo open:pull down eyeglasses
compartmentby the handle.
Stowage compartments in the front
center console
All models except AMG vehicles
XTo open:slide the cover forwards by
handlein the direction of the arrow until
it engages.
XTo close:briefly press the front of
handle.
Stowage areas279
Stowage and features
Z

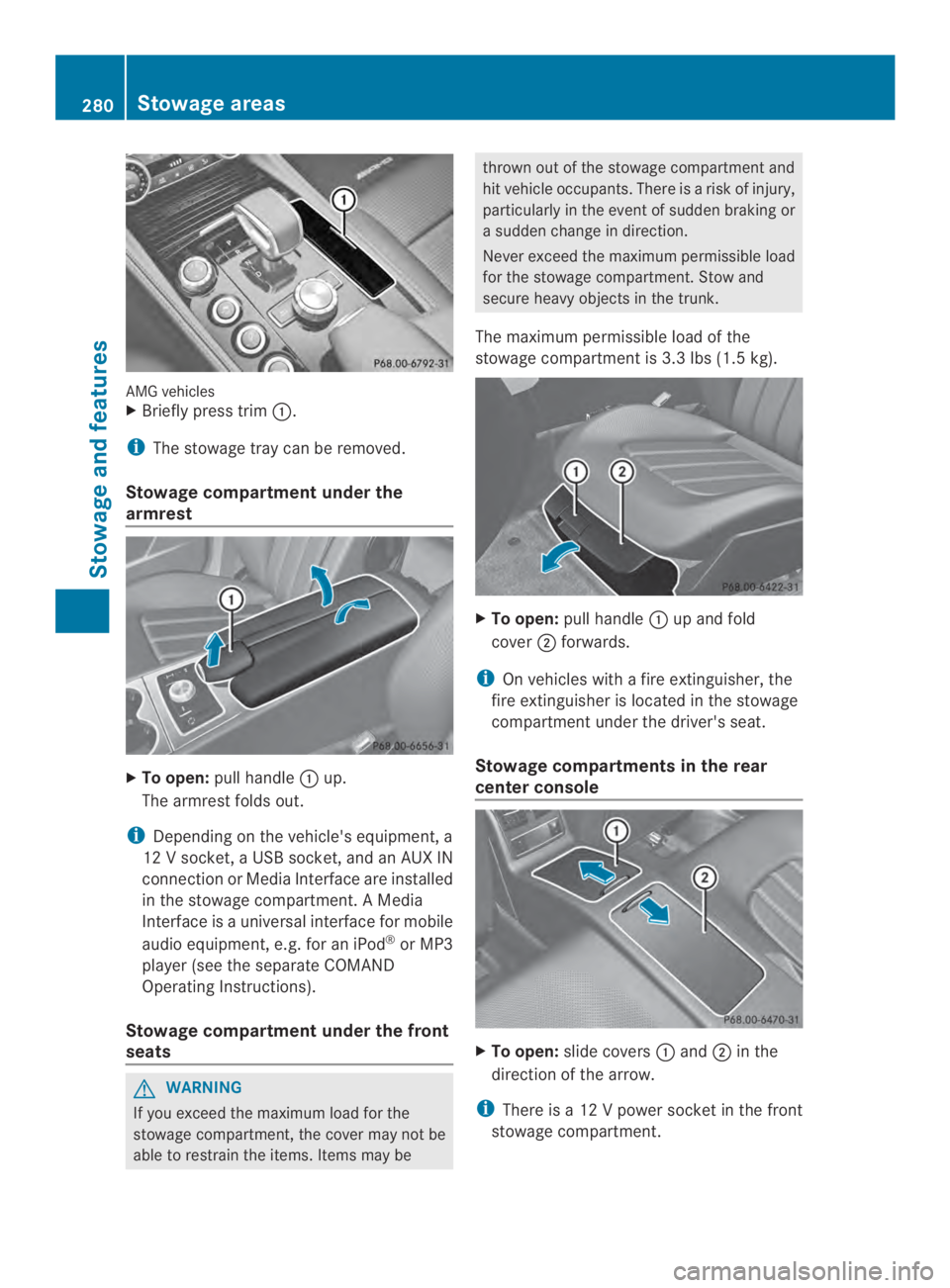

AMG vehiclesXBriefly press trim.
iThe stowagetray can be removed.
Stowage compartmentunderthe
armrest
XTo open:pull handleup.
The armrestfolds out.
iDependingonthe vehicle's equipment, a
12Vsocket,aUSB socket,and an AUX IN
connection or Media Interface are installed
in the stowage compartment.AMedia
Interface isauniversal interface for mobile
audio equipment, e.g. for an iPod®or MP3
player (see the separate COMAND
OperatingInstructions).
Stowage compartment under the front
seats
GWARNING
If you exceed the maximum load for the
stowage compartment,the cover may not be
able to restrain the items. Itemsmay be
thrown out of the stowage compartment and
hit vehicle occupants. There isarisk of injury,
particularly in the event of sudden brakingor
asudden change in direction.
Never exceedthe maximum permissible load
for the stowage compartment.Stowand
secure heavy objects in the trunk.
The maximum permissible load of the
stowage compartment is 3.3 lbs (1.5 kg).
XTo open:pull handleup and fold
coverforwards.
iOn vehicles withafire extinguisher, the
fire extinguisher is located in the stowage
compartment under the driver's seat.
Stowage compartmentsinthe rear
center console
XTo open:slide coversandin the
direction of the arrow.
iThere isa12Vpower socket in the front
stowage compartment.
280Stowage areas
Stowage and features

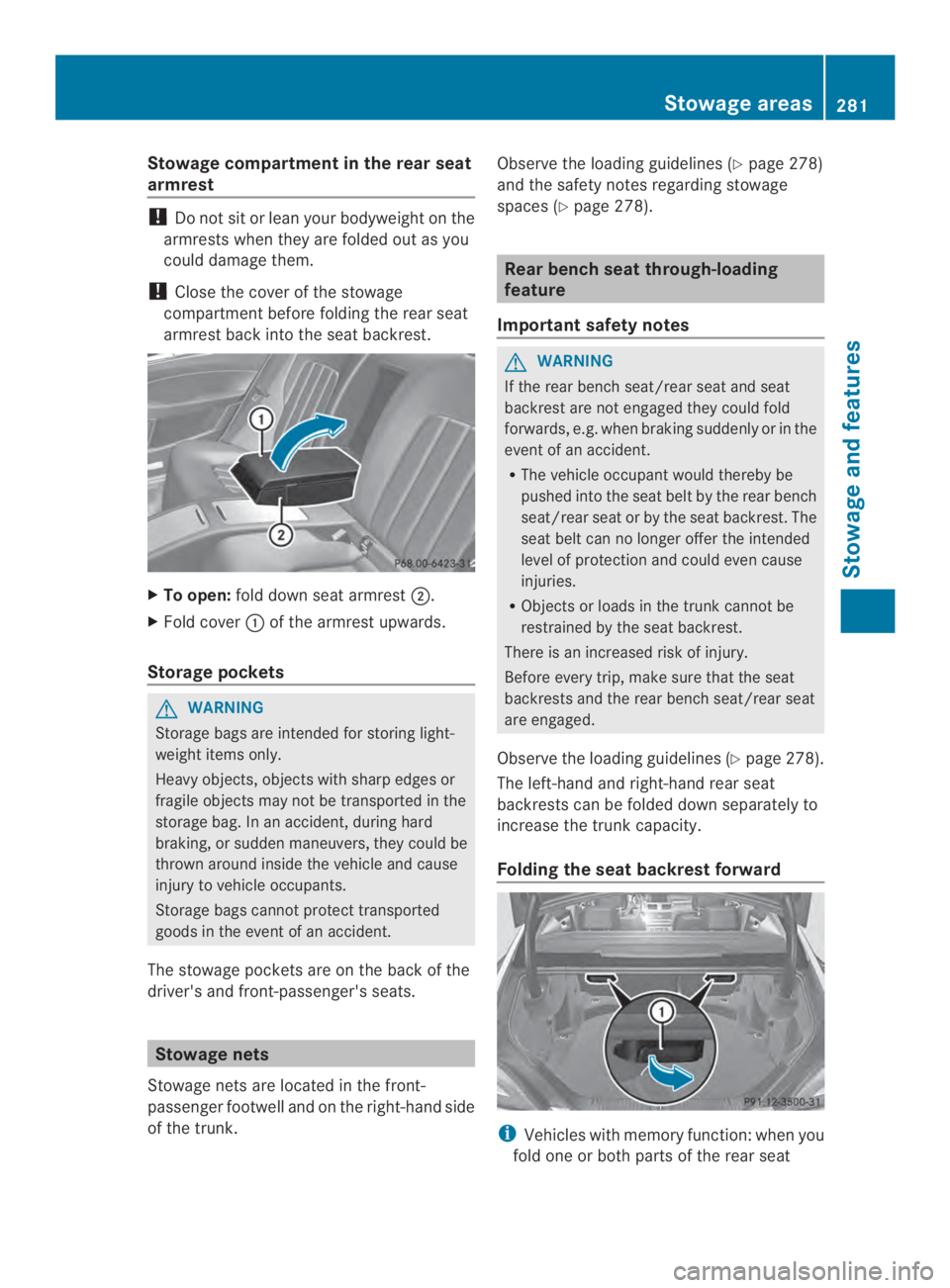

Stowage compartment in the rear seat
armrest
!Do not sit or lean your bodyweight on the
armrests when they are folded out as you
could damage them.
!Close the cover of the stowage
compartmentbefore folding the rear seat
armrest back intothe seat backrest.
XTo open:fold down seat armrest.
XFold coverof the armrest upwards.
Storage pockets
GWARNING
Storage bags are intended for storing light-
weight items only.
Heavy objects, objects with sharp edges or
fragile objects may not be transported in the
storage bag. In an accident, during hard
braking, or sudden maneuvers,they could be
thrown around inside the vehicle and cause
injurytovehicle occupants.
Storage bags cannot protecttransported
goods in the event of an accident.
The stowage pockets are on the back of the
driver's and front-passenger'sseats.
Stowage nets
Stowage netsare located in the front-
passenger footwell and on the right-hand side
of the trunk.
Observe the loading guidelines (Ypage 278)
and the safety notes regarding stowage
spaces (Ypage 278).
Rear bench seat through-loading
feature
Important safetynotes
GWARNING
If the rear bench seat/rear seat and seat
backrest are not engaged they could fold
forwards, e.g. when brakingsuddenly or in the
event of an accident.
RThe vehicle occupantwould thereby be
pushed into the seat belt by the rear bench
seat/rear seat or by the seat backrest.The
seat belt can no longer offer the intended
level of protection and could even cause
injuries.
RObjectsorloads in the trunk cannot be
restrained by the seat backrest.
There is an increased risk of injury.
Before every trip, make sure that the seat
backrests and the rear bench seat/rear seat
are engaged.
Observe the loading guidelines (Ypage 278).
The left-hand and right-hand rear seat
backrests can be folded down separately to
increase the trunk capacity.
Folding the seat backrest forward
iVehicles with memory function: when you
fold one or both parts of the rear seat
Stowage areas281
Stowage and features
Z

backrest forwards, the respective front
seat moves forward slightly, when
necessary, in order to avoid contact.
XVehicles without memoryfunction:if
necessary,movethe driver's or front-
passengerseat forwards.
XOpen the trunk.
XPull right-hand or left-hand rear seat
backrest release handle.
The correspondingrear seat backrest is
released.
XFold rear seat backrestforwards.
XMove the driver's or front-passenger seat
back if necessary.
Folding the seat backrest back
!Make sure that the seat belt does not
become trapped when folding the rear seat
backrest back. Otherwise, it could be
damaged.
XMove the driver's or front-passenger seat
forward if necessary.
XFold rear seat backrestback until it
engages.
If the rear seat backrest is not engaged and
locked, this will be shown in the
multifunction display in the instrument
cluster.Awarning tone also sounds.
XMovethedriver'sorfront-passenger seat
back if necessary.
iYou should always engage therear seat
backrests if you do notneed the through-
loading feature. This will prevent
unauthorized access to the trunkfrom the
vehicle interior.
Securing cargo
Cargo tie-down rings
General notes
Observe the following notes on securing
loads:
RObserve the loading guidelines
(Ypage 278).
RSecure the load using the cargo tie-down
rings.
RDistribute the load on the cargo tie-down
rings evenly.
RDo not use elastic straps or netstosecure
aload, as these are only intended as an
anti-slip protection for light loads.
RDo not route tie-downs across sharp edges
or corners.
RPad sharp edges for protection.
282Stowage areas
Stowage and features

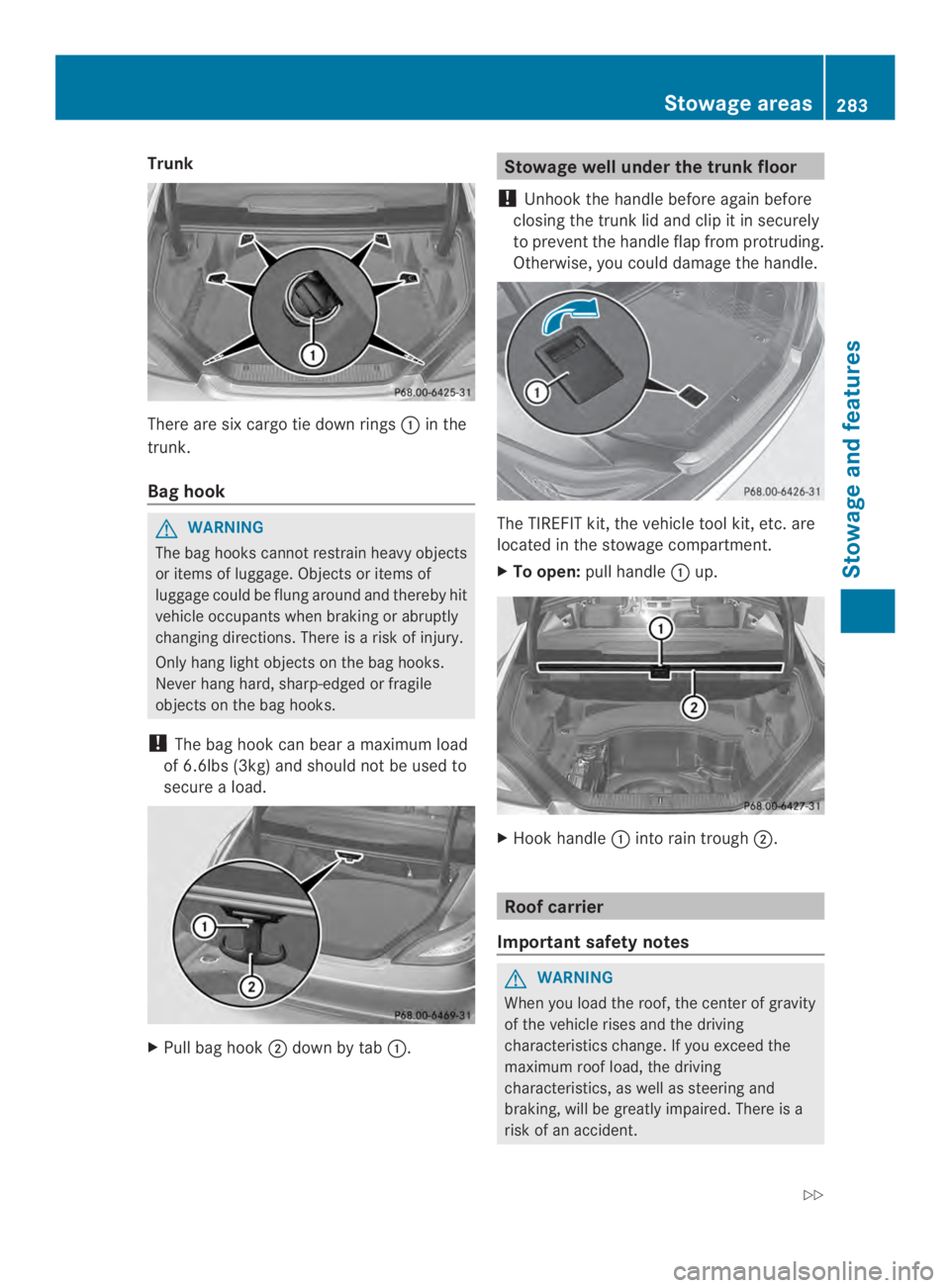

Trunk
There aresixcargo tiedown ringsin the
trunk.
Baghook
GWARNING
The bag hookscannotrestrain heavy objects
or items of luggage. Objects or items of
luggage could be flung around and thereby hit
vehicle occupantswhen braking or abruptly
changingdirections. There isarisk of injury.
Only hang light objects on the bag hooks.
Never hang hard, sharp-edged or fragile
objects on the bag hooks.
!The bag hook can bearamaximum load
of 6.6lbs (3kg) and should not be used to
secureaload.
XPull bag hookdown by tab.
Stowage well under the trunk floor
!Unhook the handle before again before
closing the trunklid and clip it in securely
to prevent the handle flap fromprotruding.
Otherwise, you coulddamage the handle.
The TIREFIT kit, the vehicletool kit, etc. are
located in the stowage compartment.
XTo open:pullhandleup.
XHook handleinto rain trough.
Roof carrier
Important safety notes
GWARNING
When you loadthe roof, the center of gravity
of the vehiclerises and the driving
characteristics change. If you exceed the
maximumroof load, the driving
characteristics, as well as steering and
braking, will be greatly impaired. There is a
risk of an accident.
Stowage areas283
Stowage and features
Z

Never exceed the maximum roof load and
adjust yourdriving style.
!Mercedes-Benz recommends that you
only use roof carriers that have been tested
and approved for Mercedes-Benz vehicles.
This helpstoprevent damage to the
vehicle.
Position the loadonthe roof carrierinsuch
away that thevehiclewill notsustain
damageevenwhen it is in motion.
Ensure that, depending on the vehicle's
equipment, you can raise the sliding
sunroof fully and open the trunk lid fully
when the roof carrier is installed.
!To avoid damaging or scratching the
covers, do not use metallic or hard objects
to open them.
The maximum roof load is 220 lbs(100 kg).
An incorrectly secured roof carrier or roof
load may become detached from the vehicle.
You must therefore ensure that you observe
the roof carrier manufacturer's installation
instructions.
Attaching the roof carrier
XOpen coverscarefully in the direction of
the arrow.
XOnly secure the roof carrier to the
anchorage points under covers.
XObserve the manufacturer's installation
instructions.
Features
Cup holder
Important safety notes
!Only use the cup holders for containers of
the right size and which have lids. The
drinks could otherwise spill.
Cup holder in the front-compartment
center console
All vehicles (except AMG)
Cup holder
AMG vehicles
Cup holder
Cover
XTo open:slide coverto its foremost
position.
You can remove the cup holder's rubber mat
for cleaning. Cleanwith clear,lukewarm
water only.
AMG vehicles: you can remove the rubber
mat of the cup holder in the direction of the
284Features
Stowage and features

arrow to clean it. Clean withclear, lukewarm
wateronly.

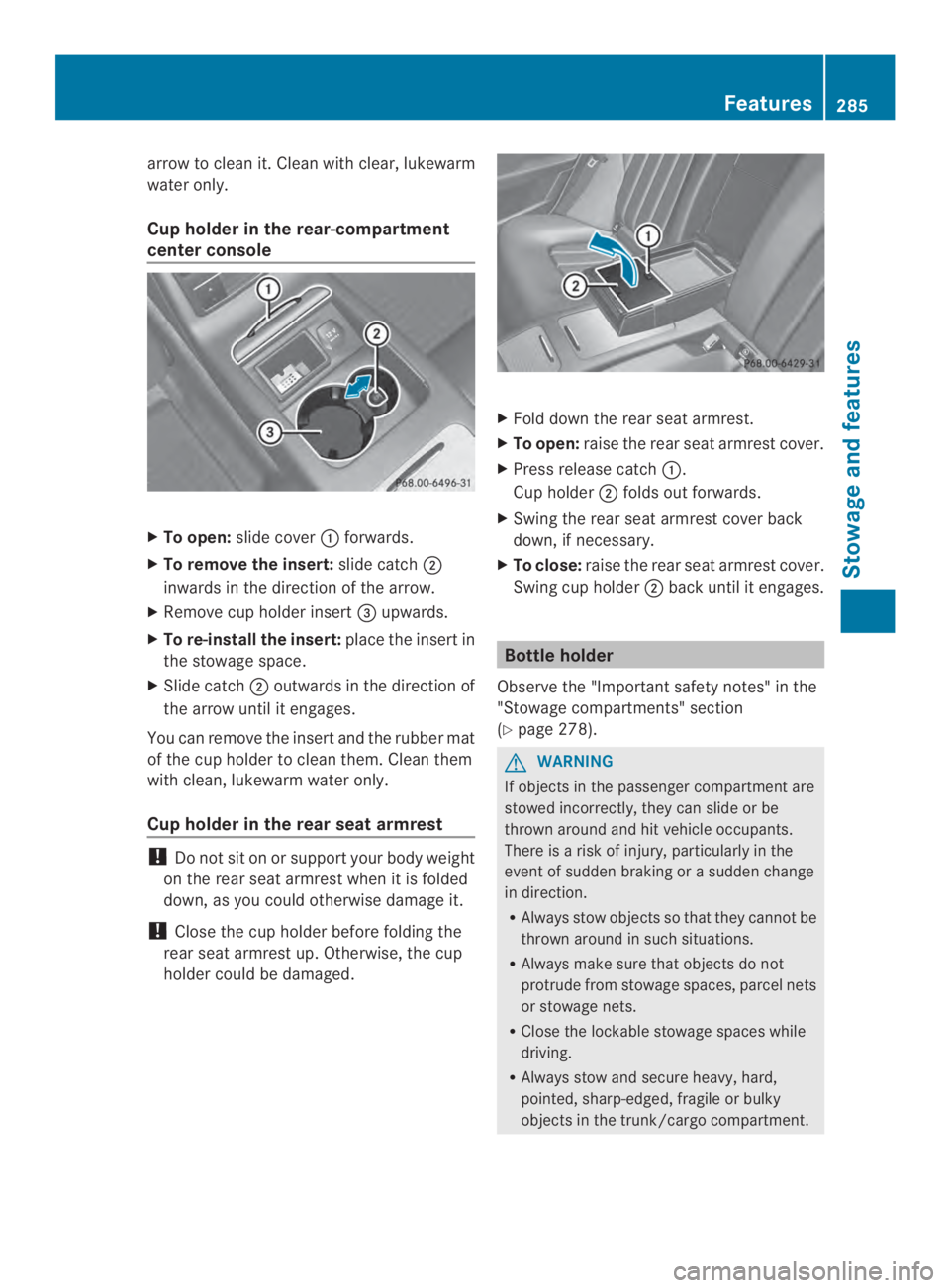

Cupholder in the rear-compartment
centerconsole
XTo open:slide coverforwards.
XTo remove theinsert:slide catch
inwards in thedirectionofthe arrow.
XRemove cup holder insert$upwards.
XTo re-install the insert:place the insert in
the stowage space.
XSlide catchoutwards in the direction of
the arrow until it engages.
You can remove the insert and the rubber mat
of the cup holder to clean them. Cleanthem
with clean, lukewarm water only.
Cup holder in the rear seat armrest
!Do not sit on or support your body weight
on the rear seat armrest when it is folded
down, as you could otherwise damage it.
!Close the cup holder before folding the
rear seat armrest up. Otherwise, the cup
holder could be damaged.
XFold down the rear seat armrest.
XTo open:raise the rear seat armrest cover.
XPress release catch.
Cup holderfolds out forwards.
XSwing the rear seat armrest cover back
down, if necessary.
XTo close:raise the rear seat armrest cover.
Swing cup holderback until it engages.
Bottle holder
Observe the "Important safety notes" in the
"Stowage compartments" section
(Ypage 278).
GWARNING
If objectsinthe passenger compartmentare
stowed incorrectly, they can slide or be
thrown around and hit vehicle occupants.
There isarisk of injury, particularly in the
event of sudden braking orasudden change
in direction.
RAlways stow objectssothat they cannot be
thrown around in such situations.
RAlways make sure that objectsdonot
protrude from stowage spaces, parcel nets
or stowage nets.
RClose the lockable stowage spaces while
driving.
RAlways stow and secure heavy, hard,
pointed, sharp-edged, fragile or bulky
objectsinthe trunk/cargo compartment.
Features285
Stowage and features
Z

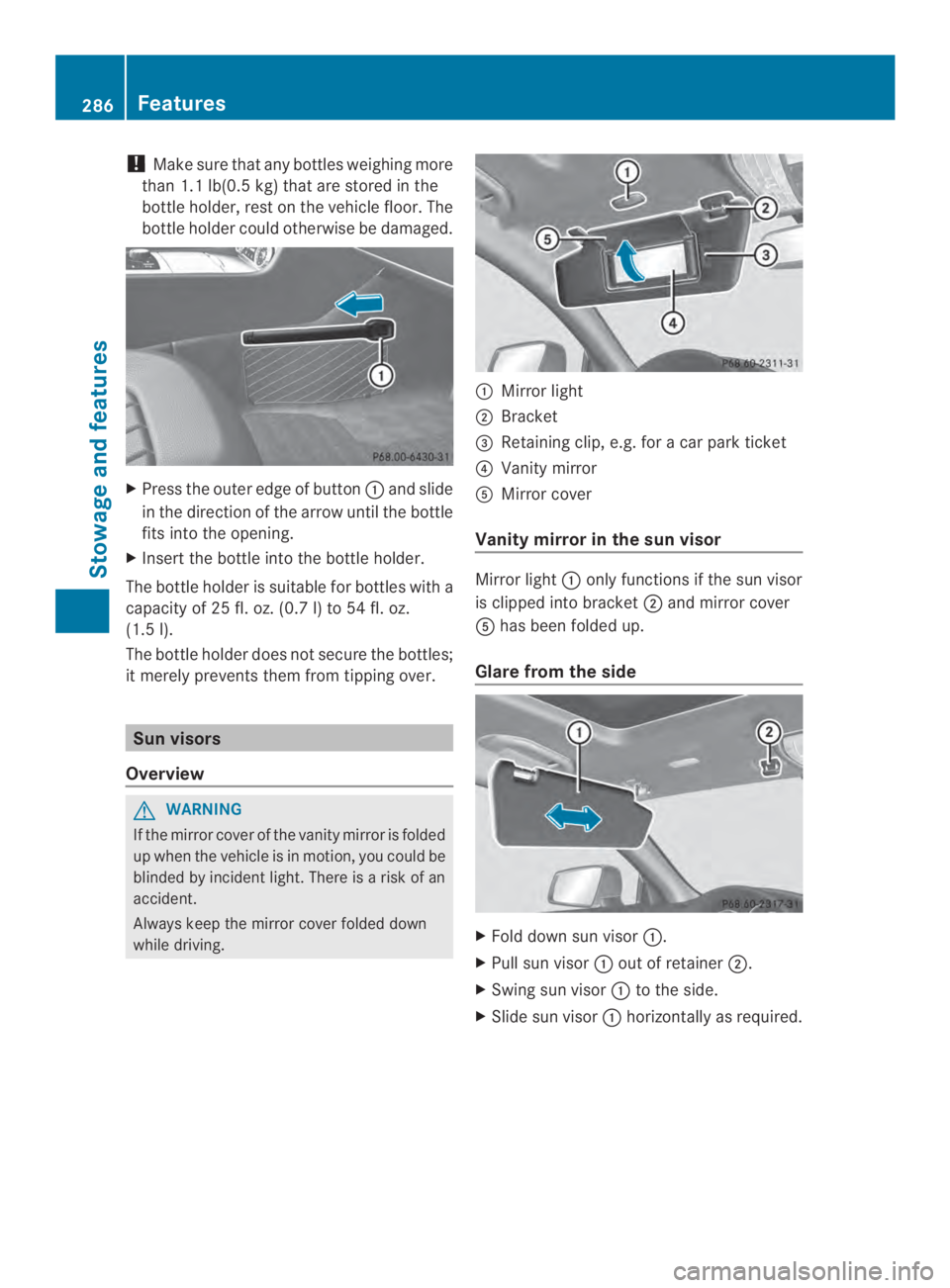

!Make sure that any bottles weighing more
than 1.1 lb(0.5 kg) that are stored in the
bottle holder, rest on the vehicle floor. The
bottle holder could otherwise be damaged.
XPress the outer edge of buttonand slide
in the direction of the arrow until the bottle
fits into the opening.
XInsert the bottle into the bottle holder.
The bottle holder is suitablefor bottles with a
capacity of 25 fl. oz. (0.7l)to 54 fl.oz.
(1.5l).
Thebottle holder does not secure the bottles;
it merelyprevents themfromtipping over.
Sun visors
Overview
GWARNING
If the mirrorcover of the vanity mirrorisfolded
up when the vehicleisinmotion, youcould be
blinded by incident light. There isariskofan
accident.
Alwayskeepthe mirrorcover folded down
while driving.
Mirror light
Bracket
$Retaining clip, e.g. foracar park ticket
!Vanity mirror
Mirror cover
Vanitymirror in the sun visor
Mirror lightonly functions if the sun visor
is clipped into bracketand mirror cover
has been folded up.
Glare from the side
XFold down sun visor.
XPull sun visorout of retainer.
XSwing sun visorto the side.
XSlide sun visorhorizontally as required.
286Features
Stowage and features
