2014 MERCEDES-BENZ CLS Owners Manual

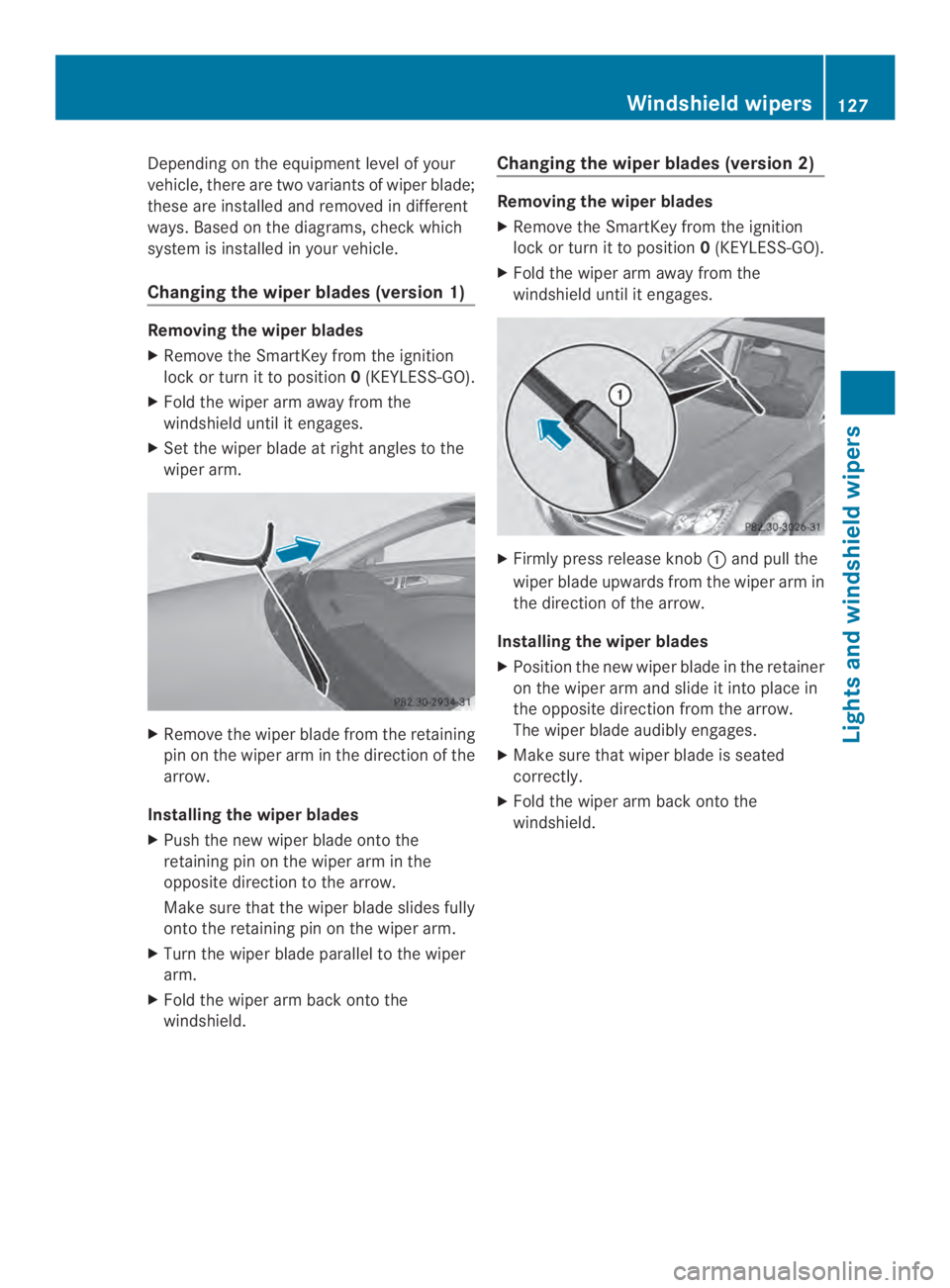

Depending on the equipment level of your
vehicle, there aretwo variants of wiperblade;
these are installed and removed in different
ways. Based on the diagrams,checkwhich
system is installed in your vehicle.
Changing the wiper blades (version 1)
Removing the wiper blades
XRemove the SmartKey from the ignition
lock or turn it to position0(KEYLESS-GO).
XFold the wiper arm away from the
windshield until it engages.
XSet the wiper blade at right angles to the
wiper arm.
XRemove the wiper blade from the retaining
pin on the wiper arm in the direction of the
arrow.
Installing the wiper blades
XPush the new wiper blade onto the
retaining pin on the wiper arm in the
opposite direction to the arrow.
Make sure that the wiper blade slides fully
onto the retaining pin on the wiper arm.
XTurn the wiper blade parallel to the wiper
arm.
XFold the wiper arm back onto the
windshield.
Changing the wiper blades (version 2)
Removing the wiper blades
XRemove the SmartKey from the ignition
lock or turn it to position0(KEYLESS-GO).
XFold the wiper arm away from the
windshield until it engages.
XFirmly press release knoband pull the
wiper blade upwards from the wiper arm in
the direction of the arrow.
Installing the wiper blades
XPosition the new wiper blade in the retainer
on the wiper arm and slide it into place in
the opposite direction from the arrow.
The wiper blade audibly engages.
XMake sure that wiper blade is seated
correctly.
XFold the wiper arm back onto the
windshield.
Windshield wipers127
Lights and windshield wipers
Z

Problems with the windshield wipers
ProblemPossible causes/consequences andSolutions
The windshield wipers
are jammed.
Leaves or snow, for example, may be obstructing the windshield
wiper movement.The wiper motor has been deactivated.
XFor safety reasons, you should remove the SmartKey from the
ignition lock.
or
XSwitch off the engine using the Start/Stop button and open the
driver's door.
XRemove the cause of the obstruction.
XSwitch the windshield wipers back on.
The windshield wipers
fail completely.
The windshield wiper drive is malfunctioning.
XSelect another wiper speed on the combination switch.
XHave the windshield wipers checked ataqualified specialist
workshop.
128Windshield wipers
Lights and windshield wipers

Useful information............................130
Overview of climatecontrol sys-
tems...................................................130
Operating the climatecontrol sys-
tems...................................................135
Setting the air vents.........................142
129
Climat ec ontrol

Useful information
iThis Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please notethat your vehicle may
not be equipped with all features
described. This also applies to safety-
related systemsand functions.
iRead the information on qualified
specialist workshops: (Ypage 26).
Overview of climatecontrol systems
Important safetynotes
Observethe settings recommendedonthe
following pages. The windows could
otherwise fog up.
To preventthe windows from fogging up:
Rswitch off climate control only briefly
Rswitch on air-recirculation mode only
briefly
Rswitch on the cooling with air
dehumidification function
Rswitch on the defrost windshield function
briefly, if required
Climate control regulates the temperature
and the humidity in the vehicle interior and
filters undesirable substances out of the air.
Climate control can only be operated when
the engine is running. Optimum operation is
only achieved with the side windows and roof
closed.
The residual heat function can only be
activated or deactivated with the ignition
switched off (Ypage 141).
iVentilate the vehicle forabrief period
during warm weather, e.g. using the
convenience opening feature (Ypage 89).
This will speed up the cooling process and
the desired vehicle interior temperature
will be reached more quickly.
iThe integrated filter filters out most
particles of dust and soot and completely
filters out pollen. It also reduces gaseous
pollutantsand odors.Aclogged filter
reduces the amountofair supplied to the
vehicle interior.For this reason, you should
always observe the interval for replacing
the filter, which is specified in the
Maintenance Booklet.Asitdepends on
environmental conditions, e.g. heavy air
pollution, the interval may be shorter than
stated in the Maintenance Booklet.
130Overview of climatecontrol systems
Climat ec ontrol

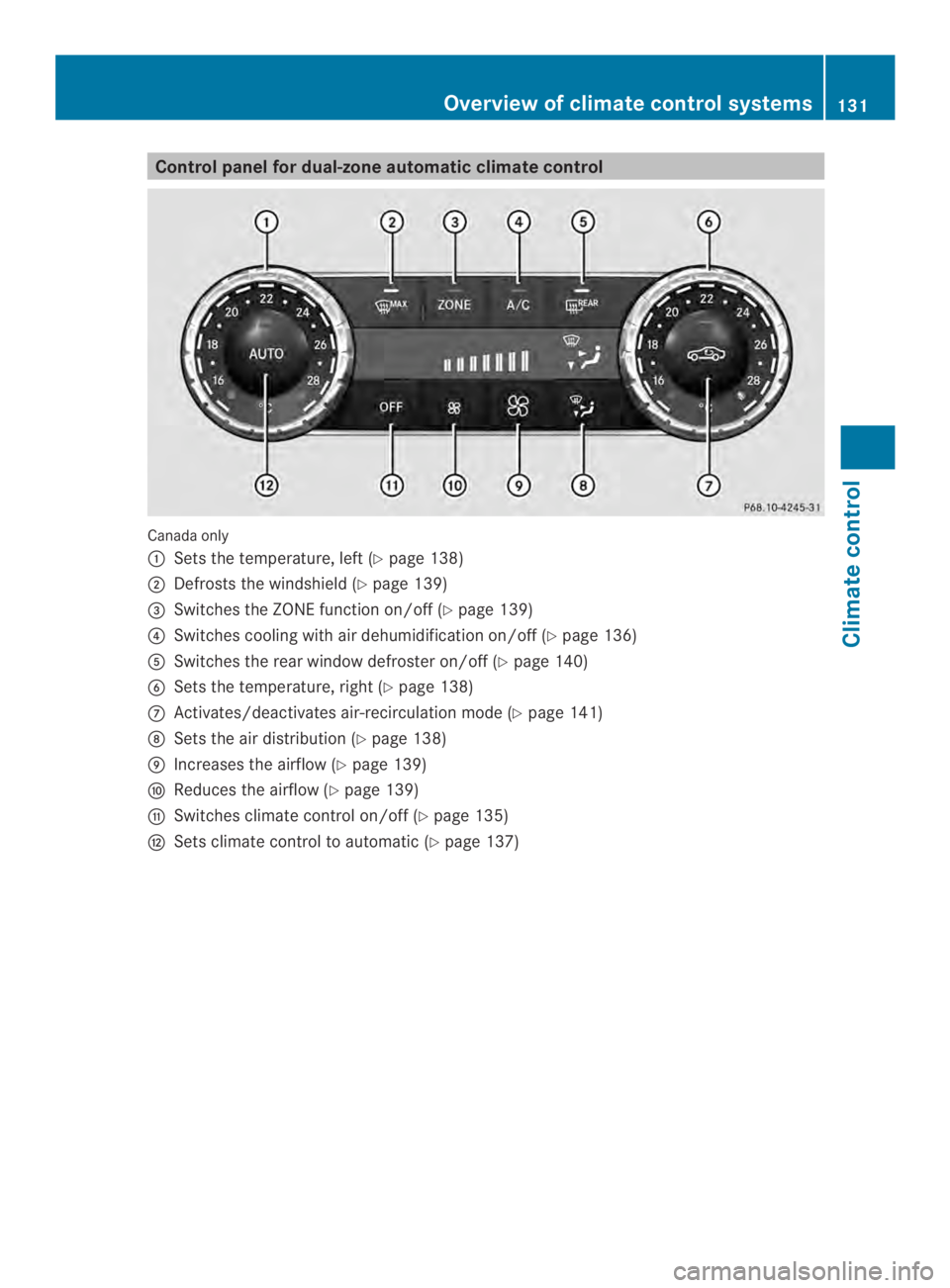

Control panel for dual-zone automatic climatecontrol
Canadaonly
Setsthetemperature, left (Ypage 138)
Defroststhewindshield (Ypage 139)
$Switches theZONE function on/off(Ypage 139)
!Switches coolingwithair dehumidification on/off(Ypage 136)
Switches the rear window defroster on/off (Ypage 140)
%Setsthe temperature, right (Ypage 138)
Activates/deactivates air-recirculation mode (Ypage 141)
Setsthe air distribution (Ypage 138)
Increases the airflow (Ypage 139)
Reduces the airflow (Ypage 139)
Switches climatecontrolon/off (Ypage 135)
Setsclimate controltoautomatic (Ypage 137)
Overview of climatecontrol systems131
Climat ec ontrol

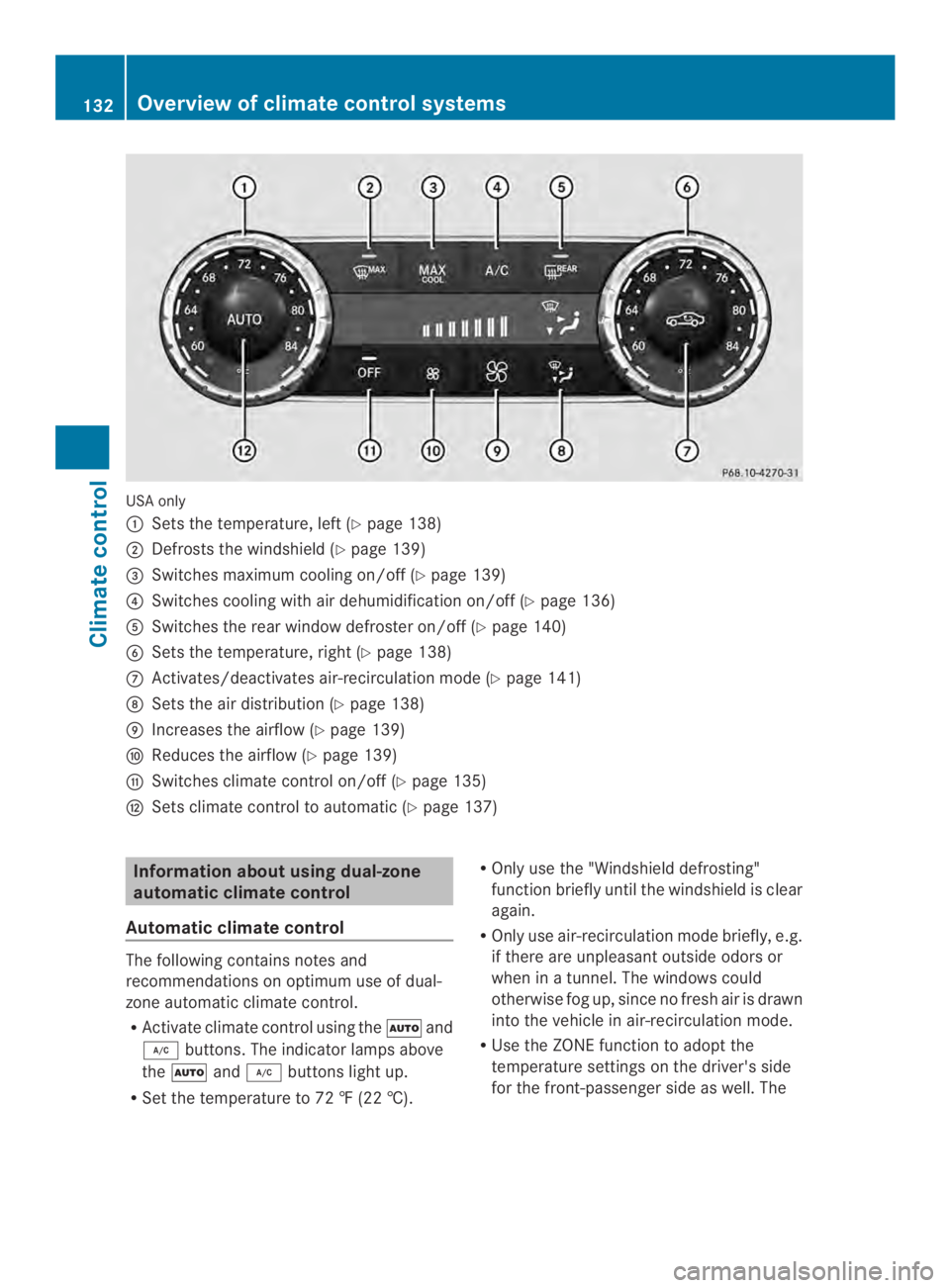

USA only
Sets the temperature, left (Ypage 138)
Defrosts the windshield(Ypage 139)
$Switches maximum cooling on/off (Ypage 139)
!Switches cooling with air dehumidification on/off (Ypage 136)
Switches the rear window defroster on/off (Ypage 140)
%Sets the temperature, right (Ypage 138)
Activates/deactivates air-recirculation mode (Ypage 141)
Sets the air distribution (Ypage 138)
Increases the airflow (Ypage 139)
Reduces the airflow (Ypage 139)
Switches climate control on/off (Ypage 135)
Sets climate control to automatic (Ypage 137)
Information about using dual-zone
automatic climate control
Automatic climate control
The following contains notes and
recommendations on optimum use of dual-
zone automatic climate control.
RActivate climate control using the\rand
buttons. The indicator lamps above
the\randbuttons light up.
RSet the temperature to 72‡(22 †).
ROnly use the "Windshield defrosting"
function briefly until the windshieldisclear
again.
ROnly use air-recirculation mode briefly,e.g.
if there are unpleasant outside odors or
when inatunnel. The windows could
otherwise fog up, since no fresh air is drawn
into the vehicle in air-recirculation mode.
RUse the ZONE function to adopt the
temperature settings on the driver's side
for the front-passenger side as well.The
132Overview of climate control systems
Climat ec ontrol

indicator lamp above thebutton goes
out.
RVehicles with COMANDMultimedia-
System:if you change the settings of the
climate control system, the climate status
display appears for approximately three
seconds at the bottom of the screen in the
COMAND display. See also the separate
COMAND operating instructions.You will
see the current settings of the various
climate control functions.
ECO start/stop function
During automatic engine switch-off, the ECO
start/stop function only operates at a
reduced capacity. If you require the full
climate control output, you can switch off the
ECO start/stop function by pressing the ECO
button (Ypage 152).
Overview of climate control systems133
Climate control

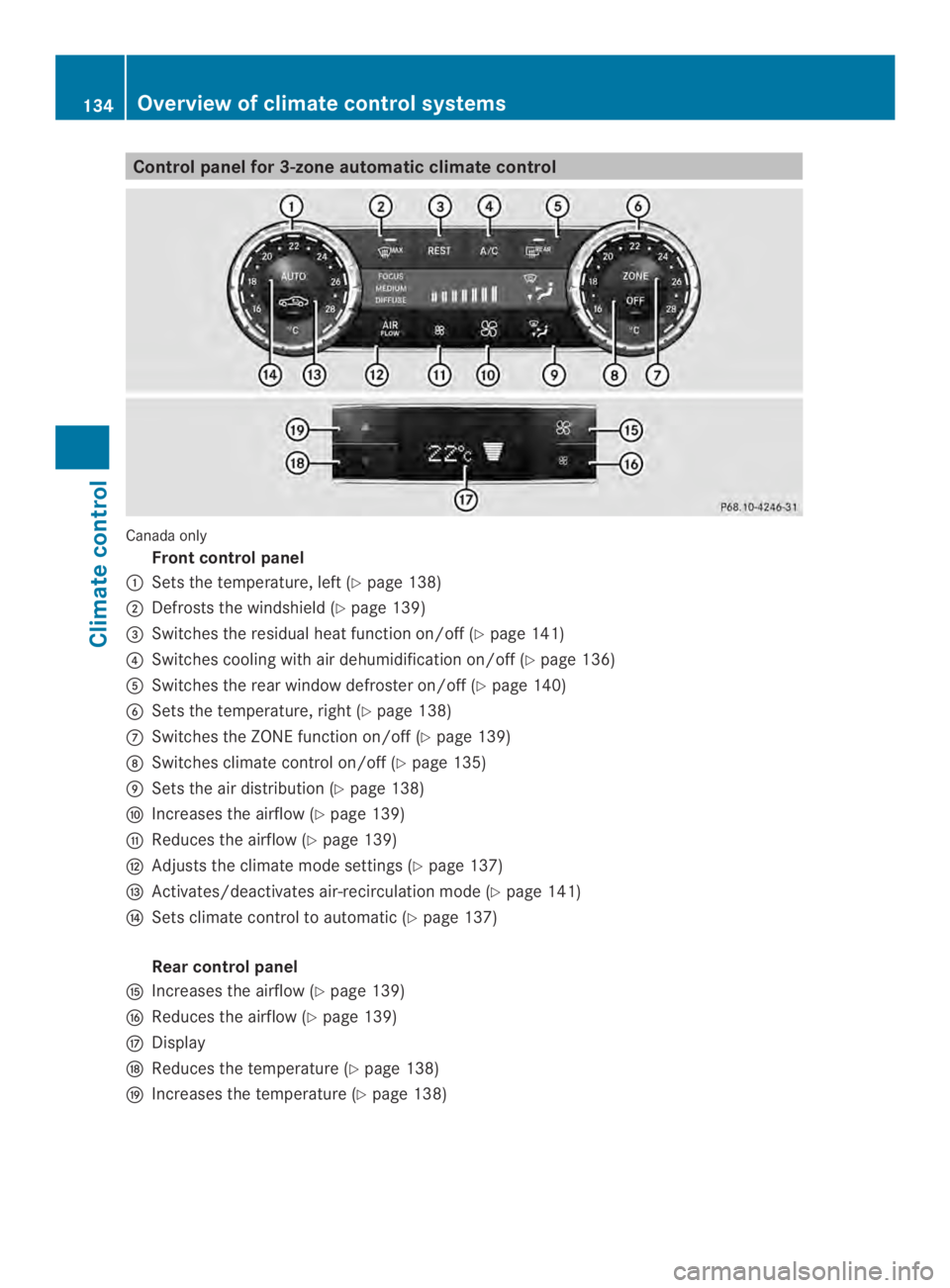

Control panel for 3-zone automatic climatecontrol
Canadaonly
Frontcontrol panel
Setsthetemperature, left (Ypage 138)
Defrosts thewindshield (Ypage 139)
$Switchestheresidual heat function on/off (Ypage 141)
!Switchescooling with air dehumidificationon/off (Ypage 136)
Switchesthe rearwindow defroster on/off (Ypage 140)
%Setsthe temperature, right (Ypage 138)
Switches the ZONE function on/off (Ypage 139)
Switches climate control on/off (Ypage 135)
Setsthe air distribution (Ypage 138)
Increases the airflow (Ypage 139)
Reduces the airflow (Ypage 139)
Adjusts the climate mode settings (Ypage 137)
Activates/deactivates air-recirculation mode (Ypage 141)
Setsclimate control to automatic (Ypage 137)
Rearcontrol panel
Increases the airflow (Ypage 139)
Reduces the airflow (Ypage 139)
Display
Reduces the temperature (Ypage 138)
#Increases the temperature (Ypage 138)
