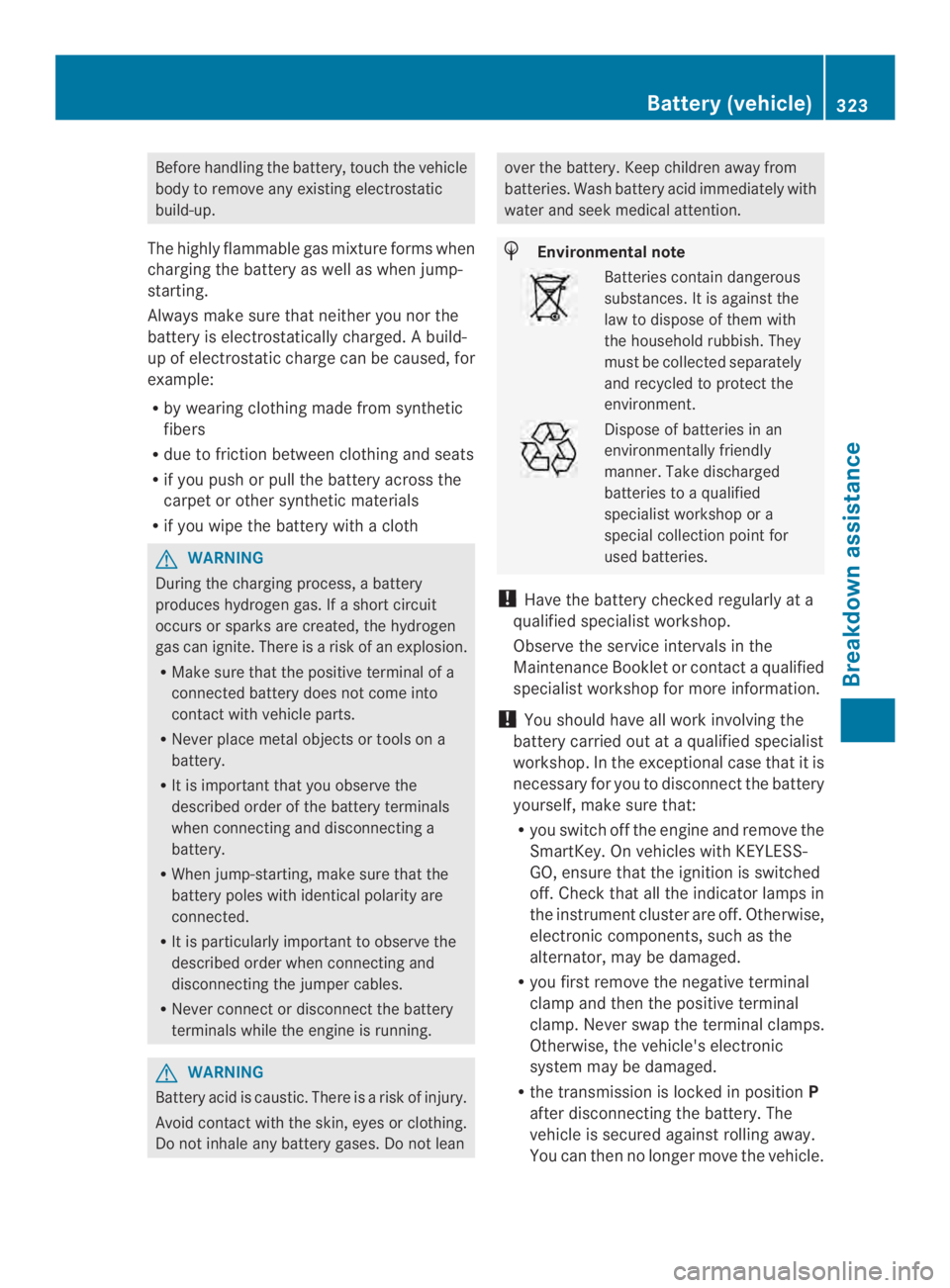

Beforehandling the battery,touch the vehicle
bodytoremove any existing electrostatic
build-up.
The highly flammable gasmixture forms when
charging the battery as well as whenjump-
starting.
Always makesure that neither you northe
battery is electrostatically charged.Abuild-
up of electrostaticcharge can be caused, for
example:
Rby wearing clothing made from synthetic
fibers
Rdue to friction between clothing and seats
Rif you push or pull the battery across the
carpet or other synthetic materials
Rif you wipe the battery withacloth
GWARNING
During the charging process,abattery
produces hydrogen gas. Ifashort circuit
occurs or sparks are created, the hydrogen
gas can ignite. There isarisk of an explosion.
RMake sure that the positive terminal of a
connected battery does not come into
contact with vehicle parts.
RNever place metal objectsortools on a
battery.
RIt is important that you observe the
described order of the battery terminals
when connecting and disconnecting a
battery.
RWhen jump-starting, make sure that the
battery poles with identical polarity are
connected.
RIt is particularly important to observe the
described order when connecting and
disconnecting the jumper cables.
RNever connect or disconnectthe battery
terminals while the engine is running.
GWARNING
Batteryacid is caustic. There isarisk of injury.
Avoid contact with the skin, eyes or clothing.
Do not inhale any battery gases. Do not lean
over the battery. Keep children away from
batteries. Wash battery acid immediately with
water and seek medical attention.
HEnvironmental note
Batteries contain dangerous
substances. It is against the
law to dispose of them with
the household rubbish. They
must be collected separately
and recycled to protect the
environment.
Dispose of batteries in an
environmentally friendly
manner. Take discharged
batteries toaqualified
specialist workshop or a
special collection point for
used batteries.
!Have the battery checked regularly at a
qualified specialist workshop.
Observe the service intervals in the
MaintenanceBooklet or contactaqualified
specialist workshop for more information.
!You should have all work involving the
battery carried out ataqualified specialist
workshop. In theexceptional casethatitis
necessaryfor you to disconnect thebattery
yourself, makesure that:
Ryou switch off theengineand remove the
SmartKey. On vehicles withKEYLESS-
GO, ensure that theignition is switched
off.Check that all the indicator lamps in
the instrumentcluster are off.Otherwise,
electroniccomponents, such as the
alternator,may be damaged.
Ryou first remove the negative terminal
clamp and then the positive terminal
clamp. Never swap the terminal clamps.
Otherwise, the vehicle's electronic
system may be damaged.
Rthe transmission is locked in positionP
after disconnectingthe battery. The
vehicle is secured against rolling away.
You can then no longer move the vehicle.
Battery (vehicle)323
Breakdown assistance
Z
Jump-starting
For the jump-starting procedure, use only the jump-starting connection point, consisting of a
positive terminal and an earth point, in the engine compartment.
GWARNING
Battery acid is caustic. There isarisk of injury.
Avoid contact with the skin, eyes or clothing. Do not inhale any battery gases. Do not lean over
the battery. Keep children away from batteries. Wash battery acid immediately with water and
seek medical attention.
GWARNING
During charging and jump-starting, explosive gases can escape from the battery. There isarisk
of an explosion.
Particularly avoid fire, open flames, creating sparks and smoking. Ensure there is sufficient
ventilation while charging and jump-starting. Do not lean overabattery.
GWARNING
During the charging process,abattery produces hydrogen gas. Ifashort circuit occurs or sparks
are created, the hydrogen gas can ignite. There isarisk of an explosion.
RMake sure that the positive terminal ofaconnected battery does not come into contact with
vehicle parts.
RNever place metal objects or tools onabattery.
RIt is important that you observe the described order of the battery terminals when connecting
and disconnectingabattery.
RWhen jump-starting, make sure that the battery poles with identical polarity are connected.
RIt is particularly important to observe the described order when connecting and disconnecting
the jumper cables.
RNever connect or disconnectthe battery terminals while the engine is running.
GWARNING
Adischarged battery can freeze at temperatures below freezingpoint.When jump-starting the
vehicle or charging the battery, gases can escape from the battery. There isarisk of an explosion.
Allow the frozen battery to thaw out before charging it or jump-starting.
!Avoid repeated and lengthy startingattempts. Otherwise, the catalytic converter could be
damaged by the non-combusted fuel.
Do not start the vehicle usingarapid charging device. If your vehicle's battery is discharged,
the engine can be jump-started from another vehicle or fromasecond battery using jumper
cables. Observe the following points:
RThe battery is not accessible in all vehicles. If the other vehicle's battery is not accessible,
jump-start the vehicle usingasecond battery orajump-starting device.
RYou may only jump-start thevehiclewhen theengineand exhaust system are cold.
RDo notstart theengineifthebattery is frozen.Let thebattery thaw first.
326Jump-starting
Breakdown assistance
