2014 MERCEDES-BENZ CLS fuel filter

!Do not use diesel to refuel vehicles with a
gasoline engine. Do not switch on the
ignition if you accidentally refuel with the
wrong fuel. Otherwise, the fuel will enter
the fuel system. Even small amounts of the
wrong fuel could result in damage to the
fuel system and the engine. The repair
costs are high. Notifyaqualified specialist
workshopand have thefuel tankand fuel
lines drainedcompletely.
!Overfilling the fuel tank could damage the
fuel system.
!Take carenot to spill any fuel on painted
surfaces.You could otherwise damage the
paintwork.
!Useafilter when refueling fromafuel can.
Otherwise, the fuel lines and/or injection
system could be blocked by particles from
the fuel can.
Do not get into the vehicle again during the
refueling process. Otherwise, electrostatic
charge could build up again.
If you overfill the fuel tank,fuel could spray
out when the fuel pump nozzle is removed.
For further information on fuel and fuel quality
(Ypage 374).
Refueling
Opening/closing the fuel filler flap
To open the fuel filler flap
To insert the fuel filler cap
$Tire pressure table
!Fuel type to be used
The fuel filler flap is unlocked or locked
automatically when you open or close the
vehicle with the SmartKey or with KEYLESS-
GO.
The position of the fuel filler cap is displayed
in the instrument cluster. The arrow
next to the filling pump indicates the side of
the vehicle.
Opening the fuel filler flap
To open the fuel filler flap
To insert the fuel filler cap
$Tire pressure table
!Fuel type to be used
XSwitch the engine off.
XRemove the SmartKey from the ignition
lock.
XKEYLESS-GO: open the driver’s door.
This corresponds to key position0:"key
removed".
The driver’s door can be closed again.
XPress the fuel filler flap in the direction of
arrow.
The fuel filler flap opens slightly.
XOpen the fuel filler flap fully.
XTurn the fuel filler flap counter-clockwise
and remove it.

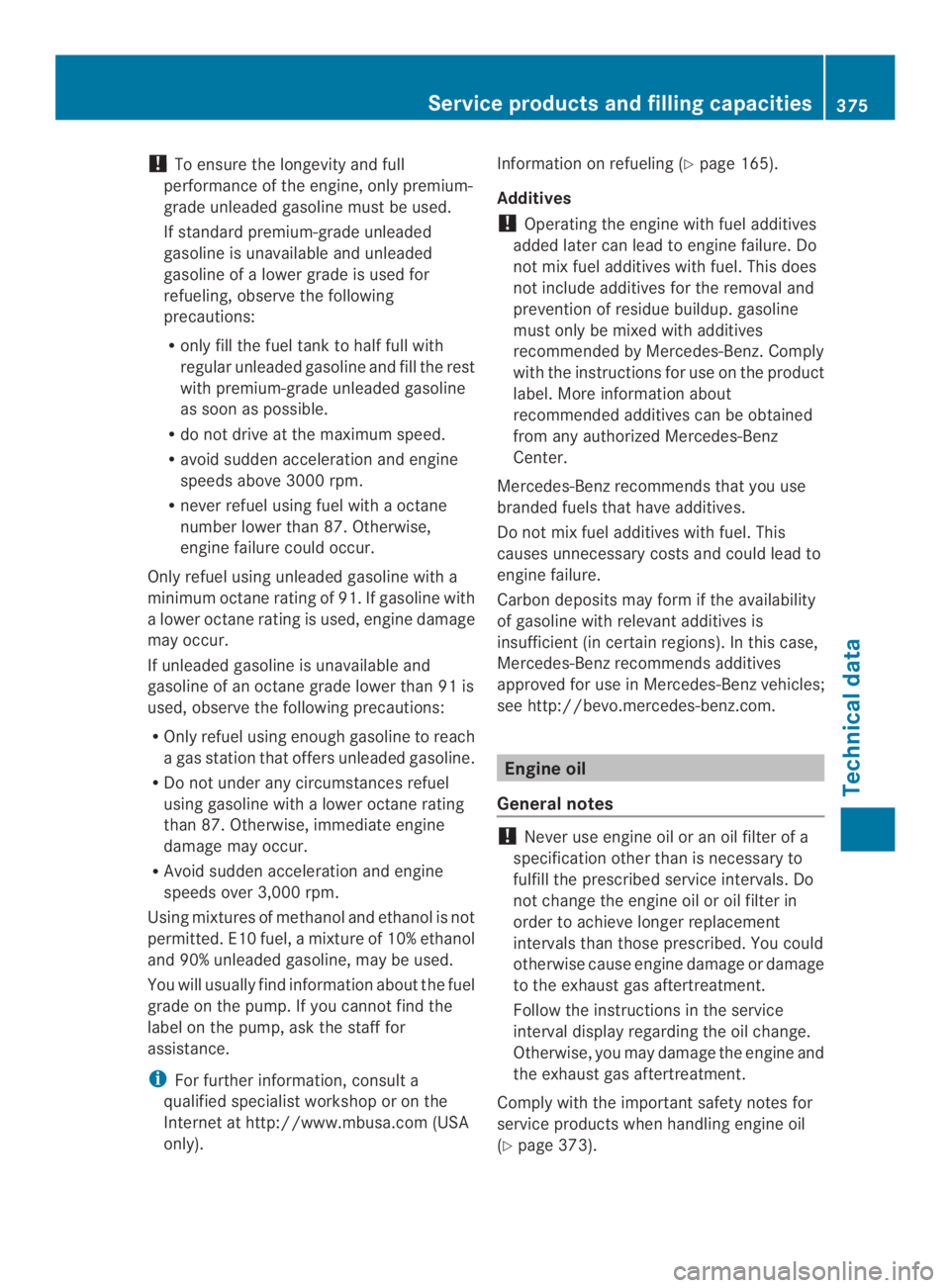

Refueling165
Driving and parking
Z

!To ensure the longevity and full
performance of the engine, only premium-
grade unleaded gasoline must be used.
If standard premium-grade unleaded
gasoline is unavailable and unleaded
gasoline ofalower grade is used for
refueling, observe the following
precautions:
Ronly fill the fuel tank to half full with
regularunleaded gasoline and fillthe rest
with premium-gradeunleadedgasoline
as soonaspossible.
Rdo not drive at the maximum speed.
Ravoid sudden acceleration and engine
speeds above 3000 rpm.
Rnever refuel using fuel withaoctane
number lower than 87. Otherwise,
engine failure could occur.
Only refuel using unleadedgasoline with a
minimum octane rating of 91. If gasoline with
alower octane rating is used, engine damage
may occur.
If unleadedgasoline is unavailable and
gasoline of an octane grade lower than 91 is
used, observe the following precautions:
ROnly refuel using enough gasoline to reach
agas station that offers unleadedgasoline.
RDo not under any circumstances refuel
using gasoline withalower octane rating
than 87. Otherwise, immediate engine
damage may occur.
RAvoid sudden acceleration and engine
speeds over 3,000 rpm.
Using mixtures of methanol and ethanol is not
permitted. E10 fuel,amixture of 10% ethanol
and 90% unleadedgasoline, may be used.
You will usually find information aboutthe fuel
grade on the pump. If you cannot find the
label on the pump, ask the staff for
assistance.
iFor further information,consult a
qualified specialist workshop or on the
Internet at http://www.mbusa.com (USA
only).
Information on refueling (Ypage 165).
Additives
!Operating the engine with fuel additives
added later can lead to engine failure. Do
not mix fuel additives with fuel. This does
not include additives for the removal and
prevention of residue buildup. gasoline
must only be mixed with additives
recommended by Mercedes-Benz. Comply
with the instructions for use on the product
label.More information about
recommended additives can be obtained
from any authorized Mercedes-Benz
Center.
Mercedes-Benz recommends that you use
branded fuels that have additives.
Do not mix fuel additives with fuel. This
causes unnecessary costsand could lead to
engine failure.
Carbon deposits may form if the availability
of gasoline with relevant additives is
insufficient (in certain regions). In this case,
Mercedes-Benz recommends additives
approved for use in Mercedes-Benz vehicles;
see http://bevo.mercedes-benz.com.
Engine oil
General notes
!Never use engine oil or an oil filter of a
specification other than is necessary to
fulfill the prescribed service intervals. Do
not change the engine oil or oil filter in
order to achieve longer replacement
intervals than those prescribed. You could
otherwise cause engine damage or damage
to the exhaust gas aftertreatment.
Follow the instructions in the service
interval display regarding the oil change.
Otherwise, you may damage the engine and
the exhaust gas aftertreatment.
Comply with the important safety notes for
service products when handling engine oil
(Ypage 373).
Service products and filling capacities375
Technical data
Z

The engine oils are matched to the
performance of Mercedes-Benz engines and
service intervals. You should therefore only
use engine oils and oil filters that are
approved for vehicles with maintenance
systems.
Foralist of approved engine oils and oil filters,
consult an authorized Mercedes-Benz
Center. Or visit the website
http://bevo.mercedes-benz.com.
The table shows which engine oils have been
approved for your vehicle.
ModelEngine
model
MB
Approval
CLS 550
CLS 550 4MATIC
278229.5
CLS 63 AMG
CLS 63 AMG
4MATIC
157229.5
Use only SAE 0W-40orSAE 5W-40 engine oils
for AMG vehicles.
iMB approval is indicated on the oil
containers.
Fillingcapacities
The following values refer to an oil change
including the oil filter.
ModelCapacity
All models (except
for AMG vehicles)
8.5 US qt (8.0 l)
All models (AMG
vehicles)
With external oil
cooler: 9.0 US qt
(8.5 l)
Additives
!Do not use any additives in the engine oil.
This coulddamage the engine.
Engine oil viscosity
Viscosity describes the flow characteristics
ofafluid. If an engine oil hasahigh viscosity,
this means that it is thick;alow viscosity
means that it is thin.
Select an engine oil with an SAE classification
(viscosity) suitable for the prevailing outside
temperatures. The table showsyou which
SAE classifications are to be used. The low-
temperature characteristics of engine oils
can deteriorate significantly, e.g. asaresult
of aging, soot and fuel deposits. It is therefore
strongly recommendedthat you carry out
regular oil changes using an approved engine
oil with the appropriate SAE classification.
Brake fluid
GWARNING
The brake fluidconstantly absorbs moisture
from the air. This lowers the boiling point of
the brake fluid. If the boiling point of the brake
fluidistoo low,vaporpocketsmay form in the
brake system when the brakes are applied
hard. This would impair braking efficiency.
There isarisk of an accident.
You should have the brake fluid renewed at
the specified intervals.
Comply with the important safety notes for
service products when handling brake fluid
(Ypage 373).
The brake fluid change intervals can be found
in the Maintenance Booklet.
376Service products and filling capacities
Technical data
