2014 MERCEDES-BENZ CLS Owners Manual

Display messagesPossible causes/consequences andSolutions

Don't Forget Your
Key
The display message is shown foramaximum of 60 seconds and
is onlyareminder.
You have opened the driver'sdoor with the engine switched off.
The KEYLESS-GO key is not in the ignitionlock.
XRemember to take the KEYLESS-GO key with you when you
leave the vehicle.

Key Not Detected
(red display message)
The KEYLESS-GO key is not in the vehicle.
Awarning tone also sounds.
If theengineisswitched off,you can no longer lockthe vehicle
centrally or start the engine.
XPull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.
XSecure the vehicle against rolling away (Ypage 167).
XLocate the KEYLESS-GO key.
The KEYLESS-GO key is not detected while the engine is running
because there is interference fromastrongsource of radio waves.
Awarning tone also sounds.
XPull overand stop the vehiclesafelyassoonaspossible,paying
attention to road and traffic conditions.
XSecure the vehicle against rolling away(Ypage 167).
XOperate the vehicle with the SmartKey in the ignition lock.

Key Not Detected
(white display
message)
The KEYLESS-GO key cannot be detected at present.
XChange the location of the SmartKey with the KEYLESS-GO
functionsinthe vehicle.
If the KEYLESS-GO key is still not detected:
XOperate the vehicle with the SmartKey in the ignition lock.

Key Detected in
Vehicle
The KEYLESS-GO key has been detected inside the vehicle during
locking.
XRemove the KEYLESS-GO key from the vehicle.
Display messages263
On-board computer and displays
Z

Display messagesPossible causes/consequences andSolutions

Remove 'Start'
Button and Insert
Key
The KEYLESS-GO keycan continuouslynotbe detected.
KEYLESS-GO is temporarily malfunctioningorisdefective. A
warningtonealso sounds.
XInserttheSmartKey into theignition lockand turnittothe
desiredposition.
XVisitaqualified specialist workshop.

Close Doors to
LockVehicle
At leastone door is open.Awarning tone also sounds.
XClose all doorsand lockthe vehicle again.
Indicator and warning lamps in the
instrument cluster
Warning and indicator lamps
overview
Low-beam headlamps
(Ypage 118)
Parking lamps (Ypage 118)
High-beam headlamps
(Ypage 119)

Turn signal (Ypage 119)
Seat belts (Ypage 265)
(USA) Brakes (Ypage 266)

(Canada)Brakes (Ypage266)
ABS (Ypage267)
ESP®(Ypage269)
ESP®OFF (Ypage269)
SPORT handling mode in
AMG vehicles (Ypage270)
SRS (Ypage272)
\nCheck Engine (Ypage273)
Reserve fuel (Ypage273)
Coolant (Ypage273)
Distance warning signal
(Ypage275)
Tire pressure monitor
(Ypage276)
264Indicator and warninglamps in the instrument cluster
On-board computer and displays

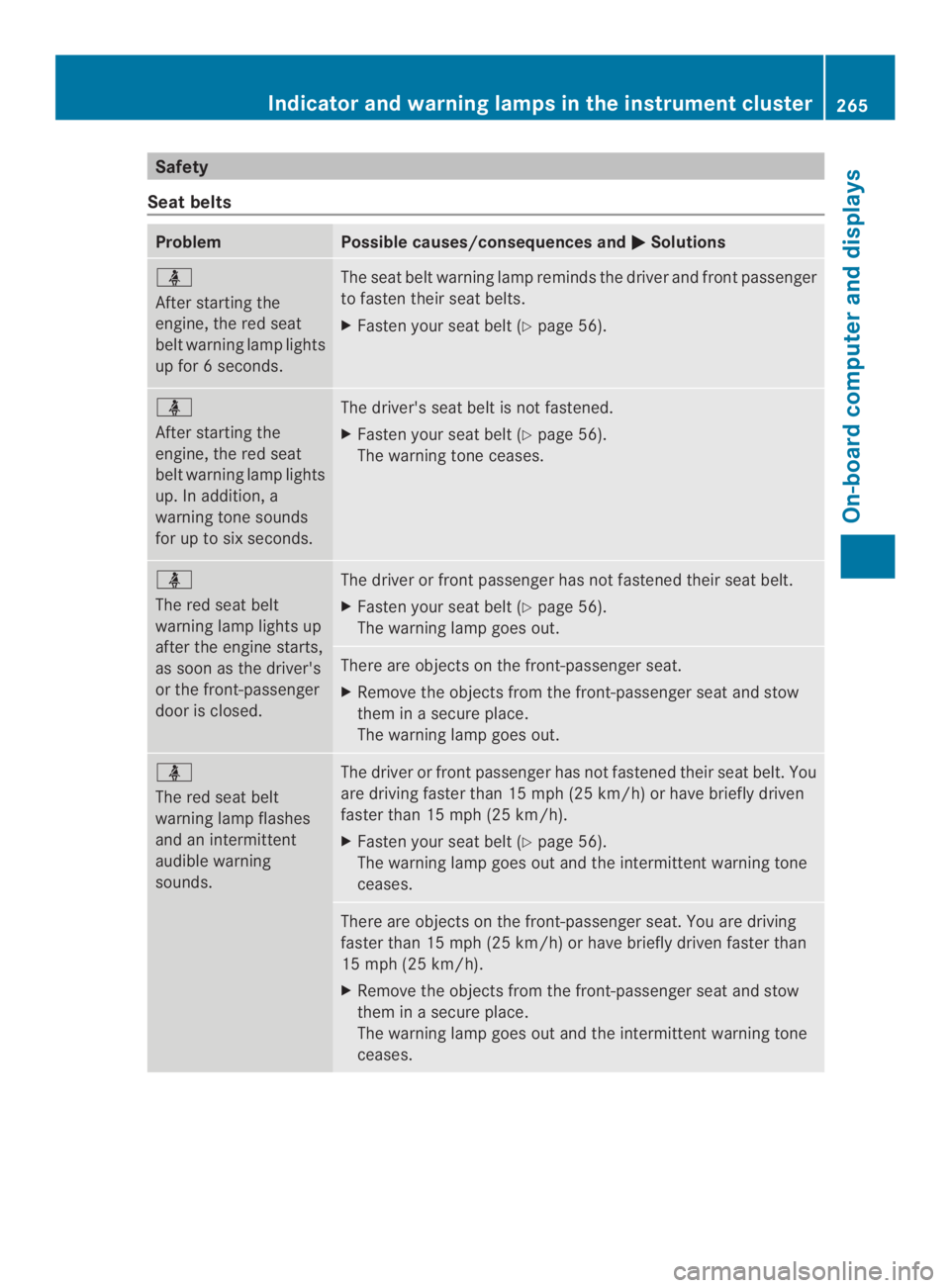

Safety
Seat belts
ProblemPossible causes/consequences andSolutions

After startingthe
engine, the red seat
belt warning lamp lights
up for6seconds.
The seat belt warning lamp reminds the driver and frontpassenger
to fasten their seat belts.
XFastenyour seat belt (Ypage 56).

After starting the
engine, the red seat
belt warning lamp lights
up. In addition, a
warning tonesounds
for up to six seconds.
The driver's seat belt is not fastened.
XFasten your seat belt (Ypage 56).
The warning toneceases.

The red seat belt
warning lamp lights up
after the engine starts,
as soon as the driver's
or the front-passenger
door is closed.
The driver or front passenger has not fastened their seat belt.
XFasten your seat belt (Ypage 56).
The warning lamp goes out.
There are objectsonthe front-passenger seat.
XRemove the objectsfrom the front-passenger seat and stow
them inasecure place.
The warning lamp goes out.

The red seat belt
warning lamp flashes
and an intermittent
audible warning
sounds.
The driver or front passenger has not fastened their seat belt. You
are driving faster than 15 mph (25 km/h) or have briefly driven
faster than 15 mph (25 km/h).
XFasten your seat belt (Ypage 56).
The warning lamp goes out and the intermittentwarning tone
ceases.
Thereare objectsonthefront-passenger seat.You are driving
faster than 15 mph (25 km/h) or have briefly driven faster than
15 mph (25 km/h).
XRemove the objectsfrom the front-passenger seat and stow
them inasecure place.
The warning lamp goes out and the intermittentwarning tone
ceases.
Indicator and warning lamps in theinstrumentcluster265
On-boar dc omputer and displays
Z

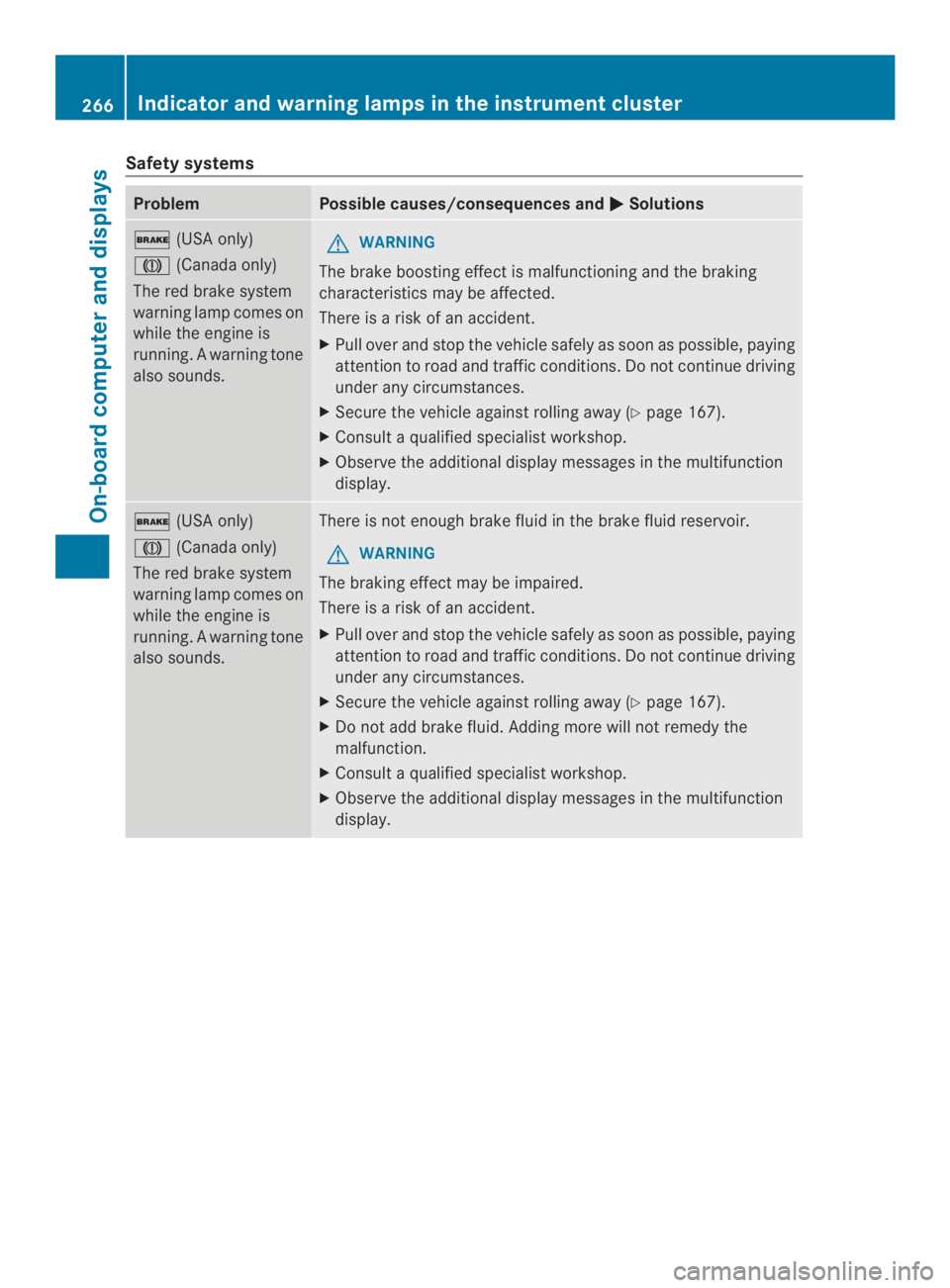

Safety systems
ProblemPossible causes/consequences andSolutions
(USA only)

(Canada only)
The red brake system
warning lamp comes on
while the engine is
running.Awarning tone
also sounds.
GWARNING
The brake boosting effect is malfunctioning and the braking
characteristics may be affected.
There isarisk of an accident.
XPull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions. Do not continue driving
under any circumstances.
XSecure the vehicle against rolling away (Ypage 167).
XConsultaqualified specialist workshop.
XObserve the additional display messages in the multifunction
display.
(USA only)

(Canada only)
The red brake system
warning lamp comes on
while the engine is
running.Awarning tone
also sounds.
There is not enough brake fluid in the brake fluid reservoir.
GWARNING
The braking effect may be impaired.
There isarisk of an accident.
XPull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions. Do not continue driving
under any circumstances.
XSecure the vehicle against rolling away (Ypage 167).
XDo not add brake fluid. Adding more will not remedy the
malfunction.
XConsultaqualified specialist workshop.
XObserve the additional display messages in the multifunction
display.
266Indicator and warning lampsinthe instrument cluster
On-board computer and displays

ProblemPossible causes/consequences andSolutions

The yellowABS warning
lamp is lit while the
engine is running.
ABS (Anti-lock Braking System) is deactivated due to a
malfunction.BAS (Brake Assist), BAS PLUS, ESP®(Electronic
Stability Program), PRE-SAFE®,PRE-SAFE®Brake, the HOLD
function and hill start assist are therefore also deactivated, for
example.
ATTENTION ASSIST is deactivated.
GWARNING
The brake system continues to function normally, but without the
functions listed above. The wheels could therefore lock if you
brake hard, for example.
The steerability and braking characteristics may be severely
affected. The braking distance in an emergency braking situation
can increase.
If ESP®is not operational, ESP®is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
XObserve the additional display messages in the multifunction
display.
XDrive on carefully.
XVisitaqualified specialist workshop.
If the ABS control unit is faulty, there is alsoapossibility that other
systems, such as the navigation system or the automatic
transmission, will not be available.
Indicator and warning lampsinthe instrument cluster267
On-board computer and displays
Z

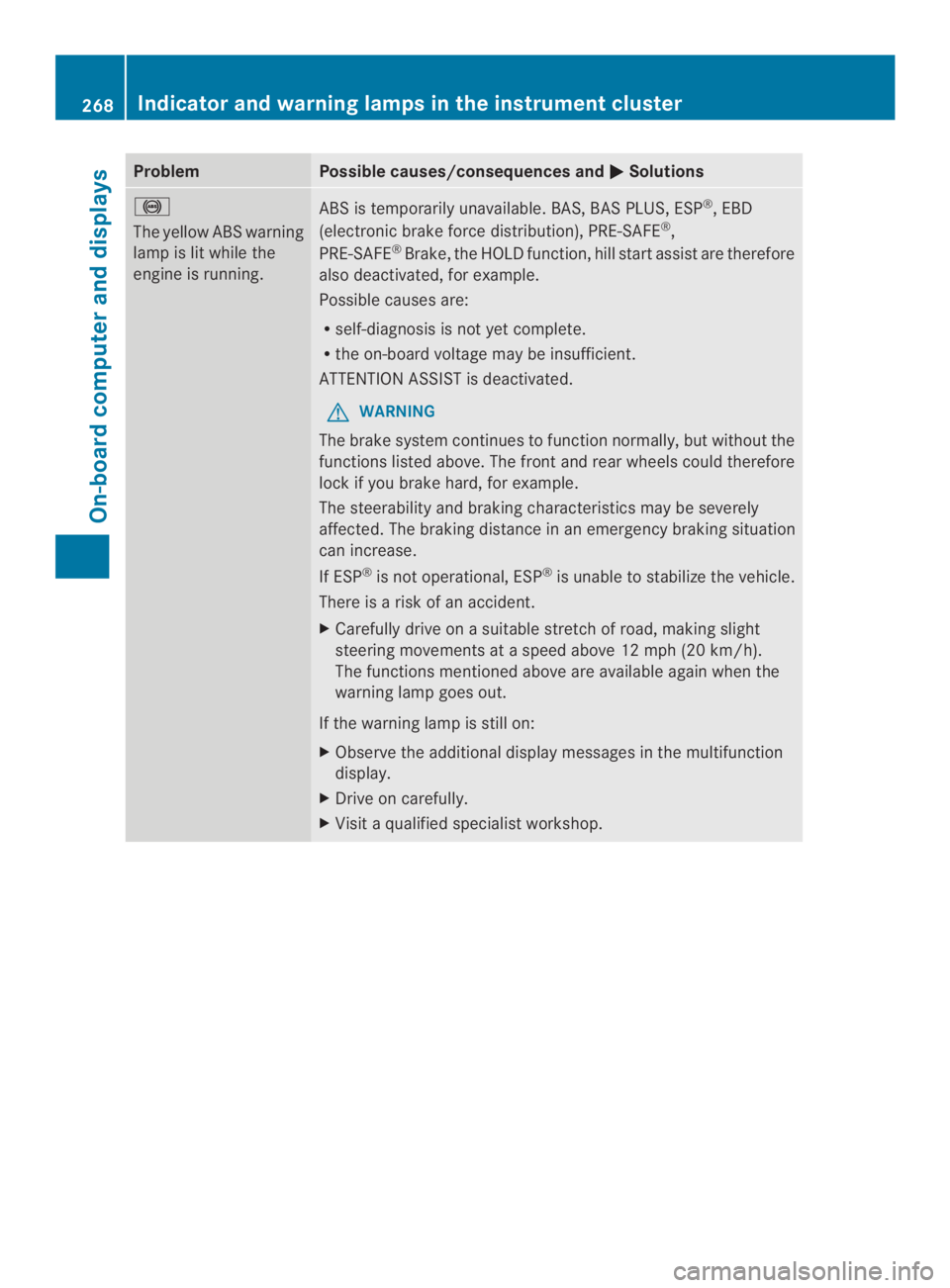

ProblemPossible causes/consequences andSolutions

The yellowABS warning
lamp is lit while the
engine is running.
ABS is temporarily unavailable. BAS,BAS PLUS, ESP®,EBD
(electronic brake force distribution), PRE-SAFE®,
PRE-SAFE®Brake, the HOLD function, hill start assist are therefore
also deactivated, for example.
Possible causes are:
Rself-diagnosis is not yet complete.
Rthe on-board voltage may be insufficient.
ATTENTION ASSIST is deactivated.
GWARNING
The brake system continues to function normally, but without the
functions listed above. The front and rear wheels could therefore
lock if you brake hard, for example.
The steerability and braking characteristics may be severely
affected. The braking distance in an emergency braking situation
can increase.
If ESP®is not operational, ESP®is unable to stabilize the vehicle.
There isarisk of an accident.
XCarefullydrive onasuitable stretch of road, making slight
steering movementsataspeed above 12 mph (20 km/h).
The functions mentioned above are available again when the
warning lamp goes out.
If the warning lamp is still on:
XObserve the additional display messages in the multifunction
display.
XDrive on carefully.
XVisitaqualified specialist workshop.
268Indicator and warning lampsinthe instrument cluster
On-board computer and displays

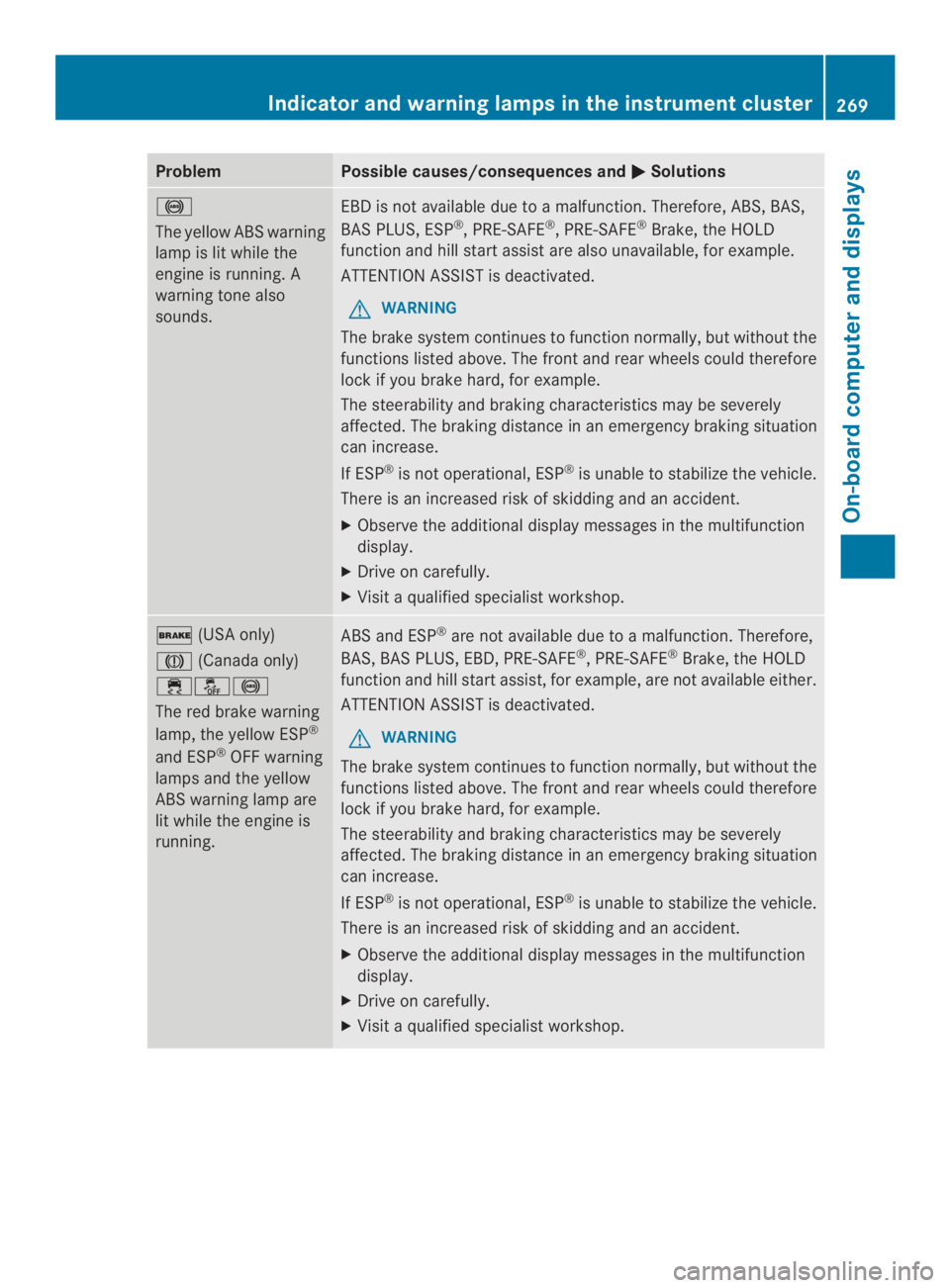

ProblemPossible causes/consequences andSolutions

The yellowABS warning
lamp is lit while the
engine is running. A
warning tone also
sounds.
EBD is not available due toamalfunction.Therefore, ABS,BAS,
BAS PLUS, ESP®,PRE-SAFE®,PRE-SAFE®Brake, the HOLD
function and hill start assist are also unavailable, for example.
ATTENTION ASSIST is deactivated.
GWARNING
The brake system continues to function normally, but without the
functions listed above. The front and rear wheels could therefore
lock if you brake hard, for example.
The steerability and braking characteristics may be severely
affected. The braking distance in an emergency braking situation
can increase.
If ESP®is not operational, ESP®is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
XObserve the additional display messages in the multifunction
display.
XDrive on carefully.
XVisitaqualified specialist workshop.
(USA only)

(Canada only)

The red brake warning
lamp, the yellow ESP®
and ESP®OFF warning
lamps and the yellow
ABS warning lamp are
lit while the engine is
running.
ABS and ESP®are not available due toamalfunction.Therefore,
BAS,BAS PLUS, EBD,PRE-SAFE®,PRE-SAFE®Brake, the HOLD
function and hill start assist, for example, are not available either.
ATTENTIONASSIST is deactivated.
GWARNING
The brake system continues to function normally, but without the
functions listed above. The front and rear wheels could therefore
lock if you brake hard, for example.
The steerability and braking characteristics may be severely
affected. The braking distance in an emergency braking situation
can increase.
If ESP®is not operational, ESP®is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
XObserve the additional displaymessages in the multifunction
display.
XDrive on carefully.
XVisitaqualified specialist workshop.
Indicator and warning lampsinthe instrument cluster269
On-board computer and displays
Z

ProblemPossible causes/consequences andSolutions

The yellowESP®
warning lamp flashes
while the vehicle is in
motion.
ESP®or traction control has intervened because there isarisk of
skidding or at least one wheel has started to spin.
Cruise control or DISTRONIC PLUS is deactivated.
XWhen pulling away,only depress the accelerator pedal as far as
necessary.
XEase off the accelerator pedal while the vehicle is in motion.
XAdapt your driving style to suit the road and weather conditions.
XDo not deactivate ESP®.
For exceptions, see: (Ypage 68).

The yellowESP®OFF
warning lamp is lit while
the engine is running.
ESP®is deactivated.
GWARNING
If ESP®is switched off, ESP®is unable to stabilize the vehicle.
There is an increased risk of skidding and an accident.
XReactivate ESP®.
For exceptions, see: (Ypage 68).
XAdapt your driving style to suit the road and weather conditions.
If ESP®cannot be activated:
XDrive on carefully.
XHave ESP®checked ataqualified specialist workshop.

AMG vehicles only:
The yellow SPORT
handling mode warning
lamp is lit while the
engine is running.
SPORT handling mode is activated.
GWARNING
When SPORT handling mode is switched on, ESP®is unable to
stabilize the vehicle.
There is an increased risk of skidding and an accident.
XOnly switch to SPORT handling mode in accordance with the
conditionsdescribed in the "Activating/deactivating SPORT
handling mode" section (Ypage 70).
270Indicator and warning lampsinthe instrument cluster
On-board computer and displays
