and wheels checked ataqualified specialist
workshop.
When parking your vehicle,makesure that
thetires do notget deformed by the curb or
other obstacles. If it is necessary to drive over
curbs, speed humps or similar elevations, try
to do so slowly and at an obtuse angle.
Otherwise, the tires, particularly the
sidewalls, may be damaged.
Regular checking of wheels and tires
GWARNING
Damaged tires can cause tire inflation
pressure loss. Asaresult, you could lose
control of your vehicle. There isarisk of
accident.
Check the tires regularly for signs of damage
and replace any damaged tires immediately.
Regularly checkthe wheels and tires of your
vehicle for damage at least onceamonth, as
well as after driving off-road or on rough
roads. Damaged wheels can causealoss of
tire pressure. Pay particular attention to
damage such as:
Rcuts in the tires
Rpunctures
Rtears in the tires
Rbulges on tires
Rdeformation or severe corrosion on wheels
Regularly check the tire tread depth and the
condition of the tread across the whole width
of the tire (Ypage 335). If necessary, turn
the front wheels to full lock in order to inspect
the inner side of the tire surface.
All wheels must haveavalve cap to protect
the valve against dirt and moisture. Do not
mount anything onto the valve other than the
standard valve cap or other valve caps
approved by Mercedes-Benzfor your vehicle.
Do not use any other valve caps or systems,
e.g. tire pressure monitoring systems.
Regularly check the pressure of all the tires
particularly prior to long trips. Adjust the tire
pressure as necessary (Ypage 338).
Observe the notes on the emergencyspare
wheel (Ypage 367).
The service life of tires depends, among other
things, on the following factors:
RDrivingstyle
RTire pressure
RDistance covered
Important safety notes on the tire
tread
GWARNING
Insufficient tire tread will reduce tire traction.
The tire is no longer able to dissipate water.
This means that on wet road surfaces, the risk
of hydroplaning increases, in particular where
speed is not adapted to suit the driving
conditions. There isarisk of accident.
If the tire pressure is too high or too low, tires
may exhibit different levels of wear at
different locations on the tire tread. Thus, you
should regularly check the tread depth and
the condition of the tread across the entire
width of all tires.
Minimum tire tread depth for:
RSummer tires:in (3 mm)
RM+S tires:in (4 mm)
For safety reasons, replace the tires before
the legally prescribed limit for the minimum
tire tread depth is reached.
Operation335
Wheels and tires
Z

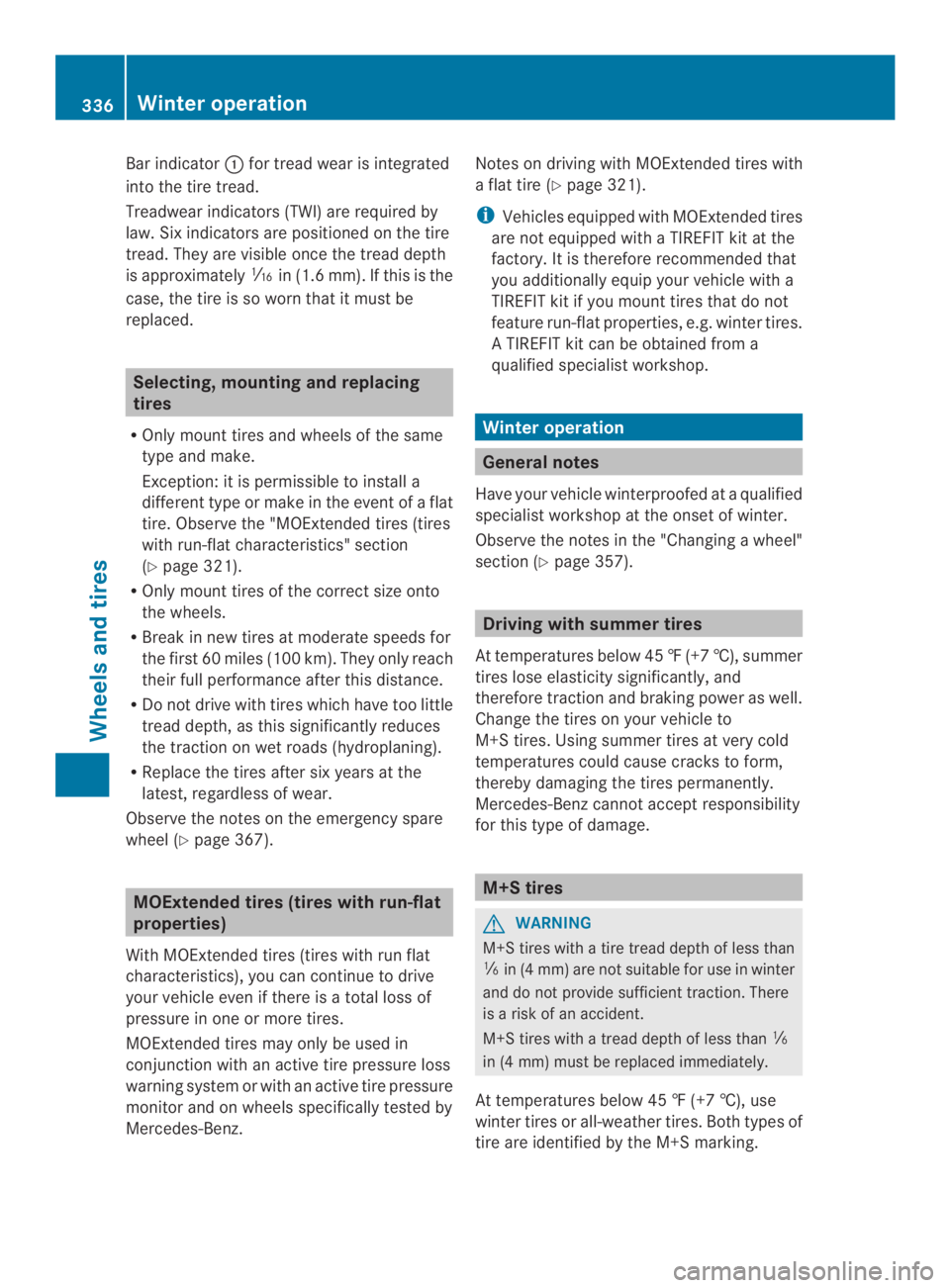

Bar indicatorfor treadwearisintegrated
into the tire tread.
Treadwear indicators(TWI) are required by
law. Six indicatorsare positioned on the tire
tread. Theyare visible once the treaddepth
is approximatelyin (1.6 mm). If this is the
case,the tire is so worn that it mustbe
replaced.
Selecting, mounting and replacing
tires
ROnly mount tires and wheels of the same
type and make.
Exception: it is permissible to install a
different type or make in the event ofaflat
tire. Observe the "MOExtended tires (tires
with run-flat characteristics" section
(Ypage321).
ROnly mount tires of the correct size onto
the wheels.
RBreak in new tires at moderate speeds for
the first 60 miles(100 km).They only reach
their full performance after this distance.
RDo not drive with tires which have too little
tread depth, as this significantly reduces
the traction on wet roads (hydroplaning).
RReplace the tires after six years at the
latest, regardless of wear.
Observe the notes on the emergency spare
wheel (Ypage 367).
MOExtended tires (tires with run-flat
properties)
With MOExtended tires (tires with run flat
characteristics), you can continue to drive
your vehicle even if there isatotal loss of
pressure in one or more tires.
MOExtended tires may only be used in
conjunction with an active tire pressure loss
warning system or with an active tire pressure
monitor and on wheels specifically tested by
Mercedes-Benz.
Notes on driving with MOExtended tires with
aflat tire (Ypage 321).
iVehicles equipped with MOExtended tires
are not equipped withaTIREFIT kit at the
factory. It is therefore recommended that
you additionallyequip your vehicle with a
TIREFIT kit if you mount tires that do not
feature run-flat properties, e.g. winter tires.
ATIREFIT kit can be obtained from a
qualified specialist workshop.
Winter operation
General notes
Have your vehicle winterproofed ataqualified
specialist workshop at the onset of winter.
Observe the notes in the "Changingawheel"
section (Ypage 357).
Driving with summer tires
At temperatures below 45‡(+7 †), summer
tires lose elasticity significantly,and
therefore traction and braking power as well.
Change the tires on yourvehicle to
M+S tires. Using summer tires at very cold
temperatures could cause crackstoform,
thereby damaging the tires permanently.
Mercedes-Benz cannot accept responsibility
for this type of damage.
M+S tires
GWARNING
M+S tires withatiretread depthofless than
in (4 mm)are notsuitable for use in winter
and do notprovide sufficient traction.There
isariskofanaccident.
M+S tires withatread depthofless than
in (4 mm)must be replacedimmediately.
At temperatures below 45‡(+7 †), use
winter tires or all-weather tires. Both typesof
tireare identified by theM+S marking.
336Winteroperation
Wheels and tires

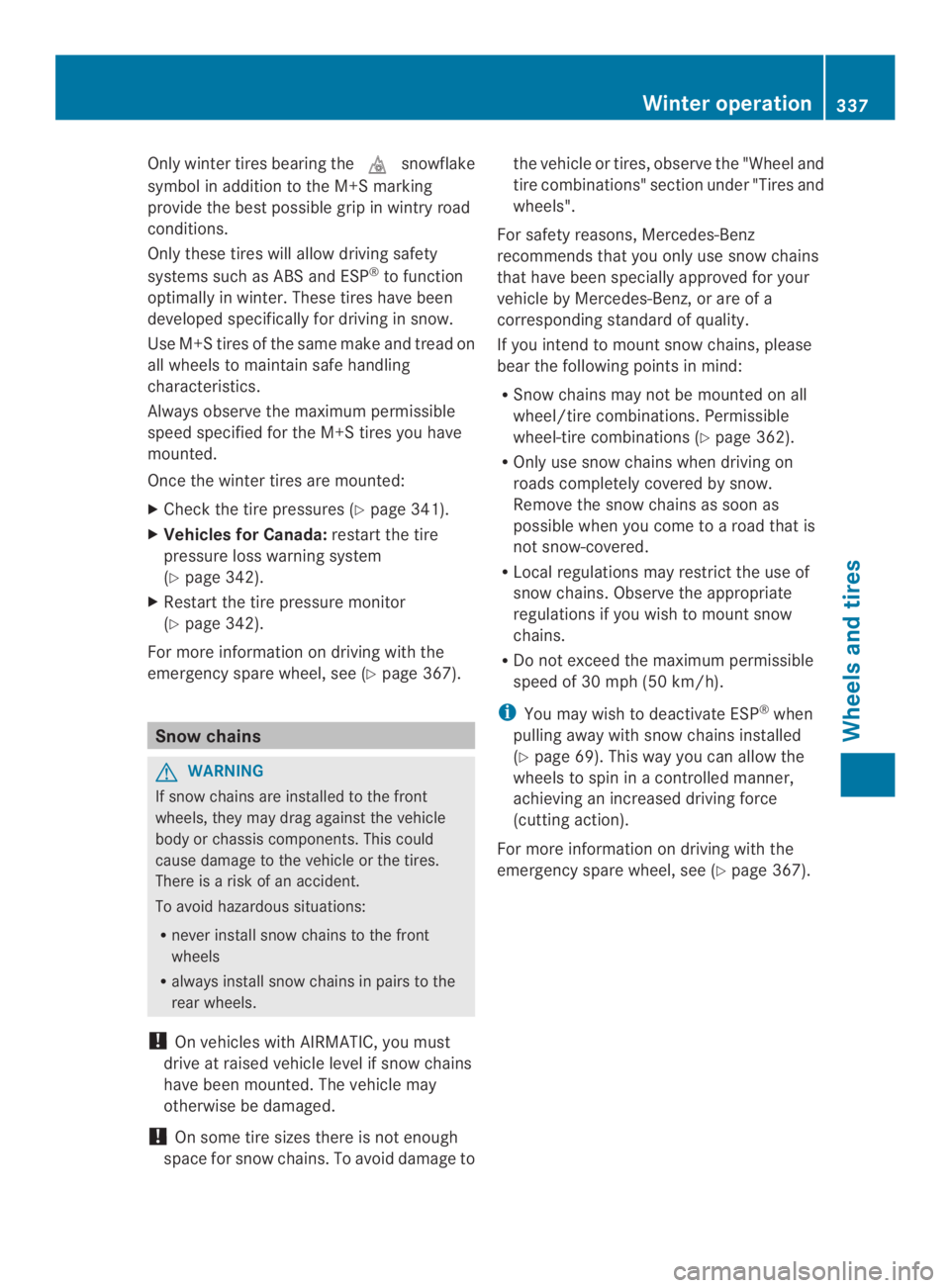

Only winter tires bearing thesnowflake
symbol in addition to the M+S marking
provide the best possiblegrip in wintry road
conditions.
Only these tires will allowdriving safety
systems such as ABS and ESP®to function
optimally in winter. These tires have been
developedspecificallyfor driving in snow.
Use M+S tires of the same make and tread on
all wheels to maintain safe handling
characteristics.
Alwaysobserve the maximum permissible
speed specified for the M+S tires you have
mounted.
Once the winter tires are mounted:
XCheck the tire pressures (Ypage 341).
XVehiclesfor Canada:restart the tire
pressure loss warning system
(Ypage 342).
XRestart the tire pressure monitor
(Ypage 342).
For more information on driving with the
emergency spare wheel, see (Ypage 367).
Snow chains
GWARNING
If snow chains are installed to the front
wheels, they may drag against the vehicle
body or chassis components. This could
cause damage to the vehicle or the tires.
There isarisk of an accident.
To avoid hazardous situations:
Rnever install snow chains to the front
wheels
Ralways install snow chains in pairs to the
rear wheels.
!On vehicles with AIRMATIC, you must
drive at raised vehicle level if snow chains
have been mounted. The vehicle may
otherwise be damaged.
!On some tire sizes there is not enough
space for snow chains. To avoid damage to
the vehicle or tires, observe the "Wheel and
tire combinations" section under "Tires and
wheels".
For safety reasons, Mercedes-Benz
recommends that you only use snow chains
that have been speciallyapproved for your
vehicle by Mercedes-Benz,orare of a
corresponding standard of quality.
If you intend to mount snow chains, please
bear the following points in mind:
RSnow chains may not be mounted on all
wheel/tire combinations. Permissible
wheel-tire combinations (Ypage 362).
ROnly use snow chains when driving on
roads completely covered by snow.
Remove the snow chains as soon as
possiblewhen you come toaroad that is
not snow-covered.
RLocal regulations may restrict the use of
snow chains. Observe the appropriate
regulations if you wish to mount snow
chains.
RDo not exceed the maximum permissible
speed of 30 mph (50 km/h).
iYou may wish to deactivate ESP®when
pulling away with snow chains installed
(Ypage 69). This way you can allow the
wheels to spin inacontrolled manner,
achieving an increased driving force
(cutting action).
For more information on driving with the
emergencyspare wheel, see (Ypage 367).
Winter operation337
Wheels and tires
Z

Check

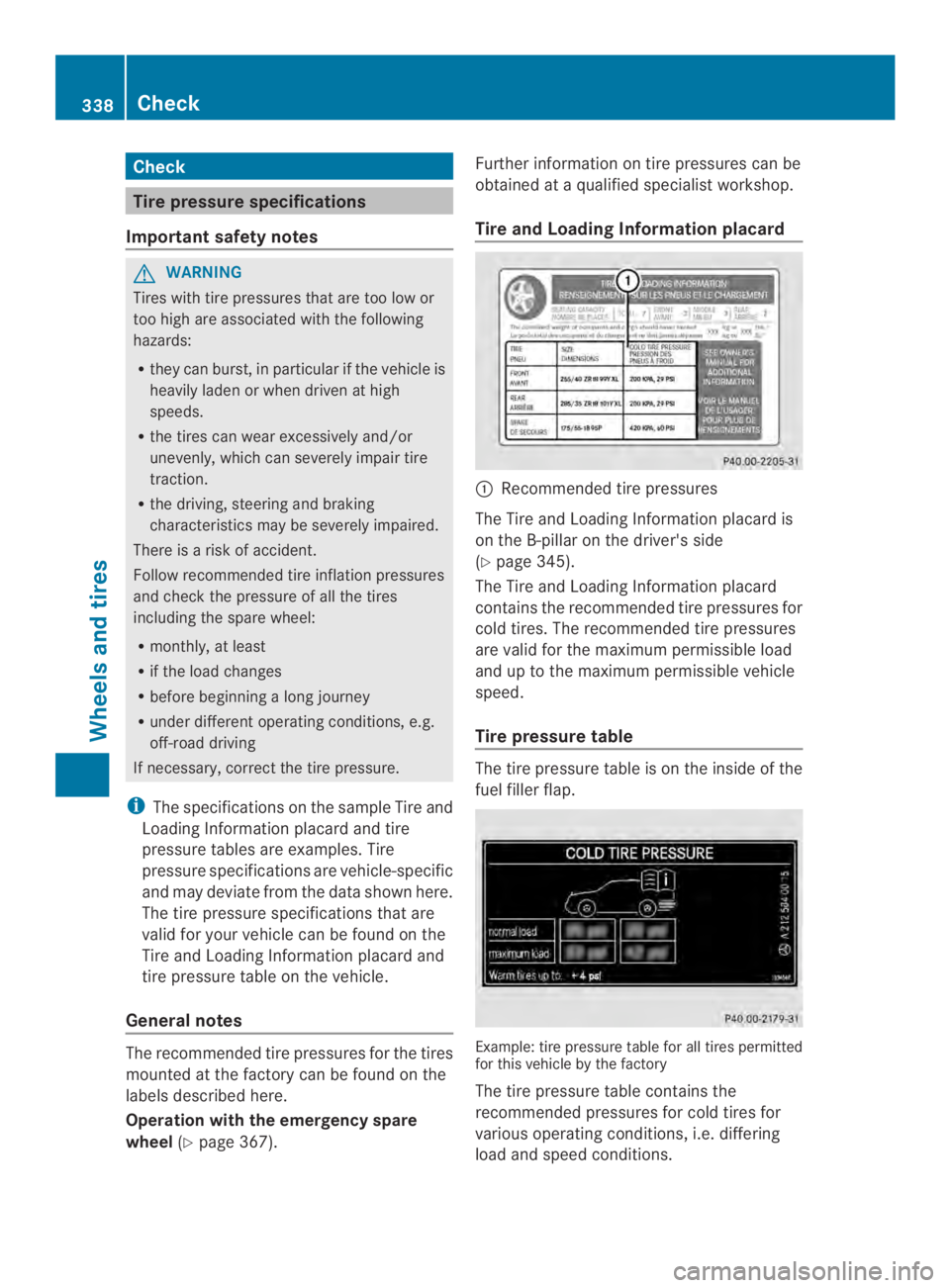

Tirepressure specifications
Important safety notes
GWARNING
Tireswithtirepressuresthatare toolow or
toohigh are associated withthefollowing
hazards:
Rthey can burst, in particular if thevehicle is
heavily laden or when driven at high
speeds.
Rthetires can wear excessively and/or
unevenly, whichcan severely impairtire
traction.
Rthe driving, steeringand braking
characteristics may be severely impaired.
There isarisk of accident.
Follow recommended tireinflation pressures
and checkthe pressure of all the tires
including the spare wheel:
Rmonthly, at least
Rif the load changes
Rbefore beginningalong journey
Runder different operating conditions,e.g.
off-road driving
If necessary, correct the tire pressure.
iThe specifications on the sample Tire and
Loading Information placard and tire
pressure tables are examples. Tire
pressure specifications are vehicle-specific
and may deviate from the data shown here.
The tire pressure specifications that are
valid for your vehicle can be found on the
Tire and Loading Information placard and
tire pressure table on the vehicle.
General notes
The recommended tire pressures for the tires
mounted at the factory can be found on the
labelsdescribed here.
Operation with the emergency spare
wheel(Ypage 367).
Further information on tire pressures can be
obtained ataqualified specialist workshop.
Tire and Loading Information placard
Recommended tire pressures
The Tire and Loading Information placard is
on the B-pillar on the driver's side
(Ypage 345).
The Tire and Loading Information placard
contains the recommended tire pressures for
cold tires. The recommended tire pressures
are valid for the maximum permissible load
and up to the maximum permissible vehicle
speed.
Tire pressuretable
The tire pressure table is on the inside of the
fuel filler flap.
Example: tire pressure table for all tires permittedfor this vehicle by the factory
The tire pressure table contains the
recommended pressures for cold tires for
various operating conditions, i.e. differing
load and speed conditions.
338Check
Wheels and tires

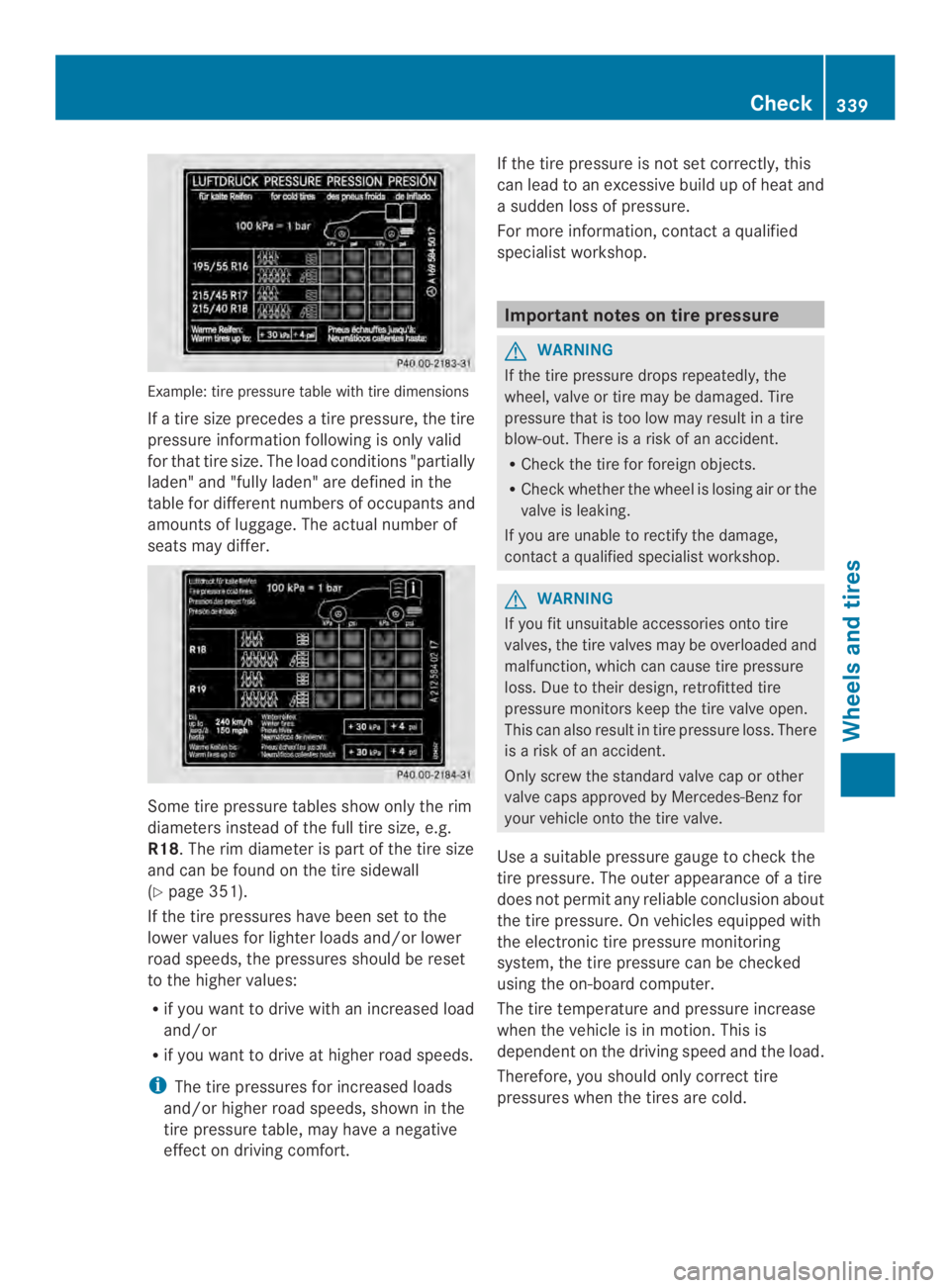

Example: tire pressure table with tire dimensions
Ifatire size precedesatire pressure, the tire
pressure informationfollowing is only valid
for that tire size. The load conditions "partially
laden" and "fully laden" are defined in the
table for different numbers of occupantsand
amounts of luggage. The actual number of
seats may differ.
Some tire pressure tables show only the rim
diameters instead of the full tire size, e.g.
R18.The rim diameter is part of the tire size
and can be found on the tire sidewall
(Ypage 351).
If the tire pressures have been set to the
lower values for lighter loads and/or lower
road speeds, the pressures should be reset
to the higher values:
Rif you want to drive with an increased load
and/or
Rif you want to drive at higher road speeds.
iThe tire pressures for increased loads
and/or higher road speeds, shown in the
tire pressure table, may haveanegative
effect on driving comfort.
If the tire pressure is not set correctly, this
can lead to an excessive build up of heat and
asudden loss of pressure.
For more information, contactaqualified
specialist workshop.
Important notes on tire pressure
GWARNING
If the tire pressure drops repeatedly, the
wheel, valve or tire may be damaged. Tire
pressure that is too low may result inatire
blow-out. There isarisk of an accident.
RCheck the tire for foreign objects.
RCheck whether the wheel is losing air or the
valve is leaking.
If you are unable to rectify the damage,
contactaqualified specialist workshop.
GWARNING
If you fit unsuitable accessories onto tire
valves, the tire valves may be overloaded and
malfunction, which can cause tire pressure
loss. Due to their design, retrofitted tire
pressure monitors keep the tire valve open.
This can also result in tire pressure loss. There
isarisk of an accident.
Only screw the standard valve cap or other
valve caps approved by Mercedes-Benz for
your vehicle onto the tire valve.
Useasuitable pressure gauge to check the
tire pressure. The outer appearance ofatire
does not permit any reliable conclusion about
the tire pressure. On vehicles equipped with
the electronic tire pressure monitoring
system, the tire pressure can be checked
using the on-board computer.
The tire temperature and pressure increase
when the vehicle is in motion.This is
dependent on the driving speed and the load.
Therefore, you should only correct tire
pressures when the tires are cold.
Check339
Wheels and tires
Z

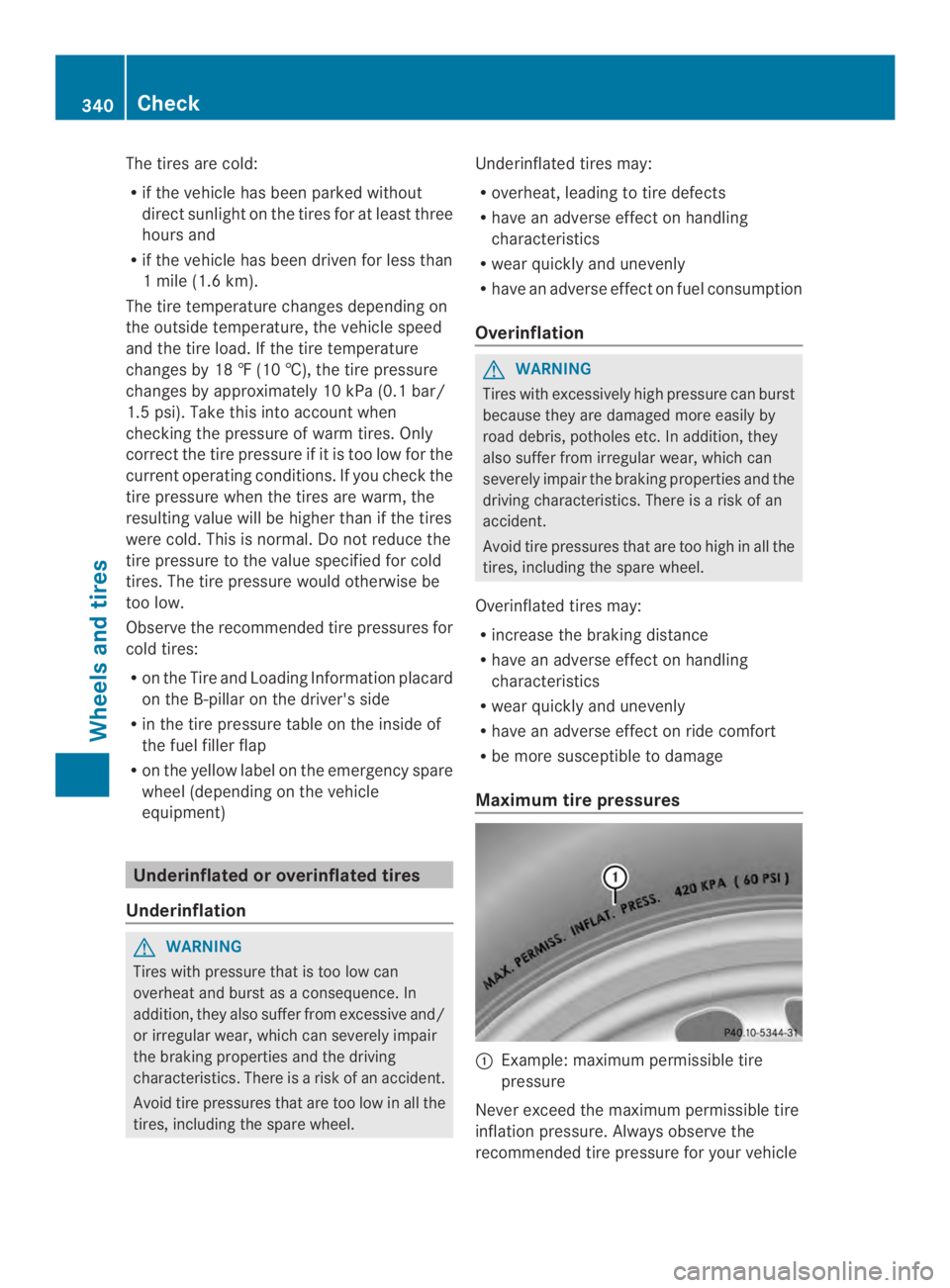

The tires are cold:
Rif the vehicle has been parked without
direct sunlight on the tires for at least three
hours and
Rif the vehicle has been driven for less than
1mile (1.6 km).
The tire temperature changes depending on
the outside temperature, the vehicle speed
and the tire load. If the tire temperature
changes by 18‡(10 †), the tire pressure
changes by approximately 10 kPa (0.1 bar/
1.5 psi). Take this into account when
checking the pressure of warm tires. Only
correctthe tire pressure if it is too low for the
current operating conditions. If you check the
tire pressure when the tires are warm, the
resulting value will be higher than if the tires
were cold. This is normal. Do not reduce the
tire pressure to the value specified for cold
tires. The tire pressure would otherwise be
too low.
Observe the recommended tire pressures for
cold tires:
Ron the Tire and Loading Information placard
on the B-pillar on the driver's side
Rin the tire pressure table on the inside of
the fuel filler flap
Ron the yellow label on the emergency spare
wheel (depending on the vehicle
equipment)
Underinflated or overinflated tires
Underinflation
GWARNING
Tires with pressure that is too low can
overheat and burst asaconsequence. In
addition, they also suffer from excessive and/
or irregular wear, which can severely impair
the braking properties and the driving
characteristics. There isarisk of an accident.
Avoid tire pressures that are too low in all the
tires, including the spare wheel.
Underinflated tires may:
Roverheat, leading to tire defects
Rhave an adverse effect on handling
characteristics
Rwear quickly and unevenly
Rhave an adverse effect on fuel consumption
Overinflation
GWARNING
Tires with excessively high pressure can burst
because they are damaged more easily by
road debris, potholes etc. In addition, they
also suffer from irregular wear, which can
severely impair the braking properties and the
driving characteristics. There isarisk of an
accident.
Avoid tire pressures that are too high in all the
tires, including the spare wheel.
Overinflated tires may:
Rincrease the braking distance
Rhave an adverse effect on handling
characteristics
Rwear quickly and unevenly
Rhave an adverse effect on ride comfort
Rbe more susceptible to damage
Maximum tire pressures
Example: maximum permissible tire
pressure
Never exceed the maximum permissible tire
inflation pressure. Always observe the
recommended tire pressure for your vehicle
340Check
Wheels and tires

when adjustingthetirepressure
(Ypage 338).
iThe actual values for tires are vehicle-
specific and may deviatefromthe values in
the illustration.
Checking the tire pressures
Important safety notes
Observe the notes on tire pressure
(Ypage 338).
Information on air pressure for the tires on
your vehicle can be found:
Ron the vehicle's Tire and Loading
Information placard on the B-pillar
(Ypage 345)
Ron the tire pressure label on the fuel filler
flap (Ypage 165)
Rin the "Tire pressure" section
Runder "Tire pressure" (Ypage 338)
Checking tire pressures manually
To determine and set the correct tire
pressure, proceed as follows:
XRemove the valve cap of the tire that is to
be checked.
XPress the tire pressure gauge securely onto
the valve.
XRead the tire pressure and compare it with
the recommended value on the Tire and
Loading Information placard (Ypage 338).
XIf the tire pressure is too low, increase it to
the recommended value.
XIf the tire pressure is too high, release air
by pressing down the metal pin in the valve.
Use the tip ofapen, for example. Then,
check the tire pressure again using the tire
pressure gauge.
XScrew the valve cap onto the valve.
XRepeatthese steps for the other tires.
Tire pressureloss warning system
(Canada only)
General notes
While the vehicle is in motion, the tire
pressure loss warning system monitors the
set tire pressure using the rotational speed of
the wheels. This enables the system to detect
significant pressure loss inatire. If the speed
of rotation ofawheel changes asaresult of
aloss of pressure,acorresponding warning
message will appearinthe multifunction
display.
You can recognizethe tire pressure loss
warning by theRun Flat Indicator
Active Press 'OK' to Restartmessage
which appears in theServ.menu of the
multifunction display. Further information on
the message displaycan be found under
"Restarting the tire pressure loss warning
system" section (Ypage 342).
Important safety notes
The tire pressure warning system does not
warn you of an incorrectly set tire pressure.
Observe the notes on the recommended tire
pressure (Ypage 338).
The tire pressure loss warning does not
replace the need to regularly check the tire
pressure. An even loss of pressure on several
tires at the same time cannot be detected by
the tire pressure loss warning system.
The tire pressure monitor is not able to warn
you ofasudden loss of pressure, e.g. if the
tire is penetrated byaforeign object.Inthe
event ofasudden loss of pressure, bring the
vehicle toahalt by braking carefully. Avoid
abrupt steering maneuvers.
The function of the tire pressure loss warning
system is limited or delayed if:
Rsnow chains are mounted on your vehicle's
tires.
Rroad conditionsare wintry.
Ryou are driving on sand or gravel.
Check341
Wheels and tires
Z

Ryou adoptaverysporty driving style
(cornering at high speeds or driving with
high rates of acceleration).
Ryou are driving withaheavy load(in the
vehicleoronthe roof).
Restarting the tire pressure loss
warningsystem
Restart the tire pressure loss warning system
if you have:
Rchanged the tire pressure
Rchanged the wheels or tires
Rmounted new wheels or tires
XBefore restarting, make sure that the tire
pressures are set properly on all four tires
for the respective operating conditions.
The recommendedtire pressures can be
found on the Tire and Loading Information
placard on the B-pillar on the driver's side
or the tire pressure table on the fuel filler
flap.The tire pressure loss warning system
can only give reliablewarnings if you have
set the correct tire pressure. If an incorrect
tire pressure is set, these incorrectvalues
will be monitored.
XAlsoobservethenotesinthesectionontire
pressures (Ypage 338).
XMake sure that the SmartKey is in position
2in the ignition lock (Ypage 147).
XPress the\norbutton on the
steeringwheel to selecttheServ.menu.
XPress theorbutton on the
steering wheel to select theTire
Pressuremenu.
XPress thebutton.
TheRun Flat Indicator Active
Press 'OK' to Restartmessage
appears in the multifunction display.
If you wish to confirm the restart:
XPress thebutton.
TheTire Pressure Now OK?message
appears in the multifunction display.
XPress theorbutton to select
Yes.
XPress thebutton.
TheRun Flat Indicator Restarted
message appears in the multifunction
display.
Afterateach-in period, the tire pressure
loss warning system will monitor the set
tire pressures of all four tires.
If you wish to cancel the restart:
XPress thebutton.
or
XWhen theTire Pressure Now OK?
message appears, press the
orbutton to selectCancel.
XPress thebutton.
The tire pressure values stored at the last
restart will continue to be monitored.
Tire pressuremonitor
General notes
Ifatire pressure monitor is installed, the
vehicle's wheels have sensors that monitor
the tire pressures in all four tires. The tire
pressure monitor warns you if the pressure
drops in one or more of the tires. The tire
pressure monitor only functions if the correct
sensors are installed on all wheels.
Information on tire pressures is displayed in
the multifunction display. Afterafew minutes
of driving, the current tire pressure of each
tire is shown in theServicemenu of the
multifunction display. For further information
on displaying this message, refer to the
"Checking the tire pressure electronically"
section (Ypage 344).
342Check
Wheels and tires
