2014 MERCEDES-BENZ CLS coolant level

Refrigerant .....................................378
Refrigerant filling capacity.............379
Setting the airdistribution.............138
Setting the airflow.........................139
Setting the airvents......................142
Setting the climate mode (AIR
FLOW)............................................137
Setting the temperature................138
Setting the temperature with 3-
zone automatic climate control.....138
Setting the temperature with dual-
zone automatic climate control.....138
Switching air-recirculation mode
on/off............................................141
Switching on/off...........................135
Switching residualheaton/off......141
Switching the rear window
defroster on/off............................140
Switching the ZONE function on/
off..................................................139
Cockpit
Overview..........................................30
see Instrument cluster
Collapsiblespare wheel
Inflating.........................................368
see Emergency spare wheel
COMAND
see separate operating instructions
COMAND display
Cleaning ......................................... 315
Combination switch..........................119
Compass
Calibrating.....................................303
Calling up ....................................... 302
Setting...........................................302
Consumptionstatistics(on-board
computer)..........................................222
Convenience closing feature..............90
Convenience opening feature............89
Coolant(engine)
Checkingthe level.........................308
Display message............................248
Filling capacity...............................377
Important safety notes..................377
Temperature (on-board computer).234
Temperature gauge ........................ 219
Warning lamp ................................. 273
Cooling
see Climate control
Copyright.............................................27
Corneringlight function
Display message............................245
Function/notes.............................121
Crash-responsive emergency
lighting...............................................124
Cruisecontrol
Activation conditions.....................176
Cruise control lever.......................176
Deactivating ................................... 177
Display message............................257
Driving system...............................175
Function/notes.............................175
Important safety notes..................175
Settingaspeed .............................. 177
Storing and maintaining current
speed ............................................. 176
Cup holder
Centerconsole..............................284
Center console in the rear
compartment.................................285
Important safety notes..................284
Rearcompartment.........................285
Customer AssistanceCenter (CAC)...26
Customer Relations Department.......26
D
Data
see Technical data
Daytime runninglamps
Display message............................247
Function/notes.............................117
Switching on/off (on-board
computer)......................................230
Declarations of conformity................. 25
Delayedswitch-off
Exteriorlighting (on-board
computer)......................................231
Interior lighting..............................232
Diagnosticsconnection......................25
Digital speedometer.........................223
DIRECT SELECTlever
see Automatic transmission
Index7

Opening/closing (automatically
from outside)...................................86
Opening/closing (manually from
outside) ............................................ 85
Trunk lid
Display message............................261
Opening/closing..............................84
Opening dimensions......................379
Trunk load (maximum)......................379
Turn signals
Display message............................245
Switching on/off...........................119
Type identification plate
see Vehicle identification plate
U
Unlocking
Emergency unlocking.......................84
From insidethe vehicle (central
unlocking button).............................83
V
Vanity mirror (in the sun visor)........286
Vehicle
Data acquisition...............................27
Display message............................260
Equipment.......................................22
Individualsettings..........................229
Limited Warranty.............................26
Loading..........................................345
Locking (in an emergency)...............84
Locking (SmartKey) .......................... 76
Lowering........................................361
Maintenance....................................23
Parking foralong period ................ 169
Pulling away...................................150
Raising...........................................359
Reporting problems.........................26
Securing from rolling away............358
Towing away..................................328
Transporting..................................330
Unlocking (in an emergency)...........84
Unlocking (SmartKey)......................76
Vehicle data...................................379
Vehicle data.......................................379
Vehicle dimensions...........................379
Vehicle emergency locking................84
Vehicle identification number
see VIN
Vehicle identification plate..............372
Vehicle level
AIRMATIC......................................189
Vehicle level (display message).......252
Vehicle tool kit..................................320
Video
Operating the DVD ......................... 226
VIN......................................................372
W
Warning and indicator lamps
ABS ................................................ 267
Brakes...........................................266
Check Engine.................................273
Coolant..........................................273
Distance warning...........................275
DISTRONICPLUS...........................275
ESP®..............................................269
ESP®OFF ....................................... 270
Fuel tank ........................................ 273
Overview .................................. 32, 264
PASSENGER AIR BAG OFF...............47
Reserve fuel...................................273
Seat belt........................................265
SPORT handling mode...................270
SRS ................................................ 272
Tire pressure monitor....................276
Warranty............................................372
Washer fluid
Display message............................262
Wheelbolttightening torque...........361
Wheelchock......................................358
Wheels
Changingawheel..........................357
Checking ........................................ 335
Cleaning ......................................... 314
Cleaning (warning).........................357
Emergency spare wheel.................367
Important safety notes..................334
Interchanging/changing................357
Mountinganew wheel...................360
Mountingawheel..........................358
Removingawheel..........................360
Storing...........................................357
Index19

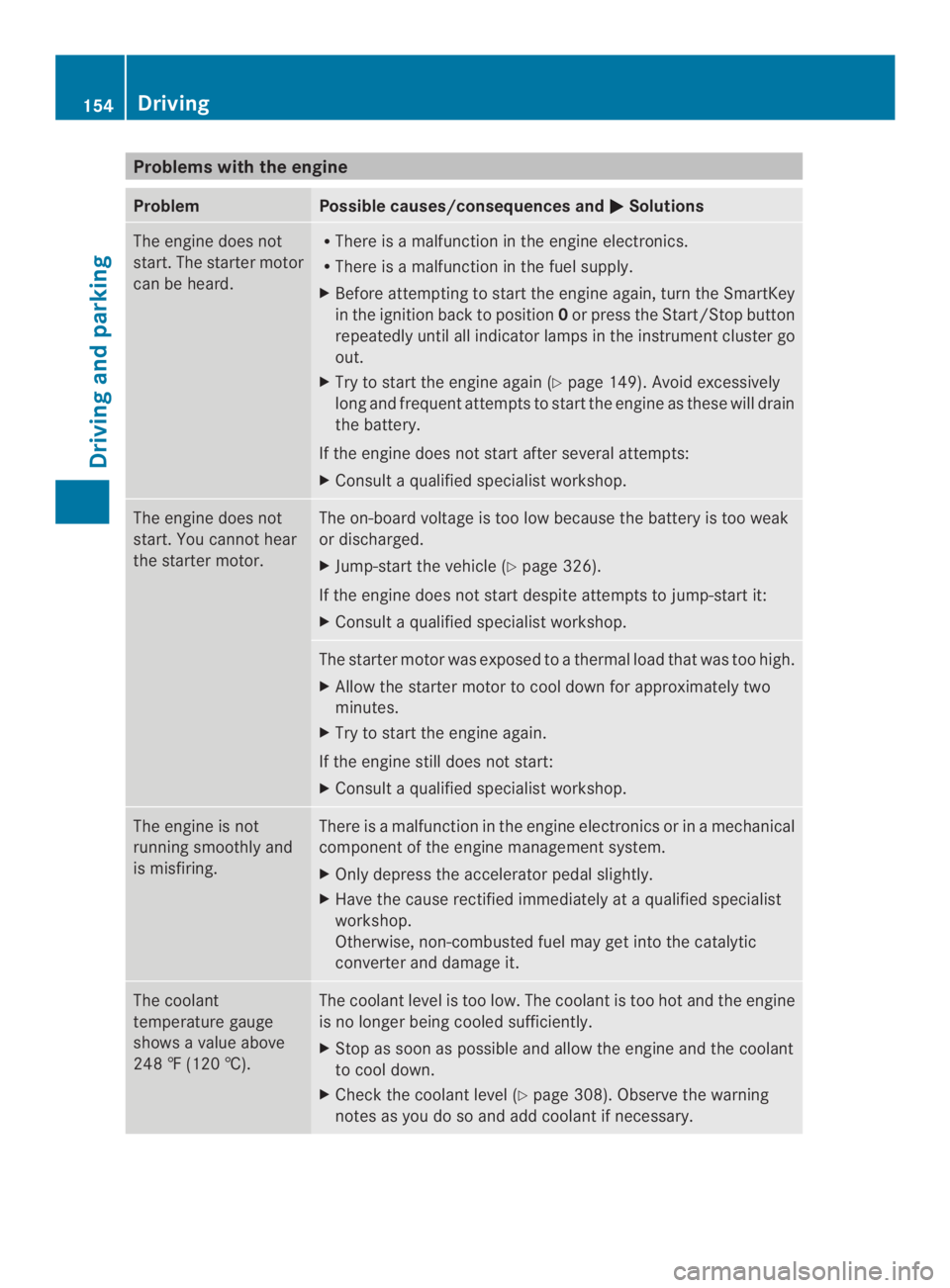

Problems with the engine
ProblemPossible causes/consequences andSolutions
The engine does not
start. The starter motor
can be heard.
RThere isamalfunction in the engine electronics.
RThere isamalfunction in the fuel supply.
XBefore attempting to start the engine again, turn the SmartKey
in the ignition back to position0or press the Start/Stop button
repeatedly until all indicator lamps in the instrumentcluster go
out.
XTry to start the engine again (Ypage 149). Avoid excessively
long and frequent attemptstostart the engine as these will drain
the battery.
If the engine does not start after several attempts:
XConsultaqualified specialist workshop.
The engine does not
start.You cannot hear
the starter motor.
The on-board voltage is too low because the battery is too weak
or discharged.
XJump-startthe vehicle (Ypage 326).
If the engine does not start despite attemptstojump-start it:
XConsultaqualified specialist workshop.
The starter motor was exposed toathermal load that was too high.
XAllow the starter motor to cool down for approximately two
minutes.
XTry to start the engine again.
If the engine still does not start:
XConsultaqualified specialist workshop.
The engine is not
running smoothly and
is misfiring.
There isamalfunction in the engine electronics or inamechanical
componentofthe engine management system.
XOnly depress the accelerator pedal slightly.
XHave the cause rectified immediately ataqualified specialist
workshop.
Otherwise, non-combusted fuel may get into the catalytic
converter and damage it.
The coolant
temperature gauge
showsavalue above
248‡(120 †).
The coolant level is too low. The coolant is too hot and the engine
is no longer being cooled sufficiently.
XStop as soon as possible and allow the engine and the coolant
to cool down.
XCheck the coolant level (Ypage 308). Observe the warning
notes as you do so and add coolant if necessary.
154Driving
Driving and parking

Displaysandoperation

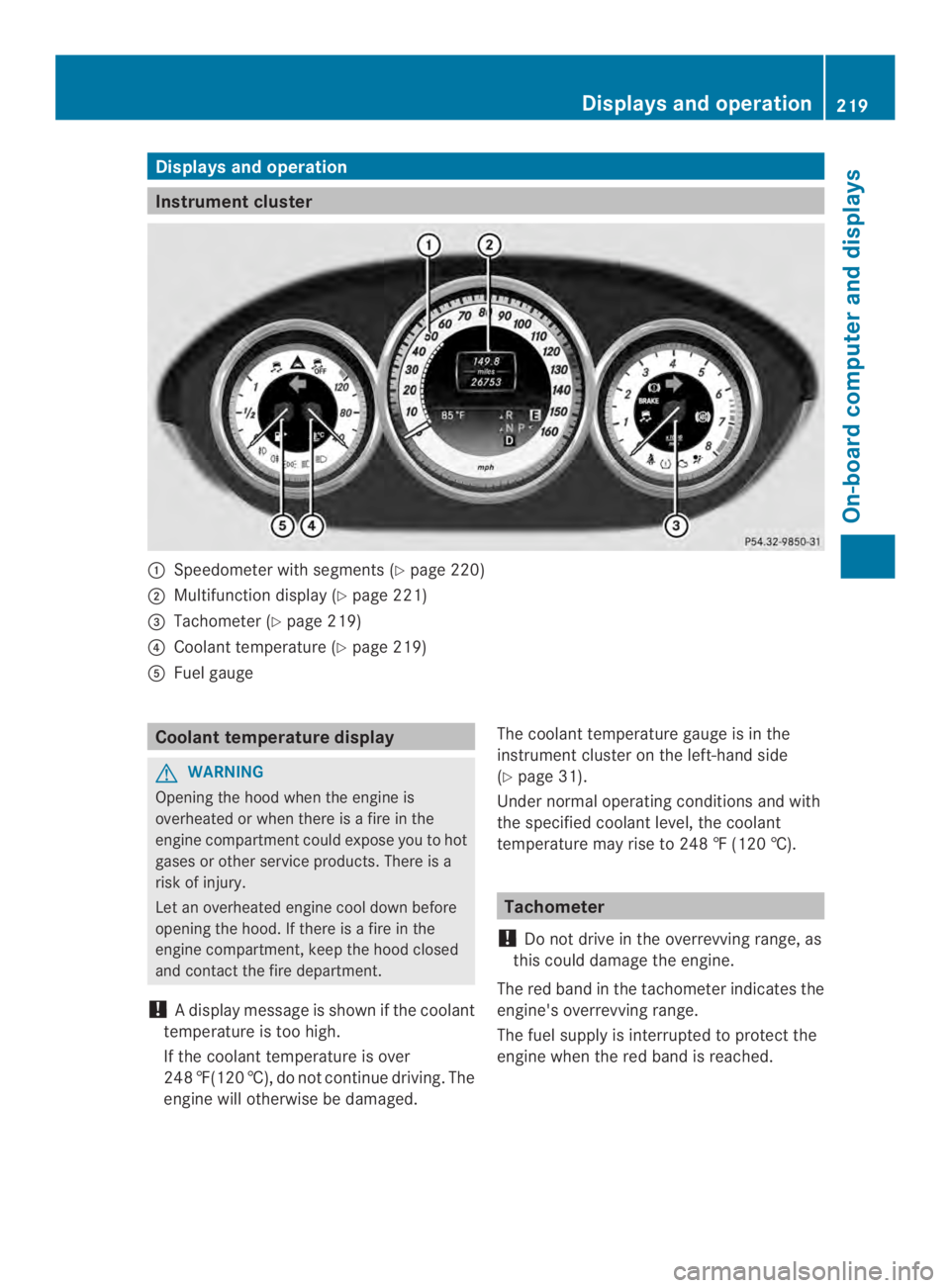

Instrument cluster
Speedometer withsegments (Ypage 220)
Multifunction display (Ypage 221)
$Tachometer (Ypage 219)
!Coolant temperature (Ypage 219)
Fuelgauge
Coolant temperaturedisplay
GWARNING
Opening thehoodwhen theengineis
overheated or when there isafireinthe
enginecompartmentcould expose you to hot
gases or other service products. There is a
risk of injury.
Let an overheated engine cool down before
opening the hood. If there isafire in the
engine compartment, keep the hood closed
and contact the fire department.
!Adisplay message is shown if the coolant
temperature is too high.
If the coolanttemperature is over
248 ‡(120 †), do not continue driving. The
engine will otherwise be damaged.
The coolanttemperature gauge is in the
instrument cluster on the left-hand side
(Ypage 31).
Under normal operatingconditions and with
the specified coolant level, the coolant
temperature may rise to 248‡(120 †).
Tachometer
!Do not drive in the overrevving range, as
this could damage the engine.
The red band in the tachometer indicates the
engine's overrevving range.
The fuel supply is interrupted to protectthe
engine when the red band is reached.
Displays and operation219
On-board computer and displays
Z

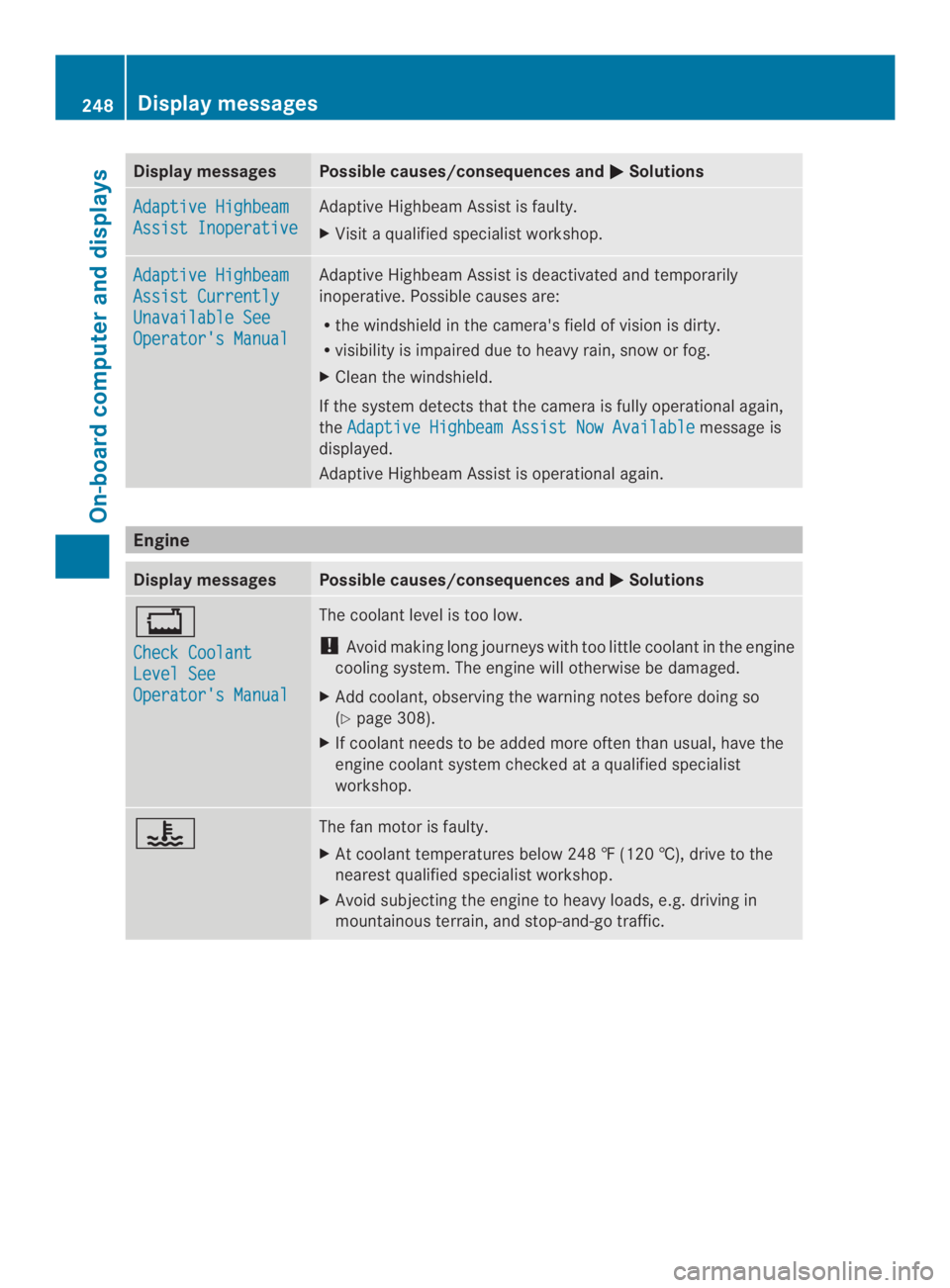

Display messagesPossible causes/consequences andSolutions
Adaptive Highbeam
Assist Inoperative
Adaptive Highbeam Assistisfaulty.
XVisitaqualified specialist workshop.
Adaptive Highbeam
Assist Currently
Unavailable See
Operator's Manual
Adaptive Highbeam Assist is deactivated and temporarily
inoperative. Possible causes are:
Rthe windshieldinthe camera's field of vision is dirty.
Rvisibility is impaired due to heavy rain, snow or fog.
XCleanthe windshield.
If the system detectsthat the camera is fully operational again,
theAdaptive Highbeam Assist Now Availablemessage is
displayed.
Adaptive Highbeam Assist is operational again.
Engine
Display messagesPossible causes/consequencesandSolutions

Check Coolant
Level See
Operator's Manual
The coolant level is too low.
!Avoid making long journeys with too little coolant in the engine
cooling system. The engine will otherwise be damaged.
XAdd coolant, observing the warning notes before doing so
(Ypage 308).
XIf coolant needs to be added more often than usual, have the
engine coolant system checked ataqualified specialist
workshop.
The fan motor is faulty.
XAt coolant temperatures below 248‡(120 †), drive to the
nearest qualified specialist workshop.
XAvoid subjecting the engine to heavy loads, e.g. driving in
mountainous terrain, and stop-and-go traffic.
248Display messages
On-board computer and displays

Display messagesPossible causes/consequences andSolutions

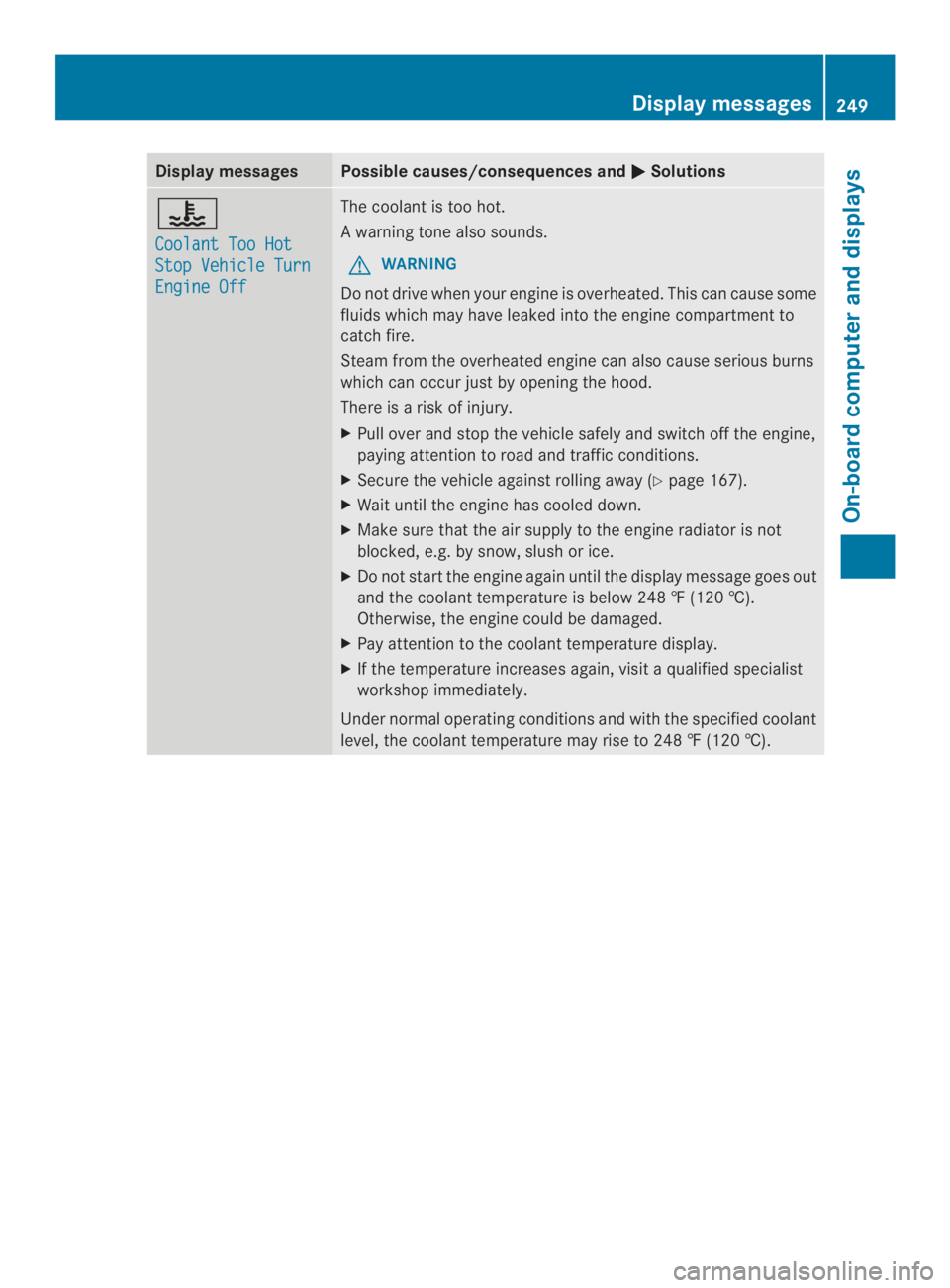

CoolantToo Hot
StopVehicleTurn
Engine Off
The coolantistoo hot.
Awarning tone also sounds.
GWARNING
Do notdrive when yourengine is overheated. Thiscan causesome
fluids whichmay have leaked intotheenginecompartmentto
catch fire.
Steamfrom the overheated engine can alsocauseserious burns
which can occur just by opening the hood.
There isarisk of injury.
XPullover and stop the vehiclesafelyand switch off the engine,
paying attention to road and traffic conditions.
XSecure the vehicleagainst rolling away (Ypage167).
XWaituntil the engine hascooleddown.
XMake sure thatthe air supply to the engine radiator is not
blocked, e.g. by snow, slush or ice.
XDo not start the engine again until the displaymessage goes out
and the coolant temperature is below 248‡(120 †).
Otherwise, the engine could be damaged.
XPay attention to the coolant temperature display.
XIf the temperature increases again, visitaqualified specialist
workshop immediately.
Under normal operating conditionsand with the specified coolant
level, the coolant temperature may rise to 248‡(120 †).
Display messages249
On-board computer and displays
Z

Engine
ProblemPossible causes/consequences andSolutions
\n
The yellow Check
Enginewarning lamp
lightsupwhile the
engineisrunning.
Theremay beamalfunction, for example:
Rin theenginemanagement
Rin thefuel injection system
Rin theexhaust system
Rin theignition system
Rin thefuel system
The emission limit values may be exceeded and theenginemay
be runninginemergencymode.
XHavethevehicle checked as soon as possible ataqualified
specialist workshop.
iIn somestates, you must immediately visitaqualified
specialist workshopassoon as theyellow CheckEngine warning
lamp lights up.This is due to the legal requirements in effect in
these states. If in doubt, check whether such legal regulations
apply in the state in which you are currently driving.

The yellow reserve fuel
warning lamp lights up
while the engine is
running.
The fuel level has dropped into the reserve range.
XRefuel at the nearest gas station.

The yellow reserve fuel
warning lamp flashes
while the vehicle is in
motion.
In addition, the\n
Check Enginewarning
lamp may light up.
The fuel system pressure is too low. The fuel filler cap is not closed
correctly or the fuel system is leaking.
XCheck that the fuel filler cap is correctly closed.
XIf the fuel filler cap is not correctly closed:close the fuel filler
cap.
XIf the fuel filler cap is closed:visitaqualified specialist
workshop.

The red coolant
warning lamp lights up
while the engine is
running and the coolant
temperature gauge is
at the start of the scale.
The temperature sensor for the coolant temperature gauge is
defective.
The coolant temperature is no longer being monitored. There is a
risk of engine damage if the coolant temperature is too high.
XPull over and stop the vehicle safely and switch off the engine,
paying attention to road and traffic conditions. Do not continue
driving under any circumstances.
XSecure the vehicle against rolling away (Ypage 167).
XConsultaqualified specialist workshop.
Indicator and warning lampsinthe instrument cluster273
On-board computer and displays
Z

ProblemPossible causes/consequences andSolutions

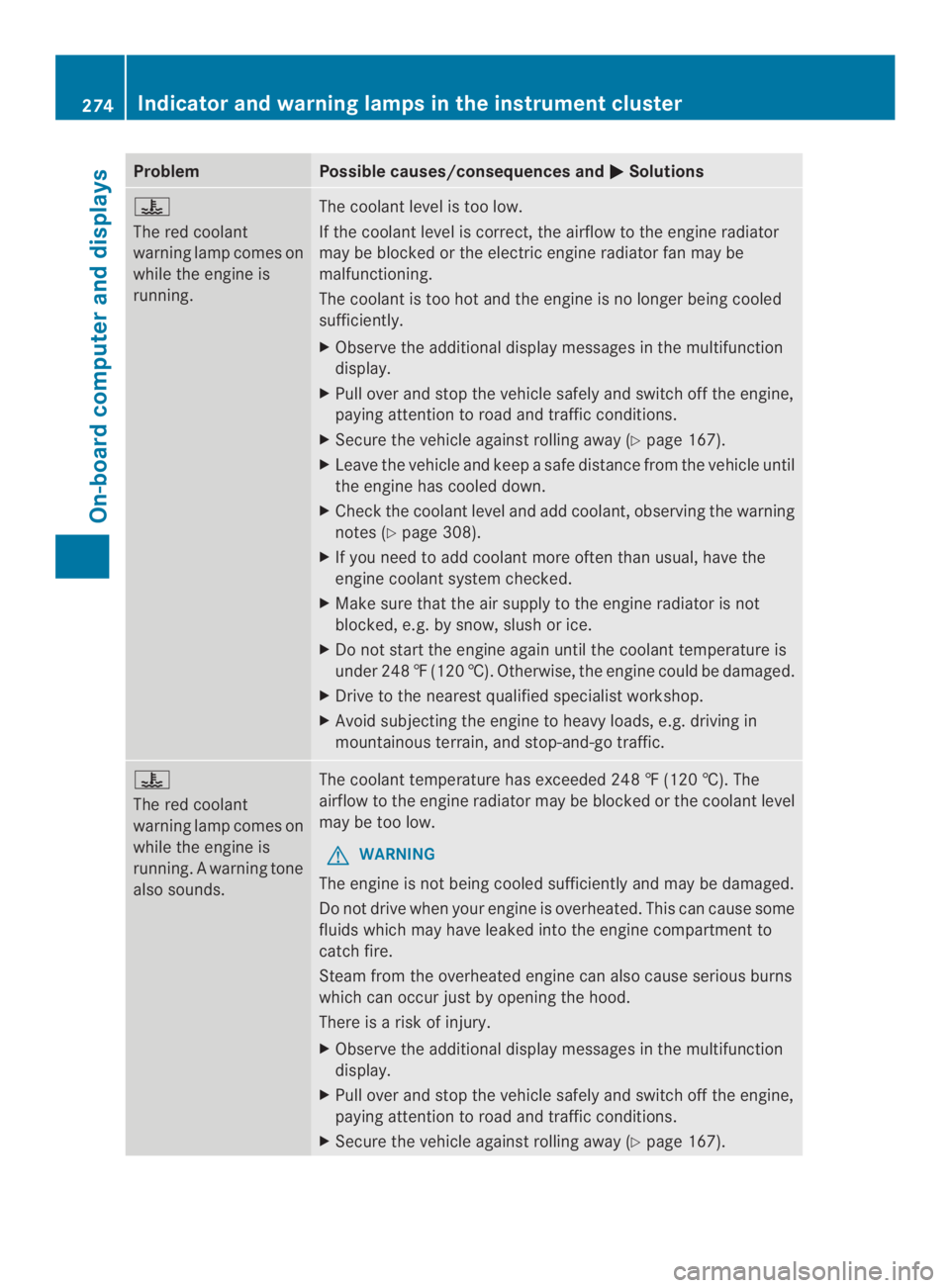

The red coolant
warning lamp comes on
while the engine is
running.
The coolant level is too low.
If the coolant level is correct, the airflow to the engine radiator
may be blocked or the electric engine radiator fan may be
malfunctioning.
The coolant is too hot and the engine is no longer being cooled
sufficiently.
XObserve the additional display messages in the multifunction
display.
XPull over and stop the vehicle safely and switch off the engine,
paying attention to road and traffic conditions.
XSecure the vehicle against rolling away (Ypage 167).
XLeave the vehicle and keepasafe distance from the vehicle until
the engine has cooled down.
XCheck the coolant level and add coolant, observing the warning
notes (Ypage 308).
XIf you need to add coolant more often than usual, have the
engine coolant system checked.
XMake sure that the air supply to the engine radiator is not
blocked, e.g. by snow, slush or ice.
XDo not start the engine again until the coolant temperature is
under 248‡(120 †). Otherwise,the engine couldbedamaged.
XDrive to the nearest qualified specialist workshop.
XAvoid subjecting the engine to heavy loads, e.g. driving in
mountainousterrain, and stop-and-go traffic.

The red coolant
warning lamp comes on
while the engine is
running.Awarning tone
also sounds.
The coolant temperature has exceeded 248‡(120 †). The
airflow to the engine radiator may be blocked or the coolant level
may be too low.
GWARNING
The engine is not being cooledsufficiently and may be damaged.
Do not drive whenyour engine is overheated. This can cause some
fluids which may have leaked into the engine compartment to
catchfire.
Steam from the overheated engine can also cause serious burns
which can occur just by opening the hood.
There isarisk of injury.
XObserve the additional display messages in the multifunction
display.
XPull over and stop the vehicle safely and switch off the engine,
paying attention to road and traffic conditions.
XSecure the vehicle against rolling away (Ypage 167).
274Indicator and warning lampsinthe instrument cluster
On-board computer and displays
