2014 MERCEDES-BENZ CLS power steering

Parking brake................................169
Warning lamp ................................. 266
Breakdown
see Flat tire
see Towing away
Bulbs
see Changing bulbs
C
California
Important notice for retail
customers and lessees....................23
Calling upamalfunction
see Display messages
Care
Carpets..........................................318
Carwash........................................ 311
Display...........................................315
Exhaustpipe..................................315
Exterior lights................................314
Gearorselectorlever....................316
Interior...........................................315
Matte finish...................................313
NightView Assist Plus...................316
Notes.............................................311
Paint..............................................313
Plastic trim....................................316
Power washer................................312
Rearview camera..........................315
Rooflining ...................................... 318
Seat belt........................................317
Seat cover.....................................317
Sensors.........................................315
Steering wheel...............................316
Trim pieces....................................316
Washing by hand...........................312
Wheels...........................................314
Windows........................................314
Wiper blades..................................314
Wooden trim..................................316
Cargo tie downrings.........................282
Car wash (care).................................311
CD player/CD changer (on-board
computer)..........................................225
Center console
Lowersection..................................35
Lowersection (AMG vehicles)..........36
Uppersection..................................34
Central locking
Automatic locking (on-board
computer)......................................232
Locking/unlocking (SmartKey)........76
Changing bulbs
Important safety notes..................124
Overview of bulbtypes..................125
Reversing lamps............................125
Child-proof locks
Important safety notes....................64
Reardoors.......................................65
Children
In the vehicle...................................60
Restraint systems............................60
Specialseat belt retractor...............63
Child seat
LATCH-type(ISOFIX) childseat
anchors ............................................ 63
Top Tether.......................................64
Cigarette lighter................................288
Cleaning
Mirrorturn signal...........................314
Climate control
Automatic climate control (3-
zone) .............................................. 134
Controlling automatically...............137
Cooling with airdehumidification..136
Defrosting the windows.................140
Defrosting the windshield..............139
Dual-zone automatic climate
control...........................................131
Important safety notes..................130
Indicator lamp ................................ 137
Information about using dual-zone
automatic climate control..............132
Information on using 3-zone
automatic climate control..............135
Maximum cooling..........................139
Overview of systems......................130
Problems with cooling with air
dehumidification............................137
Problem with the rear window
defroster........................................141
Rearcontrol panel.........................134
6Index

Change of address or change of
ownership
In theevent ofachangeofaddress, please
sendusthe"NotificationofAddress Change"
in the Service and Guarantee booklet or
simply call the Mercedes-Benz Customer
Assistance Center(USA)atthe hotline
number
1-800-FOR-MERCedes(1-800-367-6372)or
Customer ServiceCenter (Canada) at
1-800-387-0100.This will assist us in
contacting you inatimely manner should the
need arise.
If you sell your Mercedes, please leave the
entireliterature in the vehicle so that it is
available to the next owner.
If you have purchasedaused car, please send
us the "Notification of Used Car Purchase" in
the Serviceand Guarantee booklet or simply
call the Mercedes-Benz Customer Assistance
Center (USA) at the hotline number
1-800-FOR-MERCedes(1-800-367-6372)or
Customer Service(Canada) at
1-800-387-0100.
Vehicle operation outside the USA
and Canada
If you plan to operate your vehicle in foreign
countries, please be aware that:
Rservice facilities or replacement parts may
not be readily available.
Runleaded fuel for vehicles withacatalytic
converter may not be available. Leaded fuel
may cause damage to the catalytic
converter.
Rthe fuel may haveaconsiderably lower
octanerating. Unsuitable fuel can cause
engine damage.
Some Mercedes-Benz models are available
for delivery in Europe through our European
Delivery Program. For details, consult an
authorized Mercedes-Benz Center or write to
one of the following addresses.
In the USA
Mercedes-Benz USA,LLC
European Delivery Department
One Mercedes Drive
Montvale, NJ 07645-0350
In Canada
Mercedes-Benz Canada, Inc.
European Delivery Department
98 Vanderhoof Avenue
Toronto, Ontario M4G 4C9
Operating safety
Important safety notes
GWARNING
If you do not have the prescribed service/
maintenance work or any required repairs
carried out, this can result in malfunctions or
system failures. There isarisk of an accident.
Always have the prescribed service/
maintenance work as well as any required
repairs carried out ataqualified specialist
workshop.
GWARNING
If you switch off the ignition while driving,
safety-relevant functions are only available
with limitations, or not at all. This could affect,
for example, the power steering and the brake
boosting effect.You will require considerably
more effort to steer and brake. There isarisk
of an accident.
Do not switch off the ignition while driving.
GWARNING
Modifications to electronic components, their
software as well as wiring can impair their
function and/or the function of other
networked components. In particular,
systems relevant to safety could also be
affected. Asaresult, these may no longer
function as intended and/or jeopardize the
operating safety of the vehicle. There is an
increased risk of an accident and injury.
24Introduction

GWARNING
Unsuitable footwearcan hinder correctusage
of the pedals, e.g.:
Rshoes with thick soles
Rshoes with high heels
Rslippers
There isarisk of an accident.
Wear suitable footwear to ensure correct
usage of the pedals.
GWARNING
If you switch off the ignition while driving,
safety-relevant functions are only available
with limitations, or not at all. This could affect,
for example, the power steering and the brake
boosting effect. You will require considerably
more effort to steer and brake. There isarisk
of an accident.
Do not switch off the ignition while driving.
GWARNING
If the parking brake has not been fully
released when driving, the parking brake can:
Roverheat and causeafire
Rlose its hold function.
There isarisk of fire and an accident. Release
the parking brake fully before driving off.
!Warm up the engine quickly. Do not use
the engine's full performance until it has
reached operating temperature.
Only shift the automatic transmission to
the desired drive position when the vehicle
is stationary.
Where possible,avoid spinning the drive
wheels when pulling awayonslippery
roads. You could otherwise damage the
drive train.
!AMG vehicles:at low engine oil
temperatures below 68‡(+20 †), the
maximumengine speed is restrictedin
order to protect the engine.Toprotectthe
engine and maintain smooth engine
operation, avoid driving at full throttle when
the engine is cold.
Key positions
SmartKey
To remove the SmartKey
(shift the transmission to positionP)

Power supply for some consumers, such
as the windshield wipers
Ignition (power supply for all consumers)
and drive position
To start the engine
iThe SmartKey can be turned in the
ignition lock even if it is not the correct
SmartKey for the vehicle. The ignition is not
switched on. The engine cannot be started.
KEYLESS-GO
General notes
RDo not store the KEYLESS-GO key together
with:
-electronic devices, e.g.amobile phone
or another SmartKey
-metallic objects, e.g. coins or metal film
RDo not keep the KEYLESS-GO key in metal
objects, e.g. metal cases.
This can affect the functionality of
KEYLESS-GO.
Vehicles with KEYLESS-GO are equipped with
keys featuring the integrated KEYLESS-GO
function andadetachable Start/Stop button.
Driving147
Driving and parking
Z

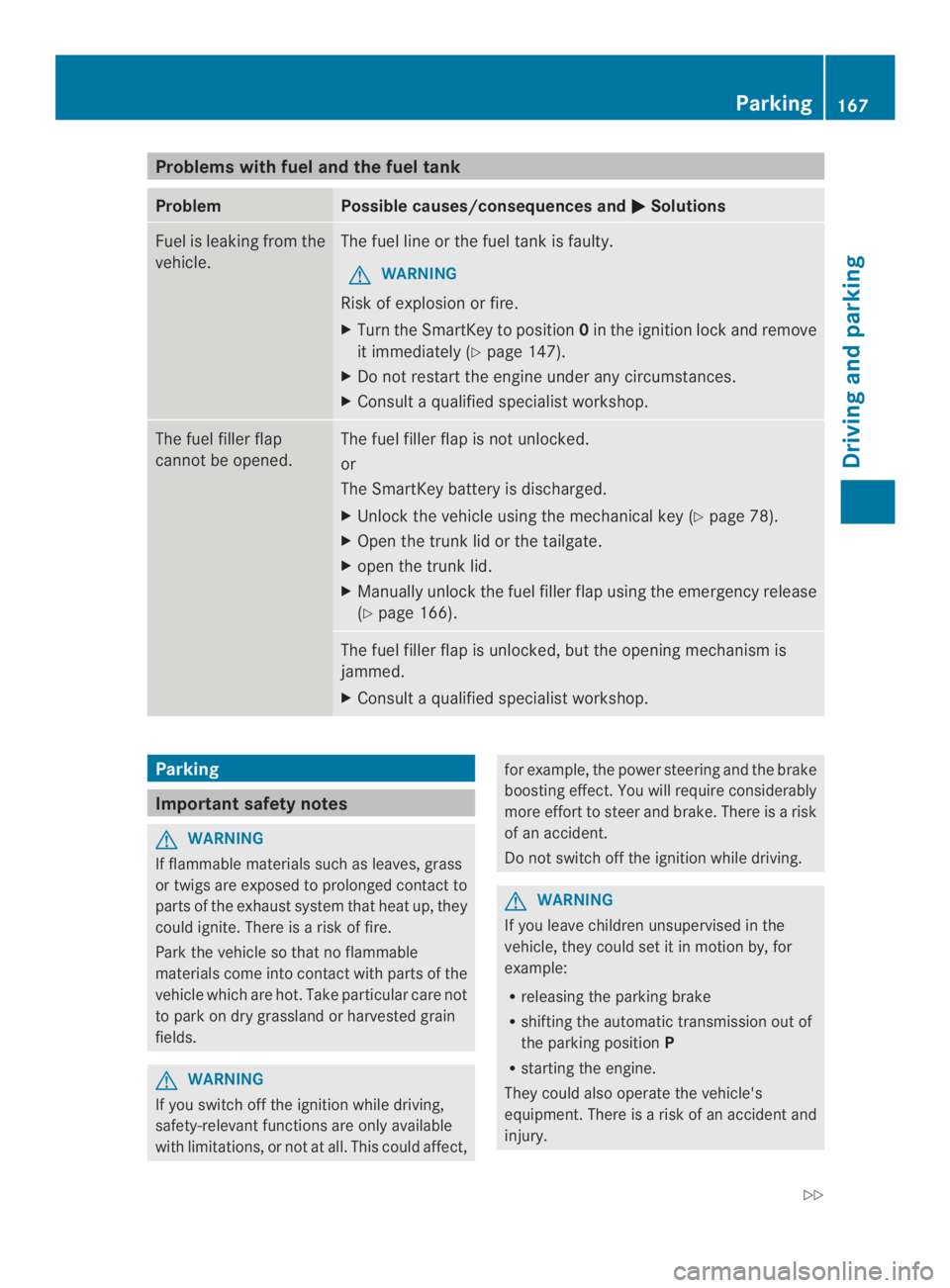

Problems with fuel and the fuel tank
ProblemPossible causes/consequences andSolutions
Fuel is leaking from the
vehicle.
The fuel line or the fuel tank is faulty.
GWARNING
Risk of explosion or fire.
XTurn the SmartKey to position0in the ignition lock and remove
it immediately (Ypage 147).
XDo not restart the engine under any circumstances.
XConsultaqualified specialist workshop.
The fuel filler flap
cannot be opened.
The fuel filler flap is not unlocked.
or
The SmartKey battery is discharged.
XUnlock the vehicle using the mechanical key (Ypage 78).
XOpen the trunk lid or the tailgate.
Xopen the trunk lid.
XManuallyunlock the fuel filler flap using the emergency release
(Ypage 166).
The fuel filler flap is unlocked, but the opening mechanism is
jammed.
XConsultaqualified specialist workshop.
Parking
Important safety notes
GWARNING
If flammable materials such as leaves, grass
or twigs are exposed to prolonged contact to
parts of the exhaust system that heat up, they
could ignite. There isarisk of fire.
Park the vehicle so that no flammable
materials come into contact with parts of the
vehicle which are hot. Take particular care not
to park on dry grassland or harvested grain
fields.
GWARNING
If you switch off the ignition while driving,
safety-relevant functions are only available
with limitations, or not at all. This could affect,
for example, the power steering and the brake
boosting effect.You will require considerably
more effort to steer and brake. There isarisk
of an accident.
Do not switch off the ignition while driving.
GWARNING
If you leave children unsupervised in the
vehicle, they could set it in motion by, for
example:
Rreleasing the parking brake
Rshifting the automatic transmission out of
the parking positionP
Rstarting the engine.
They could also operate the vehicle's
equipment. There isarisk of an accident and
injury.
Parking167
Driving and parking
Z

Parking brake
GWARNING
If you must brake the vehicle with the parking
brake, the braking distance is considerably
longer and the wheels could lock. There is an
increased danger of skidding and accidents.
Only use the parking brake to brake the
vehicle when the service brake is faulty. Do
not apply the parking brake too firmly. If the
wheels lock, release the parking brake until
the wheels begin turningagain.
GWARNING
If you leave children unsupervised in the
vehicle, they could set it in motion by, for
example:
Rreleasing the parking brake
Rshifting the automatic transmission out of
the parking positionP
Rstartingthe engine.
They could also operate the vehicle's
equipment. There isarisk of an accident and
injury.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Never
leave children unsupervised in the vehicle.
If you brake the vehicle with the parking
brake, the brake lamps will not light up.
XTo apply:depress parking brakefirmly.
When the engine is running, the(USA
only) or
(Canada only) indicator lamp
lights up in the instrumentcluster.
XTo release:depressthe brakepedal and
keep it depressed.
XPull release handle.
When the ignition is switched on or the
engine is running, the(USA only) or

(Canada only) indicator lamp goes out
in the instrumentcluster.
Parking thevehicle foralong period
If you leave thevehicle parked for longer than
four weeks, thebattery may be damagedby
exhaustive discharging.
If you leave thevehicle parked for longer than
six weeks, thevehicle may suffer damage as
aresult of lack of use.
XVisitaqualifiedspecialist workshop and
seek advice.
iYou can obtain informationabout trickle
chargers fromaqualifiedspecialist
workshop.
Driving tips
General notes
Important safety notes
GWARNING
If you switch off theignitionwhile driving,
safety-relevant functions are only available
with limitations, or not at all. This could affect,
for example, the power steering and the brake
boosting effect.You will require considerably
more effort to steer and brake. There isarisk
of an accident.
Do not switch off the ignition while driving.
GWARNING
If you operate mobile communication
equipment while driving, you will be
Driving tips169
Driving and parking
Z

Display messagesPossible causes/consequences andSolutions

Power Steering
Malfunction See
Operator'sManual
The powersteering is malfunctioning.
Awarning tone also sounds.
GWARNING
You will need to use moreforce to steer.
Thereisariskofanaccident.
XCheck whetheryou are able to apply the extraforce required.
XIf you are able to steer safely:carefully drive on toaqualified
specialist workshop.
XIf you are unable to steer safely:do not drive on. Contact the
nearest qualified specialist workshop.
Phone No ServiceYour vehicle is outside the network provider's transmitter/
receiver range.
XWait until the mobile phone operational readiness symbol
appears in the multifunction display.

Check Washer Fluid
The washer fluid level in the washer fluid reservoir has dropped
below the minimum.
XAdd washer fluid (Ypage 309).
SmartKey
Display messagesPossible causes/consequences andSolutions

Key Does Not
Belong to Vehicle
You have put the wrong SmartKey in the ignition lock.
XUse the correctSmartKey.

TakeYourKeyfrom
Ignition
The SmartKey is in the ignition lock.
XRemove the SmartKey.

ObtainaNew Key
The SmartKey needs to be replaced.
XVisitaqualified specialist workshop.

ReplaceKeyBattery
The batteries of the KEYLESS-GO key are discharged.
XChange the batteries (Ypage 79).
262Display messages
On-board computer and displays

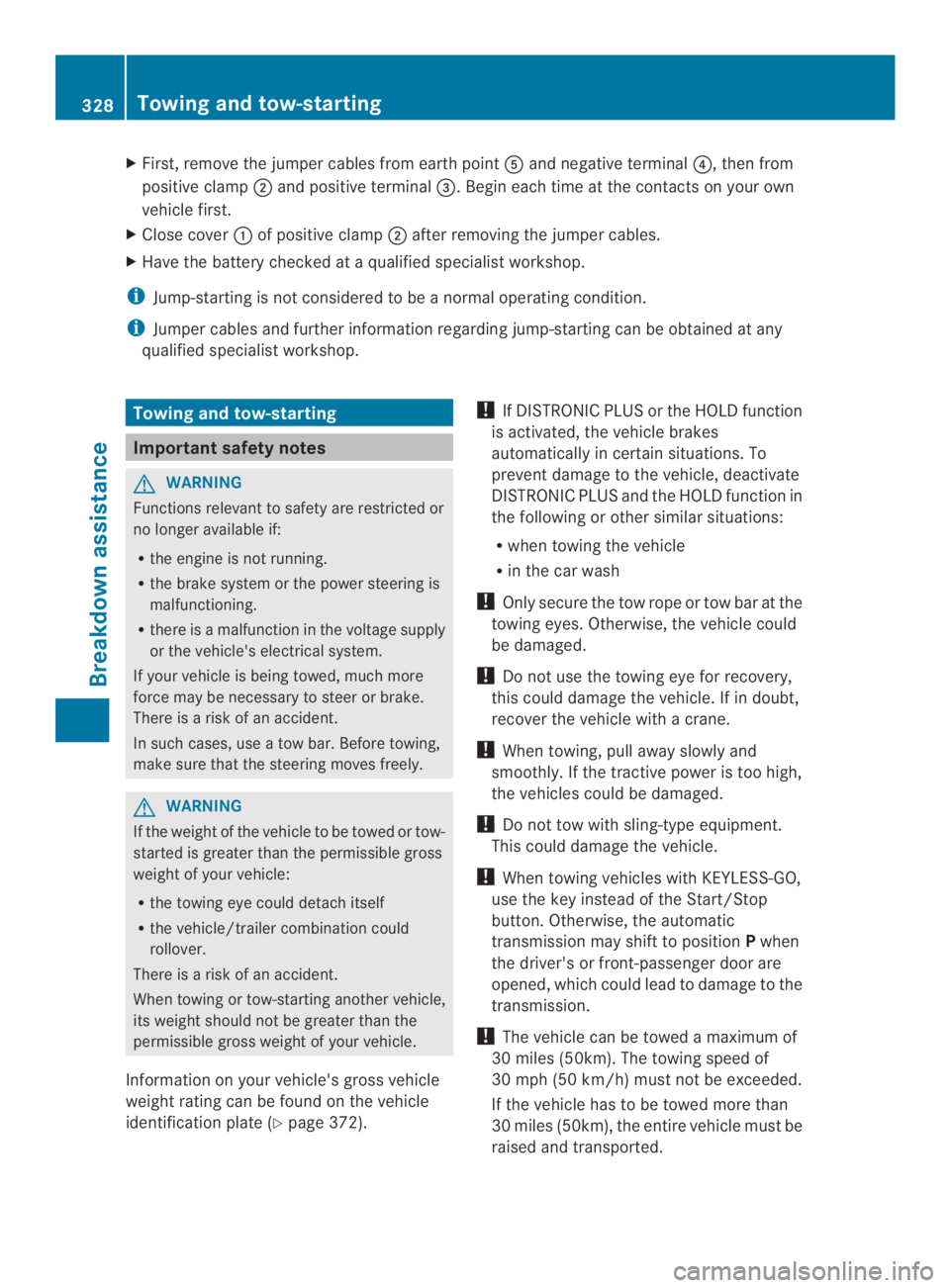

XFirst, remove the jumper cablesfrom earth pointand negative terminal!,then from
positiveclampand positiveterminal$.Begineachtime at the contacts on your own
vehicle first.
XClose coverof positiveclampafterremoving the jumper cables.
XHave the battery checkedataqualified specialist workshop.
iJump-startingisnot considered to beanormal operatingcondition.
iJumper cables and further information regardingjump-starting can be obtained at any
qualified specialist workshop.
Towing and tow-starting
Importantsafetynotes
GWARNING
Functionsrelevant to safety are restricted or
no longer available if:
Rthe engineisnot running.
Rthe brake system or the power steering is
malfunctioning.
Rthereisamalfunction in the voltage supply
or the vehicle's electrical system.
If your vehicle is being towed, much more
forcemay be necessary to steer or brake.
There isarisk of an accident.
In such cases, useatow bar. Beforetowing,
make sure that the steering moves freely.
GWARNING
If the weight of the vehicle to be towed or tow-
started is greater than the permissible gross
weight of your vehicle:
Rthe towingeye could detach itself
Rthe vehicle/trailer combination could
rollover.
There isarisk of an accident.
When towingortow-starting another vehicle,
its weight should not be greater than the
permissible gross weight of your vehicle.
Information on your vehicle's gross vehicle
weight ratingcan be found on the vehicle
identification plate (Ypage 372).
!If DISTRONIC PLUS or the HOLD function
is activated, the vehicle brakes
automatically in certain situations. To
preventdamage to thevehicle,deactivate
DISTRONICPLUS and the HOLD function in
the following or other similar situations:
Rwhen towing the vehicle
Rin the car wash
!Only secure the tow rope or tow bar at the
towing eyes. Otherwise,the vehicle could
be damaged.
!Do not use the towing eye for recovery,
this could damage the vehicle.Ifindoubt,
recover the vehicle withacrane.
!When towing, pullawayslowly and
smoothly.Ifthe tractive power is too high,
the vehicles could be damaged.
!Do not tow with sling-type equipment.
This could damage the vehicle.
!When towing vehicles with KEYLESS-GO,
use the key instead of the Start/Stop
button. Otherwise, the automatic
transmission may shift to positionPwhen
the driver's or front-passenger door are
opened, which could lead to damage to the
transmission.
!The vehicle can be towedamaximum of
30 miles (50km). The towing speed of
30 mph (50 km/h) must not be exceeded.
If the vehicle has to be towed more than
30 miles(50km), the entire vehicle must be
raised and transported.
328Towing and tow-starting
Breakdown assistance
