Opening/closing (automatically
from outside)...................................86
Opening/closing (manually from
outside) ............................................ 85
Trunk lid
Display message............................261
Opening/closing..............................84
Opening dimensions......................379
Trunk load (maximum)......................379
Turn signals
Display message............................245
Switching on/off...........................119
Type identification plate
see Vehicle identification plate
U
Unlocking
Emergency unlocking.......................84
From insidethe vehicle (central
unlocking button).............................83
V
Vanity mirror (in the sun visor)........286
Vehicle
Data acquisition...............................27
Display message............................260
Equipment.......................................22
Individualsettings..........................229
Limited Warranty.............................26
Loading..........................................345
Locking (in an emergency)...............84
Locking (SmartKey) .......................... 76
Lowering........................................361
Maintenance....................................23
Parking foralong period ................ 169
Pulling away...................................150
Raising...........................................359
Reporting problems.........................26
Securing from rolling away............358
Towing away..................................328
Transporting..................................330
Unlocking (in an emergency)...........84
Unlocking (SmartKey)......................76
Vehicle data...................................379
Vehicle data.......................................379
Vehicle dimensions...........................379
Vehicle emergency locking................84
Vehicle identification number
see VIN
Vehicle identification plate..............372
Vehicle level
AIRMATIC......................................189
Vehicle level (display message).......252
Vehicle tool kit..................................320
Video
Operating the DVD ......................... 226
VIN......................................................372
W
Warning and indicator lamps
ABS ................................................ 267
Brakes...........................................266
Check Engine.................................273
Coolant..........................................273
Distance warning...........................275
DISTRONICPLUS...........................275
ESP®..............................................269
ESP®OFF ....................................... 270
Fuel tank ........................................ 273
Overview .................................. 32, 264
PASSENGER AIR BAG OFF...............47
Reserve fuel...................................273
Seat belt........................................265
SPORT handling mode...................270
SRS ................................................ 272
Tire pressure monitor....................276
Warranty............................................372
Washer fluid
Display message............................262
Wheelbolttightening torque...........361
Wheelchock......................................358
Wheels
Changingawheel..........................357
Checking ........................................ 335
Cleaning ......................................... 314
Cleaning (warning).........................357
Emergency spare wheel.................367
Important safety notes..................334
Interchanging/changing................357
Mountinganew wheel...................360
Mountingawheel..........................358
Removingawheel..........................360
Storing...........................................357
Index19

Tighteningtorque ........................... 361
Wheel size/tire size.......................362
Windowcurtain air bag
Operation .........................................47
Windows
see Side windows
Windshield
Defrosting......................................139
Windshieldwasher fluid
see Windshield washer system
Windshield washer system
Adding washer fluid.......................309
Notes.............................................378
Windshieldwipers
Problem (malfunction)...................128
Replacing the wiper blades............126
Switching on/off...........................125
Winterdriving
Important safety notes..................336
Slippery road surfaces...................174
Snow chains..................................337
Wintertires
M+S tires.......................................336
Wiper blades
Cleaning ......................................... 314
Important safety notes..................126
Replacing.......................................126
Wooden trim (cleaning
instructions)......................................316
Z
ZONE function
Switching on/off...........................139
20Index

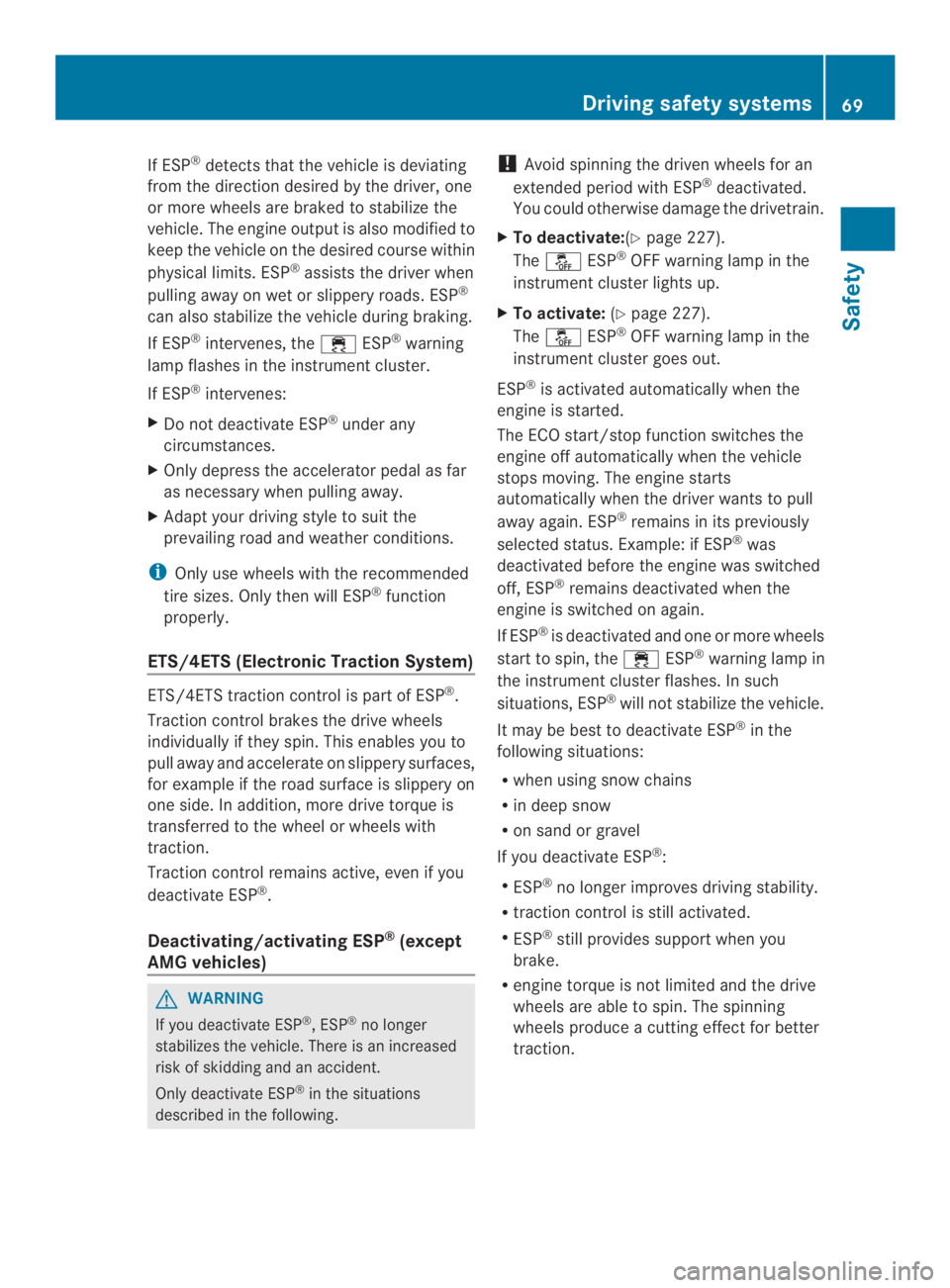

If ESP®detects that the vehicle is deviating
from the direction desiredbythe driver, one
or more wheels are braked to stabilize the
vehicle.The engine output is also modified to
keep the vehicle on the desired course within
physical limits. ESP®assists the driver when
pulling away on wet or slippery roads. ESP®
can also stabilize the vehicle during braking.
If ESP®intervenes, theESP®warning
lamp flashes in the instrumentcluster.
If ESP®intervenes:
XDo not deactivateESP®under any
circumstances.
XOnly depressthe accelerator pedal as far
as necessary when pulling away.
XAdapt your drivingstyle to suit the
prevailing road and weatherconditions.
iOnly use wheels with the recommended
tire sizes. Only then will ESP®function
properly.
ETS/4ETS (Electronic Traction System)
ETS/4ETS traction control is part of ESP®.
Traction control brakes the drive wheels
individuallyifthey spin. This enables you to
pull away and accelerate on slippery surfaces,
for example if the road surface is slippery on
one side. In addition, more drive torque is
transferred to the wheel or wheels with
traction.
Traction control remains active, even if you
deactivate ESP®.
Deactivating/activating ESP®(except
AMG vehicles)
GWARNING
If you deactivate ESP®,ESP®no longer
stabilizes the vehicle. There is an increased
risk of skidding and an accident.
Only deactivate ESP®in the situations
described in the following.
!Avoid spinningthe driven wheels for an
extended period with ESP®deactivated.
You could otherwise damage the drivetrain.
XTo deactivate:(Ypage 227).
The ESP®OFF warning lamp in the
instrument cluster lights up.
XTo activate:(Ypage 227).
The ESP®OFF warning lamp in the
instrument cluster goes out.
ESP®is activated automatically when the
engine is started.
The ECO start/stop function switches the
engine off automatically when the vehicle
stops moving. The engine starts
automatically when the driver wants to pull
away again. ESP®remains in its previously
selected status. Example: if ESP®was
deactivated before the engine was switched
off, ESP®remains deactivated when the
engine is switched on again.
If ESP®is deactivated and one or more wheels
start to spin, theESP®warning lamp in
the instrument cluster flashes. In such
situations, ESP®will not stabilize the vehicle.
It may be best to deactivate ESP®in the
following situations:
Rwhen using snow chains
Rin deep snow
Ron sand or gravel
If you deactivate ESP®:
RESP®no longer improves driving stability.
Rtraction control is still activated.
RESP®still provides support when you
brake.
Rengine torque is not limited and the drive
wheels are able to spin. The spinning
wheels produceacutting effect for better
traction.
Driving safety systems69
Safety
Z

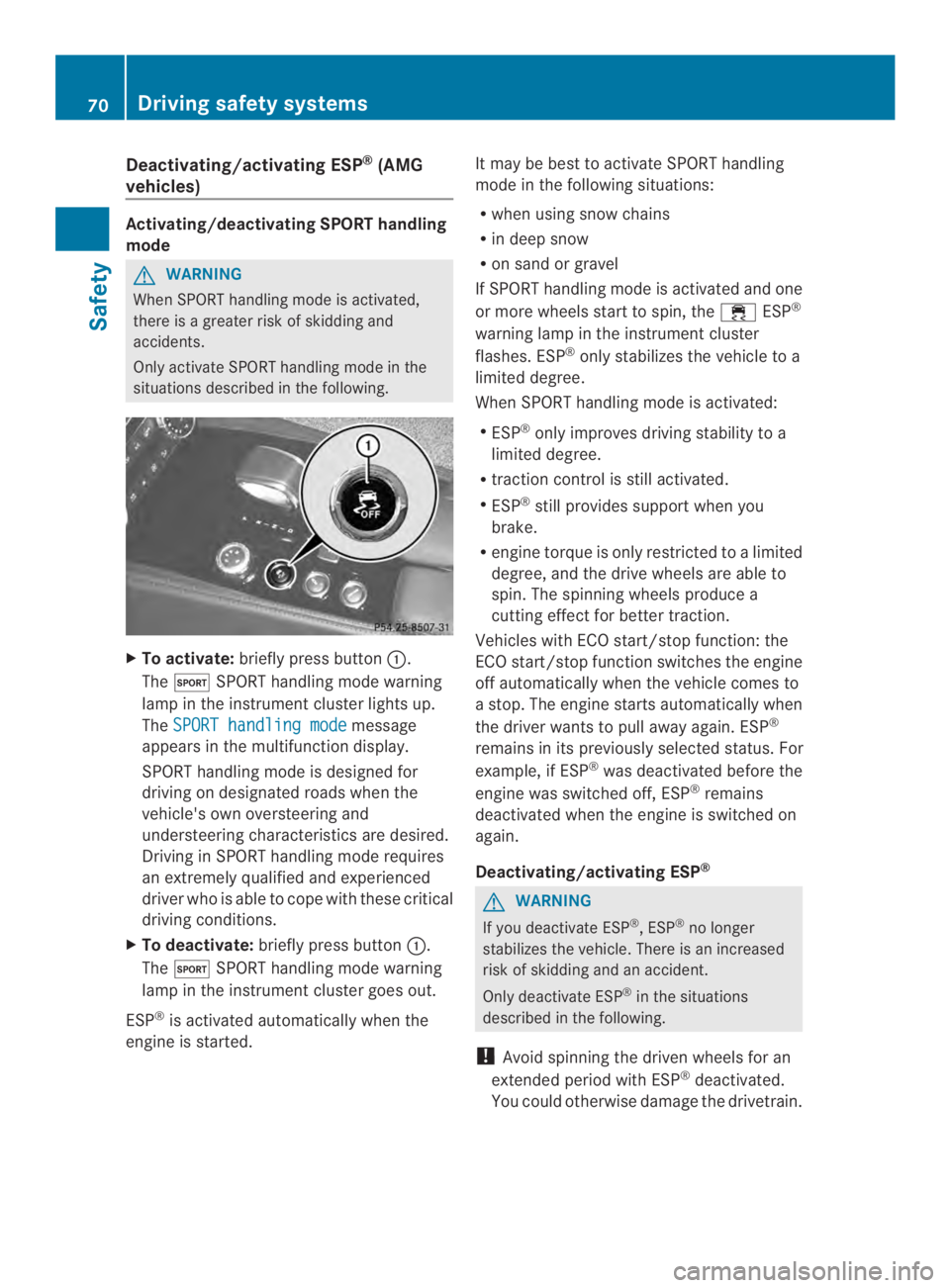

Deactivating/activating ESP®(AMG
vehicles)
Activating/deactivating SPORT handling
mode
GWARNING
WhenSPORT handling mode is activated,
there isagreater risk of skidding and
accidents.
Only activateSPORT handling mode in the
situations described in the following.
XTo activate:briefly press button.
TheSPORT handling mode warning
lamp in the instrument cluster lights up.
TheSPORT handling modemessage
appears in the multifunction display.
SPORT handling mode is designed for
driving on designated roads when the
vehicle's own oversteering and
understeering characteristics are desired.
DrivinginSPORT handling mode requires
an extremely qualified and experienced
driver who is able to cope with these critical
driving conditions.
XTo deactivate:briefly press button.
TheSPORT handling mode warning
lamp in the instrument cluster goes out.
ESP®is activated automatically when the
engine is started.
It may be best to activateSPORT handling
mode in the following situations:
Rwhen using snow chains
Rin deep snow
Ron sand or gravel
If SPORT handling mode is activated and one
or more wheels start to spin, theESP®
warning lamp in the instrument cluster
flashes. ESP®only stabilizes the vehicle to a
limited degree.
When SPORT handling mode is activated:
RESP®only improves driving stability to a
limited degree.
Rtraction control is still activated.
RESP®still provides support when you
brake.
Rengine torque is only restricted toalimited
degree, and the drive wheels are able to
spin. The spinningwheels produce a
cutting effect for better traction.
Vehicles with ECO start/stop function: the
ECO start/stop function switches the engine
off automatically when the vehicle comes to
astop. The engine startsautomatically when
the driver wants to pull away again. ESP®
remains in its previously selected status. For
example, if ESP®was deactivated before the
engine was switched off, ESP®remains
deactivated when the engine is switched on
again.
Deactivating/activating ESP®
GWARNING
If you deactivate ESP®,ESP®no longer
stabilizes the vehicle. There is an increased
risk of skidding and an accident.
Only deactivate ESP®in the situations
described in the following.
!Avoid spinningthe driven wheels for an
extended period with ESP®deactivated.
You could otherwise damage the drivetrain.
70Driving safety systems
Safety

XTo deactivate:press buttonuntilthe
ESP®OFF warning lamp lights up in
the instrument cluster.
TheOFFmessage appearsinthe
multifunctiondisplay.
Deactivate ESP®when drivingon
designated roads when the vehicle's own
oversteeringand understeering
characteristics are desired. Drivingwithout
ESP®requiresanextremely qualified and
experienced driverwho is able to cope with
these critical driving conditions.
XTo activate:briefly press button.
The ESP®OFF warning lamp in the
instrumentcluster goes out. TheON
message appears in the multifunction
display.
ESP®is activated automatically when the
engine is started.
If ESP®is deactivated and one or morewheels
start to spin,theESP®warninglamp in
the instrumentcluster does not flash. In such
situations, ESP®will not stabilize the vehicle.
It may be best to deactivateESP®in the
followingsituations:
Rwhen using snowchains
Rin deep snow
Ron sand or gravel
If you deactivateESP®:
RESP®no longer improves drivingstability.
Rtraction control is still activated.
RPRE-SAFE®is no longer available, nor is it
activated if you brakefirmly and ESP®
intervenes.
RPRE-SAFE®Brake is no longer available, it
is also not activated if you brakefirmly and
ESP®intervenes.
RESP®still provides support when you
brake.
Rengine torque is no longer limited and the
drive wheels are able to spin.The spinning
wheels produceacuttingeffect for better
traction.
Vehicles with ECO start/stop function: the
ECO start/stop function switches the engine
off automatically when the vehicle comes to
astop. The engine starts automatically when
the driver wants to pull away again. ESP®
remains in its previously selected status. For
example, if ESP®was deactivated before the
engine was switched off, ESP®remains
deactivated when the engine is switched on
again.
EBD (electronic brake force
distribution)
iObserve the "Important safety notes"
section (Ypage 66).
GWARNING
If EBD has malfunctioned, the rear wheels can
still lock, e.g. under full braking. This
increases the risk of skidding and an accident.
You should therefore adapt your driving style
to the different handling characteristics. Have
the brake system checked ataqualified
specialist workshop.
Observe information regarding indicator and
warning lamps (Ypage 267) as well as
displaymessages (Ypage 240).
EBD monitors and controls the brake
pressure on the rear wheels to improve
driving stability while braking.
Driving safety systems71
Safety
Z

GWARNING
If you tighten the wheelbolts or wheelnuts
when the vehicleisraised, the jack couldtip
over. There isarisk of injury.
Only tighten the wheelbolts or wheelnuts
when the vehicleisonthe ground.
Always pay attention to the instructions and
safety notes in the "Changingawheel"
section (Ypage357).
Only use wheelbolts that have been designed
for the wheeland the vehicle. For safety
reasons, Mercedes-Benz recommends that
you only use wheelbolts which have been
approved for Mercedes-Benz vehicles and the
respective wheel.
!AMG vehicle with ceramic brake
discs:during removaland repositioning of
the wheel, the wheelrim can strike the
ceramic-brake disc and damage it.
Therefore, take precautions and have a
second personassist you. Alternatively,
you can useasecond alignment bolt.
!To prevent damage to the paintwork, hold
the wheel securely against the wheel hub
while screwing in the first wheel bolt.
Positioningawheel (example: vehicle with anemergency spare wheel)
XCleanthe wheel and wheel hub contact
surfaces.
XSlide the wheel to be mounted onto the
alignment bolt and push it on.
XTighten the wheel bolts until they are
finger-tight.
XUnscrew the alignment bolt.
XTighten the last wheel bolt until it is finger-
tight.
XVehicles withacollapsible spare
wheel:inflate thecollapsible spare wheel
(Ypage 368).
Only then lower thevehicle.
Lowering thevehicle
GWARNING
The wheels could work loose if thewheel nuts
and boltsare not tightenedtothe specified
tightening torque. There isarisk of accident.
Have the tightening torque immediately
checked ataqualified specialist workshop
afterawheel is changed.
!Vehicles withacollapsible spare
wheel:before lowering thevehicle, inflate
thecollapsible spare wheel with thetire
inflationcompressor. The wheel rim could
otherwise be damaged.
Tighteningthe wheel nuts (example: vehicle withan emergencyspare wheel)
XTurn the crank of the jack counter-
clockwise until the vehicle is once again
standingfirmly on the ground.
XPlace the jack to one side.
XTighten the wheel bolts evenly in a
crosswise pattern in the sequence
indicated (to). The specified
tightening torque is96 lb-ft(130 Nm).
XTurn the jack back to its initial position.
Changingawheel361
Wheels and tires
Z
