2014 MERCEDES-BENZ CLS Owners Manual

XSelectYeswith the\norbuttons
on the COMAND system.
XConfirm with the
button on the
COMAND system.
The system calculatesthe route and
subsequently starts the route guidance with
the address entered.
iIf youselectNo,the address can be saved
in the address book.
iThe Destination Download function is
available if the corresponding mobile
phone network is available and data
transfer is possible.
iYoucan onlyusethe Destination
Download function if the vehicleis
equipped withanavigation system.
Route Assistance
Thisservice is part of the mbrace PLUS
Packageand cannotbepurchased
separately.
iYou can also use the Route Assistance
function if your vehicle is not equipped with
anavigation system.
Within the framework of this service, you
receiveaprofessional and reliable form of
navigation support without having to leave
your vehicle.
The customer servicerepresentativefinds a
suitable route depending on your vehicle's
currentposition and the desired destination.
You will then be guided live through the
current route section.
Search&Send
General notes
iTo use "Search&Send", your vehicle
must be equipped with mbrace and a
navigation system. You must also have an
mbrace servicesubscription.
"Search&Send" isadestination entry
service.Adestination address which is found
on Google Maps®can be transferred via
mbrace directly to your vehicle's navigation
system.
Specifying and sending the destination
address
XGo to the website http://
www.maps.google.com and enter a
destination address intothe entry field.
XTo send the destination address to the
e-mail address of your mbrace
account:click on the corresponding
button.
iExample:
If you select 'Sendtovehicle' and then
'Mercedes-Benz', the destination address
will be sent to your vehicle.
XWhen the "Send" dialog window appears:
In the relevant field, enter the e-mail
address which you specified when
activating your mbrace account.
XClick "Send".
iInformation on specific commands such
as "Address entry" or "Send" can be found
on the website.
Calling up destination addresses
XSwitchonthe ignition.
The destination address is loaded intothe
vehicle's navigation system.
Adisplay message appears, asking
whether navigation should be started.
XSelectYesby sliding and turning
the COMAND controller and confirm
with.
The system calculates the routeand
subsequently starts the routeguidance
withtheaddress entered.
iIf you selectNo,theaddress can be saved
in theaddress book.
iIf you have sentmorethanone
destination address,eachindividual
destination must be confirmed separately.
Features295
Stowage and featu res
Z

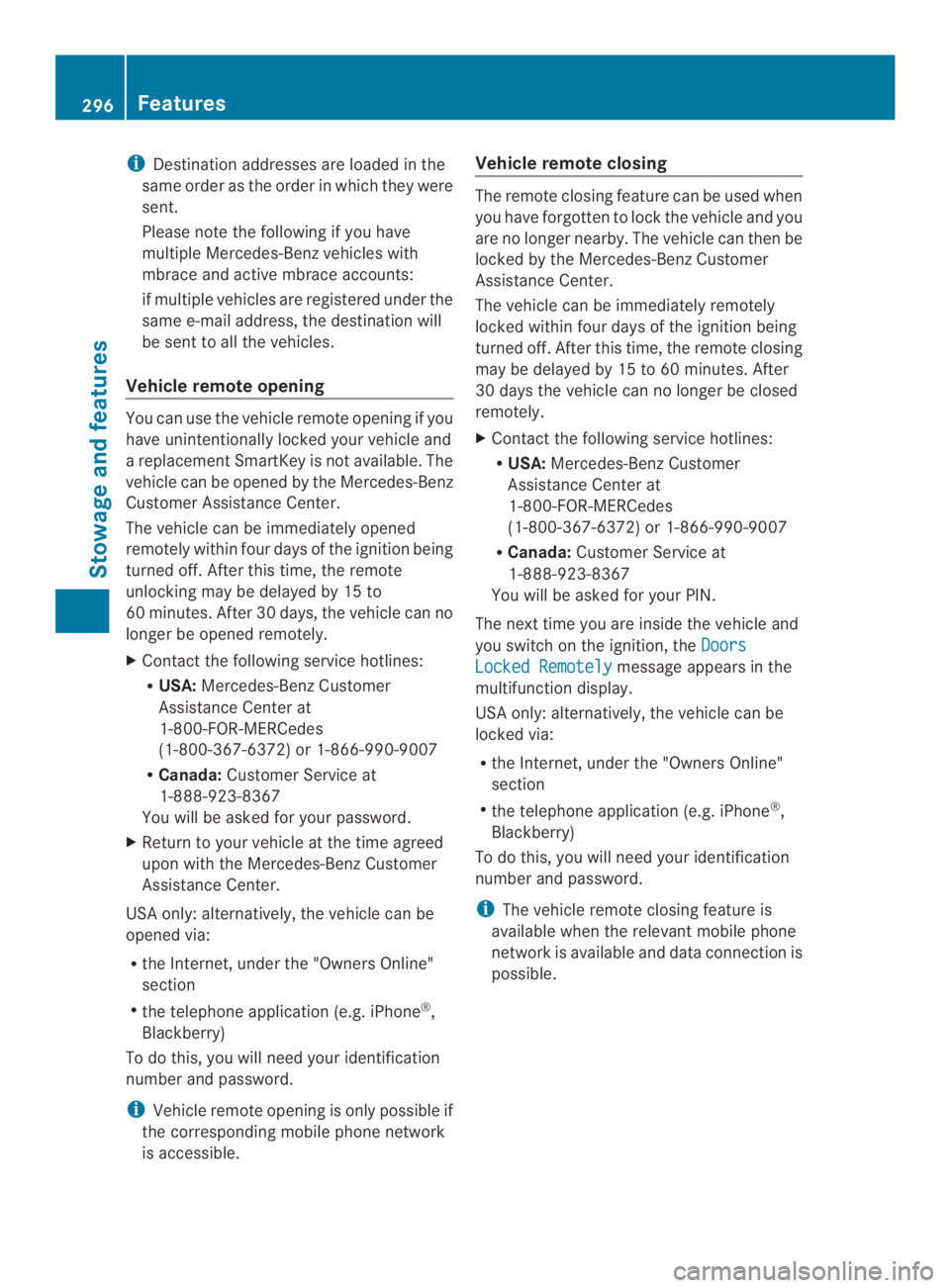

iDestinationaddresses are loaded in the
same order as the order in which they were
sent.
Please notethe following if you have
multiple Mercedes-Benz vehicles with
mbrace and activembrace accounts:
if multiple vehicles are registered under the
same e-mail address, the destination will
be sent to all the vehicles.
Vehicle remote opening
You can use the vehicle remoteopeningifyou
have unintentionally locked your vehicle and
areplacementSmartKey is not available.The
vehicle can be opened by the Mercedes-Benz
Customer AssistanceCenter.
The vehicle can be immediately opened
remotely within four days of the ignition being
turned off. After this time, the remote
unlocking may be delayed by 15 to
60 minutes. After 30 days, the vehicle can no
longer be opened remotely.
XContact the following service hotlines:
RUSA:Mercedes-BenzCustomer
AssistanceCenterat
1-800-FOR-MERCedes
(1-800-367-6372) or 1-866-990-9007
RCanada:Customer Service at
1-888-923-8367
You will be asked for yourpassword.
XReturn to your vehicle at thetimeagreed
upon withtheMercedes-BenzCustomer
AssistanceCenter.
USAonly:alternatively, the vehicle can be
opened via:
Rthe Internet,under the "OwnersOnline"
section
Rthe telephoneapplication (e.g.iPhone®,
Blackberry)
To do this, you will need your identification
number and password.
iVehicle remoteopening is only possible if
the corresponding mobile phone network
is accessible.
Vehicle remoteclosing
The remoteclosing feature can be used when
you have forgotten to lock the vehicle and you
are no longer nearby. The vehicle can then be
locked by the Mercedes-Benz Customer
Assistance Center.
The vehicle can be immediately remotely
locked within four days of the ignition being
turned off. After this time, the remoteclosing
may be delayed by 15 to 60 minutes. After
30 days the vehicle can no longer be closed
remotely.
XContact the following service hotlines:
RUSA:Mercedes-Benz Customer
Assistance Center at
1-800-FOR-MERCedes
(1-800-367-6372)or1-866-990-9007
RCanada:Customer Serviceat
1-888-923-8367
You will be asked for your PIN.
The next time you are inside the vehicle and
you switch on the ignition, theDoors
Locked Remotelymessage appears in the
multifunction display.
USA only: alternatively, the vehicle can be
locked via:
Rthe Internet,under the "Owners Online"
section
Rthe telephone application (e.g. iPhone®,
Blackberry)
To do this, you will need your identification
number and password.
iThe vehicle remote closing feature is
available when the relevant mobile phone
network is available and data connection is
possible.
296Features
Stowage and features

Stolen vehicle recovery service
If your vehicle has been stolen:
XNotify the police.
The police will issueanumbered incident
report.
XThis number will be forwarded to the
Mercedes-Benz Customer Assistance
Center together with your PIN.
The Mercedes-Benz Customer Assistance
Center then tries to locate the system. The
Mercedes-Benz Customer Assistance
Center contacts you and the local law
enforcement agency if the vehicle is
located. However, only the law
enforcement agency is informed of the
location of the vehicle.
iIf the anti-theft alarm system is activated
for longer than 30 seconds,the Mercedes-
Benz Customer Assistance Center is
automatically informed.
Vehicle remote malfunction diagnosis
With the vehicle remote malfunction
diagnosis (Vehicle Health Check), the
Customer Assistance center can provide
improved support for problems with your
vehicle. During an existing call, vehicle data
is transferred to the Customer Assistance
center. The customer service representative
can use the received data to decide what kind
of assistance is required. You are then, for
example, guided to the nearest authorized
Mercedes-Benz Center orarecovery vehicle
is called.
If vehicle data needs to be transferred during
an MB Info call oraRoadside Assistance call,
this is initiated by the Customer Assistance
center. You will see theRoadside
Assistance Connectedmessage in the
COMAND display.Ifthe vehicle remote
malfunction diagnosis can be started, the
Request for vehicle diagnosis
received. Start vehicle diagnosis?
message appears in the display.
XConfirm the message withYes.
XWhen theVehicle Diagnosis Please
Start Ignitionmessage appears, turn
the SmartKey to position2in the ignition
lock (Ypage 147).
XWhen thePlease follow the
instructionsreceivedbyphoneand
move your vehicle toasafe
position.message appears, follow the
customer service representative's
instructions.
The message in the displaydisappears.
If you selectCancel,the vehicle remote
malfunction diagnosis is canceled
completely.
The vehicle operating state check begins.
You will see theVehicle diagnosis
activated.message.
When the diagnosis is completed, the
Transfer vehicle diagnostics data
(Voice connection may be
interrupted during data transfer.)
message appears. The vehicle data can now
be sent to the Customer Assistancecenter.
XPressOKto confirm the message.
The voice connection with the Customer
Assistancecenter is terminated.
You will see theVehicle Diagnosis:
Transferring data...message.
The vehicle data is sent to the Customer
Assistancecenter.
Depending on what the customer service
representative agreed with you, the voice
connection is re-established after the transfer
is complete. If necessary, you will be
contacted atalater time by another means,
e.g. by e-mail or phone.
Further functions of the vehicle remote
malfunction diagnosis include, for example:
Rtransfer of service data to the Customer
Assistancecenter. Ifaservice is overdue,
the COMAND display showsamessage
Features297
Stowage and features
Z

about various special offers at your
workshop.
Rmonthly status informatione-mail on oil
level,air pressure, maintenance, brakes,
etc. If applicable,you willreceive
information on special offers in the e-mail.
USA only:this information can alsobe
called up under "Owners Online" at http://
www.mbusa.com.
Information on the data stored in the vehicle
(Ypage27).
Information on RoadsideAssistance
(Ypage23).
Downloading routes
Downloading routes allows you to transfer
and save predefined routes in the navigation
system. To do this, an SD memory card must
be inserted into the COMAND system. If no
SD memory card is inserted, you must insert
the card into the card slot on the COMAND
system before saving.
Aroute can be prepared and sent either by a
customer service representative or via the
mbrace portal on the Internet.
Each route can include up to 20 way points.
Oncearoute has been received by the
navigation system, you will see the name>hasbeensavedtomemorycard.
Do you want to start route
guidance?message in the COMAND display.
The route is saved to the SD memory card.
XTo startrouteguidance:selectYes.
An overview of the route is shown in the
display.
iIf you selectNo,the saved route can be
called up later via the navigation menu.
XSelectStart.
Route guidance is started.
iDownloaded and saved data can be called
up again in COMAND.
You can find further information in the
separate COMAND Operating Instructions.
Speed alert
You can define the upper speed limit, which
must not be exceeded by the vehicle. If this
selected speed is exceeded by the vehicle, a
message will be sent to the Customer
Assistance center. The Customer Assistance
center then forwards this information to you.
You can select the way in which you receive
this information beforehand. Possible options
include text message, e-mail or an automated
call.
The data which is sent to the Customer
Assistance Center contains the following
information:
Rthe location where the speed limit was
exceeded
Rthe time at which the speed limit was
exceeded
Rthe selected speed limit which was
exceeded
Geo fencing
Geo fencing allows you to select areas which
the vehicle should not enter or leave. You will
be informed if the vehicle crosses the
boundaries of the selected areas. You can
select the way in which you receive this
information beforehand. Possible options
include text message, e-mail or an automated
call.
The area can be determined as eitheracircle
orapolygon withamaximum of ten corners.
You can specify up to ten areas
simultaneously. Different settings are
possible for each area.
USA only: these settings can be called up
under "Owners Online" at http://
www.mbusa.com.
Alternatively, you can trigger an MB Info call
and inform the customer service
representative that you wish to activate geo
fencing.
Currently inactive areas can be activated by
text message.
298Features
Stowage and features

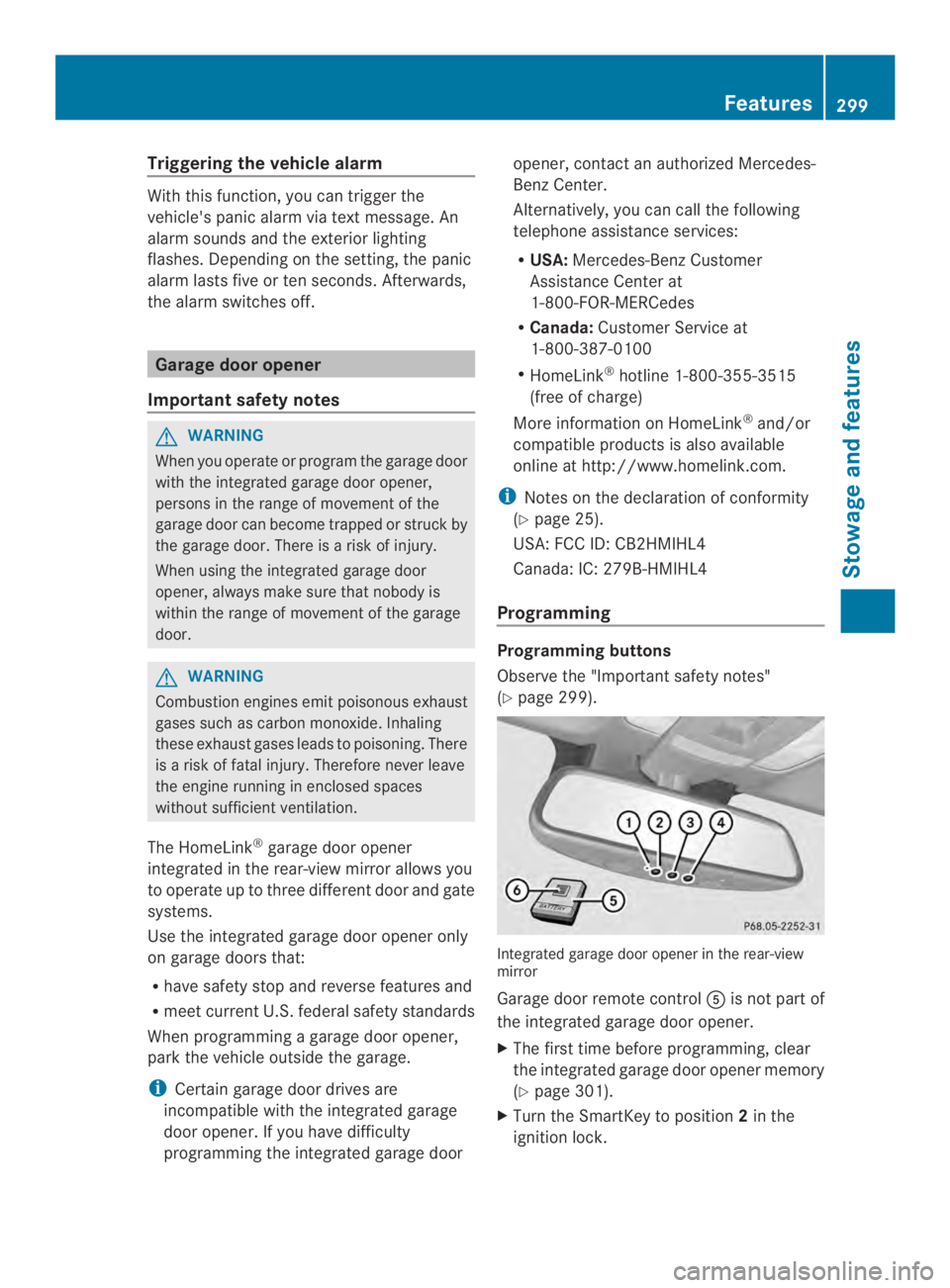

Triggeringthe vehicle alarm
With thisfunction, youcan triggerthe
vehicle's panic alarm via text message. An
alarm sounds and the exterior lighting
flashes. Depending on the setting, the panic
alarm lasts five or ten seconds. Afterwards,
the alarm switches off.
Garage door opener
Important safety notes
GWARNING
When you operate or program the garage door
with the integrated garage door opener,
persons in the range of movement of the
garage door can become trapped or struck by
the garage door. There isarisk of injury.
When using the integrated garage door
opener, always make sure that nobody is
within the rangeofmovementofthe garage
door.
GWARNING
Combustion engines emit poisonous exhaust
gases such as carbonmonoxide. Inhaling
these exhaust gases leads to poisoning. There
isarisk of fatal injury. Therefore never leave
the engine runninginenclosed spaces
without sufficient ventilation.
The HomeLink®garage door opener
integrated in the rear-view mirror allows you
to operate up to three different door and gate
systems.
Use the integrated garage door opener only
on garage doors that:
Rhave safety stop and reverse features and
Rmeet current U.S. federal safety standards
When programmingagarage door opener,
park the vehicle outside the garage.
iCertain garage door drives are
incompatible with the integrated garage
door opener. If you have difficulty
programming the integrated garage door
opener, contact an authorized Mercedes-
Benz Center.
Alternatively, you can call the following
telephone assistance services:
RUSA:Mercedes-Benz Customer
Assistance Center at
1-800-FOR-MERCedes
RCanada:Customer Serviceat
1-800-387-0100
RHomeLink®hotline 1-800-355-3515
(free of charge)
More information on HomeLink®and/or
compatible products is also available
online at http://www.homelink.com.
iNotes on the declaration of conformity
(Ypage 25).
USA:FCC ID: CB2HMIHL4
Canada: IC: 279B-HMIHL4
Programming
Programming buttons
Observe the "Important safety notes"
(Ypage 299).
Integrated garage door opener in the rear-viewmirror
Garage door remote controlis not part of
the integrated garage door opener.
XThe first time before programming, clear
the integrated garage door opener memory
(Ypage 301).
XTurn the SmartKey to position2in the
ignition lock.
Features299
Stowage and features
Z

XPress and hold one of buttonsto!on
the integrated garage door opener.
Afterashort time, indicator lamplights
up yellow.
iIndicator lamplights up yellow as soon
as button,$or!is programmed for
the first time. If the selected button has
already been programmed, indicator
lampwill only light up yellow after ten
seconds have elapsed.
XRelease button,$or!.Indicator
lampflashes yellow.
XPoint garage door remotecontrol
towards buttonsto!on the rear-view
mirror atadistanceof2to8inches (5 to
20 cm).
iThe required distancebetween remote
controland the integrated garage door
opener depends on the garage door drive
system. Several attempts might be
necessary. You should test every position
for at least 25 seconds before trying
another position.
XPress and hold button%on remotecontrol
until indicator lamplights up green.
If indicator lamplights up green or
flashes, then programming has been
successful.
XRelease button%on remote controlfor
the garage door drive system.
XIf indicator lamplights up red: repeat
the programming procedure for the
corresponding button on the rear-view
mirror. When doing so, vary the distance
between remote controland the rear-
view mirror.
iIf the indicator lamp flashes green after
successful programming, the garage door
system is usingarolling code. After
programming, you must synchronize the
garage door opener integrated in the rear-
view mirror with the receiver of the garage
door system.
Synchronizing the rolling code
Observe the "Important safety notes"
(Ypage 299).
Your vehicle must be within reach of the
garage door or exterior gate drive. Make sure
that neither your vehicle nor any persons/
objectsare present within the sweep of the
door or gate.
XTurn the SmartKey to position2in the
ignition lock.
XPress the program button of the door or
gate drive (see the door or gate drive
operating instructions, e.g. under
"programming of additional remote
controls").
iUsually,you now have 30seconds to
initiate the next step.
XPress previously programmed button,
$or!of the integrated garage door
opener until the door closes.
The rolling code synchronization is then
complete.
Notes on programming the remote
control
Canadianradio frequency laws require a
"break"(or interruption)ofthetransmission
signals after broadcastingforafew seconds.
Therefore, these signals may notlast long
enough for theintegratedgaragedoor
opener. The signal is notrecognized during
programming. Comparable with Canadian
law, some U.S.garage door openers also
featurea"break".
Proceedasfollows:
Rif you live in Canada
Rif you have difficulties programmingthe
garagedoor opener (regardless of where
you live)when usingtheprogramming
steps
300Features
Stowage and features

XPress and hold one of buttonsto!on
the integrated garage door opener.
Afterashort time, indicator lamplights
up yellow.
XRelease the button.
Indicator lampflashes yellow.
XPress button%of garage door remote
controlfor two seconds, then release it
for two seconds.
XPress button%again for two seconds.
XRepeat this sequence on button%of
remotecontroluntil indicator lamp
lights up green.
If indicator lampturnsred, repeat the
process.
XContinue with the other programming
steps (see above).
Problems when programming
If you are experiencing problems
programmingthe integrated garage door
opener on the rear-view mirror, take noteof
the following instructions:
RCheck the transmitter frequencyofgarage
door drive remotecontrol.This can
usually be found on the back of the remote
control.
The integrated garage door opener is
compatible with devices that have units
which operate in the frequency range of
280to433MHz.
RReplace the batteries in garage door
remote control.This increases the
likelihood that garage door remote control
will transmitastrongand precisesignal
to the integrated garage door openerinthe
rear-view mirror.
RWhen programming, hold remote control
at varying distances and angles from the
button that you are programming. Try
various angles atadistance between 2and
12 inches (5to 30 cm) or at the same angle
but at varying distances.
RIf another remote control for the same
garage door drive is available, repeat the
same programming steps with this remote
control. Before performing these steps,
make sure that new batteries have been
installed in garage door drive remote
control.
RNote that some remote controls only
transmit foralimited amount of time (the
indicator lamp on the remote control goes
out). Press button%on remote control
again before transmission ends.
RAlign the antennacable of the garage door
opener unit. This can improve signal
reception/transmission.
Opening/closing the garage door
After it has been programmed, the integrated
garage door opener performs the function of
the garage door system remote control.
Please also read the operating instructions
for the garage door system.
XTurn the SmartKey to position2in the
ignition lock.
XPress button,$or!which you have
programmed to operate the garage door.
Garage door system withafixed code:
indicator lamplights up green.
Garage door system witharolling code:
indicator lampflashes green.
iThe transmitter will transmitasignal as
long as the button is pressed. The
transmission is halted afteramaximum of
ten seconds and indicator lamplights
up yellow. Press button,$or!again
if necessary.
Clearing the memory
XTurn the SmartKey to position2in the
ignition lock.
XPress buttonsand!.
The indicator lamp lights up yellow.
XPress and hold buttonsand!until the
indicator lamp turns green.
Features301
Stowage and features
Z

iMake sure that you clear the memory of
the integrated garage door opener before
selling the vehicle.

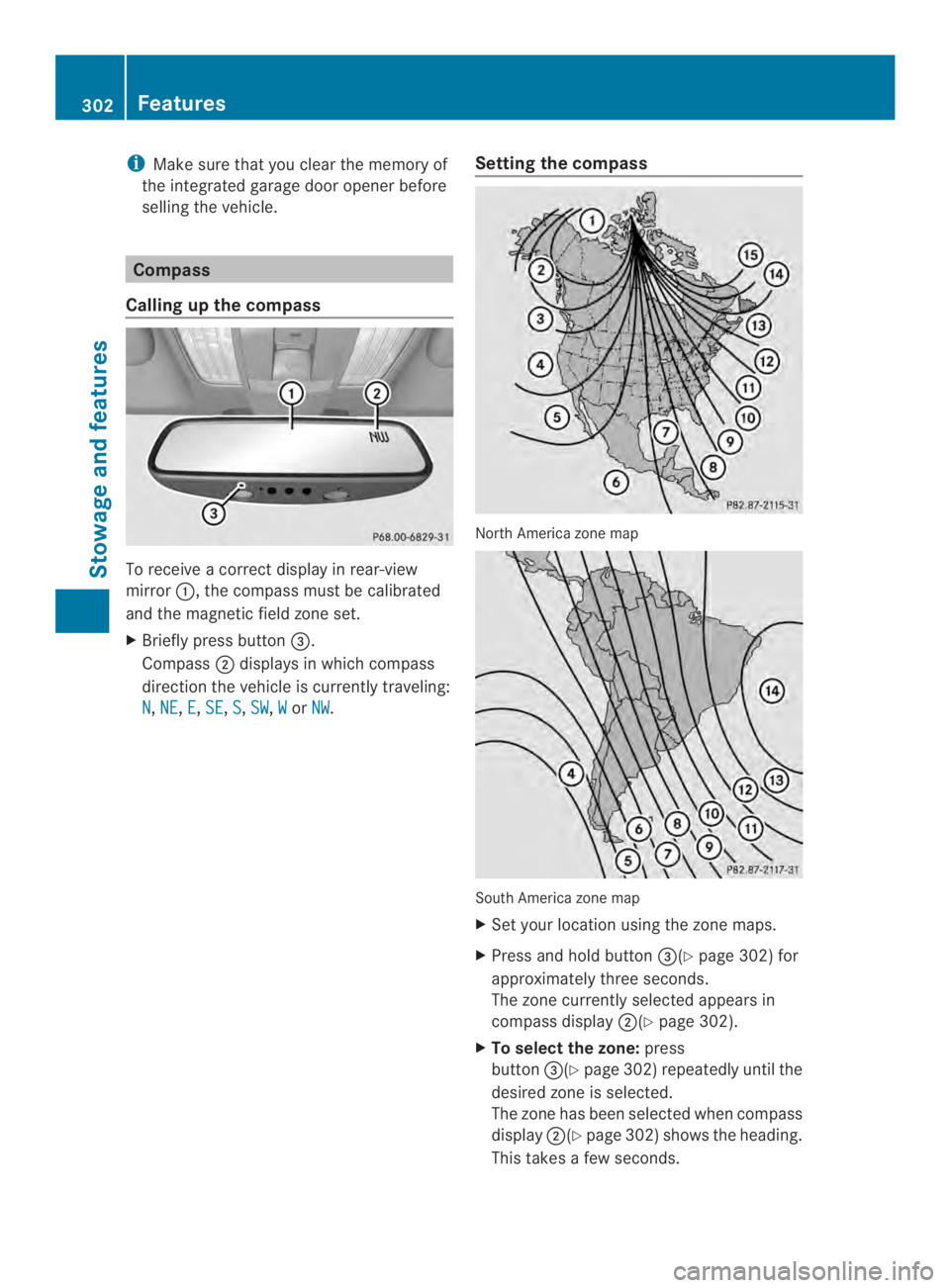

Compass
Calling up the compass
To receiveacorrect displayinrear-view
mirror,the compass must be calibrated
and the magnetic field zone set.
XBriefly press button$.
Compassdisplays in which compass
direction the vehicle is currently traveling:
N,NE,E,SE,S,SW,WorNW.
Setting the compass
North America zone map
South America zone map
XSet your location using the zone maps.
XPress and hold button$(Ypage 302) for
approximately three seconds.
The zone currently selected appears in
compass display(Ypage 302).
XTo selectthe zone:press
button$(Ypage302) repeatedlyuntil the
desired zone is selected.
The zone has been selected whencompass
display(Ypage 302) shows the heading.
This takesafew seconds.
302Features
Stowage and features
