2014 HONDA CIVIC SEDAN Navigation Manual (in English)

24
uu Voice Control System u Siri Eyes Free
System Setup
Siri Eyes Free
1 Siri Eyes Free
iPhone and Siri are trademarks of Apple, Inc.
Siri Eyes Free is availabl e only on iPhone with iOS 6.0
and above.
Some commands work only on specific phone
features or apps.
Some features may not be available for all countries
or all areas. For detail s about Siri, refer to 
http://www.apple.com .
We recommend against using Si ri other than in Eyes
Free mode while operating a vehicle.
On Siri Eyes Free, the display remains the same and
no feedback or commands appear.
While using Siri, you cannot operate the system with
the built-in voice recognition.When your iPhone is paired and linked to the system via Bluetooth ®, you can say Siri-
related commands. Make sure Siri on your iPhone is turned on.
2Pairing a Phone P. 170
1. Press and hold the (Talk)
button for more than two seconds
until you hear the Siri tone.
2. Talk to S
iri.
u When you
hear the Siri tone,
you can continue to respond
without pressing any button. If
the Siri tone times out, you
have to press and hold the

(Talk) button again to reactivate
Siri Eye
s Free.
u Press the (Hang-Up/
Back) button to turn off Siri
Eyes Free.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 24 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

25Continued
System Setup
Display Mode Settings
Turning Off the Display
Press the (Display mode) button for more than two seconds.
u Se
lect HOME or BACK , or press the (Display mode) button to turn on the
display.
Switching Display Mode Manually
1Switching Display Mode Manually
The display brightness ca n be changed from the
System settings screen as well. 2 Display P. 65
You can also adjust the display brightness by sliding
or flicking on the bar.
The map color is also switched depending on the Day
and Night mode. The map color can be set on the
Navigation settings screen. 2 Color P. 53
Set the screen brightness separately for Day and Night modes. Press the
(Display mode) button to cycle through th e displa
y modes (Day to Night to Off).
Press the (Display mode)
button.
u Th
e Brightness bar is displayed for
a few seconds.
u Se
lect or to adjust the
brightness.
Illumination co
ntrol PriorityOperation
button1Selects Day or Night disp
lay mode when the user
wants to change the brightness of the display
temporarily.
Remember: This button overrides all other display
bri

ghtness adjustment that is set by the sunlight sensor
automatically or you ch anged manually from the
System settings screen.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 25 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

1Switching Display Mode Manually
* Not available on all models.Illumination
controlPriorityOperation
Sunlight
sensor* (see
your Owner’s
Manual for
location)2If the sunlight sensor detects daylight and the
headlights are turned on, the system automatically
overrides the Night display and displays the Day display
mode.
Remember: If desired, use the
button to
override this automatic choice.
Dash
ill
umination
adjustment
buttons (see
your Owner’s
Manual for
location) 3
When the headlights are tu rne d on, and you wish to
have the Day display mode, adjust the illumination to
the full brightness (beeps).
Remember:
Adjust the dash brightness back to mid-
range to allow auto switching by sensing the
headlights are on or off.
Headlights
(Auto*/On/Off)
4When turned on, the displa y changes to Night display
mode. The previous three controls listed above can
“cancel” this function.
Remember: Use the
button, or adjust the dash
illumination to full brightness , to set the display to your
d
esired choice.
Screen color
ch
oice N/A
The user can select the color of the screen that will be
d
isplayed for the Day and Night display modes
described above.
Remember: For best contrast, ensure that the map
color

is white for Day and black for Night.
uu Display Mode Settings u Switching Display Mode Manually
26
System Setup
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 26 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

27
System Setup
Personal Information
HHOME u Settings u Navigation u Personal Info
Use the personal informatio n menu
to select and set your address books, home
addresses, and PINs. You can also delete previously routed destinations and
previously selected categories.
Select an item.
The following items are available:
• Add
ress Book : Stores new addresses or edits your address book.
2Address Book P. 28
• Edit Go Home 1 : Sets or edits your home address.
2Home Addresses P. 33
• Edit Go Home 2 : Sets or edits another home address.
2Home Addresses P. 33
• PIN Number : Sets or changes your PIN.
2PIN Numbers P. 34
• Previous Destination : Deletes the destination history.
2Previous Destination P. 36
• User Name : Sets or changes your user name.
2User Name P. 35
•Category History : Deletes the category history.
2Category History P. 37
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 27 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

28
uu Personal Information u Address Book
System Setup
Address Book
1 Address Book
The number of addresses is shared by the two
address books. For example, if Driver 1 has 150
addresses, Driver 2 can only have 50.
If you have PIN-protecte d your address book, enter
your PIN when prompted. Select OK. PINs are
optional. 2 PIN Numbers P. 34
Any address book categories you create are also
displayed on the Address book screen.
2 Selecting an Address Book Category P. 31HHOME u Settings u Navigation u Personal Info u Address Book
Store up to 200 address entries in two address books ( Driver 1 and D
river 2). You
can add, edit, and delete info rmation in the address books.
Select the driver to edit the address
book.
uThe ad
dress book is displayed.
uSelect the
category tab to display
only the addresses in the selected
category.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 28 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

■Adding an Address Book Entry1
Adding an Address Book Entry
If you do not give the address a name, one is
automatically assigned (e.g., Address 001). You can
re-enter, edit, or make changes to any entry.
“Address ” is the only required field.
Continued29
uu Personal Information u Address Book
System SetupH HOME u Settings u Navigation u Personal Info u Address Book
This section explains how to enter
the name and address.
1.Select the driver to add the new
address.
2. Select Add New Addres
s.
3. Select an item.
The following items are available:
• Na
me: Edits the name of the entry.
•Addr
ess : Edits the address of the entry.
• Phone No. :
Edits the phone number of the entry.
• Catego
ry : Specifies the category of the entry.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 29 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

uu Personal Information u Address Book
30
System Setup
4. Select Name.
5.Enter a name or title. Select OK.
6. Select Addr
ess.
7. Select an
item for specifying the
address.
8. Select OK
when you are done
creating the entry.
1 Adding an Address Book Entry
When you use Place Name, Place Phone Number
or Place Category , the phone number is
automatically entered.
The following items are available:
• Address : Enter
an address on the characte r input screen when prompted.
2Address P. 82
•Place Name : Enter the name of a place/landmark.
2Place Name P. 88
• Place Phone Number : Enter the phone number of a place/landmark.
2Place Phone Number P. 90
• Place Category : Select a category to search for a place/landmark (e.g., Banking,
Lodging).
2 Place Category P. 91
• Previous Destination : Select a previous destination.
2Previous Destination P. 93
• Current Position : Select your current location.
• Mo
re Search Methods : Displays additional search method entries.
2Entering a Destination P. 80
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 30 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

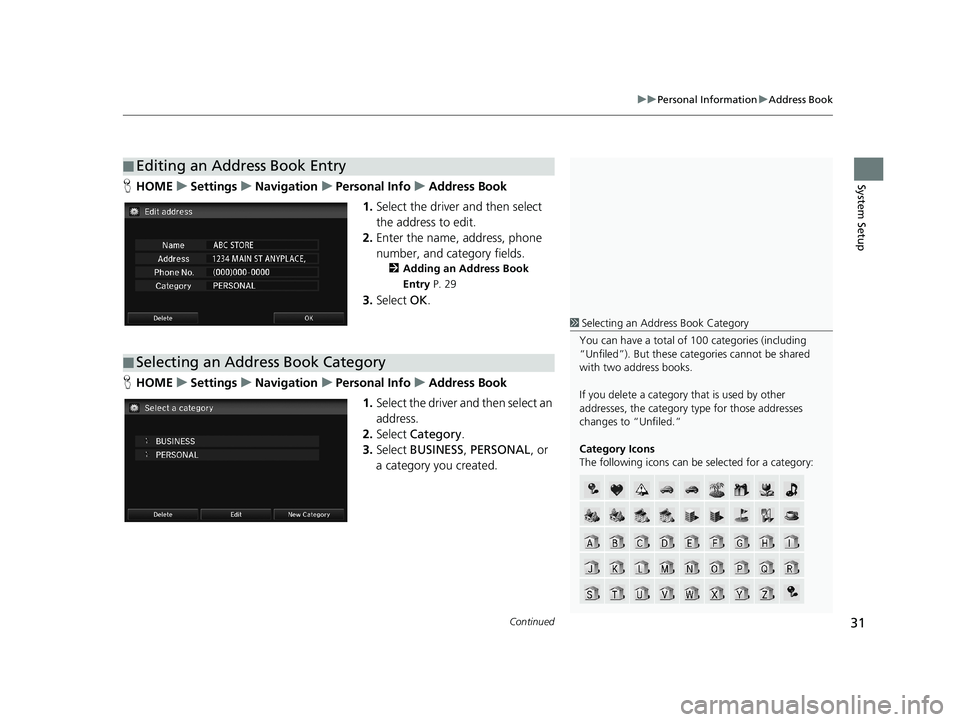

■Editing an Address Book Entry1
Editing an Address Book Entry
The entered contents are displayed on the Edit
address screen.
Continued31
uu Personal Information u Address Book
System SetupH HOME u Settings u Navigation u Personal Info u Address Book
1. Select the driver and then select
the address to edit.
2. Enter the
name, address, phone
number, and category fields.
2 Adding an Address Book
Entry P. 29
3. Select OK.
■Selecting an Address Book Category
1
Selecting an Addr ess Book Category
You can have a total of 100 categories (including
“Unfiled”). But these cate gories cannot be shared
with two address books.
If you delete a category that is used by other
addresses, the category type for those addresses
changes to “Unfiled.”
Category Icons
The following icons can be selected for a category:
HHOME u Settings u Navigation u Personal Info u Address Book
1. Select the driver and then select an
address.
2. Select Ca
tegory.
3. Select BU
SINESS, PERSONAL , or
a category you created.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 31 ページ ２０１４年３月２１日　金曜日　 午後３時２０分
