2014 HONDA CIVIC SEDAN Navigation Manual (in English)

16
Quick Reference GuideTroubleshootingFor more Information (P205)
Why does the vehicle position icon on the map “lag” a
short distance behind my actual position, especially at
intersections?
This is normal. The navigation system is unaware of the
width of intersections. Large di fferences in vehicle position
can indicate a temporary loss of the GPS signal.
Why does the “time to destination” display sometimes
increase even though I am getting closer to my
destination?
The “time to destination” is based on the posted road
speed signs and your actual road speed to give you a
better estimate of arrival time.
How do I specify a destination when an entered city or
street could not be found?
Try entering the street first. Some cities are lumped in
with a major metro area. In rural “unverified” areas or
new subdivisions, streets may be missing or only partially
numbered.
How do I turn on the navigation system voice guidance?
1.Select HOME and then select Settings. Select System ,
and then select Sound/Beep. Check that Volume is
not set to 00.
2.Select Voice Recog on the System se ttings screen, and
set Voice Prompt to On if you want the system to
provide confirmations and system prompts.
My battery was disconnected or went dead, and the
navi
gation system is asking for a code. Where do I find it?
In most cases, you do not need to enter a code. Simply
press an
d hold the
(Audio Power) button for two
seconds; the system should reactivate.
2 System Initialization P. 222
How can I check if my smartphone is compatible with the
system?
Visit the following website:●U.S.: handsfreelink.honda.com .●Canada: www.handsfreelink.ca .
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 16 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

17
How to Use This Manual
This section explains different methods on how you can easily find information in this manual.
ContentsContentsSearching the Table of Contents
(P1)First, find the general chapter related to
what you are looking for (e.g., entering
a destination from the Address Book).
Then, go to that chapter to view a more
specific table of contents.
Searching the Index (P245) This more detailed
table of contents
shows you exactly what information is
listed by section and title.
The Index consists of
main terms and sub-
entries. The sub-entries
help you get to the
desired page depending
on what you are looking
for.
Table of Contents
Chapter Contents
Navigation Screen Index
Two types of Tables of Contents help
you find your desired information.
Menu items displayed on the
navigation screen (e.g., Address Book)
can be found individually in the Index.
More Detailed Contents
Go to the
Next Page
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 17 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

Entering a DestinationAddress Book
Navigation
Address Book
H Address Book
Select an address stored in your address book to use as the destination.\
1.Select the driver.
2. Select your destination from the
list.1Address Book
If you have PIN-protected your address book,
enter your PIN number when prompted. Select
OK . PINs are optional.
2 PIN Numbers P. 36
You can select
Address book screen to add an entry to the
address book.
2 Adding an Address Book Entry P. 31
Add New Address
on the HOMENaviMENU
3.Set the route to your destination.
Select the item on the system
control panel.
Menu Tree
The menu tree helps guide you
through the system’s menu options.
To get to your desired function, follow
the menu tree in order of the steps
shown.
All menu options can also be
activated with voice commands. Select HOME . Select the menu option.After following the menu
tree, step-by-step
instructions explain how to
achieve the desired result.
* Sample pages and images in this se ction may differ from the actual ones. Select
Address Book .
HOME Address Book
MENU
Navi
18
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 18 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

19
System Setup
This section describes the start-up procedure and the navigation and setup functions.
Start-up................................................... 20Voice Control System............................. 22Command Input .................................... 22Voice Recognition .................................. 23Siri Eyes Free .......................................... 24Display Mode Settings........................... 25Turning Off the Display .......................... 25Switching Display Mode Manually .......... 25Personal Information.............................. 27Address Book ......................................... 28Home Addresses .................................... 33PIN Numbers .......................................... 34User Name ............................................. 35Previous Destination ............................... 36Category History .................................... 37
Routing.....................................................38Route Preference ....................................39Unverified Routing ..................................40Traffic Rerouting .....................................42Edit POI Search Radius Along Route ........43Avoided Area ..........................................44Guidance..................................................46Map...........................................................49Showing Icons on the Map .....................51Color ......................................................53View (Map Orientation) ...........................543D Angle Adjustment .............................55Straight Line Guide .................................55Current Location .....................................56Map Legend ...........................................57
Off-road Tracking ................................... 61Correct Vehicle Position ......................... 62System Settings...................................... 63Display Settings...................................... 65Display ................................................... 65Background Color .................................. 66Sound and Beep Settings....................... 67Voice Recognition Settings.................... 69Clock Adjustment.................................... 70Clock Type ............................................. 71Wallpaper Settings ................................. 72Adjust Time............................................ 75Resetting the Clock Settings ................... 75Other Settings......................................... 76Data Reset............................................... 78
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 19 ページ ２０１４年３月２１日　金曜日　午後３時２０分

20
System Setup
Start-up
1Start-up
Do not use the smartphone while driving.
Avoid focusing on the scre en and drive safely
following the actual traffic restrictions.
If the navigation system lo ses power at any time, you
may need to press and hold the (Audio Power)
button for more than two seconds, or you may be
prompted for the 5-digit security code. 2 System Initialization P. 222
You can change the system language at any time. 2 Language P. 77
OK on the Confirmation screen cannot be selected
by using a voice command.
If Remember Last Screen is set to On, the top
screen of the last mode is displayed after the HOME
screen. 2 Other Settings P. 76The navigation system starts automatica lly when you set the power mode to
ACCESSORY or ON. At start-up, the follo wing Confirmation screen is displayed.
Select OK.
u The H
OME screen is displayed.
uIf y
ou do not select OK , the HOME
screen is displayed after a certain
period of time.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 20 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

■Limitations for Manual Operation
Disabled option
21
uu
Start-up u
System SetupCertain manual functions are
disabled or inop erable while the
vehicle is in motion. You cannot
select a grayed out option until the
vehicle is stopped.
Voice commands are still operable
while the vehicle is in motion.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 21 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

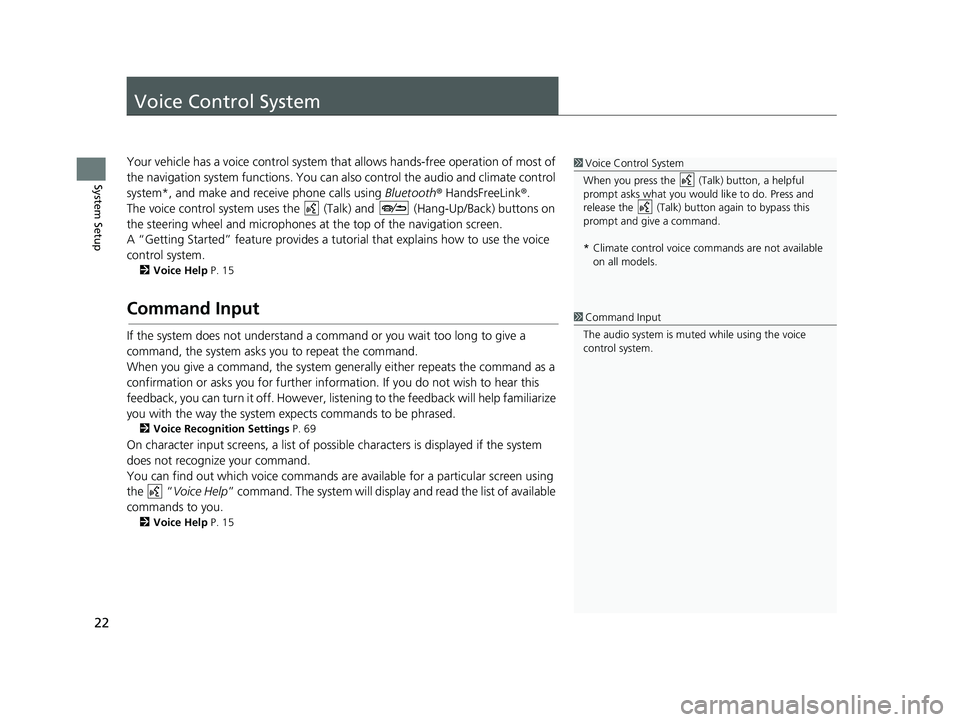

22
System Setup
Voice Control System
1Voice Control System
When you press the (Talk) button, a helpful
prompt asks what you would like to do. Press and
release the (Talk) butt on again to bypass this
prompt and give a command.
* Climate control voice commands are not available
on all models.Your vehicle has a voice control system that allows hands-free operation of most of
the navigation system functions. You can also control the audio and climate control
system*, and make and re ceive phone calls using Bluetooth® HandsFreeLink ®.
The voice control system uses the
(Talk) and (Hang-Up/Back) buttons on
the steering wheel and microphones at the
top of the navigation screen.
A “Getting Started” feature provides a tutorial that expla
ins how to use the voice
control system.
2 Voice Help P. 15
Command Input1 Command Input
The audio system is muted while using the voice
control system.
If the system does not understand a command or you wait too long to give a
command, the system asks you to repeat the command.
When you give a command, the system gene rally either repeats the comm
and as a
confirmation or asks you for further information. If you do not wish to hear this
feedback, you can turn it off. However, list ening to the feedback will help familiarize
you with the way the system expects commands to be phrased.
2 Voice Recognition Settings P. 69
On character input screens, a list of possibl e characters is displayed if the system
does not recognize your command.
You can find out which voice commands ar e
available for a particular screen using
the
“ Voice Help ” command. The system will display and read the list of available
commands to you.
2 Voice Help P. 15
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 22 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

23
uu Voice Control System u Voice Recognition
System Setup
Voice Recognition
To achieve optimum voice recognition when using either the navigation voice
control system or Bluetooth® HandsFreeLink®:
• Make sure the correct screen is displayed for the voice command that you are
using.
2Voice Commands P. 234
• Close the windows and moonroof.
• Adjust the dashboard and side vents so air does not blow onto the microphones
at the top of the navigation screen.
• Speak clearly in a clear, natural speaking voice without pausing between words.
• Reduce any background noise if possible. The system may misinterpret your
command if more than one person is speaking at the same time.
• Refer to the Voice Help tutorial.
2Voice Help P. 15
