2014 HONDA CIVIC SEDAN Navigation Manual (in English)

■Radio Data System1
Radio Data System
To update the station li st manually, select Refresh.
uu Playing FM/AM Radio u Audio Menu
136
Audio
H HOME u Audio (in FM/AM mode) u MENU u Station List
Provides text data information related to
your selected RDS-capable FM station.
Select one of the lists.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 136 ページ ２０１４年３月２１日　金曜日　午後３時２０分

137
Audio
Playing XM® Radio
Selecting XM Mode
1Playing XM ® Radio
“ Radio select XM ”, “Radio XM ”
You can control the radio using voice control
commands. 2 Radio Commands P. 237
A visual guide helps you operate the audio system.
2 System Controls P. 4
2 Basic Operation P. 9
In the channel mode, all available channels are
selectable. In the categor y mode, you can select a
channel within a ca tegory (Jazz, Rock, Classical, etc.).
There may be instances when XM Radio does not
broadcast all the data fields (artist name, title). This
does not indicate a problem with your audio system.
You can store 12 XM stat ions in the presets.
XM Radio display messages will be displayed on the
audio screen. 2 XM Radio Display Messages P. 1401.Select Audio on the HOME screen.
2. Select
SOURCE.
3. Select
the XM icon.
4.Select
the channel with Category or Channel , or open the tab
and select from stored presets.
uThe ch
annel is displayed.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 137 ページ ２０１４年３月２１日　金曜日　午後３時２０分

138
uu Playing XM ® Radio u Audio Screen Control
Audio
Audio Screen Control
H HOME u Audio u SOURCE u XM icon
Control the audio system th rough the navigation screen.
Operation panelBand
1.
Select the open/close tab on the
operation panel to display the
preset station list.
u You can
also display the list by
selecting the channel name.
2. Select a
preset station.
u Select and hold a
preset until a
beep sounds to store the
current station as a preset.
Preset list
The following items are available:
• Category : Display and select an XM ® Rad
io category.
•Channel : Select the previous or next channel.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 138 ページ ２０１４年３月２１日　金曜日　午後３時２０分

139
uu Playing XM ® Radio u Audio Menu
Audio
Audio Menu
H HOME u Audio (in XM mode) u MENU
Select an item.
The following items are available:
• Scan : S
cans for channels in the selected mode and plays a 10-second sample.
Select Ca
ncel to stop scanning and pl ay the current selection.
• Save Pr
eset : Stores the station into the preset memory.
• C
hange Source : Changes the audio source mode.
• Ch
annel List : Displays the list of available channels.
• XM Tune
Mode: Sets Channel Mode or Category Mode .
– Ch
annel Mode : Scans to select all available channels.
– Cate
gory Mode : Scans to select a channel within a category (Jazz, Rock,
Classic, etc.).
• So
und : Displays the sound preferences screen.
2Adjusting the Sound P. 132
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 139 ページ ２０１４年３月２１日　金曜日　午後３時２０分

140
uu Playing XM ® Radio u XM ® Radio Service
Audio
XM ® Radio Service
■ Subscribing to XM Radio1
Subscribing to XM Radio
Contact Information for XM Radio:
U.S.: XM Radio at www.siriusxm.com , or 
(800) 852-9696
Canada: XM Canada at www.xmradio.ca, or 
(877) 209-0079
1. Retrieve your radio ID before registering for subscription.
u T
o see the radio ID, select (channel) to select “000” channel. You can also
select “000” channel from Channel List.
2. Hav
e your radio ID and credit card number ready, and either call XM or visit the
XM website to subscribe.
■Receiving XM Radio1
Receiving XM Radio
The XM satellites are in orbit over the equator;
therefore, objects south of the vehicle may cause
satellite rece ption interruptions. Sa tellite signals are
more likely to be blocked by tall buildings and
mountains the farther north you travel from the
equator.
You may experience rece ption problems under the
following circumstances:
•In a location with an obstruction to the south of
your vehicle
•In tunnels•On the lower level of a multi-tiered road
•Large items are carried on the roof rack
Select the XM icon and stay in this mode for about 30 minutes until the service is
activated. Make sure your vehicle is in an open area with good reception.
■XM Radio Display Messages
Loading
: XM is loading the audio or program information.
Channel Off Air : The ch
annel is not currently broadcasting.
Channel Not Authorized : Th
e encryption code is being updated. Channels 0 and
1 still work normally.
No Signal : The signal is too we
ak in the current location.
Channel Not Available :
No such channel exists, the channel is not part of your
subscription, or the artist or ti tle information is not available.
Check Antenna : T
here is a problem with the XM antenna. Contact a dealer.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 140 ページ ２０１４年３月２１日　金曜日　午後３時２０分

141
Audio

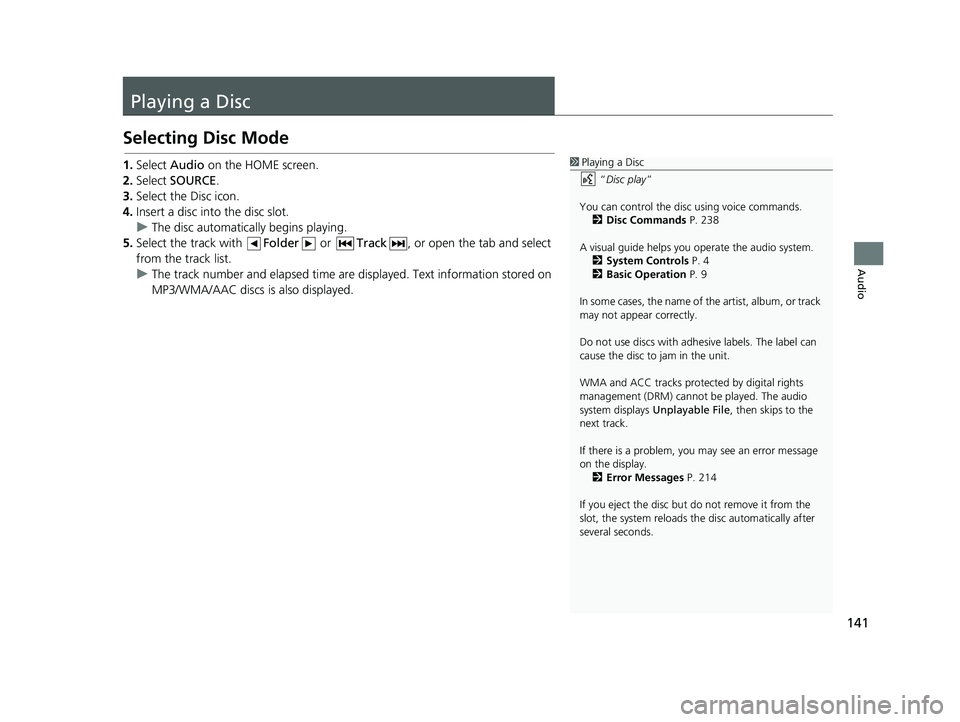

Playing a Disc
Selecting Disc Mode
1Playing a Disc
“Disc play ”
You can control the disc using voice commands. 2 Disc Commands P. 238
A visual guide helps you operate the audio system.
2 System Controls P. 4
2 Basic Operation P. 9
In some cases, the name of the artist, album, or track
may not appear correctly.
Do not use discs with adhe sive labels. The label can
cause the disc to jam in the unit.
WMA and ACC tracks protected by digital rights
management (DRM) cannot be played. The audio
system displays Unplayable File , then skips to the
next track.
If there is a problem, you may see an error message
on the display.
2 Error Messages P. 214
If you eject the disc but do not remove it from the
slot, the system reloads the disc automatically after
several seconds.1. Select Audio on the HOME screen.
2. Select
SOURCE.
3. Select
the Disc icon.
4.Insert
a disc into the disc slot.
u The dis
c automatically begins playing.
5. Select
the track with Folder or Track , or open the tab and select
from the track list.
uThe track num
ber and elapsed time are displayed. Text information stored on
MP3/WMA/AAC discs is also displayed.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 141 ページ ２０１４年３月２１日　金曜日　午後３時２０分

142
uu Playing a Disc u Audio Screen Control
Audio
Audio Screen Control
H HOME u Audio u SOURCE u Disc icon
Control the audio system th rough the navigation screen.
Disc mode
Operation panel1. Select the open/close tab on the
operation panel to display the
track list.
u You can
also display the list by
selecting the track name.
2. Select a
track.
u Select the (folder) tab to
display the list of folders on
MP3/WMA/AAC discs having a
folder structure.
2Playing MP3/WMA/AAC Discs
P. 143
Track list
The following items are available, depending on the type of disc:
• Folder : Select the previous or next folder on MP3/WMA/AAC discs having
a folder structure.
• Track : Select the previous or next track . Select and hold to move ra
pidly
within a track.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 142 ページ ２０１４年３月２１日　金曜日　午後３時２０分

143
uu Playing a Disc u Playing MP3/WMA/AAC Discs
Audio
Playing MP3/WMA/AAC Discs
1 Playing MP3/WMA/AAC Discs
Folder List
•Any tracks not in a folder are automatically added
to a Root folder, which is displayed at the top of
the folder list.
•If the root folder has addi tional folders in a lower
layer, they are listed on the screen.
H HOME u Audio u SOURCE u Disc icon
Change the folder on MP3/WMA/AAC discs th at
have tracks stored in a folder
structure.
Folder list
1. Select the (folder) tab on the
track list.
2. Select a
folder.
u The syste
m displays the track
list.
3. Select a
track.
u The sys
tem begins playing the
selected track.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 143 ページ ２０１４年３月２１日　金曜日　午後３時２０分
