2014 HONDA CIVIC SEDAN Navigation Manual (in English)

48
uu Guidance u Guidance Mode
System Setup
• 2 (Direction List): Displays the map and direction list simultaneously on the map
screen. When you approach a guidance point, the next guidance point appears.
Near the next
guidance point
Direction List screen
Next Maneuver screen
Next guidance point
Guidance direction list
•3 (Next Maneuver): Displays the map and next guidance point simultaneously on
the map screen.
Near the next
guidance point
Next Maneuver screen
Next Maneuver screen
Next guidance point
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 48 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

49Continued
System Setup
Map
HHOME u Settings u Navigation u Map
Select the landmark icons to display on the map
, change the orientation of the map,
display your current location, and learn the meaning of the icons, colors, and
symbols displayed on the map.
Select an item.
The following items are available:
• Sh
ow Icon on Map : Selects the icons to display on the map.
2Showing Icons on the Map P. 51
• Color (Day) : Selects the color of the map for the Day mode.
2Color (Day) P. 53
• Color (Night) : Selects the color of th e map for the Night mode.
2Color (Night) P. 53
• View : Selects the map orientation (No rth-up, Heading-up, or 3D map).
2View (Map Orientation) P. 54
• 3D Angle Adjustment : Adjusts the viewing angle for the 3D map.
23D Angle Adjustment P. 55
• Straight Line Guide : Sets whether to display a straight guideline to the
destination or waypoint.
2 Straight Line Guide P. 55
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 49 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

50
uu Map u
System Setup
•Current Location: Displays and saves your current location.
2Current Location P. 56
•Map Legend: Displays an overview of the map features.
2Map Legend P. 57
•Off-road Tracking: Sets whether to display the tracking dots on the map.
2Off-road Tracking P. 61
•Correct Vehicle Position: Adjusts the position of the vehicle on the map.
2Correct Vehicle Position P. 62
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 50 ページ ２０１４年３月２１日　金曜日　午後３時２０分

51
uu Map u Showing Icons on the Map
Continued
System Setup

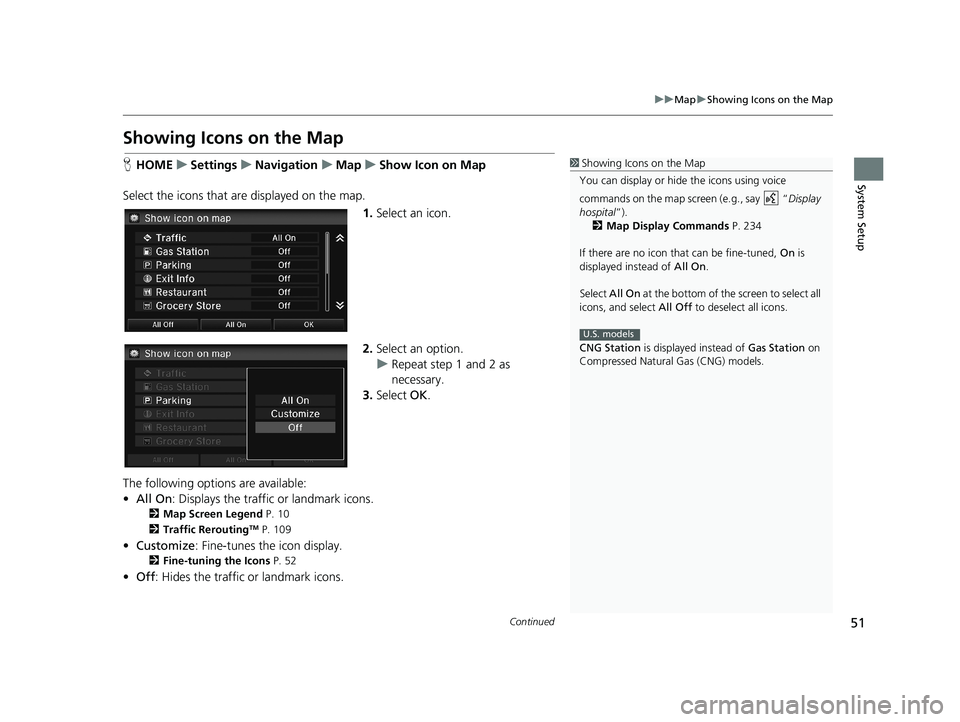

Showing Icons on the Map
1 Showing Icons on the Map
You can display or hide the icons using voice
commands on the map screen (e.g., say “ Display
hospital ”).
2 Map Display Commands P. 234
If there are no icon that can be fine-tuned, On is
displayed instead of All On.
Select All On at the bottom of the screen to select all
icons, and select All Off to deselect all icons.
CNG Station is displayed instead of Gas Station on
Compressed Natural Gas (CNG) models.
U.S. models
H HOME u Settings u Navigation u Map u Show Icon on Map
Select the icons that ar e
displayed on the map.
1.Select an icon.
2.Select an option.
u Repeat step 1 and 2 as
necessary.
3. Select OK.
The following options are available:
• All On : Di
splays the traffic or landmark icons.
2Map Screen Legend P. 10
2 Traffic ReroutingTM P. 109
• Customize : Fine-tunes the icon display.
2Fine-tuning the Icons P. 52
• Off : Hides the traffic or landmark icons.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 51 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

■Fine-tuning the Icons1
Fine-tuning the Icons
Select All On to select all icons, and select All Off to
deselect all icons.
CNG Station is displayed only on Compressed
Natural Gas (CNG) models.
U.S. models
uu Map u Showing Icons on the Map
52
System SetupH HOME u Settings u Navigation u Map u Show Icon on Map
Icons in some categories can be
fine-tuned to display or hide.
1.Select an icon, and then select
Customize .
2. Select
the icons to display on the
map.
u Selecting toggles the
icon
display on or off.
u Rep
eat the procedure as
necessary.
3. Select OK.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 52 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

53
uu Map u Color
System Setup
Color
Set separate map colors for Day and Night modes.
■Color (Day)
1
Color (Day)
The factory default is set to White.
HHOME u Settings u Navigation u Map u Color (Day)
1. Select a color for the Day mode.
2. Select OK.
■Color (Night)1
Color (Night)
The factory default is set to Blue.
HHOME u Settings u Navigation u Map u Color (Night)
1. Select a color for the Night mode.
2. Select OK.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 53 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

54
uu Map u View (Map Orientation)
System Setup
View (Map Orientation)
H HOME u Settings u Navigation u Map u View1 View (Map Orientation)
“Display Heading-up ” (on Voice Portal screen),
“ Display North-up ” (on Voice Portal screen), 
“ Display 3D map ” (on Voice Portal screen)
The map orientation can also be selected from the
map menu, or by selecting the orientation icon.
The red arrow in the symbol always points North.
The heading-up view switch es to the north-up view
on map scales greater than 2 miles (3 km). The 3D
map view switches to th e north-up view on map
scales greater than 5 miles (8 km).
The bird’s eye view map switches to the Heading-up
map while scrolling the map.
The viewing angle for the bird’s eye view can be
adjusted. 2 3D Angle Adjustment P. 55
Select the map orientation.
1.Select an option.
2. Select OK.
The following options are available:
• North-Up: Displays the map wi th
North always pointing up.
• Heading-Up: Displays the map so that th e direction you are traveling is always
pointing up.
• 3D Map: Displays th e bird’s eye view ma
p.
14 CIVIC 2D 4D IMA NAVI-31TR38200.book 54 ページ ２０１４年３月２１日　金曜日　 午後３時２０分

55
uu Map u 3D Angle Adjustment
System Setup
3D Angle Adjustment
H HOME u Settings u Navigation u Map u 3D Angle Adjustment
Adjust the viewing angle.
1. Select or to adjust the
angle.
2. Select OK.
u Yo
u can also slid e or flick the
bar to adjust the angle.
Straight Line Guide
H HOME u Settings u Navigation u Map u Straight Line Guide
Set whether to display a straight guid e
line to the destination or waypoint.
Select an option.
The following options are available:
• On (fac
tory default): Displays the straight guideline on the map.
•Off :
Disables the feature.
