2014 AUDI A7 Owners Manual

Multifunction button
Applies to vehicles: with memory function
You con adjust the massage function, Lumbar
support, side bolsters and seating surface us­ ing the multifunction button .
Fig. 47 MMI disp lay : sea t sett ings
Operating
.. The MMI displays the possible seat settings
@ when you turn the multifunction button
(D c:> page 54, fig. 46 to the left or right
~ fig. 47 , c:> ,& .
.. To select a seat setting, turn the multifunc­
tion button
(D until the desired seat setting
is highlighted with a red border.
• The arrows @ indicate the possible adjust­
ments. For example, to move the lumbar
support down, press the multifunction but ­
ton
(D down . The corresponding arrow ©
lights up.
T he follow ing seat settings @ are possible:
Massage function* -Massage type Wave,
Knocking, Stretch, Lumbar, Shoulder or Off .
You can set the massage strength level from 1
to 5. You can turn the selected massage on/
off using the button @~
page 54, fig . 46 .
Lumbar support -Moving the lumbar support
up/down and making it firmer/softer
c:> .&. .
Side bolsters * -Increasing/reducing the side
support in the seat using the side bolsters on
the seating surface and backrest
c:> A .
Seating surface -Making the seating surface
l onger/shorter
c:> .&. .
Seats and storage 55
A WARNING
-Never adjust the driver's or front pas­
senger's seat while the vehicle is moving.
If you do this while the veh icle is moving,
you will be out of position . A lways adjust
the driver's or front passenger's seat
when the vehicle is not moving.
- Be careful when adjusting the seat
he ight. Check to see that no one is in the
way, or serious injury could result!
- Because the seats can be electrically ad­
justed with the ignit ion off, never leave
children unattended in the vehicle. Unsu­
pervised use o f the electric seat adjust­
ments may cause serious injury.
- To reduce the risk of injury in the case of
sudden braking or accident, front pas­
sengers must never ride in a moving ve­
hicle with the backrest reclined. Safety
belts and the airbag system on ly offer
maximum protection when the backrest
is upright and the safety belts are prop­
erly positioned on the body . The more
the backrest is reclined, the greater the
ris k of persona l inju ry from an incorrect
seating position and improperly posi­
tioned safety belts.
(D Tips
- The massage function switches off auto­
matically after approximately 10 mi­
nutes.
- Th e side bolsters* deflate when the driv­
er's doo r is opened. This allows you to
enter and exit comfortably. The side bol­
sters inflate again once you begin driv­
ing.

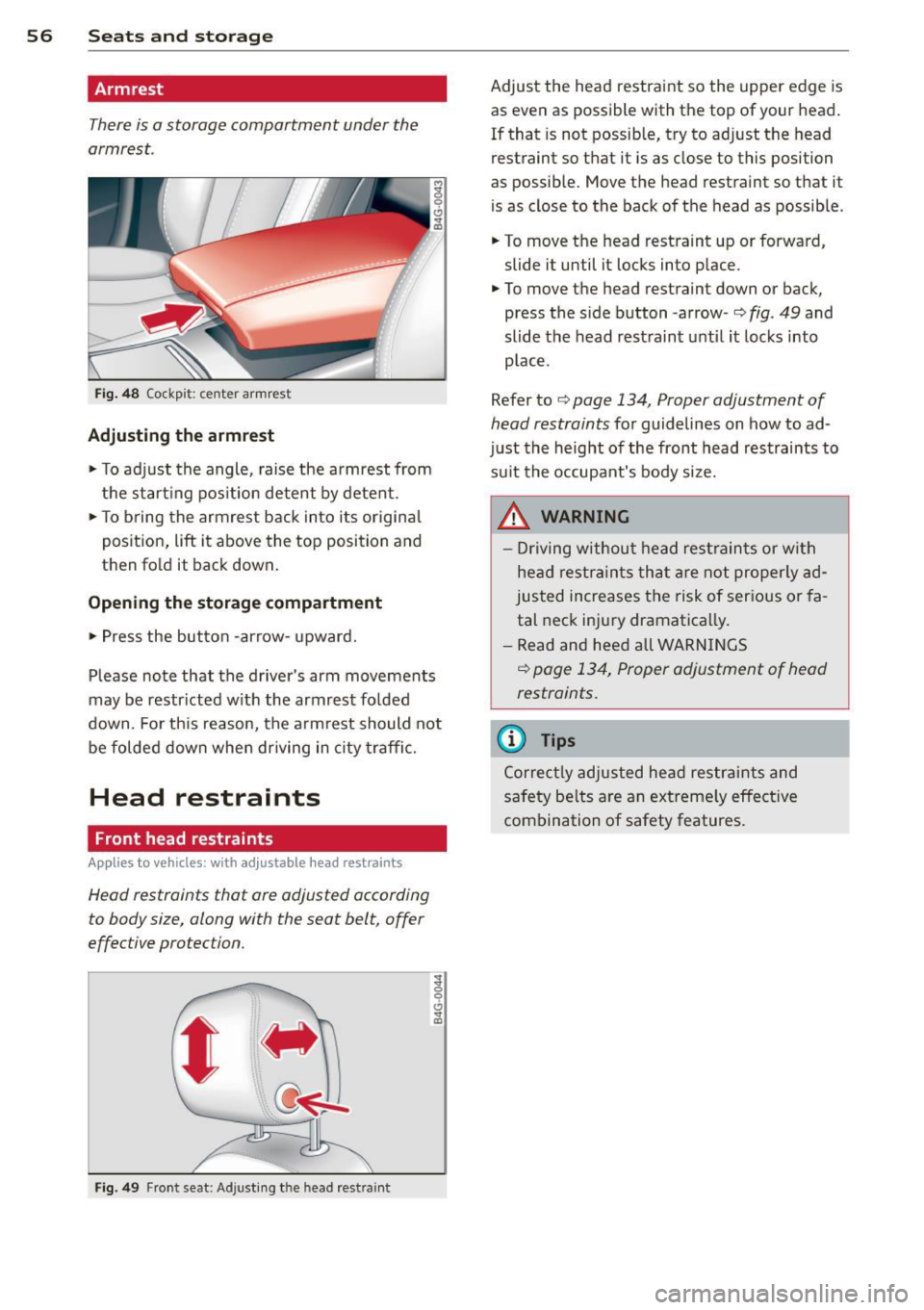

56 Seats and storage
Armrest
Th ere is a storage compartment under the
armrest.
F ig. 48 Cockp it : center arm rest
Adjusting th e armrest
• To ad just the angle, raise the armrest from
the start ing pos ition detent by detent.
• To bring the armrest back into its original
position, lift it above the top position and
then fold it back down .
Opening th e storage compartment
• Press the button -arrow-upward.
Please note that the driver's arm movements
may be restr icted w ith the armrest fo lded
down. Fo r th is reason, the armrest should not
be folded down when driving in city traffic.
Head restraints
Front head restraints
App lies to vehicles: with adjustable head restrain ts
Head restraints that are adjusted according
to body size, along with the seat belt, offer
effective protection.

F ig . 49 Fr ont seat: Adjusting t he head res tra int
Adjust the head restraint so the upper edge is
as even as possible with the top of your head.
If that is not possible, try to adjust the head
restraint so that it is as close to this position
as possible. Move the head restraint so th at it
is as close to the back of the head as possib le .
• To move the head restraint up or forward,
slide it until it locks into place.
• To move the head restraint down or back,
press the side button -arrow -
c::> fig. 49 and
slide the head restraint unt il it loc ks into
p lace.
Refer to
c::> page 134, Proper adjustment of
head restraints
fo r guidelines on how to ad­
just the height of the front head restraints to
su it the occupant's body size.
_& WARNING
- Dr iving w ithou t hea d rest rain ts or with
hea d restra ints tha t ar e no t properly ad­
justed increases t he risk of ser ious or fa­
tal neck injury dramatica lly.
- Read and heed all WARN INGS
c::> page 134, Proper adjustment of head
restraints.
(D Tips
Cor rec tly adjusted hea d restr aints and
s a fety be lt s are an extreme ly effe ctive
com bination of safety features.
-

Rear head restraints
/
Fig. SO Rear seats : Head restra int
Fig. 51 Rear head restra ints: re lease
If there is a passenger in the rear center seat­
ing position*, slide the center head restraint*
upward at least to the next notch
Q ,&..
Adjusting the head restraints
.. To move the head restraint up, hold it at the
sides with both hands and slide it upward
until you feel it lock into place
Q .&. in Prop­
er adjustment of head restraints on
page 134.
.. To move the head restraint down, press the
button -arrow-
Q fig. 50 and sl ide the head
restraint downward .
Removing the head restraints
.. Fold the backrest forward Q page 65.
.. Move the head restraint upward as far as it
can go .
.,. Press the release
Q fig. 51 with the mechan­
ical key
9 page 33 and the button -arrow-
9 fig. 50. Pull the head restraint out of the
backrest at the same time
9 ,&..
Seats and storage 57
Installing the head restraints
.. Slide the posts on the head restraint down
into the guides until you feel the posts lock
into place .
.. Press the button -arrow-
Q fig. 50 and slide
the head restraint all the way down. You
should not be able to pull the head restraint
out of the backrest.
So that the driver can have a better view to
the rear, the head restraints should be pushed down completely when the rear seats are not
occupied.
A WARNING
- Only remove the rear seat head restraints
when necessary in order to install a child
seat. Install the head restra int again im­
mediately once the child seat is removed.
Driving without head restraints or with
head restraints that are not properly ad­
justed increases the risk of serious or fa­
tal neck injury dramat ica lly.
- Read and heed all WARNINGS
¢page 134.
Seat memory
Description
Applies to veh icles: w it h memory f unction
The memory function allows you to quickly
and easily store and recall personal seating profiles for the driver and front passenger*.
T he memory function is operated through the
master key and the memory buttons in the
driver's/front passenger's* doors.
The driver's seating profile is stored and as­
s ig ned to the master key each time the vehicle
is locked. The seating profile is recalled auto­
matically when the vehicle is unlocked. If two
people use one vehicle, it is recommended
that each person always uses "their own"
master key .
Two seating profiles can be stored in each of
the driver's/front passenger's* doors. Once
stored, these seat ing profiles can be recalled
at any time.

58 Seats and storage
The follow ing settings are stored:
Remote Memory button
control
master key
Driver Driver Front passen-ger
Seat X X X
Steering X X
wheel*
Both exterior
X X
rearview mir -
rors*
Remote control key
Applies to vehicles: with memory function
To assign the driver's seat settings to the re­
mote control key when locking the vehicle, the
function must be switched on.
> Select: I CARI funct ion button> (Car)* sys­
tems
control button > Vehicle settings >
Seats > Driver seat > Remote control key >
On.
I@ Tips
If you do not want another driver's set­
tings to be assigned to the remote control
key, switch off the memory function using
the MMI or the
I OFF ! button c:::> page 58.
Memory buttons
Applies to vehicles: with memory function
Fig. 52 Driver's doo r: memory function buttons
The memory buttons are located in the driv­
er's/fro nt passenger's* door .
> To store a seating profile, press the ISE T!
but ton and then one of the memory but­
tons.
> To recall a seating profile, press and hold
the memory button until the seat is adjust­ ed to the stored settings.
> To switch the memory function for the driv­
er or front passenger off, press the
I OF F I
button . The word OFF lights up when the
memory function is switched off . Seating
p ro fil es w ill not be sto red .
A WARNING
- F or safety reasons, the seat setting
should only be recalled when the veh icle
is stationary -otherwise you risk having
an accident.
- If necessary, you stop the process by
pressing the
I OFF ! button or any of the
memory buttons.
Adjusting the front passenger seat in
the MMI
Applies to vehicles: with memory function
The driver can adjust the position of the front
passenger seat.
Adjusting the front passenger seat from
the driver's side
> Select: !CARI function button> (C ar) * sys­
tems
control button > Vehicle settings >
Seats> Front passenger seat > Adjust seat
position .
> You can now adjust the front passenger seat
using the buttons on the driver's seat
c:::> page 54, fig. 46.
Matching the position of the driver's seat
> To adjust the front passenger seat to match
the driver's seat settings, select the
ICARI
function button > ( Car)* systems control
button >
Vehicle settings > Seats > Front
passenger seat> Symmetry to driver seat.
> Press and hold the control knob unt il the ad­
justment process is complete.

@ Tips
When matching seat settings, the settings for the lumbar support and seating sur-
face w ill not transfer to the front passeng­
er's seat.
Ashtray
Applies to vehicles: with ashtray
Fig. 53 Center conso le : fron t asht ray•
Fig. 54 Rear a sh tray
Opening/closing
~ To open the front ashtray, slide the cover up .
~ To close the front ashtray, press down on
the cover.
~ To open the rear ashtray, tap the cover on
the rim.
Emptying
~ To empty the front ashtray , pull it upward
and o ut.
~ To empty the rear ashtray, press the rear
s ide of the cover down when it is open
~ fig. 54. The ashtray will lift up out of its
mount.
~ To insert the ashtray again, press it down in­
to the mount until it locks into place.
Seats and storage 59
A WARNING
Never put waste paper in the ashtray. Hot
ashes or other hot objects in the ashtray
could set waste paper on fire.
Cigarette lighter
Applies to vehicles: with cigarette lighter
Fig. 55 Center console: c iga rette lighte r
~ Push the knob on the cigarette lighter in.
~ Remove the cigarette lighter when it pops
out .
A WARNING ,_
The c igarette lighter only works when the
ignition is switched on. Incorrect usage
can lead to serious injuries or burns. For
this reason, children should never be left
unattended in the veh icle because this in­
creases the risk of injury.

60 Seats and st o rage
12-volt sockets
Appl ies to vehicles: wit h 12-volt sockets
Fig. 56 Sect ion of the trim panel o f th e luggage com ·
par tm ent: 12-vol t so cket
-
Fig. 57 R ear cente r co nso le: 12-vo lt socke t
,. To reach the 12-volt socket in the luggage
compartment, press the net down or re­
move the bracket from the mounts
c:> fig . 56 .
There is an additional 12-vo lt socket in the
front and rear center console~
fig. 57.
0 5 0 6
~
The 12-volt sockets may be used for 12-volt
appliances with maximum consumption of up
to 120 watts.
Before you purchase any accessories, always
read and fo llow the information in
c:> page 287, Additional accessories and parts
replacement .
A WARNING
The sockets and the e lectrical accessories
connected to them operate only when the
ign ition is switched on. Incorrect usage
can lead to serious injur ies or burns. To re·
duce the risk of injuries, never leave chi l­
dren unattended in the vehicle w ith the ve­
hicle key.
(D Note
To avoid damaging the socket, only use plugs that fit properly.
- Never connect equipment that generates
electrical current, such as a solar pane l
or battery charger, to the 12-vo lt socket.
This could damage the vehicle's electri­ cal system.
- The 12-vo lt socket should on ly be used
for a short period of ti me as a power
source for electrical equ ipment . Please
use the electrical sockets in the vehicle
when connecting equ ipment for longer
periods.
- To avoid damaging the socket , only use
plugs that fit properly.
(0 Tips
When the engine is off and accessories are
still plugged in and are on , the vehicle bat­
tery can still be drained.
Storage
Cupholder

F ig. 58 Ce nter co ns ole: c upho lde r
Fig . 59 Rear ce nter a rmrest : cupho ld er exte nded

Front cupholder
• To open the cupholder, tap the cover
¢fig. 58.
Rear cupholder
• To open the rear cupholder, press on the
symbol
W @ ¢ fig. 59.
• To adjust the arm@, swing it in the direc­
t ion of the arrow.
• Place the beverage in the holder and release
the arm. The arm swings back by itself and
automatically secures the beverage.
• To close the rear cup holder, press on the
center section between the two arms and
push the cupholder in the slot as far as it
will go .
& WARNING
Spilled hot liquid can cause an accident
and personal injury.
- Never carry any beverage containers with
hot liquids, such as hot coffee or hot tea,
in the vehicle while it is moving . In case
of an accident, sudden braking or other
vehicle movement, hot liquid could spill,
causing sca lding burns. Spilled hot liquid
can a lso cause an accident and personal
injury.
- Use only soft cups in the cupholder . Hard
cups and g lasses can cause injury in an
accident.
- Never use the cupholder or adapter as an
ashtray -risk of fire.
(D Note
On ly drink containers with lids should be
carried in the cupho lder. Liquid could spill
out and damage your vehicle's electronic
equipment or stain the upholstery, etc.
Seats and storage 61
Cooled glove compartment
Applies to vehicles: w ith cooled g love compart men t
The cooled glove compartment only functions
when the AIC system is switched on .
Fig. 60 Glove compartment: sw it c h in g cooling mode
on/off
• Turn the knob@counterclockwise to switch
cooling on. The symbols on the knob indi­
cate the correct position .
• Turn the knob @clockwise to switch cooling
off.
The glove compartment cooling mode only
functions when the vehicle A/C system is
switched on . If the heating is switched on,
switching the glove compa rtment cooling
mode off is recommended.
& WARNING ~ -
Always leave the lid on the glove compart­
ment cover closed while driving to reduce
the r isk of injury.
Additional storage
There are a variety of storage compartments
and fasteners in various places in the vehicle .
- Storage compartments in the doors
- Compartment in the glove compartment
(coo led*) . Th e g love compartment can be
locked using the mechanica l key ¢
page 33.
-Storage compartment for (sun)glasses* in
the roof (near the interio r mirror)
- Storage compartments under the center
armrests
- Storage compartment on the rear side of
the front seat*. The compartment can hold a
maximum weight of 1 kg. ..,..

62 Seats and storage
-Compartments* on the back of the front
seat backrests
- Garment hooks on the sides of the pillars in
the rear of the vehicle and in the rear grab
handles
- Compartment in the rear center armrest
- Storage in the trim panels in the luggage
compartment
~ WARNING
-
- Always remove objects from the instru­
ment panel. Any items not stored could
slide around inside the vehicle while driv­
ing or when accelerating or when apply­
ing the brakes or when driving around a
corner.
- When you are driving make sure that
anything you may have placed in the cen­
ter console or other storage locations
cannot fall out into the footwells. In case
of sudden braking you would not be able
to brake or accelerate.
-Always keep the lid of the compartment
for (sun)glasses* closed while driving to
reduce the risk of injury during a sudden
braking maneuver or in the event of an
accident.
- Any articles of clothing that you have
hung up must not interfere with the driv­
er's view. The coat hooks are designed
only for lightweight clothing. Never hang
any clothing with hard, pointed or heavy
objects in the pockets on the coat hooks.
During sudden braking or in an accident -
especially
If the airbag is deployed -
these objects could injure any passen­
gers inside the vehicle.
- To reduce the risk of personal injury in an
accident or sudden stop, always keep the
glove compartment closed while driving.
- Read and follow all WARNINGS
~ page 171, Important safety instruc­
tions on the side airbag system.
-Hang clothes in such a way that they do
not impair the driver's vision.
- The coat hooks must only be used for
lightweight clothing. Do not leave any
heavy or sharp edged objects in the pock- ets which may interfere with the side cur­
tain airbag deployment and can cause
personal
injury in a crash.
- Do not use coat hangers for hanging
clothing on the coat hooks as this can in­
terfere with proper deployment of the side curtain airbags in an accident.
- Do not hang heavy objects on the coat
hooks, as they could cause personal in­
jury in a sudden stop.
(D Note
Objects located on the rear shelf that rub
against the rear window could damage the heating wires for the rear window defog-
ger .
Roof rack
Description and mounting locations
Additional cargo can be carried with a roof
luggage rack.
Fig. 61 Roof rack attachment po ints
... Always read and follow the instructions pro­
vided by the roof rack manufacturer when installing the roof rack system.
If luggage or cargo is to be carried on the
roof, you must observe the following:
- Only use roof racks approved for your vehi­
cle. These approved roof racks are the basis
for a complete roof rack system. Additional
attachments or carrier systems are needed
to transport luggage and sports equipment.
We recommend using roof racks from the
Audi original accessories program . .,..
