2013 TOYOTA AURIS TOURING SPORTS Owners Manual

3455-2. Using the audio system
Auris Touring Sports_EE (OM12G12E)
5
Interior features
Displays the current mode
Changes the following set-
ting
• Sound quality and volume bal-
ance (P. 346)
The sound quality and balance set-
ting can be changed to produce the
best sound.
• Automatic Sound Levelizer
(P. 346)
Selecting the mode
Changing sound quality modes
Press .
Turn to select “Sound Setting”.
Press .
Turn to select the desired mode.
“BASS”,“TREBLE”,“FADER”,“BALANCE”, or“ASL”
Press .

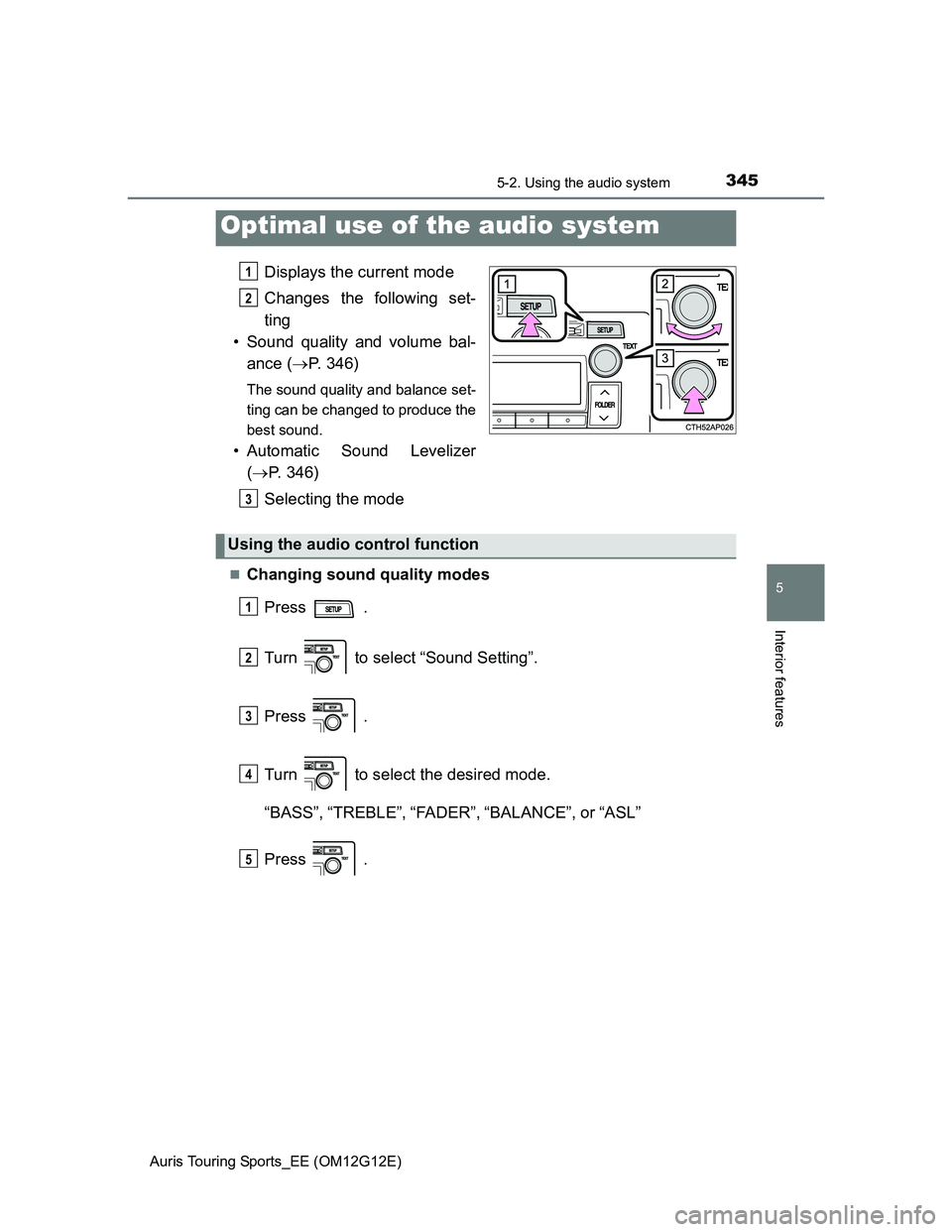

Optimal use of the audio system
1
2
3
Using the audio control function
1
2
3
4
5

3465-2. Using the audio system
Auris Touring Sports_EE (OM12G12E)

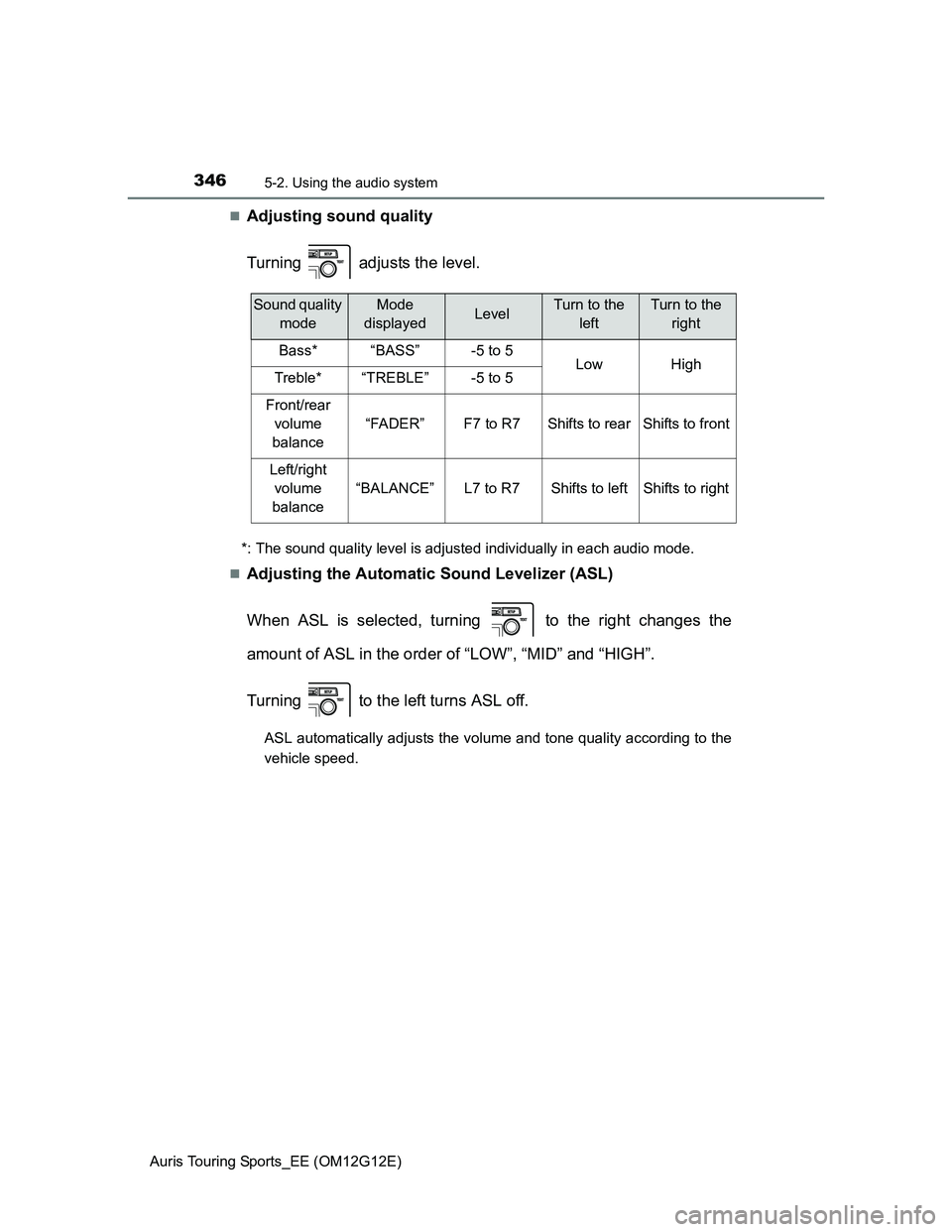

Adjusting sound quality
Turning adjusts the level.
*: The sound quality level is adjusted individually in each audio mode.

Adjusting the Automatic Sound Levelizer (ASL)
When ASL is selected, turning to the right changes the
amount of ASL in the order of “LOW”, “MID” and “HIGH”.
Turning to the left turns ASL off.
ASL automatically adjusts the volume and tone quality according to the
vehicle speed.
Sound quality
modeMode
displayedLevelTurn to the
leftTurn to the
right
Bass*“BASS”-5 to 5LowHighTreble*“TREBLE”-5 to 5
Front/rear
volume
balance
“FADER”F7 to R7Shifts to rearShifts to front
Left/right
volume
balance
“BALANCE”L7 to R7Shifts to leftShifts to right

3475-2. Using the audio system
Auris Touring Sports_EE (OM12G12E)
5
Interior features
Open the cover and connect
the portable audio device.
Press repeatedly until “AUX” is displayed.
Operating portable audio devices connected to the audio system
The volume can be adjusted using the vehicle's audio controls. All other
adjustments must be made on the portable audio device itself.
When using a portable audio device connected to the power outlet
Noise may occur during playback. Use the power source of the portable
audio device.

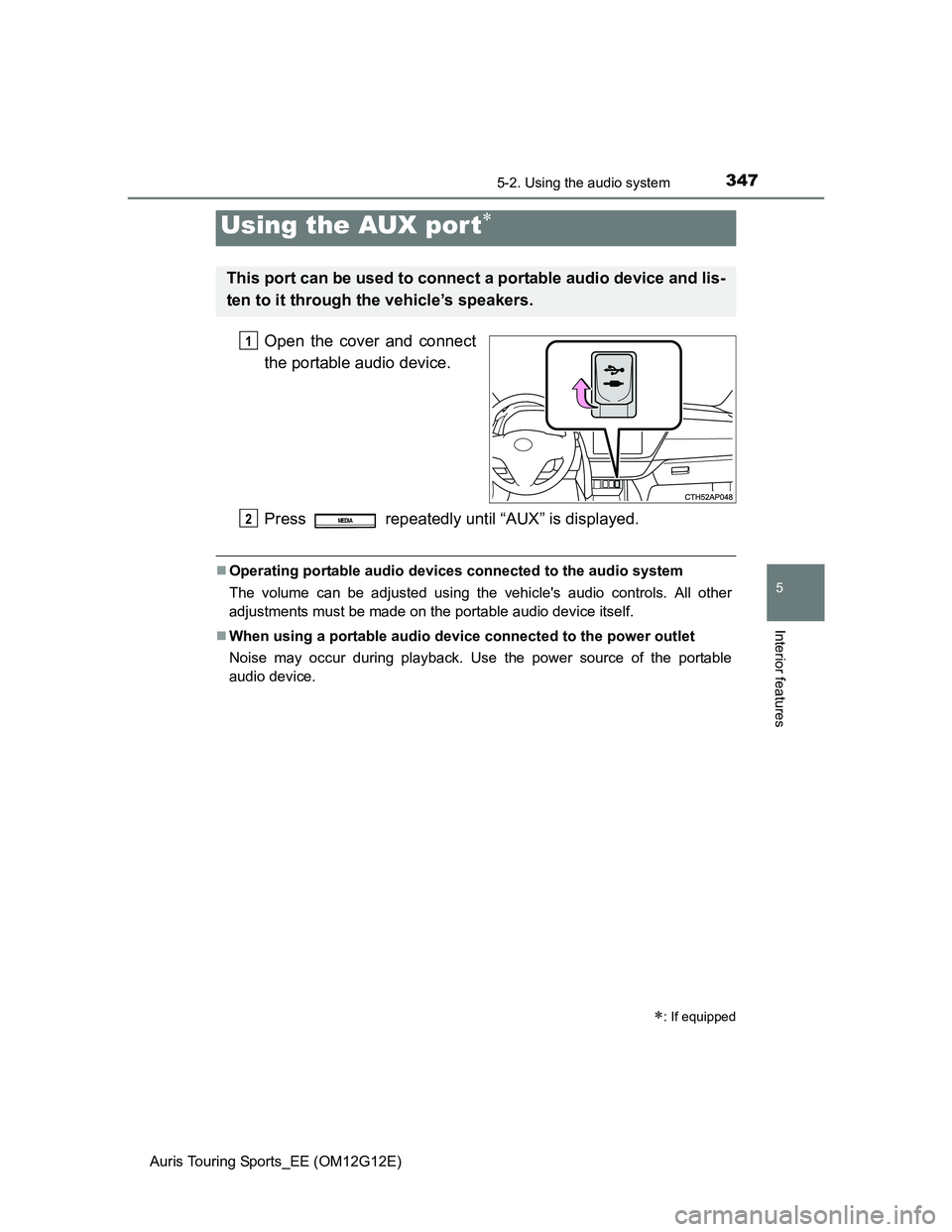

Using the AUX por t
: If equipped
This port can be used to connect a portable audio device and lis-
ten to it through the vehicle’s speakers.
1
2MEDIA

3485-2. Using the audio system
Auris Touring Sports_EE (OM12G12E)
Vo l u m e
Radio mode: Selects a radio
station
CD mode: Selects a track and
file (MP3 and WMA)
iPod mode: Selects a song
USB memory mode: Selects a
file and folder
Press: Power on, selects an
audio source
Press and hold: Mute
Press when the audio system is turned off.
Press when the audio system is turned on. The audio source
changes as follows each time is pressed.
AM FMCD mode iPod or USB memory mode AUX
Using the steering wheel audio switches
Some audio features can be controlled using the switches on
the steering wheel.
Operation may differ depending on the type of audio system or navi-
gation system. For details, refer to the manual provided with the
audio system or navigation system.
1
2
3
Turning on the power
Changing the audio source

3495-2. Using the audio system
Auris Touring Sports_EE (OM12G12E)
5
Interior features
Press “+” on to increase the volume and “-” to decrease the vol-
ume.
Hold down “+” or “-” on to continue increasing or decreasing the vol-
ume.
Press and hold .
To cancel, press and hold again.
Press to select the radio mode.
Press to select a preset station.
To scan for receivable stations, press and hold until you hear a
beep.
Press to select CD, iPod or USB memory mode.
Press to select the desired track/file or song.

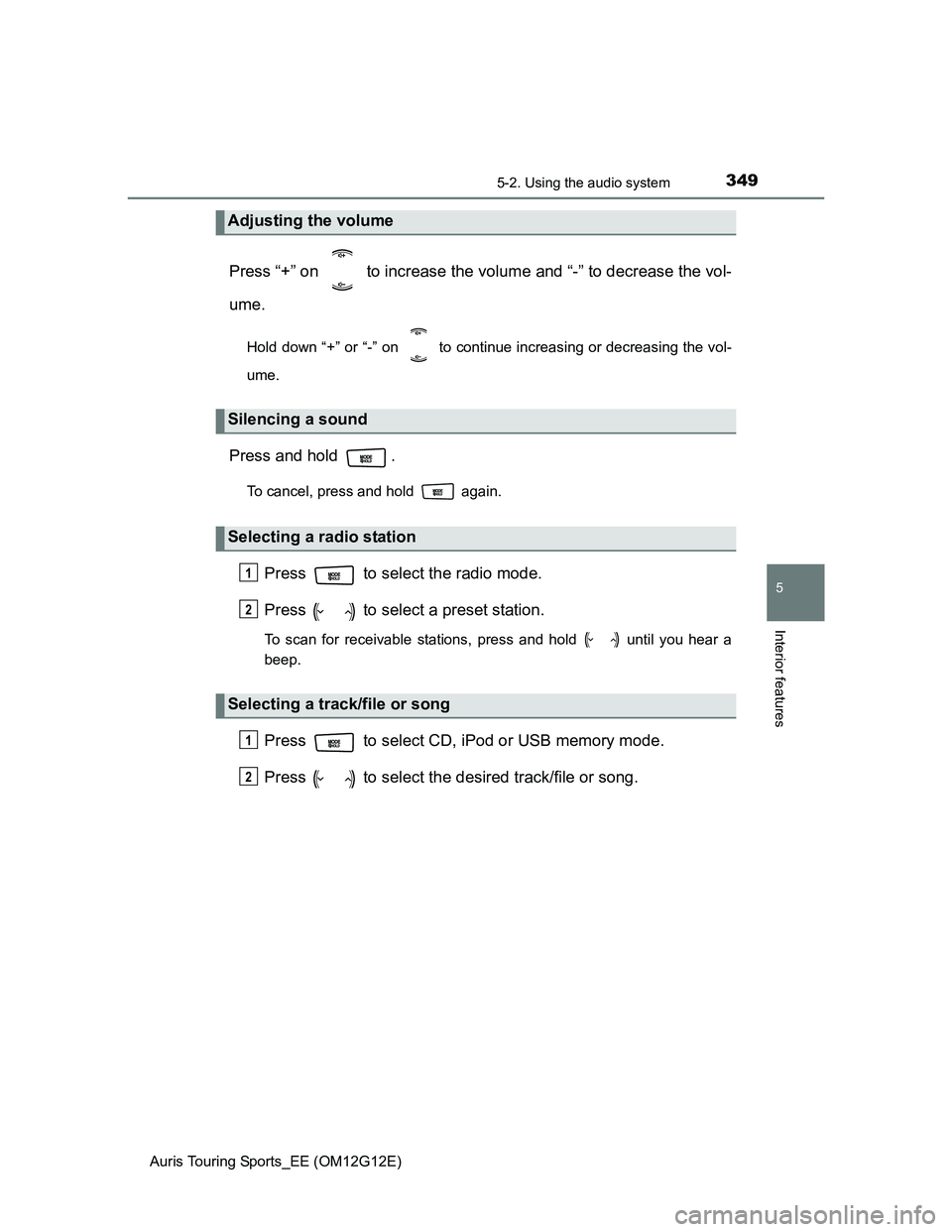

Adjusting the volume
Silencing a sound
Selecting a radio station
Selecting a track/file or song
1
2
1
2

3505-2. Using the audio system
Auris Touring Sports_EE (OM12G12E)
Press to select CD or USB memory mode.
Press and hold until you hear a beep.

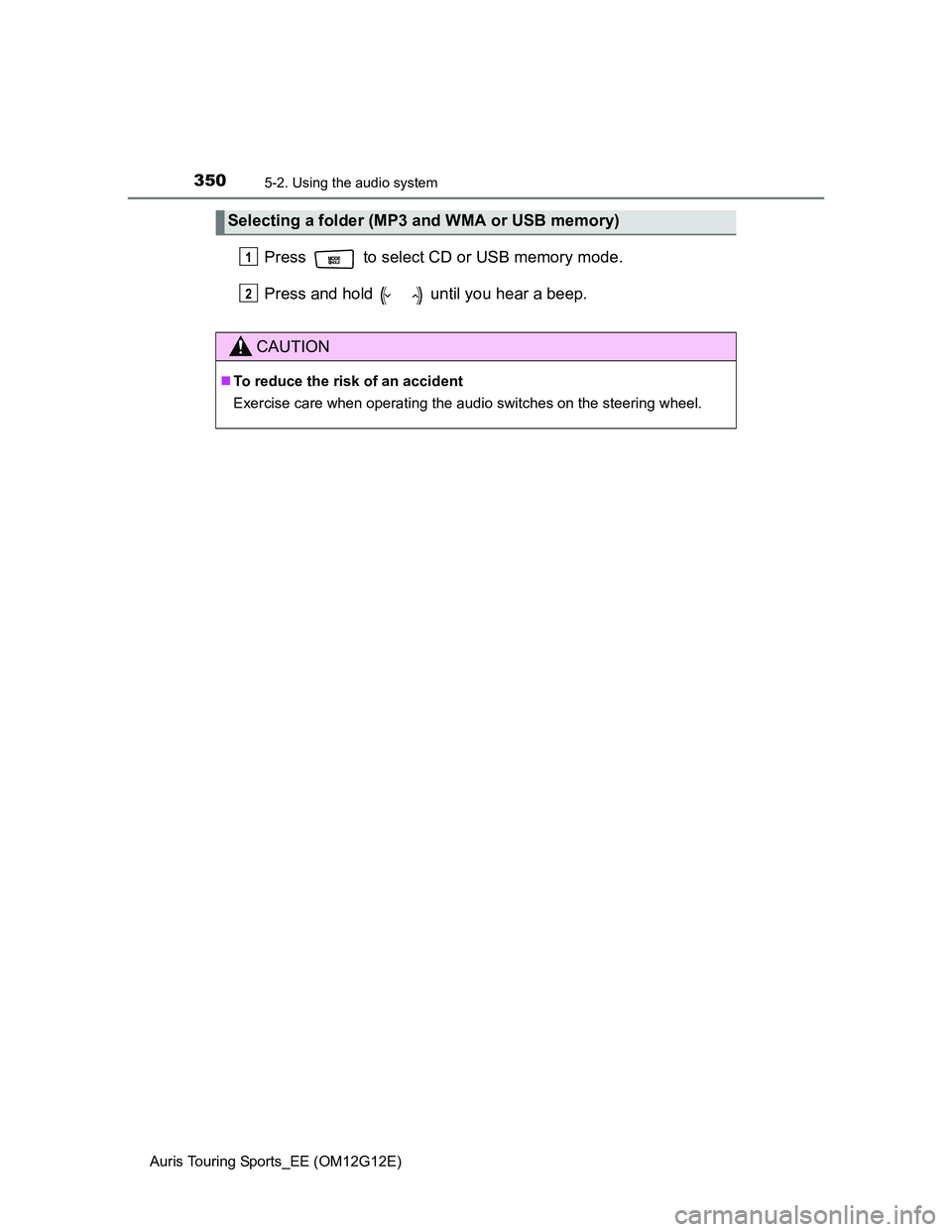

Selecting a folder (MP3 and WMA or USB memory)
CAUTION
To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
1
2

351
Auris Touring Sports_EE (OM12G12E)
5
Interior features
5-3. Using the interior lights
Vanity lights (if equipped) (P. 352)
Front interior/front personal lights (P. 352, 353)
Rear interior light (if equipped) (P. 352)
Rear personal light (if equipped) (P. 353)
Engine switch light (vehicles with a smart entry & start system)

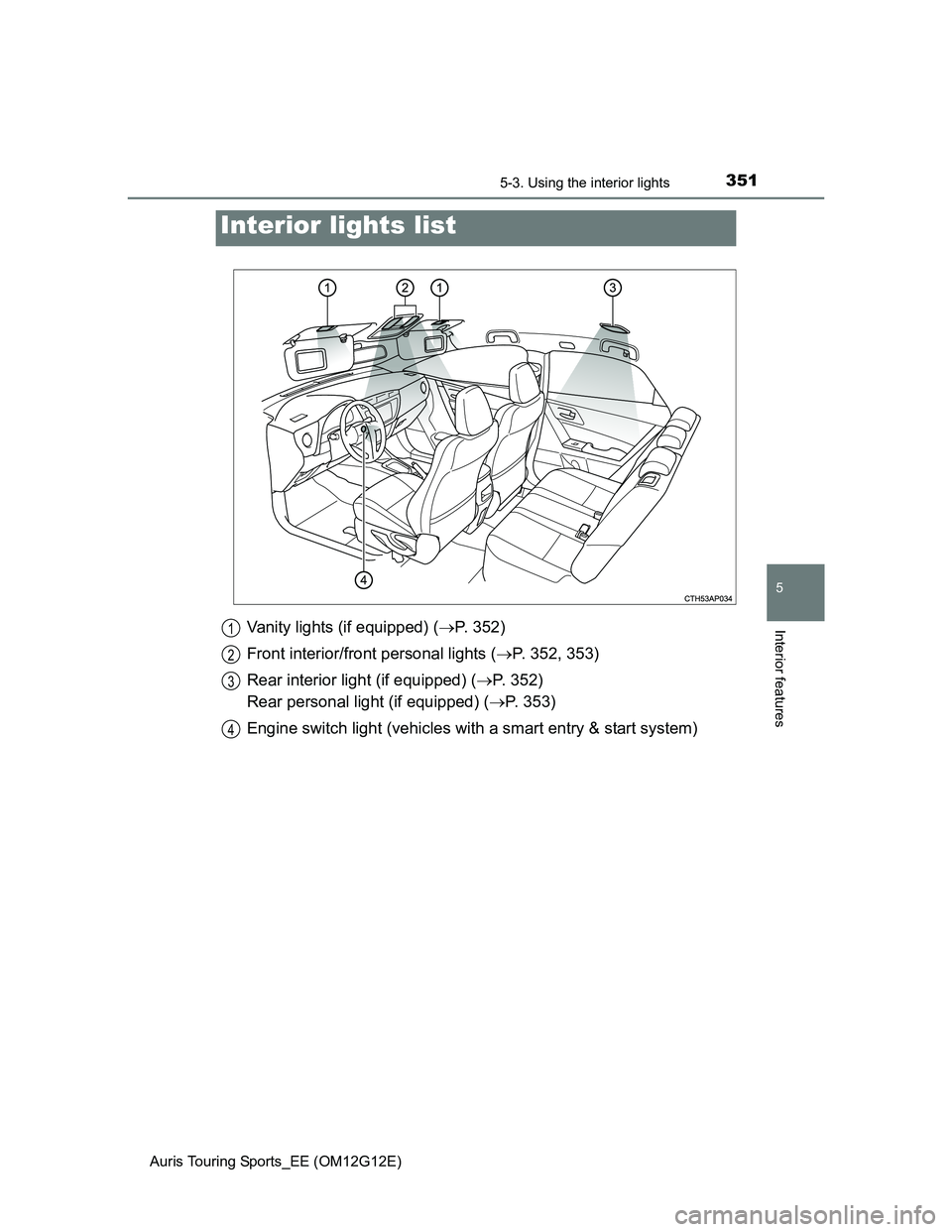

Interior lights list
1
2
3
4

3525-3. Using the interior lights
Auris Touring Sports_EE (OM12G12E)
Front
Door position
Off
Rear (if equipped)
On
Door position
Off
On
Off
Interior lights
CTH53AP035
1
2
1
2
3
Vanity lights (if equipped)
1
2
