2013 TOYOTA AURIS TOURING SPORTS Owners Manual

1373-2. Opening, closing and locking the doors
Auris Touring Sports_EE (OM12G12E)
3
Operation of each component

1383-2. Opening, closing and locking the doors
Auris Touring Sports_EE (OM12G12E)

1393-2. Opening, closing and locking the doors
Auris Touring Sports_EE (OM12G12E)
3
Operation of each component

1403-2. Opening, closing and locking the doors
Auris Touring Sports_EE (OM12G12E)

1413-2. Opening, closing and locking the doors
Auris Touring Sports_EE (OM12G12E)
3
Operation of each component
The vehicle can be locked and unlocked using the entry function (if
equipped), wireless remote control or door lock switches.
Entry function (if equipped)
P. 1 1 3
Wireless remote control
P. 1 3 2
Key
Turning the key operates the doors as follows:
Vehicles without a smart entry & start system
Locks all the doors
Unlocks all the doors
Vehicles with a smart entry & start system
The doors can also be locked and unlocked with the mechanical key.
(P. 551)
Door lock switches
Locks all the doors
Unlocks all the doors
Side doors
Unlocking and locking the doors
1
2
1
2

1423-2. Opening, closing and locking the doors
Auris Touring Sports_EE (OM12G12E)
Inside lock buttons
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handle
even if the lock button is in the
lock position.
Move the inside lock button to the lock position.
Close the door while pulling the door handle.
Vehicles without a smart entry & start system
The door cannot be locked if the key is in the engine switch.
Vehicles with a smart entry & start system
The door cannot be locked if the engine switch is in ACCESSORY or
IGNITION ON mode, or the electronic key is left inside the vehicle.
The key may not be detected correctly and the door may be locked.
1
2
Locking the front doors from the outside without a key
1
2

1433-2. Opening, closing and locking the doors
Auris Touring Sports_EE (OM12G12E)
3
Operation of each component
The door cannot be opened from
inside the vehicle when the lock is
set.
Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear doors.
If a wrong key is used (except left-hand drive vehicles without a smart
entry & start system)
The key cylinder rotates freely to isolate inside mechanism.
Rear door child-protector lock
1
2
CAUTION
To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant throwing out
of the vehicle, resulting in death or serious injury.
Ensure that all doors are properly closed and locked.
Do not pull the inside handle of the doors while driving.
Be especially careful for the driver’s door and passenger’s door, as the
door may be opened even if the inside lock button is in the locked position.
Set the rear door child-protector locks when children are seated in the rear
seats.

1443-2. Opening, closing and locking the doors
Auris Touring Sports_EE (OM12G12E)
Door lock switch
P. 1 4 1
Entry function (if equipped)
P. 1 1 4
Wireless remote control
P. 1 3 2

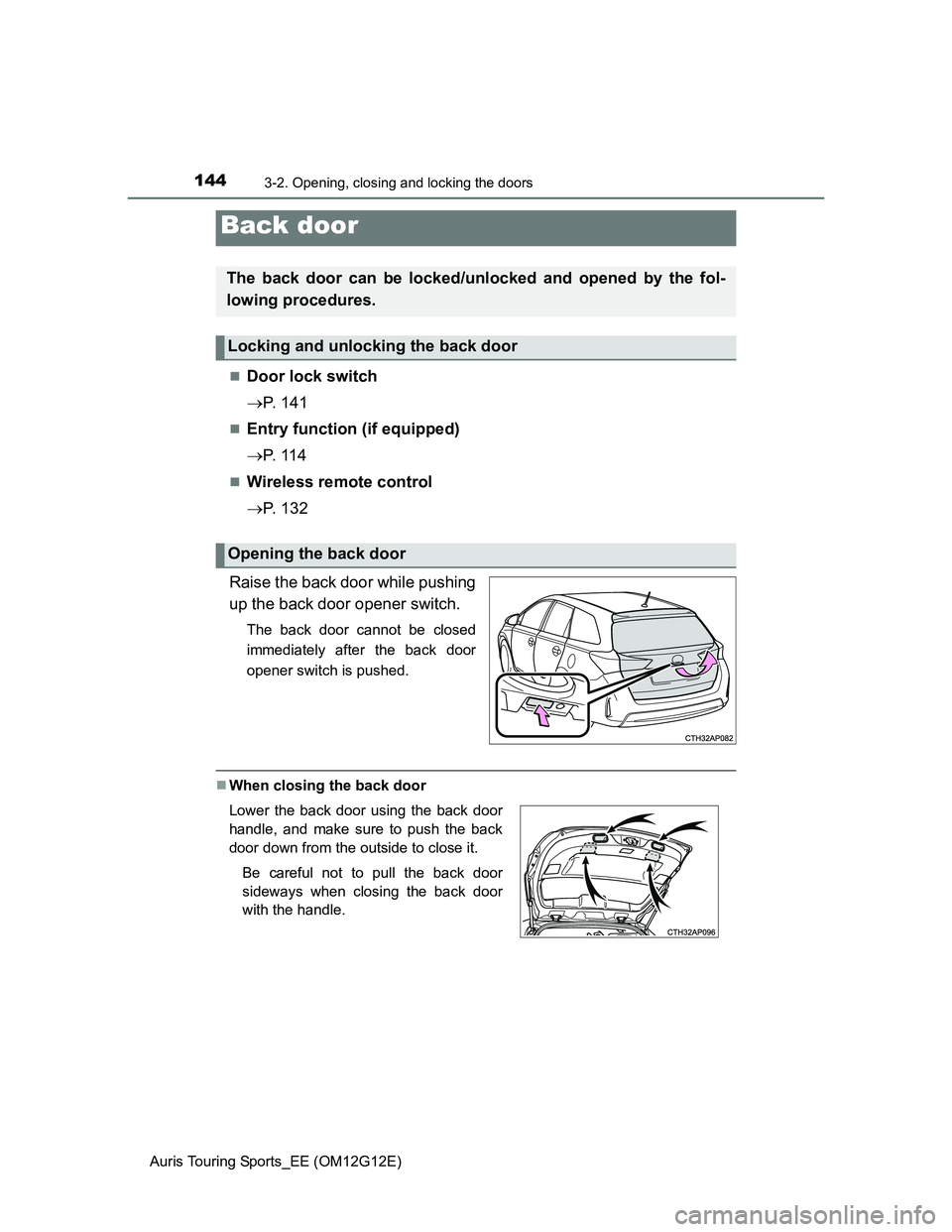

Raise the back door while pushing
up the back door opener switch.
The back door cannot be closed
immediately after the back door
opener switch is pushed.
When closing the back door
Back door
The back door can be locked/unlocked and opened by the fol-
lowing procedures.
Locking and unlocking the back door
Opening the back door
Lower the back door using the back door
handle, and make sure to push the back
door down from the outside to close it.
Be careful not to pull the back door
sideways when closing the back door
with the handle.
