2013 TOYOTA AURIS TOURING SPORTS Owners Manual

4656-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)
6
Maintenance and care

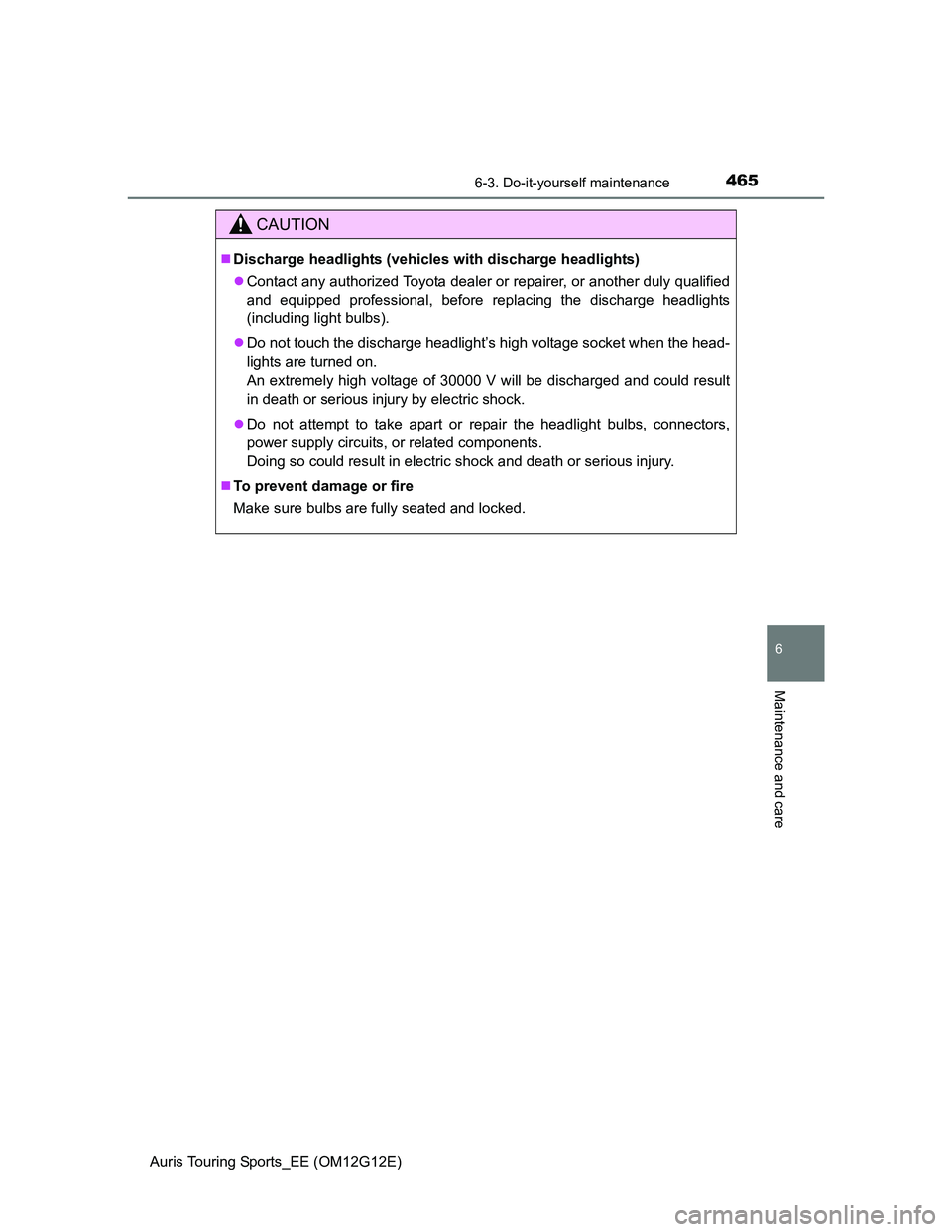

CAUTION
Discharge headlights (vehicles with discharge headlights)
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, before replacing the discharge headlights
(including light bulbs).
Do not touch the discharge headlight’s high voltage socket when the head-
lights are turned on.
An extremely high voltage of 30000 V will be discharged and could result
in death or serious injury by electric shock.
Do not attempt to take apart or repair the headlight bulbs, connectors,
power supply circuits, or related components.
Doing so could result in electric shock and death or serious injury.
To prevent damage or fire
Make sure bulbs are fully seated and locked.

4666-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)

467
7When trouble arises
Auris Touring Sports_EE (OM12G12E)7-1. Essential information
Emergency flashers ........... 468
If your vehicle has to
be stopped in an
emergency ....................... 4697-2. Steps to take in an
emergency
If your vehicle needs to
be towed .......................... 471
If you think something is
wrong ............................... 477
Fuel pump shut off
system ............................. 478
If a warning light turns
on or a warning
buzzer sounds ................. 479
If a warning message or
indicator is displayed ....... 492
If you have a flat tire
(vehicles with a spare
tire) .................................. 512
If you have a flat tire
(vehicles with an
emergency tire
puncture repair kit)........... 524
If the engine will not
start.................................. 548
If the shift lever cannot
be shifted from P ............. 550
If the electronic key does
not operate properly ........ 551
If the vehicle battery is
discharged ....................... 554
If your vehicle overheats .... 561
If you run out of fuel and
the engine stalls............... 564
If the vehicle becomes
stuck ................................ 565

468
Auris Touring Sports_EE (OM12G12E)
7-1. Essential information

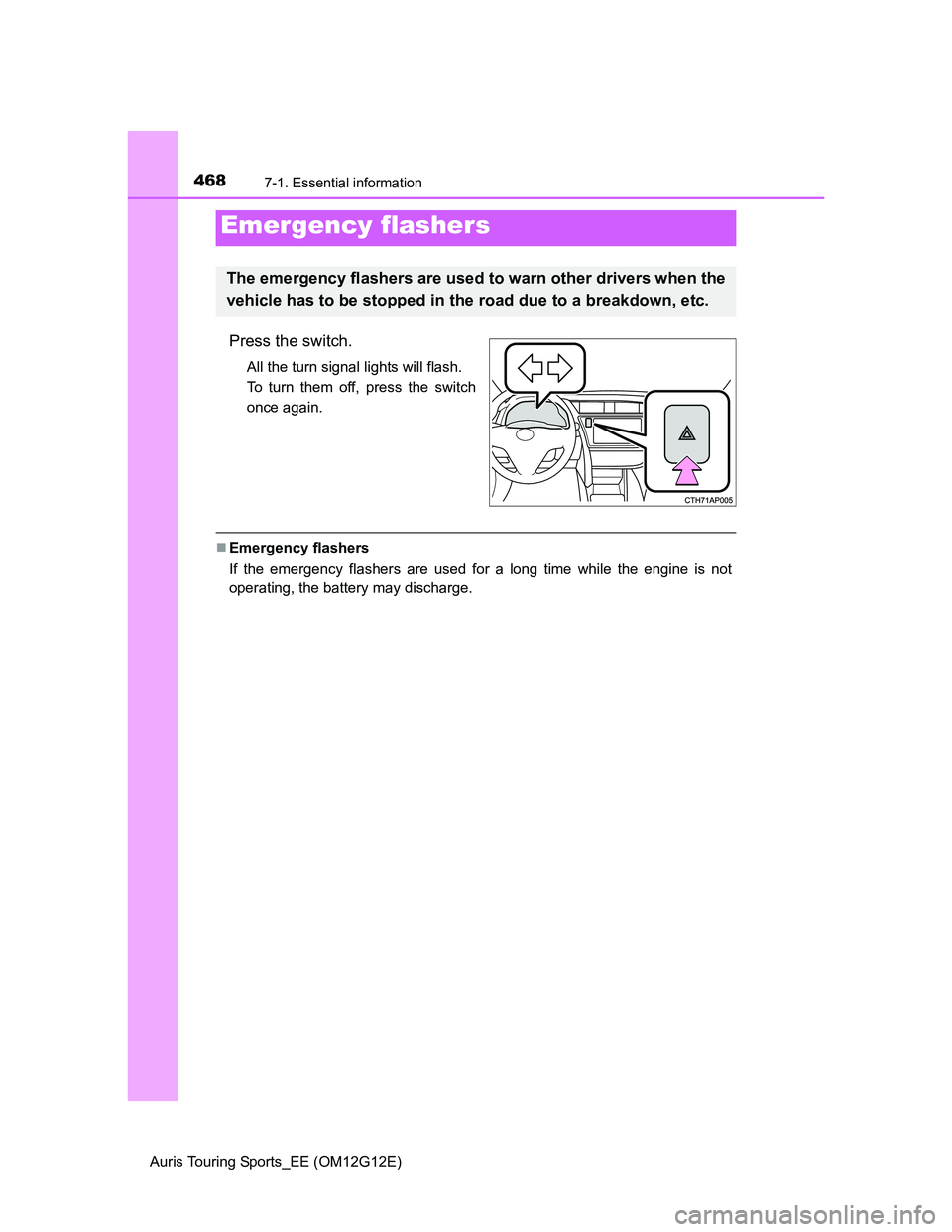

Press the switch.
All the turn signal lights will flash.
To turn them off, press the switch
once again.
Emergency flashers
If the emergency flashers are used for a long time while the engine is not
operating, the battery may discharge.
Emergency flashers
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.

4697-1. Essential information
Auris Touring Sports_EE (OM12G12E)
7
When trouble arises
Steadily step on the brake pedal with both feet and firmly depress it.
Do not pump the brake pedal repeatedly as this will increase the effort
required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce vehicle
speed as much as possible.
Vehicles without a smart entry
& start system: Stop the engine
by turning the engine switch to
the “ACC” position.
Vehicles with a smart entry &
start system: To stop the
engine, press and hold the
engine switch for 2 consecutive
seconds or more, or press it
briefly 3 times or more in suc-
cession.
Stop the vehicle in a safe place by the road.
If your vehicle has to be stopped in an
emergency
Only in an emergency, such as if it becomes impossible to stop
the vehicle in the normal way, stop the vehicle using the follow-
ing procedure:
1
2
3
4
3
4
Press and hold for 2 seconds or
more, or press briefly 3 times or more
4
5

4707-1. Essential information
Auris Touring Sports_EE (OM12G12E)
CAUTION
If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
Vehicles without a smart entry & start system: Never attempt to remove
the key, as doing so will lock the steering wheel.

7
When trouble arises
471
Auris Touring Sports_EE (OM12G12E)
7-2. Steps to take in an emergency

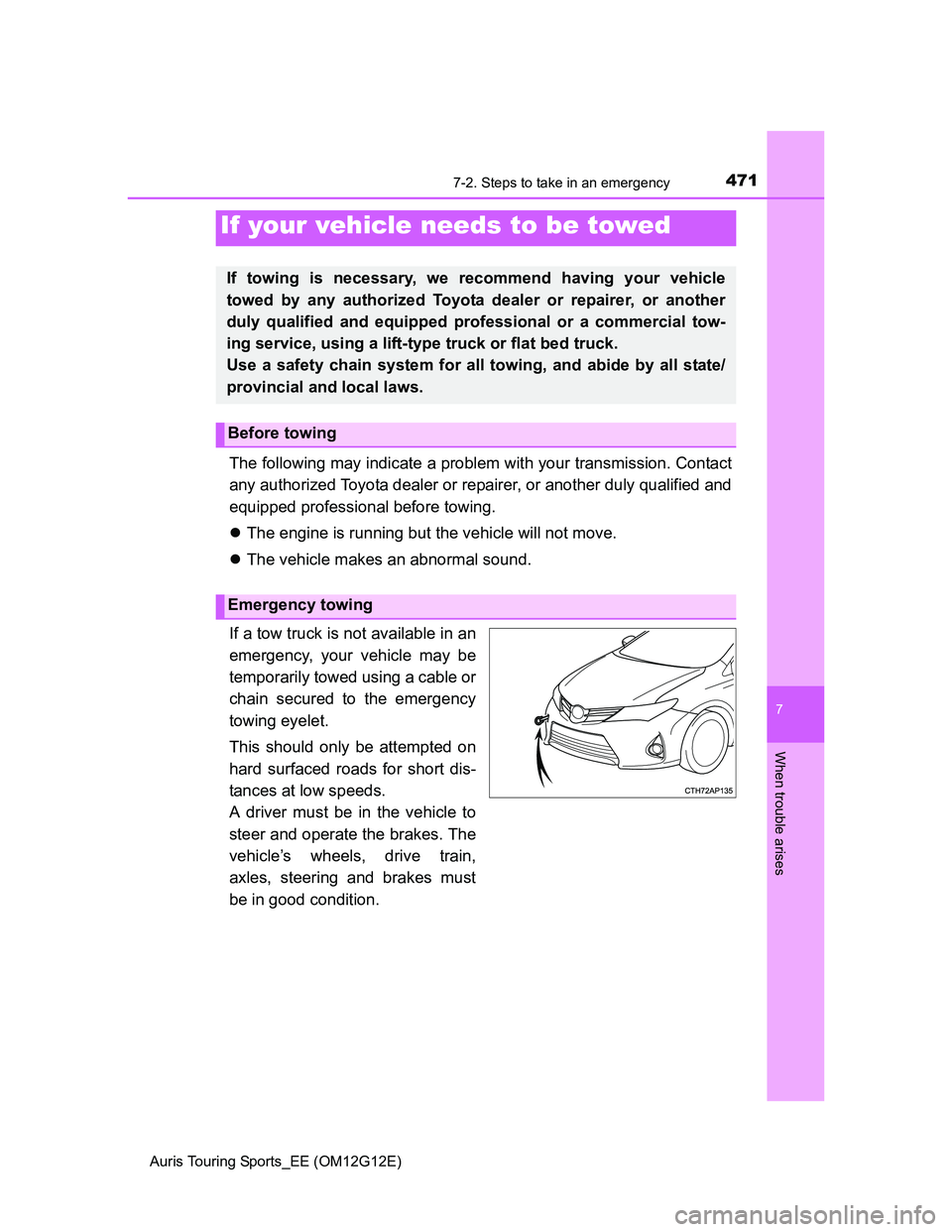

The following may indicate a problem with your transmission. Contact
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional before towing.
The engine is running but the vehicle will not move.
The vehicle makes an abnormal sound.
If a tow truck is not available in an
emergency, your vehicle may be
temporarily towed using a cable or
chain secured to the emergency
towing eyelet.
This should only be attempted on
hard surfaced roads for short dis-
tances at low speeds.
A driver must be in the vehicle to
steer and operate the brakes. The
vehicle’s wheels, drive train,
axles, steering and brakes must
be in good condition.
If your vehicle needs to be towed
If towing is necessary, we recommend having your vehicle
towed by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional or a commercial tow-
ing service, using a lift-type truck or flat bed truck.
Use a safety chain system for all towing, and abide by all state/
provincial and local laws.
Before towing
Emergency towing

4727-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
Take out the towing eyelet. (P. 513, 525)
Push the eyelet cover and then
open it.
Insert the towing eyelet into the
hole and tighten partially by
hand.
Tighten down the towing eyelet
securely using a wheel nut
wrench
* or hard metal bar.
*: If a wheel nut wrench is not
equipped, a wheel nut wrench can
be purchased at any authorized
Toyota dealer or repairer, or
another duly qualified and
equipped professional.
Installing towing eyelet
1
2
3
4
