2013 TOYOTA AURIS TOURING SPORTS Owners Manual

5778-1. Specifications
Auris Touring Sports_EE (OM12G12E)
8
Vehicle specifications

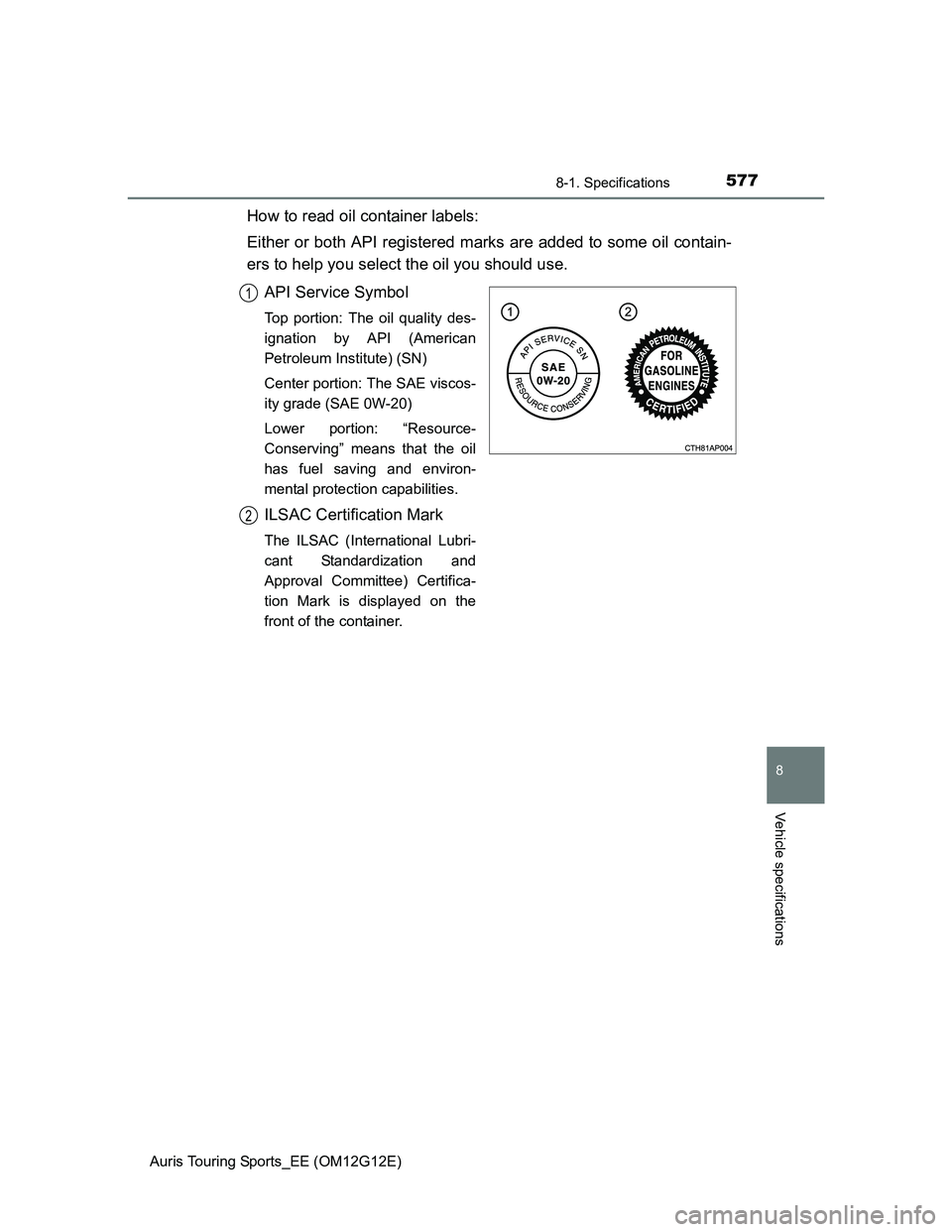

How to read oil container labels:
Either or both API registered marks are added to some oil contain-
ers to help you select the oil you should use.
API Service Symbol
Top portion: The oil quality des-
ignation by API (American
Petroleum Institute) (SN)
Center portion: The SAE viscos-
ity grade (SAE 0W-20)
Lower portion: “Resource-
Conserving” means that the oil
has fuel saving and environ-
mental protection capabilities.
ILSAC Certification Mark
The ILSAC (International Lubri-
cant Standardization and
Approval Committee) Certifica-
tion Mark is displayed on the
front of the container.
1
2

5788-1. Specifications
Auris Touring Sports_EE (OM12G12E)

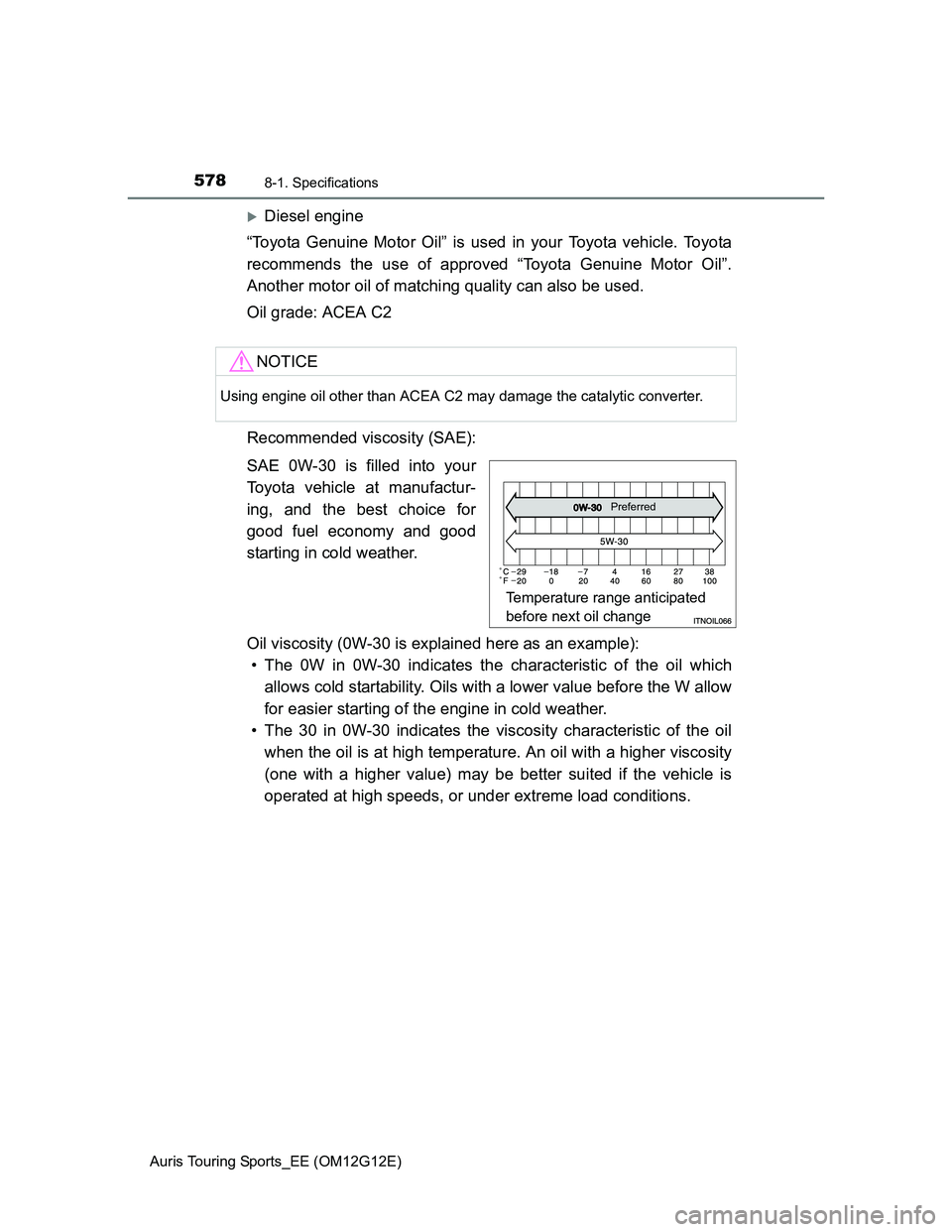

Diesel engine
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade: ACEA C2
Recommended viscosity (SAE):
SAE 0W-30 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
Oil viscosity (0W-30 is explained here as an example):
• The 0W in 0W-30 indicates the characteristic of the oil which
allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.
• The 30 in 0W-30 indicates the viscosity characteristic of the oil
when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
NOTICE
Using engine oil other than ACEA C2 may damage the catalytic converter.
Temperature range anticipated
before next oil change
Preferred

5798-1. Specifications
Auris Touring Sports_EE (OM12G12E)
8
Vehicle specifications
Cooling system
Capacity
(Refer-
ence)
1NR-FE engine
With exhaust heat recirculation system
5.7 L (6.0 qt., 5.0 Imp. qt.)
Without exhaust heat recirculation system
4.7 L (5.0 qt., 4.1 Imp. qt.)
1ZR-FAE engine
Vehicles with a Multidrive
5.8 L (6.1 qt., 5.1 Imp. qt.)
Vehicles with a manual transmission
5.6 L (5.9 qt., 4.9 Imp. qt.)
1ND-TV engine
With power heater
6.0 L (6.3 qt., 5.3 Imp. qt.)
Without power heater
5.6 L (5.9 qt., 4.9 Imp. qt.)
1AD-FTV engine
With power heater
7.8 L (8.2 qt., 6.9 Imp. qt.)
Without power heater
7.4 L (7.8 qt., 6.5 Imp. qt.)
Coolant typeUse either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with long-
life hybrid organic acid technology
Do not use plain water alone.
Ignition system (gasoline engine)
Spark plug
MakeDENSO SC20HR11
Gap1.1 mm (0.043 in.)
NOTICE
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

5808-1. Specifications
Auris Touring Sports_EE (OM12G12E)
*: The fluid capacity is a reference quantity.
If replacement is necessary, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Electrical system
Battery
Open voltage at 20C
(68F):12.6  12.8 V Fully charged
12.2
 12.4 V Half charged
11 . 8
 12.0 V Discharged
(Voltage is checked 20 minutes after the engine
and all lights are turned off.)
Charging rates5 A max.
Multidrive
Fluid capacity*7.6 L (8.0 qt., 6.7 Imp. qt.)
Fluid typeToyota Genuine CVT Fluid FE
NOTICE
Multidrive fluid type
Using Multidrive fluid other than “Toyota Genuine CVT Fluid FE” may cause
deterioration in shift quality, locking up of your transmission accompanied
by vibration, and ultimately damage the transmission of your vehicle.

5818-1. Specifications
Auris Touring Sports_EE (OM12G12E)
8
Vehicle specifications

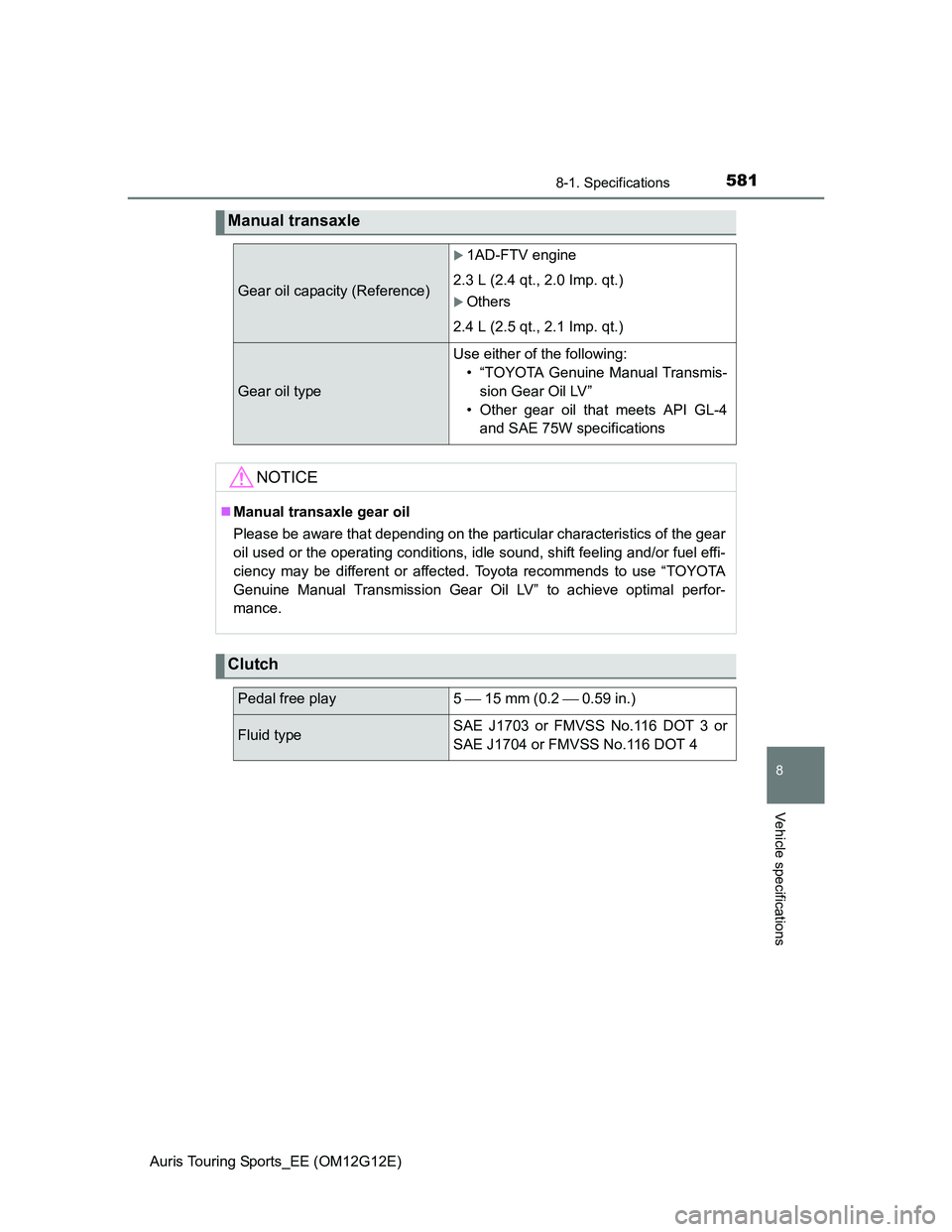

Manual transaxle
Gear oil capacity (Reference)
1AD-FTV engine
2.3 L (2.4 qt., 2.0 Imp. qt.)
Others
2.4 L (2.5 qt., 2.1 Imp. qt.)
Gear oil typeUse either of the following:
• “TOYOTA Genuine Manual Transmis-
sion Gear Oil LV”
• Other gear oil that meets API GL-4
and SAE 75W specifications
NOTICE
Manual transaxle gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil LV” to achieve optimal perfor-
mance.
Clutch
Pedal free play 5  15 mm (0.2  0.59 in.)
Fluid typeSAE J1703 or FMVSS No.116 DOT 3 or
SAE J1704 or FMVSS No.116 DOT 4

5828-1. Specifications
Auris Touring Sports_EE (OM12G12E)
*1: Minimum pedal clearance when depressed with a force of 294 N (30 kgf,
66 lbf) while the engine is running
*2: Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf,
45.0 lbf)
Brakes
Pedal clearance*1
Left-hand drive vehicles
Right-hand drive vehi-
cles63 mm (2.48 in.) Min.
73 mm (2.87 in.) Min.
Pedal free play 1  6 mm (0.04  0.24 in.)
Parking brake lever
travel
*25  8 clicks
Fluid typeSAE J1703 or FMVSS No.116 DOT 3 or
SAE J1704 or FMVSS No.116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)

5838-1. Specifications
Auris Touring Sports_EE (OM12G12E)
8
Vehicle specifications
Ty p e A
Ty p e B
*: 1AD-FTV engine
Tires and wheels
Tire size195/65R15 91H
Tire inflation pres-
sure
(Recommended
cold tire inflation
pressure)Vehicle speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2
or bar, psi)
More than 160
km/h (100 mph)260 (2.6, 38)260 (2.6, 38)
160 km/h (100
mph) or less230 (2.3, 33)230 (2.3, 33)
Wheel size15  6 J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire size205/55R16 91V, 225/45R17 91W
Tire inflation pres-
sure
(Recommended
cold tire inflation
pressure)Vehicle speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2
or bar, psi)
More than 160
km/h (100 mph)270 (2.7, 39)*
260 (2.6, 38)260 (2.6, 38)
160 km/h (100
mph) or less240 (2.4, 35)*
230 (2.3, 33)230 (2.3, 33)
Wheel size16  6 1/2 J (205/55R16), 17  7 J (225/45R17)
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)

5848-1. Specifications
Auris Touring Sports_EE (OM12G12E)
Ty p e C
Compact spare tire
When towing a trailer
Add 20.0 kPa (0.2 kgf/cm
2 or bar, 3 psi) to the recommended tire inflation
pressure and drive at speeds below 100 km/h (62 mph).
Tire size215/45R17 87W
Tire inflation pres-
sure
(Recommended
cold tire inflation
pressure)Vehicle speed
Front wheel
kPa (kgf/cm2
or bar, psi)
Rear wheel
kPa (kgf/cm2
or bar, psi)
More than 160
km/h (100 mph)260 (2.6, 38)260 (2.6, 38)
160 km/h (100
mph) or less230 (2.3, 33)230 (2.3, 33)
Wheel size17  7 J
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
Tire sizeT125/70D17 98M
Tire inflation pressure
(Recommended cold
tire inflation pressure)
420 kPa (4.2 kgf/cm2 or bar, 60 psi)
Wheel size17  4T
Wheel nut torque103 N•m (10.5 kgf•m, 76 ft•lbf)
