2013 TOYOTA AURIS TOURING SPORTS Owners Manual

593

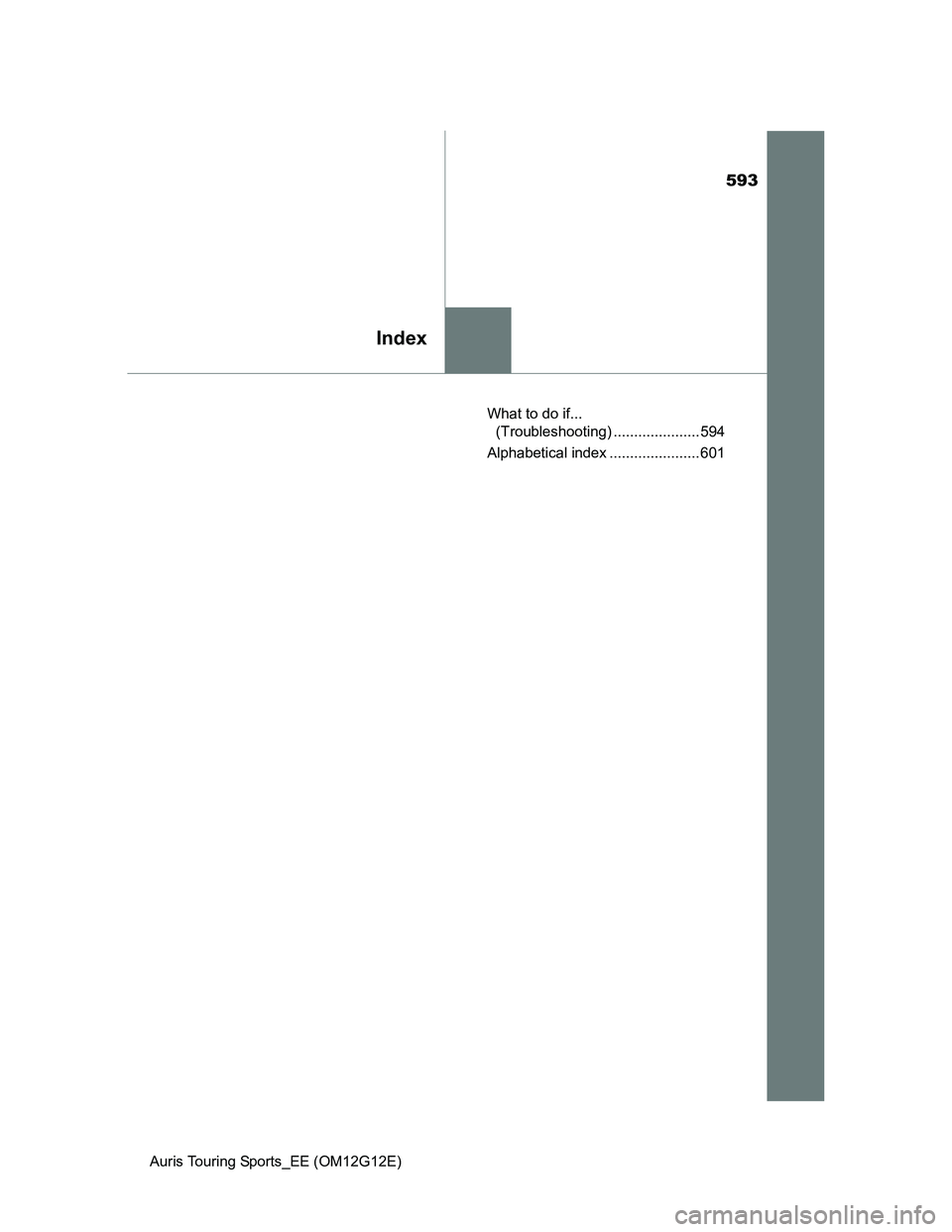

Index
Auris Touring Sports_EE (OM12G12E)What to do if...
(Troubleshooting) ..................... 594
Alphabetical index ...................... 601

594
Auris Touring Sports_EE (OM12G12E)
What to do if... (Troubleshooting)
What to do if... (Troubleshooting)
If you lose your keys or mechanical keys, new genuine keys or
mechanical keys can be made by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
(P. 111 )
If you lose your keys or electronic keys, the risk of vehicle theft
increases significantly. Contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional
immediately. (P. 112)
Is the key battery weak or depleted? (P. 430)
Vehicles with a smart entry & start system:
Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. (P. 196)
Vehicles with a smart entry & start system:
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic
key on your person.
The function may not operate properly due to the condition of the
radio wave. (P. 119, 133)
If you have a problem, check the following before contacting any
authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked

595What to do if... (Troubleshooting)
Auris Touring Sports_EE (OM12G12E)
Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the
lock is set. Open the rear door from outside and then unlock the
child-protector lock. (P. 143)
Vehicles with a Multidrive:
Is the shift lever in P? (P. 189)
Vehicles with a manual transmission:
Do you turn the key with the clutch pedal depressed firmly?
(P. 189)
Is the steering wheel unlocked? (P. 190)
Is the battery discharged? (P. 554)
The rear door cannot be opened
If you think something is wrong
The engine does not start (vehicles without a smart entry
& start system)

596What to do if... (Troubleshooting)
Auris Touring Sports_EE (OM12G12E)
Vehicles with a Multidrive:
Did you press the engine switch while firmly depressing the brake
pedal? (P. 193)
Vehicles with a manual transmission:
Did you press the engine switch while firmly depressing the clutch
pedal? (P. 193)
Vehicles with a Multidrive:
Is the shift lever in P? (P. 199)
Is the electronic key anywhere detectable inside the vehicle?
(P. 115)
Is the steering wheel unlocked? (P. 200)
Is the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way.
(P. 552)
Is the battery discharged? (P. 554)
Vehicles without a smart entry & start system:
Is the engine switch in the “ON” position?
If you cannot release the shift lever by depressing the brake pedal
with the engine switch in the “ON” position. (P. 550)
Vehicles with a smart entry & start system:
Is the engine switch in IGNITION ON mode?
If you cannot release the shift lever by depressing the brake pedal
with the engine switch in IGNITION ON mode. (P. 550)
The engine does not start (vehicles with a smart entry &
start system)
The shift lever cannot be shifted from P even if you
depress the brake pedal (vehicles with a Multidrive)

597What to do if... (Troubleshooting)
Auris Touring Sports_EE (OM12G12E)
Vehicles without a smart entry & start system:
It is locked to prevent theft of the vehicle if the key is pulled from
the engine switch. (P. 191)
Vehicles with a smart entry & start system:
It is locked automatically to prevent theft of the vehicle. (P. 199)
Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot
be operated if the window lock switch is pressed. (P. 161)
The auto power off function will be operated if the vehicle is left in
ACCESSORY or IGNITION ON mode (the engine is not running)
for a period of time. (P. 199)
The steering wheel cannot be turned after the engine is
stopped
The windows do not open or close by operating the power
window switches
The engine switch is turned off automatically (vehicles
with a smart entry & start system)

598What to do if... (Troubleshooting)
Auris Touring Sports_EE (OM12G12E)
The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts?
(P. 483)
The brake system warning light is on
Is the parking brake released? (P. 212)
Depending on the situation, other types of warning buzzer may also
sound. (P. 479, 492)

Did anyone inside the vehicle open a door during setting the
alarm?
The sensor detects it and the alarm sounds. (P. 79)
Vehicles without a smart entry & start system
To stop the alarm, turn the engine switch to the “ON” position or start
the engine.
Vehicles with a smart entry & start system
To stop the alarm, turn the engine switch to IGNITION ON mode or start
the engine.
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
(vehicles with an alarm)

599What to do if... (Troubleshooting)
Auris Touring Sports_EE (OM12G12E)
Is the electronic key left inside the vehicle?
Vehicles with a multi-information display: Check the message on
the multi-information display. (P. 492)
When a warning light turns on, refer to P. 479.
When a warning light turns on or a warning message or indicator is
displayed, refer to P. 479, 492.
A warning buzzer sounds when leaving the vehicle
(vehicles with a smart entry & start system)
A warning light turns on
(vehicles with a drive monitor display)
A warning light turns on or a warning message or indica-
tor is displayed (vehicles with a multi-information display)

600What to do if... (Troubleshooting)
Auris Touring Sports_EE (OM12G12E)
Vehicles with a spare tire:
Stop the vehicle in a safe place and replace the flat tire with the
spare tire. (P. 512)
Vehicles with an emergency tire puncture repair kit:
Stop the vehicle in a safe place and repair the flat tire temporarily
with the emergency tire puncture repair kit. (P. 524)
Try the procedure for when the vehicle becomes stuck in mud, dirt,
or snow. (P. 565)
When a problem has occurred
If you have a flat tire
The vehicle becomes stuck
