3966-2. Maintenance
Auris Touring Sports_EE (OM12G12E)

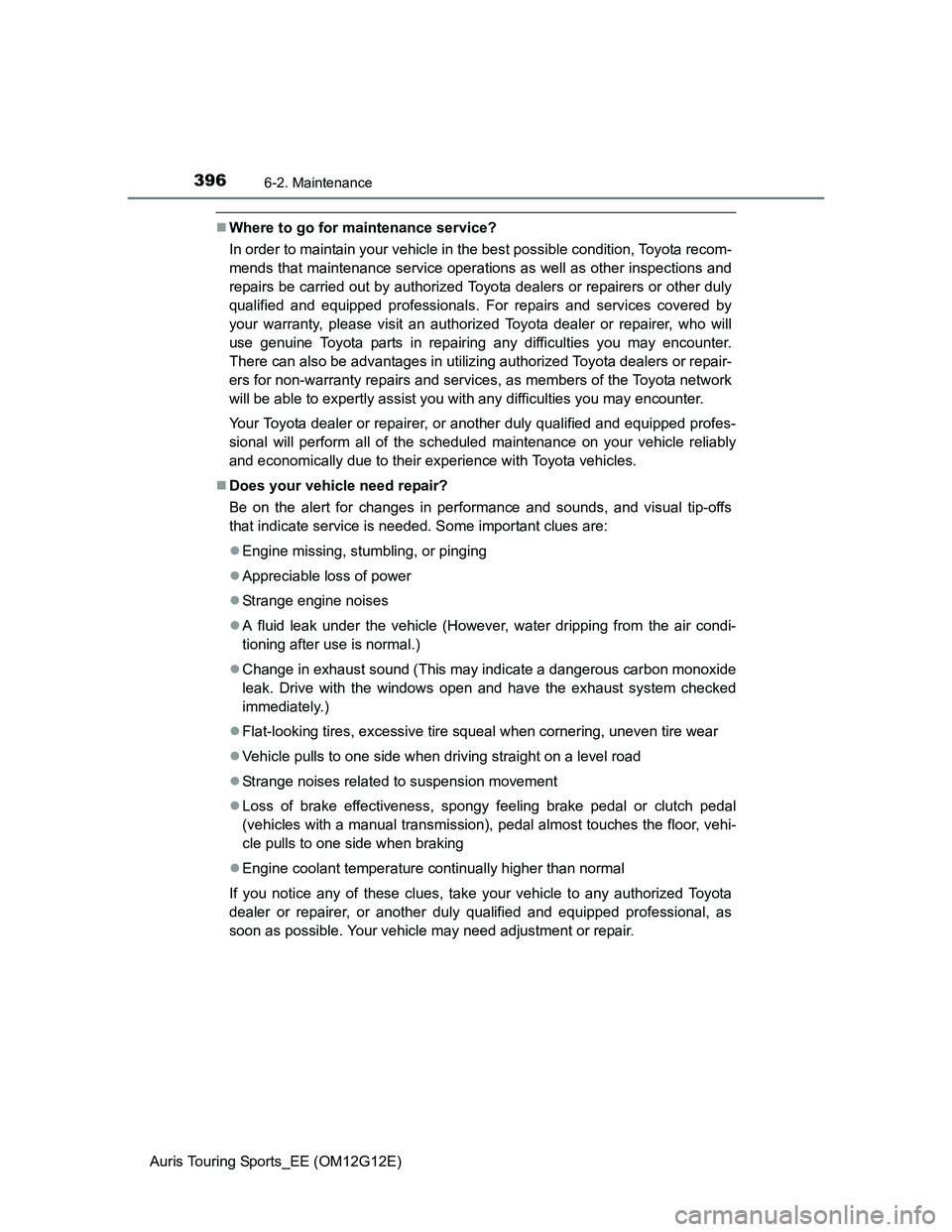

Where to go for maintenance service?
In order to maintain your vehicle in the best possible condition, Toyota recom-
mends that maintenance service operations as well as other inspections and
repairs be carried out by authorized Toyota dealers or repairers or other duly
qualified and equipped professionals. For repairs and services covered by
your warranty, please visit an authorized Toyota dealer or repairer, who will
use genuine Toyota parts in repairing any difficulties you may encounter.
There can also be advantages in utilizing authorized Toyota dealers or repair-
ers for non-warranty repairs and services, as members of the Toyota network
will be able to expertly assist you with any difficulties you may encounter.
Your Toyota dealer or repairer, or another duly qualified and equipped profes-
sional will perform all of the scheduled maintenance on your vehicle reliably
and economically due to their experience with Toyota vehicles.
Does your vehicle need repair?
Be on the alert for changes in performance and sounds, and visual tip-offs
that indicate service is needed. Some important clues are:
Engine missing, stumbling, or pinging
Appreciable loss of power
Strange engine noises
A fluid leak under the vehicle (However, water dripping from the air condi-
tioning after use is normal.)
Change in exhaust sound (This may indicate a dangerous carbon monoxide
leak. Drive with the windows open and have the exhaust system checked
immediately.)
Flat-looking tires, excessive tire squeal when cornering, uneven tire wear
Vehicle pulls to one side when driving straight on a level road
Strange noises related to suspension movement
Loss of brake effectiveness, spongy feeling brake pedal or clutch pedal
(vehicles with a manual transmission), pedal almost touches the floor, vehi-
cle pulls to one side when braking
Engine coolant temperature continually higher than normal
If you notice any of these clues, take your vehicle to any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional, as
soon as possible. Your vehicle may need adjustment or repair.

398
Auris Touring Sports_EE (OM12G12E)
6-3. Do-it-yourself maintenance

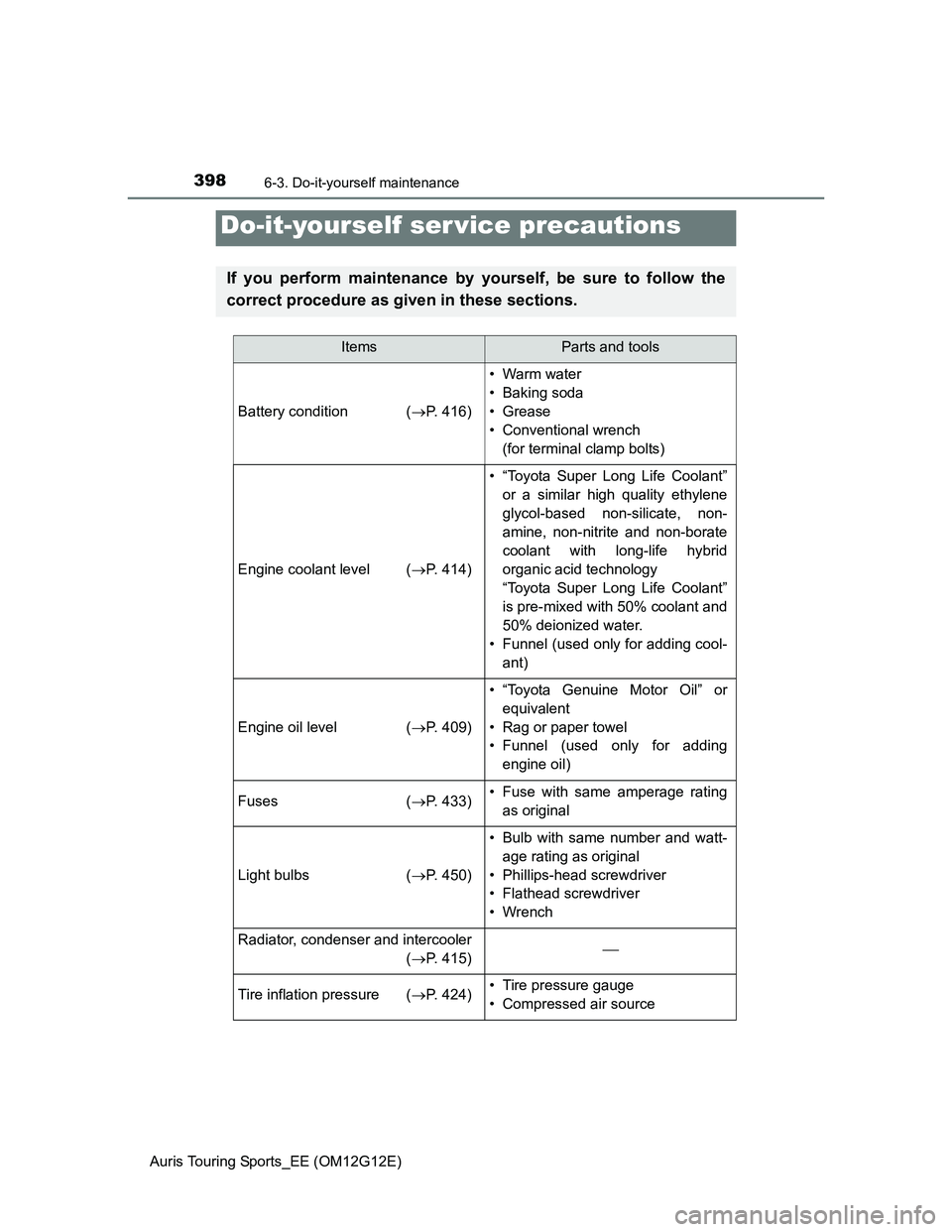

Do-it-yourself ser vice precautions
If you perform maintenance by yourself, be sure to follow the
correct procedure as given in these sections.
ItemsParts and tools
Battery condition (P. 416)
•Warm water
• Baking soda
• Grease
• Conventional wrench
(for terminal clamp bolts)
Engine coolant level (P. 414)
• “Toyota Super Long Life Coolant”
or a similar high quality ethylene
glycol-based non-silicate, non-
amine, non-nitrite and non-borate
coolant with long-life hybrid
organic acid technology
“Toyota Super Long Life Coolant”
is pre-mixed with 50% coolant and
50% deionized water.
• Funnel (used only for adding cool-
ant)
Engine oil level (P. 409)
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel
• Funnel (used only for adding
engine oil)
Fuses (P. 433)• Fuse with same amperage rating
as original
Light bulbs (P. 450)
• Bulb with same number and watt-
age rating as original
• Phillips-head screwdriver
• Flathead screwdriver
•Wrench
Radiator, condenser and intercooler
(P. 415)
Tire inflation pressure (P. 424)• Tire pressure gauge
• Compressed air source

4056-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)
6
Maintenance and care

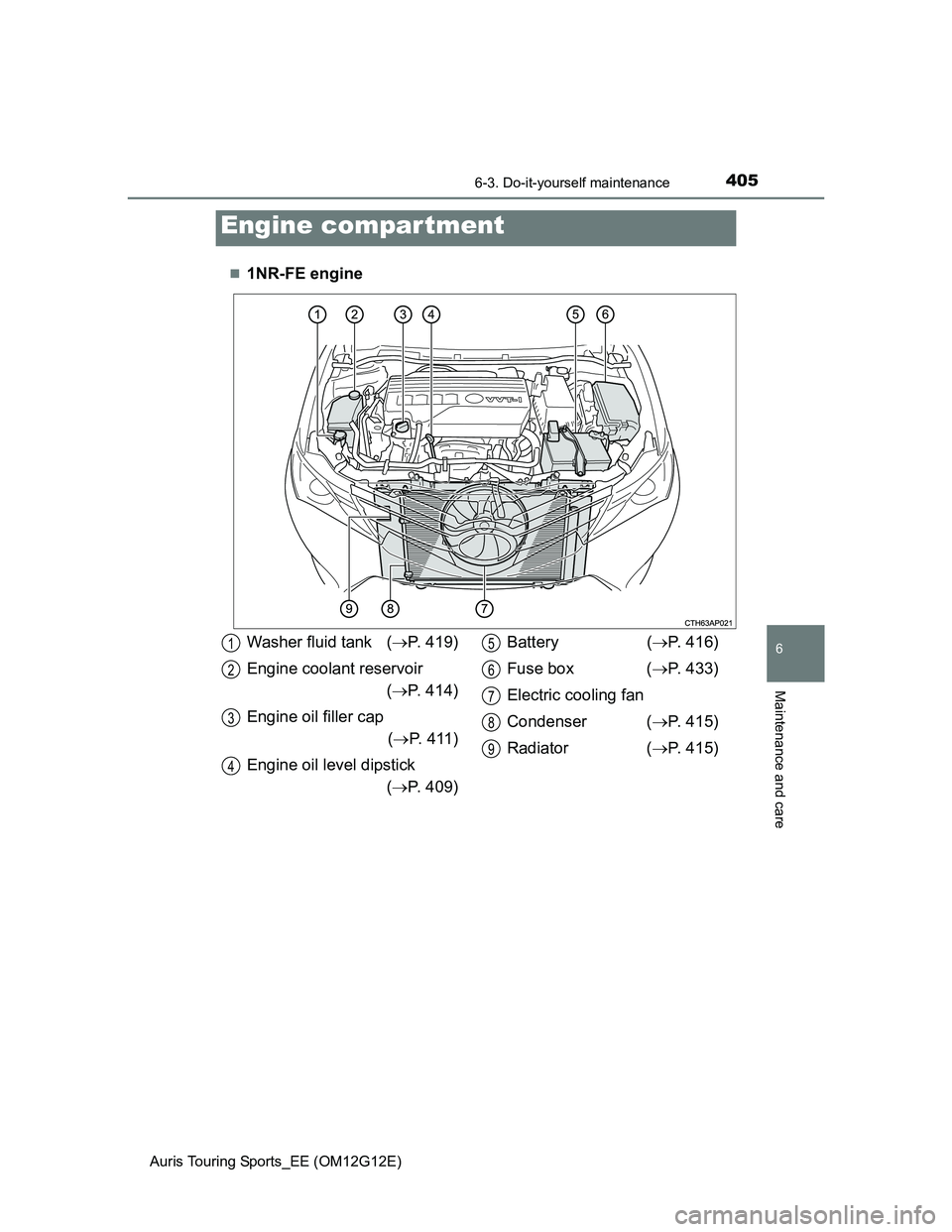

1NR-FE engine
Engine compar tment
Washer fluid tank (P. 419)
Engine coolant reservoir
(P. 414)
Engine oil filler cap
(P. 4 11 )
Engine oil level dipstick
(P. 409)Battery (P. 416)
Fuse box (P. 433)
Electric cooling fan
Condenser (P. 415)
Radiator (P. 415)1
2
3
4
5
6
7
8
9

4066-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)

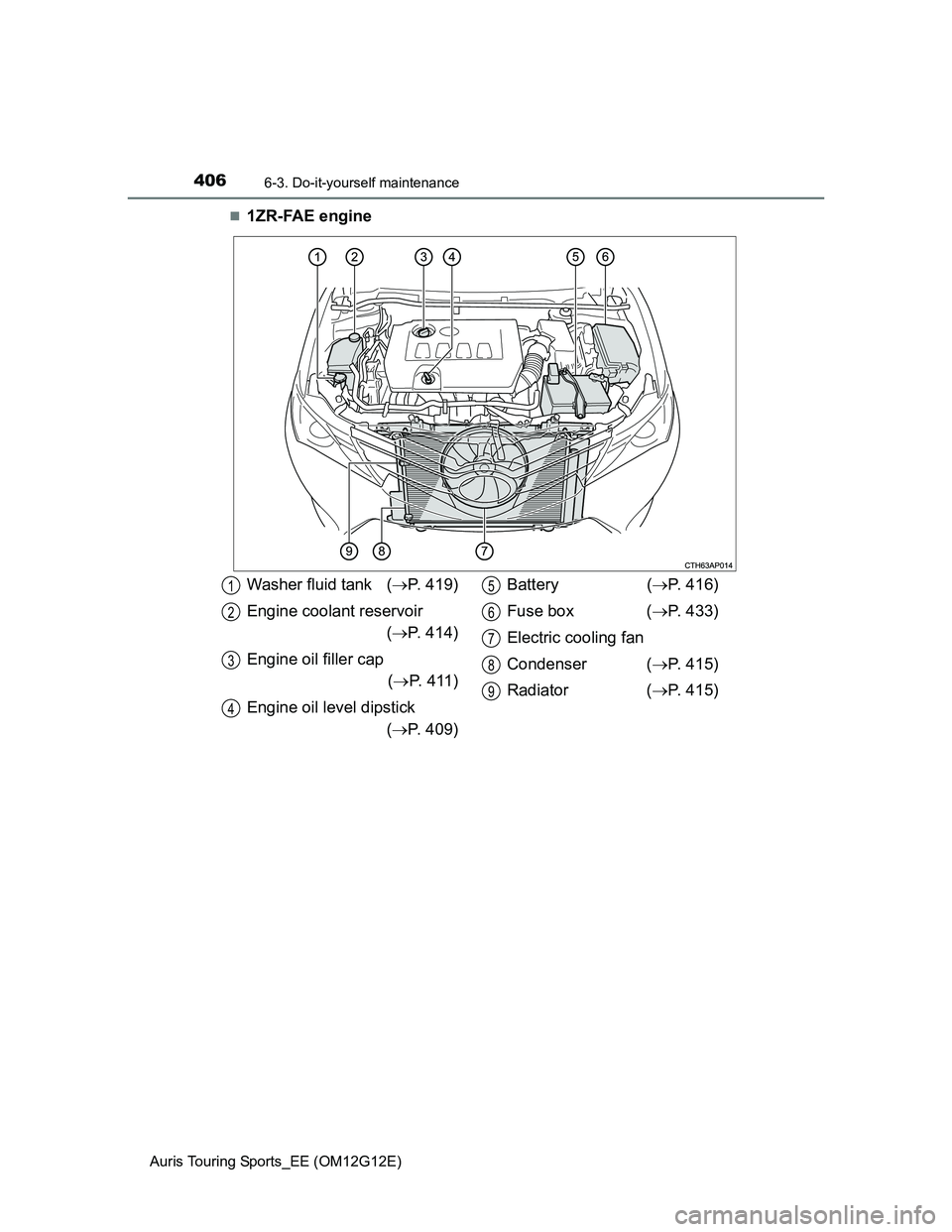

1ZR-FAE engine
Washer fluid tank (P. 419)
Engine coolant reservoir
(P. 414)
Engine oil filler cap
(P. 4 11 )
Engine oil level dipstick
(P. 409)Battery (P. 416)
Fuse box (P. 433)
Electric cooling fan
Condenser (P. 415)
Radiator (P. 415)1
2
3
4
5
6
7
8
9

4076-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)
6
Maintenance and care

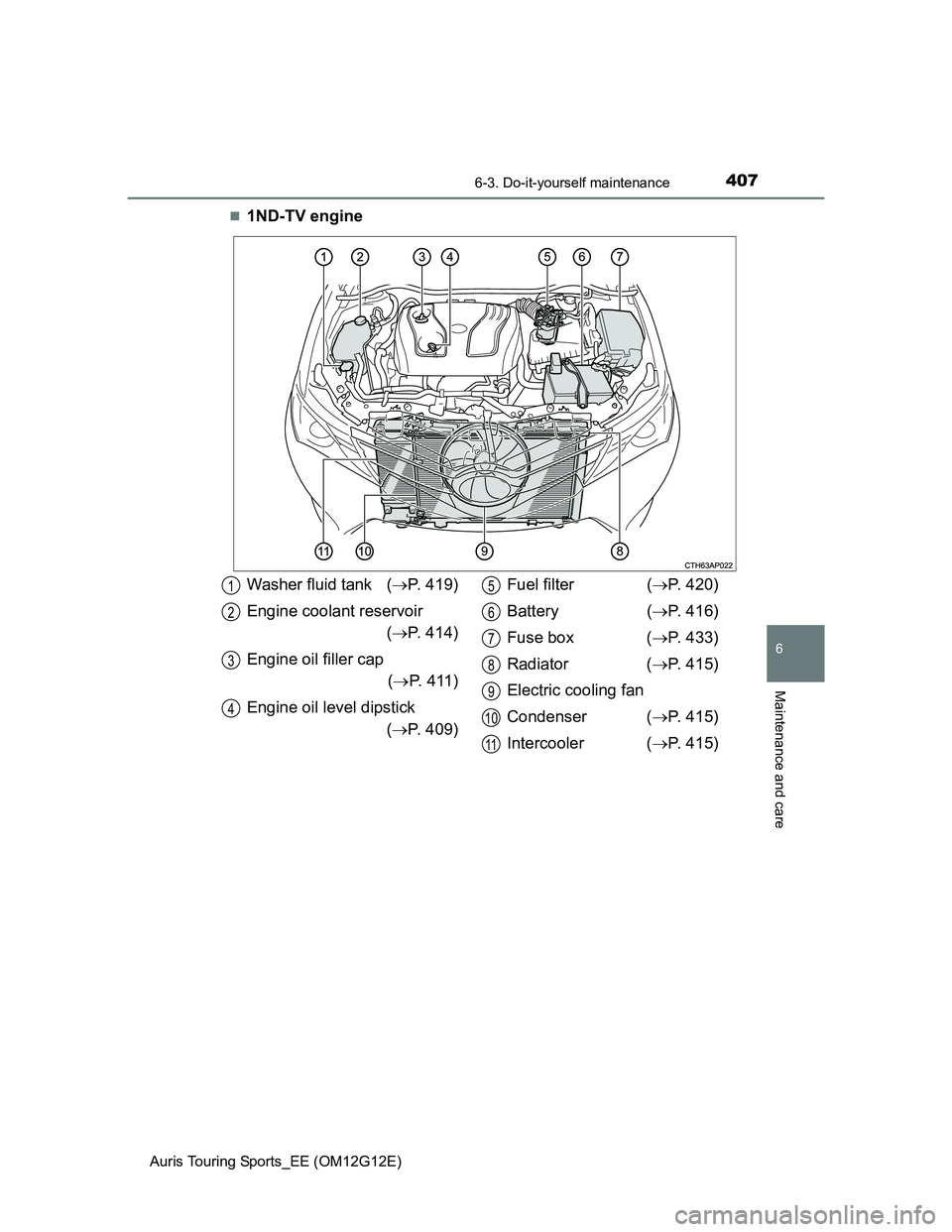

1ND-TV engine
Washer fluid tank (P. 419)
Engine coolant reservoir
(P. 414)
Engine oil filler cap
(P. 4 11 )
Engine oil level dipstick
(P. 409)Fuel filter (P. 420)
Battery (P. 416)
Fuse box (P. 433)
Radiator (P. 415)
Electric cooling fan
Condenser (P. 415)
Intercooler (P. 415)1
2
3
4
5
6
7
8
9
10
11

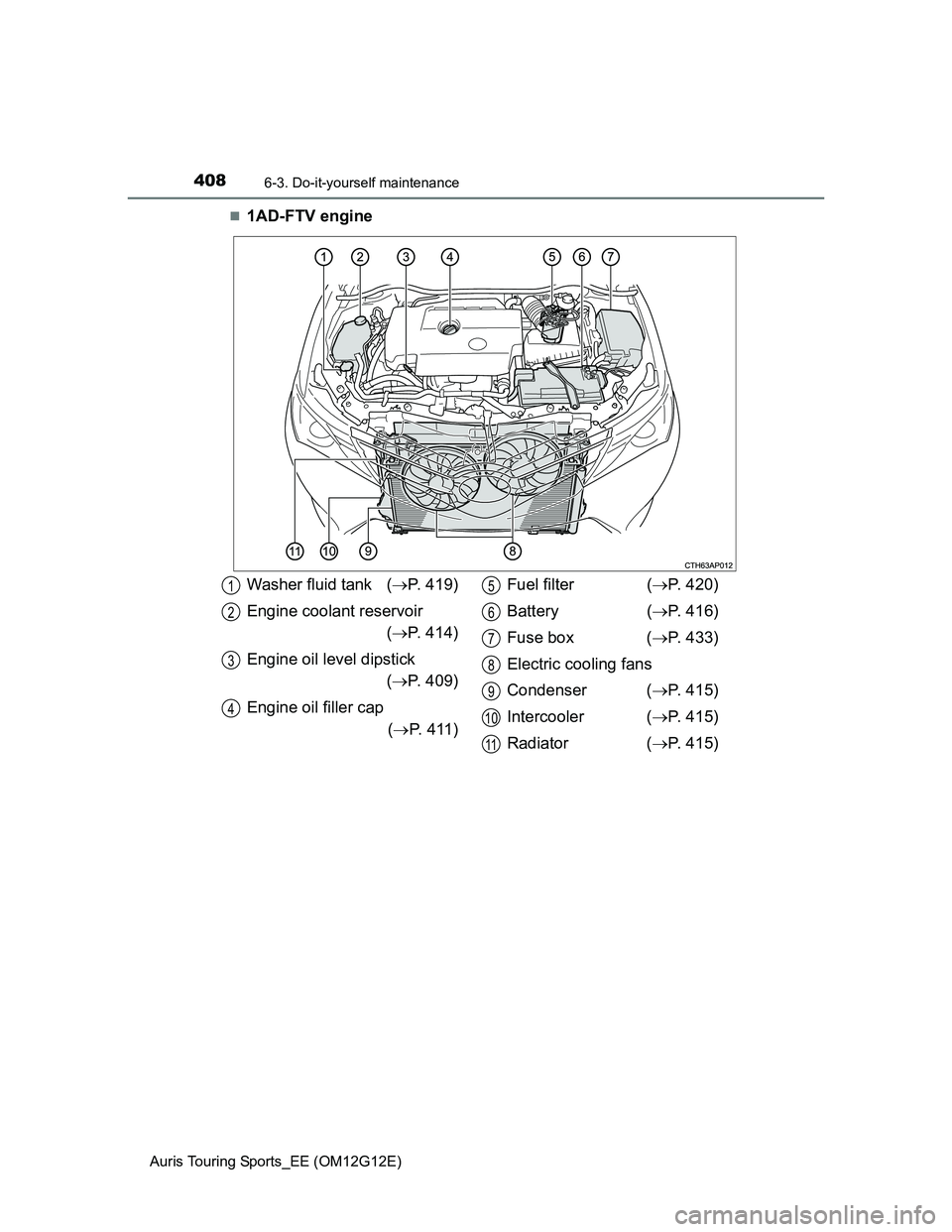

4086-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)
1AD-FTV engine
Washer fluid tank (P. 419)
Engine coolant reservoir
(P. 414)
Engine oil level dipstick
(P. 409)
Engine oil filler cap
(P. 4 11 )Fuel filter (P. 420)
Battery (P. 416)
Fuse box (P. 433)
Electric cooling fans
Condenser (P. 415)
Intercooler (P. 415)
Radiator (P. 415)1
2
3
4
5
6
7
8
9
10
11

4146-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)

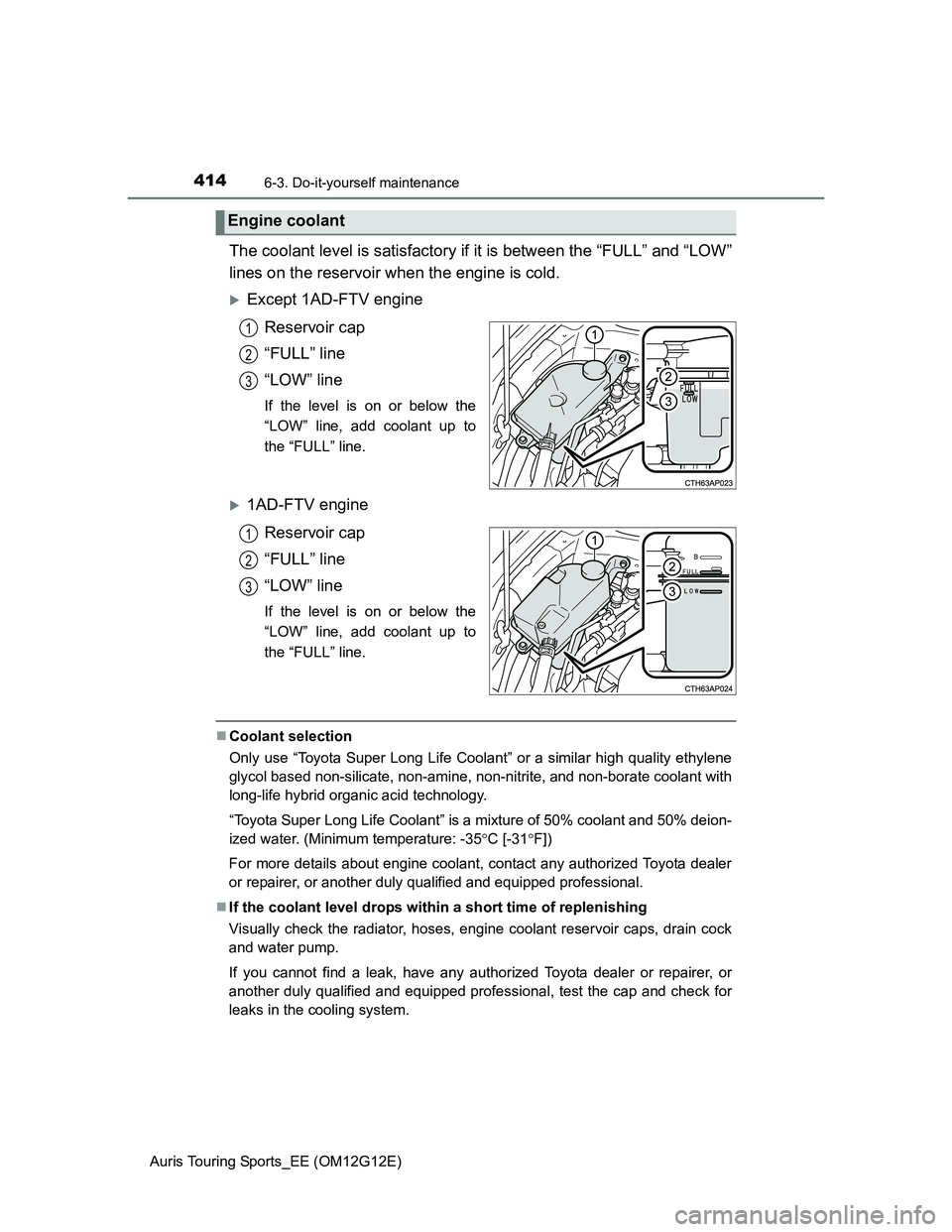

The coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when the engine is cold.
Except 1AD-FTV engine
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to
the “FULL” line.
1AD-FTV engine
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to
the “FULL” line.
Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-
ized water. (Minimum temperature: -35C [-31F])
For more details about engine coolant, contact any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine coolant reservoir caps, drain cock
and water pump.
If you cannot find a leak, have any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional, test the cap and check for
leaks in the cooling system.
Engine coolant
1
2
3
1
2
3
