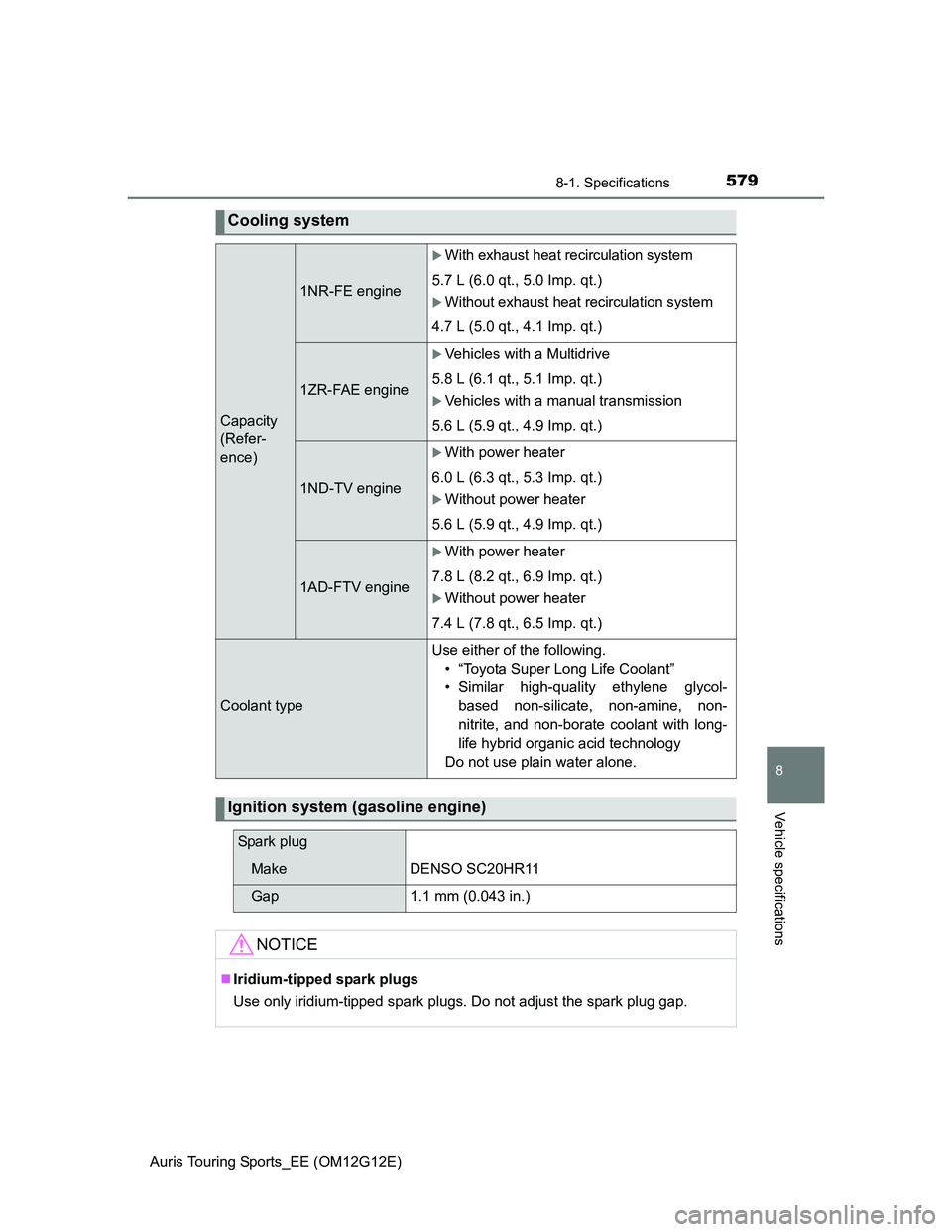

5798-1. Specifications
Auris Touring Sports_EE (OM12G12E)
8
Vehicle specifications
Cooling system
Capacity
(Refer-
ence)
1NR-FE engine
With exhaust heat recirculation system
5.7 L (6.0 qt., 5.0 Imp. qt.)
Without exhaust heat recirculation system
4.7 L (5.0 qt., 4.1 Imp. qt.)
1ZR-FAE engine
Vehicles with a Multidrive
5.8 L (6.1 qt., 5.1 Imp. qt.)
Vehicles with a manual transmission
5.6 L (5.9 qt., 4.9 Imp. qt.)
1ND-TV engine
With power heater
6.0 L (6.3 qt., 5.3 Imp. qt.)
Without power heater
5.6 L (5.9 qt., 4.9 Imp. qt.)
1AD-FTV engine
With power heater
7.8 L (8.2 qt., 6.9 Imp. qt.)
Without power heater
7.4 L (7.8 qt., 6.5 Imp. qt.)
Coolant typeUse either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-
based non-silicate, non-amine, non-
nitrite, and non-borate coolant with long-
life hybrid organic acid technology
Do not use plain water alone.
Ignition system (gasoline engine)
Spark plug
MakeDENSO SC20HR11
Gap1.1 mm (0.043 in.)
NOTICE
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
