When trouble arises
Vehicles without a multi-information display: The high engine cool-
ant temperature warning light (P. 480) comes on or a loss of
engine power is experienced. (For example, the vehicle speed
does not increase.)
Vehicles with a multi-information display: The engine coolant tem-
perature gauge (P. 95) enters the red zone or a loss of engine
power is experienced. (For example, the vehicle speed does not
increase.)
Steam comes out from under the hood.
Stop the vehicle in a safe place and turn off the air conditioning sys-
tem, and then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the engine has cooled
down sufficiently, inspect the
hoses and radiator core (radia-
tor) for any leaks.
Radiator
Cooling fan
If a large amount of coolant
leaks, immediately contact any
authorized Toyota dealer or
repairer, or another duly quali-
fied and equipped professional.
If your vehicle overheats
The following may indicate that your vehicle is overheating.
Correction procedures
1
2
3
1
2

5627-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
The coolant level is satisfactory if it is between the “FULL” and
“LOW” lines on the reservoir.
Reservoir
“FULL”
“LOW”
Add engine coolant if neces-
sary.
Water can be used in an emer-
gency if engine coolant is unavail-
able.
Start the engine and turn the air conditioning system on to check
that the radiator cooling fan operates and to check for coolant leaks
from the radiator or hoses.
The fan operates when the air conditioning system is turned on immedi-
ately after a cold start. Confirm that the fan is operating by checking the fan
sound and air flow. If it is difficult to check these, turn the air conditioning
system on and off repeatedly. (The fan may not operate in freezing tem-
peratures.)
4
1
2
3
Except 1AD-FTV engine1AD-FTV engine
5
6

5637-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
7
When trouble arises
If the fan is not operating:
Stop the engine immediately and contact any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
If the fan is operating:
Have the vehicle inspected at the nearest authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
CAUTION
When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fan and belts.
Do not loosen the coolant reservoir cap while the engine and radiator are
hot.
NOTICE
When adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding
cool coolant to a hot engine too quickly can cause damage to the engine.
To prevent damage to the cooling system
Observe the following precautions:
Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
Do not use any coolant additive.
7

5647-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
Refuel your vehicle.
Operate the priming pump until
you feel more resistance to
bleed the fuel system.
Start the engine. (P. 189, 193)
If the engine does not start after the above steps have been performed,
wait for 10 seconds and try step 2 and 3 again. If the engine still does not
start, contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
After starting the engine, depress the accelerator pedal lightly until the
engine runs smoothly.

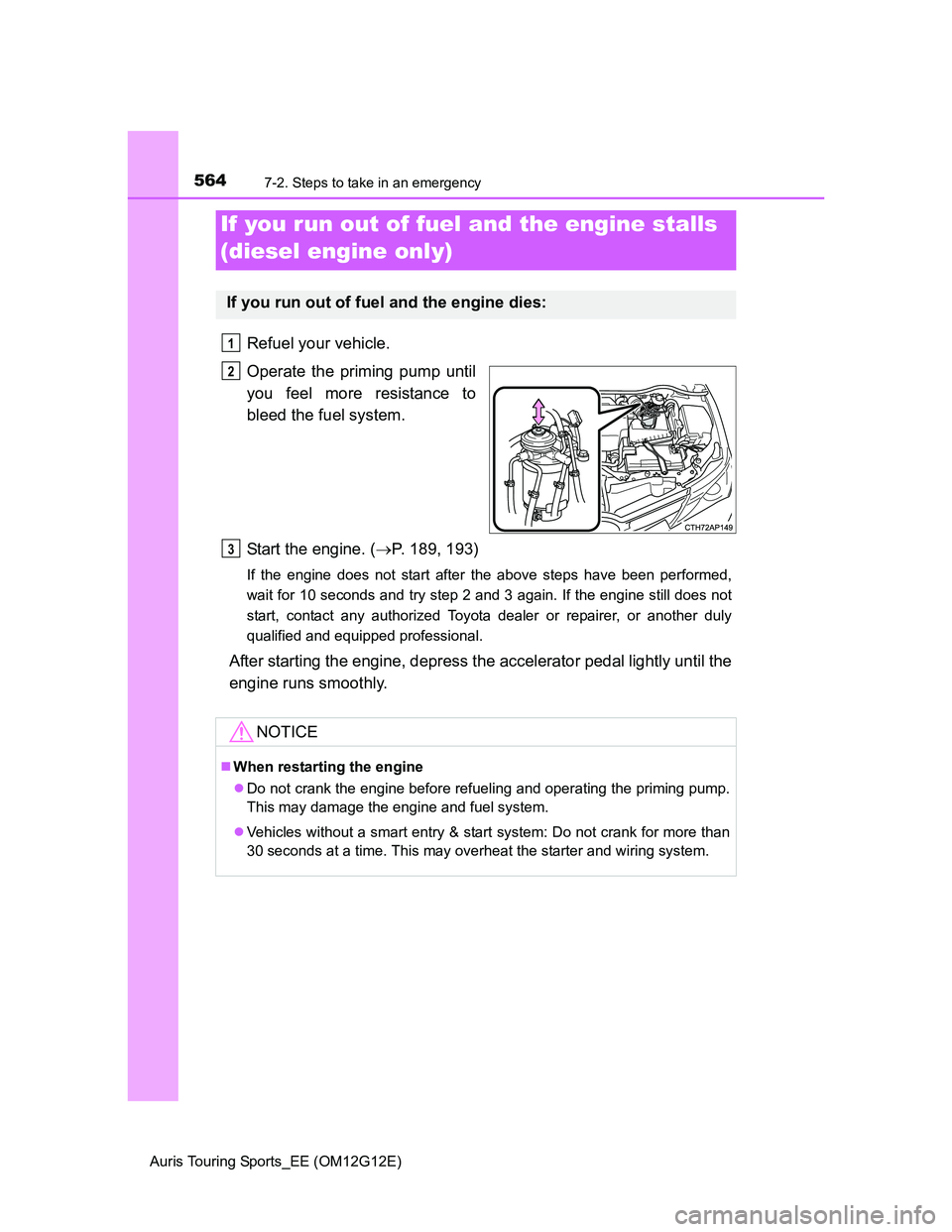

If you run out of fuel and the engine stalls
(diesel engine only)
If you run out of fuel and the engine dies:
1
2
NOTICE
When restarting the engine
Do not crank the engine before refueling and operating the priming pump.
This may damage the engine and fuel system.
Vehicles without a smart entry & start system: Do not crank for more than
30 seconds at a time. This may overheat the starter and wiring system.
3

5657-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
7
When trouble arises
Stop the engine. Shift the shift lever to P (Multidrive) or N (manual
transmission), and set the parking brake.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some other material under the front wheels
to help provide traction.
Restart the engine.
Shift the shift lever to D or R (Multidrive) or 1 or R (manual trans-
mission) and release the parking brake. Then, while exercising cau-
tion, depress the accelerator pedal.
When it is difficult to free the vehicle
If the vehicle becomes stuck
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press to turn off TRC.
1
2
3
4
5

5667-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)

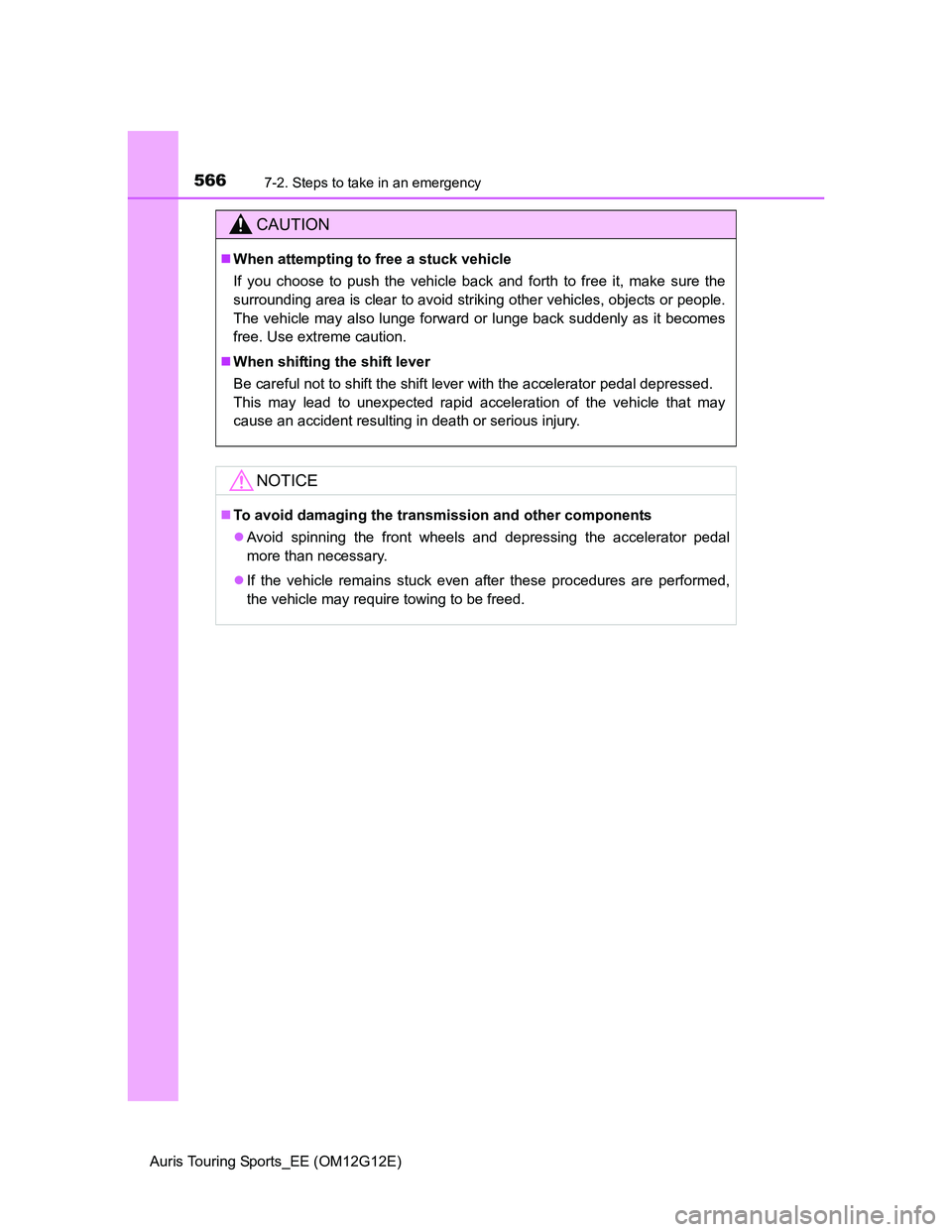

CAUTION
When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
To avoid damaging the transmission and other components
Avoid spinning the front wheels and depressing the accelerator pedal
more than necessary.
If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

567

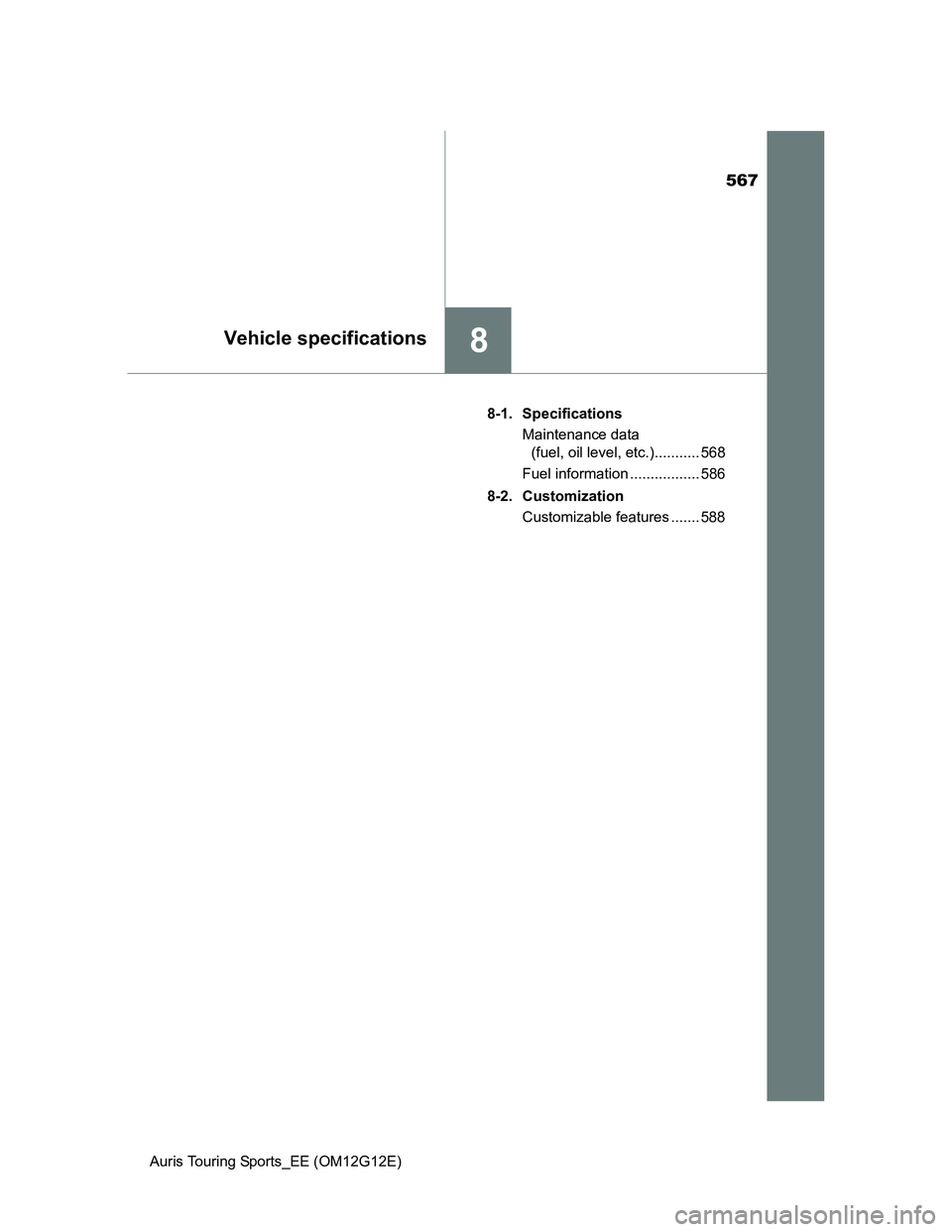

8Vehicle specifications
Auris Touring Sports_EE (OM12G12E)8-1. Specifications
Maintenance data
(fuel, oil level, etc.)........... 568
Fuel information ................. 586
8-2. Customization
Customizable features ....... 588

568
Auris Touring Sports_EE (OM12G12E)
8-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length 4560 mm (179.5 in.)
Overall width 1760 mm (69.3 in.)
Overall height*11460 mm (57.5 in.)*2
1475 mm (58.1 in.)
*3
Wheelbase 2600 mm (102.4 in.)
Tread
Front1535 mm (60.4 in.)
*4
1525 mm (60.0 in.)*5
1515 mm (59.6 in.)*6, 7
Rear
1NR-FE and 1ND-TV engines
1535 mm (60.4 in.)
*4
1520 mm (59.8 in.)*5
1510 mm (59.4 in.)*6
1ZR-FAE engine
1525 mm (60.0 in.)
*4
1510 mm (59.4 in.)*5
1500 mm (59.1 in.)*7
1AD-FTV engine
1510 mm (59.4 in.)
*5
1500 mm (59.1 in.)*7
Gross vehicle mass
1NR-FE engine
1765 kg (3891 lb.)
1ZR-FAE engine
1860 kg (4101 lb.)
*8
1835 kg (4045 lb.)*9
1ND-TV engine
1845 kg (4068 lb.)
1AD-FTV engine
1915 kg (4222 lb.)
