568
Auris Touring Sports_EE (OM12G12E)

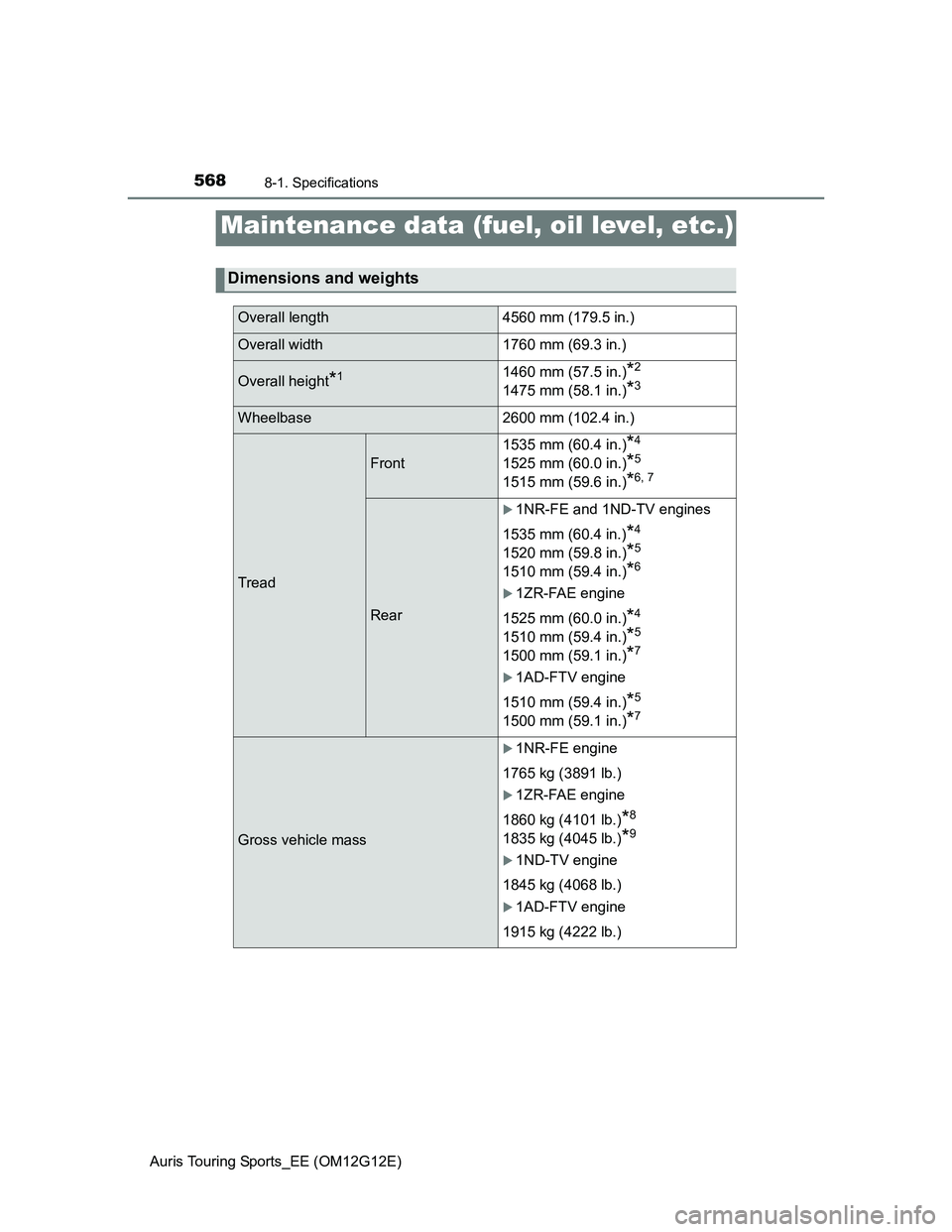

8-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length 4560 mm (179.5 in.)
Overall width 1760 mm (69.3 in.)
Overall height*11460 mm (57.5 in.)*2
1475 mm (58.1 in.)
*3
Wheelbase 2600 mm (102.4 in.)
Tread
Front1535 mm (60.4 in.)
*4
1525 mm (60.0 in.)*5
1515 mm (59.6 in.)*6, 7
Rear
1NR-FE and 1ND-TV engines
1535 mm (60.4 in.)
*4
1520 mm (59.8 in.)*5
1510 mm (59.4 in.)*6
1ZR-FAE engine
1525 mm (60.0 in.)
*4
1510 mm (59.4 in.)*5
1500 mm (59.1 in.)*7
1AD-FTV engine
1510 mm (59.4 in.)
*5
1500 mm (59.1 in.)*7
Gross vehicle mass
1NR-FE engine
1765 kg (3891 lb.)
1ZR-FAE engine
1860 kg (4101 lb.)
*8
1835 kg (4045 lb.)*9
1ND-TV engine
1845 kg (4068 lb.)
1AD-FTV engine
1915 kg (4222 lb.)
603Alphabetical index
Auris Touring Sports_EE (OM12G12E)
Child-protectors ....................... 143
Cleaning............................ 388, 392
Aluminum wheels .................. 389
Exterior.................................. 388
Interior ................................... 392
Seat belts .............................. 393
Clock ......................................... 374
Coat hooks ............................... 383
Condenser ................................ 415
Console box ............................. 356
Cooling system ........................ 414
Engine overheating ............... 561
Cruise control
Cruise control ........................ 236
Cup holders .............................. 358
Curtain shield airbags ............... 38
Customizable features ............ 588Daytime running light
system .................................... 214
Deck board ............................... 362
Defogger
Outside rear view mirrors...... 308
Rear window ......................... 308
Dimensions .............................. 568
Display
Drive monitor display .............. 90
Multi-information display ......... 95
Trip information ................. 92, 97
Warning message ................ 492
Do-it-yourself maintenance .... 398
Door lock
Doors .................................... 141
Smart entry & start system ... 113
Wireless remote control ........ 132
Doors ........................................ 141
Back door.............................. 144
Door windows ....................... 161
Door lock............................... 141
Double locking system ............ 82
Open door warning buzzer ... 116
Open door warning
light ............................. 482, 496
Outside rear view mirrors...... 158
Rear door child-protector ...... 143
Double locking system ............. 82
DPF
Diesel Particulate Filter
system ................................ 277
Warning light ......................... 483
Warning message ................. 500
Driving ...................................... 166
Break-in tips .......................... 169
Correct driving posture ........... 32
Procedures ........................... 166
Winter drive tips .................... 279D
*: Refer to ““touch screen” Owner’s manual”
