862. Instrument cluster
Auris Touring Sports_EE (OM12G12E)
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
Brake system warning
light (P. 479)*2, 4
(Yellow)
Automatic High Beam
indicator light (P. 481)
*1, 2Charging system warn-
ing light (P. 480)*1, 2, 3 “AFS OFF” indicator
(P. 481)
*1, 2Low engine oil pressure
warning light (P. 480)*1, 2Fuel filter warning light
(diesel engine)
(P. 482)
*1, 2High engine coolant
temperature warning
light (P. 480)*2, 4
(Yellow)
Cruise control indicator
light (P. 482)
*1
Malfunction indicator
lamp (P. 480)*2, 4
(Yellow)
Speed limiter indicator
light (P. 482)
*1
SRS warning light
(P. 481)*2, 5
(Yellow)
Smart entry & start sys-
tem indicator light
(P. 482)
*1ABS warning light
(P. 481)*2Open door warning light
(P. 482)
*1Electric power steering
system warning light
(P. 481)Low fuel level warning
light (P. 482)
*2, 3Stop & Start cancel indi-
cator (P. 481)Driver’s and front pas-
senger’s seat belt
reminder light (P. 483)
*1
Slip indicator (P. 481)
Rear passengers’ seat
belt reminder lights
(P. 483)

2774-5. Using the driving support systems
Auris Touring Sports_EE (OM12G12E)
4
Driving
Cleaning the DPF catalytic converter
Cleaning the DPF catalytic converter is performed as necessary in
accordance with driving conditions.
Equipment characteristics
The DPF system has the following characteristics:
Idle speed increases during cleaning
The smell of the exhaust gas changes
When starting the engine, white-colored steam (water vapor)
may be expelled during cleaning
Acceleration performance may degrade during cleaning
Replacing the engine oil
P. 409

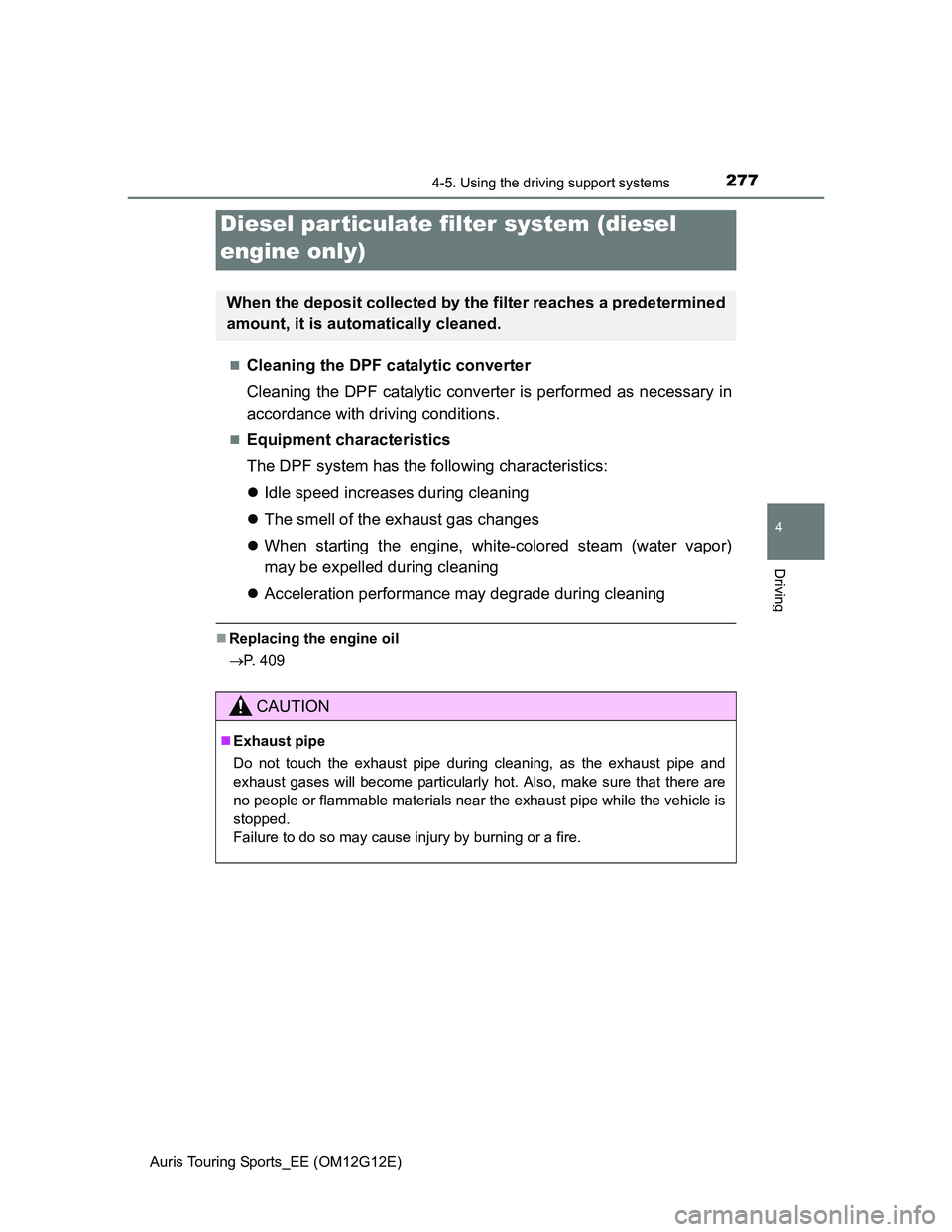

Diesel particulate filter system (diesel
engine only)
When the deposit collected by the filter reaches a predetermined
amount, it is automatically cleaned.
CAUTION
Exhaust pipe
Do not touch the exhaust pipe during cleaning, as the exhaust pipe and
exhaust gases will become particularly hot. Also, make sure that there are
no people or flammable materials near the exhaust pipe while the vehicle is
stopped.
Failure to do so may cause injury by burning or a fire.

4076-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)
6
Maintenance and care
1ND-TV engine
Washer fluid tank (P. 419)
Engine coolant reservoir
(P. 414)
Engine oil filler cap
(P. 4 11 )
Engine oil level dipstick
(P. 409)Fuel filter (P. 420)
Battery (P. 416)
Fuse box (P. 433)
Radiator (P. 415)
Electric cooling fan
Condenser (P. 415)
Intercooler (P. 415)1
2
3
4
5
6
7
8
9
10
11

4086-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)
1AD-FTV engine
Washer fluid tank (P. 419)
Engine coolant reservoir
(P. 414)
Engine oil level dipstick
(P. 409)
Engine oil filler cap
(P. 4 11 )Fuel filter (P. 420)
Battery (P. 416)
Fuse box (P. 433)
Electric cooling fans
Condenser (P. 415)
Intercooler (P. 415)
Radiator (P. 415)1
2
3
4
5
6
7
8
9
10
11

4136-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)
6
Maintenance and care

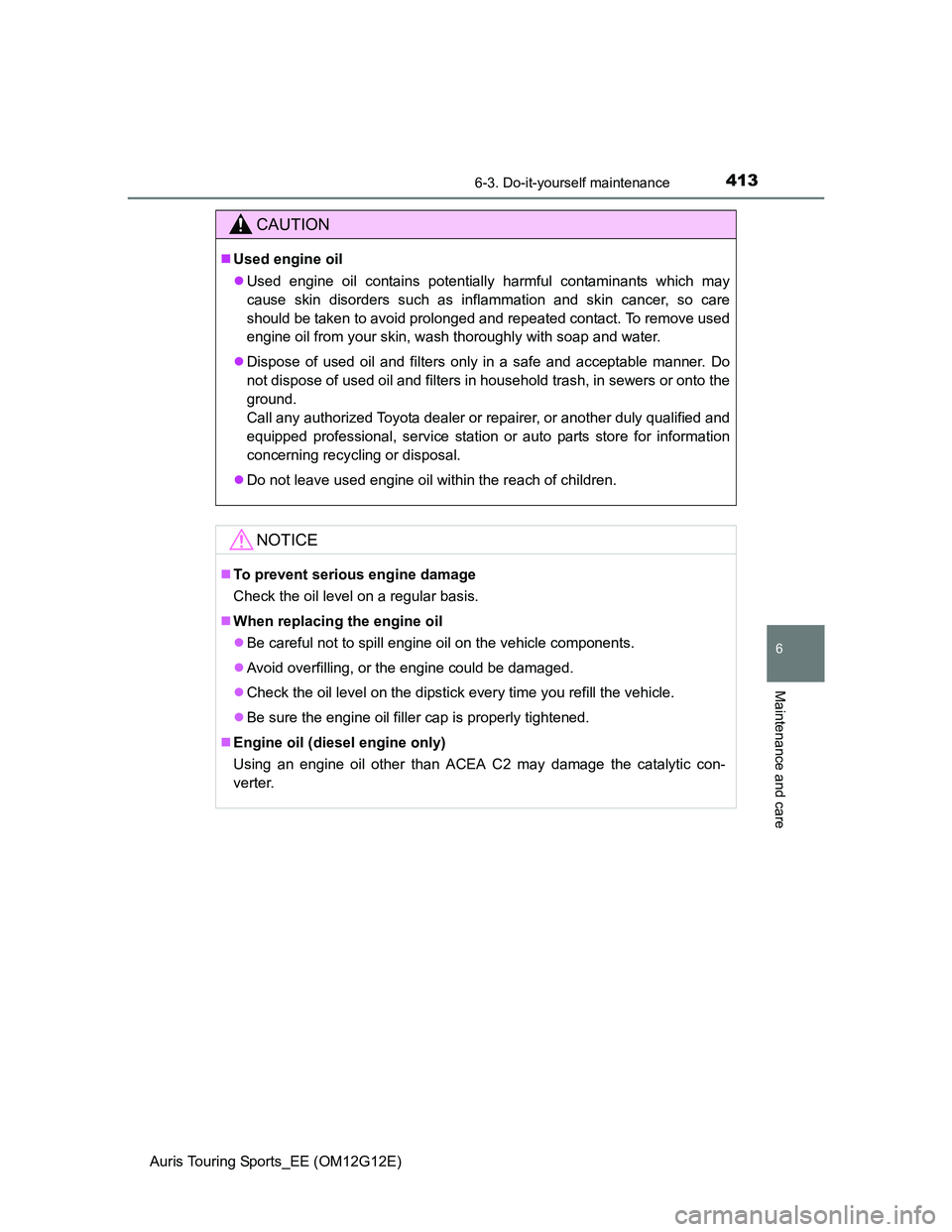

CAUTION
Used engine oil
Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation and skin cancer, so care
should be taken to avoid prolonged and repeated contact. To remove used
engine oil from your skin, wash thoroughly with soap and water.
Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground.
Call any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional, service station or auto parts store for information
concerning recycling or disposal.
Do not leave used engine oil within the reach of children.
NOTICE
To prevent serious engine damage
Check the oil level on a regular basis.
When replacing the engine oil
Be careful not to spill engine oil on the vehicle components.
Avoid overfilling, or the engine could be damaged.
Check the oil level on the dipstick every time you refill the vehicle.
Be sure the engine oil filler cap is properly tightened.
Engine oil (diesel engine only)
Using an engine oil other than ACEA C2 may damage the catalytic con-
verter.

4847-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
(Flashes)

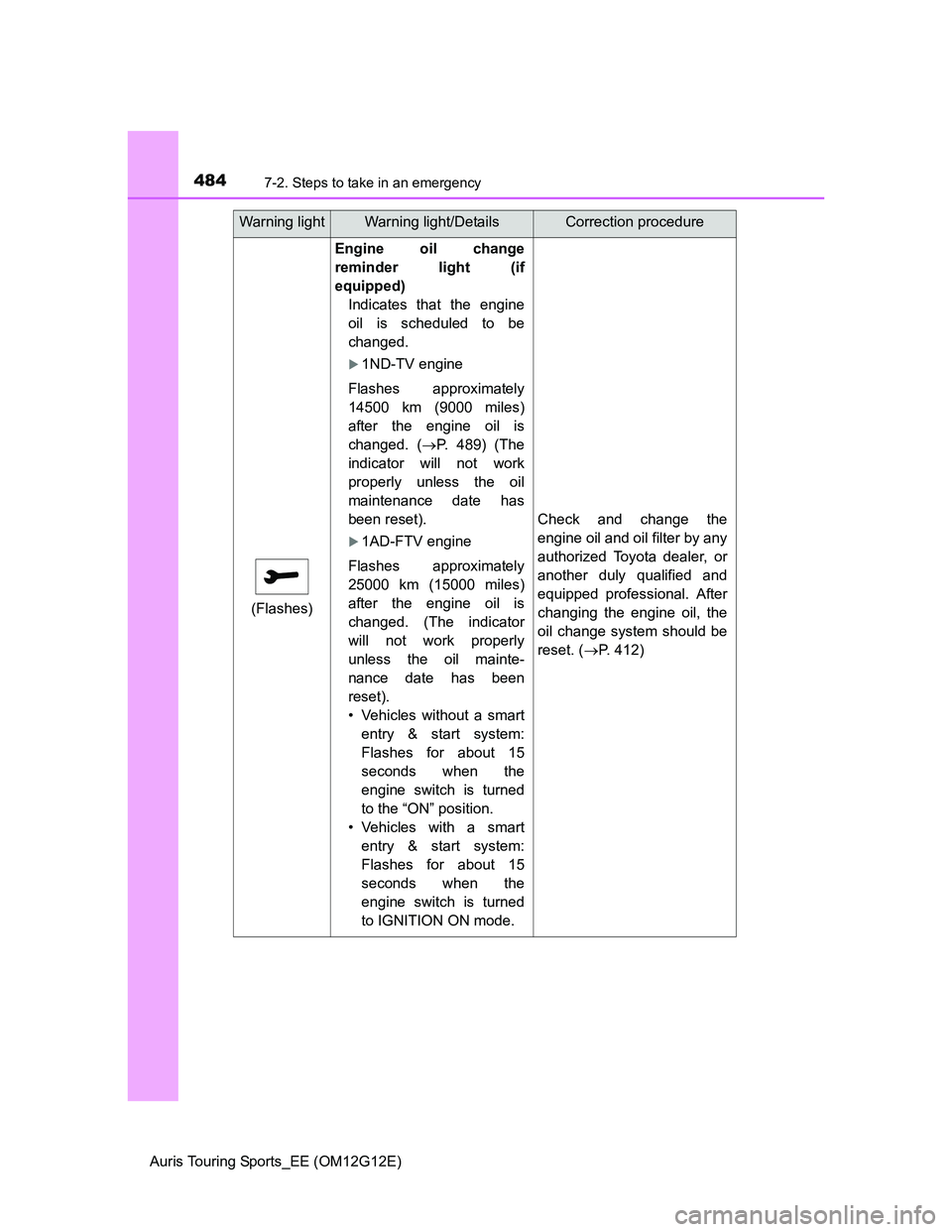

Engine oil change
reminder light (if
equipped)
Indicates that the engine
oil is scheduled to be
changed.
1ND-TV engine
Flashes approximately
14500 km (9000 miles)
after the engine oil is
changed. (P. 489) (The
indicator will not work
properly unless the oil
maintenance date has
been reset).
1AD-FTV engine
Flashes approximately
25000 km (15000 miles)
after the engine oil is
changed. (The indicator
will not work properly
unless the oil mainte-
nance date has been
reset).
• Vehicles without a smart
entry & start system:
Flashes for about 15
seconds when the
engine switch is turned
to the “ON” position.
• Vehicles with a smart
entry & start system:
Flashes for about 15
seconds when the
engine switch is turned
to IGNITION ON mode.
Check and change the
engine oil and oil filter by any
authorized Toyota dealer, or
another duly qualified and
equipped professional. After
changing the engine oil, the
oil change system should be
reset. (P. 412)
Warning lightWarning light/DetailsCorrection procedure

4857-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
7
When trouble arises

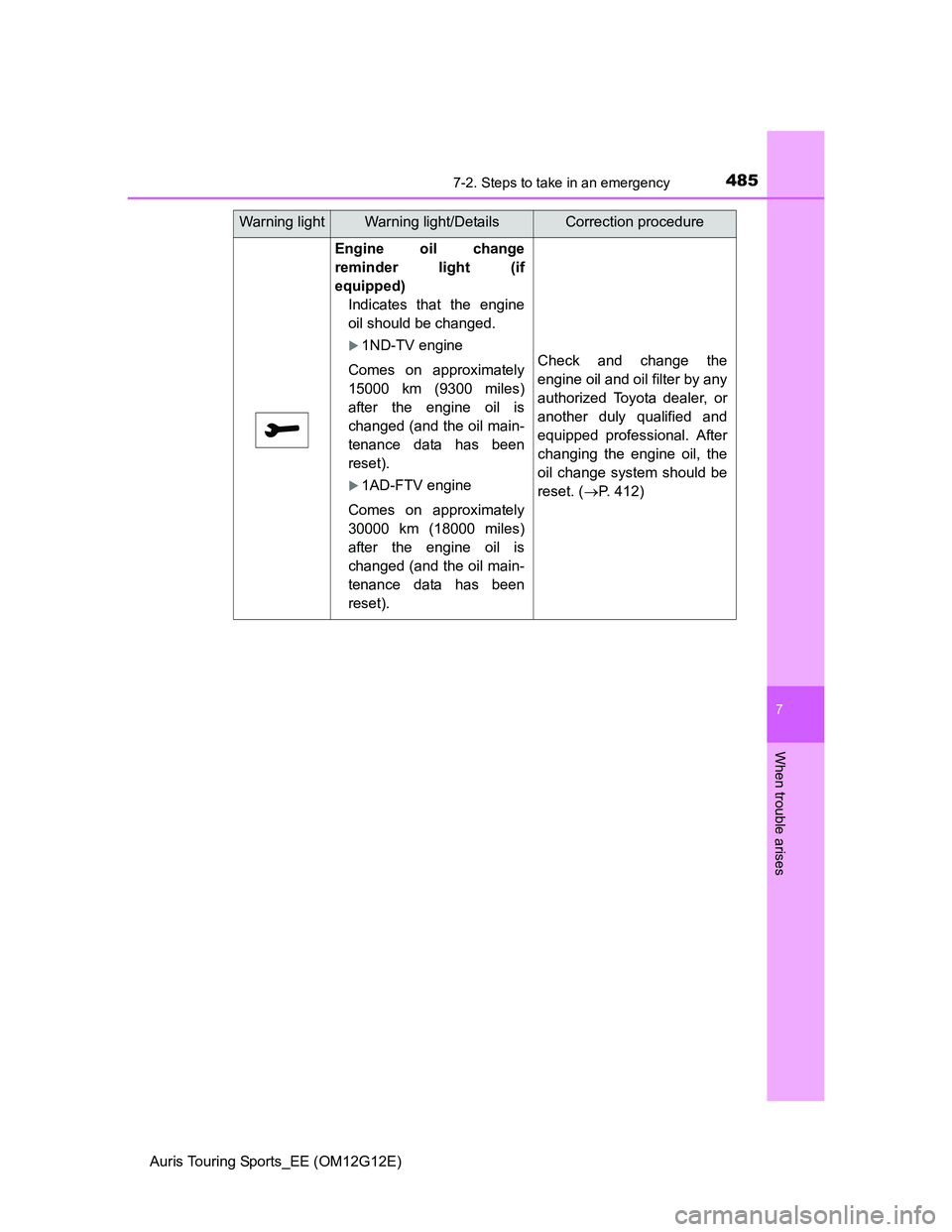

Engine oil change
reminder light (if
equipped)
Indicates that the engine
oil should be changed.
1ND-TV engine
Comes on approximately
15000 km (9300 miles)
after the engine oil is
changed (and the oil main-
tenance data has been
reset).
1AD-FTV engine
Comes on approximately
30000 km (18000 miles)
after the engine oil is
changed (and the oil main-
tenance data has been
reset).
Check and change the
engine oil and oil filter by any
authorized Toyota dealer, or
another duly qualified and
equipped professional. After
changing the engine oil, the
oil change system should be
reset. (P. 412)
Warning lightWarning light/DetailsCorrection procedure

4907-2. Steps to take in an emergency

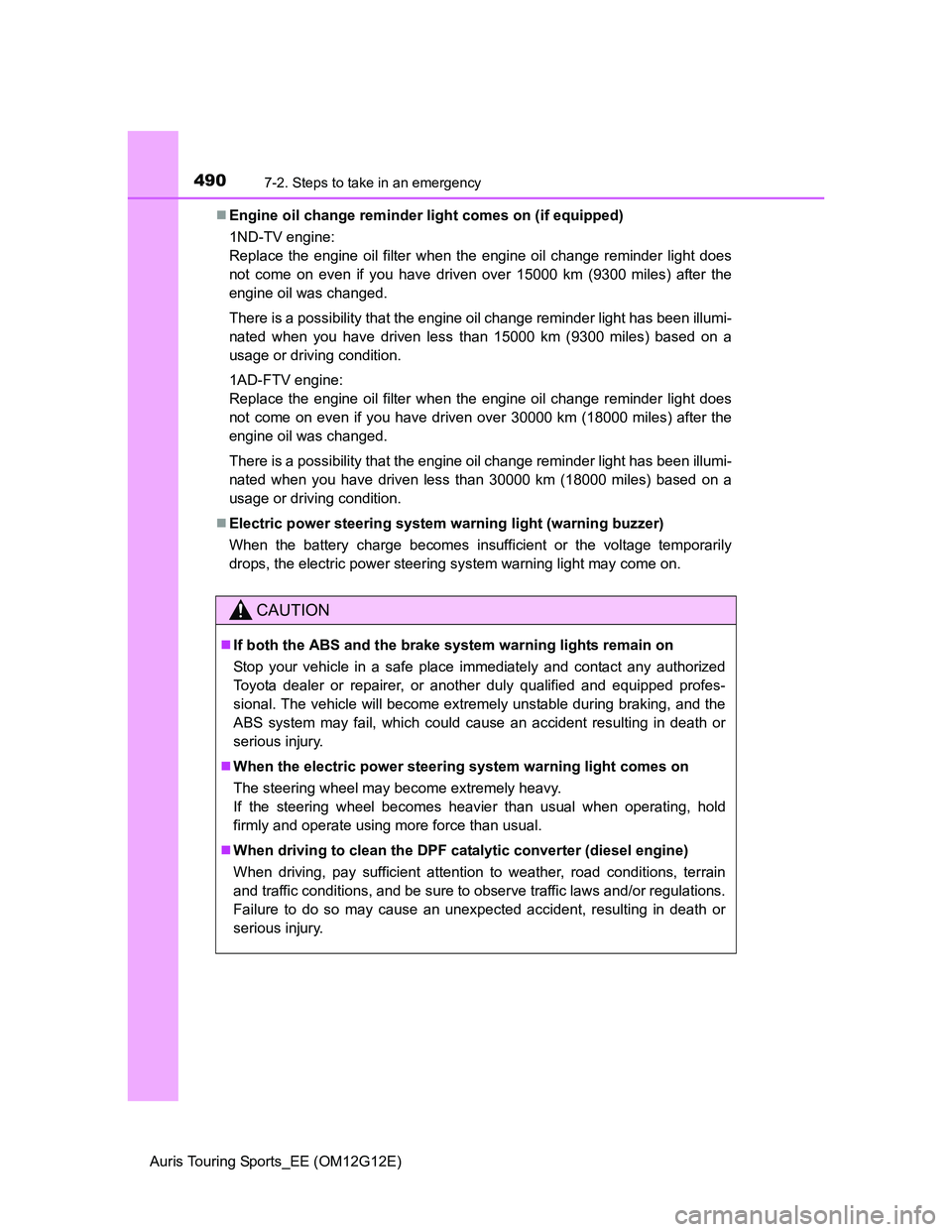

Auris Touring Sports_EE (OM12G12E)Engine oil change reminder light comes on (if equipped)
1ND-TV engine:
Replace the engine oil filter when the engine oil change reminder light does
not come on even if you have driven over 15000 km (9300 miles) after the
engine oil was changed.
There is a possibility that the engine oil change reminder light has been illumi-
nated when you have driven less than 15000 km (9300 miles) based on a
usage or driving condition.
1AD-FTV engine:
Replace the engine oil filter when the engine oil change reminder light does
not come on even if you have driven over 30000 km (18000 miles) after the
engine oil was changed.
There is a possibility that the engine oil change reminder light has been illumi-
nated when you have driven less than 30000 km (18000 miles) based on a
usage or driving condition.
Electric power steering system warning light (warning buzzer)
When the battery charge becomes insufficient or the voltage temporarily
drops, the electric power steering system warning light may come on.
CAUTION
If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional. The vehicle will become extremely unstable during braking, and the
ABS system may fail, which could cause an accident resulting in death or
serious injury.
When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold
firmly and operate using more force than usual.
When driving to clean the DPF catalytic converter (diesel engine)
When driving, pay sufficient attention to weather, road conditions, terrain
and traffic conditions, and be sure to observe traffic laws and/or regulations.
Failure to do so may cause an unexpected accident, resulting in death or
serious injury.
