2013 TOYOTA AURIS TOURING SPORTS fuel

3
1
8 7
6
5
4
3
2
Auris Touring Sports_EE (OM12G12E)3-4. Adjusting the steering
wheel and mirrors
Steering wheel ...................155
Inside rear view mirror .......156
Outside rear view
mirrors .............................158
3-5. Opening and closing the
windows
Power windows ..................161
4-1. Before driving
Driving the vehicle .............166
Cargo and luggage ............177
Trailer towing .....................180
4-2. Driving procedures
Engine (ignition) switch
(vehicles without a smart
entry & start system)........189
Engine (ignition) switch
(vehicles with a smart
entry & start system)........193
Multidrive ...........................203
Manual transmission ..........208
Turn signal lever ................211
Parking brake.....................212
Horn ...................................2134-3. Operating the lights and
wipers
Headlight switch ................ 214
Automatic High Beam ....... 220
Fog light switch ................. 224
Windshield wipers and
washer ............................ 226
Rear window wiper and
washer ............................ 230
4-4. Refueling
Opening the fuel tank
cap .................................. 232
4-5. Using the driving
support systems
Cruise control .................... 236
Speed limiter ..................... 241
Toyota parking
assist-sensor ................... 244
Simple-IPA
(Simple-Intelligent
Parking Assist) ................ 250
Stop & Start system .......... 264
Driving assist systems....... 270
Hill-start assist control ....... 275
Diesel particulate filter
system............................. 277
4-6. Driving tips
Winter driving tips.............. 279
4Driving

5
1
8 7
6
5
4
3
2
Auris Touring Sports_EE (OM12G12E)6-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ..........388
Cleaning and protecting
the vehicle interior ...........392
6-2. Maintenance
Maintenance
requirements....................395
6-3. Do-it-yourself
maintenance
Do-it-yourself service
precautions ......................398
Hood ..................................401
Positioning a floor jack .......403
Engine compartment..........405
Tires ...................................422
Tire inflation pressure ........424
Wheels ...............................426
Air conditioning filter ..........428
Wireless remote control/
electronic key battery.......430
Checking and replacing
fuses ................................433
Light bulbs .........................4507-1. Essential information
Emergency flashers .......... 468
If your vehicle has to
be stopped in an
emergency ...................... 469
7-2. Steps to take in an
emergency
If your vehicle needs to
be towed ......................... 471
If you think something is
wrong .............................. 477
Fuel pump shut off
system............................. 478
If a warning light turns
on or a warning buzzer
sounds ............................ 479
If a warning message or
indicator is displayed....... 492
If you have a flat tire
(vehicles with a spare
tire) .................................. 512
If you have a flat tire
(vehicles with an
emergency tire
puncture repair kit) .......... 524
If the engine will not
start ................................. 548
If the shift lever cannot
be shifted from P ............. 550
6Maintenance and care7When trouble arises

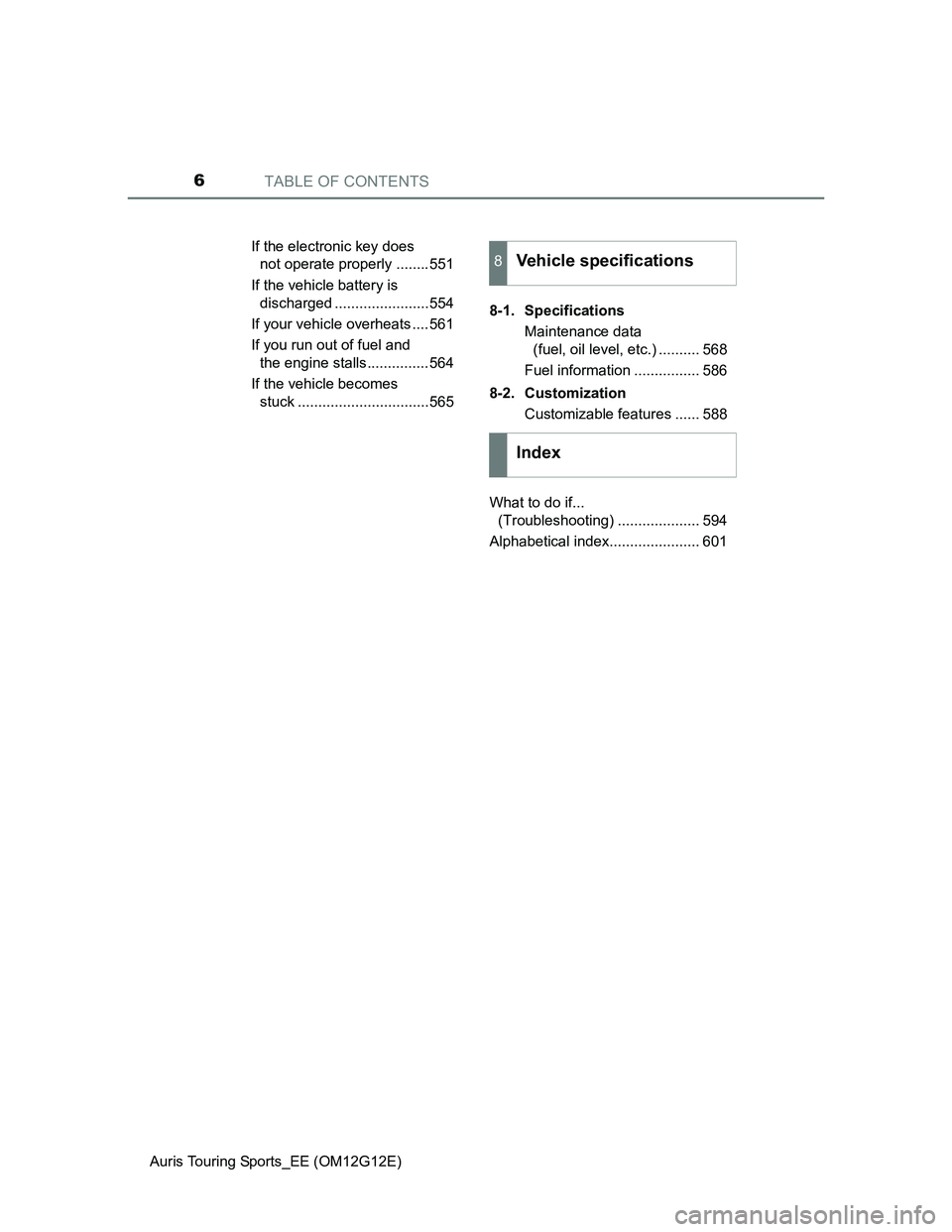

TABLE OF CONTENTS6
Auris Touring Sports_EE (OM12G12E)If the electronic key does
not operate properly ........551
If the vehicle battery is
discharged .......................554
If your vehicle overheats ....561
If you run out of fuel and
the engine stalls...............564
If the vehicle becomes
stuck ................................5658-1. Specifications
Maintenance data
(fuel, oil level, etc.) .......... 568
Fuel information ................ 586
8-2. Customization
Customizable features ...... 588
What to do if...
(Troubleshooting) .................... 594
Alphabetical index...................... 601
8Vehicle specifications
Index

9

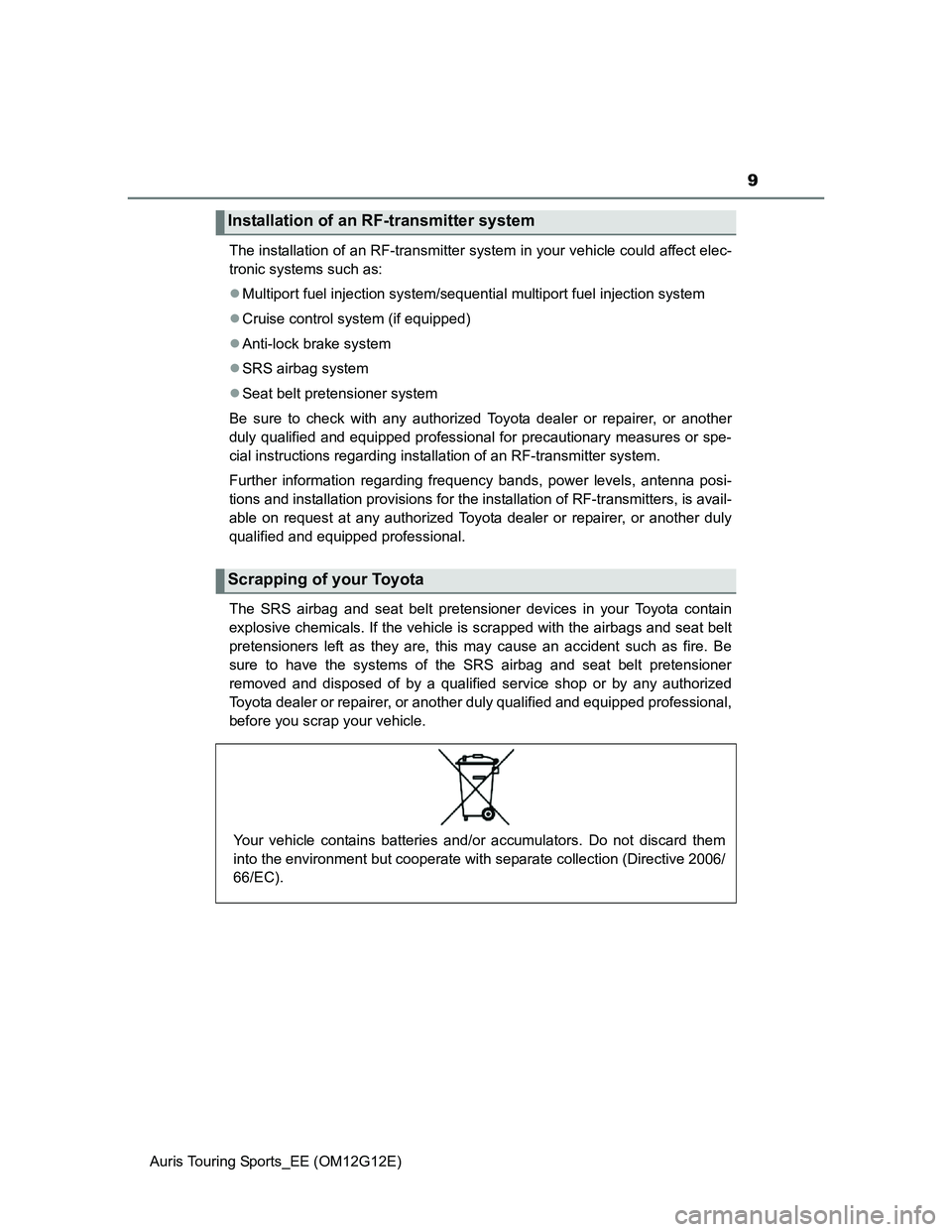

Auris Touring Sports_EE (OM12G12E)The installation of an RF-transmitter system in your vehicle could affect elec-
tronic systems such as:
Multiport fuel injection system/sequential multiport fuel injection system
Cruise control system (if equipped)
Anti-lock brake system
SRS airbag system
Seat belt pretensioner system
Be sure to check with any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional for precautionary measures or spe-
cial instructions regarding installation of an RF-transmitter system.
Further information regarding frequency bands, power levels, antenna posi-
tions and installation provisions for the installation of RF-transmitters, is avail-
able on request at any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional,
before you scrap your vehicle.
Installation of an RF-transmitter system
Scrapping of your Toyota
Your vehicle contains batteries and/or accumulators. Do not discard them
into the environment but cooperate with separate collection (Directive 2006/
66/EC).

15Pictorial index
Auris Touring Sports_EE (OM12G12E)Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 574
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 422
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 583
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 279
Checking/rotation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 422
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 512
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 401
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 401
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 575
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 561
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 214
Front position lights/daytime running lights . . . . . . . . . . . P. 214
Front fog lights
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 224
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 211
Stop/tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 214
Hill-start assist control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 275
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 214
Rear fog light
*4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 224
Back-up light
*3
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . P. 203, 208
Rear view monitor system camera
*1, 5
Rear fog light*3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 224
Back-up light
*4
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . P. 203, 208
Roof rails
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 178
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 450, Watts: P. 585)
*1: If equipped
*2: Vehicles with a multi-information display
*3: Left-hand drive vehicles
*4: Right-hand drive vehicles
*5: Refer to ““touch screen” Owner’s manual”.
8
9
10
11
12
13
14
15
16
17

862. Instrument cluster
Auris Touring Sports_EE (OM12G12E)
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
Brake system warning
light (P. 479)*2, 4
(Yellow)
Automatic High Beam
indicator light (P. 481)
*1, 2Charging system warn-
ing light (P. 480)*1, 2, 3 “AFS OFF” indicator
(P. 481)
*1, 2Low engine oil pressure
warning light (P. 480)*1, 2Fuel filter warning light
(diesel engine)
(P. 482)
*1, 2High engine coolant
temperature warning
light (P. 480)*2, 4
(Yellow)
Cruise control indicator
light (P. 482)
*1
Malfunction indicator
lamp (P. 480)*2, 4
(Yellow)
Speed limiter indicator
light (P. 482)
*1
SRS warning light
(P. 481)*2, 5
(Yellow)
Smart entry & start sys-
tem indicator light
(P. 482)
*1ABS warning light
(P. 481)*2Open door warning light
(P. 482)
*1Electric power steering
system warning light
(P. 481)Low fuel level warning
light (P. 482)
*2, 3Stop & Start cancel indi-
cator (P. 481)Driver’s and front pas-
senger’s seat belt
reminder light (P. 483)
*1
Slip indicator (P. 481)
Rear passengers’ seat
belt reminder lights
(P. 483)

902. Instrument cluster
Auris Touring Sports_EE (OM12G12E)

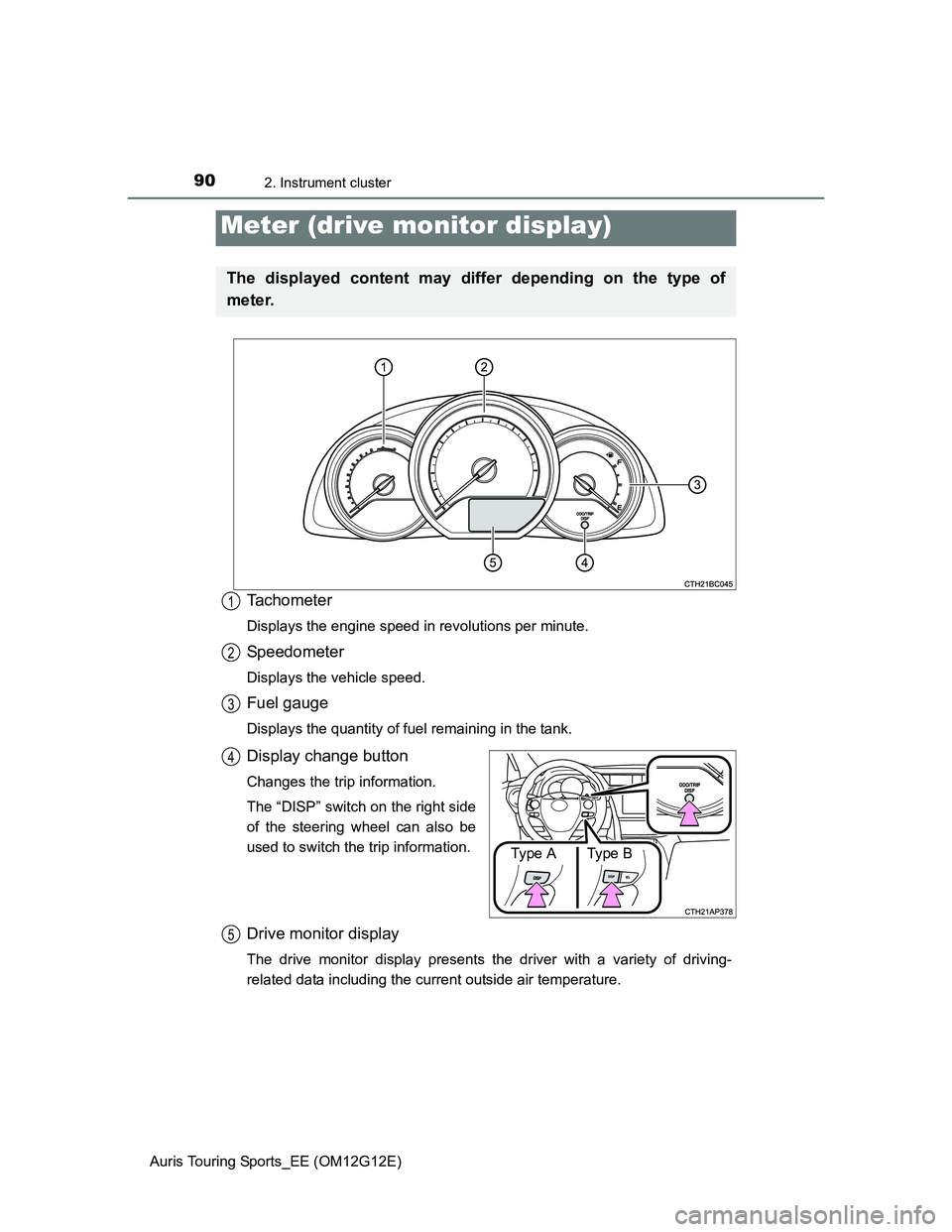

Tachometer
Displays the engine speed in revolutions per minute.
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Display change button
Changes the trip information.
The “DISP” switch on the right side
of the steering wheel can also be
used to switch the trip information.
Drive monitor display
The drive monitor display presents the driver with a variety of driving-
related data including the current outside air temperature.
Meter (drive monitor display)
The displayed content may differ depending on the type of
meter.
1
2
3
Type AType B
4
5

922. Instrument cluster
Auris Touring Sports_EE (OM12G12E)

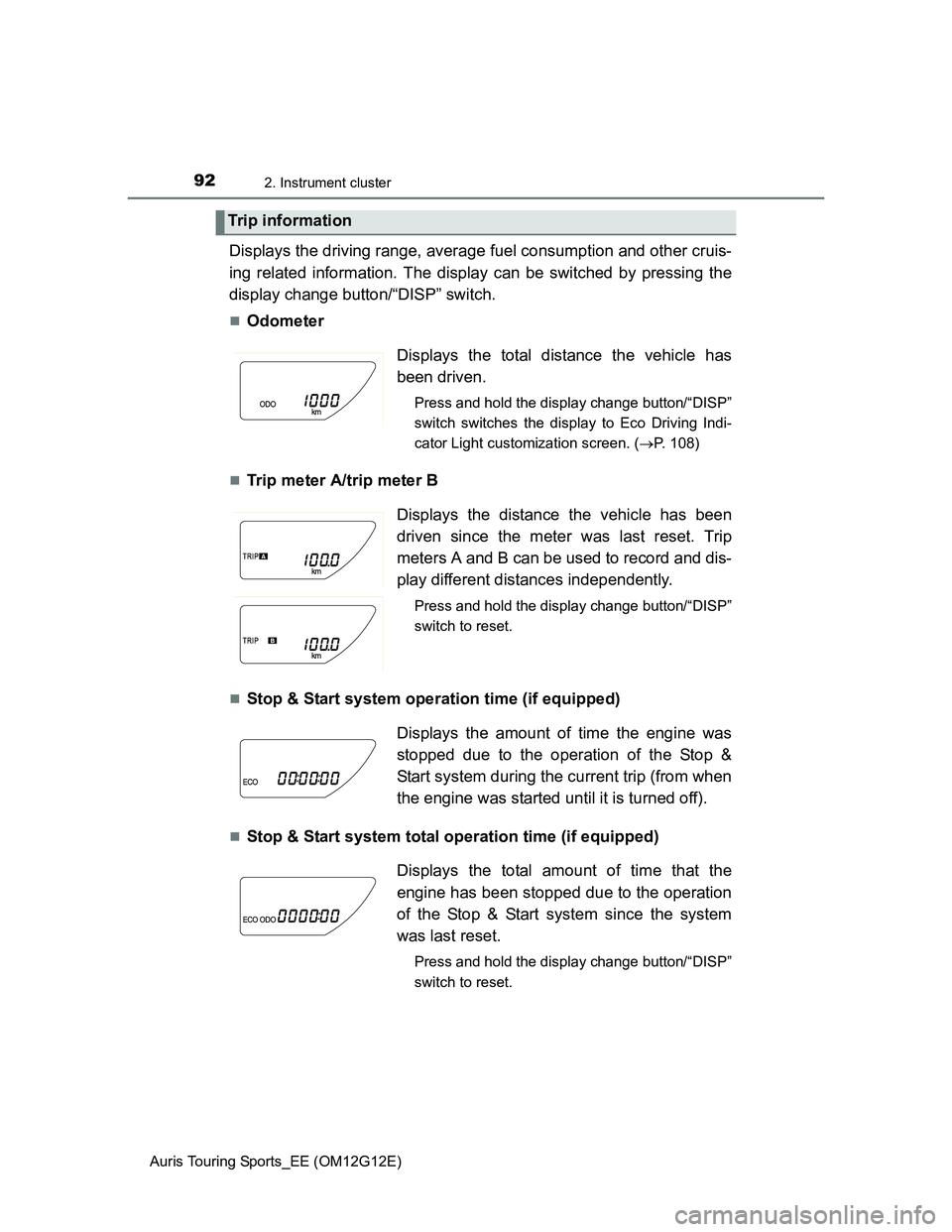

Displays the driving range, average fuel consumption and other cruis-
ing related information. The display can be switched by pressing the
display change button/“DISP” switch.
Odometer
Trip meter A/trip meter B
Stop & Start system operation time (if equipped)
Stop & Start system total operation time (if equipped)
Trip information
Displays the total distance the vehicle has
been driven.
Press and hold the display change button/“DISP”
switch switches the display to Eco Driving Indi-
cator Light customization screen. (P. 108)
Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and dis-
play different distances independently.
Press and hold the display change button/“DISP”
switch to reset.
Displays the amount of time the engine was
stopped due to the operation of the Stop &
Start system during the current trip (from when
the engine was started until it is turned off).
Displays the total amount of time that the
engine has been stopped due to the operation
of the Stop & Start system since the system
was last reset.
Press and hold the display change button/“DISP”
switch to reset.
