932. Instrument cluster
Auris Touring Sports_EE (OM12G12E)
2
Instrument cluster
Average fuel consumption
Driving range
Meter light control displayDisplays the average fuel consumption since
the function was reset.
• Press and hold the display change button/
“DISP” switch to reset.
• Use the displayed average fuel consumption as
a reference.
• Vehicles with a Multidrive: While the average
fuel consumption is being displayed, Eco Driv-
ing Indicator Zone Display is displayed.
Displays the estimated maximum distance that
can be driven with the quantity of fuel remain-
ing.
• This distance is computed based on your aver-
age fuel consumption. As a result, the actual
distance that can be driven may differ from that
displayed.
• When only a small amount of fuel is added to
the tank, the display may not be updated.
When refueling, turn the engine switch off. If the
vehicle is refueled without turning the engine
switch off, the display may not be updated.
Displays the meter light control display.
• Press and hold the display change button/
“DISP” switch to reset will adjust the brightness
of the meter light when the tail lights are on.
• This screen is only displayed when the tail
lights are on.

942. Instrument cluster
Auris Touring Sports_EE (OM12G12E)
The meters and display illuminate when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
When disconnecting and reconnecting battery terminals
The following information data will be reset:
Average fuel consumption
Driving range
CAUTION
The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the display monitor may
respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
To prevent damage to the engine and its components
Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
The engine may be overheating if the high engine coolant temperature
warning light comes on. In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (P. 561)

952. Instrument cluster
Auris Touring Sports_EE (OM12G12E)
2
Instrument cluster
Tachometer
Displays the engine speed in revolutions per minute.
Speedometer
Displays the vehicle speed.
Display change button
Switches the trip information.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Multi-information display
The multi-information display presents the driver with a variety of driving-
related data including the current outside air temperature.
Engine coolant temperature gauge
Displays the engine coolant temperature.
Meter (multi-infor mation display)
The displayed content may differ depending on the type of
meter.
1
2
3
4
5
6

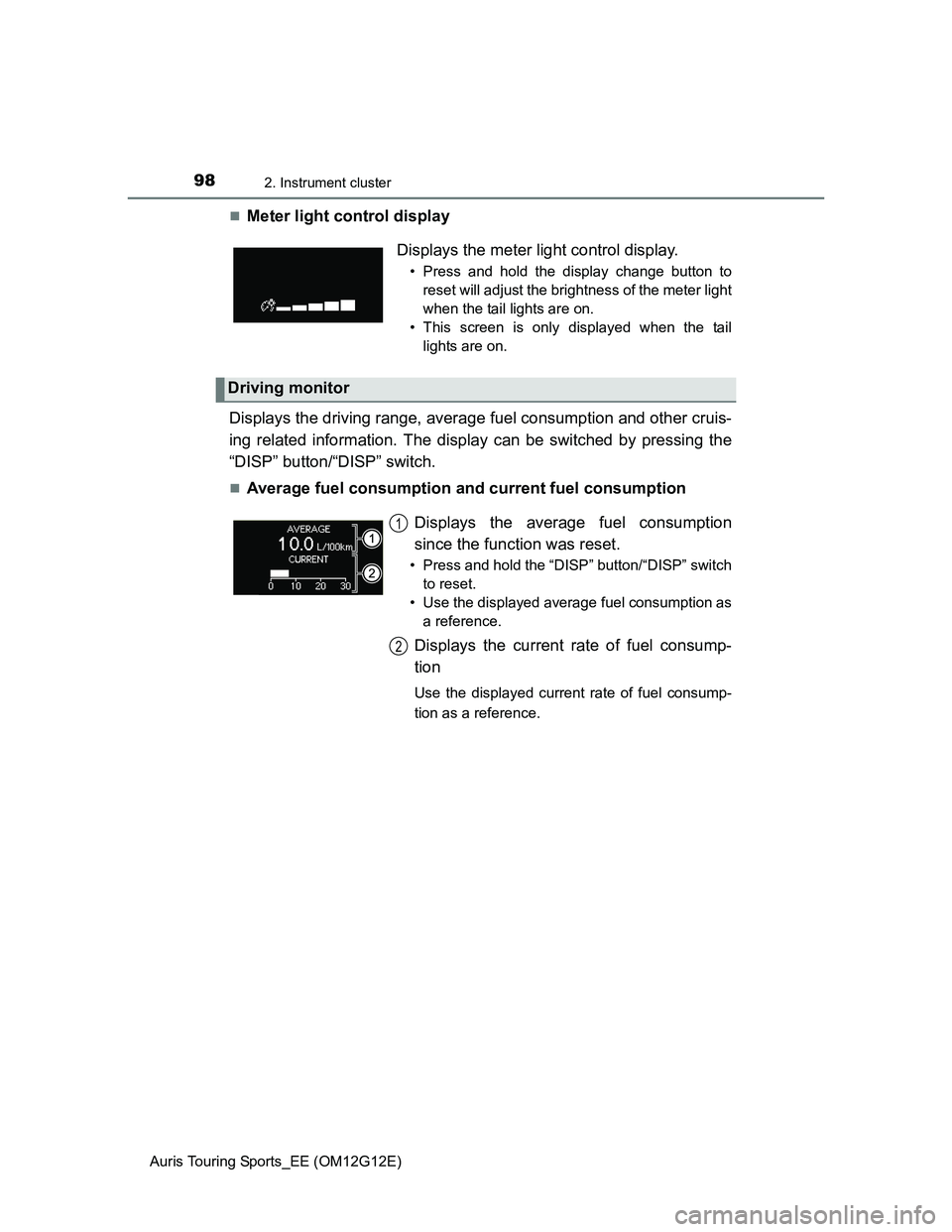

982. Instrument cluster
Auris Touring Sports_EE (OM12G12E)
Meter light control display
Displays the driving range, average fuel consumption and other cruis-
ing related information. The display can be switched by pressing the
“DISP” button/“DISP” switch.
Average fuel consumption and current fuel consumption Displays the meter light control display.
• Press and hold the display change button to
reset will adjust the brightness of the meter light
when the tail lights are on.
• This screen is only displayed when the tail
lights are on.
Driving monitor
Displays the average fuel consumption
since the function was reset.
• Press and hold the “DISP” button/“DISP” switch
to reset.
• Use the displayed average fuel consumption as
a reference.
Displays the current rate of fuel consump-
tion
Use the displayed current rate of fuel consump-
tion as a reference.
1
2

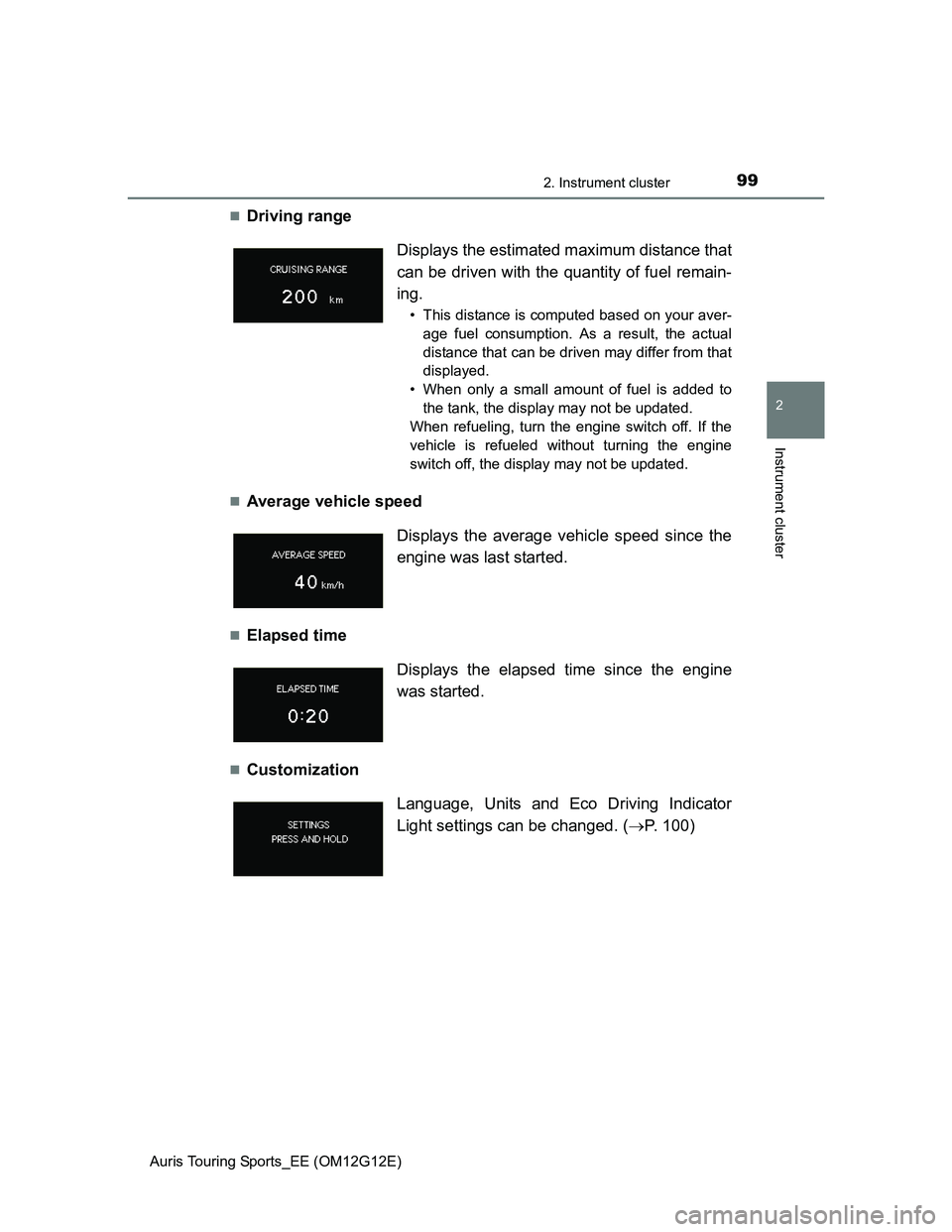

992. Instrument cluster
Auris Touring Sports_EE (OM12G12E)
2
Instrument cluster
Driving range
Average vehicle speed
Elapsed time
CustomizationDisplays the estimated maximum distance that
can be driven with the quantity of fuel remain-
ing.
• This distance is computed based on your aver-
age fuel consumption. As a result, the actual
distance that can be driven may differ from that
displayed.
• When only a small amount of fuel is added to
the tank, the display may not be updated.
When refueling, turn the engine switch off. If the
vehicle is refueled without turning the engine
switch off, the display may not be updated.
Displays the average vehicle speed since the
engine was last started.
Displays the elapsed time since the engine
was started.
Language, Units and Eco Driving Indicator
Light settings can be changed. (P. 100)

1002. Instrument cluster
Auris Touring Sports_EE (OM12G12E)
Average fuel consumption and Eco Driving Indicator Zone Dis-
play (vehicles with a Multidrive)
It is possible to customize the language, units and Eco Driving Indica-
tor Light settings using the “DISP” button/“DISP” switch.
When customizing vehicle features, ensure that the vehicle is parked
in a safe place with the shift position in P and the parking brake set.
Language
Press the “DISP” button/
“DISP” switch to display the
setting screen while the vehi-
cle is stopped, and then
press and hold the “DISP”
button/“DISP” switch to dis-
play the customize mode
screen.
Press the “DISP” button/
“DISP” switch to select the
item to be set, then press
and hold the “DISP” button/
“DISP” switch.Displays the average fuel consumption
since the function was reset.
• Press and hold the “DISP” button/“DISP” switch
to reset.
• Use the displayed average fuel consumption as
a reference.
Eco Driving Indicator Zone Display
(P. 107)
Customizing vehicle features
1
2
1
2

1042. Instrument cluster
Auris Touring Sports_EE (OM12G12E)
To go back to the previous screen or exit the customize mode, press
the “DISP” button/“DISP” switch to select “EXIT”, and then press and
hold the “DISP” button/“DISP” switch.
Items that can be changed
The meters and display illuminate when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The engine switch is in IGNITION ON mode.
When disconnecting and reconnecting battery terminals
The following information data will be reset:
Driving range
Average vehicle speed
Elapsed time
Average fuel consumption
Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
Setting display automatic suspension
In the following situations, the setting display will be suspended.
When a message appears.
When the vehicle begins to move.
FunctionDefault settingCustomized setting
“ECO INDICATOR” “ON” “OFF”
