2013 TOYOTA AURIS TOURING SPORTS fuel

4446-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)
10EFI-MAIN30 A
Multiport fuel injection system/sequential
multiport fuel injection system, EFI NO.1,
EFI NO.2
11HORN10 AHorn
12D/C CUT30 ADOME, ECU-B NO.1, RADIO
13AM27.5 A
Multiport fuel injection system/sequential
multiport fuel injection system, starting
system, IG2, Stop & Start system
14ECU-B NO.35 AElectric power steering
15ECU-B NO.210 A
Air conditioning system, power windows,
smart entry & start system, out side rear
view mirrors, gauge and meters
16SPARE30 ASpare fuse
17HTR50 AAir conditioning system
18ABS NO.150 AABS, VSC
19DEF30 ARear window defogger, outside rear view
mirror defoggers
20RDI40 AElectric cooling fan
21ABS NO.230 AABS, VSC
22DRL10 ADaytime running lights
23RADIO20 AAudio system
24DOME7.5 AInterior lights, vanity lights, luggage com-
partment light, main body ECU
25ECU-B NO.110 A
Wireless remote control, main body ECU,
smart entry & start system, clock, VSC,
power door lock system
26SPARE20 ASpare fuse
27EFI NO.2*210 AMultiport fuel injection system/sequential
multiport fuel injection system
28EFI NO.110 AMultiport fuel injection system/sequential
multiport fuel injection system
FuseAmpereCircuit

4456-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)
6
Maintenance and care
*1: Vehicles with 1AD-FTV engine
*2: Vehicles with 1ND-TV engine
*3: Vehicles without discharge headlights
*4: Vehicles with discharge headlights
29MIR-HTR10 A
Multiport fuel injection system/sequential
multiport fuel injection system, outside
rear view mirror defoggers
30SPARE10 ASpare fuse
31H-LP RH-LO10 A*3
Right-hand headlight (low beam)15 A*4
32H-LP LH-LO10 A*3Left-hand headlight (low beam), manual
headlight leveling dial
15 A*4Left-hand headlight (low beam)
33H-LP RH-HI7.5 ARight-hand headlight (high beam)
34H-LP LH-HI7.5 ALeft-hand headlight (high beam), gauge
and meters
35GLOW80 AEngine glow system
36BBC40 AStop & Start system
37STRG LOCK20 ASteering lock system
38AMP15 AAudio system
39CDN FAN30 AElectric cooling fan(s)
40H-LP CLN30 AHeadlight cleaner
41PTC HIR NO.150 AAir conditioning system
42PTC HIR NO.230 AAir conditioning system
43STV HTR25 APower heater
44S-HORN10 A
45PTC HIR NO.330 AAir conditioning system
FuseAmpereCircuit

4466-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)
Under the instrument panel (diesel engine)
Ty p e A
FuseAmpereCircuit
1P/OUTLET15 APower outlet (luggage compartment)
2OBD7.5 AOn-board diagnosis system
3STOP7.5 A
Stop lights, multiport fuel injection sys-
tem/sequential multiport fuel injection
system, high mounted stoplight, ABS,
VSC, shift lock control system
4FOG RR7.5 A Rear fog light, gauge and meters
5D/L NO.320 APower door lock system
6S/ROOF20 APanoramic roof shade
7FOG FR7.5 AFront fog lights, gauge and meters
8AM15 AIG1 RLY, ACC RLY
9D/L NO.210 ABack door lock system, power door lock
system
10DOOR NO.220 APower windows
11DOOR R/R20 APower windows
12DOOR R/L20 APower windows
13WASHER15 AWindshield washer
14WIPER NO.225 AWindshield wipers
15WIPER RR15 ARear window wiper

4476-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)
6
Maintenance and care
16WIPER NO.125 AWindshield wipers
17CIG15 APower outlet
18ACC7.5 A
Outside rear view mirrors, audio system,
main body ECU, clock, charging system,
power outlet, Stop & Start system
19SFT LOCK-ACC5 AShift lock control system
20TA I L10 AFront position lights, tail lights, license
plate lights, front fog lights, rear fog light
21PA N E L7.5 ASwitch illumination, instrument cluster
lights, glove box light, main body ECU
22WIPER-S5 ACharging system
23ECU-IG NO.17.5 AElectric cooling fan, AFS, charging sys-
tem, ABS, VSC
24ECU-IG NO.27.5 A
Back-up lights, multiport fuel injection
system/sequential multiport fuel injection
system, audio system, AFS, Toyota park-
ing assist-sensor
25ECU-IG NO.37.5 A
Multiport fuel injection system/sequential
multiport fuel injection system, inside rear
view mirror, shift lock control system,
panoramic roof shade, headlight cleaner,
audio system, AFS, windshield wipers
26HTR-IG7.5 A
Air conditioning system, rear window
defogger, power heater, Stop & Start sys-
tem
27ECU-IG NO.47.5 A
Front passenger seat belt reminder light,
airbag manual on-off system, outside
rear view mirrors, main body ECU,
Toyota parking assist-sensor
28ECU-IG NO.55 AElectric power steering, Stop & Start sys-
tem
29IGN7.5 A
Smart entry & start system, multiport fuel
injection system/sequential multiport fuel
injection system, steering lock system
30S/HTR15 ASeat heaters
FuseAmpereCircuit

467
7When trouble arises
Auris Touring Sports_EE (OM12G12E)7-1. Essential information
Emergency flashers ........... 468
If your vehicle has to
be stopped in an
emergency ....................... 4697-2. Steps to take in an
emergency
If your vehicle needs to
be towed .......................... 471
If you think something is
wrong ............................... 477
Fuel pump shut off
system ............................. 478
If a warning light turns
on or a warning
buzzer sounds ................. 479
If a warning message or
indicator is displayed ....... 492
If you have a flat tire
(vehicles with a spare
tire) .................................. 512
If you have a flat tire
(vehicles with an
emergency tire
puncture repair kit)........... 524
If the engine will not
start.................................. 548
If the shift lever cannot
be shifted from P ............. 550
If the electronic key does
not operate properly ........ 551
If the vehicle battery is
discharged ....................... 554
If your vehicle overheats .... 561
If you run out of fuel and
the engine stalls............... 564
If the vehicle becomes
stuck ................................ 565

4787-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
Follow the procedure below to restart the engine after the system is
activated.
Vehicles without a smart entry & start system
Turn the engine switch to the “ACC” or “LOCK” position.
Restart the engine.
Vehicles with a smart entry & start system
Turn the engine switch to ACCESSORY mode or turn it off.
Restart the engine.
Fuel pump shut off system (gasoline engine
only)
To minimize the risk of fuel leakage when the engine stalls or
when an airbag inflates upon collision, the fuel pump shut off
system stops the supply of fuel to the engine.
NOTICE
Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked onto the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.
1
2
1
2

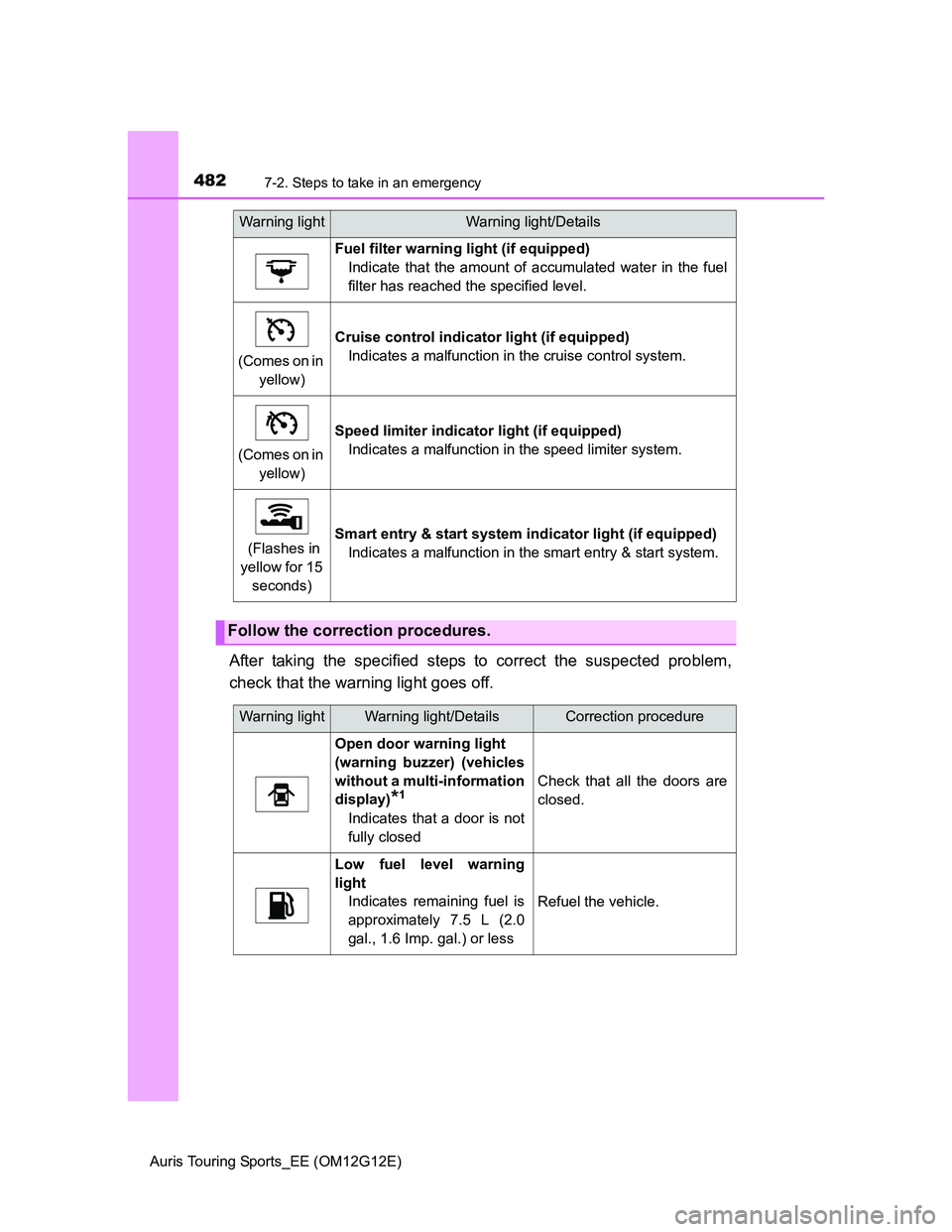

4827-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
After taking the specified steps to correct the suspected problem,
check that the warning light goes off.
Fuel filter warning light (if equipped)
Indicate that the amount of accumulated water in the fuel
filter has reached the specified level.
(Comes on in
yellow)
Cruise control indicator light (if equipped)
Indicates a malfunction in the cruise control system.
(Comes on in
yellow)
Speed limiter indicator light (if equipped)
Indicates a malfunction in the speed limiter system.
(Flashes in
yellow for 15
seconds)Smart entry & start system indicator light (if equipped)
Indicates a malfunction in the smart entry & start system.
Follow the correction procedures.
Warning lightWarning light/Details
Warning lightWarning light/DetailsCorrection procedure
Open door warning light
(warning buzzer) (vehicles
without a multi-information
display)
*1
Indicates that a door is not
fully closed
Check that all the doors are
closed.
Low fuel level warning
light
Indicates remaining fuel is
approximately 7.5 L (2.0
gal., 1.6 Imp. gal.) or less
Refuel the vehicle.

4897-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
7
When trouble arises
Front passenger detection sensor, seat belt reminder and warning
buzzer
If luggage is placed on the front passenger seat, the front passenger detec-
tion sensor may cause the warning light to flash and the warning buzzer to
sound even if a passenger is not sitting in the seat.
If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
If the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will come on if the fuel tank becomes com-
pletely empty. If the fuel tank is empty, refuel the vehicle immediately. The
malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped professional
as soon as possible.
Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
If the engine oil change reminder light flashes (if equipped)
Repeated short trips and/or low-speed driving may cause the oil to degrade
sooner than usual, regardless of the actual distance driven. If this happens,
the engine oil change reminder will flash.
Once(Flashes
in yellow
for 30
seconds)
Smart entry & start system
indicator light
• When the doors were
unlocked with the mechani-
cal key and then the engine
switch was pressed, the
electronic key could not be
detected in the vehicle.
• The electronic key could
not be detected in the vehi-
cle even after the engine
switch was pressed two
consecutive times.
Touch the
electronic key
to the engine
switch while
depressing the
brake pedal.
Interior
buzzerExterior
buzzerWarning
lightWarning light/DetailsCorrection
procedure
