4056-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)
6
Maintenance and care
1NR-FE engine
Engine compar tment
Washer fluid tank (P. 419)
Engine coolant reservoir
(P. 414)
Engine oil filler cap
(P. 4 11 )
Engine oil level dipstick
(P. 409)Battery (P. 416)
Fuse box (P. 433)
Electric cooling fan
Condenser (P. 415)
Radiator (P. 415)1
2
3
4
5
6
7
8
9

4066-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)
1ZR-FAE engine
Washer fluid tank (P. 419)
Engine coolant reservoir
(P. 414)
Engine oil filler cap
(P. 4 11 )
Engine oil level dipstick
(P. 409)Battery (P. 416)
Fuse box (P. 433)
Electric cooling fan
Condenser (P. 415)
Radiator (P. 415)1
2
3
4
5
6
7
8
9

4076-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)
6
Maintenance and care
1ND-TV engine
Washer fluid tank (P. 419)
Engine coolant reservoir
(P. 414)
Engine oil filler cap
(P. 4 11 )
Engine oil level dipstick
(P. 409)Fuel filter (P. 420)
Battery (P. 416)
Fuse box (P. 433)
Radiator (P. 415)
Electric cooling fan
Condenser (P. 415)
Intercooler (P. 415)1
2
3
4
5
6
7
8
9
10
11

4086-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)
1AD-FTV engine
Washer fluid tank (P. 419)
Engine coolant reservoir
(P. 414)
Engine oil level dipstick
(P. 409)
Engine oil filler cap
(P. 4 11 )Fuel filter (P. 420)
Battery (P. 416)
Fuse box (P. 433)
Electric cooling fans
Condenser (P. 415)
Intercooler (P. 415)
Radiator (P. 415)1
2
3
4
5
6
7
8
9
10
11

4146-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)
The coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when the engine is cold.
Except 1AD-FTV engine
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to
the “FULL” line.
1AD-FTV engine
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to
the “FULL” line.
Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-
ized water. (Minimum temperature: -35C [-31F])
For more details about engine coolant, contact any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine coolant reservoir caps, drain cock
and water pump.
If you cannot find a leak, have any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional, test the cap and check for
leaks in the cooling system.
Engine coolant
1
2
3
1
2
3

4156-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)
6
Maintenance and care

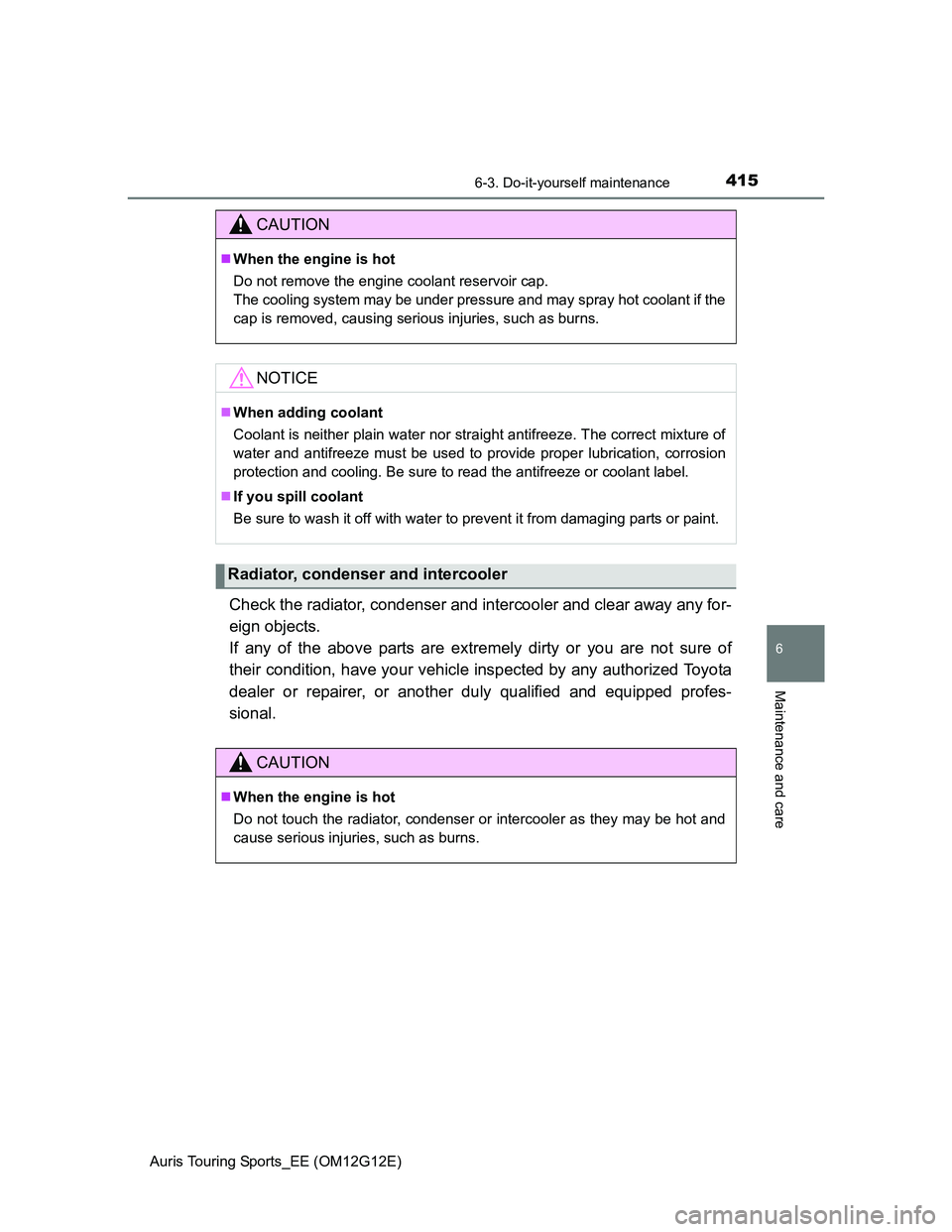

Check the radiator, condenser and intercooler and clear away any for-
eign objects.
If any of the above parts are extremely dirty or you are not sure of
their condition, have your vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
CAUTION
When the engine is hot
Do not remove the engine coolant reservoir cap.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.
NOTICE
When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.
If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.
Radiator, condenser and intercooler
CAUTION
When the engine is hot
Do not touch the radiator, condenser or intercooler as they may be hot and
cause serious injuries, such as burns.

5627-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
The coolant level is satisfactory if it is between the “FULL” and
“LOW” lines on the reservoir.
Reservoir
“FULL”
“LOW”
Add engine coolant if neces-
sary.
Water can be used in an emer-
gency if engine coolant is unavail-
able.
Start the engine and turn the air conditioning system on to check
that the radiator cooling fan operates and to check for coolant leaks
from the radiator or hoses.
The fan operates when the air conditioning system is turned on immedi-
ately after a cold start. Confirm that the fan is operating by checking the fan
sound and air flow. If it is difficult to check these, turn the air conditioning
system on and off repeatedly. (The fan may not operate in freezing tem-
peratures.)
4
1
2
3
Except 1AD-FTV engine1AD-FTV engine
5
6

5637-2. Steps to take in an emergency
Auris Touring Sports_EE (OM12G12E)
7
When trouble arises

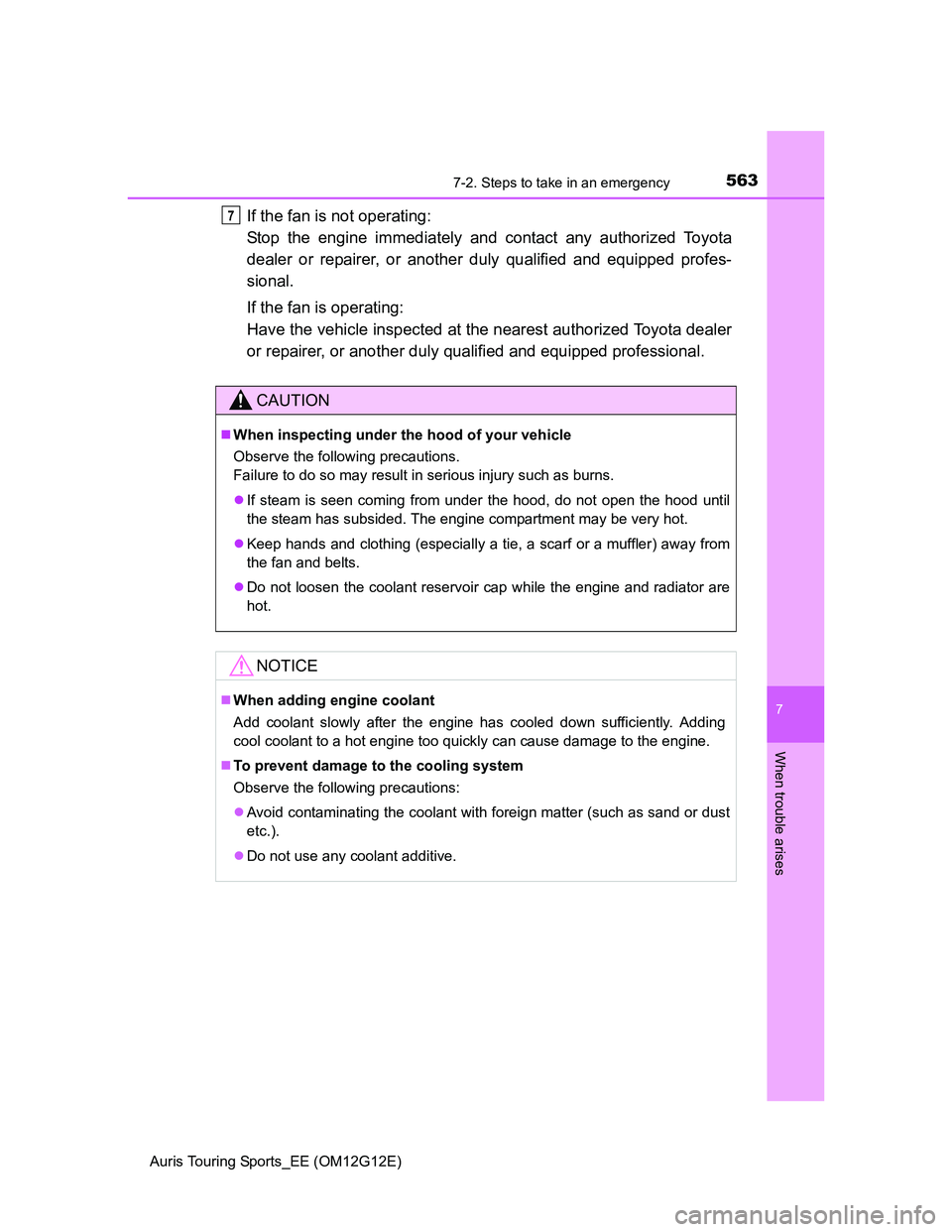

If the fan is not operating:
Stop the engine immediately and contact any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
If the fan is operating:
Have the vehicle inspected at the nearest authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
CAUTION
When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fan and belts.
Do not loosen the coolant reservoir cap while the engine and radiator are
hot.
NOTICE
When adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding
cool coolant to a hot engine too quickly can cause damage to the engine.
To prevent damage to the cooling system
Observe the following precautions:
Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
Do not use any coolant additive.
