2013 TOYOTA AURIS TOURING SPORTS Owners Manual

5858-1. Specifications
Auris Touring Sports_EE (OM12G12E)
8
Vehicle specifications
Light bulbs
Light BulbsWTy p e
Exterior
Headlights
Discharge bulbs
Halogen bulbs
35
55A
B
Front fog lights*19C
Front turn signal lights21D
Side turn signal lights5E
Rear fog light21F
Rear turn signal lights16F
Stop/tail lights21/5G
Back-up lights16F
Licence plate lights5F
Interior
Vanity lights*5H
Front interior lights/personal lights8F
Rear interior light*8H
Rear personal lights*8F
Luggage compartment light5H
A: D4S discharge bulbs
C: H16 halogen bulbs
E: Wedge base bulbs (amber)
G: Single end bulbs (clear)
*: If equippedB: HIR2 halogen bulbs
D: Single end bulbs (amber)
F: Wedge base bulbs (clear)
H: Double end bulbs

5868-1. Specifications
Auris Touring Sports_EE (OM12G12E)
Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
If you plan to drive in foreign countries
Low sulfur diesel fuel may not be available, so please check the availability
with your distributor.
If your engine knocks
Consult any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
You may occasionally notice light knocking for a short time while accelerat-
ing or driving uphill. This is normal and there is no need for concern.
Fuel infor mation
Gasoline engine
EU area:
Your vehicle must use only unleaded gasoline conforming to
European standard EN228.
For optimum engine performance, select unleaded gasoline with
a Research Octane Number of 95 or higher.
Except EU area:
Your vehicle must use only unleaded gasoline.
For optimum engine performance, select unleaded gasoline with
a Research Octane Number of 95 or higher.
Diesel engine
EU area:
Your vehicle must use only diesel fuel conforming to European
standard EN590.
Except EU area:
Your vehicle must use only diesel fuel that contains 50 ppm or
less of sulfur and has a cetane number of 48 or higher.

5878-1. Specifications
Auris Touring Sports_EE (OM12G12E)
8
Vehicle specifications

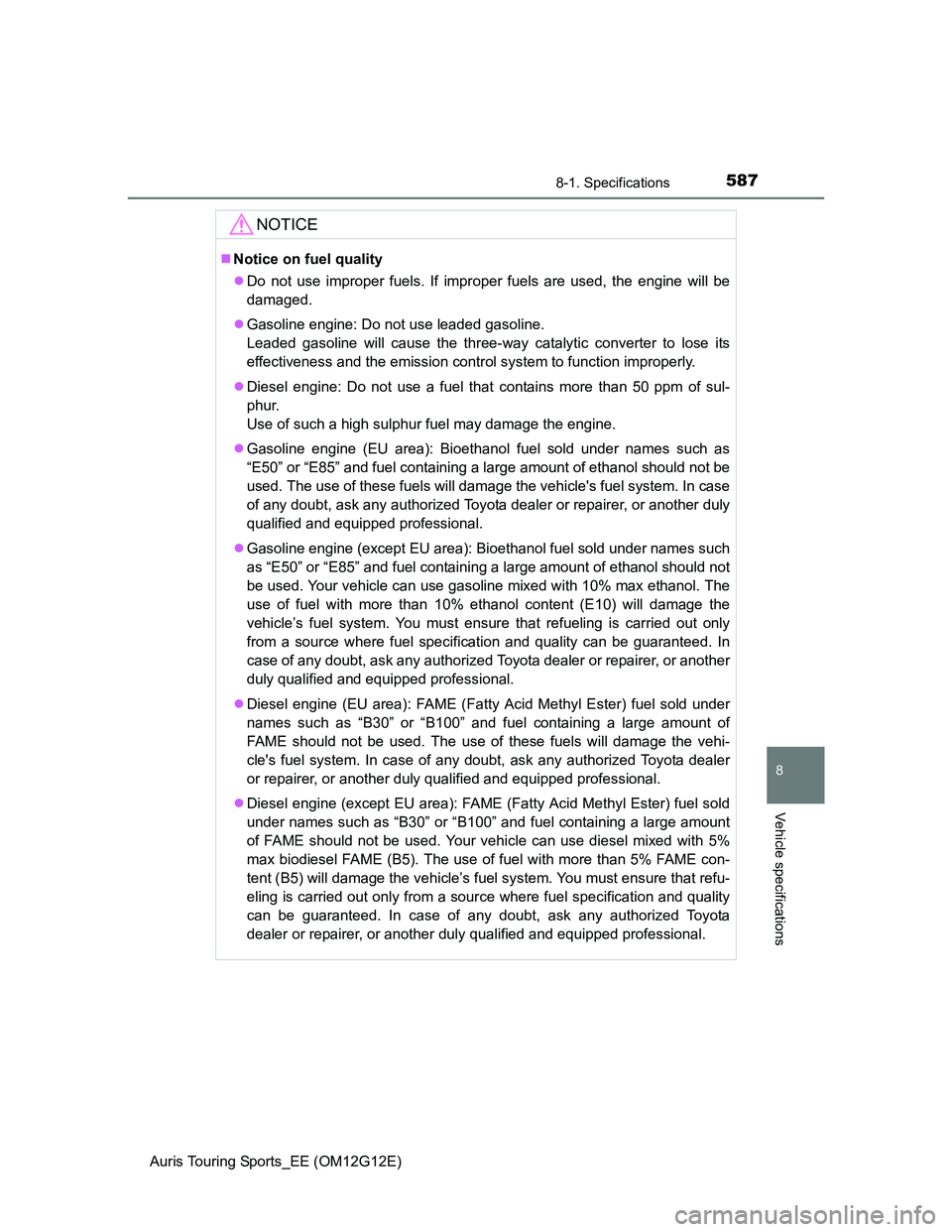

NOTICE
Notice on fuel quality
Do not use improper fuels. If improper fuels are used, the engine will be
damaged.
Gasoline engine: Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its
effectiveness and the emission control system to function improperly.
Diesel engine: Do not use a fuel that contains more than 50 ppm of sul-
phur.
Use of such a high sulphur fuel may damage the engine.
Gasoline engine (EU area): Bioethanol fuel sold under names such as
“E50” or “E85” and fuel containing a large amount of ethanol should not be
used. The use of these fuels will damage the vehicle's fuel system. In case
of any doubt, ask any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Gasoline engine (except EU area): Bioethanol fuel sold under names such
as “E50” or “E85” and fuel containing a large amount of ethanol should not
be used. Your vehicle can use gasoline mixed with 10% max ethanol. The
use of fuel with more than 10% ethanol content (E10) will damage the
vehicle’s fuel system. You must ensure that refueling is carried out only
from a source where fuel specification and quality can be guaranteed. In
case of any doubt, ask any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Diesel engine (EU area): FAME (Fatty Acid Methyl Ester) fuel sold under
names such as “B30” or “B100” and fuel containing a large amount of
FAME should not be used. The use of these fuels will damage the vehi-
cle's fuel system. In case of any doubt, ask any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
Diesel engine (except EU area): FAME (Fatty Acid Methyl Ester) fuel sold
under names such as “B30” or “B100” and fuel containing a large amount
of FAME should not be used. Your vehicle can use diesel mixed with 5%
max biodiesel FAME (B5). The use of fuel with more than 5% FAME con-
tent (B5) will damage the vehicle’s fuel system. You must ensure that refu-
eling is carried out only from a source where fuel specification and quality
can be guaranteed. In case of any doubt, ask any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.

588
Auris Touring Sports_EE (OM12G12E)

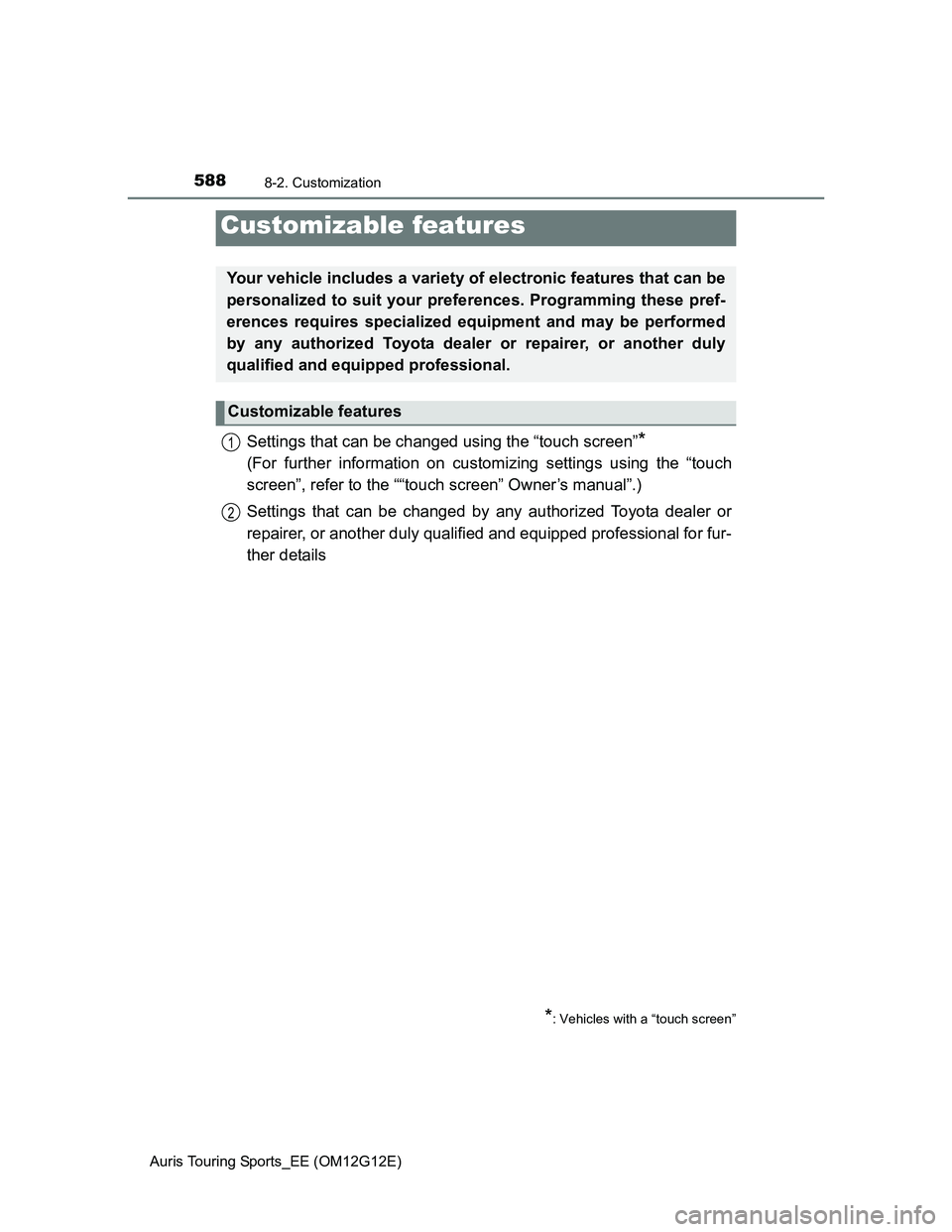

8-2. Customization
Settings that can be changed using the “touch screen”*
(For further information on customizing settings using the “touch
screen”, refer to the ““touch screen” Owner’s manual”.)
Settings that can be changed by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for fur-
ther details
Customizable features
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. Programming these pref-
erences requires specialized equipment and may be performed
by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Customizable features
1
2
*: Vehicles with a “touch screen”

5898-2. Customization
Auris Touring Sports_EE (OM12G12E)
8
Vehicle specifications
Definition of symbols: O = Available, — = Not available
ItemFunctionDefault
settingCustom-
ized setting
Smart entry
& start
system
*1
(P. 11 3 )
and
wireless
remote
control
(P. 132)
Operation signal
(Emergency flashers)OnOff—O
Adjust the time elapsed
before the automatic door
lock function is activated if
a door is not opened after
being unlocked
30
seconds
60
seconds
—O
120
seconds
Open door reminder
buzzer (When locking the
vehicle)
OnOff—O
Smart entry
& start
system
*1
(P. 11 3 )
Smart entry & start systemOnOffOO
Number of consecutive
door lock operations2 times
As many
as
desired
—O
Wireless
remote
control
(P. 132)
Wireless remote controlOnOff—O
Back door unlocking oper-
ation
*2Press and
hold (short)
One short
press
—OPush twice
Press and
hold (long)
Off
12

5908-2. Customization
Auris Touring Sports_EE (OM12G12E)
Automatic
light control
system
*1
(P. 214)
Adjust the sensitivity of
the ambient light sensorLevel 3Level 1 to
5OO
Headlights
(P. 214)Time elapsed before
headlights automatically
turn off30
seconds
60
seconds
—O90
seconds
120
seconds
Automatic
High
Beam
*1
(P. 220)
Automatic High Beam sys-
temOnOff—O
Turn signal
lever
(P. 211)
The number of times the
turn signal lights flash
automatically when the
turn signal lever is moved
to the first position during
a lane change
(After flashing the turn sig-
nal lights when turning left
or right while this function
is off and the turn signal
lever is moved to the first
position in direction of the
flashing light, the turn sig-
nal lights can be selected
to be flashing or off.)
3
5
—O
7
Off
(The turn
signal
lights will
be off if the
turn signal
lever is
moved to
the first
position in
direction of
flashing
light.)
ItemFunctionDefault
settingCustom-
ized setting12

5918-2. Customization
Auris Touring Sports_EE (OM12G12E)
8
Vehicle specifications
*1: If equipped
*2: Vehicles without a smart entry & start system
*3: Vehicles with a smart entry & start system
Illumination
(P. 351)
Interior lights illumination
control
*1OnOff—O
Time elapsed before the
interior lights turn off15 sec-
onds
7.5
seconds
—O30
seconds
Operation after the engine
switch is turned offOnOff—O
Operation when the doors
are unlockedOnOff—O
Operation when you
approach the vehicle with
the electronic key on your
person
*3
OnOff—O
ItemFunctionDefault
settingCustom-
ized setting12

5928-2. Customization
Auris Touring Sports_EE (OM12G12E)

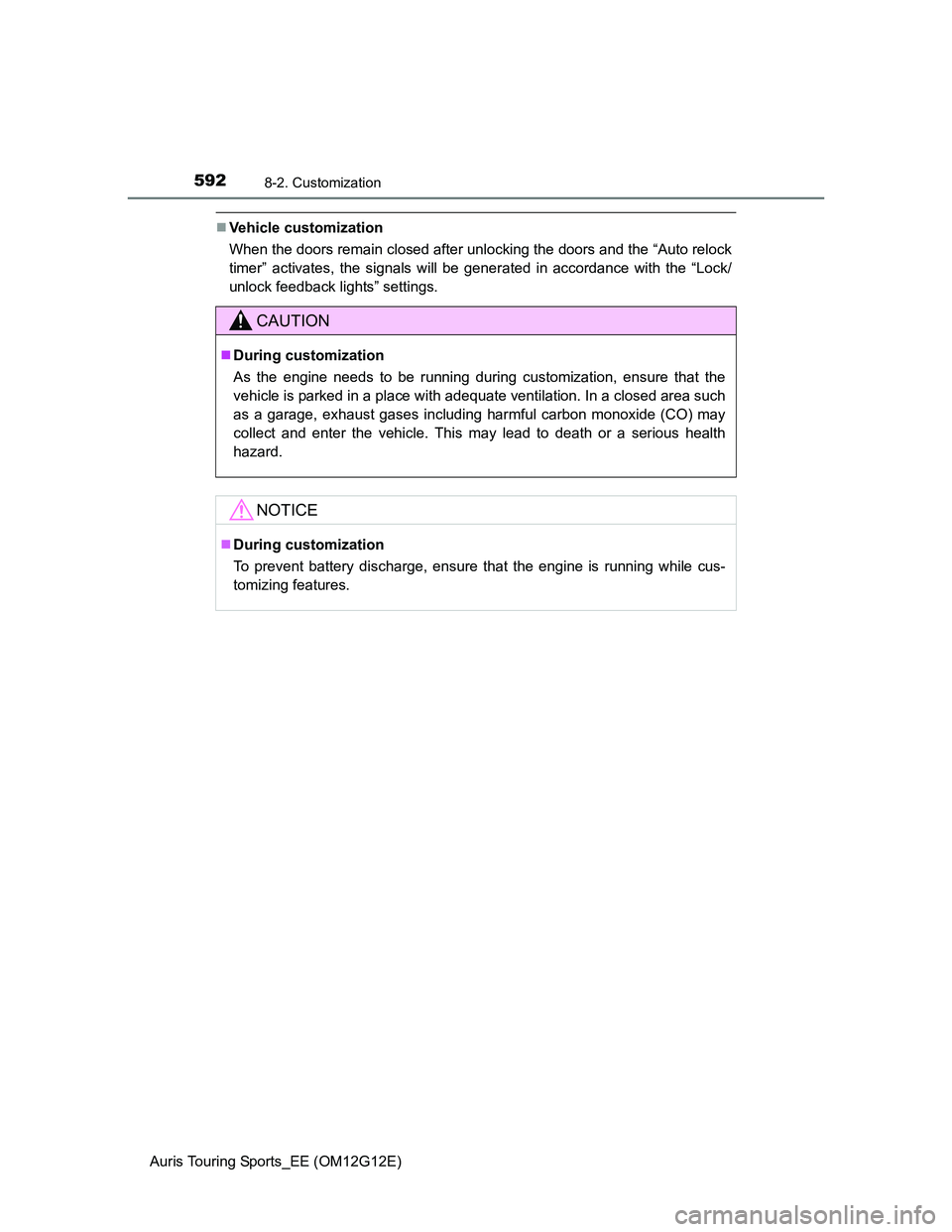

Vehicle customization
When the doors remain closed after unlocking the doors and the “Auto relock
timer” activates, the signals will be generated in accordance with the “Lock/
unlock feedback lights” settings.
CAUTION
During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.
