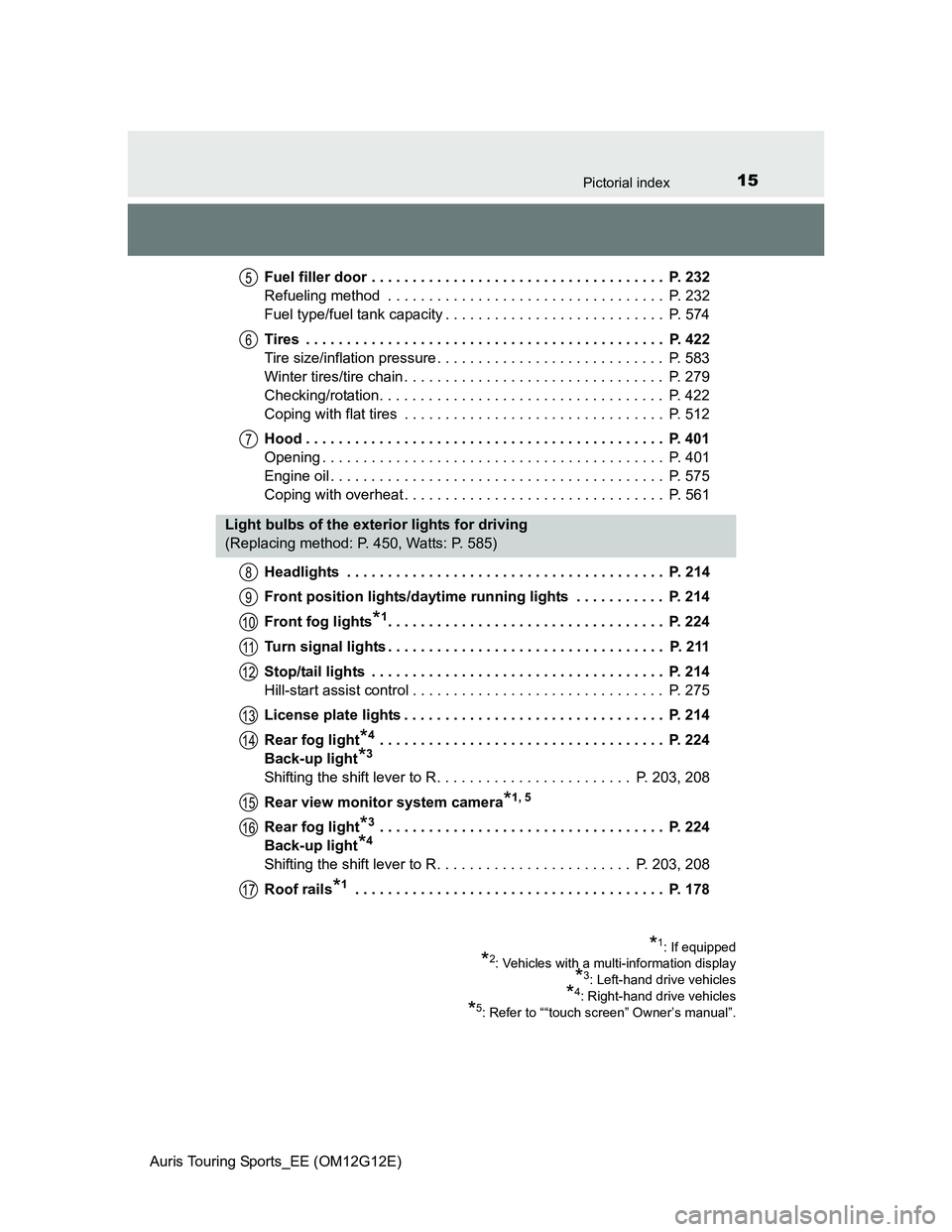

15Pictorial index
Auris Touring Sports_EE (OM12G12E)Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 574
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 422
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 583
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 279
Checking/rotation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 422
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 512
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 401
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 401
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 575
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 561
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 214
Front position lights/daytime running lights . . . . . . . . . . . P. 214
Front fog lights
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 224
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 211
Stop/tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 214
Hill-start assist control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 275
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 214
Rear fog light
*4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 224
Back-up light
*3
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . P. 203, 208
Rear view monitor system camera
*1, 5
Rear fog light*3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 224
Back-up light
*4
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . P. 203, 208
Roof rails
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 178
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 450, Watts: P. 585)
*1: If equipped
*2: Vehicles with a multi-information display
*3: Left-hand drive vehicles
*4: Right-hand drive vehicles
*5: Refer to ““touch screen” Owner’s manual”.
8
9
10
11
12
13
14
15
16
17

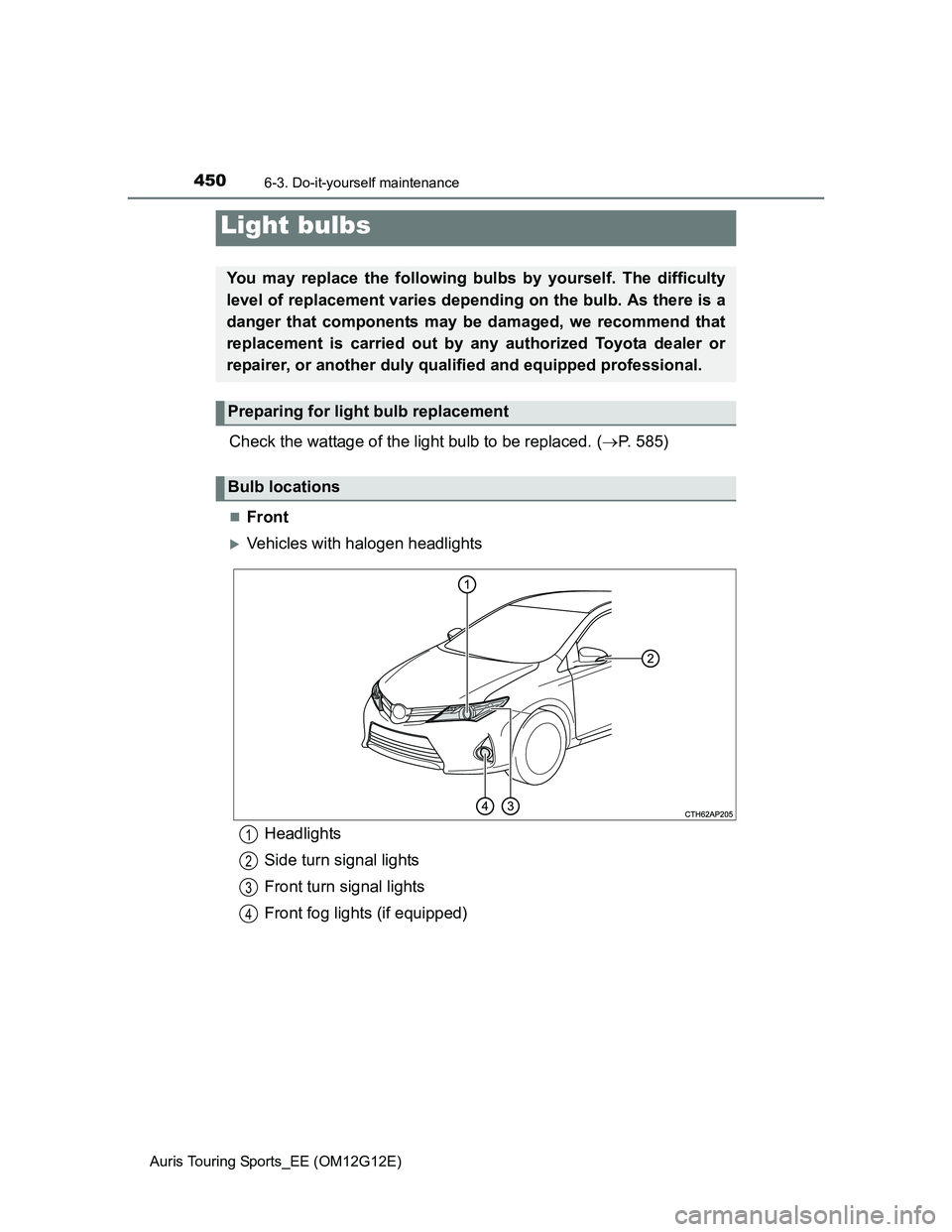

4506-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)
Check the wattage of the light bulb to be replaced. (P. 585)
Front
Vehicles with halogen headlights
Light bulbs
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. As there is a
danger that components may be damaged, we recommend that
replacement is carried out by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Preparing for light bulb replacement
Bulb locations
Headlights
Side turn signal lights
Front turn signal lights
Front fog lights (if equipped)1
2
3
4

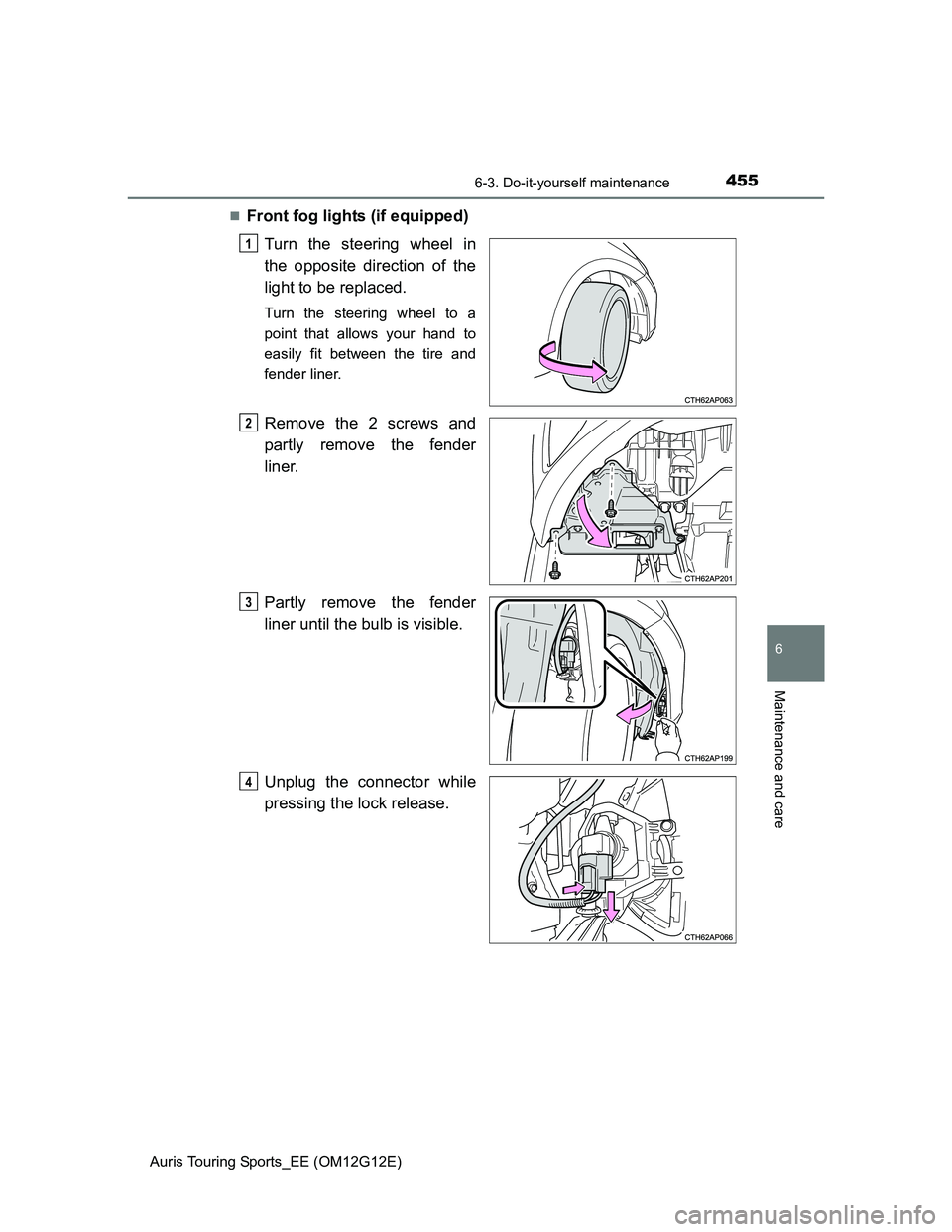

4556-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)
6
Maintenance and care
Front fog lights (if equipped)
Turn the steering wheel in
the opposite direction of the
light to be replaced.
Turn the steering wheel to a
point that allows your hand to
easily fit between the tire and
fender liner.
Remove the 2 screws and
partly remove the fender
liner.
Partly remove the fender
liner until the bulb is visible.
Unplug the connector while
pressing the lock release.
1
2
3
4

4566-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)
Turn the bulb base counter-
clockwise and remove it.
Install a new light bulb.
Align the 3 tabs on the light bulb
with the mounting and insert.
Turn clockwise and secure the
bulb base.
Install the connector.
Shake the connector gently to
check that it is not loose, turn
the front fog lights on once and
visually confirm that no light is
leaking through the mounting.
When installing the fender liner, install by conducting and
with the directions reversed.
Make sure that the fender liner is attached to the inside of the bumper.
5
6
7
832

4616-3. Do-it-yourself maintenance
Auris Touring Sports_EE (OM12G12E)
6
Maintenance and care
Back-up light and rear fog light
Open the back door and
remove the cover.
Insert a flathead screwdriver or
similar into the hole at the top of
the cover and remove it as
shown in the illustration.
To prevent damaging the vehi-
cle, wrap the flathead screw-
driver with a tape.
Turn the bulb base counter-
clockwise and remove it.
Remove the light bulb.
When installing, reverse the steps listed.
1
2
3
4

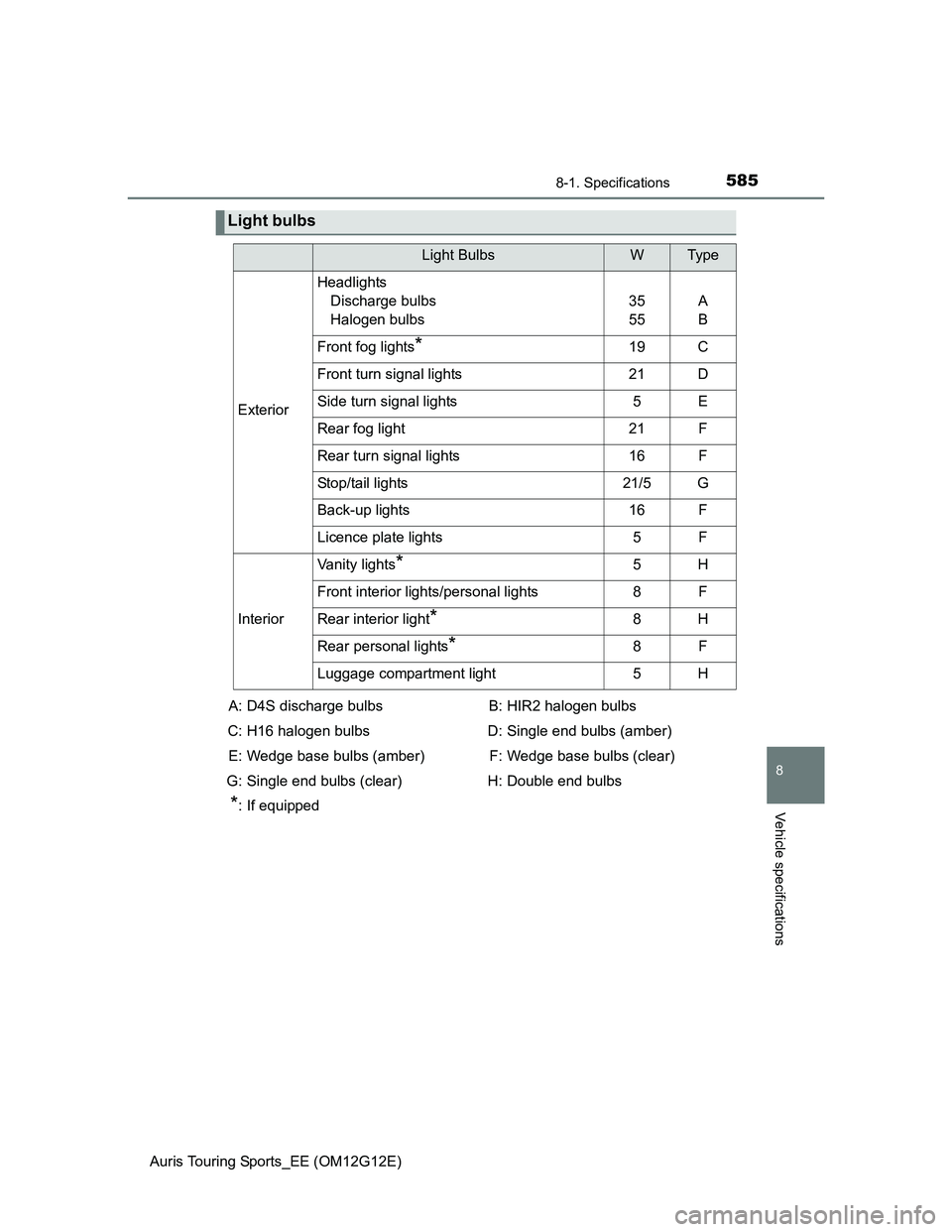

5858-1. Specifications
Auris Touring Sports_EE (OM12G12E)
8
Vehicle specifications
Light bulbs
Light BulbsWTy p e
Exterior
Headlights
Discharge bulbs
Halogen bulbs
35
55A
B
Front fog lights*19C
Front turn signal lights21D
Side turn signal lights5E
Rear fog light21F
Rear turn signal lights16F
Stop/tail lights21/5G
Back-up lights16F
Licence plate lights5F
Interior
Vanity lights*5H
Front interior lights/personal lights8F
Rear interior light*8H
Rear personal lights*8F
Luggage compartment light5H
A: D4S discharge bulbs
C: H16 halogen bulbs
E: Wedge base bulbs (amber)
G: Single end bulbs (clear)
*: If equippedB: HIR2 halogen bulbs
D: Single end bulbs (amber)
F: Wedge base bulbs (clear)
H: Double end bulbs

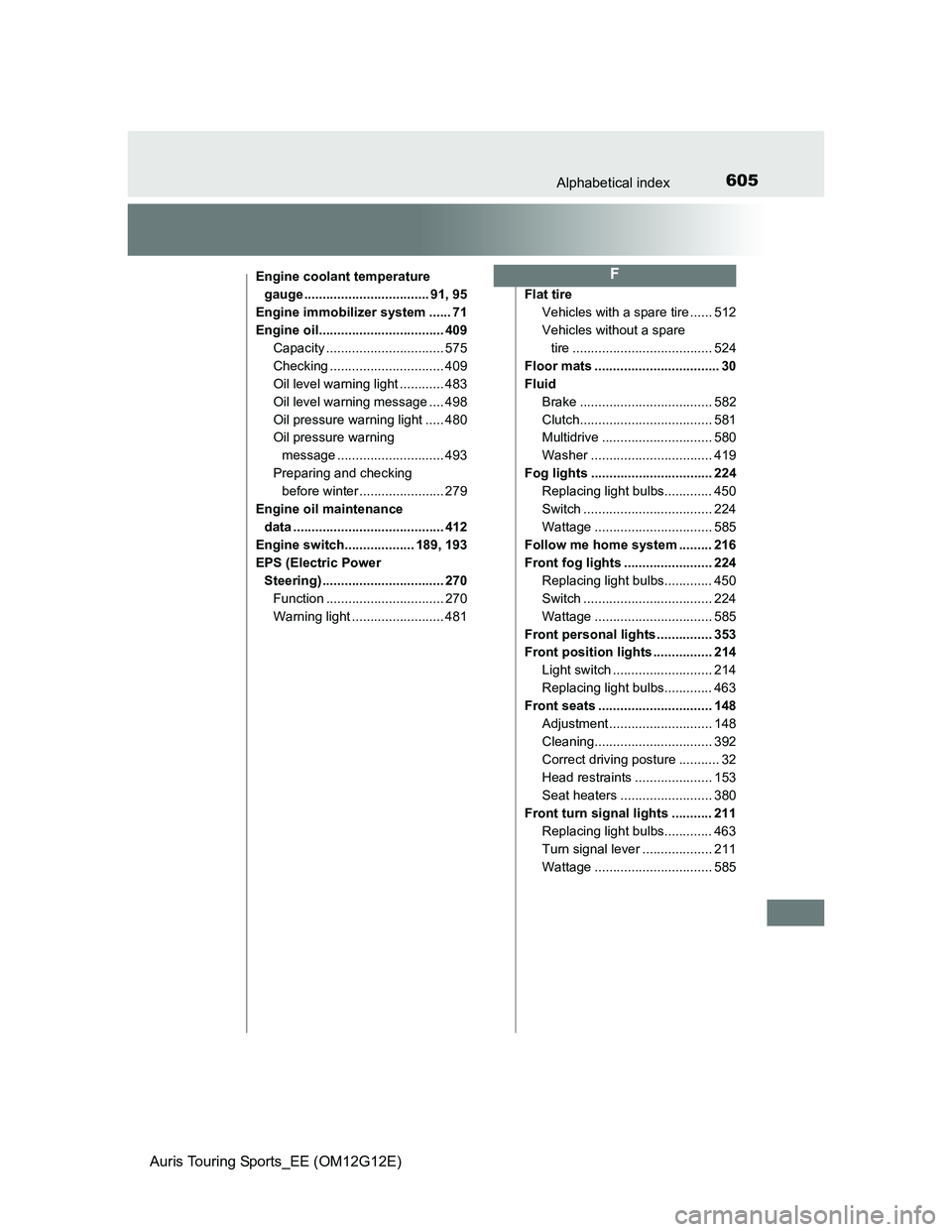

605Alphabetical index
Auris Touring Sports_EE (OM12G12E)
Engine coolant temperature
gauge .................................. 91, 95
Engine immobilizer system ...... 71
Engine oil.................................. 409
Capacity ................................ 575
Checking ............................... 409
Oil level warning light ............ 483
Oil level warning message .... 498
Oil pressure warning light ..... 480
Oil pressure warning
message ............................. 493
Preparing and checking
before winter ....................... 279
Engine oil maintenance
data ......................................... 412
Engine switch................... 189, 193
EPS (Electric Power
Steering) ................................. 270
Function ................................ 270
Warning light ......................... 481Flat tire
Vehicles with a spare tire ...... 512
Vehicles without a spare
tire ...................................... 524
Floor mats .................................. 30
Fluid
Brake .................................... 582
Clutch.................................... 581
Multidrive .............................. 580
Washer ................................. 419
Fog lights ................................. 224
Replacing light bulbs............. 450
Switch ................................... 224
Wattage ................................ 585
Follow me home system ......... 216
Front fog lights ........................ 224
Replacing light bulbs............. 450
Switch ................................... 224
Wattage ................................ 585
Front personal lights ............... 353
Front position lights ................ 214
Light switch ........................... 214
Replacing light bulbs............. 463
Front seats ............................... 148
Adjustment ............................ 148
Cleaning................................ 392
Correct driving posture ........... 32
Head restraints ..................... 153
Seat heaters ......................... 380
Front turn signal lights ........... 211
Replacing light bulbs............. 463
Turn signal lever ................... 211
Wattage ................................ 585F

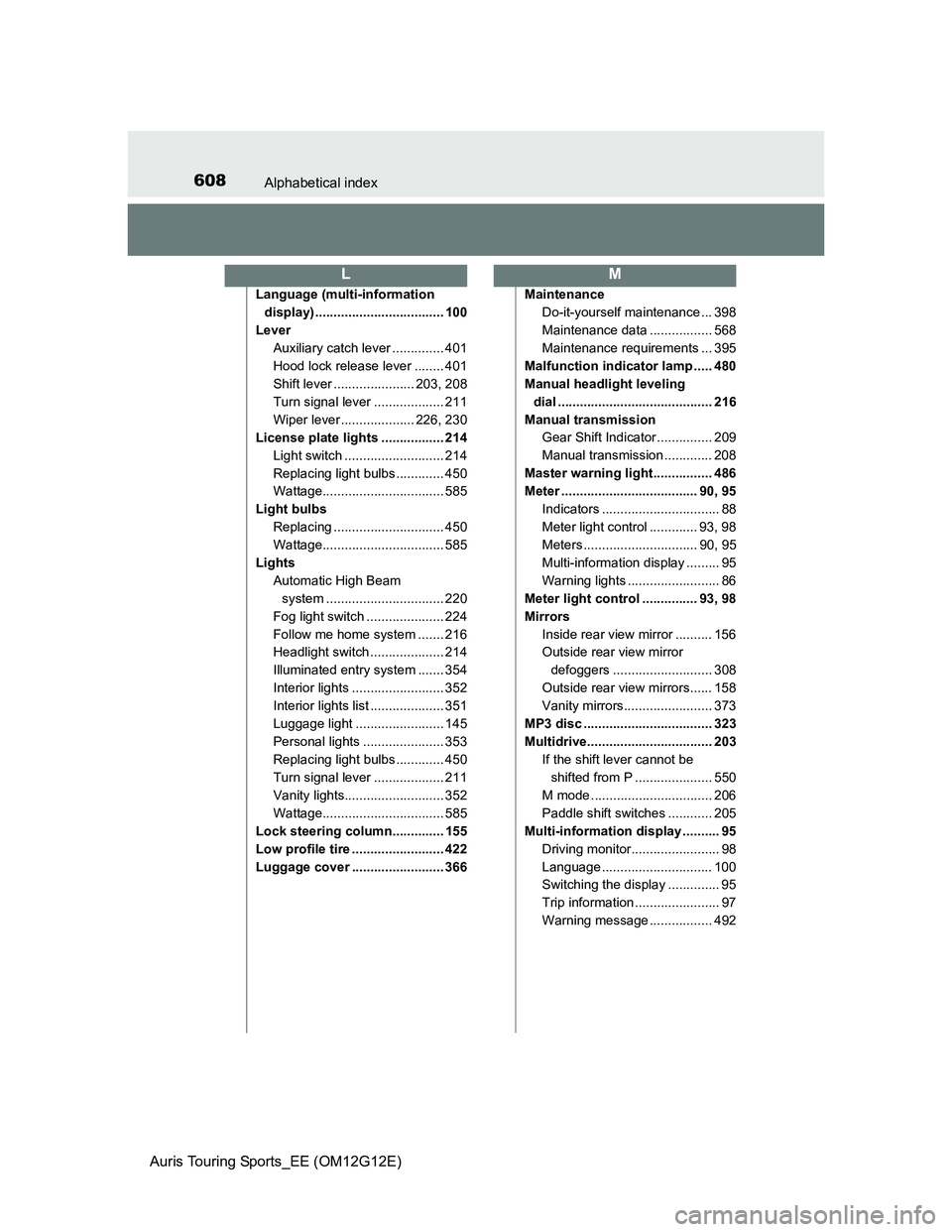

608Alphabetical index
Auris Touring Sports_EE (OM12G12E)
Language (multi-information
display) ................................... 100
Lever
Auxiliary catch lever .............. 401
Hood lock release lever ........ 401
Shift lever ...................... 203, 208
Turn signal lever ................... 211
Wiper lever .................... 226, 230
License plate lights ................. 214
Light switch ........................... 214
Replacing light bulbs ............. 450
Wattage................................. 585
Light bulbs
Replacing .............................. 450
Wattage................................. 585
Lights
Automatic High Beam
system ................................ 220
Fog light switch ..................... 224
Follow me home system ....... 216
Headlight switch .................... 214
Illuminated entry system ....... 354
Interior lights ......................... 352
Interior lights list .................... 351
Luggage light ........................ 145
Personal lights ...................... 353
Replacing light bulbs ............. 450
Turn signal lever ................... 211
Vanity lights........................... 352
Wattage................................. 585
Lock steering column.............. 155
Low profile tire ......................... 422
Luggage cover ......................... 366Maintenance
Do-it-yourself maintenance ... 398
Maintenance data ................. 568
Maintenance requirements ... 395
Malfunction indicator lamp ..... 480
Manual headlight leveling
dial .......................................... 216
Manual transmission
Gear Shift Indicator ............... 209
Manual transmission ............. 208
Master warning light................ 486
Meter ..................................... 90, 95
Indicators ................................ 88
Meter light control ............. 93, 98
Meters ............................... 90, 95
Multi-information display ......... 95
Warning lights ......................... 86
Meter light control ............... 93, 98
Mirrors
Inside rear view mirror .......... 156
Outside rear view mirror
defoggers ........................... 308
Outside rear view mirrors...... 158
Vanity mirrors........................ 373
MP3 disc ................................... 323
Multidrive.................................. 203
If the shift lever cannot be
shifted from P ..................... 550
M mode ................................. 206
Paddle shift switches ............ 205
Multi-information display .......... 95
Driving monitor........................ 98
Language .............................. 100
Switching the display .............. 95
Trip information ....................... 97
Warning message ................. 492
