2012 TOYOTA YARIS HYBRID Owners Manual

5
649 5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52C79E

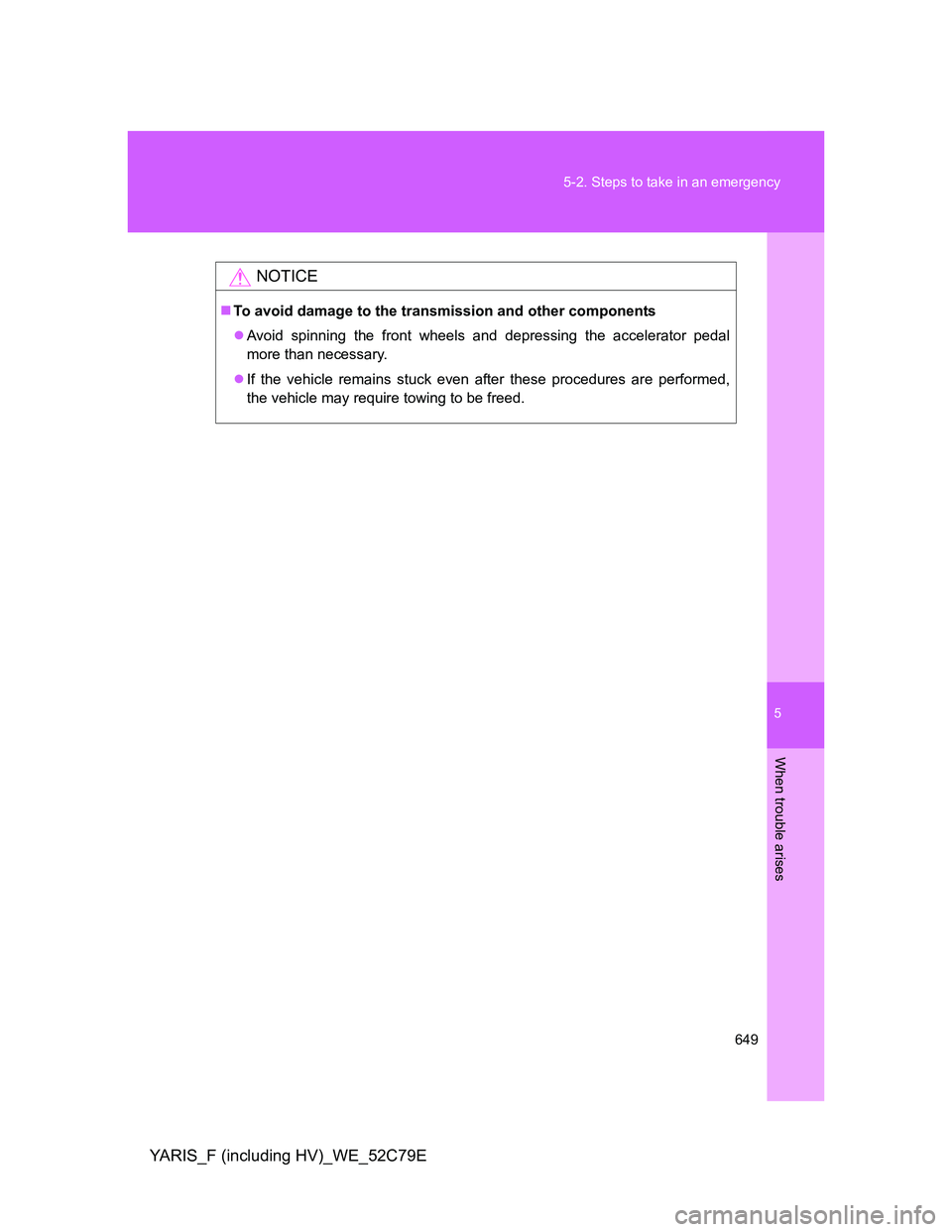

NOTICE
To avoid damage to the transmission and other components
Avoid spinning the front wheels and depressing the accelerator pedal
more than necessary.
If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

650
5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52C79E

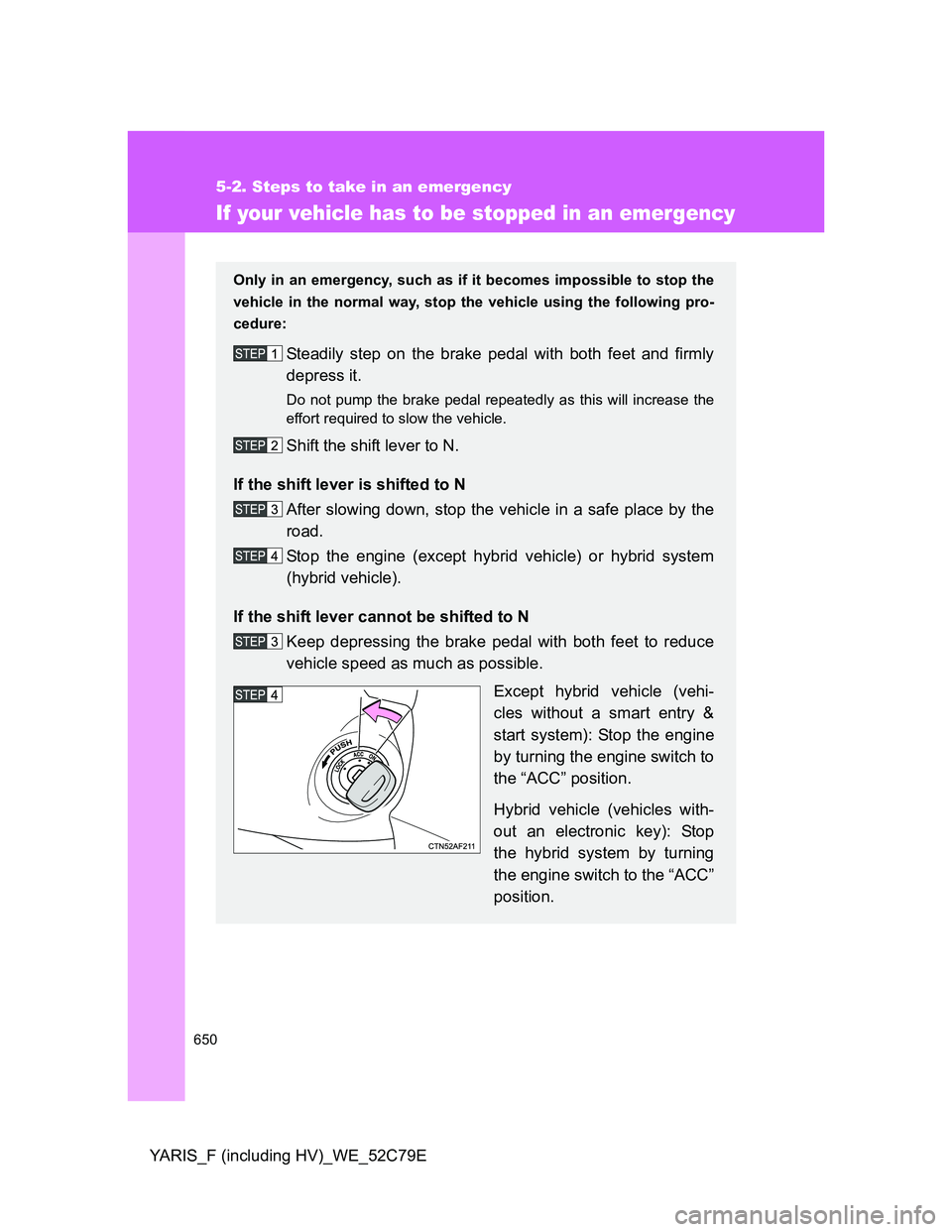

If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following pro-
cedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the
road.
Stop the engine (except hybrid vehicle) or hybrid system
(hybrid vehicle).
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible.
Except hybrid vehicle (vehi-
cles without a smart entry &
start system): Stop the engine
by turning the engine switch to
the “ACC” position.
Hybrid vehicle (vehicles with-
out an electronic key): Stop
the hybrid system by turning
the engine switch to the “ACC”
position.

5
651 5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52C79E
CAUTION
If the engine has to be turned off while driving (except hybrid vehicle)
Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
Vehicles without a smart entry & start system: Never attempt to remove
the key, as doing so will lock the steering wheel.
If the hybrid system has to be turned off while driving (hybrid vehicle)
Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the hybrid system.
Vehicles without an electronic key: Never attempt to remove the key, as
doing so will lock the steering wheel.
Except hybrid vehicle (vehi-
cles with a smart entry & start
system): To stop the engine,
press and hold the “ENGINE
START STOP” switch for 3
consecutive seconds or more,
or press it briefly 3 times or
more in succession.
Hybrid vehicle (vehicles with
an electronic key): To stop the
hybrid system, press and hold
the “POWER” switch for 3
consecutive seconds or more,
or press it briefly 3 times or
more in succession.
Stop the vehicle in a safe place by the road.
Press and hold for 3 seconds or more,
or press briefly 3 times or more
Press and hold for 3 seconds or more,
or press briefly 3 times or more

652 5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52C79E

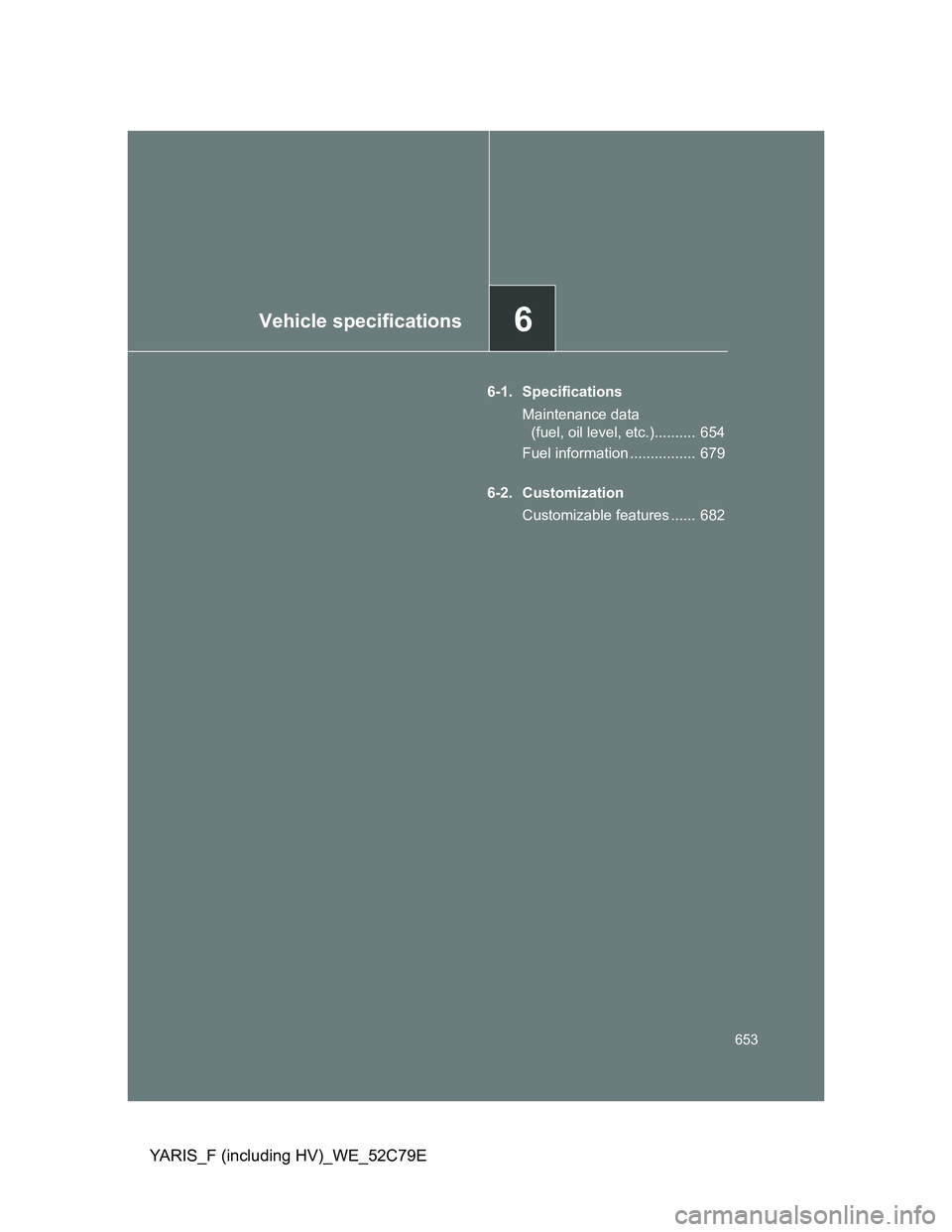

6Vehicle specifications
653
YARIS_F (including HV)_WE_52C79E
6-1. Specifications
Maintenance data
(fuel, oil level, etc.).......... 654
Fuel information ................ 679
6-2. Customization
Customizable features ...... 682

654
YARIS_F (including HV)_WE_52C79E
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Except hybrid vehicle
Overall length 3885 mm (153.0 in.)
Overall width 1695 mm (66.7 in.)
Overall height*11510 mm (59.4 in.)
1520 mm (59.8 in.)
*2
Wheelbase 2510 mm (98.8 in.)
Tread
Front1485 mm (58.5 in.)
*3
1470 mm (57.9 in.)*4
1460 mm (57.5 in.)*5
Rear1470 mm (57.9 in.)
*3
1460 mm (57.5 in.)*4
1450 mm (57.1 in.)*5
Gross vehicle
mass
1KR-FE engine 1430 kg (3153 lb.)
1NR-FE engineVehicles with a Multidrive
1480 kg (3263 lb.)
Vehicles with a manual transmission
1470 kg (3241 lb.)
1ND-TV engineVehicles with a multi-mode manual
transmission
1530 kg (3373 lb.)
Vehicles with a manual transmission
1525 kg (3362 lb.)
Maximum
permissible
axle capacityFront1KR-FE engine
825 kg (1819 lb.)
1NR-FE engine
850 kg (1874 lb.)
1ND-TV engine
895 kg (1973 lb.)
Rear 825 kg (1819 lb.)
Drawbar load 50 kg (110 lb.)

655 6-1. Specifications
6
Vehicle specifications
YARIS_F (including HV)_WE_52C79E
*1: Unladen vehicles
*2: Vehicles with rough road package
*3: 175/65R14, 175/70R14 or 175/65R15 tires
*4: 185/60R15 tires
*5: 195/50R16 tires
Hybrid vehicle
*1: Unladen vehicles
*2: Vehicles with rough road package
*3: 175/65R15 tires
To w i n g
capacity
(except South
Africa)Vehicles with a
brake1KR-FE engine
750 kg (1653 lb.)
1NR-FE engine
900 kg (1984 lb.)
1ND-TV engine
1050 kg (2315 lb.)
Vehicles
without a brake550 kg (1213 lb.)
Overall length 3905 mm (153.7 in.)
Overall width 1695 mm (66.7 in.)
Overall height*11510 mm (59.4 in.)
1520 mm (59.8 in.)
*2
Wheelbase 2510 mm (98.8 in.)
Tread
Front1485 mm (58.5 in.)
*3
1470 mm (57.9 in.)*4
1460 mm (57.5 in.)*5
Rear1470 mm (57.9 in.)
*3
1460 mm (57.5 in.)*4
1450 mm (57.1 in.)*5
Gross vehicle mass 1565 kg (3450 lb.)
Maximum
permissible
axle capacityFront 895 kg (1973 lb.)
Rear 825 kg (1819 lb.)

656 6-1. Specifications
YARIS_F (including HV)_WE_52C79E
*4: 185/60R15 tires
*5: 195/50R16 tires

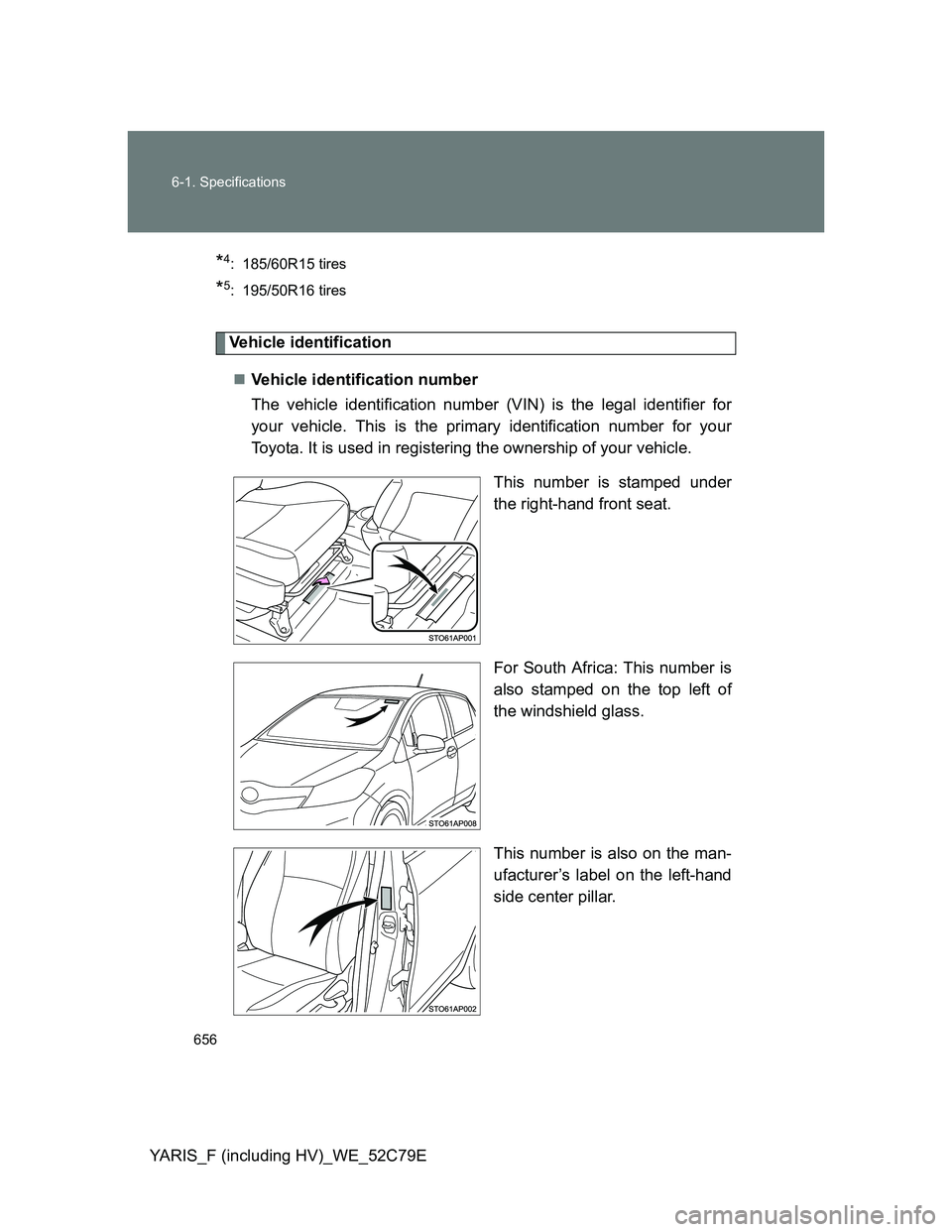

Vehicle identification
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped under
the right-hand front seat.
For South Africa: This number is
also stamped on the top left of
the windshield glass.
This number is also on the man-
ufacturer’s label on the left-hand
side center pillar.
