2012 TOYOTA YARIS HYBRID Owners Manual

289 2-2. Instrument cluster
2
When driving
YARIS_F (including HV)_WE_52C79EStop & Start system total operation time (if equipped)
Instantaneous fuel consumption
Average fuel consumption Ty p e ADisplays the total amount of time that the engine
has been stopped due to operation of the Stop &
Start system since the system was last reset.
Press and hold the button to reset.Ty p e B
Ty p e ADisplays instantaneous fuel consumption.
Ty p e B
Ty p e ADisplays the average fuel consumption since the
function was reset.
• The function can be reset by pressing and holding
the display change button when the average fuel
consumption is displayed.
• Use the displayed average fuel consumption as a
reference.
Ty p e B

290 2-2. Instrument cluster

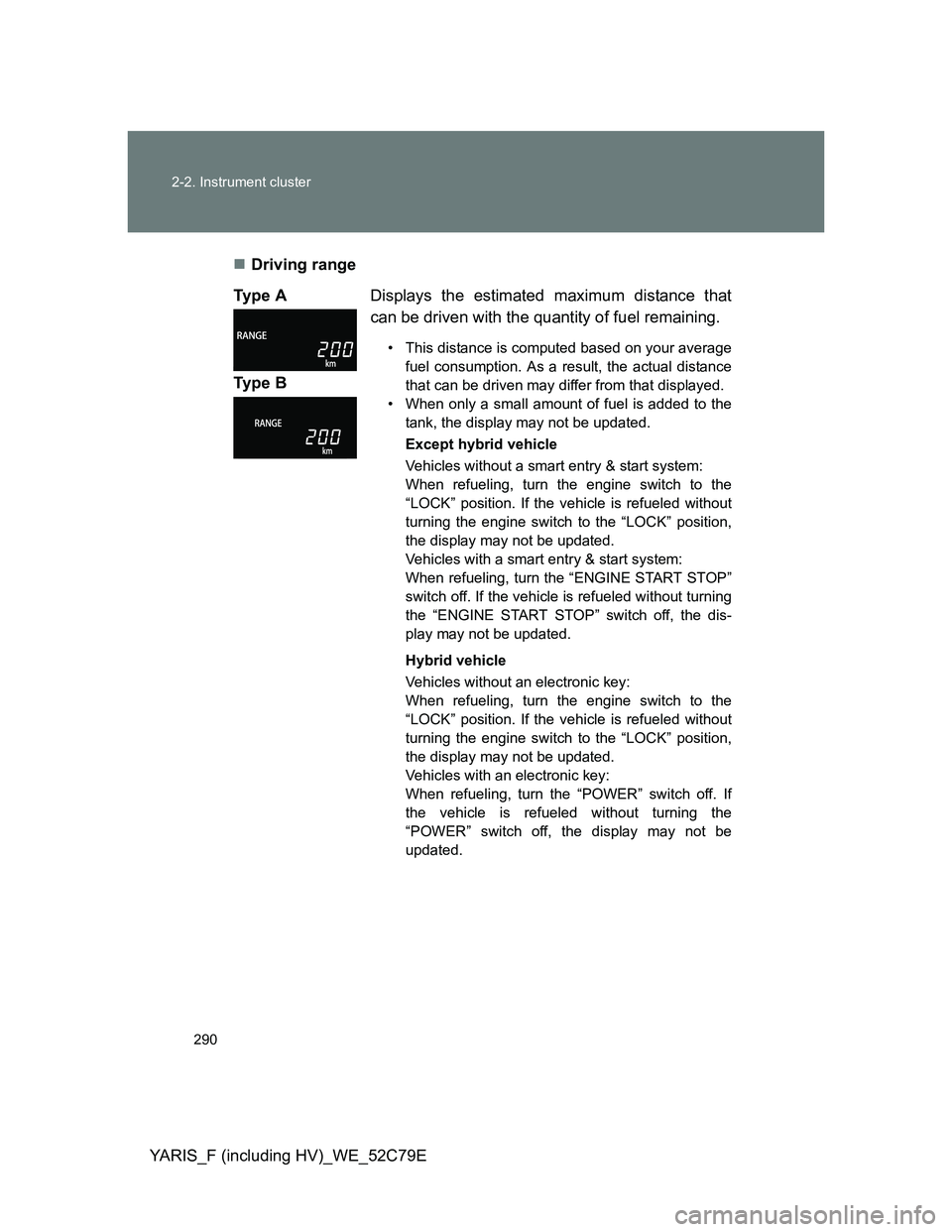

YARIS_F (including HV)_WE_52C79EDriving range
Ty p e ADisplays the estimated maximum distance that
can be driven with the quantity of fuel remaining.
• This distance is computed based on your average
fuel consumption. As a result, the actual distance
that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the
tank, the display may not be updated.
Except hybrid vehicle
Vehicles without a smart entry & start system:
When refueling, turn the engine switch to the
“LOCK” position. If the vehicle is refueled without
turning the engine switch to the “LOCK” position,
the display may not be updated.
Vehicles with a smart entry & start system:
When refueling, turn the “ENGINE START STOP”
switch off. If the vehicle is refueled without turning
the “ENGINE START STOP” switch off, the dis-
play may not be updated.
Hybrid vehicle
Vehicles without an electronic key:
When refueling, turn the engine switch to the
“LOCK” position. If the vehicle is refueled without
turning the engine switch to the “LOCK” position,
the display may not be updated.
Vehicles with an electronic key:
When refueling, turn the “POWER” switch off. If
the vehicle is refueled without turning the
“POWER” switch off, the display may not be
updated.
Ty p e B

291 2-2. Instrument cluster
2
When driving
YARIS_F (including HV)_WE_52C79EAverage vehicle speed
Instrument panel light control
Eco Driving Indicator Light customization (except hybrid vehicle [if equipped])
Ty p e ADisplays the average vehicle speed since the
engine (except hybrid vehicle) or the hybrid sys-
tem (hybrid vehicle) was started or the function
was reset.
The function can be reset by pressing and holding
the display change button when the average vehicle
speed is displayed.Ty p e B
Displays the brightness of the instrument panel
lights when the headlight switch is on.
Pressing and holding the button will adjust bright-
ness of the instrument panel lights.
Eco Driving Indicator Light can be activated or
deactivated by pressing the display change button
when the Eco Driving Indicator Light customiza-
tion display is displayed.
To change the Eco Driving Indicator Light customiza-
tion display, display the odometer and press and
hold the display change button until the display
changes.

292 2-2. Instrument cluster
YARIS_F (including HV)_WE_52C79E
EV indicator customization (hybrid vehicle)
EV indicator can be activated or deactivated by
pressing the display change button when the EV
indicator customization display is displayed.
To change the EV indicator customization display,
display the odometer and press and hold the display
change button until the display changes.
When disconnecting and reconnecting battery (except hybrid vehicle)
or 12-volt battery (hybrid vehicle) terminals
The following information data will be reset:
Stop & Start system total operation time (if equipped)
Average fuel consumption
Driving range
Average vehicle speed
NOTICE
The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

293
2
When driving
YARIS_F (including HV)_WE_52C79E

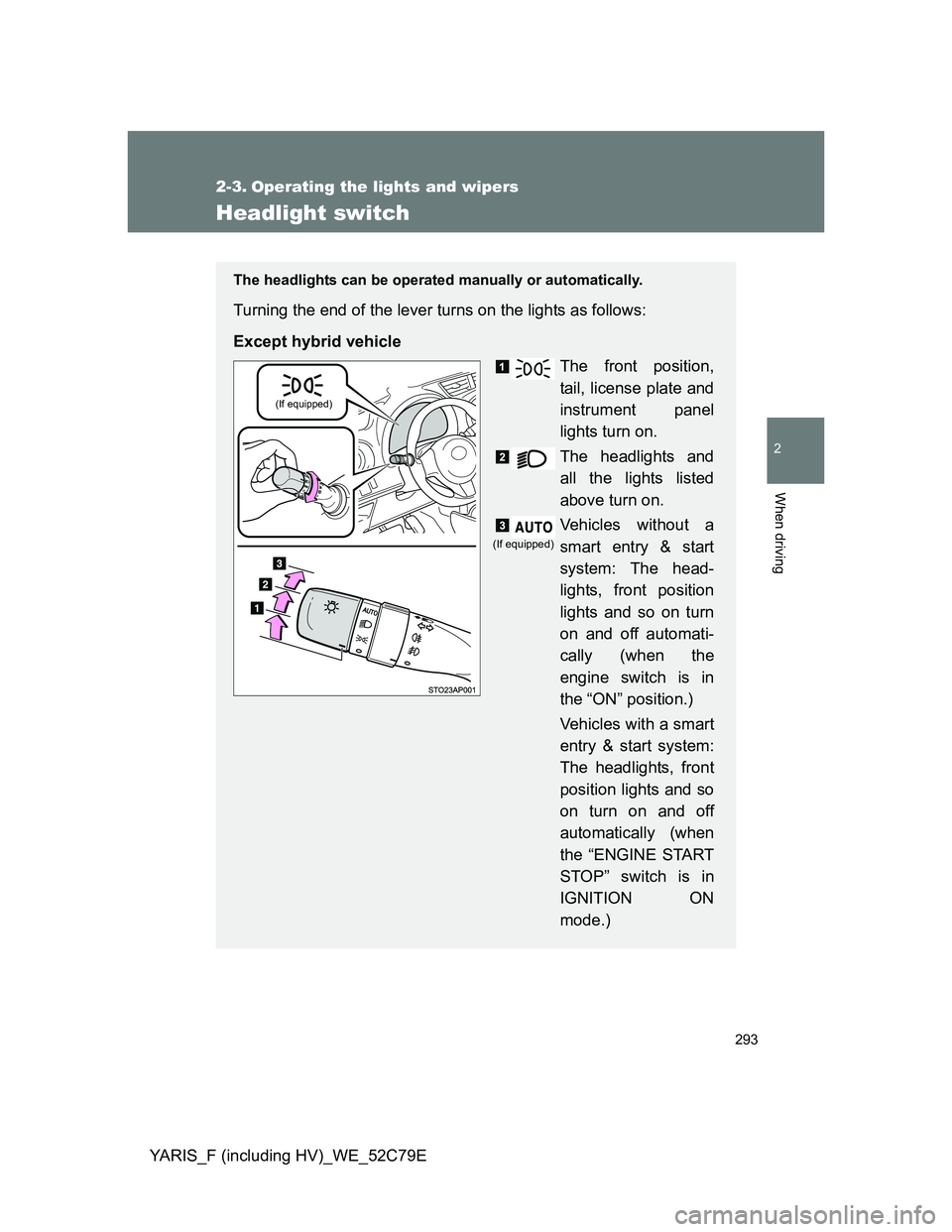

2-3. Operating the lights and wipers
Headlight switch
The headlights can be operated manually or automatically.
Turning the end of the lever turns on the lights as follows:
Except hybrid vehicle
The front position,
tail, license plate and
instrument panel
lights turn on.
The headlights and
all the lights listed
above turn on.
Vehicles without a
smart entry & start
system: The head-
lights, front position
lights and so on turn
on and off automati-
cally (when the
engine switch is in
the “ON” position.)
Vehicles with a smart
entry & start system:
The headlights, front
position lights and so
on turn on and off
automatically (when
the “ENGINE START
STOP” switch is in
IGNITION ON
mode.)
(If equipped)
(If equipped)

294 2-3. Operating the lights and wipers
YARIS_F (including HV)_WE_52C79E
Hybrid vehicle
The front position,
tail, license plate and
instrument panel
lights turn on.
The headlights and
all the lights listed
above turn on.
Vehicles without an
electronic key: The
headlights, front
position lights, day-
time running lights
and so on turn on
and off automatically
(when the engine
switch is in the “ON”
position).
Vehicles with an
electronic key: The
headlights, front
position lights, day-
time running lights
and so on turn on
and off automatically
(when the “POWER”
switch is in ON
mode).
(If equipped)
(If equipped)

295 2-3. Operating the lights and wipers
2
When driving
YARIS_F (including HV)_WE_52C79E

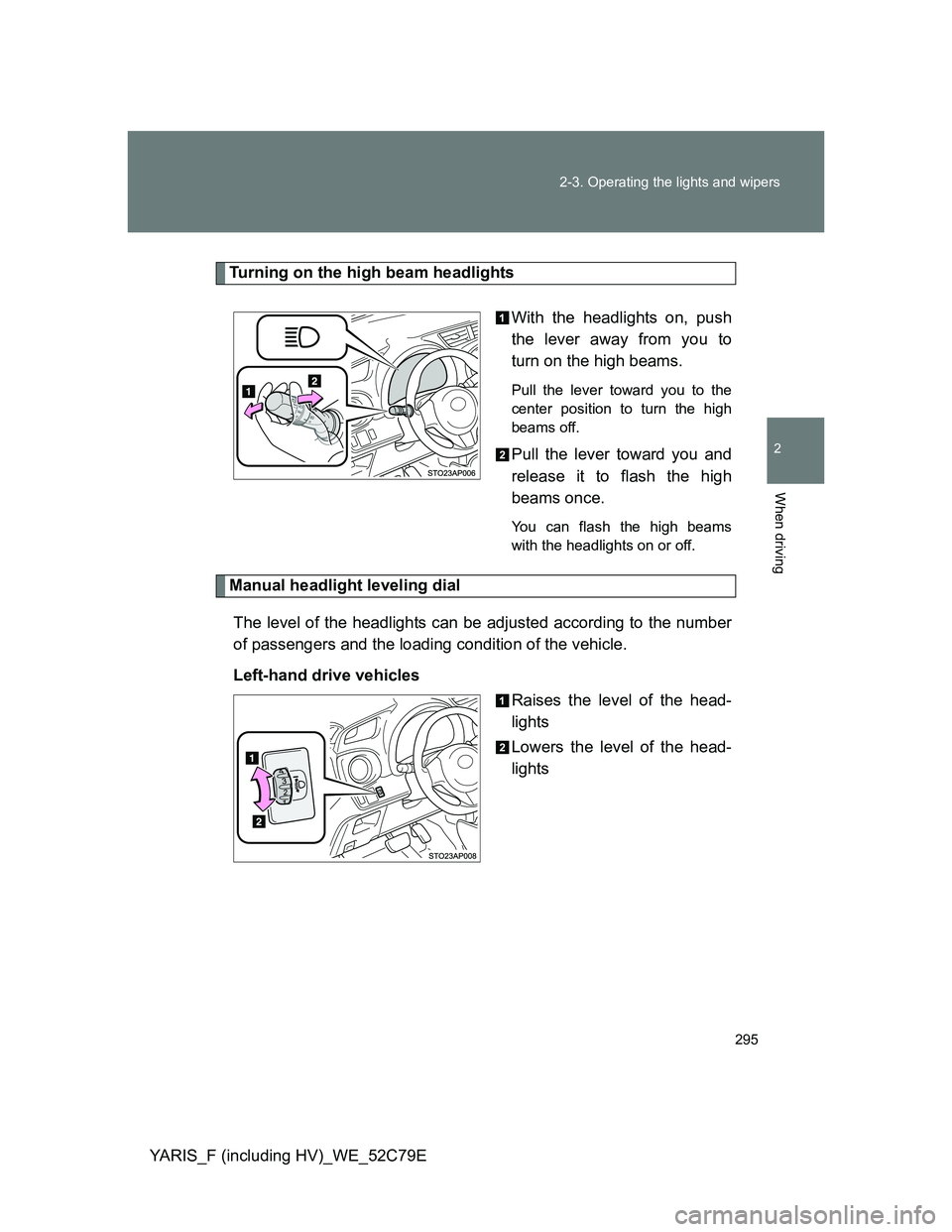

Turning on the high beam headlights
With the headlights on, push
the lever away from you to
turn on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams
with the headlights on or off.
Manual headlight leveling dial
The level of the headlights can be adjusted according to the number
of passengers and the loading condition of the vehicle.
Left-hand drive vehicles
Raises the level of the head-
lights
Lowers the level of the head-
lights

296 2-3. Operating the lights and wipers

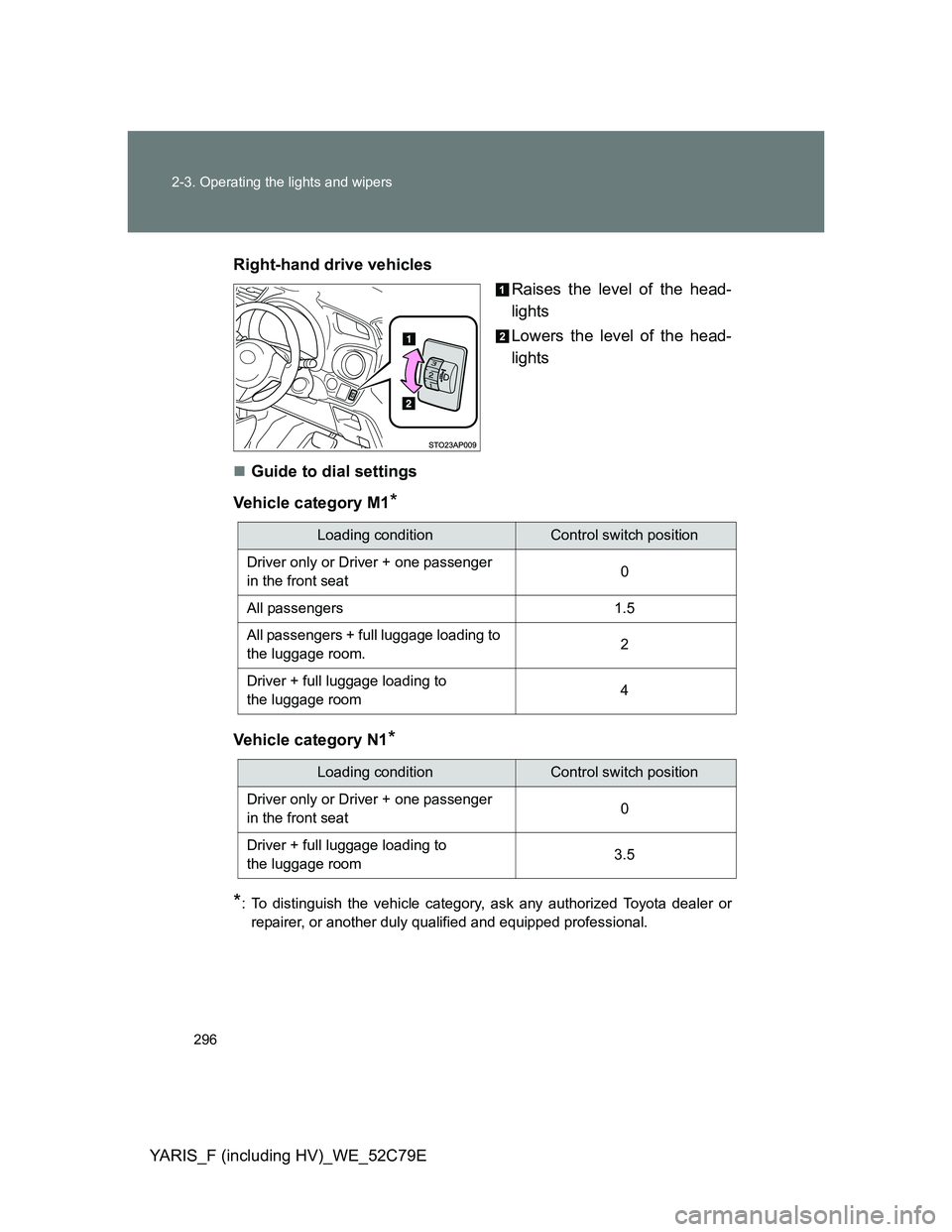

YARIS_F (including HV)_WE_52C79ERight-hand drive vehicles
Raises the level of the head-
lights
Lowers the level of the head-
lights
Guide to dial settings
Vehicle category M1
*
Vehicle category N1*
*
: To distinguish the vehicle category, ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Loading conditionControl switch position
Driver only or Driver + one passenger
in the front seat0
All passengers 1.5
All passengers + full luggage loading to
the luggage room.2
Driver + full luggage loading to
the luggage room4
Loading conditionControl switch position
Driver only or Driver + one passenger
in the front seat0
Driver + full luggage loading to
the luggage room3.5
