201 1-8. Safety information
1
Before driving
YARIS_F (including HV)_WE_52C79E

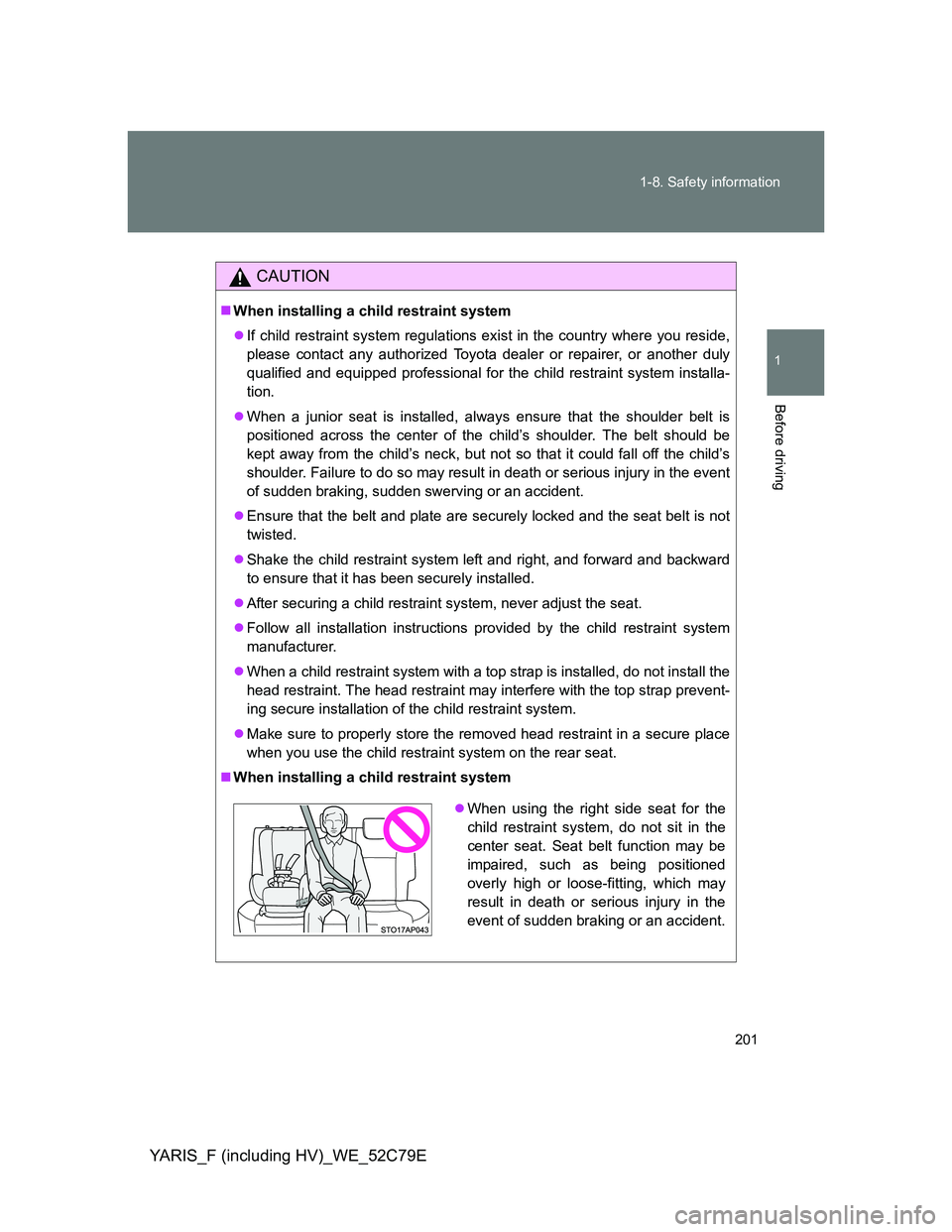

CAUTION
When installing a child restraint system
If child restraint system regulations exist in the country where you reside,
please contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional for the child restraint system installa-
tion.
When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failure to do so may result in death or serious injury in the event
of sudden braking, sudden swerving or an accident.
Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
After securing a child restraint system, never adjust the seat.
Follow all installation instructions provided by the child restraint system
manufacturer.
When a child restraint system with a top strap is installed, do not install the
head restraint. The head restraint may interfere with the top strap prevent-
ing secure installation of the child restraint system.
Make sure to properly store the removed head restraint in a secure place
when you use the child restraint system on the rear seat.
When installing a child restraint system
When using the right side seat for the
child restraint system, do not sit in the
center seat. Seat belt function may be
impaired, such as being positioned
overly high or loose-fitting, which may
result in death or serious injury in the
event of sudden braking or an accident.

202 1-8. Safety information
YARIS_F (including HV)_WE_52C79E

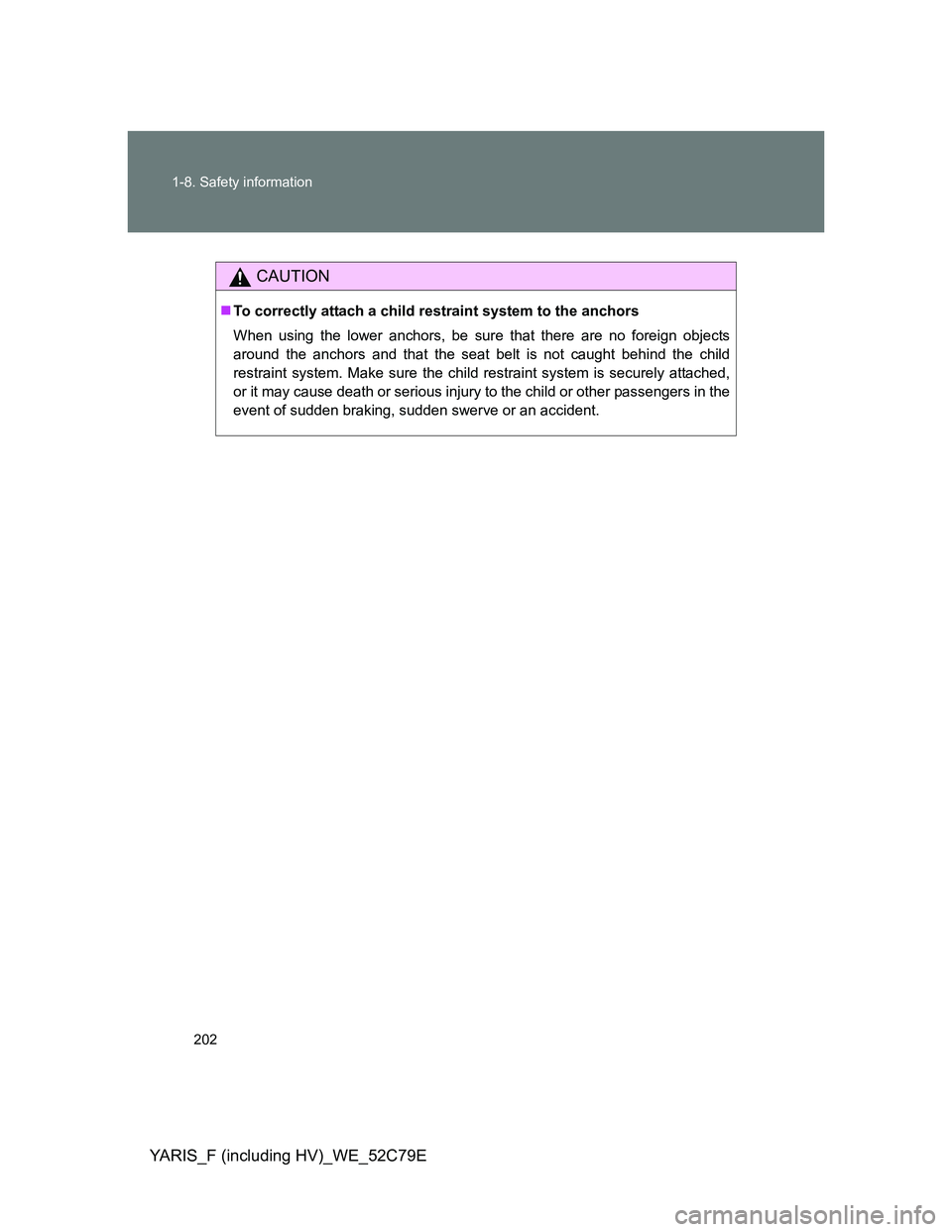

CAUTION
To correctly attach a child restraint system to the anchors
When using the lower anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system. Make sure the child restraint system is securely attached,
or it may cause death or serious injury to the child or other passengers in the
event of sudden braking, sudden swerve or an accident.

2When driving
203
YARIS_F (including HV)_WE_52C79E
2-1. Driving procedures
Driving the vehicle ............ 204
Engine (ignition) switch
(except hybrid vehicle
[vehicles without a smart
entry & start system])...... 224
Engine (ignition) switch
(except hybrid vehicle
[vehicles with a smart
entry & start system])...... 228
Engine (ignition) switch
(hybrid vehicle [vehicles
without an electronic
key]) ................................ 238
Power (ignition) switch
(hybrid vehicle [vehicles
with an electronic key]) ... 243
EV drive mode
(hybrid vehicle) ............... 250
Hybrid transmission .......... 252
Multidrive .......................... 255
Multi-mode manual
transmission ................... 260
Manual transmission......... 265
Turn signal lever ............... 269
Parking brake ................... 271
Horn .................................. 272
2-2. Instrument cluster
Gauges and meters .......... 273
Indicators and warning
lights ............................... 278
Multi-information display ... 2862-3. Operating the lights and
wipers
Headlight switch................ 293
Fog light switch ................. 302
Windshield wiper and
washer ............................ 304
Rear window wiper and
washer ............................ 309
2-4. Using other driving systems
Cruise control.................... 311
Speed limiter ..................... 315
Stop & Start system .......... 318
Driving assist systems ...... 326
Hill-start assist control
(hybrid vehicle) ............... 332
Diesel particulate filter
system ............................ 334
2-5. Driving information
Cargo and luggage ........... 336
Winter driving tips ............. 338
Trailer towing
(hybrid vehicle) ............... 342
Trailer towing (except hybrid
vehicle [except for
South Africa]) .................. 343

204
YARIS_F (including HV)_WE_52C79E
2-1. Driving procedures

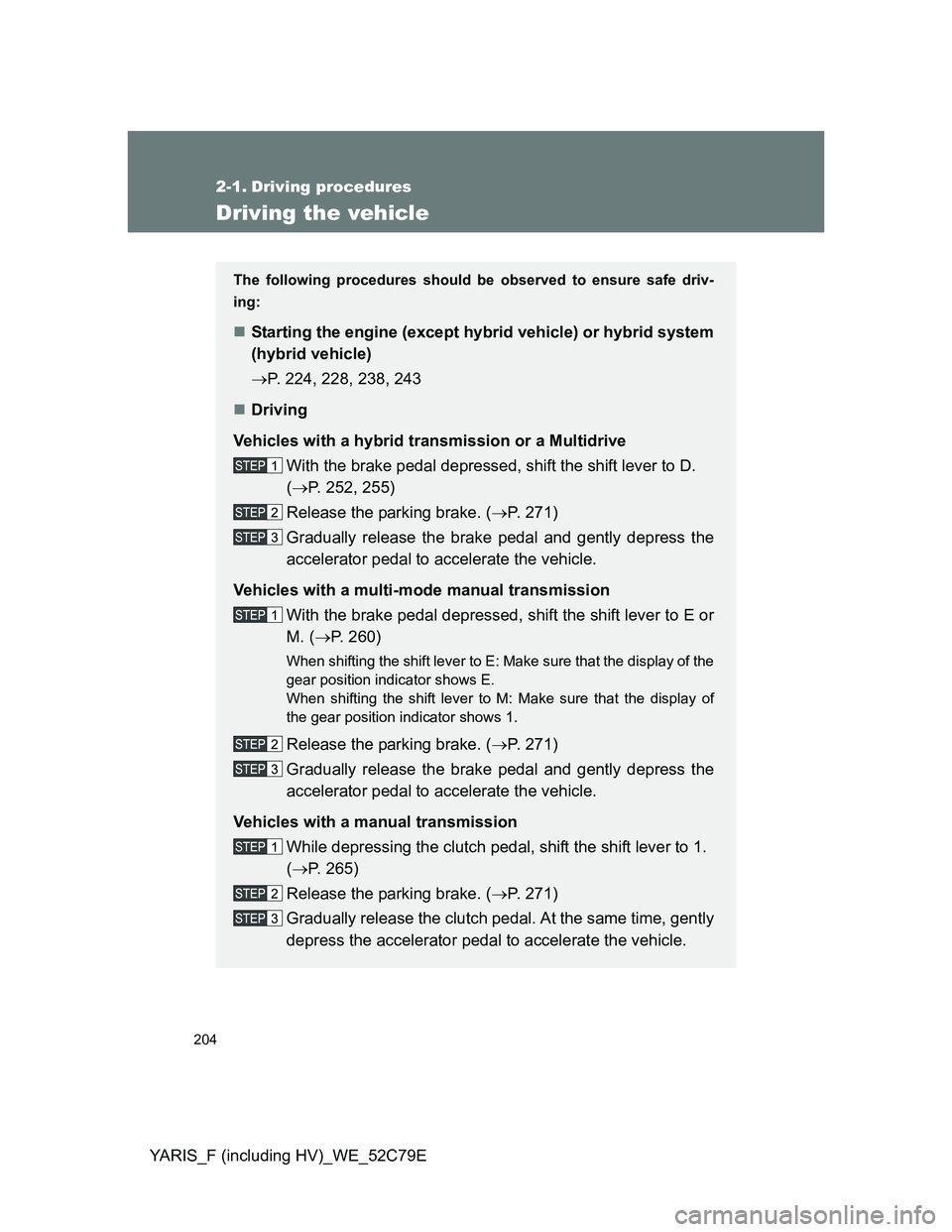

Driving the vehicle
The following procedures should be observed to ensure safe driv-
ing:
Starting the engine (except hybrid vehicle) or hybrid system
(hybrid vehicle)
P. 224, 228, 238, 243
Driving
Vehicles with a hybrid transmission or a Multidrive
With the brake pedal depressed, shift the shift lever to D.
(P. 252, 255)
Release the parking brake. (P. 271)
Gradually release the brake pedal and gently depress the
accelerator pedal to accelerate the vehicle.
Vehicles with a multi-mode manual transmission
With the brake pedal depressed, shift the shift lever to E or
M. (P. 260)
When shifting the shift lever to E: Make sure that the display of the
gear position indicator shows E.
When shifting the shift lever to M: Make sure that the display of
the gear position indicator shows 1.
Release the parking brake. (P. 271)
Gradually release the brake pedal and gently depress the
accelerator pedal to accelerate the vehicle.
Vehicles with a manual transmission
While depressing the clutch pedal, shift the shift lever to 1.
(P. 265)
Release the parking brake. (P. 271)
Gradually release the clutch pedal. At the same time, gently
depress the accelerator pedal to accelerate the vehicle.

205 2-1. Driving procedures
2
When driving
YARIS_F (including HV)_WE_52C79E

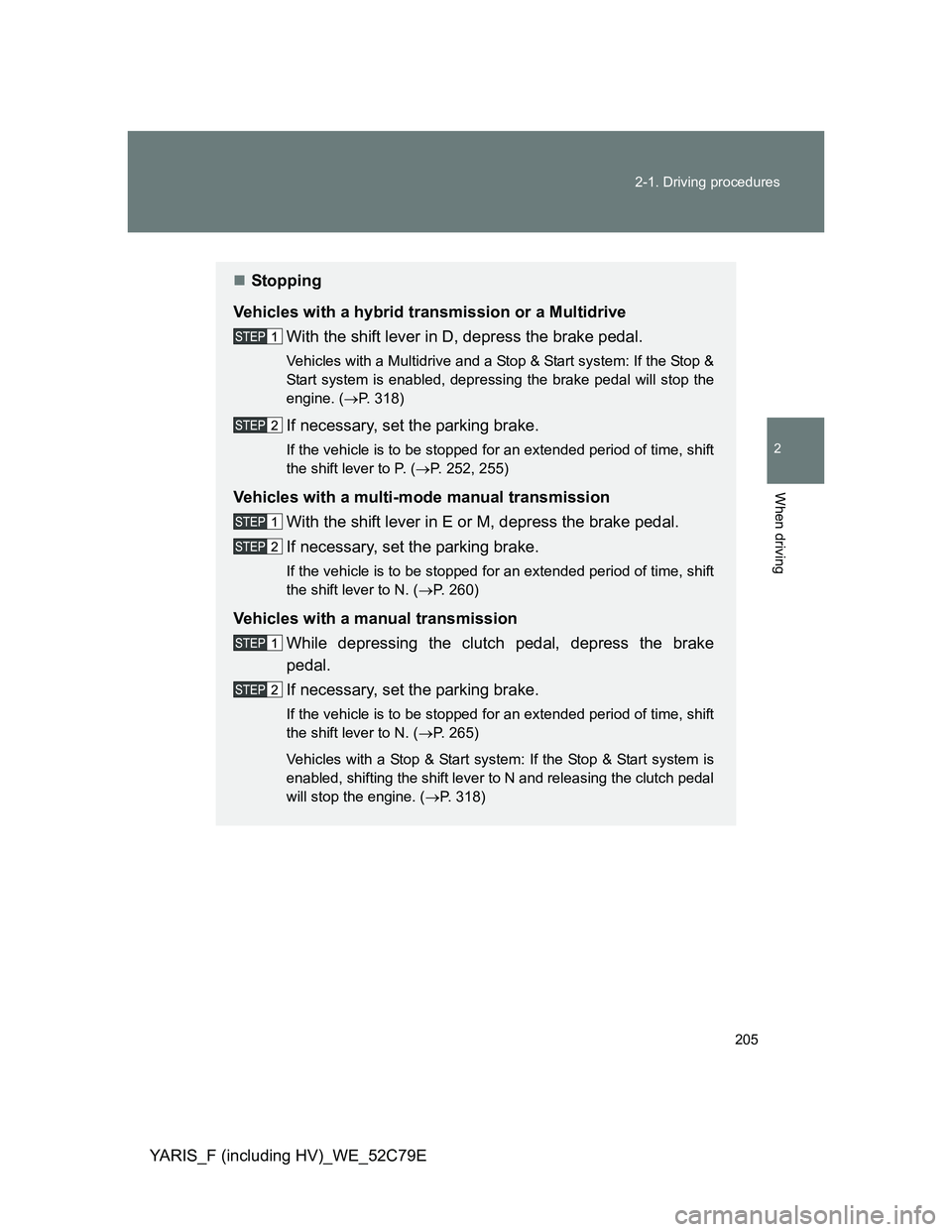

Stopping
Vehicles with a hybrid transmission or a Multidrive
With the shift lever in D, depress the brake pedal.
Vehicles with a Multidrive and a Stop & Start system: If the Stop &
Start system is enabled, depressing the brake pedal will stop the
engine. (P. 318)
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift
the shift lever to P. (P. 252, 255)
Vehicles with a multi-mode manual transmission
With the shift lever in E or M, depress the brake pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift
the shift lever to N. (P. 260)
Vehicles with a manual transmission
While depressing the clutch pedal, depress the brake
pedal.
If necessary, set the parking brake.
If the vehicle is to be stopped for an extended period of time, shift
the shift lever to N. (P. 265)
Vehicles with a Stop & Start system: If the Stop & Start system is
enabled, shifting the shift lever to N and releasing the clutch pedal
will stop the engine. (P. 318)

206 2-1. Driving procedures
YARIS_F (including HV)_WE_52C79E

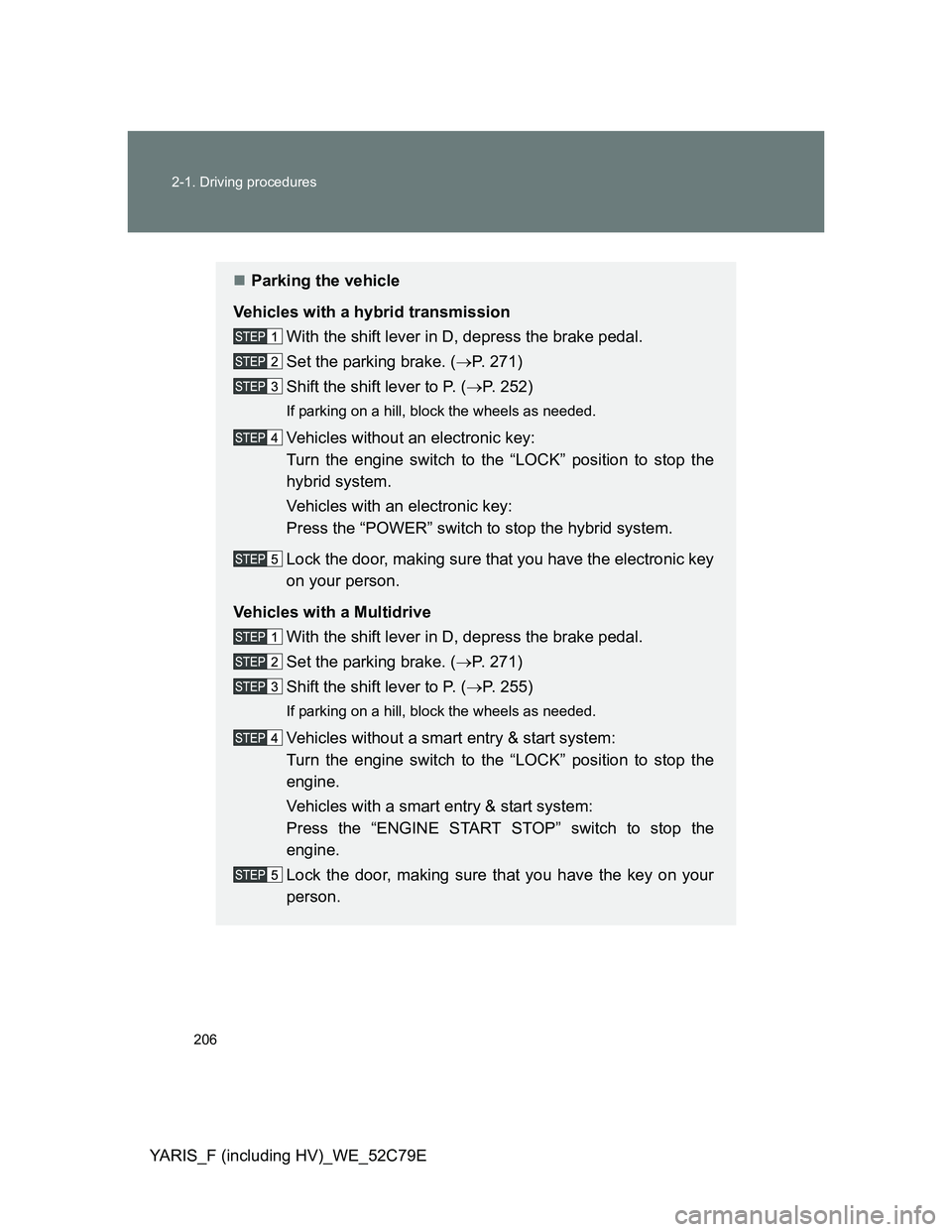

Parking the vehicle
Vehicles with a hybrid transmission
With the shift lever in D, depress the brake pedal.
Set the parking brake. (P. 271)
Shift the shift lever to P. (P. 252)
If parking on a hill, block the wheels as needed.
Vehicles without an electronic key:
Turn the engine switch to the “LOCK” position to stop the
hybrid system.
Vehicles with an electronic key:
Press the “POWER” switch to stop the hybrid system.
Lock the door, making sure that you have the electronic key
on your person.
Vehicles with a Multidrive
With the shift lever in D, depress the brake pedal.
Set the parking brake. (P. 271)
Shift the shift lever to P. (P. 255)
If parking on a hill, block the wheels as needed.
Vehicles without a smart entry & start system:
Turn the engine switch to the “LOCK” position to stop the
engine.
Vehicles with a smart entry & start system:
Press the “ENGINE START STOP” switch to stop the
engine.
Lock the door, making sure that you have the key on your
person.

207 2-1. Driving procedures
2
When driving
YARIS_F (including HV)_WE_52C79E
Vehicles with a multi-mode manual transmission
With the shift lever in E or M, depress the brake pedal.
Set the parking brake. (P. 271)
Shift the shift lever to E, M or R. (P. 260)
If parking on a hill, block the wheels as needed.
Vehicles without a smart entry & start system: Turn the
engine switch to the “LOCK” position to stop the engine.
Vehicles with a smart entry & start system: Press the
“ENGINE START STOP” switch to stop the engine.
Make sure that the display of the gear position indicator shows 1
or R.
Lock the door, making sure that you have the key on your
person.
Vehicles with a manual transmission
While depressing the clutch pedal, depress the brake
pedal.
Set the parking brake. (P. 271)
Shift the shift lever to N. (P. 265)
If parking on a hill, shift the shift lever to 1 or R and block the
wheels as needed.
Vehicles without a smart entry & start system: Turn the
engine switch to the “LOCK” position to stop the engine.
Vehicles with a smart entry & start system: Press the
“ENGINE START STOP” switch to stop the engine.
Lock the door, making sure that you have the key on your
person.

208 2-1. Driving procedures
YARIS_F (including HV)_WE_52C79E

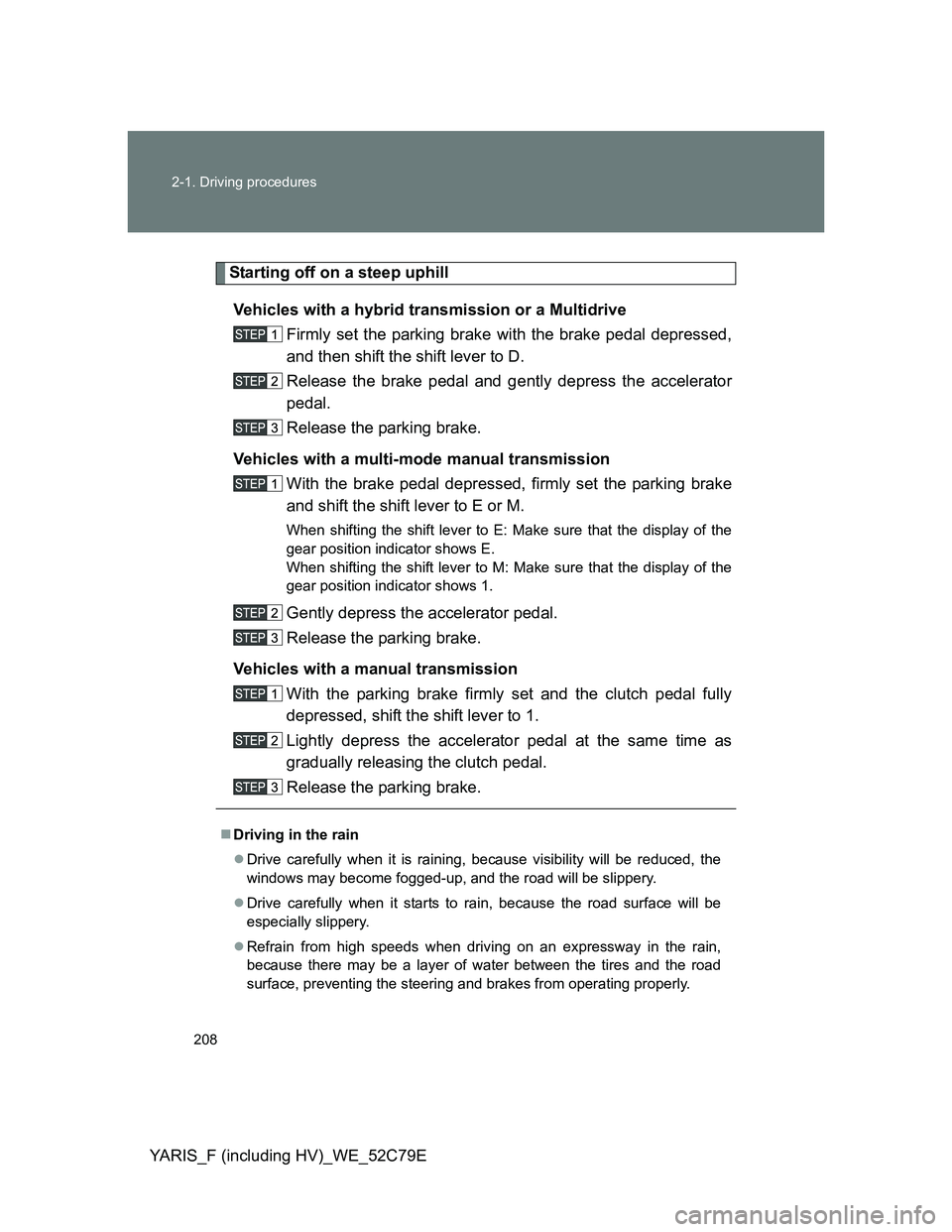

Starting off on a steep uphill
Vehicles with a hybrid transmission or a Multidrive
Firmly set the parking brake with the brake pedal depressed,
and then shift the shift lever to D.
Release the brake pedal and gently depress the accelerator
pedal.
Release the parking brake.
Vehicles with a multi-mode manual transmission
With the brake pedal depressed, firmly set the parking brake
and shift the shift lever to E or M.
When shifting the shift lever to E: Make sure that the display of the
gear position indicator shows E.
When shifting the shift lever to M: Make sure that the display of the
gear position indicator shows 1.
Gently depress the accelerator pedal.
Release the parking brake.
Vehicles with a manual transmission
With the parking brake firmly set and the clutch pedal fully
depressed, shift the shift lever to 1.
Lightly depress the accelerator pedal at the same time as
gradually releasing the clutch pedal.
Release the parking brake.
Driving in the rain
Drive carefully when it is raining, because visibility will be reduced, the
windows may become fogged-up, and the road will be slippery.
Drive carefully when it starts to rain, because the road surface will be
especially slippery.
Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road
surface, preventing the steering and brakes from operating properly.
