2012 TOYOTA YARIS HYBRID Owners Manual

5

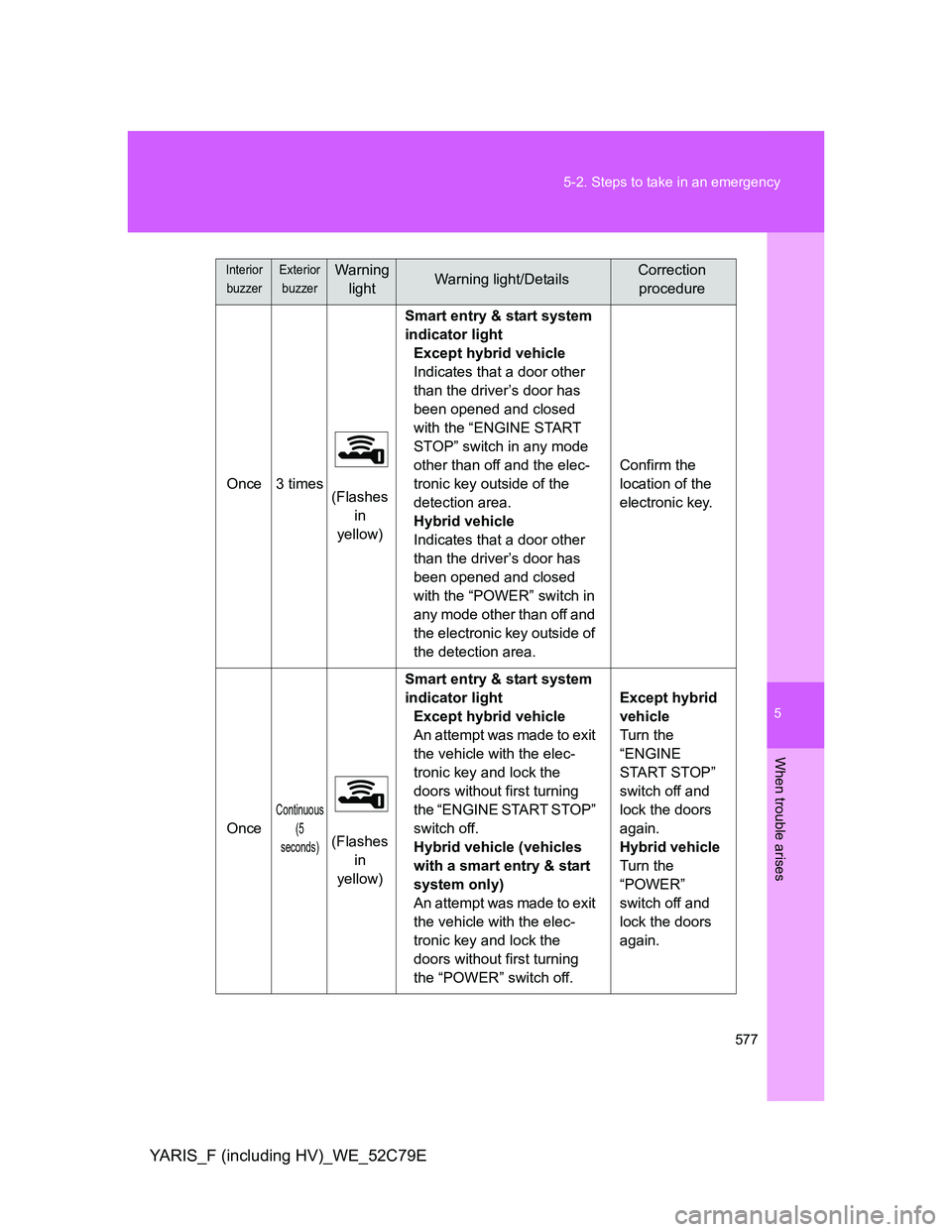

577 5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52C79E
Once 3 times
(Flashes
in
yellow)Smart entry & start system
indicator light
Except hybrid vehicle
Indicates that a door other
than the driver’s door has
been opened and closed
with the “ENGINE START
STOP” switch in any mode
other than off and the elec-
tronic key outside of the
detection area.
Hybrid vehicle
Indicates that a door other
than the driver’s door has
been opened and closed
with the “POWER” switch in
any mode other than off and
the electronic key outside of
the detection area.Confirm the
location of the
electronic key.
Once
Continuous
(5
seconds)
(Flashes
in
yellow)Smart entry & start system
indicator light
Except hybrid vehicle
An attempt was made to exit
the vehicle with the elec-
tronic key and lock the
doors without first turning
the “ENGINE START STOP”
switch off.
Hybrid vehicle (vehicles
with a smart entry & start
system only)
An attempt was made to exit
the vehicle with the elec-
tronic key and lock the
doors without first turning
the “POWER” switch off.Except hybrid
vehicle
Turn the
“ENGINE
START STOP”
switch off and
lock the doors
again.
Hybrid vehicle
Turn the
“POWER”
switch off and
lock the doors
again.
Interior
buzzerExterior
buzzerWarning
lightWarning light/DetailsCorrection
procedure

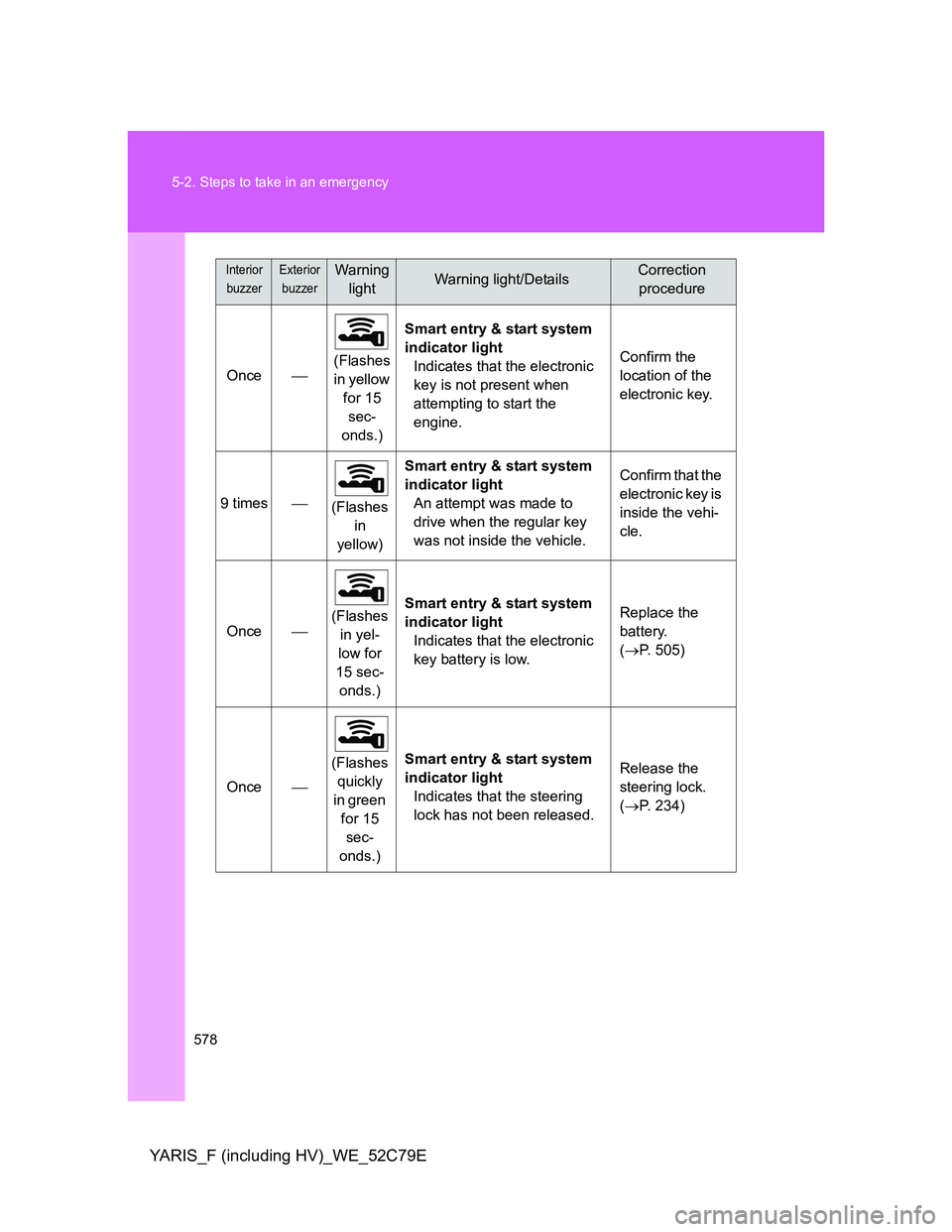

578 5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52C79E
Once(Flashes
in yellow
for 15
sec-
onds.)Smart entry & start system
indicator light
Indicates that the electronic
key is not present when
attempting to start the
engine.Confirm the
location of the
electronic key.
9 times
(Flashes
in
yellow)Smart entry & start system
indicator light
An attempt was made to
drive when the regular key
was not inside the vehicle.Confirm that the
electronic key is
inside the vehi-
cle.
Once(Flashes
in yel-
low for
15 sec-
onds.)Smart entry & start system
indicator light
Indicates that the electronic
key battery is low.Replace the
battery.
(P. 505)
Once(Flashes
quickly
in green
for 15
sec-
onds.)Smart entry & start system
indicator light
Indicates that the steering
lock has not been released.Release the
steering lock.
(P. 234)
Interior
buzzerExterior
buzzerWarning
lightWarning light/DetailsCorrection
procedure

5

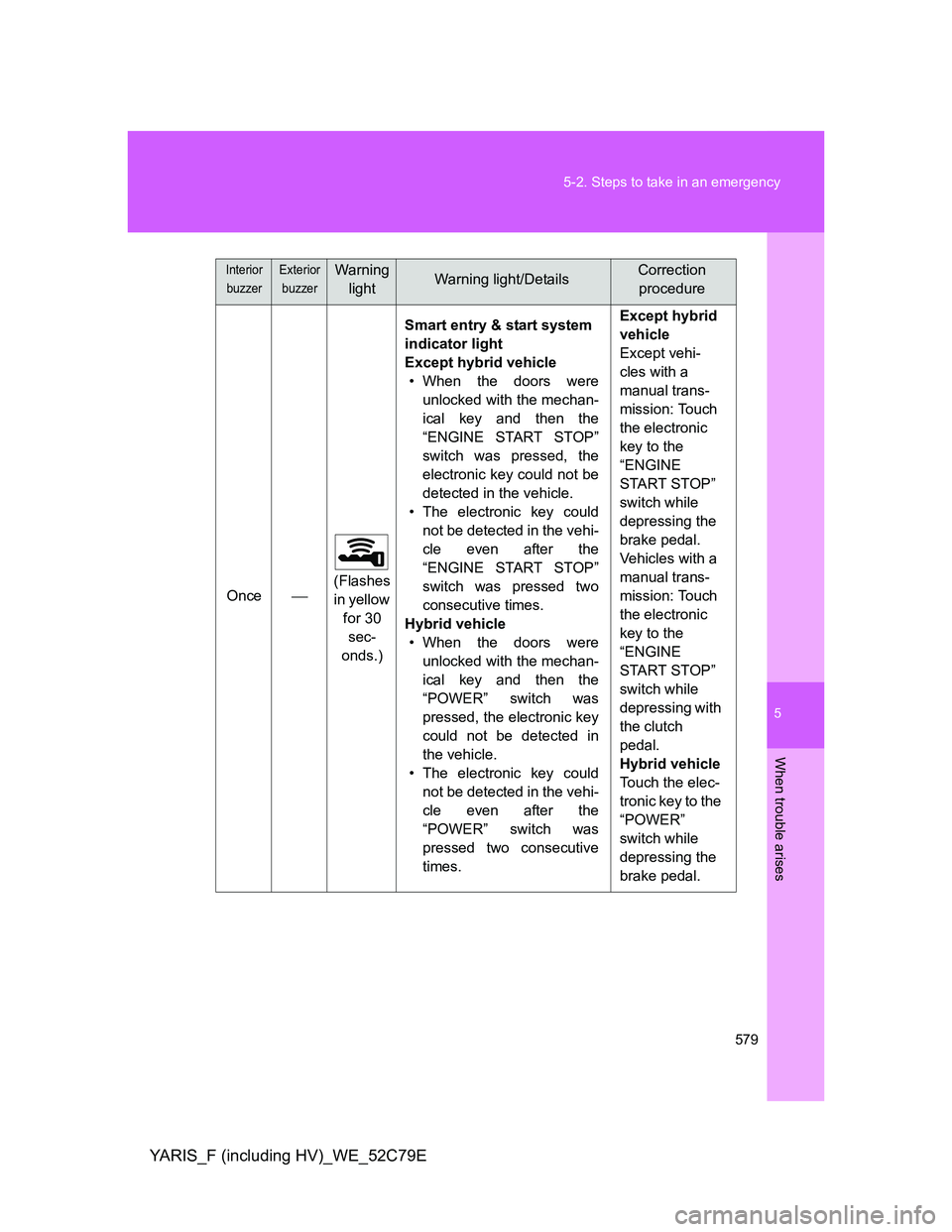

579 5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52C79E
Once(Flashes
in yellow
for 30
sec-
onds.)Smart entry & start system
indicator light
Except hybrid vehicle
• When the doors were
unlocked with the mechan-
ical key and then the
“ENGINE START STOP”
switch was pressed, the
electronic key could not be
detected in the vehicle.
• The electronic key could
not be detected in the vehi-
cle even after the
“ENGINE START STOP”
switch was pressed two
consecutive times.
Hybrid vehicle
• When the doors were
unlocked with the mechan-
ical key and then the
“POWER” switch was
pressed, the electronic key
could not be detected in
the vehicle.
• The electronic key could
not be detected in the vehi-
cle even after the
“POWER” switch was
pressed two consecutive
times.Except hybrid
vehicle
Except vehi-
cles with a
manual trans-
mission: Touch
the electronic
key to the
“ENGINE
START STOP”
switch while
depressing the
brake pedal.
Vehicles with a
manual trans-
mission: Touch
the electronic
key to the
“ENGINE
START STOP”
switch while
depressing with
the clutch
pedal.
Hybrid vehicle
Touch the elec-
tronic key to the
“POWER”
switch while
depressing the
brake pedal.
Interior
buzzerExterior
buzzerWarning
lightWarning light/DetailsCorrection
procedure

580 5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52C79E
Passenger detection sensor and passenger seat belt reminder
If luggage is placed on a passenger seat, the passenger detection sensor
may cause the warning light to flash even if a passenger is not sitting in
the seat.
If a cushion is placed on the seat, the sensor may not detect a passen-
ger, and the warning light may not operate properly.
Electric power steering warning light (warning buzzer)
Except hybrid vehicle: When the battery charge becomes insufficient or the
voltage temporarily drops, the electric power steering system warning light
may come on and the warning buzzer may sound.
Hybrid vehicle: When the 12-volt battery charge becomes insufficient or the
voltage temporarily drops, the electric power steering system warning light
may come on and the warning buzzer may sound.
If the malfunction indicator lamp comes on while driving
For some models, the malfunction indicator lamp will come on if the fuel tank
becomes completely empty. If the fuel tank is empty, refuel the vehicle
immediately. The malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional as soon as possible.
If the engine oil change reminder light flashes (diesel engine with a
DPF system)
Repeated short trips and/or low-speed driving may cause the oil to degrade
sooner than usual, regardless of the actual distance driven. If this happens,
the engine oil change reminder light will flash.
Engine oil change reminder light comes on (diesel engine only)
Vehicles without a DPF system:
Replace the engine oil and oil filter when the engine oil change reminder
light does not come on even if you have driven over 40000 km (25000 miles)
after the engine oil was changed.
There is a possibility that the engine oil change reminder light has been illu-
minated when you have driven less than 40000 km (25000 miles) based on
a usage or driving condition.

5
581 5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52C79E
Vehicles with a DPF system:
Replace the engine oil and oil filter when the engine oil change reminder
light does not come on even if you have driven over 15000 km (9300 miles)
after the engine oil was changed.
There is a possibility that the engine oil change reminder light has been illu-
minated when you have driven less than 15000 km (9300 miles) based on a
usage or driving condition.
CAUTION
When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold
firmly and operate using more force than usual.
When driving to clean the DPF catalytic converter
When driving, pay sufficient attention to weather, road conditions, terrain and
traffic conditions, and be sure to observe traffic laws and/or regulations. Fail-
ure to do so may cause an unexpected accident, resulting in death or seri-
ous injury.
NOTICE
If the fuel filter warning light comes on (diesel engine only)
Never drive the vehicle with the warning light on. Continued driving with
water accumulated in the fuel filter will damage the fuel injection pump.
When the DPF system warning light comes on (diesel engine with a
DPF system)
If the DPF system warning light is left on without performing cleaning, after
an additional 100 to 300 km (62 to 187 miles), the malfunction indicator lamp
may come on. If this happens, have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional immediately.

582
5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52C79E

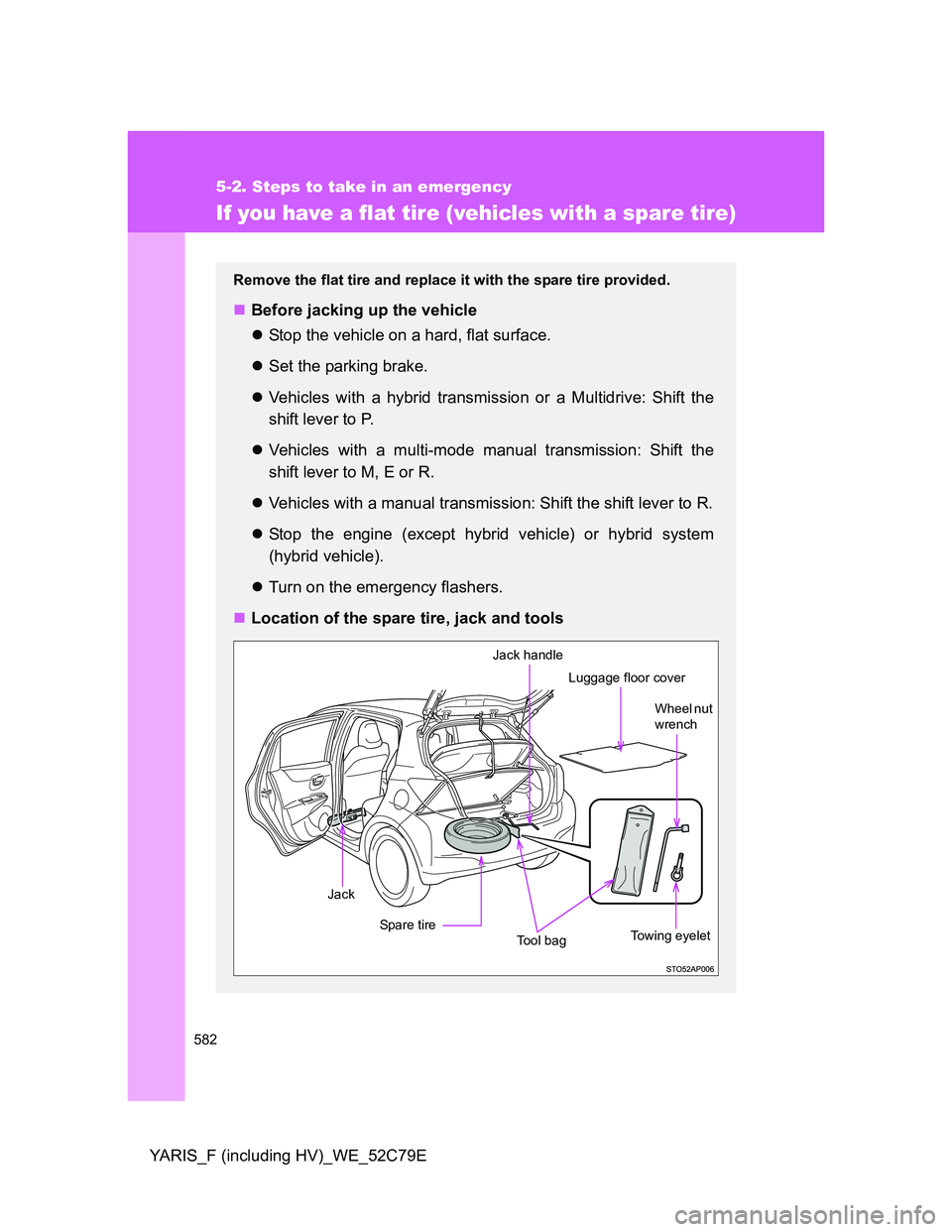

If you have a flat tire (vehicles with a spare tire)
Remove the flat tire and replace it with the spare tire provided.
Before jacking up the vehicle
Stop the vehicle on a hard, flat surface.
Set the parking brake.
Vehicles with a hybrid transmission or a Multidrive: Shift the
shift lever to P.
Vehicles with a multi-mode manual transmission: Shift the
shift lever to M, E or R.
Vehicles with a manual transmission: Shift the shift lever to R.
Stop the engine (except hybrid vehicle) or hybrid system
(hybrid vehicle).
Turn on the emergency flashers.
Location of the spare tire, jack and tools
Jack
Tool bag Spare tire
Luggage floor cover
Jack handle
Wheel nut
wrench
Towing eyelet

5
583 5-2. Steps to take in an emergency
When trouble arises
YARIS_F (including HV)_WE_52C79E

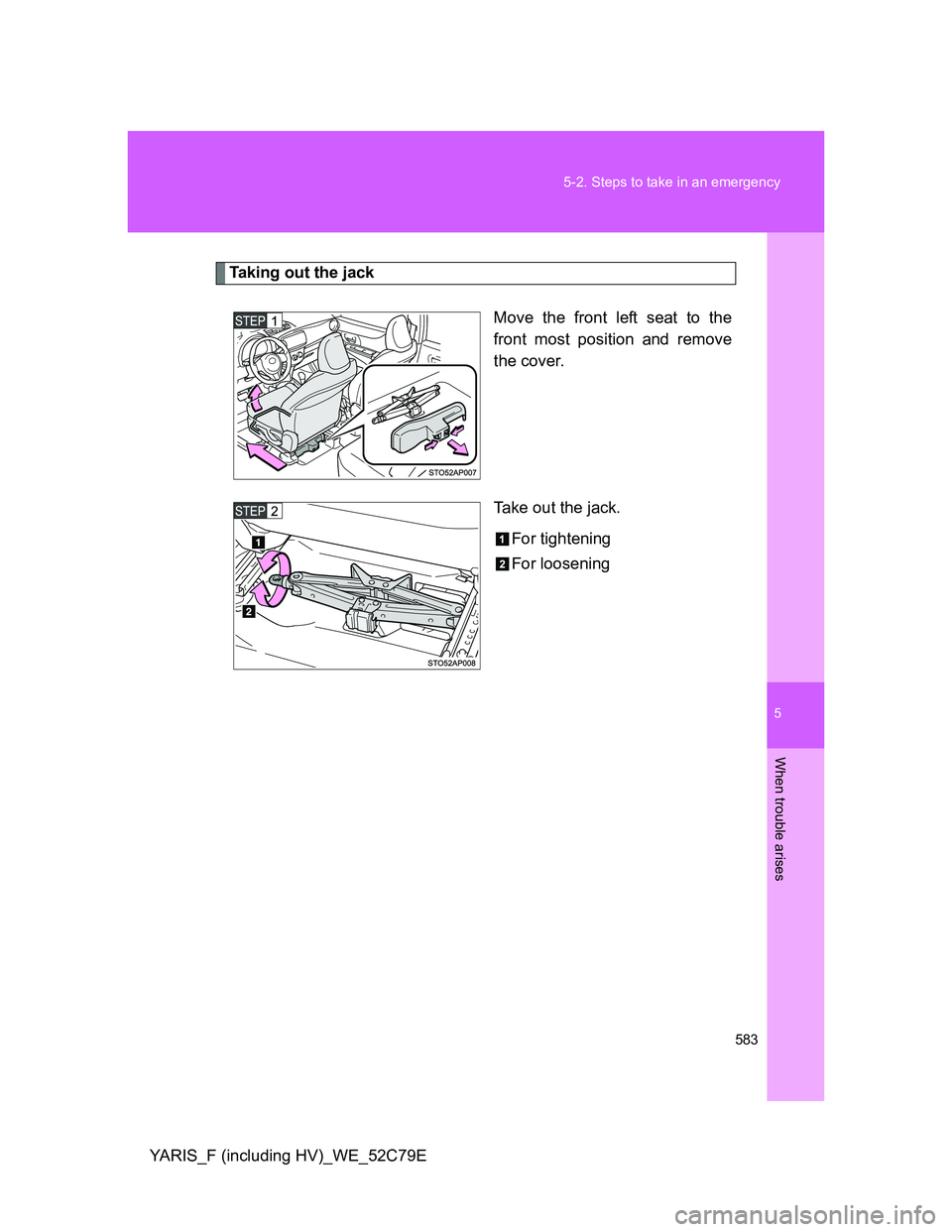

Taking out the jack
Move the front left seat to the
front most position and remove
the cover.
Take out the jack.
For tightening
For loosening

584 5-2. Steps to take in an emergency
YARIS_F (including HV)_WE_52C79E

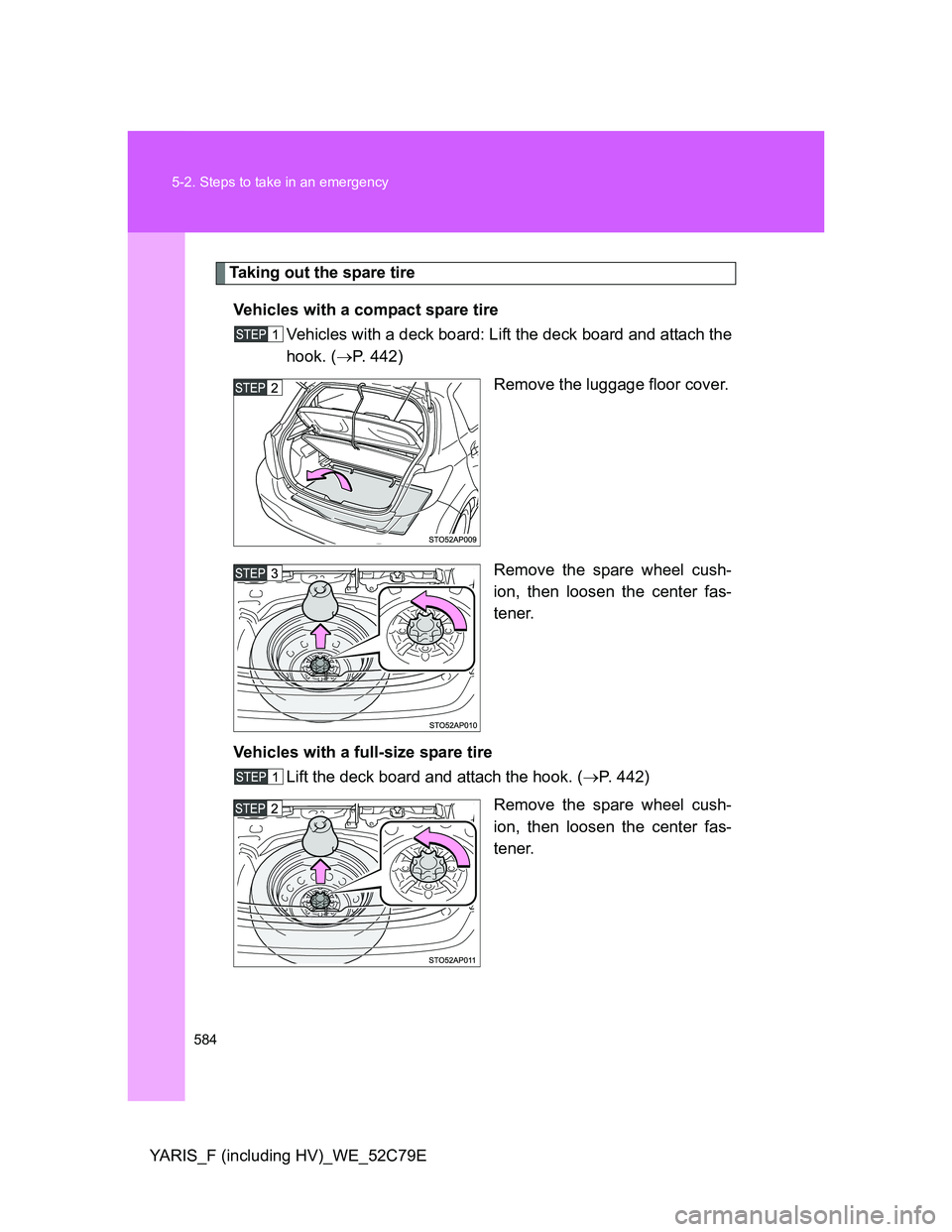

Taking out the spare tire
Vehicles with a compact spare tire
Vehicles with a deck board: Lift the deck board and attach the
hook. (P. 442)
Remove the luggage floor cover.
Remove the spare wheel cush-
ion, then loosen the center fas-
tener.
Vehicles with a full-size spare tire
Lift the deck board and attach the hook. (P. 442)
Remove the spare wheel cush-
ion, then loosen the center fas-
tener.
