2012 TOYOTA YARIS HYBRID Owners Manual

417
3
Interior features
YARIS_F (including HV)_WE_52C79E

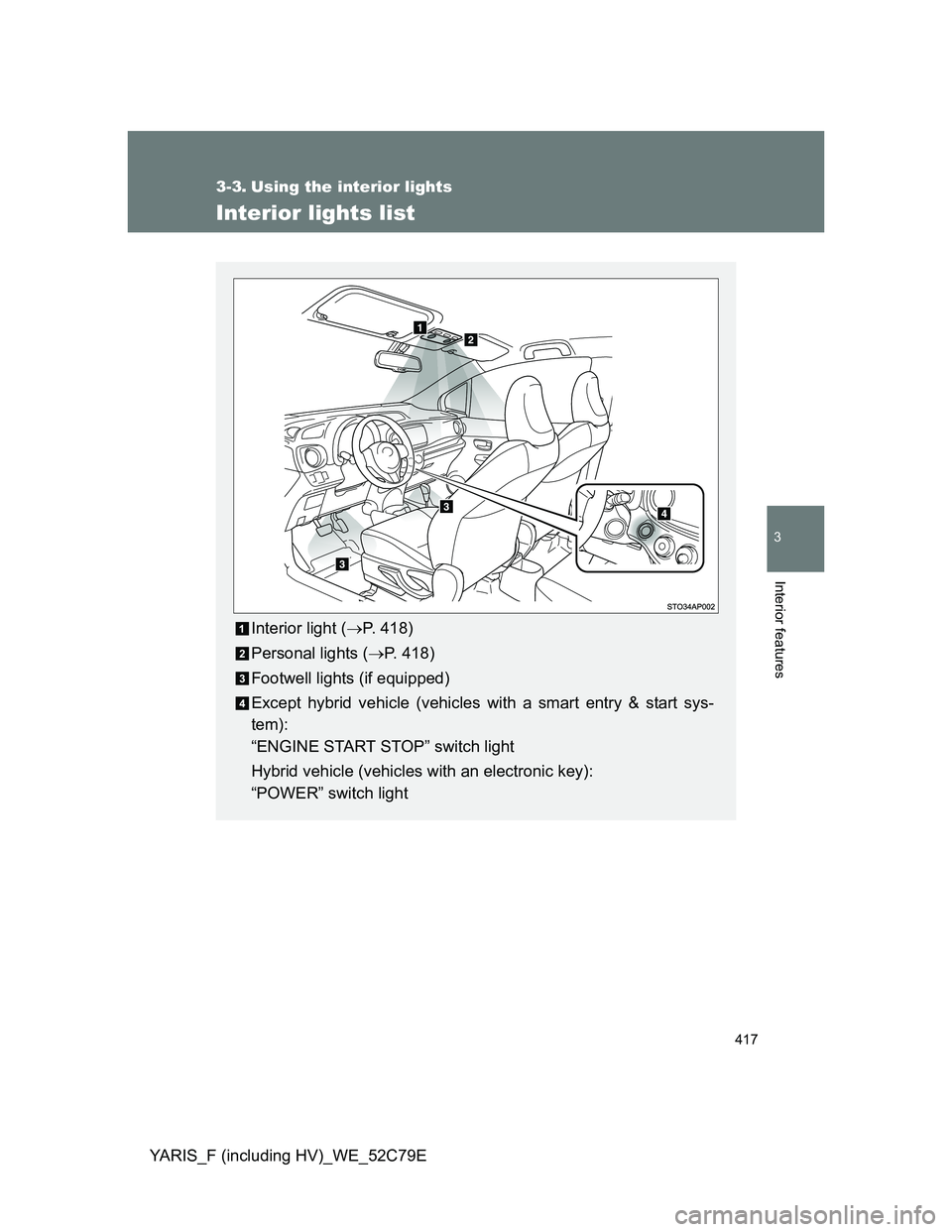

3-3. Using the interior lights
Interior lights list
Interior light (P. 418)
Personal lights (P. 418)
Footwell lights (if equipped)
Except hybrid vehicle (vehicles with a smart entry & start sys-
tem):
“ENGINE START STOP” switch light
Hybrid vehicle (vehicles with an electronic key):
“POWER” switch light

418 3-3. Using the interior lights
YARIS_F (including HV)_WE_52C79E

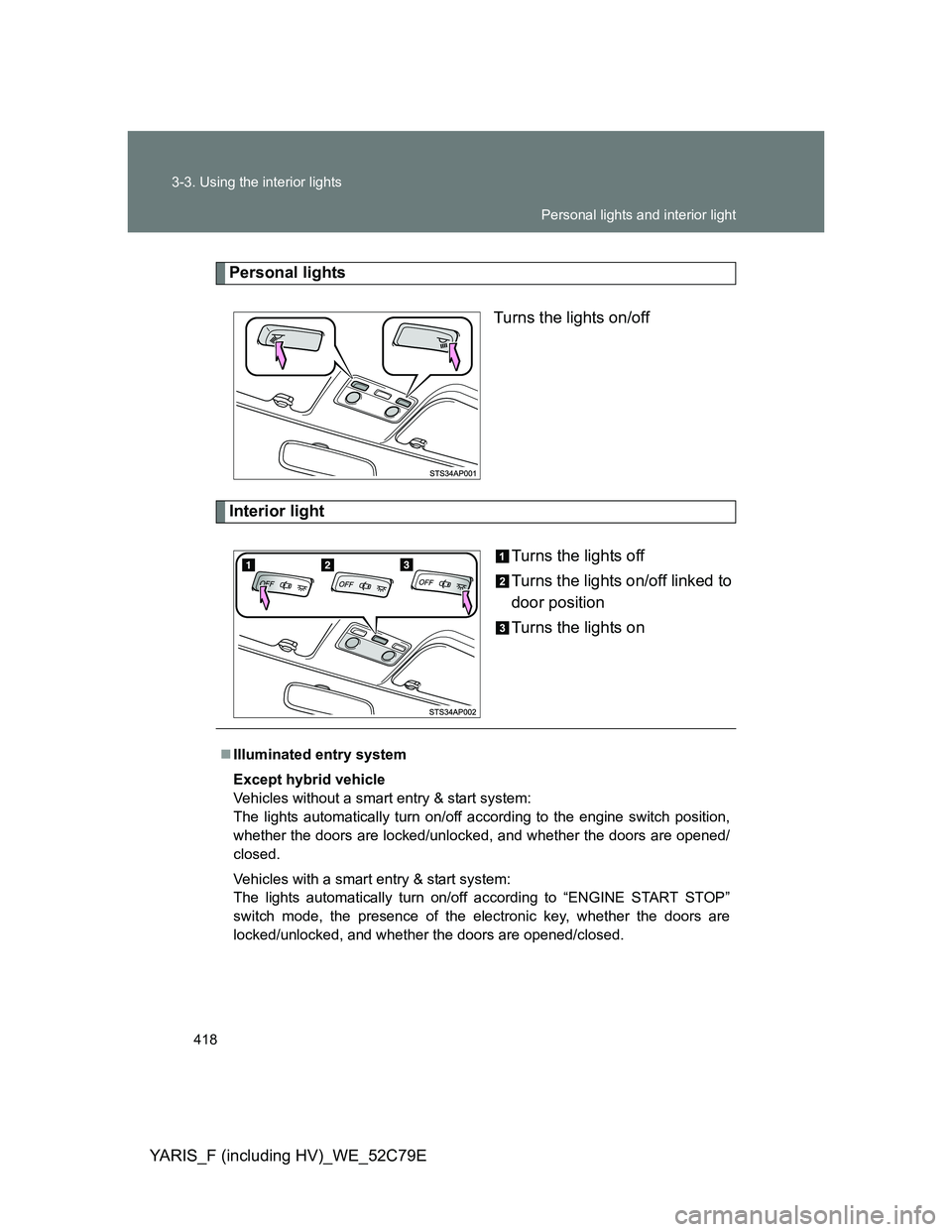

Personal lights
Turns the lights on/off
Interior light
Turns the lights off
Turns the lights on/off linked to
door position
Turns the lights on
Illuminated entry system
Except hybrid vehicle
Vehicles without a smart entry & start system:
The lights automatically turn on/off according to the engine switch position,
whether the doors are locked/unlocked, and whether the doors are opened/
closed.
Vehicles with a smart entry & start system:
The lights automatically turn on/off according to “ENGINE START STOP”
switch mode, the presence of the electronic key, whether the doors are
locked/unlocked, and whether the doors are opened/closed.
Personal lights and interior light

419 3-3. Using the interior lights
3
Interior features
YARIS_F (including HV)_WE_52C79E

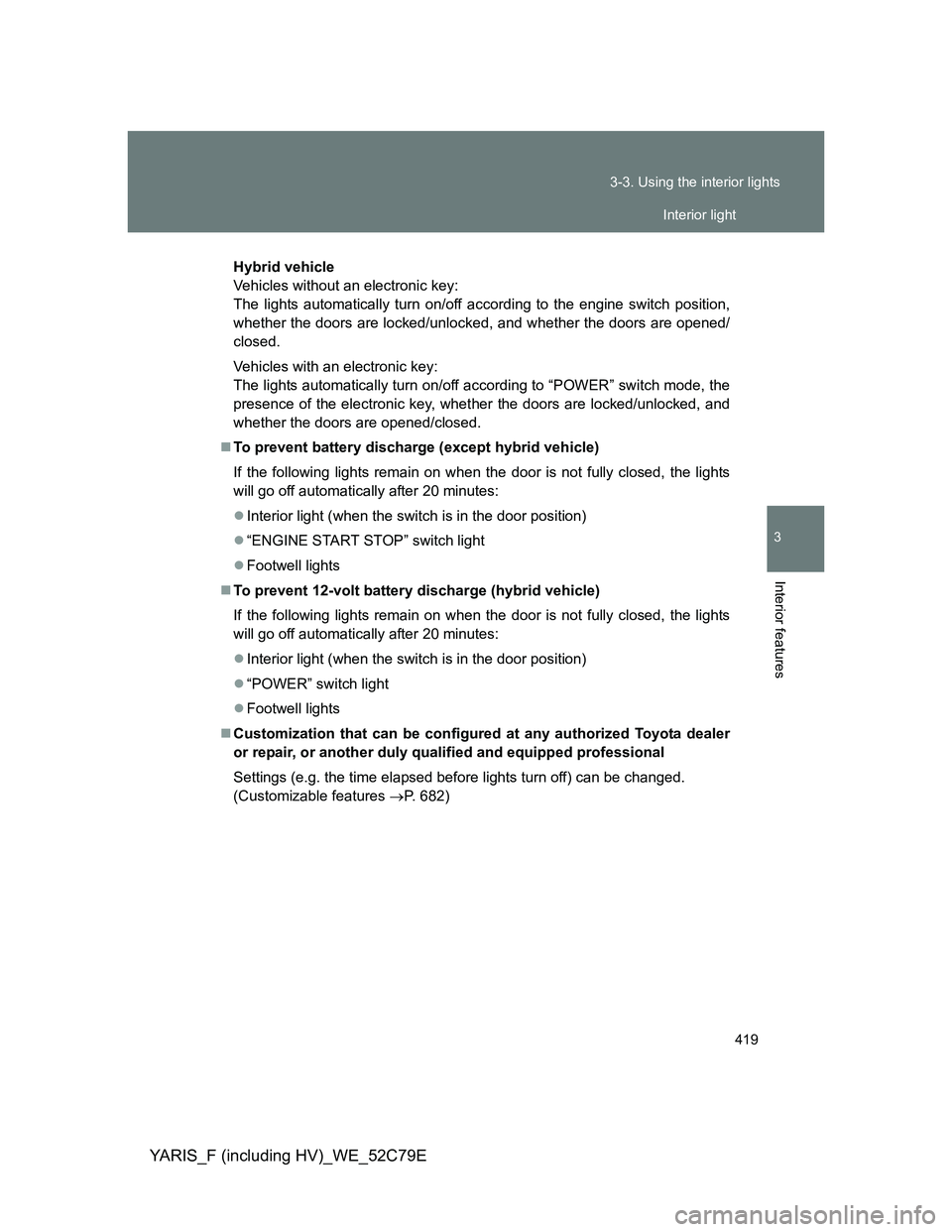

Hybrid vehicle
Vehicles without an electronic key:
The lights automatically turn on/off according to the engine switch position,
whether the doors are locked/unlocked, and whether the doors are opened/
closed.
Vehicles with an electronic key:
The lights automatically turn on/off according to “POWER” switch mode, the
presence of the electronic key, whether the doors are locked/unlocked, and
whether the doors are opened/closed.
To prevent battery discharge (except hybrid vehicle)
If the following lights remain on when the door is not fully closed, the lights
will go off automatically after 20 minutes:
Interior light (when the switch is in the door position)
“ENGINE START STOP” switch light
Footwell lights
To prevent 12-volt battery discharge (hybrid vehicle)
If the following lights remain on when the door is not fully closed, the lights
will go off automatically after 20 minutes:
Interior light (when the switch is in the door position)
“POWER” switch light
Footwell lights
Customization that can be configured at any authorized Toyota dealer
or repair, or another duly qualified and equipped professional
Settings (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features P. 682)
Interior light

420
YARIS_F (including HV)_WE_52C79E

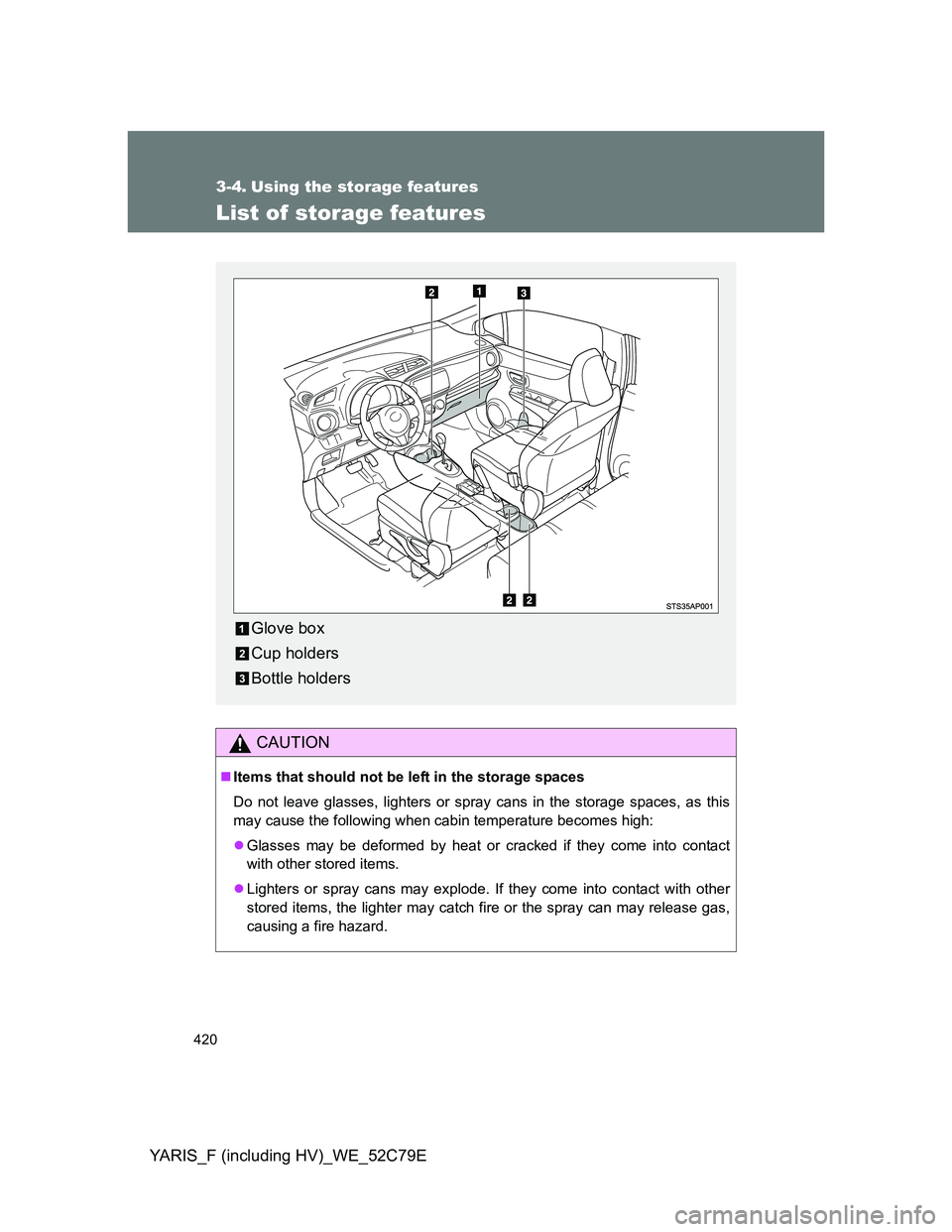

3-4. Using the storage features
List of storage features
CAUTION
Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
Glove box
Cup holders
Bottle holders

421 3-4. Using the storage features
3
Interior features
YARIS_F (including HV)_WE_52C79E

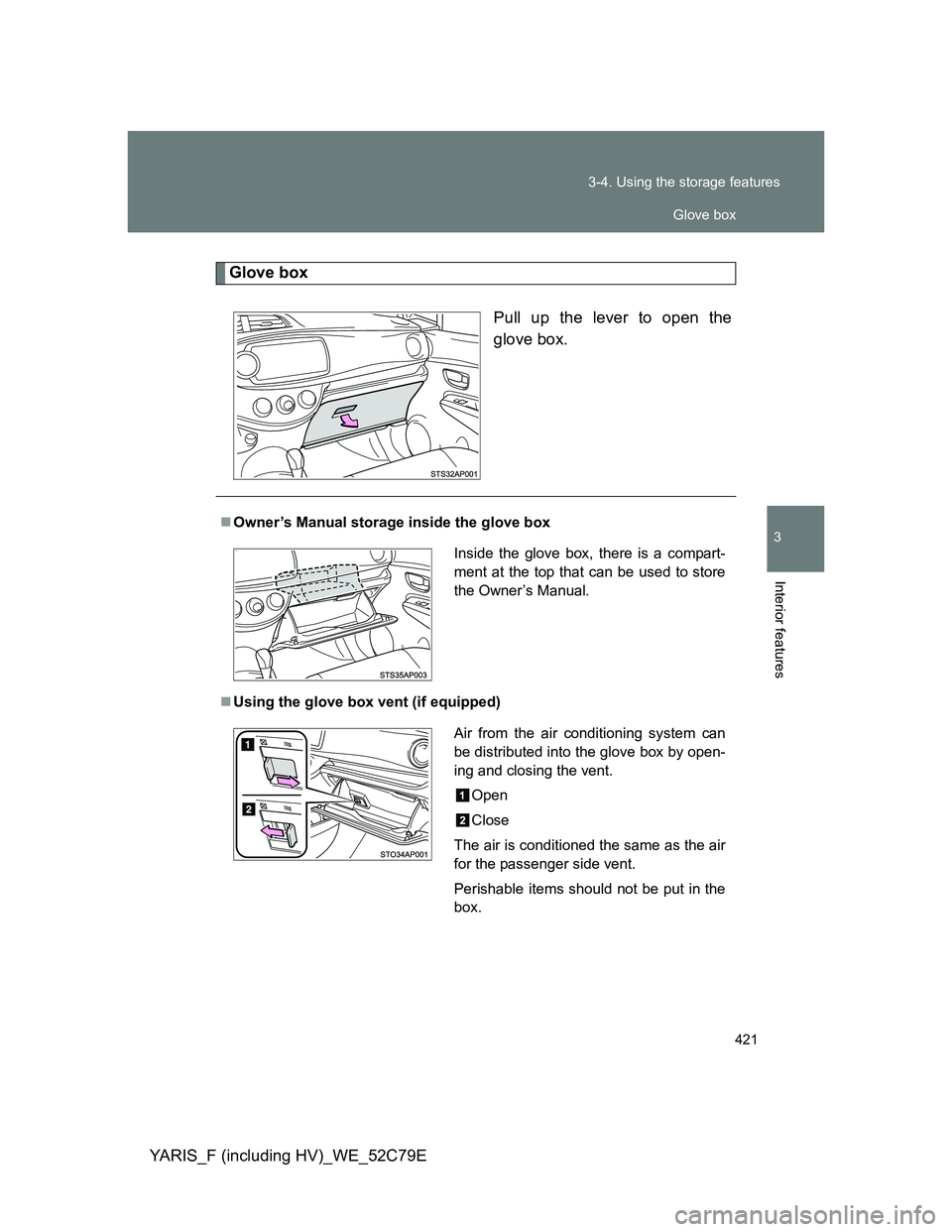

Glove box
Pull up the lever to open the
glove box.
Owner’s Manual storage inside the glove box
Using the glove box vent (if equipped)
Inside the glove box, there is a compart-
ment at the top that can be used to store
the Owner’s Manual.
Air from the air conditioning system can
be distributed into the glove box by open-
ing and closing the vent.
Open
Close
The air is conditioned the same as the air
for the passenger side vent.
Perishable items should not be put in the
box.
Glove box

422 3-4. Using the storage features
YARIS_F (including HV)_WE_52C79E

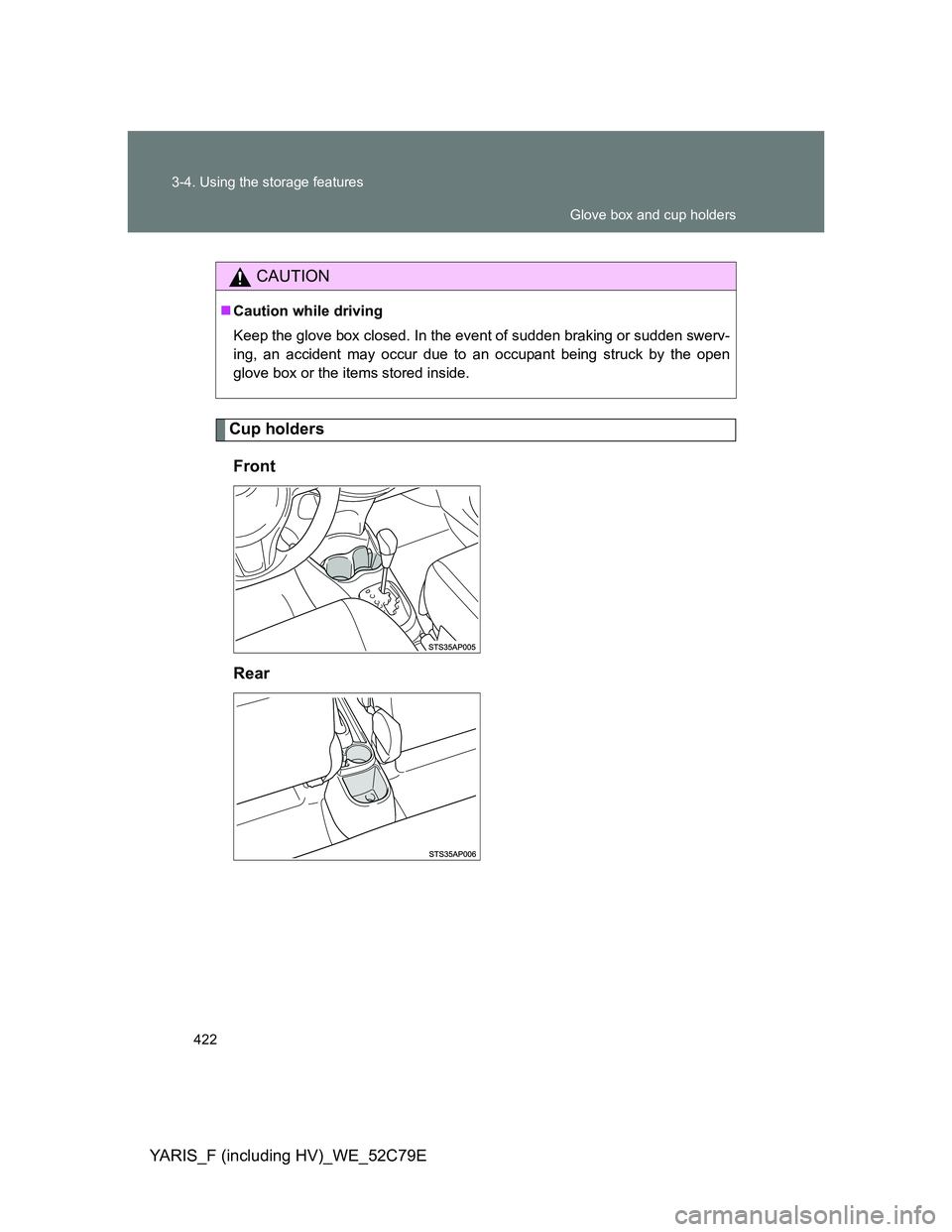

Cup holders
Front
Rear
CAUTION
Caution while driving
Keep the glove box closed. In the event of sudden braking or sudden swerv-
ing, an accident may occur due to an occupant being struck by the open
glove box or the items stored inside.
Glove box and cup holders

423 3-4. Using the storage features
3
Interior features
YARIS_F (including HV)_WE_52C79E

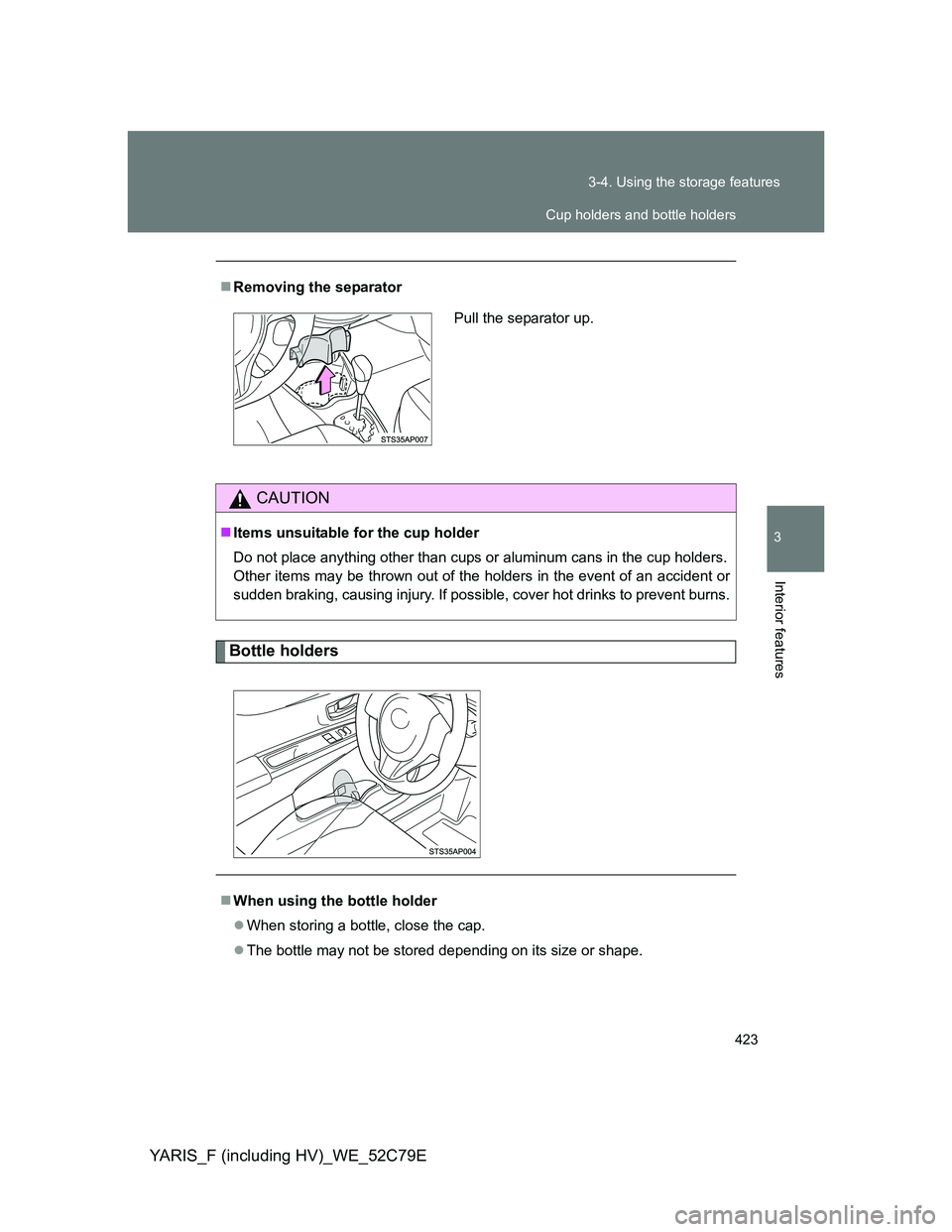

Bottle holders
Removing the separator
CAUTION
Items unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking, causing injury. If possible, cover hot drinks to prevent burns.
Pull the separator up.
When using the bottle holder
When storing a bottle, close the cap.
The bottle may not be stored depending on its size or shape.
Cup holders and bottle holders

424 3-4. Using the storage features
YARIS_F (including HV)_WE_52C79E
CAUTION
Items unsuitable for the bottle holder
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
NOTICE
Items that should not be stowed in the bottle holders
Put the cap on before stowing a bottle. Do not place open bottles in the bot-
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break.
Bottle holders
