2012 TOYOTA YARIS HYBRID Owners Manual

281 2-2. Instrument cluster
2
When driving
YARIS_F (including HV)_WE_52C79E
Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 269)
(vehicles with
a Multidrive)
Shift position and gear
step position indicators
(P. 255)
Headlight high beam
indicator (P. 295)
(if equipped)
Tail light indicator
(P. 293)
(vehicles with
a multi-mode
manual
transmission)
Shift position and gear
position indicators
(P. 260)
(if equipped)
Front fog light indicator
(P. 303)
Rear fog light indicator
(P. 302, 303)
(vehicles with
a Multidrive)
“SPORT” indicator
(P. 256)
(if equipped)
Smart entry & start sys-
tem indicator (P. 228)*1
(vehicles with
a manual
transmission)
Gear Shift Indicator
(P. 267)
*3Low engine coolant
temperature indicator
*1
(diesel engine)
Engine preheating
indicator (P. 224, 228)
(if equipped)
Cruise control indicator
(P. 3 1 1 )
*1
(if equipped)
Eco Driving Indicator
Light (P. 210)
(if equipped)
“SET” indicator
(P. 3 1 1 )
(vehicles with
a hybrid
transmission)
Shift position indicator
(P. 252)(if equipped)
Speed limiter indicator
(P. 315)
*1
(if equipped)
Stop & Start indicator
(P. 318)

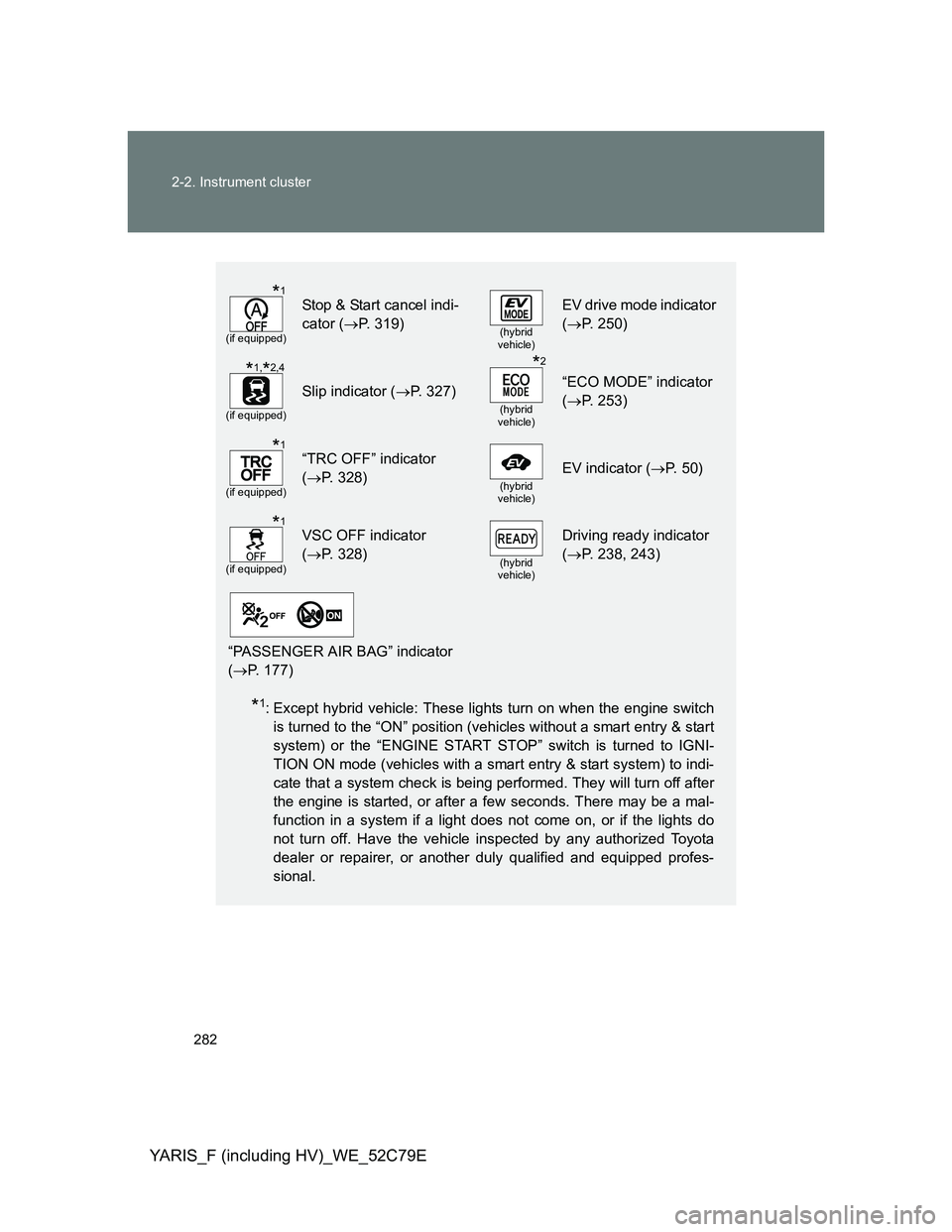

282 2-2. Instrument cluster
YARIS_F (including HV)_WE_52C79E
*1: Except hybrid vehicle: These lights turn on when the engine switch
is turned to the “ON” position (vehicles without a smart entry & start
system) or the “ENGINE START STOP” switch is turned to IGNI-
TION ON mode (vehicles with a smart entry & start system) to indi-
cate that a system check is being performed. They will turn off after
the engine is started, or after a few seconds. There may be a mal-
function in a system if a light does not come on, or if the lights do
not turn off. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
*1
(if equipped)
Stop & Start cancel indi-
cator (P. 319)
(hybrid
vehicle)
EV drive mode indicator
(P. 250)
*1,*2,4
(if equipped)
Slip indicator (P. 327)
*2
(hybrid
vehicle)
“ECO MODE” indicator
(P. 253)
*1
(if equipped)
“TRC OFF” indicator
(P. 328)
(hybrid
vehicle)
EV indicator (P. 50)
*1
(if equipped)
VSC OFF indicator
(P. 328)
(hybrid
vehicle)
Driving ready indicator
(P. 238, 243)
“PASSENGER AIR BAG” indicator
(P. 177)

283 2-2. Instrument cluster
2
When driving
YARIS_F (including HV)_WE_52C79E
*2: Hybrid vehicle: These lights turn on when the engine switch is
turned to the “ON” position (vehicles without an electronic key) or
the “POWER” switch is turned to ON mode (vehicles with an elec-
tronic key) to indicate that a system check is being performed. They
will turn off after the hybrid system on, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
*3: The light turns on when the engine coolant temperature is low.
*4: The light flashes to indicate that the system is operating.
Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. (P. 565)
(red)(if equipped)
(if equipped)(yellow:
hybrid
vehicle)(if equipped)(if equipped)(diesel
engine)(if equipped)(if equipped)
(if equipped)(diesel
engine)(diesel
engine)(hybrid
vehicle)(hybrid
vehicle)
(hybrid
vehicle)(hybrid
vehicle)
*1,*2*1,*2*1,*2*1,*2*1*1,*2*1,*2*1,*2
*1,*2*1,*2,6*2*5,*7*1,5*1*3*4
*1*1*2*2
*2*2

284 2-2. Instrument cluster
YARIS_F (including HV)_WE_52C79E
*1: Except hybrid vehicle: These lights turn on when the engine switch
is turned to the “ON” position (vehicles without a smart entry & start
system) or the “ENGINE START STOP” switch is turned to IGNI-
TION ON mode (vehicles with a smart entry & start system) to indi-
cate that a system check is being performed. They will turn off after
the engine is started, or after a few seconds. There may be a mal-
function in a system if a light does not come on, or if the lights do
not turn off. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
*2: Hybrid vehicle: These lights turn on when the engine switch is
turned to the “ON” position (vehicles without an electronic key) or
the “POWER” switch is turned to ON mode (vehicles with an elec-
tronic key) to indicate that a system check is being performed. They
will turn off after the hybrid system on, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or if
the lights do not turn off. Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another duly qualified and
equipped professional.
*3: These lights turn on when the engine switch is turned to the “ON”
position (vehicles without a smart entry & start system) or the
“ENGINE START STOP” switch is turned to IGNITION ON mode
(vehicles with a smart entry & start system) to indicate that a system
check is being performed. They will turn off after the engine is
started, or after a few seconds.
*4: The light flashes in yellow to indicate a malfunction. The light
flashes quickly in green to indicate that the steering lock has not
been released.
*5: Except hybrid vehicle: The light flashes to indicate a malfunction.
*6: The light turns on to indicate a malfunction.
*7: Hybrid vehicle: The light comes in yellow to indicate a malfunction.

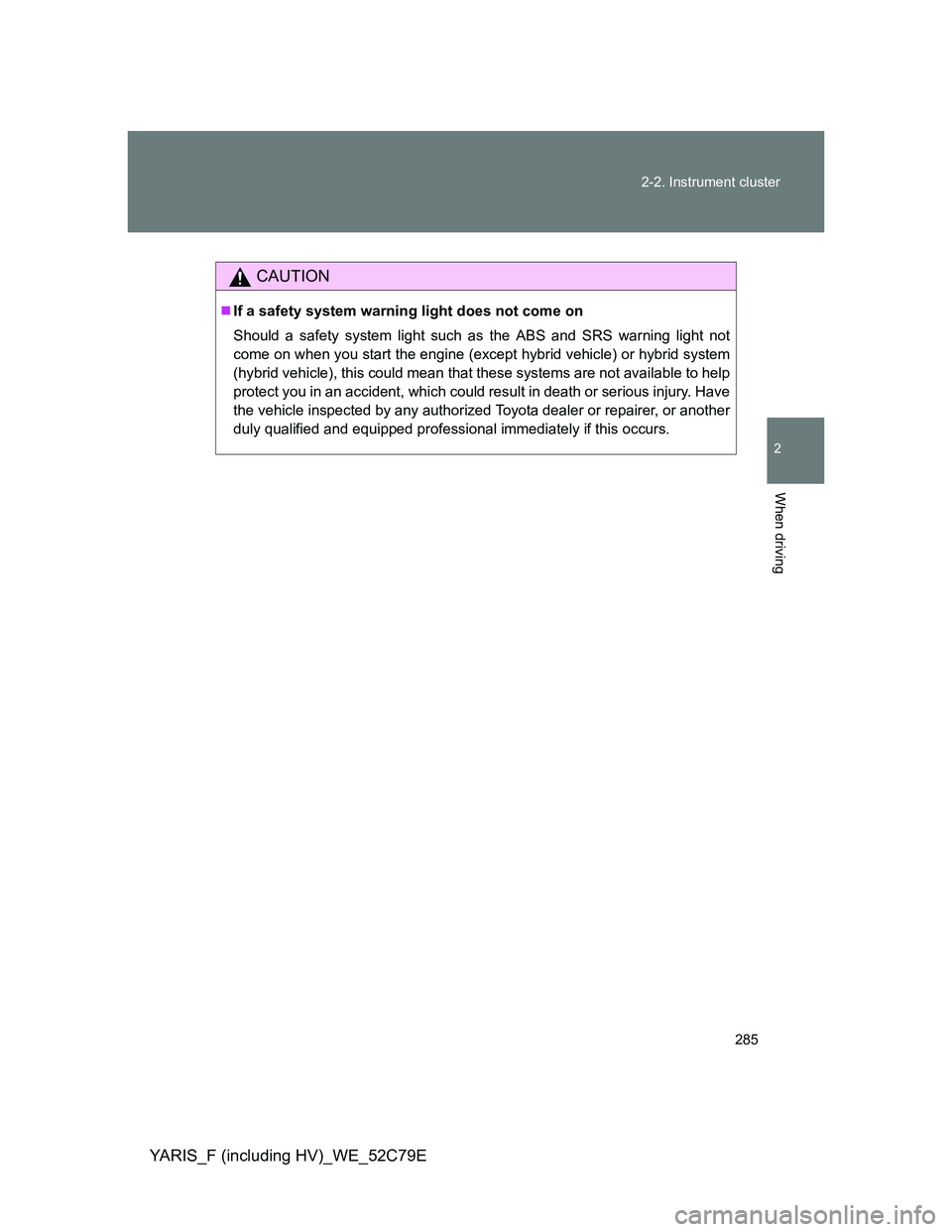

285 2-2. Instrument cluster
2
When driving
YARIS_F (including HV)_WE_52C79E
CAUTION
If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the engine (except hybrid vehicle) or hybrid system
(hybrid vehicle), this could mean that these systems are not available to help
protect you in an accident, which could result in death or serious injury. Have
the vehicle inspected by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional immediately if this occurs.

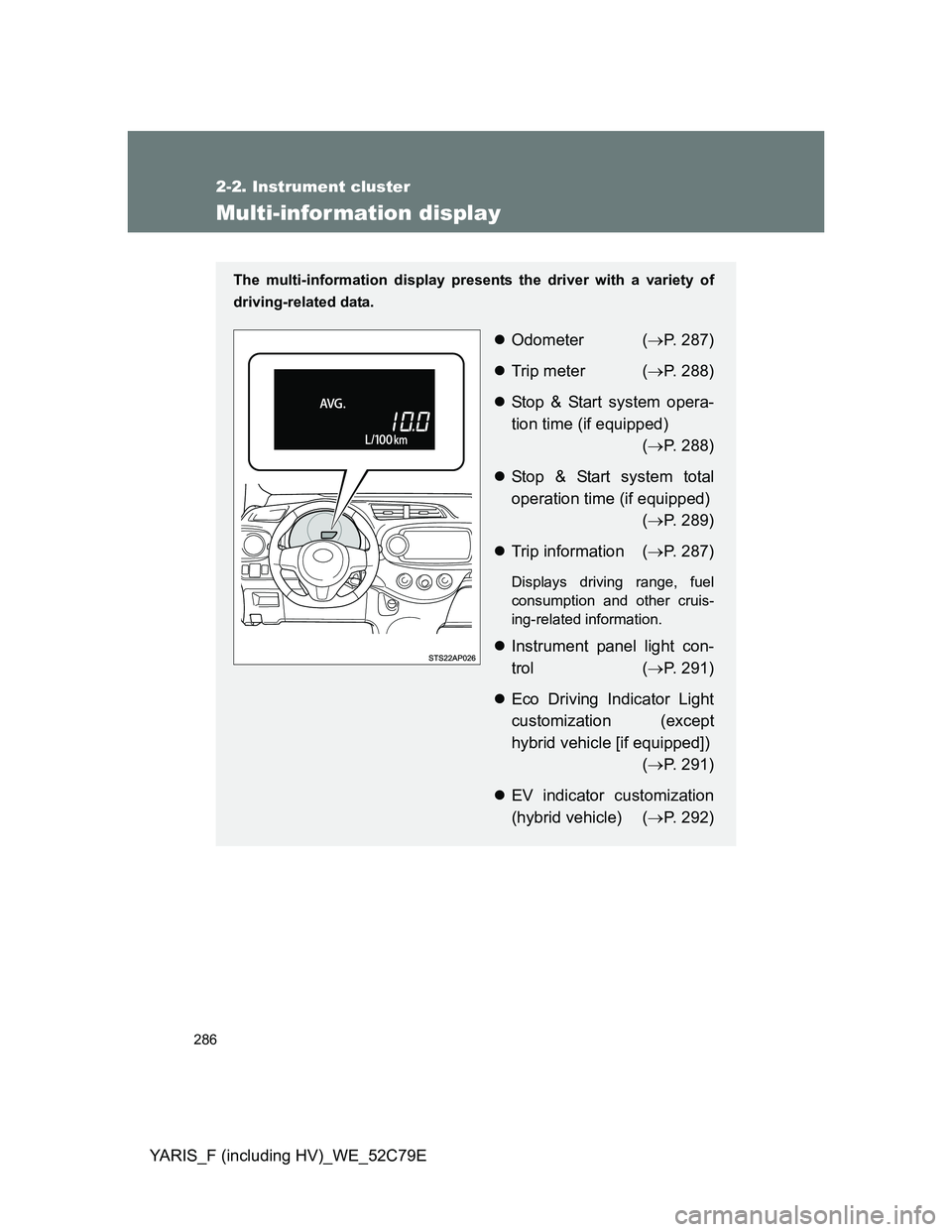

286
2-2. Instrument cluster
YARIS_F (including HV)_WE_52C79E
Multi-infor mation display
The multi-information display presents the driver with a variety of
driving-related data.
Odometer (P. 287)
Trip meter (P. 288)
Stop & Start system opera-
tion time (if equipped)
(P. 288)
Stop & Start system total
operation time (if equipped)
(P. 289)
Trip information (P. 287)
Displays driving range, fuel
consumption and other cruis-
ing-related information.
Instrument panel light con-
trol (P. 291)
Eco Driving Indicator Light
customization (except
hybrid vehicle [if equipped])
(P. 291)
EV indicator customization
(hybrid vehicle) (P. 292)

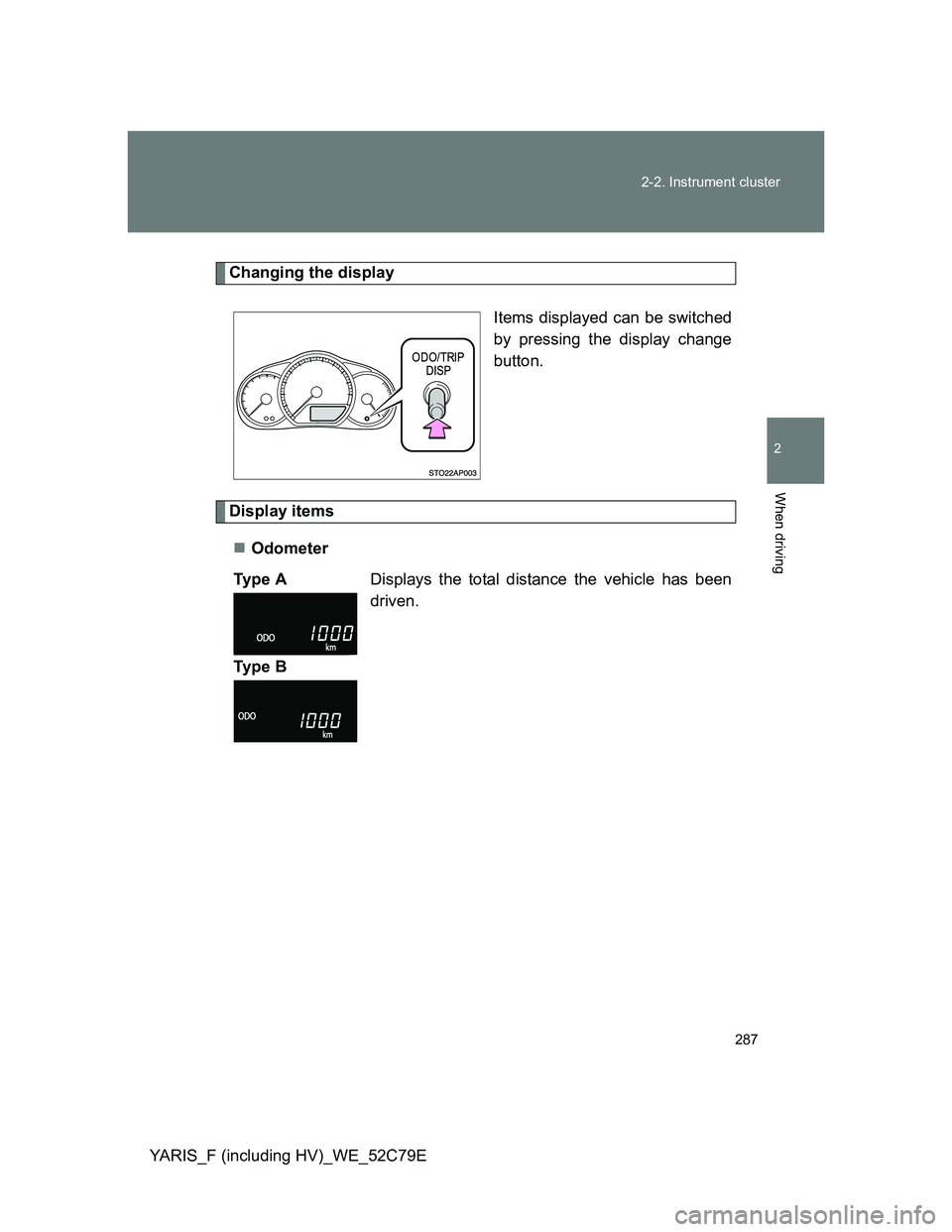

287 2-2. Instrument cluster
2
When driving
YARIS_F (including HV)_WE_52C79E
Changing the display
Items displayed can be switched
by pressing the display change
button.
Display items
Odometer
Ty p e ADisplays the total distance the vehicle has been
driven.
Ty p e B

288 2-2. Instrument cluster
YARIS_F (including HV)_WE_52C79ETr ip m eter
Stop & Start system operation time (if equipped) Ty p e ADisplays the distance the vehicle has been driven
since the meter was last reset. Trip meters A and
B can be used to record and display different dis-
tances independently.
Pressing and holding the display change button will
reset the trip meter that is currently displayed.
Ty p e B
Ty p e C
Ty p e ADisplays the amount of time the engine was
stopped due to operation of the Stop & Start sys-
tem during the current trip.
Vehicles without a smart entry & start system:
From the engine switch in the “ON” position to the
engine switch in the “LOCK” position.
Vehicles with a smart entry & start system:
From the “ENGINE START STOP” switch in IGNI-
TION ON mode to the “ENGINE START STOP”
switch off. Ty p e B
