2012 TOYOTA YARIS HYBRID Owners Manual

193 1-8. Safety information
1
Before driving

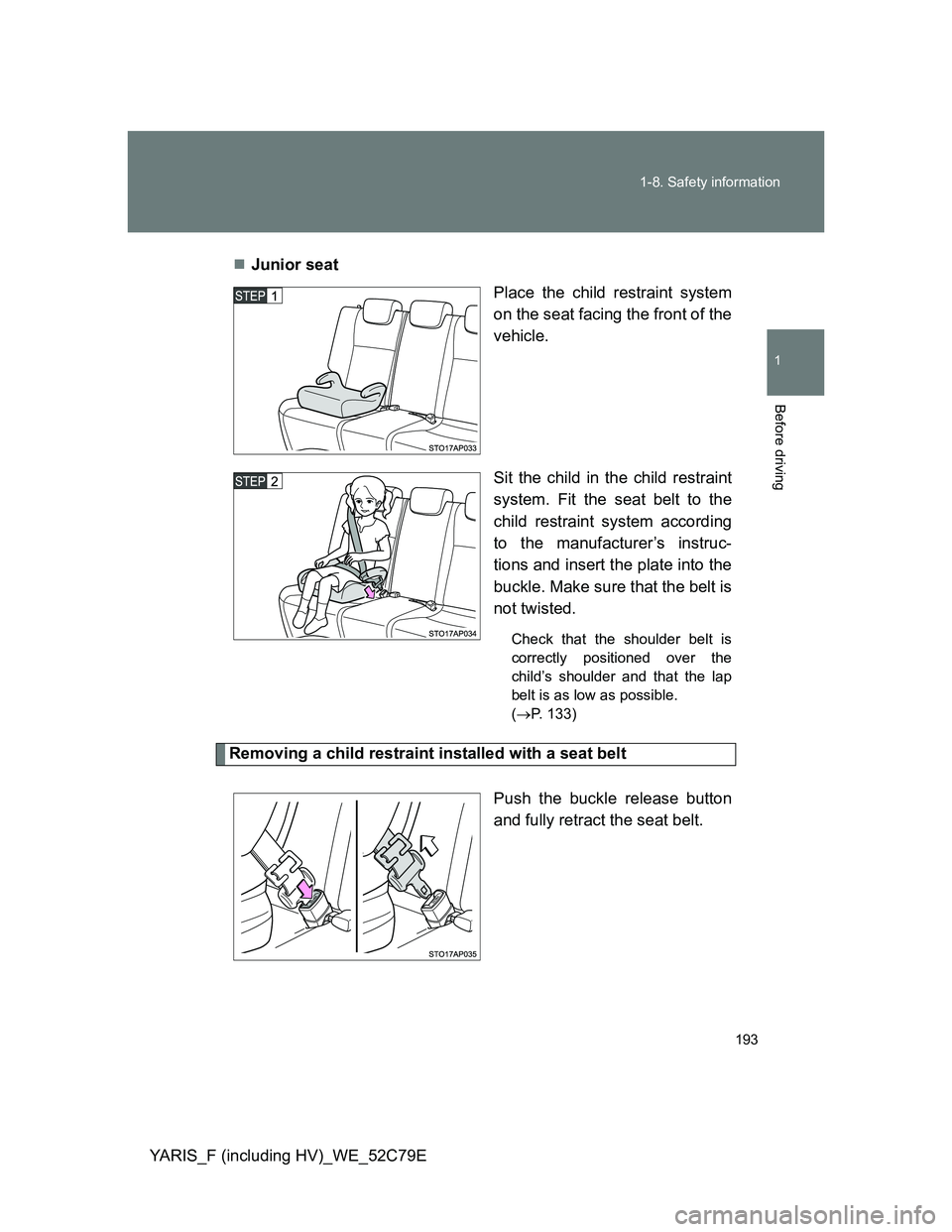

YARIS_F (including HV)_WE_52C79EJunior seat
Place the child restraint system
on the seat facing the front of the
vehicle.
Sit the child in the child restraint
system. Fit the seat belt to the
child restraint system according
to the manufacturer’s instruc-
tions and insert the plate into the
buckle. Make sure that the belt is
not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder and that the lap
belt is as low as possible.
(P. 133)
Removing a child restraint installed with a seat belt
Push the buckle release button
and fully retract the seat belt.

194 1-8. Safety information
YARIS_F (including HV)_WE_52C79E

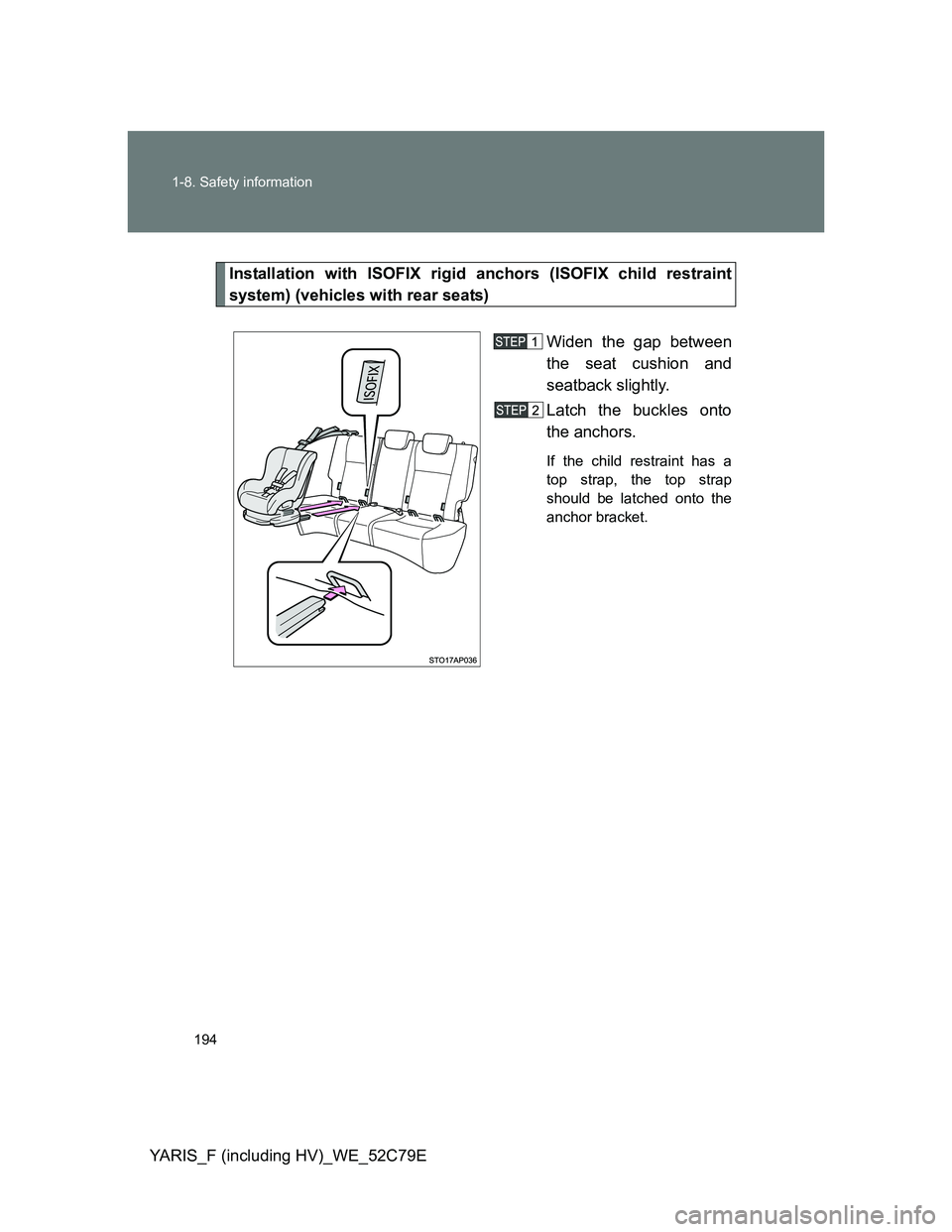

Installation with ISOFIX rigid anchors (ISOFIX child restraint
system) (vehicles with rear seats)
Widen the gap between
the seat cushion and
seatback slightly.
Latch the buckles onto
the anchors.
If the child restraint has a
top strap, the top strap
should be latched onto the
anchor bracket.

195 1-8. Safety information
1
Before driving
YARIS_F (including HV)_WE_52C79E

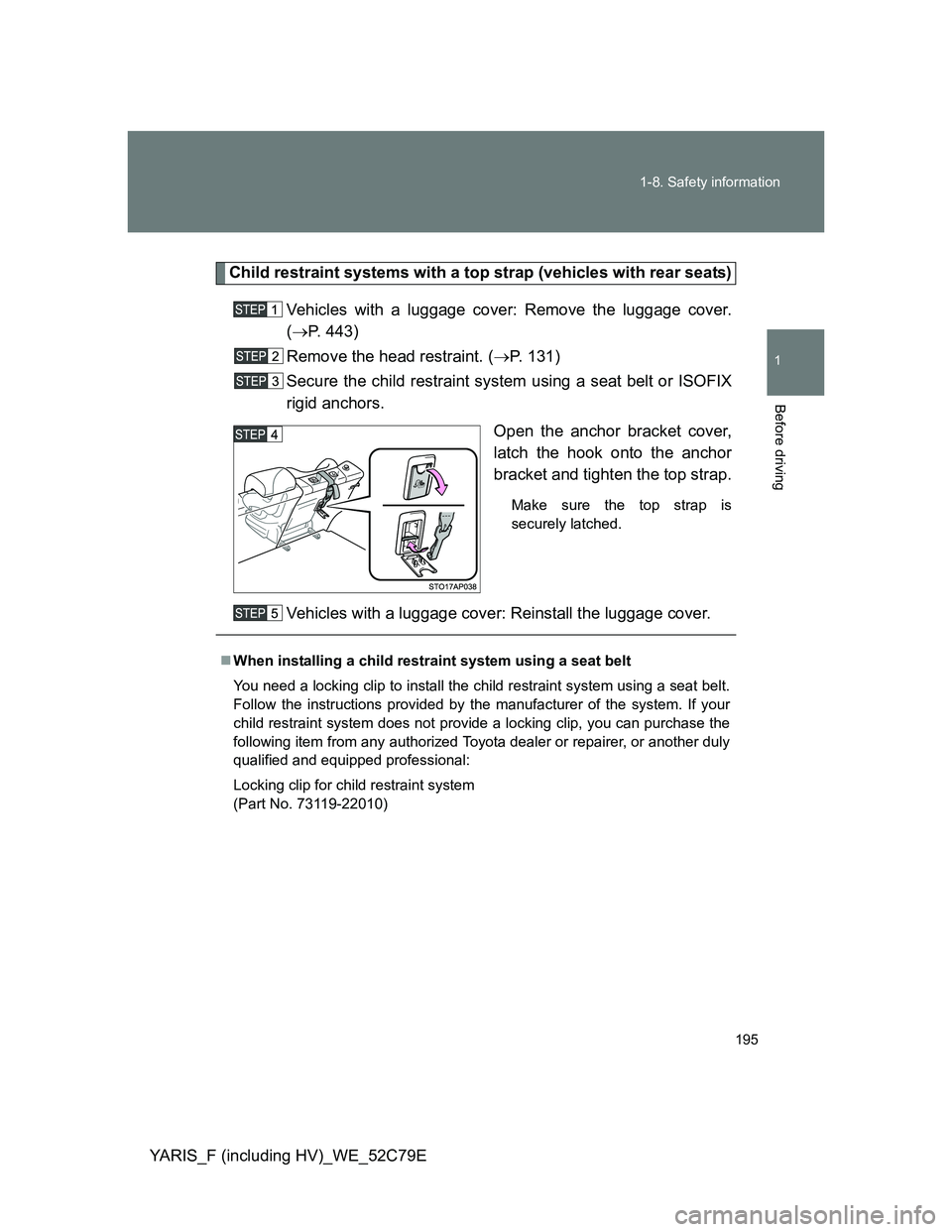

Child restraint systems with a top strap (vehicles with rear seats)
Vehicles with a luggage cover: Remove the luggage cover.
(P. 443)
Remove the head restraint. (P. 131)
Secure the child restraint system using a seat belt or ISOFIX
rigid anchors.
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top strap.
Make sure the top strap is
securely latched.
Vehicles with a luggage cover: Reinstall the luggage cover.
When installing a child restraint system using a seat belt
You need a locking clip to install the child restraint system using a seat belt.
Follow the instructions provided by the manufacturer of the system. If your
child restraint system does not provide a locking clip, you can purchase the
following item from any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional:
Locking clip for child restraint system
(Part No. 73119-22010)

196 1-8. Safety information
YARIS_F (including HV)_WE_52C79E

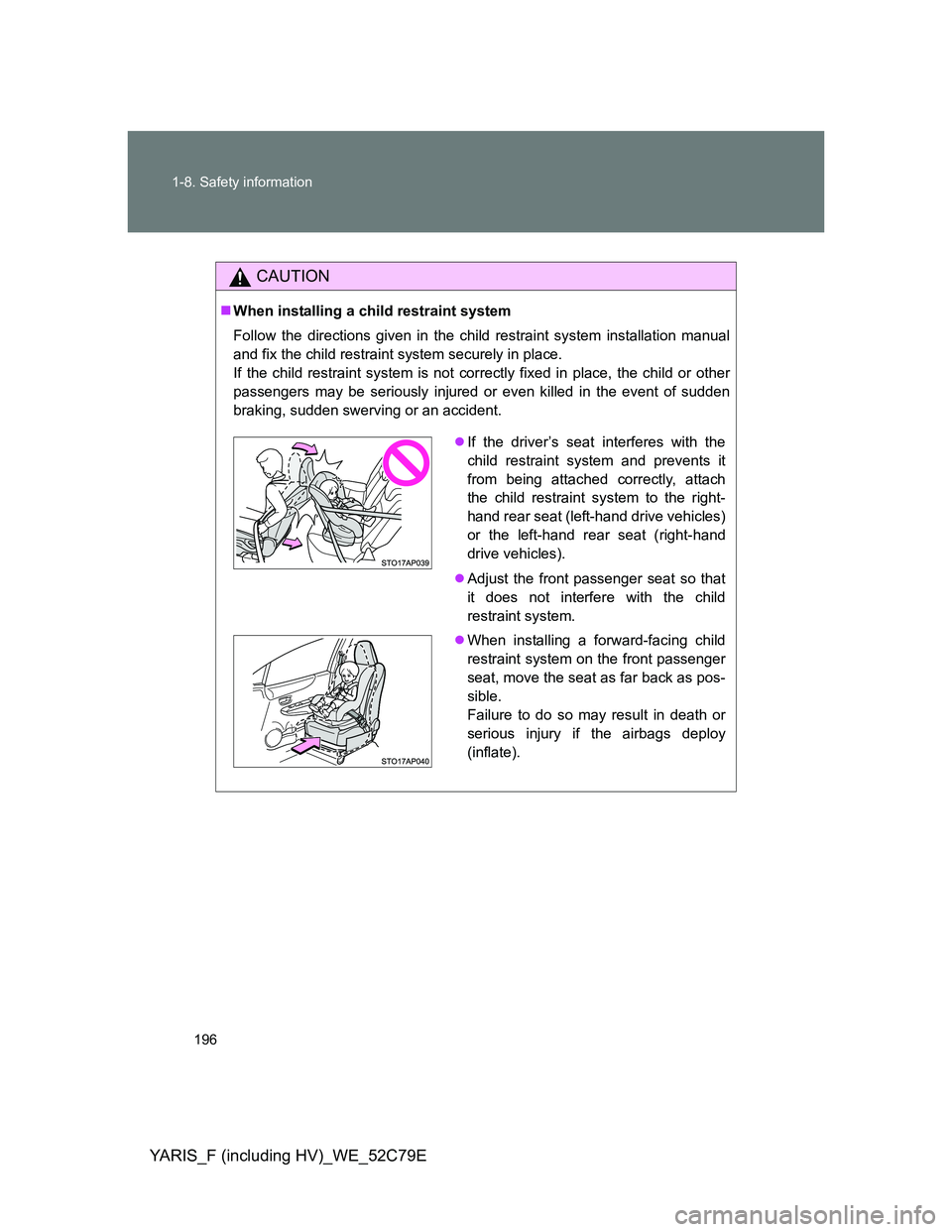

CAUTION
When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving or an accident.
If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the right-
hand rear seat (left-hand drive vehicles)
or the left-hand rear seat (right-hand
drive vehicles).
Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
When installing a forward-facing child
restraint system on the front passenger
seat, move the seat as far back as pos-
sible.
Failure to do so may result in death or
serious injury if the airbags deploy
(inflate).

197 1-8. Safety information
1
Before driving
YARIS_F (including HV)_WE_52C79E

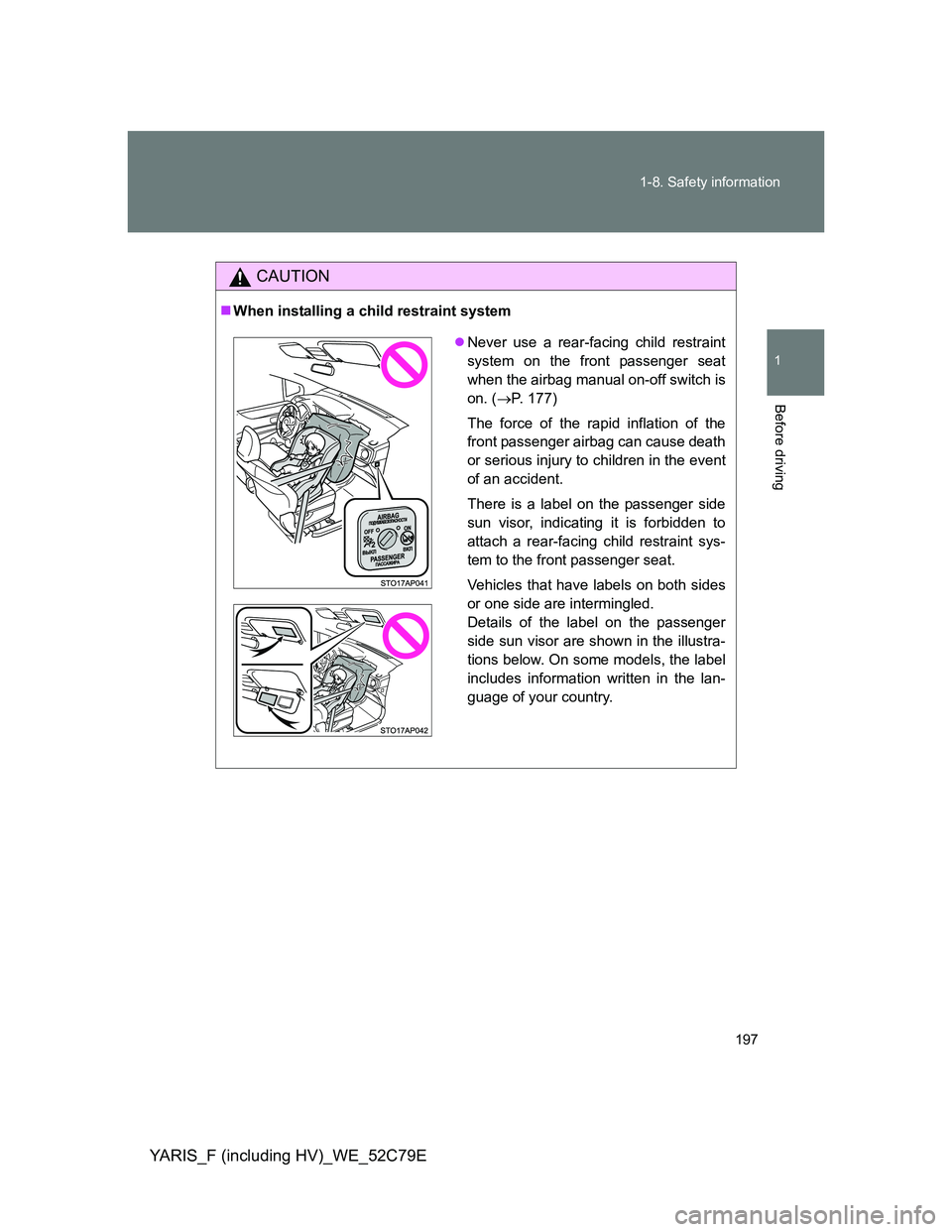

CAUTION
When installing a child restraint system
Never use a rear-facing child restraint
system on the front passenger seat
when the airbag manual on-off switch is
on. (P. 177)
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.
There is a label on the passenger side
sun visor, indicating it is forbidden to
attach a rear-facing child restraint sys-
tem to the front passenger seat.
Vehicles that have labels on both sides
or one side are intermingled.
Details of the label on the passenger
side sun visor are shown in the illustra-
tions below. On some models, the label
includes information written in the lan-
guage of your country.

198 1-8. Safety information
YARIS_F (including HV)_WE_52C79E

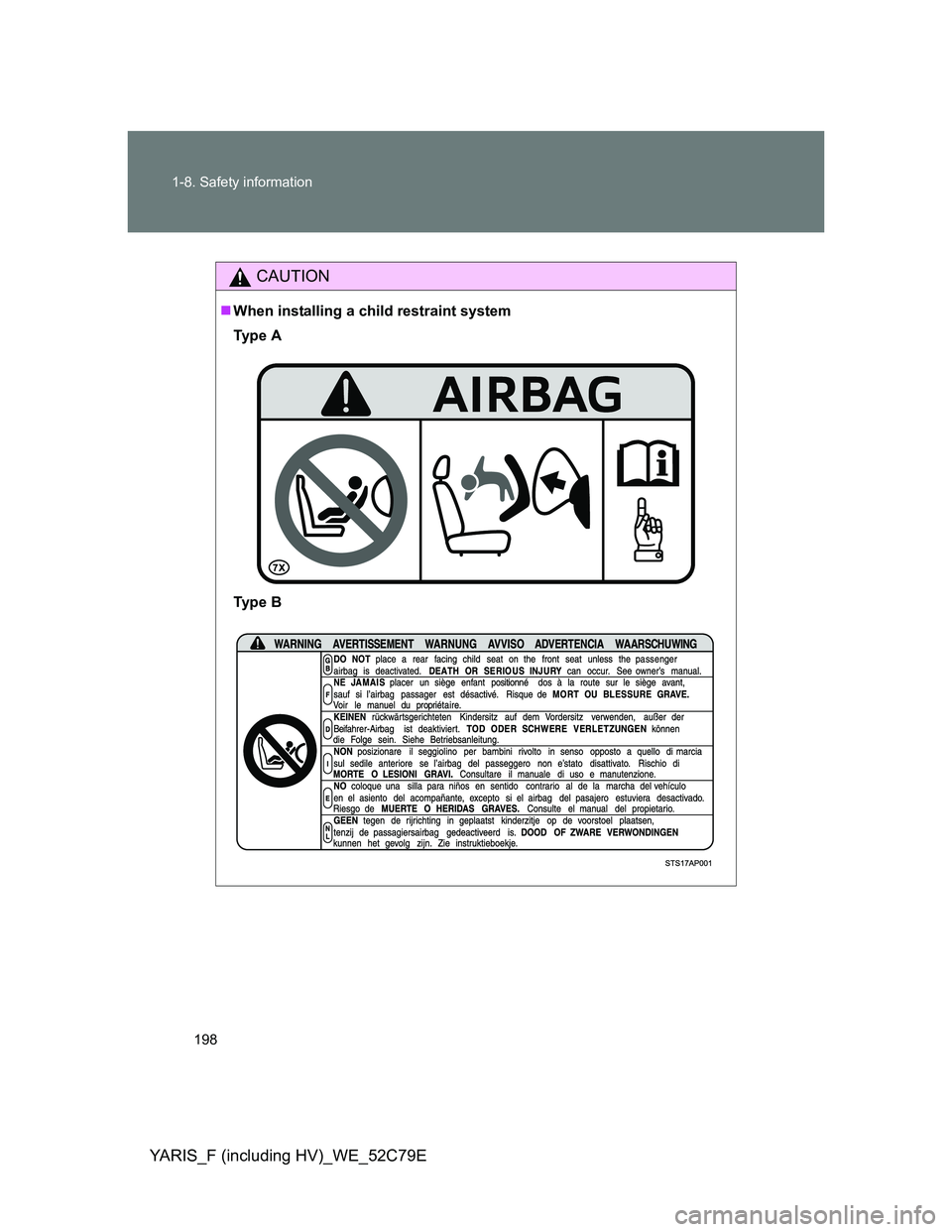

CAUTION
When installing a child restraint system
Ty p e A
Ty p e B

199 1-8. Safety information
1
Before driving
YARIS_F (including HV)_WE_52C79E
CAUTION
When installing a child restraint system
Ty p e C
Ty p e D

200 1-8. Safety information
YARIS_F (including HV)_WE_52C79E

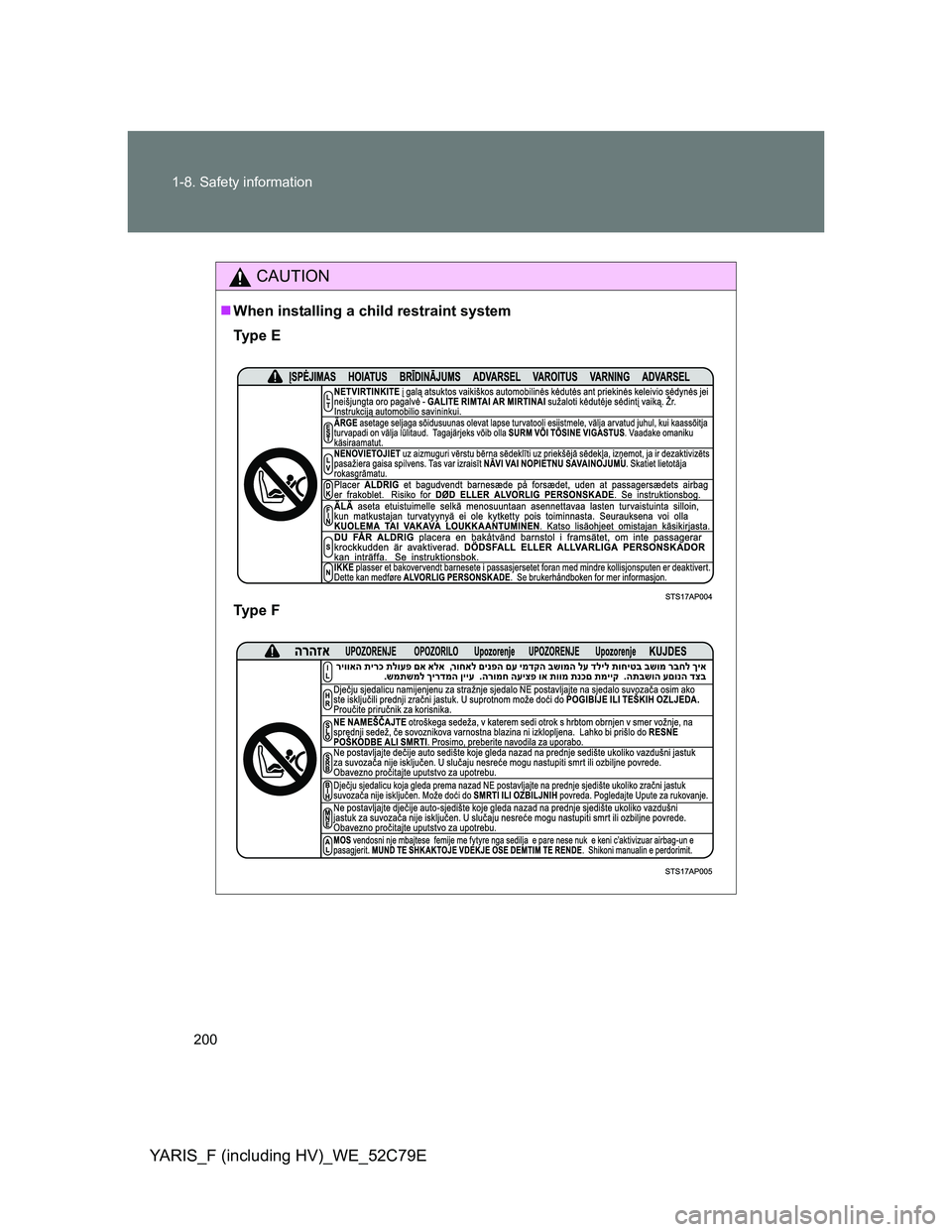

CAUTION
When installing a child restraint system
Ty p e E
Ty p e F
